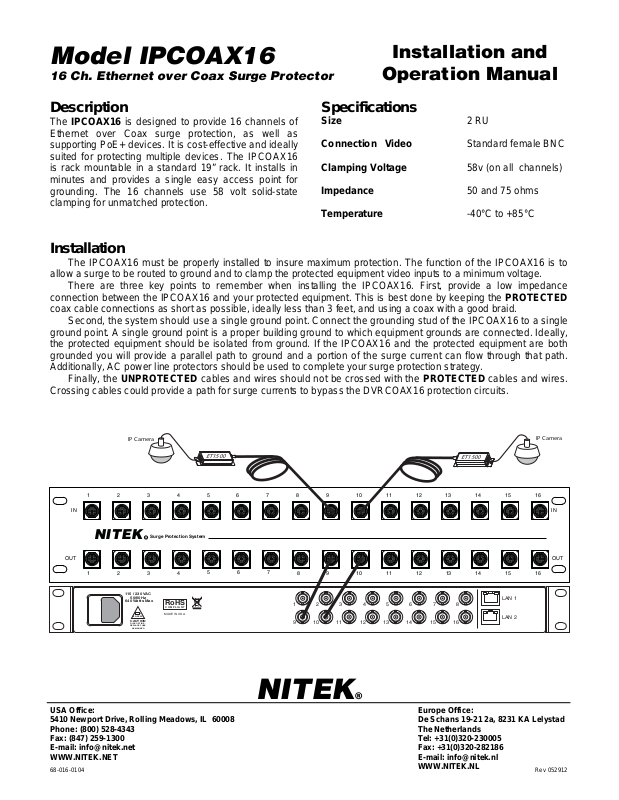

Nitek IPCOAX16 User Manual
Model IPCOAX16
16 Ch. Ethernet over Coax Surge Protector
Installation and
Operation Manual
Description
The IPCOAX16 is designed to provide 16 channels of
Ethernet over Coax surge protection, as well as
supporting PoE+ devices. It is cost-effective and ideally
suited for protecting multiple devices. The IPCOAX16
is rack mountable in a standard 19” rack. It installs in
minutes and provides a single easy access point for
grounding. The 16 channels use 58 volt solid-state
clamping for unmatched protection.
Specifications
Size 2 RU
Connection Video Standard female BNC
Clamping Voltage 58v (on all channels)
Impedance 50 and 75 ohms
Temperature -40°C to +85°C
Installation
The IPCOAX16 must be properly installed to insure maximum protection. The function of the IPCOAX16 is to
allow a surge to be routed to ground and to clamp the protected equipment video inputs to a minimum voltage.
There are three key points to remember when installing the IPCOAX16. First, provide a low impedance
connection between the IPCOAX16 and your protected equipment. This is best done by keeping the PROTECTED
coax cable connections as short as possible, ideally less than 3 feet, and using a coax with a good braid.
Second, the system should use a single ground point. Connect the grounding stud of the IPCOAX16 to a single
ground point. A single ground point is a proper building ground to which equipment grounds are connected. Ideally,
the protected equipment should be isolated from ground. If the IPCOAX16 and the protected equipment are both
grounded you will provide a parallel path to ground and a portion of the surge current can flow through that path.
Additionally, AC power line protectors should be used to complete your surge protection strategy.
Finally, the UNPROTECTED cables and wires should not be crossed with the PROTECTED cables and wires.
Crossing cables could provide a path for surge currents to bypass the DVRCOAX16 protection circuits.
IP Camera
ET1500
3
IN
OUT
2
1
NITEK
2
1
115 / 230 VAC
50/60Hz
640 Watts Max
8A 250V
CAUTION
RISK OF FIRE REPLACE FUSE
AS MARKED
R
4
Surge Protection System
3
4
RoHS
COMPLIANT
MADE IN U.S.A.
USA Office:
5410 Newport Drive, Rolling Meadows, IL 60008
Phone: (800) 528-4343
Fax: (847) 259-1300
E-mail: info@nitek.net
WWW.NITEK.NET
68-016-0104
7
65
65
89
7
89
12345678
910111213141516
NITEK®
IP Camera
ET1500
14
10
11 12
10
11 12
13
13
15
16
IN
OUT
14
15
16
LAN 1
LAN 2
Europe Office:
De Schans 19-21 2a, 8231 KA Lelystad
The Netherlands
Tel: +31(0)320-230005
Fax: +31(0)320-282186
E-mail: info@nitek.nl
WWW.NITEK.NL
Rev 052912
