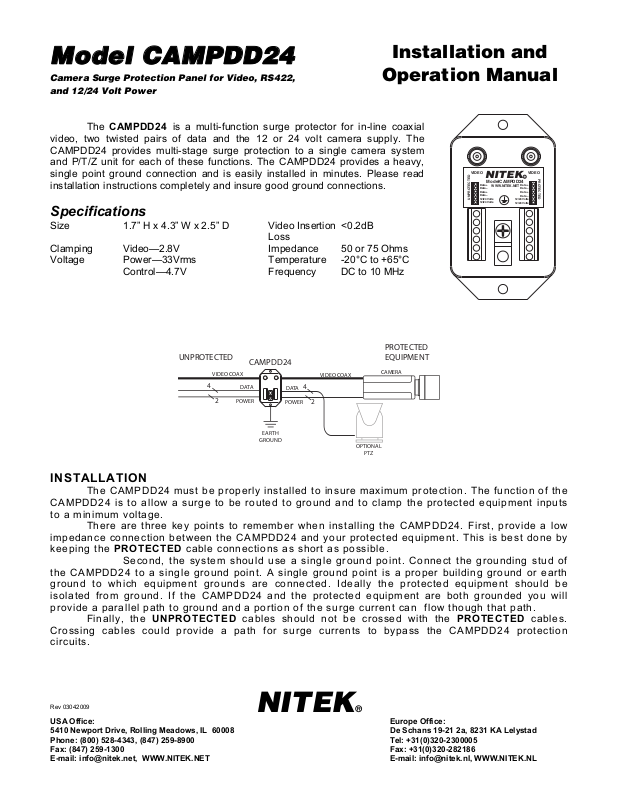

Model CAMPDD24

Camera Surge Protection Panel for Video, RS422,

Installation and

Operation Manual

and 12/24 Volt Power

The CAMPDD24 is a multi-function surge protector for in-line coaxial
video, two twisted pairs of data and the 12 or 24 volt camera supply. The
CAMPDD24 provides multi-stage surge protection to a single camera system
and P/T/Z unit for each of these functions. The CAMPDD24 provides a heavy,
single point ground connection and is easily installed in minutes. Please read
installation instructions completely and insure good ground connections.

Specifications

Size 1.7” H x 4.3” W x 2.5” D Video Insertion <0.2dB
Loss
Clamping Video—2.8V Impedance 50 or 75 Ohms
Voltage Power—33Vrms Temperature -20°C to +65°C
Control—4.7V Frequency DC to 10 MHz

PROTECTED

UNPROTECTED

VIDEO COAX

4

2

CAMPDD24

DATA

POWER

DATA

POWER

VIDEO COAX

4

2

EQUIPMENT

CAMERA

VIDEO

UNPROTECTED

Data +
Data
Data +
Data
12/24 Volts
12/24 Volts

NITEK

Model CAMPDD24

WWW.NITEK.NET

-

-

Data +
Data
Data +

Data
12/24 Volts
12/24 Volts

VIDEO

R

PROTECTED

-

-

EARTH

GROUND

OPTIONAL

PTZ

INSTALLATION

The CAMPDD24 must be properly installed to insure maximum protection. The function of the
CAMPDD24 is to allow a surge to be routed to ground and to clamp the protected equipment inputs
to a minimum voltage.
There are three key points to remember when installing the CAMPDD24. First, provide a low
impedance connection between the CAMPDD24 and your protected equipment. This is best done by
keeping the PROTECTED cable connections as short as possible.
Second, the system should use a single ground point. Connect the grounding stud of
the CAMPDD24 to a single ground point. A single ground point is a proper building ground or earth
ground to which equipment grounds are connected. Ideally the protected equipment should be
isolated from ground. If the CAMPDD24 and the protected equipment are both grounded you will
provide a parallel path to ground and a portion of the surge current can flow though that path.
Finally, the UNPROTECTED cables should not be crossed with the PROTECTED cables.
Crossing cables could provide a path for surge currents to bypass the CAMPDD24 protection
circuits.

Rev 03042009
