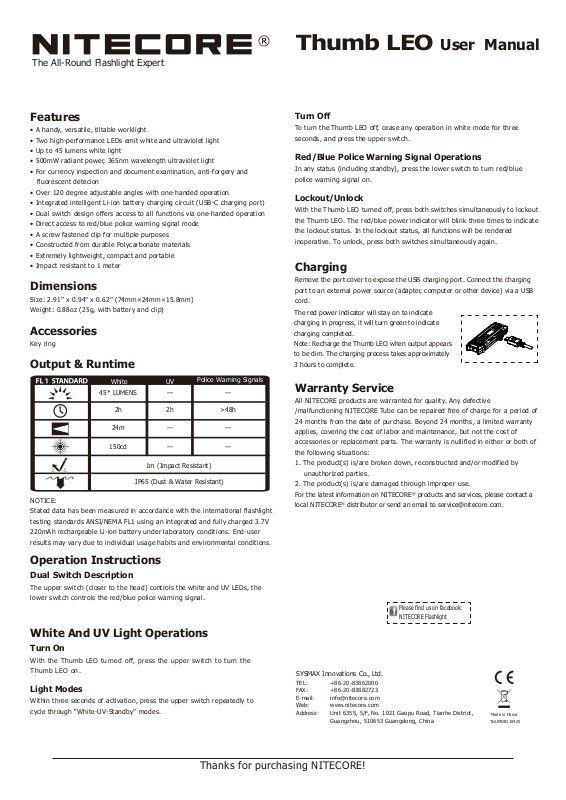

Page 1
The All-Round Flashlight Expert
®
Thumb LEO
User Manual
Features
• A handy, versatile, tiltable worklight
• Two high-performance LEDs emit white and ultraviolet light
• Up to 45 lumens white light
• 500mW radiant power, 365nm wavelength ultraviolet light
• For currency inspection and document examination, anti-forgery and
fluorescent detecion
• Over 120 degree adjustable angles with one-handed operation
• Integrated intelligent Li-ion battery charging circuit (USB-C charging port)
• Dual switch design offers access to all functions via one-handed operation
• Direct access to red/blue police warning signal mode
• A screw fastened clip for multiple purposes
• Constructed from durable Polycarbonate materials
• Extremely lightweight, compact and portable
• Impact resistant to 1 meter
Dimensions
Size: 2.91” x 0.94” x 0.62” (74mm×24mm×15.8mm)
Weight: 0.88oz (25g, with battery and clip)
Accessories
Key ring
Output & Runtime
White
45*
LUMENS
24m
150cd
IP65 (Dust & Water Resistant)
NOTICE:
Stated data has been measured in accordance with the international flashlight
testing standards ANSI/NEMA FL1 using an integrated and fully charged 3.7V
220mAh rechargeable Li-ion battery under laboratory conditions. End-user
results may vary due to individual usage habits and environmental conditions.
UV
— —
2h >48h2h
— —
— —
1m (Impact Resistant)
Police Warning Signals
Turn Off
To turn the Thumb LEO off, cease any operation in white mode for three
seconds, and press the upper switch.
Red/Blue Police Warning Signal Operations
In any status (including standby), press the lower switch to turn red/blue
police warning signal on.
Lockout/Unlock
With the Thumb LEO turned off, press both switches simultaneously to lockout
the Thumb LEO. The red/blue power indicator will blink three times to indicate
the lockout status. In the lockout status, all functions will be rendered
inoperative. To unlock, press both switches simultaneously again.
Charging
Remove the port cover to expose the USB charging port. Connect the charging
port to an external power source (adapter, computer or other device) via a USB
cord.
The red power indicator will stay on to indicate
charging in progress, it will turn green to indicate
charging completed.
Note: Recharge the Thumb LEO when output appears
to be dim. The charging process takes approximately
3 hours to complete.
Warranty Service
All NITECORE products are warranted for quality. Any defective
/malfunctioning NITECORE Tube can be repaired free of charge for a period of
24 months from the date of purchase. Beyond 24 months, a limited warranty
applies, covering the cost of labor and maintenance, but not the cost of
accessories or replacement parts. The warranty is nullified in either or both of
the following situations:
1. The product(s) is/are broken down, reconstructed and/or modified by
unauthorized parties.
2. The product(s) is/are damaged through improper use.
For the latest information on NITECORE
local NITECORE
®
distributor or send an email to [email protected].
®
products and services, please contact a
Operation Instructions
Dual Switch Description
The upper switch (closer to the head) controls the white and UV LEDs, the
lower switch controls the red/blue police warning signal.
White And UV Light Operations
Turn On
With the Thumb LEO turned off, press the upper switch to turn the
Thumb LEO on.
Light Modes
Within three seconds of activation, press the upper switch repeatedly to
cycle through “White-UV-Standby” modes.
Thanks for purchasing NITECORE!
Please find us on facebook:
NITECORE Flashlight
SYSMAX Innovations Co., Ltd.
TEL: +86-20-83862000
FAX: +86-20-83882723
E-mail: [email protected]
Web: www.nitecore.com
Address： Unit 6355, 5/F, No. 1021 Gaopu Road, Tianhe District,
Guangzhou, 510653 Guangdong, China
Made in China
