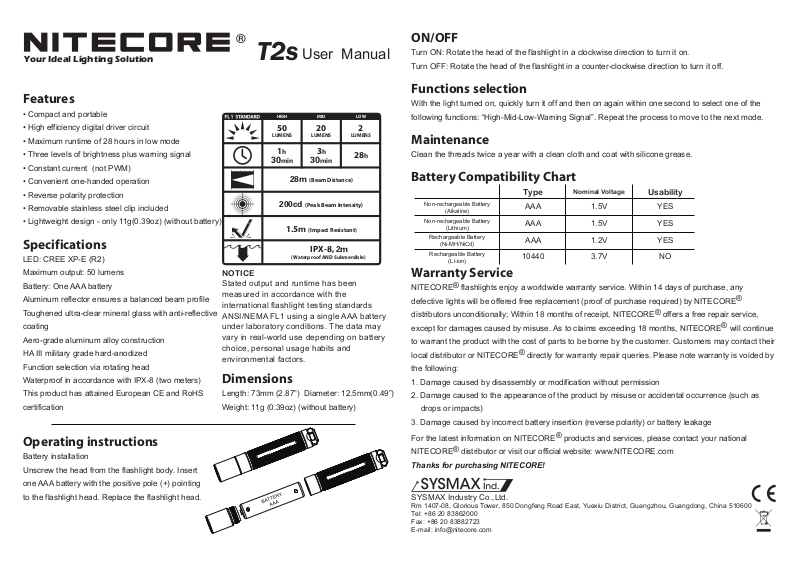

NITECORE T2s User Manual
Your Ideal Lighting Solution
®
T2s
User Manual
ON/OFF
Turn ON: Rotate the head of the flashlight in a clockwise direction to turn it on.
Turn OFF: Rotate the head of the flashlight in a counter-clockwise direction to turn it off.
Features
• Compact and portable
• High efficiency digital driver circuit
• Maximum runtime of 28 hours in low mode
• Three levels of brightness plus warning signal
• Constant current (not PWM)
• Convenient one-handed operation
• Reverse polarity protection
• Removable stainless steel clip included
• Lightweight design - only 11g(0.39oz) (without battery)
Specifications
LED: CREE XP-E (R2)
Maximum output: 50 lumens
Battery: One AAA battery
Aluminum reflector ensures a balanced beam profile
Toughened ultra-clear mineral glass with anti-reflective
coating
Aero-grade aluminum alloy construction
HA III military grade hard-anodized
Function selection via rotating head
Waterproof in accordance with IPX-8 (two meters)
This product has attained European CE and RoHS
certification
Operating instructions
Battery installation
Unscrew the head from the flashlight body. Insert
one AAA battery with the positive pole (+) pointing
to the flashlight head. Replace the flashlight head.
HIGH MID LOW
50
LUMENS20LUMENS2LUMENS
1h
30min3h30min
28m (Beam Distance)
200cd (Peak Beam Intensity)
28h
1.5m (Impact Resistant)
IPX-8, 2m
(Waterproof AND Submersible)
NOTICE
Stated output and runtime has been
measured in accordance with the
international flashlight testing standards
ANSI/NEMA FL1 using a single AAA battery
under laboratory conditions. The data may
vary in real-world use depending on battery
choice, personal usage habits and
environmental factors.
Dimensions
Length: 73mm (2.87”) Diameter: 12.5mm(0.49”)
Weight: 11g (0.39oz) (without battery)
Functions selection
With the light turned on, quickly turn it off and then on again within one second to select one of the
following functions: “High-Mid-Low-Warning Signal”. Repeat the process to move to the next mode.
Maintenance
Clean the threads twice a year with a clean cloth and coat with silicone grease.
Battery Compatibility Chart
Non-rechargeable Battery
(Alkaline)
Non-rechargeable Battery
(Lithium)
Rechargeable Battery
(Ni-MH/NiCd)
Rechargeable Battery
(Li-ion)
Type
AAA 1.5V YES
AAA 1.5V YES
AAA 1.2V YES
10440 3.7V
Nominal Voltage
Usability
NO
Warranty Service
NITECORE® flashlights enjoy a worldwide warranty service. Within 14 days of purchase, any
defective lights will be offered free replacement (proof of purchase required) by NITECORE®
distributors unconditionally; Within 18 months of receipt, NITECORE® offers a free repair service,
except for damages caused by misuse. As to claims exceeding 18 months, NITECORE® will continue
to warrant the product with the cost of parts to be borne by the customer. Customers may contact their
local distributor or NITECORE® directly for warranty repair queries. Please note warranty is voided by
the following:
1. Damage caused by disassembly or modification without permission
2. Damage caused to the appearance of the product by misuse or accidental occurrence (such as
drops or impacts)
3. Damage caused by incorrect battery insertion (reverse polarity) or battery leakage
For the latest information on NITECORE® products and services, please contact your national
NITECORE® distributor or visit our official website: www.NITECORE.com
Thanks for purchasing NITECORE!
SYSMAX Industry Co.,Ltd.
Rm 1407-08, Glorious Tower, 850 Dongfeng Road East, Yuexiu District, Guangzhou, Guangdong, China 510600
Tel: +86 20 83862000
Fax: +86 20 83882723
E-mail: info@nitecore.com
