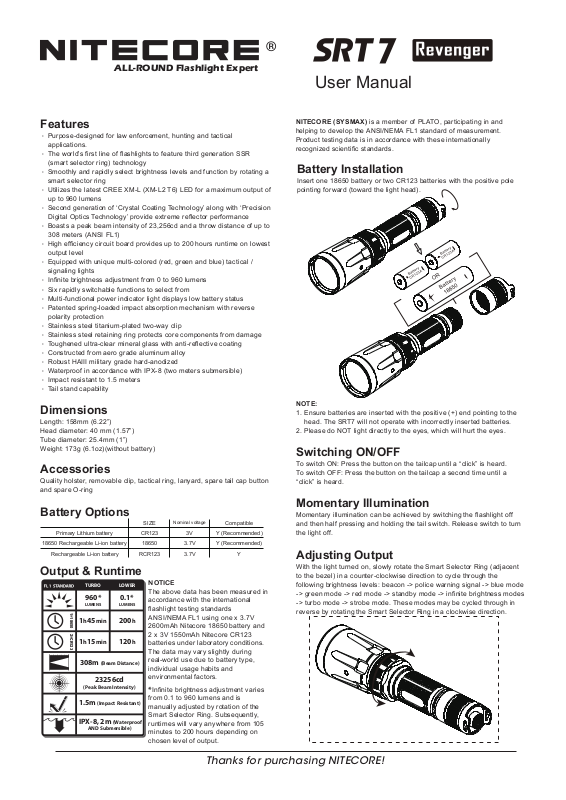

NITECORE SRT7 User Manual

ALL-ROUND Flashlight Expert
®
User Manual
Features
· Purpose-designed for law enforcement, hunting and tactical
applications.
· The world’s first line of flashlights to feature third generation SSR
(smart selector ring) technology
· Smoothly and rapidly select brightness levels and function by rotating a
smart selector ring
up to 960 lumens
· Second generation of ‘Crystal Coating Technology’ along with ‘Precision
Digital Optics Technology’ provide extreme reflector performance
· Boasts a peak beam intensity of 23,256cd and a throw distance of up to
308 meters (ANSI FL1)
· High efficiency circuit board provides up to 200 hours runtime on lowest
output level
· Equipped with unique multi-colored (red, green and blue) tactical /
signaling lights
· Infinite brightness adjustment from 0 to 960 lumens
· Six rapidly switchable functions to select from
· Multi-functional power indicator light displays low battery status
· Patented spring-loaded impact absorption mechanism with reverse
polarity protection
· Stainless steel titanium-plated two-way clip
· Stainless steel retaining ring protects core components from damage
· Toughened ultra-clear mineral glass with anti-reflective coating
· Constructed from aero grade aluminum alloy
· Robust HAIII military grade hard-anodized
· Waterproof in accordance with IPX-8 (two meters submersible)
· Impact resistant to 1.5 meters
· Tail stand capability
Dimensions
Length: 158mm (6.22”) Head diameter: 40 mm (1.57”) Tube diameter: 25.4mm (1”) Weight: 173g (6.1oz)(without battery)
Accessories
Quality holster, removable clip, tactical ring, lanyard, spare tail cap button and spare O-ring
Battery Options
Nominal voltage
Compatible
Y (Recommended)
Y (Recommended)
Y
Primary Lithium battery
18650 Rechargeable Li-ion battery
Rechargeable Li-ion battery
SIZE
CR123 3V
18650 3.7V
RCR123 3.7V
Output & Runtime
TURBO
960*
LUMENS
1h45
min
2×CR1231×18650
1h15
min
308m
(Beam Distance)
23256cd
(Peak Beam Intensity)
1.5m
(Impact Resistant)
IPX-8, 2m
AND Submersible)
LOWER
LUMENS
200
120
(Waterproof
NOTICE
The above data has been measured in
0.1*
accordance with the international flashlight testing standards ANSI/NEMA FL1 using one x 3.7V
h
2600mAh Nitecore 18650 battery and 2 x 3V 1550mAh Nitecore CR123
h
batteries under laboratory conditions. The data may vary slightly during real-world use due to battery type, individual usage habits and environmental factors.
*
Infinite brightness adjustment varies from 0.1 to 960 lumens and is manually adjusted by rotation of the Smart Selector Ring. Subsequently, runtimes will vary anywhere from 105 minutes to 200 hours depending on chosen level of output.
NITECORE (SYSMAX) is a member of PLATO, participating in and helping to develop the ANSI/NEMA FL1 standard of measurement. Product testing data is in accordance with these internationally recognized scientific standards.
Battery Installation
Insert one 18650 battery or two CR123 batteries with the positive pole pointing forward (toward the light head).
NOTE:
1. Ensure batteries are inserted with the positive (+) end pointing to the head. The SRT7 will not operate with incorrectly inserted batteries.
2. Please do NOT light directly to the eyes, which will hurt the eyes.
Switching ON/OFF
To switch ON: Press the button on the tailcap until a “click” is heard. To switch OFF: Press the button on the tailcap a second time until a “click” is heard.
Momentary Illumination
Momentary illumination can be achieved by switching the flashlight off and then half pressing and holding the tail switch. Release switch to turn the light off.
Adjusting Output
With the light turned on, slowly rotate the Smart Selector Ring (adjacent to the bezel) in a counter-clockwise direction to cycle through the following brightness levels: beacon -> police warning signal -> blue mode
-> green mode -> red mode -> standby mode -> infinite brightness modes
-> turbo mode -> strobe mode. These modes may be cycled through in
reverse by rotating the Smart Selector Ring in a clockwise direction.
Thanks for purchasing NITECORE!
ALL-ROUND Flashlight Expert
®
Note: When using the SRT7 in infinite brightness mode, runtime will increase when lower levels of output are selected. On its lowest setting, the SRT7 will run continuously for up to 200 hours and on its highest setting continuously for up to one hour and 45 minutes.
NB:
1. For user safety and to prevent overheating / failure, the SRT7 will automatically switch to high mode after twenty minutes of use in Turbo mode. Slowly rotate the Smart Selector Ring or press the tail switch again to reactivate turbo mode when needed.
2. When the SRT7 is switched on standby mode, it will consume small amounts of power to maintain the settings in the MCU (micro control unit) but appear to be turned off. The power indicator on the light head will blink once every two seconds to indicate the SRT7 is in standby mode and to act as a locator.
Power Tips
1. With the light switched on, the power indicator will blink once every two seconds when power levels reach 50%.
2. With the light switched on, the power indicator will blink rapidly when power levels are low.
Changing Batteries
When the power indicator blinks rapidly it means the batteries need to be replaced. Alternatively if the light becomes dim or unresponsive to adjustment this also indicates batteries need to be replaced.
Maintenance
Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.
Warranty Service
All NITECORE® products are warranted for quality. DOA / defective products can be exchanged for replacement through a local distributor/dealer within the 14 days of purchase. After 14 days, all defective / malfunctioning NITECORE® products will be repaired free of charge for a period of 18 months from the date of purchase. After 18 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty is nullified in all of the following situations:
1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. The product(s) is/are damaged through improper use.
3. The product(s) is/are damaged by leakage of batteries.
To guarantee a swift and effective customer service, Nitecore suggest you to contact the point of purchase for assistance. For the latest information on NITECORE® products and services, please contact your national NITECORE® distributor or send an email to service@nitecore.com
The Nitecore official website shall prevail in case of any product data changes.
