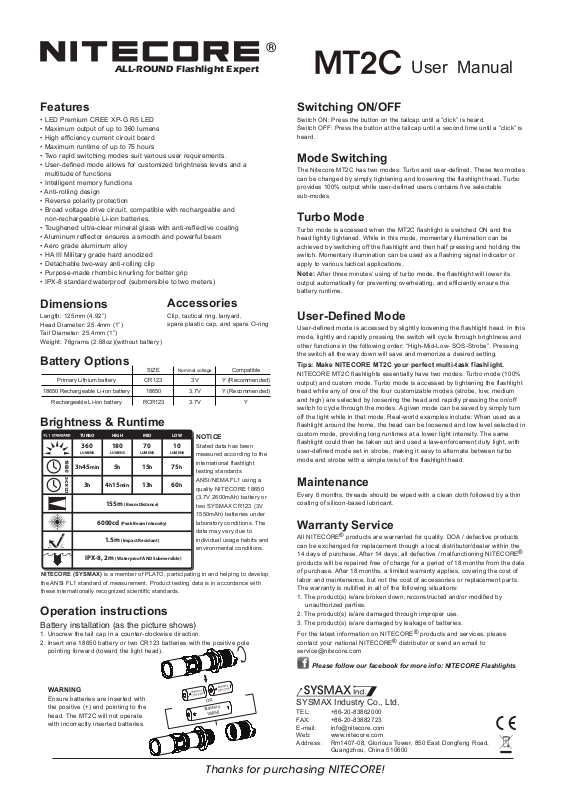

NITECORE MT2C User Manual

ALL-ROUND Flashlight Expert

Features

• LED Premium CREE XP-G R5 LED

• Maximum output of up to 360 lumens

• High efficiency current circuit board

• Maximum runtime of up to 75 hours

• Two rapid switching modes suit various user requirements.

• User-defined mode allows for customized brightness levels and a multitude of functions

• Intelligent memory functions

• Anti-rolling design

• Reverse polarity protection

• Broad voltage drive circuit, compatible with rechargeable and non-rechargeable Li-ion batteries.

• Toughened ultra-clear mineral glass with anti-reflective coating

• Aluminum reflector ensures a smooth and powerful beam

• Aero grade aluminum alloy

• HA III Military grade hard anodized

• Detachable two-way anti-rolling clip

• Purpose-made rhombic knurling for better grip

• IPX-8 standard waterproof (submersible to two meters)

Dimensions

Length: 125mm (4.92”) Head Diameter: 25.4mm (1”) Tail Diameter: 25.4mm (1”) Weight: 76grams (2.68oz)(without battery)

Battery Options

Primary Lithium battery

18650 Rechargeable Li-ion battery

Rechargeable Li-ion battery

Accessories

Clip, tactical ring, lanyard, spare plastic cap, and spare O-ring

SIZE

CR123 3V

18650 3.7V

RCR123 3.7V

Nominal voltage

Compatible

Y (Recommended)

Brightness & Runtime

TURBO HIGH MID LOW

360

LUMENS

18650

3h45

2×CR123

NITECORE (SYSMAX) is a member of PLATO, participating in and helping to develop

the ANSI FL1 standard of measurement. Product testing data is in accordance with

these internationally recognized scientific standards.

180

LUMENS

min5h

3h4h15

155m

6000cd

1.5m

IPX-8, 2m

LUMENS70LUMENS

min

(Beam Distance)

(Peak Beam Intensity)

(Impact Resistant)

(Waterproof AND Submersible)

NOTICE

Stated data has been

measured according to the

international flashlight

testing standards

ANSI/NEMA FL1 using a

quality NITECORE 18650

(3.7V 2600mAh) battery or

two SYSMAX CR123 (3V

1550mAh) batteries under

laboratory conditions. The

data may vary due to

individual usage habits and

environmental conditions.

Operation instructions

Battery installation (as the picture shows)

1. Unscrew the tail cap in a counter-clockwise direction.

2. Insert one 18650 battery or two CR123 batteries with the positive pole

pointing forward (toward the light head).

User Manual

Switching ON/OFF

Switch ON: Press the button on the tailcap until a “click” is heard. Switch OFF: Press the button at the tailcap until a second time until a “click” is heard.

Mode Switching

The Nitecore MT2C has two modes: Turbo and user-defined. These two modes can be changed by simply tightening and loosening the flashlight head. Turbo provides 100% output while user-defined users contains five selectable sub-modes.

Turbo Mode

Turbo mode is accessed when the MT2C flashlight is switched ON and the head lightly tightened. While in this mode, momentary illumination can be achieved by switching off the flashlight and then half pressing and holding the switch. Momentary illumination can be used as a flashing signal indicator or apply to various tactical applications.

Note: After three minutes’ using of turbo mode, the flashlight will lower its

output automatically for preventing overheating, and efficiently ensure the battery runtime.

User-Defined Mode

User-defined mode is accessed by slightly loosening the flashlight head. In this mode, lightly and rapidly pressing the switch will cycle through brightness and other functions in the following order: “High-Mid-Low- SOS-Strobe”. Pressing the switch all the way down will save and memorize a desired setting.

Tips: Make NITECORE MT2C your perfect multi-task flashlight.

NITECORE MT2C flashlights essentially have two modes: Turbo mode (100% output) and custom mode. Turbo mode is accessed by tightening the flashlight head while any of one of the four customizable modes (strobe, low, medium and high) are selected by loosening the head and rapidly pressing the on/off switch to cycle through the modes. A given mode can be saved by simply turn off the light while in that mode. Real-world examples include: When used as a flashlight around the home, the head can be loosened and low level selected in custom mode, providing long runtimes at a lower light intensity. The same flashlight could then be taken out and used a law-enforcement duty light, with user-defined mode set in strobe, making it easy to alternate between turbo mode and strobe with a simple twist of the flashlight head.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.

Warranty Service

All NITECORE® products are warranted for quality. DOA / defective products can be exchanged for replacement though a local distributor/dealer within the 14 days of purchase. After 14 days, all defective / malfunctioning NITECORE® products will be repaired free of charge for a period of 18 months from the date of purchase. After 18 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.

2. The product(s) is/are damaged through improper use.

3. The product(s) is/are damaged by leakage of batteries.

For the latest information on NITECORE® products and services, please contact your national NITECORE® distributor or send an email to service@nitecore.com

Please follow our facebook for more info: NITECORE Flashlights

WARNING

Ensure batteries are inserted with the positive (+) end pointing to the head. The MT2C will not operate with incorrectly inserted batteries.

SYSMAX Industry Co., Ltd.

TEL: +86-20-83862000 FAX: +86-20-83882723 E-mail: info@nitecore.com Web: www.nitecore.com Address： Rm1407-08, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

Thanks for purchasing NITECORE!
