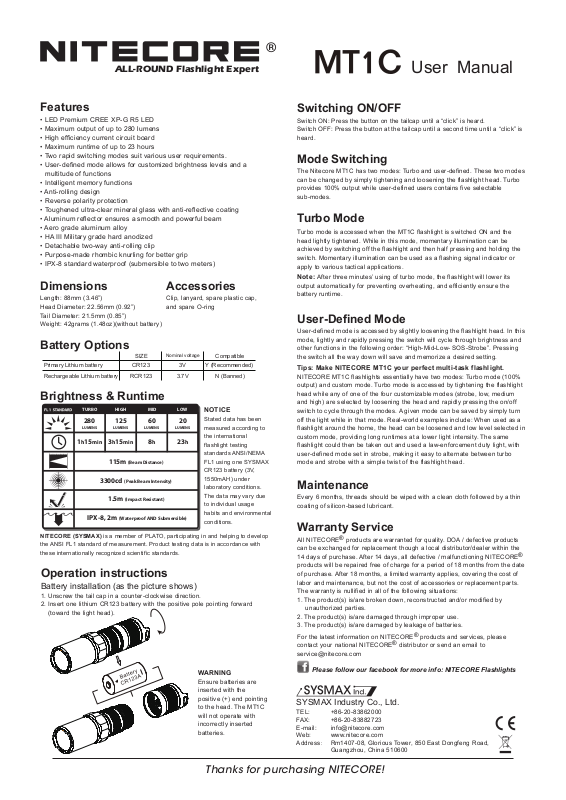

NITECORE MT1C User Manual

®

ALL-ROUND Flashlight Expert

Features

• LED Premium CREE XP-G R5 LED

• Maximum output of up to 280 lumens

• High efficiency current circuit board

• Maximum runtime of up to 23 hours

• Two rapid switching modes suit various user requirements.

• User-defined mode allows for customized brightness levels and a
multitude of functions

• Intelligent memory functions

• Anti-rolling design

• Reverse polarity protection

• Toughened ultra-clear mineral glass with anti-reflective coating

• Aluminum reflector ensures a smooth and powerful beam

• Aero grade aluminum alloy

• HA III Military grade hard anodized

• Detachable two-way anti-rolling clip

• Purpose-made rhombic knurling for better grip

• IPX-8 standard waterproof (submersible to two meters)

Dimensions

Length: 88mm (3.46”)
Head Diameter: 22.56mm (0.92”)
Tail Diameter: 21.5mm (0.85”)
Weight: 42grams (1.48oz)(without battery)

Accessories

Clip, lanyard, spare plastic cap,
and spare O-ring

Battery Options

Nominal voltage

Compatible

Y (Recommended)

N (Banned)

Primary Lithium battery

Rechargeable Lithium battery

SIZE

CR123 3V

RCR123 3.7V

Brightness & Runtime

TURBO HIGH MID LOW

280

LUMENS

1h15

IPX-8, 2m

NITECORE (SYSMAX) is a member of PLATO, participating in and helping to develop

the ANSI FL1 standard of measurement. Product testing data is in accordance with

these internationally recognized scientific standards.

125

LUMENS

min3h15min8h

115m

3300cd

1.5m

LUMENS60LUMENS

(Beam Distance)

(Peak Beam Intensity)

(Impact Resistant)

(Waterproof AND Submersible)

NOTICE

Stated data has been

20

measured according to

the international

23

h

flashlight testing

standards ANSI/NEMA

FL1 using one SYSMAX

CR123 battery (3V,

1550mAH) under

laboratory conditions.

The data may vary due

to individual usage

habits and environmental

conditions.

Operation instructions

Battery installation (as the picture shows)

1. Unscrew the tail cap in a counter-clockwise direction.

2. Insert one lithium CR123 battery with the positive pole pointing forward

(toward the light head).

WARNING

Ensure batteries are
inserted with the
positive (+) end pointing
to the head. The MT1C
will not operate with
incorrectly inserted
batteries.

User Manual

Switching ON/OFF

Switch ON: Press the button on the tailcap until a “click” is heard.
Switch OFF: Press the button at the tailcap until a second time until a “click” is
heard.

Mode Switching

The Nitecore MT1C has two modes: Turbo and user-defined. These two modes
can be changed by simply tightening and loosening the flashlight head. Turbo
provides 100% output while user-defined users contains five selectable
sub-modes.

Turbo Mode

Turbo mode is accessed when the MT1C flashlight is switched ON and the
head lightly tightened. While in this mode, momentary illumination can be
achieved by switching off the flashlight and then half pressing and holding the
switch. Momentary illumination can be used as a flashing signal indicator or
apply to various tactical applications.

Note: After three minutes’ using of turbo mode, the flashlight will lower its

output automatically for preventing overheating, and efficiently ensure the
battery runtime.

User-Defined Mode

User-defined mode is accessed by slightly loosening the flashlight head. In this
mode, lightly and rapidly pressing the switch will cycle through brightness and
other functions in the following order: “High-Mid-Low- SOS-Strobe”. Pressing
the switch all the way down will save and memorize a desired setting.

Tips: Make NITECORE MT1C your perfect multi-task flashlight.

NITECORE MT1C flashlights essentially have two modes: Turbo mode (100%
output) and custom mode. Turbo mode is accessed by tightening the flashlight
head while any of one of the four customizable modes (strobe, low, medium
and high) are selected by loosening the head and rapidly pressing the on/off
switch to cycle through the modes. A given mode can be saved by simply turn
off the light while in that mode. Real-world examples include: When used as a
flashlight around the home, the head can be loosened and low level selected in
custom mode, providing long runtimes at a lower light intensity. The same
flashlight could then be taken out and used a law-enforcement duty light, with
user-defined mode set in strobe, making it easy to alternate between turbo
mode and strobe with a simple twist of the flashlight head.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin
coating of silicon-based lubricant.

Warranty Service

All NITECORE® products are warranted for quality. DOA / defective products
can be exchanged for replacement though a local distributor/dealer within the
14 days of purchase. After 14 days, all defective / malfunctioning NITECORE®
products will be repaired free of charge for a period of 18 months from the date
of purchase. After 18 months, a limited warranty applies, covering the cost of
labor and maintenance, but not the cost of accessories or replacement parts.
The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by
unauthorized parties.

2. The product(s) is/are damaged through improper use.

3. The product(s) is/are damaged by leakage of batteries.

For the latest information on NITECORE® products and services, please
contact your national NITECORE® distributor or send an email to
[e-mail]

Please follow our facebook for more info: NITECORE Flashlights

SYSMAX Industry Co., Ltd.

TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Web: www.nitecore.com
Address： Rm1407-08, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

Thanks for purchasing NITECORE!
