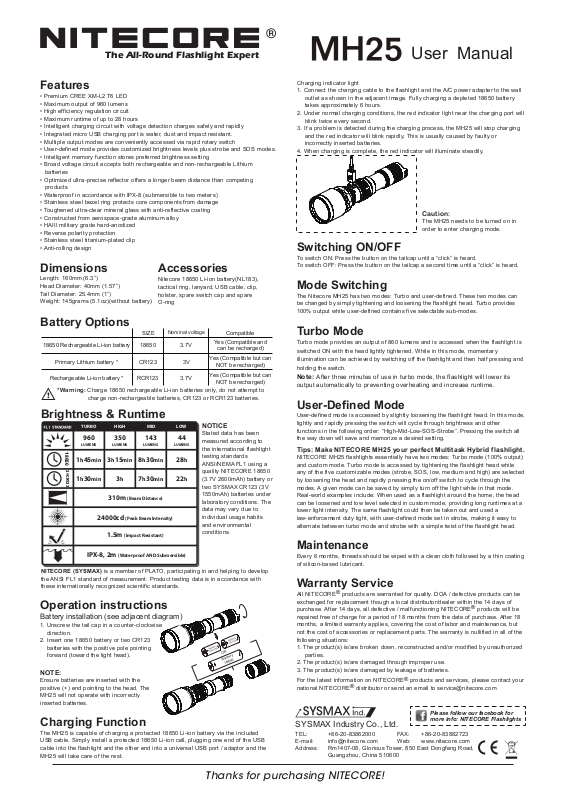

NITECORE MH25 User Manual

®

The All-Round Flashlight Expert

Features

• Premium CREE XM-L2 T6 LED

• Maximum output of 960 lumens

• High efficiency regulation circuit

• Maximum runtime of up to 28 hours

• Intelligent charging circuit with voltage detection charges safely and rapidly

• Integrated micro USB charging port is water, dust and impact resistant.

• Multiple output modes are conveniently accessed via rapid rotary switch

• User-defined mode provides customized brightness levels plus strobe and SOS modes.

• Intelligent memory function stores preferred brightness setting

• Broad voltage circuit accepts both rechargeable and non-rechargeable Lithium

batteries

• Optimized ultra-precise reflector offers a longer beam distance than competing
products

• Waterproof in accordance with IPX-8 (submersible to two meters)

• Stainless steel bezel ring protects core components from damage

• Toughened ultra-clear mineral glass with anti-reflective coating

• Constructed from aerospace-grade aluminum alloy

• HAIII military grade hard-anodized

• Reverse polarity protection

• Stainless steel titanium-plated clip

• Anti-rolling design

Dimensions

Length: 160mm (6.3”)
Head Diameter: 40mm (1.57”)
Tail Diameter: 25.4mm (1”)
Weight: 145grams (5.1oz)(without battery)

Accessories

Nitecore 18650 Li-ion battery(NL183),
tactical ring, lanyard, USB cable, clip,
holster, spare switch cap and spare
O-ring

Battery Options

Nominal voltage

SIZE

18650 Rechargeable Li-ion battery

Primary Lithium battery *

Rechargeable Li-ion battery *

*Warning: Charge 18650 rechargeable Li-ion batteries only, do not attempt to

charge non-rechargeable batteries, CR123 or RCR123 batteries.

18650 3.7V

CR123 3V

RCR123

3.7V

Compatible

Yes (Compatible and

can be recharged)

Yes (Compatible but can

NOT be recharged)

Yes (Compatible but can

NOT be recharged)

Brightness & Runtime

TURBO HIGH MID LOW

960

LUMENS

18650

1

h45min

2×CR123

1

h30min

IPX-8, 2m

NITECORE (SYSMAX) is a member of PLATO, participating in and helping to develop
the ANSI FL1 standard of measurement. Product testing data is in accordance with
these internationally recognized scientific standards.

350

LUMENS

3

h15min

3

h

310m

(Beam Distance)

24000cd

(Peak Beam Intensity)

1.5m

(Impact Resistant)

(Waterproof AND Submersible)

143

LUMENS

8

h30min

7

h30min

NOTICE

Stated data has been

44

measured according to

LUMENS

the international flashlight
testing standards

28

h

ANSI/NEMA FL1 using a
quality NITECORE 18650
(3.7V 2600mAh) battery or

22

h

two SYSMAX CR123 (3V
1550mAh) batteries under
laboratory conditions. The
data may vary due to
individual usage habits
and environmental
conditions.

Operation instructions

Battery installation (see adjacent diagram)

1. Unscrew the tail cap in a counter-clockwise

direction.

2. Insert one 18650 battery or two CR123

batteries with the positive pole pointing
forward (toward the light head).

NOTE:

Ensure batteries are inserted with the
positive (+) end pointing to the head. The
MH25 will not operate with incorrectly
inserted batteries.

Charging Function

The MH25 is capable of charging a protected 18650 Li-ion battery via the included
USB cable. Simply install a protected 18650 Li-ion cell, plugging one end of the USB
cable into the flashlight and the other end into a universal USB port / adaptor and the
MH25 will take care of the rest.

User Manual

Charging indicator light

1. Connect the charging cable to the flashlight and the A/C power adapter to the wall
outlet as shown in the adjacent image. Fully charging a depleted 18650 battery
takes approximately 6 hours.

2. Under normal charging conditions, the red indicator light near the charging port will
blink twice every second.

3. If a problem is detected during the charging process, the MH25 will stop charging
and the red indicator will blink rapidly. This is usually caused by faulty or
incorrectly inserted batteries.

4. When charging is complete, the red indicator will illuminate steadily.

Caution:

The MH25 needs to be turned on in
order to enter charging mode.

Switching ON/OFF

To switch ON: Press the button on the tailcap until a “click” is heard.
To switch OFF: Press the button on the tailcap a second time until a “click” is heard.

Mode Switching

The Nitecore MH25 has two modes: Turbo and user-defined. These two modes can
be changed by simply tightening and loosening the flashlight head. Turbo provides
100% output while user-defined contains five selectable sub-modes.

Turbo Mode

Turbo mode provides an output of 860 lumens and is accessed when the flashlight is

switched ON with the head lightly tightened. While in this mode, momentary

illumination can be achieved by switching off the flashlight and then half pressing and

holding the switch.

Note: After three minutes of use in turbo mode, the flashlight will lower its

output automatically to preventing overheating and increase runtime.

User-Defined Mode

User-defined mode is accessed by slightly loosening the flashlight head. In this mode,
lightly and rapidly pressing the switch will cycle through brightness and other
functions in the following order: “High-Mid-Low-SOS-Strobe”. Pressing the switch all
the way down will save and memorize a desired setting.

Tips: Make NITECORE MH25 your perfect Multitask Hybrid flashlight.

NITECORE MH25 flashlights essentially have two modes: Turbo mode (100% output)
and custom mode. Turbo mode is accessed by tightening the flashlight head while
any of the five customizable modes (strobe, SOS, low, medium and high) are selected
by loosening the head and rapidly pressing the on/off switch to cycle through the
modes. A given mode can be saved by simply turn off the light while in that mode.
Real-world examples include: When used as a flashlight around the home, the head
can be loosened and low level selected in custom mode, providing long runtimes at a
lower light intensity. The same flashlight could then be taken out and used a
law-enforcement duty light, with user-defined mode set in strobe, making it easy to
alternate between turbo mode and strobe with a simple twist of the flashlight head.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating
of silicon-based lubricant.

Warranty Service

All NITECORE® products are warranted for quality. DOA / defective products can be
exchanged for replacement though a local distributor/dealer within the 14 days of
purchase. After 14 days, all defective / malfunctioning NITECORE® products will be
repaired free of charge for a period of 18 months from the date of purchase. After 18
months, a limited warranty applies, covering the cost of labor and maintenance, but
not the cost of accessories or replacement parts. The warranty is nullified in all of the
following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized
parties.

2. The product(s) is/are damaged through improper use.

3. The product(s) is/are damaged by leakage of batteries.

For the latest information on NITECORE® products and services, please contact your
national NITECORE® distributor or send an email to [e-mail]

Please follow our facebook for

SYSMAX Industry Co., Ltd.

TEL: [phone] FAX: [phone]
E-mail: [e-mail] Web: www.nitecore.com
Address： Rm1407-08, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

more info: NITECORE Flashlights

Thanks for purchasing NITECORE!
