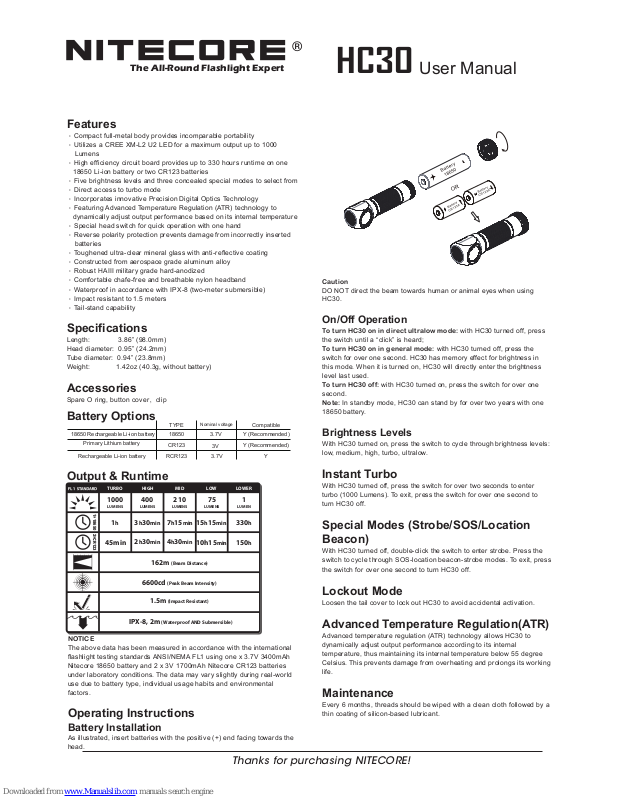

Nitecore HC30 User Manual

User Manual

Features

· Compact full-metal body provides incomparable portability

· Utilizes a CREE XM-L2 U2 LED for a maximum output up to 1000

Lumens

· High efficiency circuit board provides up to 330 hours runtime on one

18650 Li-ion battery or two CR123 batteries

· Five brightness levels and three concealed special modes to select from

· Direct access to turbo mode

· Incorporates innovative Precision Digital Optics Technology

· Featuring Advanced Temperature Regulation (ATR) technology to

dynamically adjust output performance based on its internal temperature

· Special head switch for quick operation with one hand

· Reverse polarity protection prevents damage from incorrectly inserted

batteries

· Toughened ultra-clear mineral glass with anti-reflective coating

· Constructed from aerospace grade aluminum alloy

· Robust HAIII military grade hard-anodized

· Comfortable chafe-free and breathable nylon headband

· Waterproof in accordance with IPX-8 (two-meter submersible)

· Impact resistant to 1.5 meters

· Tail-stand capability

Specifications

Length: 3.86” (98.0mm)
Head diameter: 0.95” (24.2mm)
Tube diameter: 0.94” (23.8mm)
Weight: 1.42oz (40.3g, without battery)

Accessories

Spare O ring, button cover，clip

Battery Options

Thanks for purchasing NITECORE!

®

The All-Round Flashlight Expert

TURBO HIGH MID LOW

LUMENS

400

LUMENS

1000

LUMENS

210

LUMENS

75

1h3h30

min7h15min

LOWER

LUMEN

1

330

h

15h15

min

2h30

min4h30min

150

h

10h

15

min

45min

162m

(Beam Distance)

6600cd

(Peak Beam Intensity)

IPX-8, 2m

(Waterproof AND Submersible)

1.5m

(Impact Resistant)

1×18650

2×CR123

HC30

NOTICE

The above data has been measured in accordance with the international
flashlight testing standards ANSI/NEMA FL1 using one x 3.7V 3400mAh
Nitecore 18650 battery and 2 x 3V 1700mAh Nitecore CR123 batteries
under laboratory conditions. The data may vary slightly during real-world
use due to battery type, individual usage habits and environmental
factors.

Operating Instructions

Battery Installation

As illustrated, insert batteries with the positive (+) end facing towards the
head.

Caution

DO NOT direct the beam towards human or animal eyes when using
HC30.

On/Off Operation

To turn HC30 on in direct ultralow mode: with HC30 turned off, press
the switch until a “click” is heard;
To turn HC30 on in general mode: with HC30 turned off, press the
switch for over one second. HC30 has memory effect for brightness in
this mode. When it is turned on, HC30 will directly enter the brightness
level last used.
To turn HC30 off: with HC30 turned on, press the switch for over one
second.
Note: In standby mode, HC30 can stand by for over two years with one
18650 battery.

Brightness Levels

With HC30 turned on, press the switch to cycle through brightness levels:
low, medium, high, turbo, ultralow.

Instant Turbo

With HC30 turned off, press the switch for over two seconds to enter
turbo (1000 Lumens). To exit, press the switch for over one second to
turn HC30 off.

Special Modes (Strobe/SOS/Location
Beacon)

With HC30 turned off, double-click the switch to enter strobe. Press the
switch to cycle through SOS-location beacon-strobe modes. To exit, press
the switch for over one second to turn HC30 off.

Lockout Mode

Loosen the tail cover to lock out HC30 to avoid accidental activation.

Advanced Temperature Regulation(ATR)

Advanced temperature regulation (ATR) technology allows HC30 to
dynamically adjust output performance according to its internal
temperature, thus maintaining its internal temperature below 55 degree
Celsius. This prevents damage from overheating and prolongs its working
life.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a
thin coating of silicon-based lubricant.

TYPE

Nominal voltage

Compatible

Primary Lithium battery

CR123

3V

Y (Recommended)

18650 Rechargeable Li-ion battery

18650 3.7V

Y (Recommended)

Rechargeable Li-ion battery

RCR123 3.7V

Y

Output & Runtime

SYSMAX Industry Co., Ltd.

TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Web: www.nitecore.com
Address： Rm1401-03, Glorious Tower, 850 East Dongfeng

Road, Guangzhou, China 510600

※All images, text and statements specified herein this user manual are
for reference purpose only. Should any discrepancy occurs between this
manual and information specified on www.nitecore.com, information on
our official website shall prevail. Sysmax Industry Co., Ltd. reserves the
rights to interpret and amend the content of this document at any time
without prior notice.

®

ALL-ROUND Flashlight Expert

Warranty Service

All NITECORE® products are warranted for quality. Any defective /
malfunctioning NITECORE® product can be repaired free of charge for a
period of 60 months (5 years) from the date of purchase. Beyond 60
months (5 years), a limited warranty applies, covering the cost of labor
and maintenance, but not the cost of accessories or replacement parts.
The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by
unauthorized parties.

2. The product(s) is/are damaged through improper use.

3. The product(s) is/are damaged by leakage of batteries.
For the latest information on NITECORE® products and services, please
contact a local NITECORE® distributor or send an email to
[e-mail]
