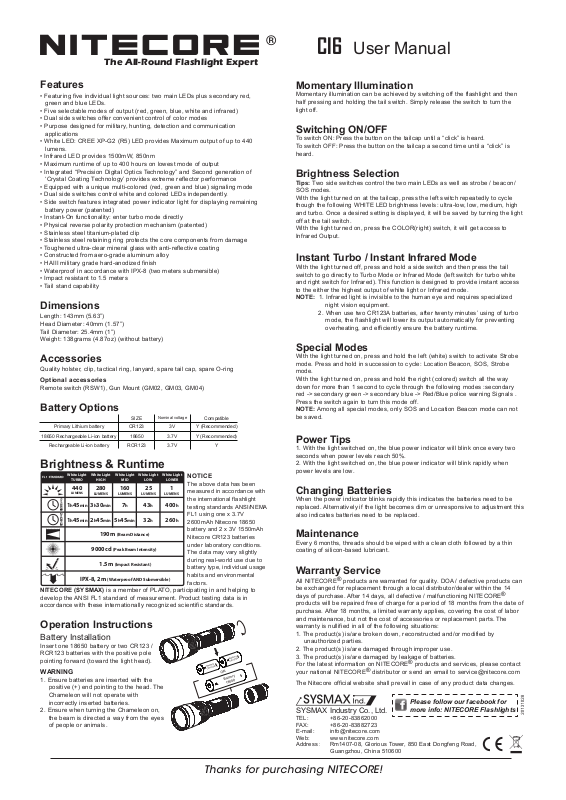

NITECORE CI6 User Manual

The All-Round Flashlight Expert

CI6

User Manual

Features

• Featuring five individual light sources: two main LEDs plus secondary red, green and blue LEDs.

• Five selectable modes of output (red, green, blue, white and infrared)

• Dual side switches offer convenient control of color modes

• Purpose designed for military, hunting, detection and communication applications

• White LED: CREE XP-G2 (R5) LED provides Maximum output of up to 440 lumens.

• Infrared LED provides 1500mW, 850nm

• Maximum runtime of up to 400 hours on lowest mode of output

• Integrated “Precision Digital Optics Technology” and Second generation of ‘Crystal Coating Technology’ provides extreme reflector performance

• Equipped with a unique multi-colored (red, green and blue) signaling mode

• Dual side switches control white and colored LEDs independently.

• Side switch features integrated power indicator light for displaying remaining battery power (patented)

• Instant-On functionality: enter turbo mode directly

• Physical reverse polarity protection mechanism (patented)

• Stainless steel titanium-plated clip

• Stainless steel retaining ring protects the core components from damage

• Toughened ultra-clear mineral glass with anti-reflective coating

• Constructed from aero-grade aluminum alloy

• HAIII military grade hard-anodized finish

• Waterproof in accordance with IPX-8 (two meters submersible)

• Impact resistant to 1.5 meters

• Tail stand capability

Dimensions

Length: 143mm (5.63”) Head Diameter: 40mm (1.57”) Tail Diameter: 25.4mm (1”) Weight: 138grams (4.87oz) (without battery)

Accessories

Quality holster, clip, tactical ring, lanyard, spare tail cap, spare O-ring

Optional accessories

Remote switch (RSW1), Gun Mount (GM02, GM03, GM04)

Battery Options

Primary Lithium battery

18650 Rechargeable Li-ion battery

Rechargeable Li-ion battery

SIZE

CR123 3V

18650 3.7V

RCR123 3.7V

Compatible

Y (Recommended)

Nominal voltage

Brightness & Runtime

White Light

TURBO

HIGH

MID

440

280

LUMENS

1h45

min

3h30

2×CR1231×18650

1h45

NITECORE (SYSMAX) is a member of PLATO, participating in and helping to develop the ANSI FL1 standard of measurement. Product testing data is in accordance with these internationally recognized scientific standards.

min7h

min2h45min5h45min32h

190m

9000cd

(Peak Beam Intensity)

1.5m

(Impact Resistant)

IPX-8, 2m

(Waterproof AND Submersible)

LOW

160

LUMENS25LUMENS1LUMENS

43h400

(Beam Distance)

Operation Instructions

Battery Installation

Insert one 18650 battery or two CR123 / RCR123 batteries with the positive pole pointing forward (toward the light head).

WARNING

1. Ensure batteries are inserted with the

positive (+) end pointing to the head. The Chameleon will not operate with incorrectly inserted batteries.

2. Ensure when turning the Chameleon on,

the beam is directed a way from the eyes of people or animals.

NOTICE

LOWER

The above data has been measured in accordance with the international flashlight

testing standards ANSI/NEMA FL1 using one x 3.7V

260

2600mAh Nitecore 18650 battery and 2 x 3V 1550mAh Nitecore CR123 batteries under laboratory conditions. The data may vary slightly during real-world use due to battery type, individual usage habits and environmental factors.

Momentary Illumination

Momentary illumination can be achieved by switching off the flashlight and then half pressing and holding the tail switch. Simply release the switch to turn the light off.

Switching ON/OFF

To switch ON: Press the button on the tailcap until a “click” is heard. To switch OFF: Press the button on the tailcap a second time until a “click” is heard.

Brightness Selection

Tips: Two side switches control the two main LEDs as well as strobe / beacon/

SOS modes. With the light turned on at the tailcap, press the left switch repeatedly to cycle though the following WHITE LED brightness levels: ultra-low, low, medium, high and turbo. Once a desired setting is displayed, it will be saved by turning the light off at the tail switch. With the light turned on, press the COLOR(right) switch, it will get access to Infrared Output.

Instant Turbo / Instant Infrared Mode

With the light turned off, press and hold a side switch and then press the tail switch to go directly to Turbo Mode or Infrared Mode (left switch for turbo white and right switch for Infrared). This function is designed to provide instant access to the either the highest output of white light or Infrared mode. NOTE: 1. Infrared light is invisible to the human eye and requires specialized

2. When use two CR123A batteries, after twenty minutes’ using of turbo

night vision equipment.

mode, the flashlight will lower its output automatically for preventing overheating, and efficiently ensure the battery runtime.

Special Modes

With the light turned on, press and hold the left (white) switch to activate Strobe mode. Press and hold in succession to cycle: Location Beacon, SOS, Strobe mode. With the light turned on, press and hold the right (colored) switch all the way down for more than 1 second to cycle through the following modes :secondary red -> secondary green -> secondary blue -> Red/Blue police warning Signals . Press the switch again to turn this mode off. NOTE: Among all special modes, only SOS and Location Beacon mode can not be saved.

Power Tips

1. With the light switched on, the blue power indicator will blink once every two seconds when power levels reach 50%.

2. With the light switched on, the blue power indicator will blink rapidly when power levels are low.

Changing Batteries

When the power indicator blinks rapidly this indicates the batteries need to be replaced. Alternatively if the light becomes dim or unresponsive to adjustment this also indicates batteries need to be replaced.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.

Warranty Service

All NITECORE® products are warranted for quality. DOA / defective products can be exchanged for replacement through a local distributor/dealer within the 14 days of purchase. After 14 days, all defective / malfunctioning NITECORE® products will be repaired free of charge for a period of 18 months from the date of purchase. After 18 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.

2. The product(s) is/are damaged through improper use.

3. The product(s) is/are damaged by leakage of batteries.

For the latest information on NITECORE® products and services, please contact your national NITECORE® distributor or send an email to service@nitecore.com

The Nitecore official website shall prevail in case of any product data changes.

Please follow our facebook for

SYSMAX Industry Co., Ltd.

TEL: +86-20-83862000 FAX: +86-20-83882723 E-mail: info@nitecore.com Web: www.nitecore.com Address： Rm1407-08, Glorious Tower, 850 East Dongfeng Road,

Guangzhou, China 510600

more info: NITECORE Flashlights

Thanks for purchasing NITECORE!
