Nitec igobo User Manual

Wireless and battery-operated

LED Gobo projector

TABLE OF CONTENTS

SAFETY / GENERAL INSTRUCTIONS

INTRODUCTION
Features
Specications

OVERVIEW : CONNECTIONS
Rear view

MOUNTING

GOBO DETAILS

GOBO REPLACEMENT

IR6 REMOTE CONTROL OPERATION

RECHARGING GUIDELINES

- iGOBO

- External power adapter

- 10 metal gobos

- IR6 remote

- User Manual

- Warranty Card

PACKING CONTENT

2

INFRARED (IR6) REMOTE CONTROL OPERATION

The IR6 infrared controller enables remote control of the iGOBO.

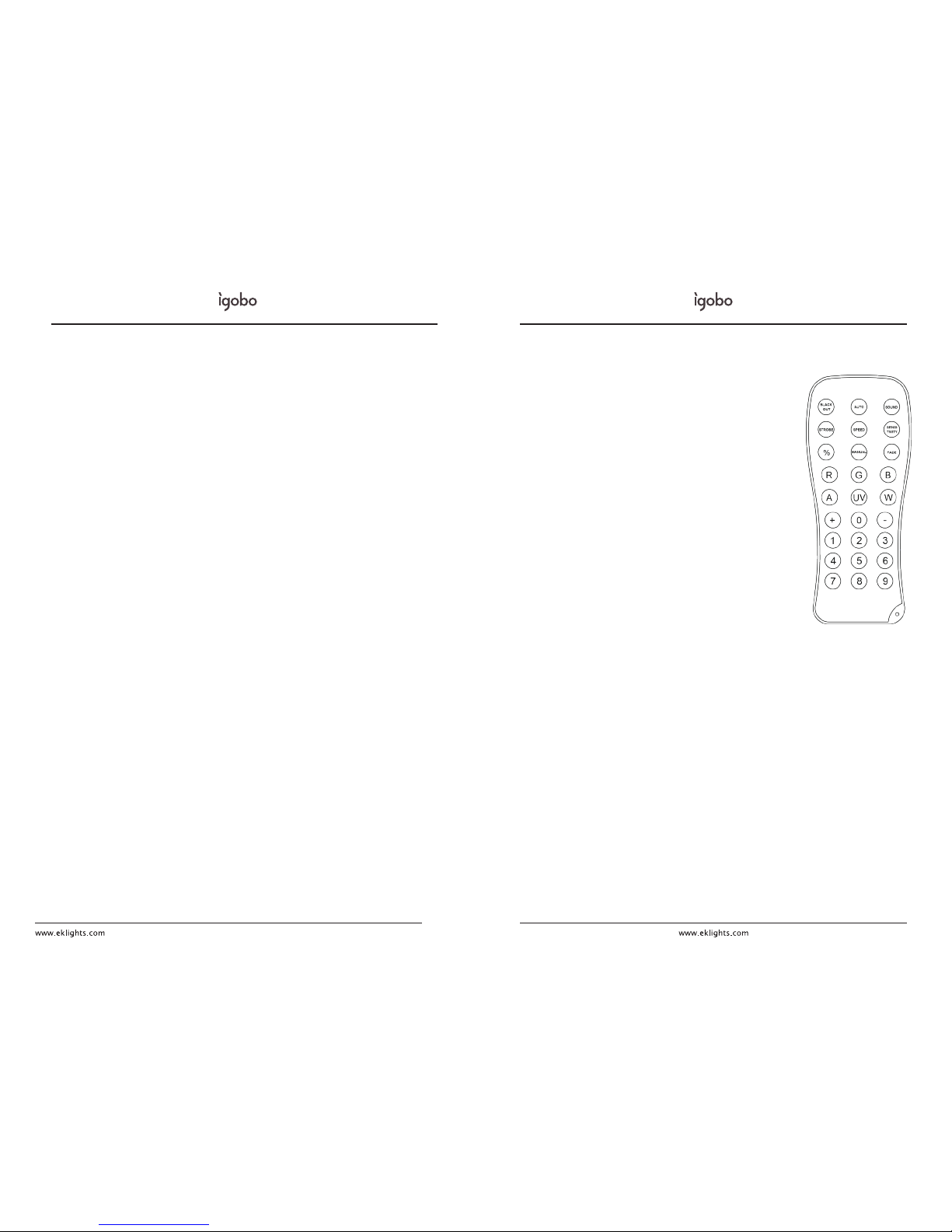

IR6 BUTTON FUNCTIONS

+ / - : Increases / decreases light output (5 levels)

BLACKOUT : Turns the iGOBO LED on and o

W : Set to max brightness

7

RECHARGING GUIDELINES

The iGobo comes with a rechargeable battery. To charge the battery, simply plug
into the included external power adapter. The iGobo may be on or o during the
recharging cycle. The indicator light will be red during charging and green when
charging is complete.

For best results, charge the iGobo for 24 hours before rst use.

Normal charging time is 4 hours.

Maximum operating time varies from 5 to 16 hours depending on selected output level.

WARNING! Before carrying out any operations with the unit, carefully read this instruction
manual and keep it with cure for future reference. It contains important information about
the installation, usage and maintenance of the unit.

SAFETY

General instruction

• The products referred to in this manual conform to the European Community Directives and are there­fore marked with

.

• The unit is supplied with hazardous network voltage (230V~). Leave servicing to skilled personnel only.
Never make
risk an electric shock.

•
cording to standard EN 60598-1). It is, moreover, recommended to protect the supply lines of the units
from indirect contact and/or shorting to earth by using appropriately sized residual current devices.

installer. Check that the main frequency and voltage correspond to those for which the unit is designed
as given on the electrical data label.

• This unit is not for home use, only professional applications.

- in places subject to vibrations or bumps;

- in places with a temperature of over 45 °C.

an inspection or contact the manufacturer directly.

plant for a disposal which is not harmful to the environment.

Warnings and installation precautions

damage and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short circuit, burns, electric shock, etc.

• Always additionally secure the projector with the safety rope. When carrying out any work, always com­ply scrupulously with all the regulations (particularly regarding safety) currently in force in the country

• Shields, lenses or ultraviolet screens shall be changed if they have become damaged to such an extent

• The lamp (LED) shall be changed if it has become damaged or thermally deformed.

trigger epileptic seizures in photosensitive persons or persons with epilepsy.

• Do not touch the product’s housing when operating because it may be very hot.

3

MOUNTING

6

S

afety Cabl

e

S

cissor Cli

p

Magnetic Base

Swivel Base for

Pan Adjustme

nt

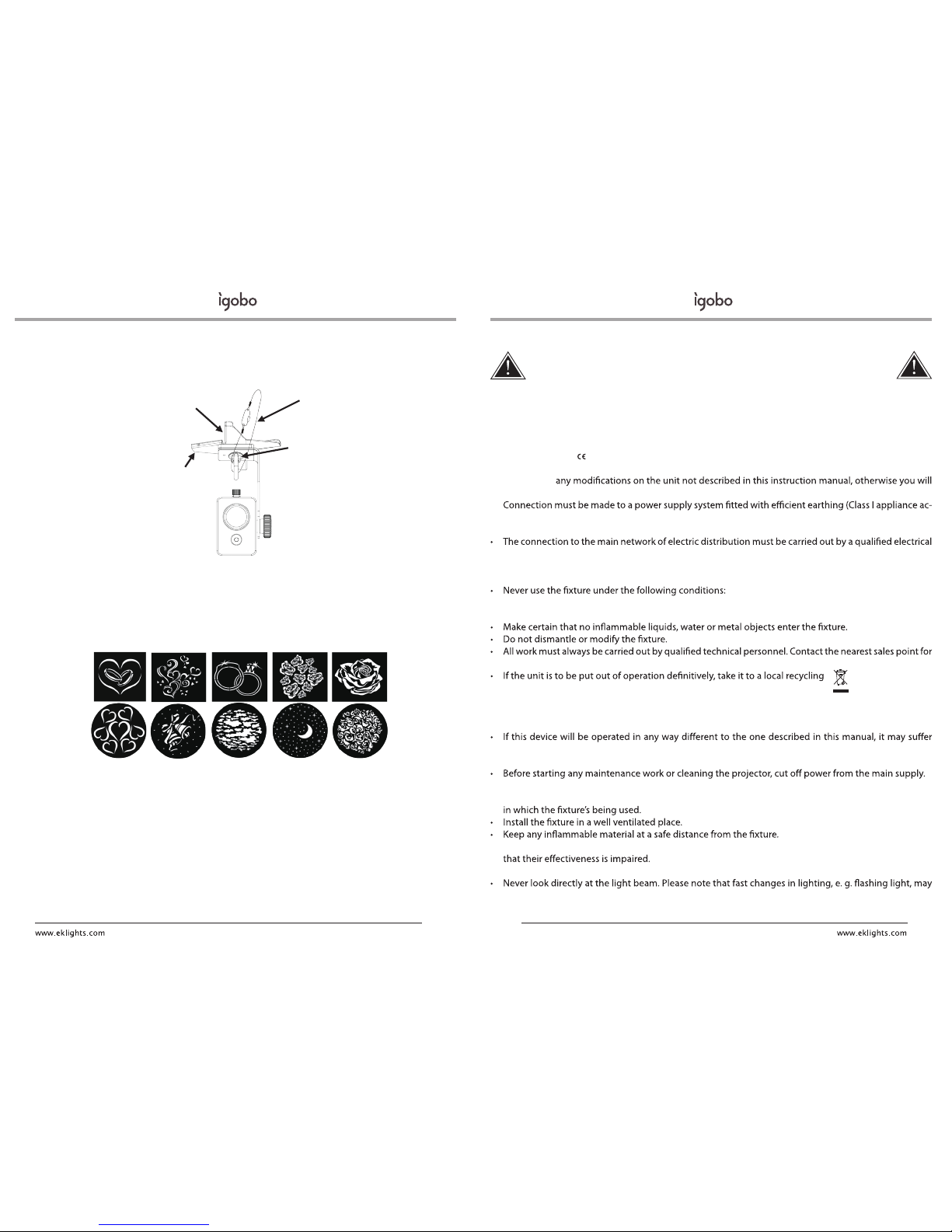

GOBOS

The iGobo comes with 10 festive gobos. The iGobo also accepts custom gobos (metal,
transparent media or 35mm photographic slides). Maximum gobo image size is

25.8mm x 18.6mm.

GOBO REPLACEMENT

1. Loosen and unscrew gobo holder thumbscrew

2. Remove gobo holder

3. Remove expansion ring

4. Remove gobo from gobo holder

5. Place new gobo in the gobo holder

6. Reinstall expansion ring

7. Reinstall gobo holder and tighten thumbscrew

INTRODUCTION

The iGOBO is a wireless and battery-operated LED Gobo projector.

FEATURES

- Battery-operated gobo projector

- External power supply (DC)

- Includes 10 metal gobos for various events

- Custom gobos can be printed on transparency film

- Lithium battery runs Full On for 5 hours

- Scissors clip and magnetic mounting solutions

- Die-cast housing for efficient cooling and heavy-duty
durability

- High frequency LED modulation for flicker-free video

- 1

0° - 15° manual zoom

- Fine gobo focus

- Wireless on/off and dimming

- IR6 infrared remote control included

SPECIFICATIONS

Light Source:
Zoom range:
Colors:
Output:
Gobo Size:
Strobe:
Dimming:
Control:
Mains:
Power:
Power connections:
Housing:
Finish:
IP rating:
Cooling:
Dimensions:
Weight:

1 x

10W White LED
10° - 15°
White, 6500K
670 lux @ 2m @ 15°

25.8 mm OD; 18.6 mm (image); 0.2 mm max thickness
0 - 30 Hz
5 selectable output levels
IR remote
100 - 240 VAC, 50/60 Hz
12W / DC8.4V

8.4V DC external adapter (included)
Metal
White
IP20
Passive
50 x 74 x 167 mm

1.0 KG

4

OVERVIEW

5

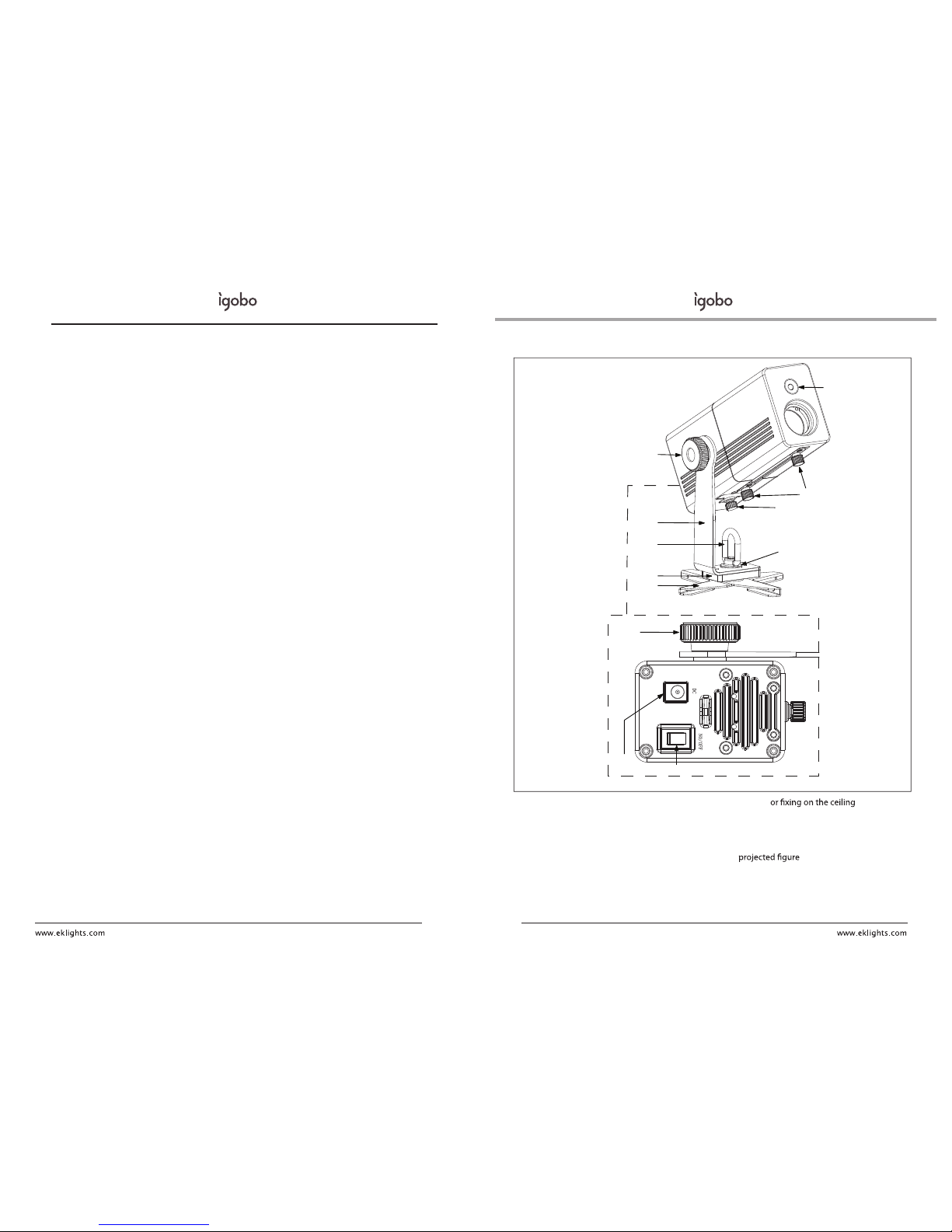

1. LOCKING KNOB for the mounting bracket.

2. POWER IN

3. POWER SWITCH ON / OFF

4. MOUNTING BRACKET

5. SAFETY RING to attach safety cable

6. REVOLVING BASE for rotation adjustment

7. MAGNETIC BASE for mounting on metal
surfaces

8. CLAMP f

9. IR RECEIVER for IR remote control

10. FOCUS AND ZOOM ADJUSTING SCREW to
zoom the projected image clearly

11. GOBO SCREW to manually change the

Rear panel

1

1

3

2

6

4

5

7
8

9

10

11
