Nissan X-Trail (2010) Owner’s Manual

Page 1

(3,1)

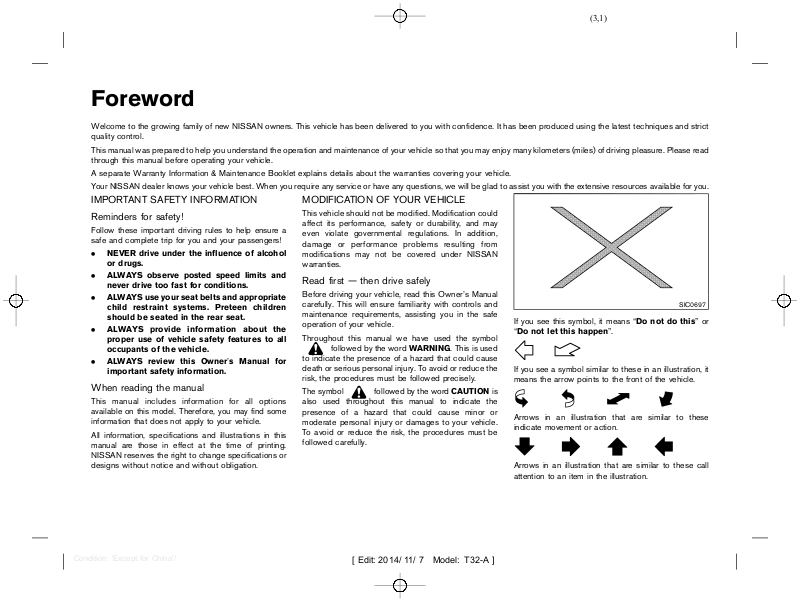

Foreword

Welcome to the growing family of new NISSAN owners. This vehicle has been delivered to you with confidence. It has been produced using the latest techniques and strict quality control.

This manual was prepared to help you understand the operation and maintenance of your vehicle so that you may enjoy many kilometers (miles) of driving pleasure. Please read through this manual before operating your vehicle.

A separate Warranty Information & Maintenance Booklet explains details about the warranties covering your vehicle. Your NISSAN dealer knows your vehicle best. When you require any service or have any questions, we will be glad to assist you with the extensive resources available for you.

IMPORTANT SAFETY INFORMATION

Reminders for safety!

Follow these important driving rules to help ensure a safe and complete trip for you and your passengers!

. NEVER drive under the influence of alcohol

. ALWAYS observe posted speed limits and

. ALWAYS use your seat belts and appropriate

. ALWAYS provide information about the

. ALWAYS review this Owner’s Manual for

When reading the manual

This manual includes information for all options available on this model. Therefore, you may find some information that does not apply to your vehicle.

All information, specifications and illustrations in this manual are those in effect at the time of printing. NISSAN reserves the right to change specifications or designs without notice and without obligation.

T32A130827-5D7BE647-65D8-496C-8EE3-C047095E8C7 C

T32A130827-43177320-DB4C-414E-979E-3880F123E9F 3

T32A130827-F0682CE4-B884-4433-BD8A-47771628A26D

or drugs.

never drive too fast for conditions.

child restraint systems. Preteen children should be seated in the rear seat.

proper use of vehicle safety features to all occupants of the vehicle.

important safety information.

T32A130827-FCDF74CF-E97A-4F06-A19F-099B7A0C209 6

MODIFICATION OF YOUR VEHICLE

This vehicle should not be modified. Modification could affect its performance, safety or durability, and may even violate governmental regulations. In addition, damage or performance problems resulting from modifications may not be covered under NISSAN warranties.

Read first — then drive safely

Before driving your vehicle, read this Owner’s Manual carefully. This will ensure familiarity with controls and maintenance requirements, assisting you in the safe operation of your vehicle.

Throughout this manual we have used the symbol

to indicate the presence of a hazard that could cause death or serious personal injury. To avoid or reduce the risk, the procedures must be followed precisely.

The symbol also used throughout this manual to indicate the presence of a hazard that could cause minor or moderate personal injury or damages to your vehicle. To avoid or reduce the risk, the procedures must be followed carefully.

T32A130827-0A0B6A4E-B210-478D-BC6C-8E20CC8B66 D7

T32A130827-C8F46367-1E3C-449F-8525-B3535299080 3

followed by the word WARNING. This is used

followed by the word CAUTION is

SIC0697

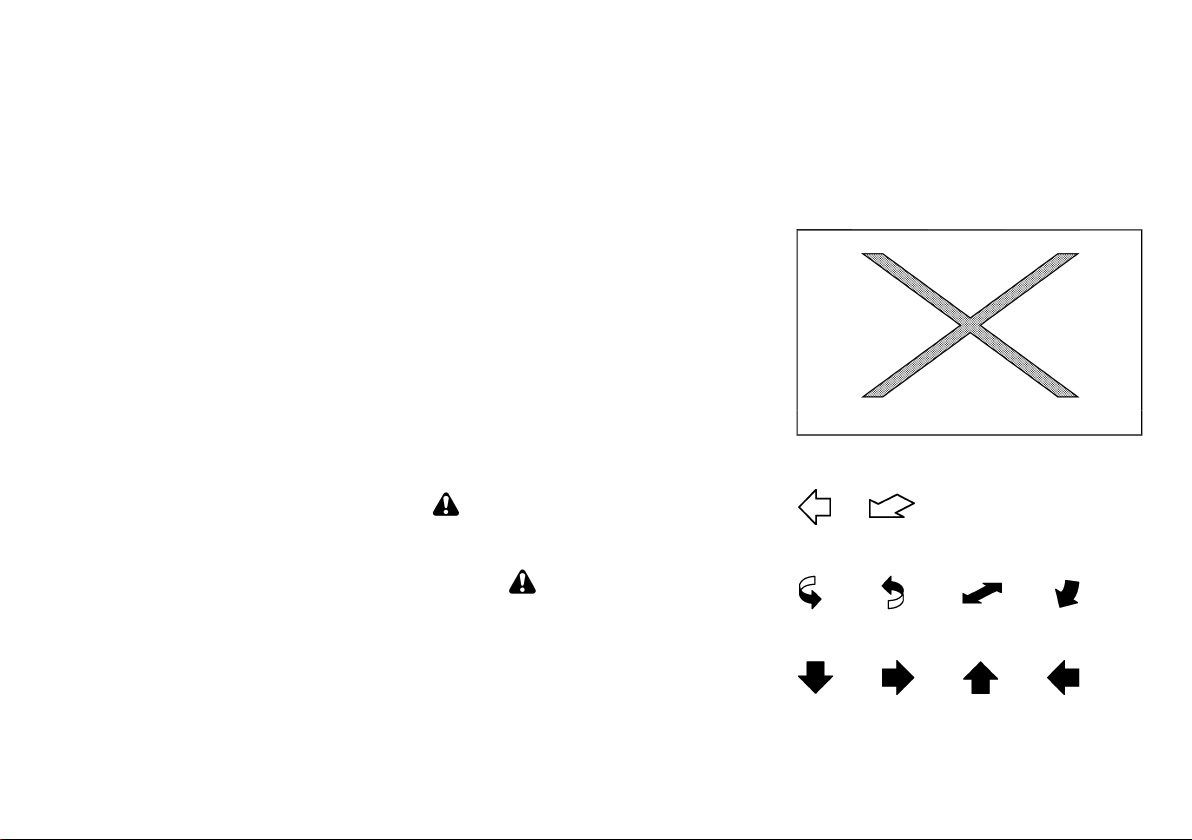

If you see this symbol, it means “Do not do this” or “Do not let this happen”.

NOS1274

If you see a symbol similar to these in an illustration, it means the arrow points to the front of the vehicle.

NOS1275

Arrows in an illustration that are similar to these indicate movement or action.

NOS1276

Arrows in an illustration that are similar to these call attention to an item in the illustration.

Page 2

(4,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

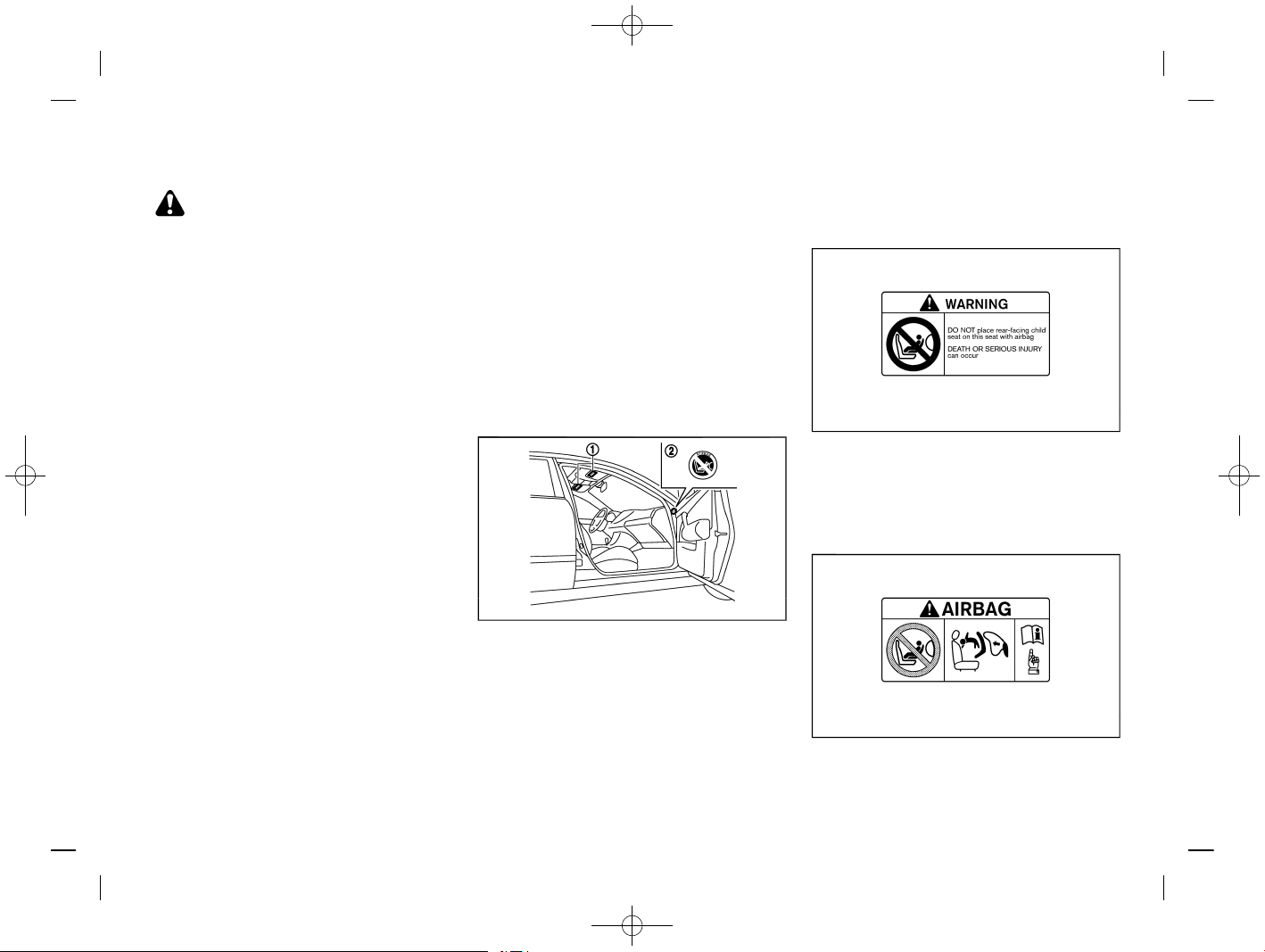

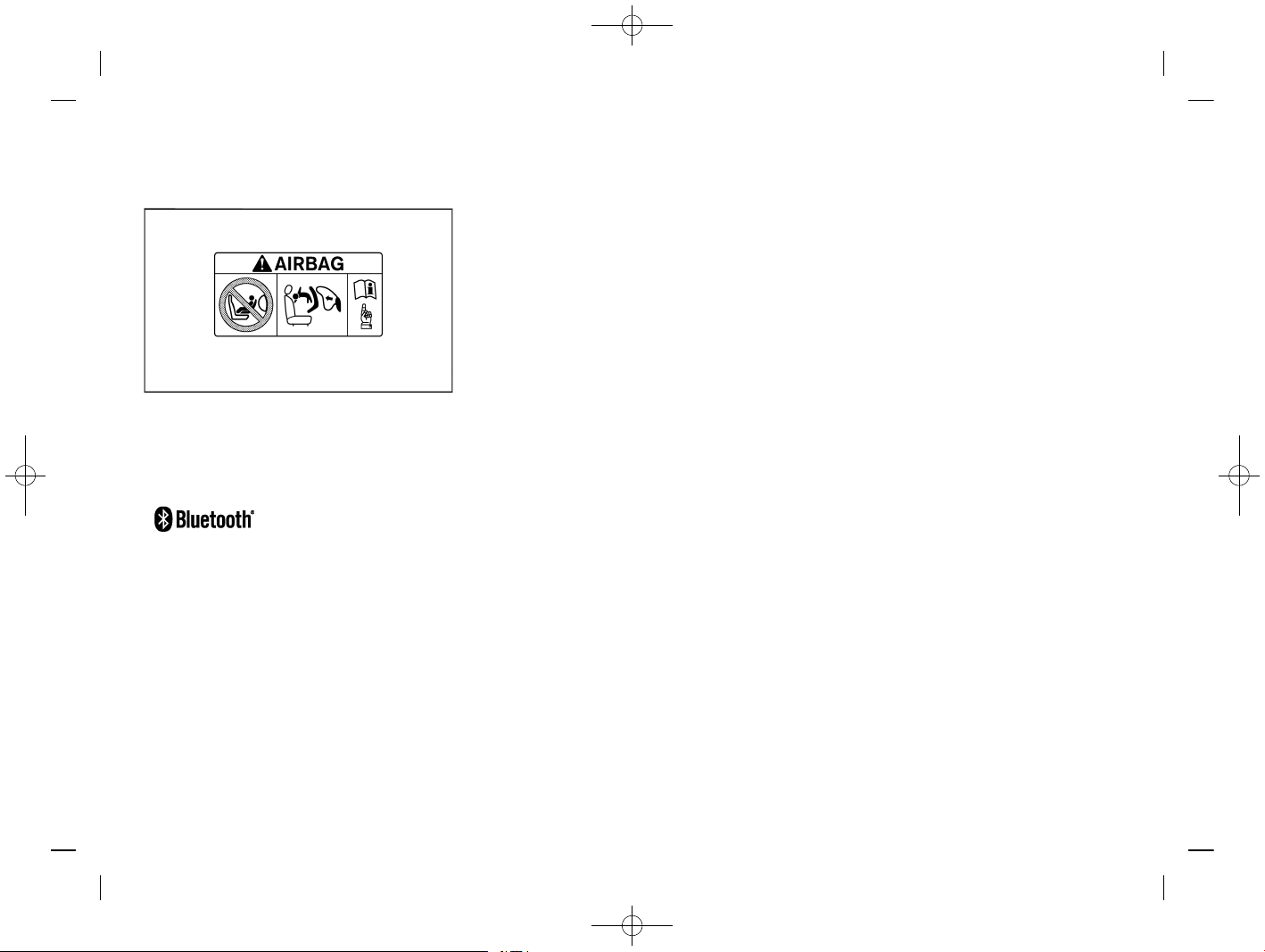

Air bag warning labels:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0243X

“NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.”

Be sure to read “Air bag warning labels” (P.1-30).

Trademarks:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

NOS1617

Bluetooth®is a trademark owned by Bluetooth SIG, Inc. and licensed to Visteon Corporation and Bosch.

ON-PAVEMENT AND OFF-ROAD DRIVING (4WD model)

T32A130827-A92ECF76-8233-4402-BEA7-174ED86FCE 6B

This vehicle will handle and maneuver differently from an ordinary passenger car, because it has a higher center of gravity. As with other vehicles with features of this type, failure to operate this vehicle correctly may result in loss of control or an accident.

Be sure to read the “On-pavement and off-road driving precautions” (P.5-7) of this manual.

2014 NISSAN MOTOR CO., LTD.

Condition: 'Except for China'/

Page 3

(1,1)

Illustrated table of contents

Safety — seats, seat belts and supplemental restraint system

Instruments and controls

Pre-driving checks and adjustments

Display screen, heater and air conditioner, and audio system

Starting and driving

In case of emergency

Appearance and care

Maintenance and do-it-yourself

Technical information

Index

Table of Contents

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Condition: 'Except for China'/

Page 4

(2,1)

Page 5

(5,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0 Illustrated table of contents

Seats, seat belts and Supplemental Restraint System (SRS) ........ 0-2

Exterior front .................................................................................................. 0-3

Exterior rear ................................................................................................... 0-4

Passenger compartment ............................................................................ 0-5

Cockpit ........................................................................................................... 0-6

Left-Hand Drive (LHD) model ............................................................ 0-6

Right-Hand Drive (RHD) model ........................................................ 0-7

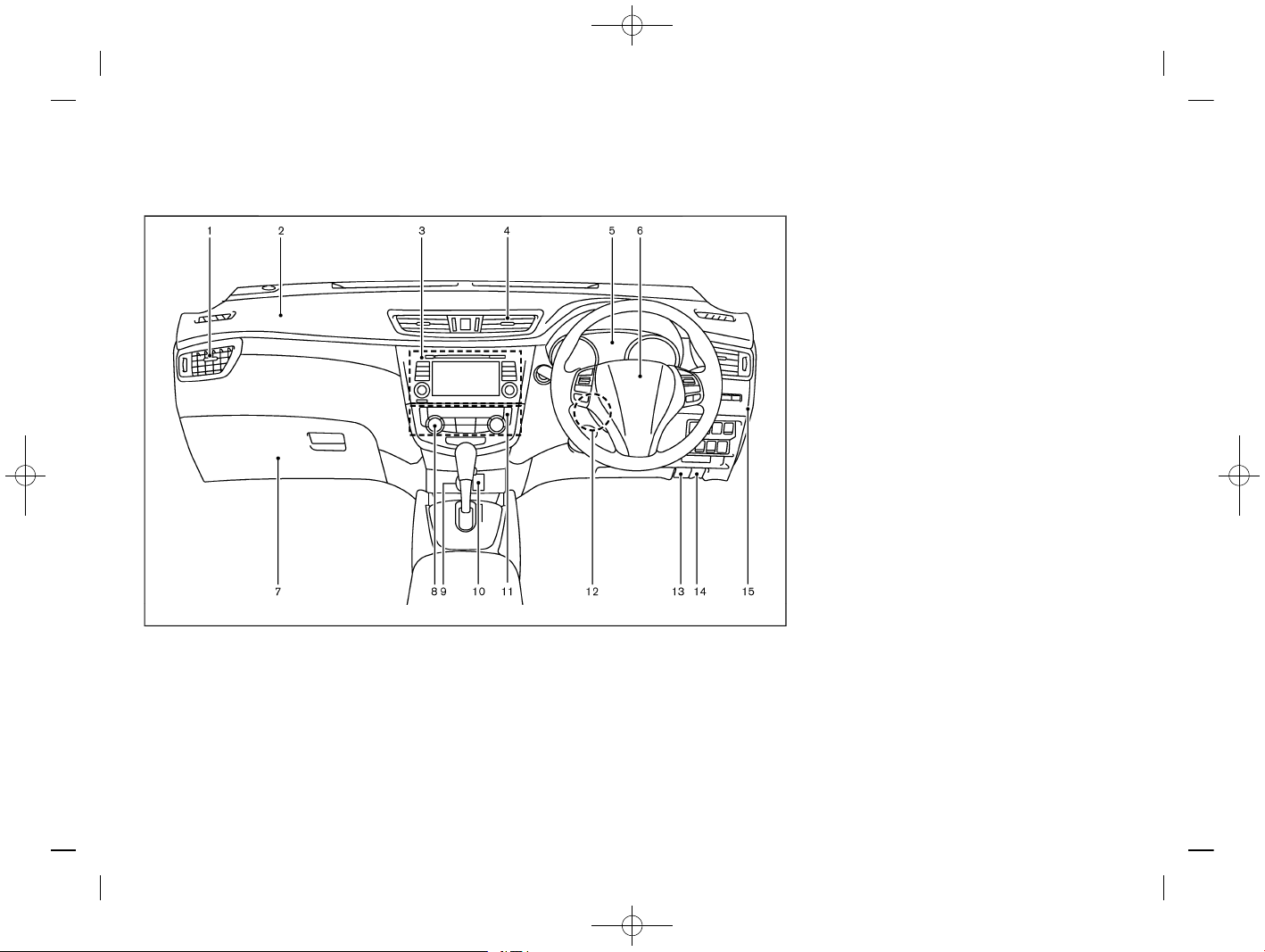

Instrument panel .......................................................................................... 0-8

Left-Hand Drive (LHD) model ......................................................... 0-8

Right-Hand Drive (RHD) model ...................................................... 0-9

Meters and gauges ................................................................................. 0-10

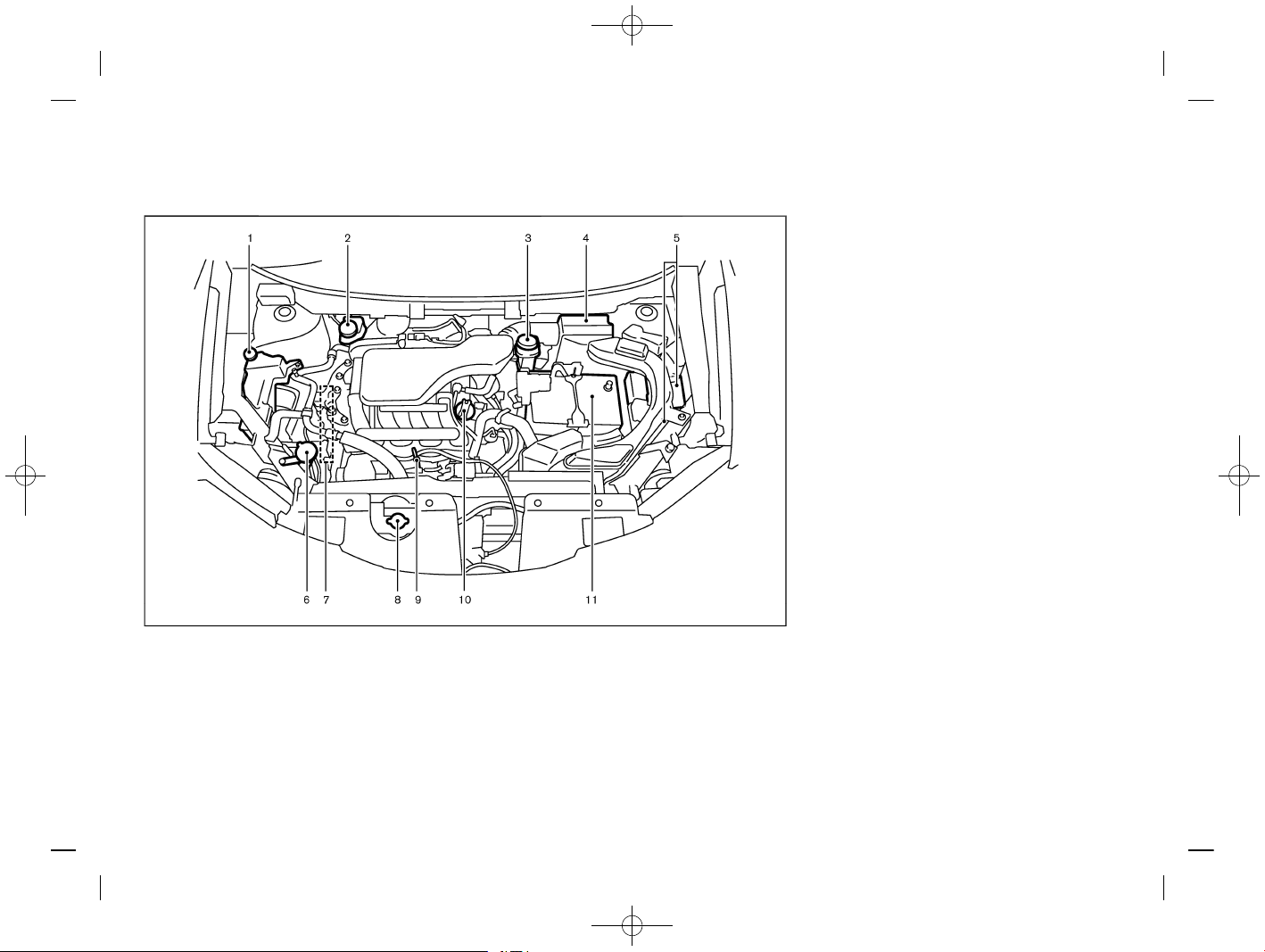

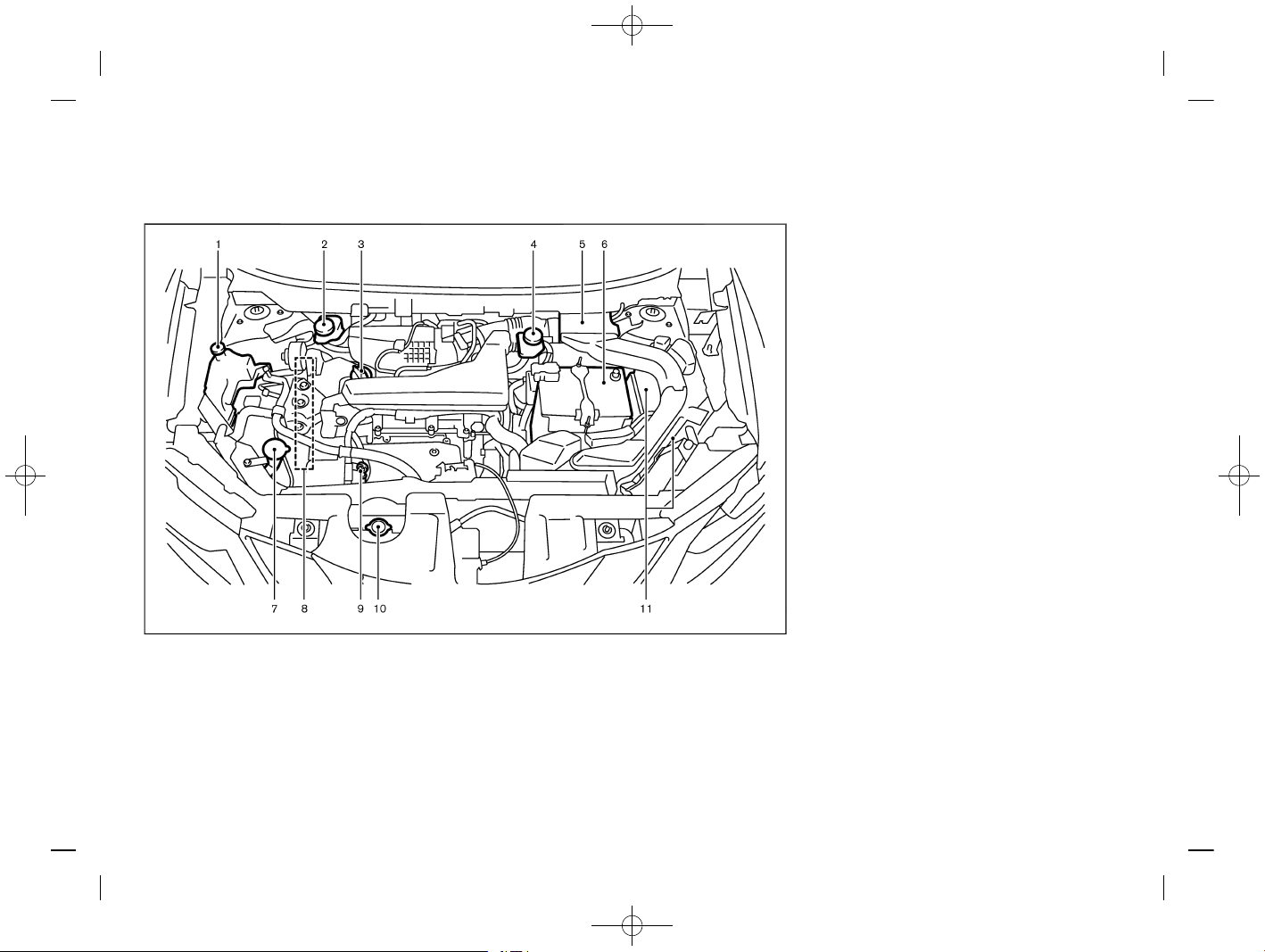

Engine compartment ............................................................................... 0-11

QR25DE engine model ................................................................. 0-11

MR20DD engine model ................................................................. 0-12

R9M engine model ........................................................................ 0-13

Condition: 'Except for China'/

Page 6

(6,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-2 Illustrated table of contents

T32A130827-10AA2C4F-D507-45FE-933C-FA9FCA7F70C1

JVC0589X

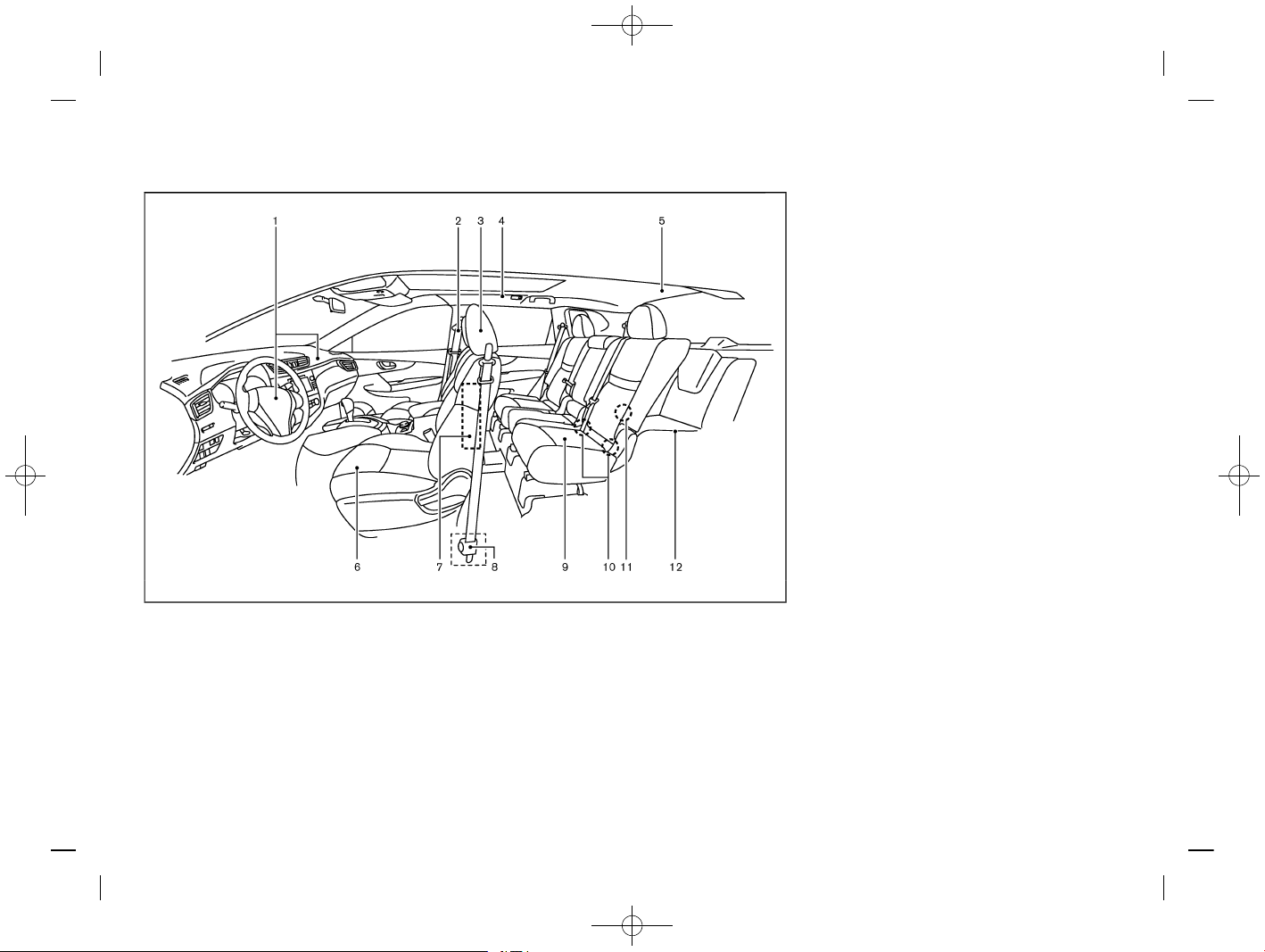

1. Supplemental front-impact air bags (Page 1-27)

2. Seat belts (P.1-9)

3. Head restraints (P.1-7)

4. Supplemental curtain side-impact air bags* (P. 1-27)

5. Child restraint anchor point (for top tether strap child restraint)* (P.1-20)

6. Front seats (P.1-2)

7. Supplemental side-impact air bags* (P.1-27)

8. Pre-tensioner seat belt system (P.1-36)

9. Second row seats (P.1-5) — Child restraints (P.1-14)

10. ISOFIX child restraint system (for second row seats) (P.1-19)

11. Child restraint anchor point (for top tether strap child restraint) (P.1-20)

12. Third row seats* (P.1-6)

*: if equipped

SEATS, SEAT BELTS AND SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Condition: 'Except for China'/

Page 7

(7,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

GUID-7CE776F2-0199-429C-BE30-880769DCFEDA

JVC0642X

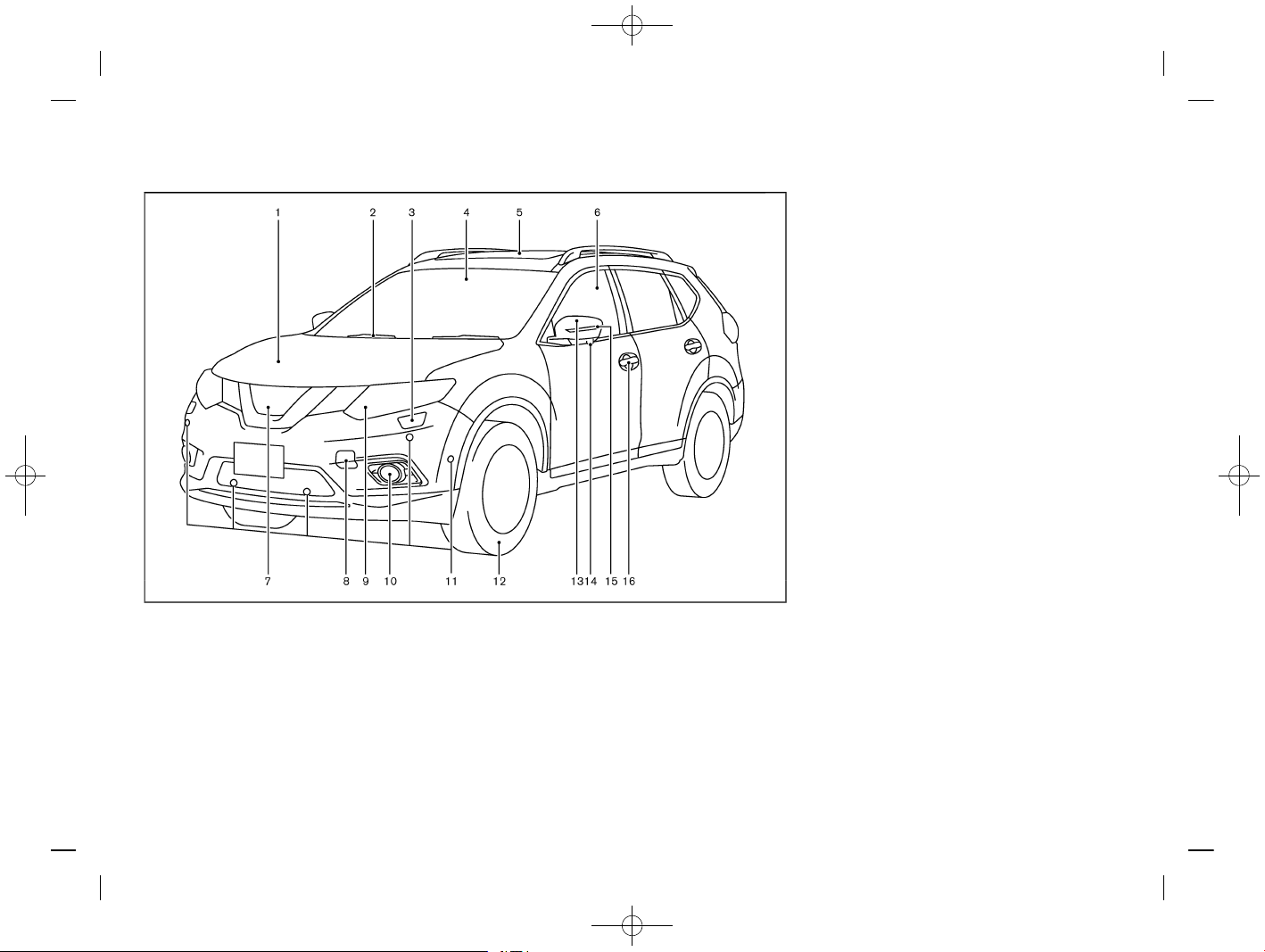

1. Engine hood (P.3-22)

2. Windshield wiper and washer — Switch operation (P.2-47) — Window washer fluid (P.8-19)

3. Headlight cleaner* (P.2-44)

4. Front camera* (P.4-10, 2-37, 5-39)

5. Sunroof* (P.2-52)

6. Power windows (P.2-50)

7. Front view camera* (P.4-10)

8. Recovery hook (P.6-12)

9. Headlights and turn signal lights (P.2-39)

10. Fog lights* (P.2-45)

11. Sonar (parking sensor) system* (P.5-50) — Park Assist (PA)* (P.4-17)

12. Tires — Tires and wheels (P.8-36, 9-7) — Flat tire (P.6-2) — Tire placard (P.9-9)

13. Outside mirrors (P.3-29)

14. Side view camera* (P.4-10)

15. Side turn signal light (P.2-44)

16. Doors — Keys (P.3-2) — Door locks (P.3-4) — Intelligent Key system* (P.3-10) — Remote keyless entry system* (P.3-7) — Security system (P.3-20)

*: if equipped

Illustrated table of contents 0-3

EXTERIOR FRONT

Condition: 'Except for China'/

Page 8

(8,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-4 Illustrated table of contents

T32A130827-BA5074E9-D21C-4E66-B0EF-AE9C682D0B E4

JVC0599X

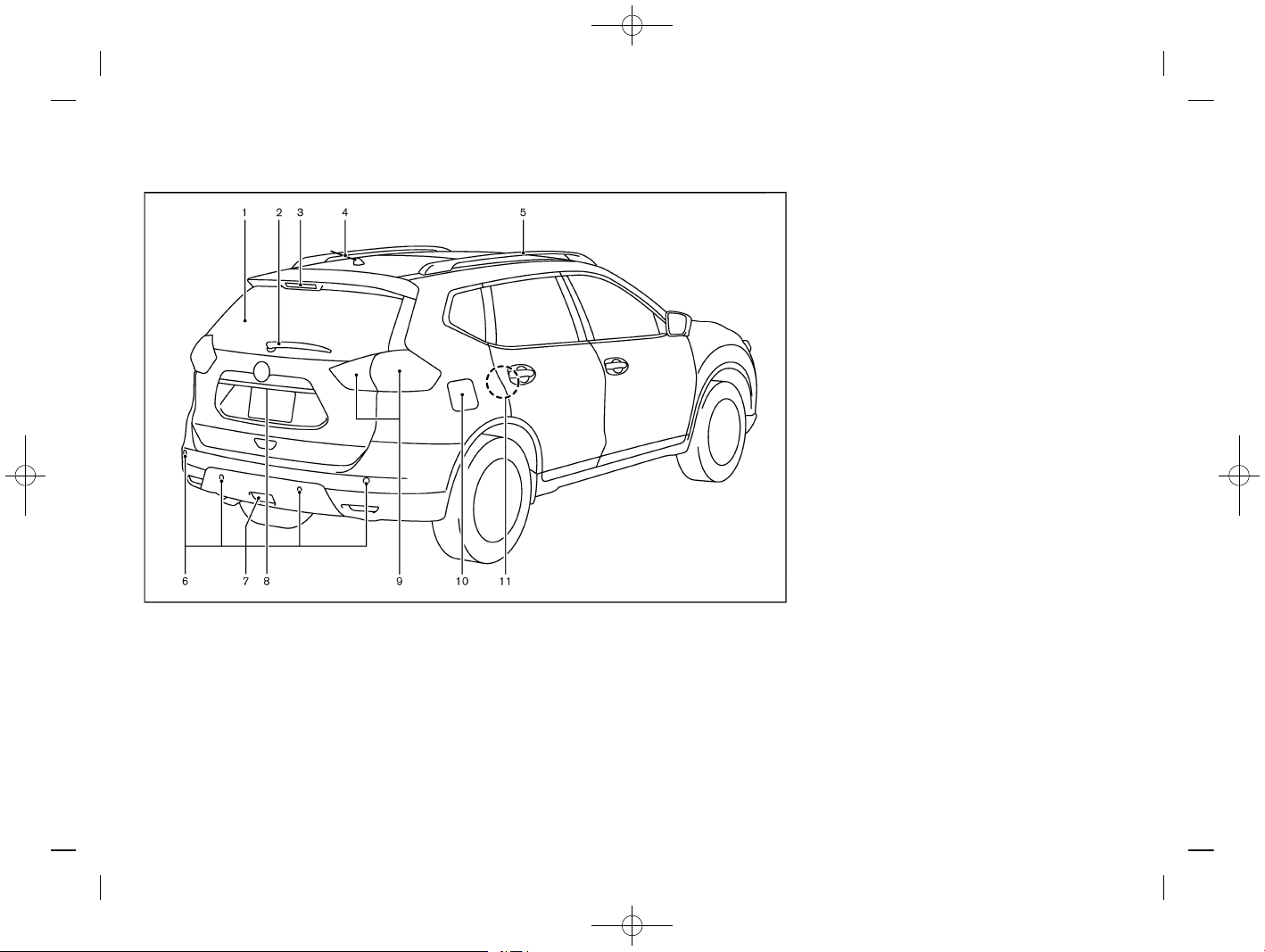

1. Rear window defogger (P.2-49)

2. Rear window wiper and washer — Switch operation (P.2-49) — Window washer fluid (P.8-19)

3. High-mounted stop light — Bulb replacement (P.8-28)

4. Antenna (P.4-43)

5. Roof rail* (P.2-60)

6. Parking sensor (sonar) system* (P. 5-50) — Park Assist (PA)* (P.4-17)

7. Rear fog light* (P. 2-46)

8. Back door (P.3-23) — Intelligent Key system* (P.3-10) — Remote keyless entry system* (P.3-7) — Rear view camera* (P.4-7, P.4-10)

9. Rear combination light (P. 8-27)

10. Fuel filler lid (P.3-27)

11. Child safety rear door locks (P.3-7)

*: if equipped

EXTERIOR REAR

Condition: 'Except for China'/

Page 9

(9,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

T32A130827-640688FC-866B-4E18-8CE1-364B86D3233 C

JVC0654X

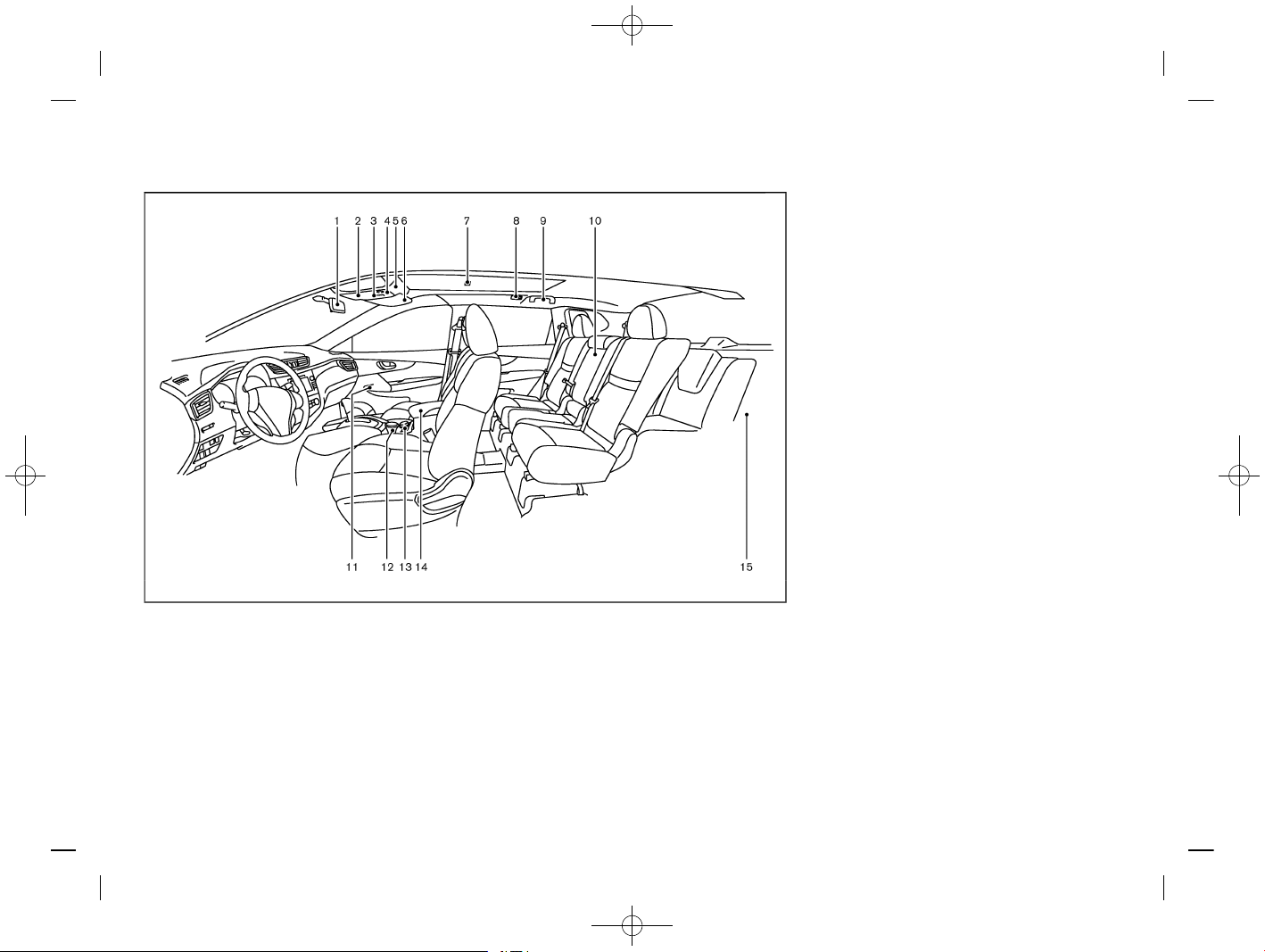

1. Inside rearview mirror (P.3-28)

2. Sunglasses holder (P.2-55)

3. Front map lights (P.2-62) — Microphone* (P.4-78, P.4-84, P.4-87, P.4-94

, P.4-98)

4. Sunroof* (P.2-52)

5. Cancel switch for ultrasonic and tilt sensors* (P.3-20)

6. Sun visors (P.2-61, P.3-29)

7. Room light* (P.2-62)

8. Rear personal lights* (P.2-63)

9. Coat hook (Driver’s side) (P.2-59)

10. Rear armrest (Second row seats) (P.1-7) — Rear cup holders (P.2-55)

11. Door armrest — Power window switch (P.2-50) — Power door lock switch* (P.3-6) — Outside rearview mirror remote control

switch (Driver’s side) (P.3-29)

12. Front cup holders (P.2-55)/Ashtray* (P.2-54)

13. Heated seat switch* (P.1-4)

14. Console box (P.2-55)

15. Luggage room — Storages (P.2-54) — Luggage hooks (P.2-57) — Tonneau cover* (P.2-60) — Power outlet (P.2-53) — Spare tire (P.6-2)

*: if equipped

Illustrated table of contents 0-5

PASSENGER COMPARTMENT

Condition: 'Except for China'/

Page 10

(10,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-6 Illustrated table of contents

GUID-10473ED5-F428-4070-A4B6-3AE4A1D1CCC6

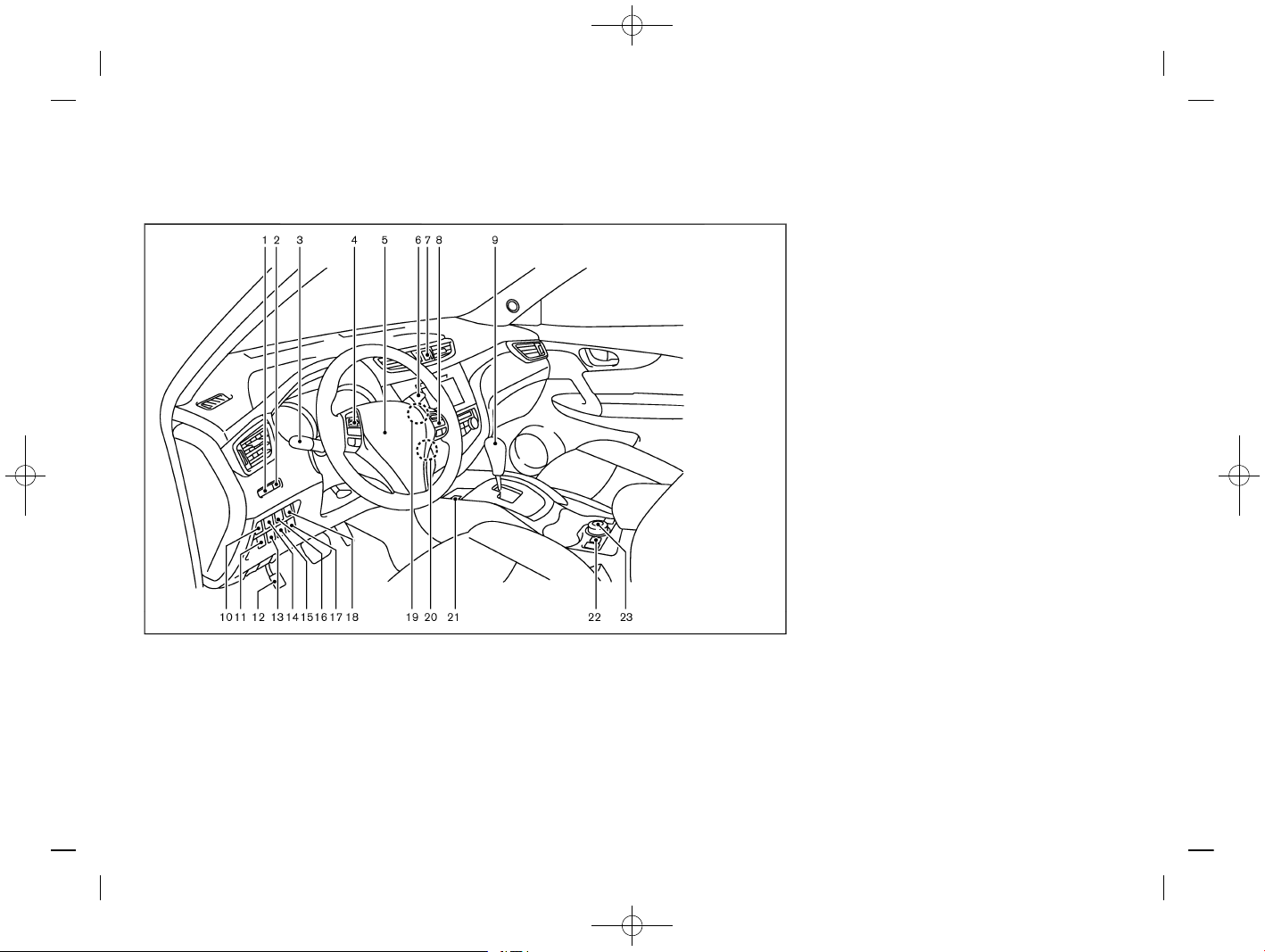

LEFT-HAND DRIVE (LHD) MODEL

GUID-5B92FB7E-BFCD-4E4C-9506-C5094664CBDF

JVC0643X

1. Instrument brightness control (P.2-10)

2. TRIP RESET switch (P.2-7, P.2-8)

3. Headlight and turn signal switch (P.2-39)/Fog light switch* (P.2-45)

4. Steering-wheel-mounted controls (left side) — Audio control* (P.4-76 or Navigation system

**) — Vehicle information display control (P.2-20)

— Bluetooth®Hands-Free Phone System (without navigation)* (P.4-78, P.4-84, P.4-87)

— Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94)

5. Steering wheel (P.3-28) — Horn (P.2-50)

6. Wiper and washer switch (P.2-47)

7. Hazard indicator flasher switch (P.6-2)

8. Steering-wheel-mounted controls (right side) — Cruise control switches* (P.5-43) — Speed limiter switches* (P.5-41) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78, P.4-84, P.4-87) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94) — Voice recognition system switch* (P.4-98)

9. Shift lever — Continuously Variable Transmission (CVT)

(P.5-13) — Manual Transmission (MT) (P.5-17)

10. Vehicle Dynamic Control (VDC) OFF switch or Electronic Stability Program (ESP) OFF switch (P.5-27)

11. Headlight aiming control switch* (P.2-42)

12. Parking brake (Pedal type)* (P.3-30)

13. ECO switch* (P.5-47)

14. Headlight cleaner switch* (P.2-44)

15. Parking sensor (sonar) system OFF switch* (P.5-51)

16. Power back door switch* (P.3-24)

17. Stop/Start OFF switch* (P.5-21)

18. Power back door main switch* (P.3-24)

19. Push-button ignition switch (model with Intelligent Key system)* (P.5-9)

20. Ignition switch (model without Intelligent Key system)* (P.5-7)

21. Parking brake (Switch type)* (P.3-30)

22. Hill descent control switch* (P.5-30)

23. Four-Wheel Drive (4WD) mode switch* (P.5-22)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

COCKPIT

Condition: 'Except for China'/

Page 11

(11,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

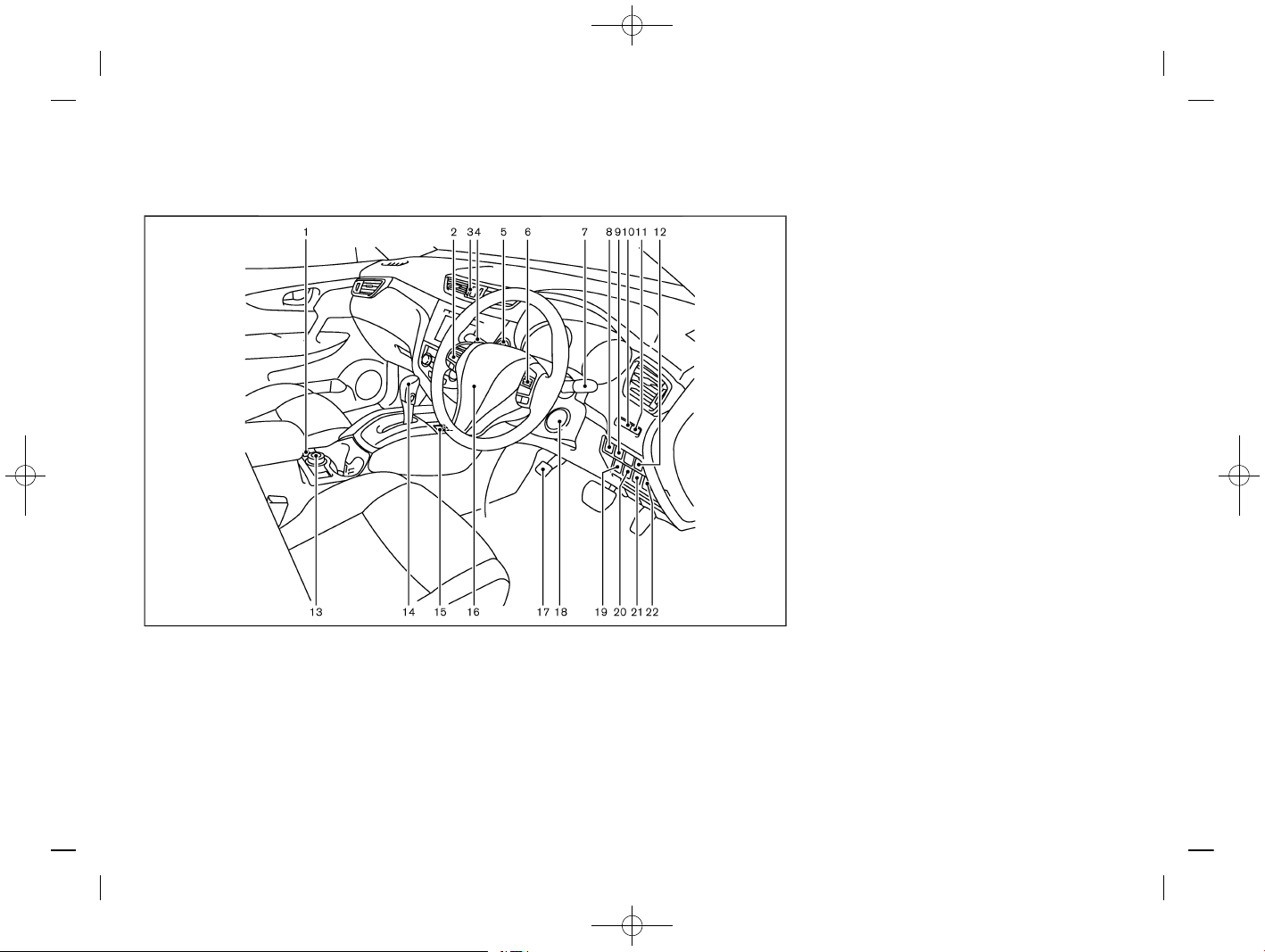

RIGHT-HAND DRIVE (RHD) MODEL

GUID-2C73B5AA-609C-4CA5-AC9C-A8EFFF6B2BCF

JVC0649X

1. Hill descent control switch* (P.5-30)

2. Steering-wheel-mounted controls (left side) — Audio control* (P.4-76 or Navigation system

**) — Vehicle information display control (P.2-20) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78, P.4-84) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94)

3. Hazard indicator flasher switch (P.6-2)

4. Headlight and turn signal switch (P.2-39)/Fog light switch* (P.2-45) or Wiper and washer switch (P.2-47)

5. Push-button ignition switch (model with Intelligent Key system)* (P.5-9)

6. Steering-wheel-mounted controls (right side) — Cruise control switches* (P.5-43) — Speed limiter switches* (P.5-41)

— Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78, P.4-84) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94) — Voice recognition system switch* (P.4-98)

7. Wiper and washer switch (P.2-47) or Headlight and turn signal switch (P.2-39)/Fog light switch* (P.2-45)

8. Power back door main switch* (P.3-24)

9. Power back door switch* (P.3-24)

10. Instrument brightness control (P.2-10)

11. TRIP RESET switch (P.2-7, P.2-8)

12. Vehicle Dynamic Control (VDC) OFF switch or Electronic Stability Program (ESP) OFF switch (P.5-27)

13. Four-Wheel Drive (4WD) mode switch* (P.5-22)

14. Shift lever — Continuously Variable Transmission (CVT)

(P.5-13) — Manual Transmission (MT) (P.5-17)

15. Parking brake (Switch type)* (P.3-30)

16. Steering wheel (P.3-28) — Horn (P.2-50)

17. Parking brake (Pedal type)* (P.3-30)

18. Ignition switch (model without Intelligent Key system)* (P.5-7)

19. Stop/Start or Idling Stop OFF switch* (P.5-21)

20. Parking sensor (sonar) system OFF switch* (P.5-51)

21. ECO switch* (P.5-47)

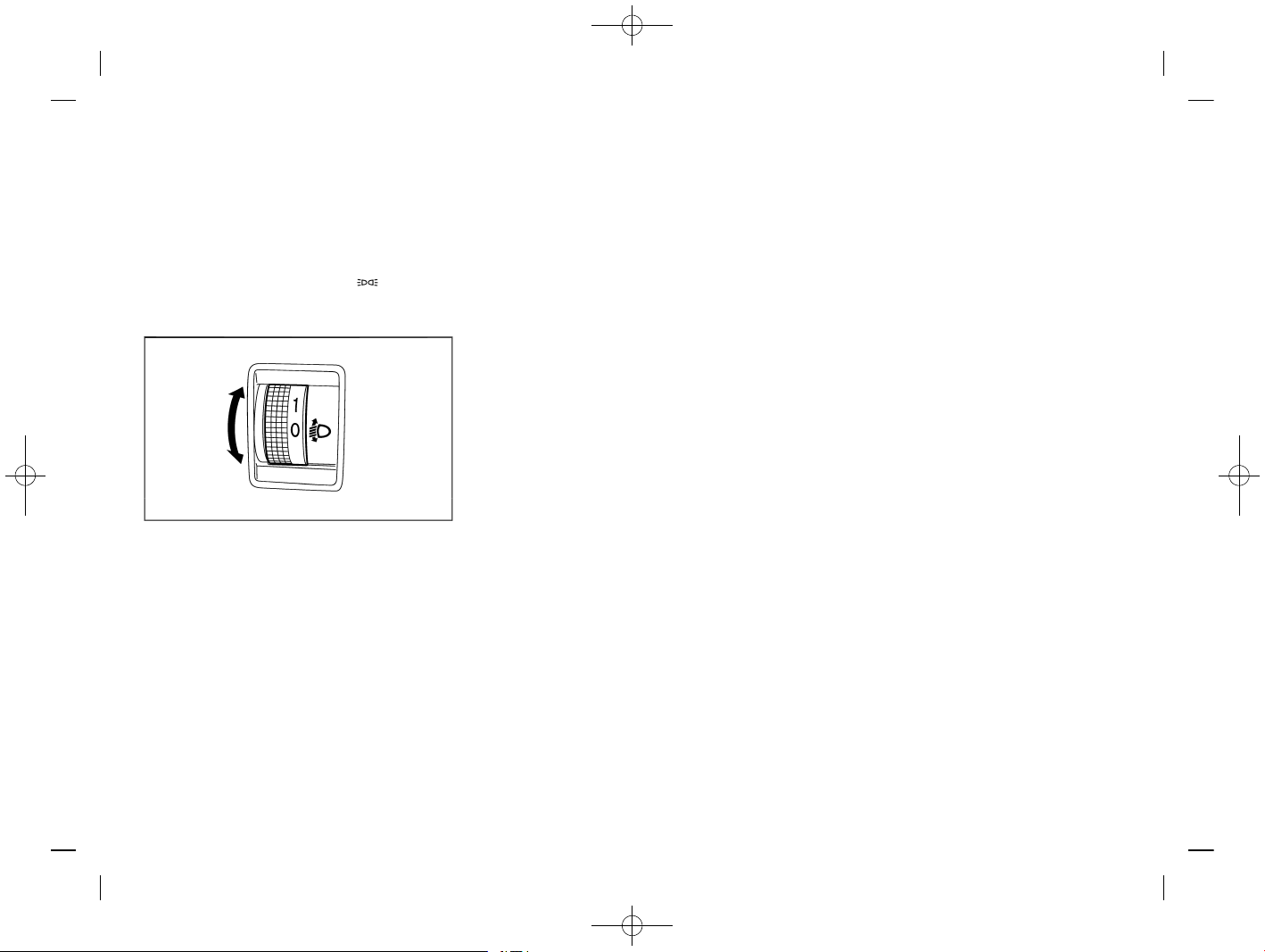

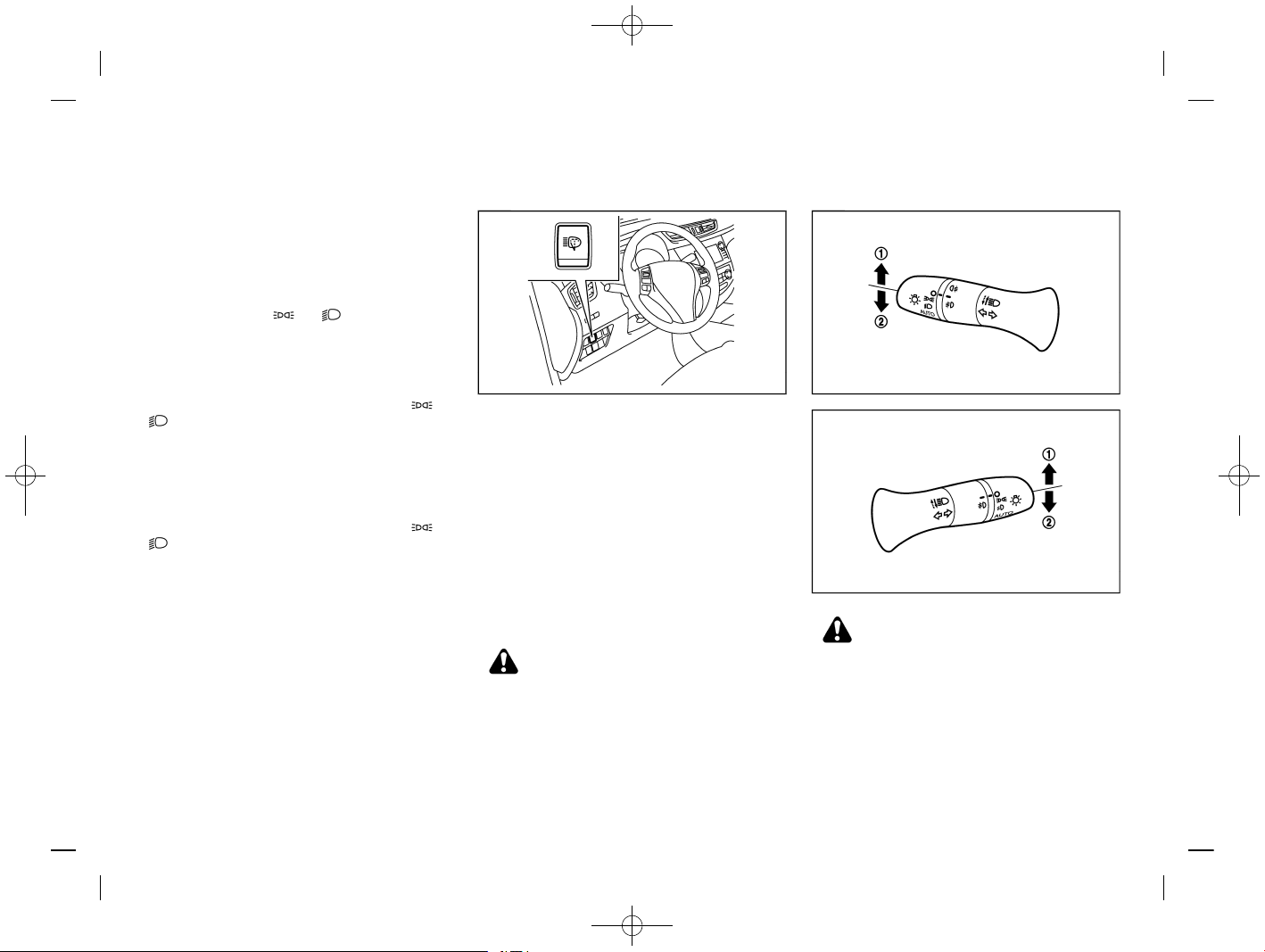

22. Headlight aiming control switch* (P.2-42)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Illustrated table of contents 0-7

Condition: 'Except for China'/

Page 12

(12,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-8 Illustrated table of contents

GUID-6AB30B05-199D-4C45-BA41-DAF524C5659F

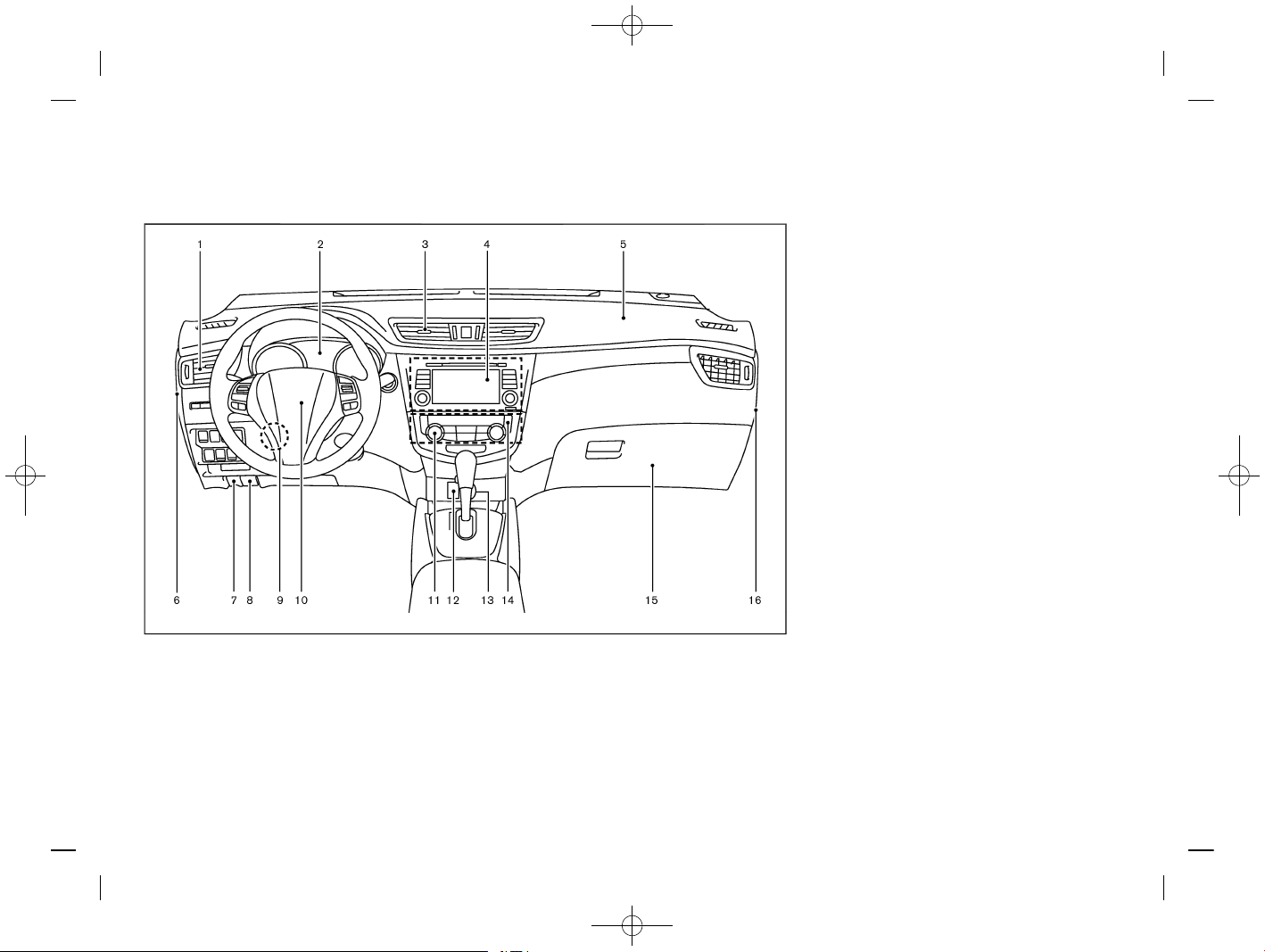

LEFT-HAND DRIVE (LHD) MODEL

T32A130827-288FF21B-7739-4FAD-8E2C-DC0FB640F389

JVC0663X

1. Side ventilator (P.4-26)

2. Meters and gauges (P.2-7)/Clock (P.2-22)

3. Center ventilator (P.4-25)

4. Audio system* (P.4-35) or Navigation system** — Rear view monitor* (P.4-7) — Around view monitor* (P.4-10) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78)

— Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94) — Voice Recognition System* (P.4-98)

5. Passenger’s front-impact air bag (P.1-27)

6. Fuse box cover (P.8-24)

7. Fuel filler lid release handle (P.3-27)

8. Hood release handle (P.3-22)

9. Steering wheel lock lever (P.3-28)

10. Driver’s front-impact air bag (P.1-27)/Horn (P.2-50)

11. Heater/air conditioner control (P.4-26)

12. Auxiliary input jack* (P.4-75) and USB port* (P.4-75)

13. Power outlet*/Cigarette lighter* (P.2-53)

14. Defogger switch (P.2-49)

15. Glove box (P.2-54)

16. Fuse box cover* (P.8-24)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

INSTRUMENT PANEL

Condition: 'Except for China'/

Page 13

(13,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

RIGHT-HAND DRIVE (RHD) MODEL

T32A130827-2C6B73CA-1866-4562-9175-5F11892A2EE 0

JVC0662X

1. Side ventilator (P.4-26)

2. Passenger’s front-impact air bag (P.1-27)

3. Audio system* (P.4-35) or Navigation system** — Rear view monitor* (P.4-7) — Around view monitor* (P.4-10) — Bluetooth

Hands-Free Phone System (with-

out navigation)* (P.4-78) — Bluetooth

Hands-Free Phone System (with

navigation)* (P.4-94)

— Voice Recognition System* (P.4-98)

4. Center ventilator (P.4-25)

5. Meters and gauges (P.2-7)/Clock (P.2-22)

6. Driver’s front-impact air bag (P.1-27)/Horn (P.2-50)

7. Glove box (P.2-54) — Fuse box (P.8-24)

8. Heater/air conditioner control (P.4-26)

9. Power outlet*/Cigarette lighter* (P.2-53)

10. Auxiliary input jack* (P.4-75) and USB port* (P.4-75)

11. Defogger switch (P.2-49)

12. Steering wheel lock lever (P.3-28)

13. Hood release handle (P.3-22)

14. Fuel filler lid release handle (P.3-27)

15. Fuse box cover* (P.8-24)

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Illustrated table of contents 0-9

Condition: 'Except for China'/

Page 14

(14,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-10 Illustrated table of contents

T32A130827-085CACB4-087F-44F7-8187-1F542FC0BFEF

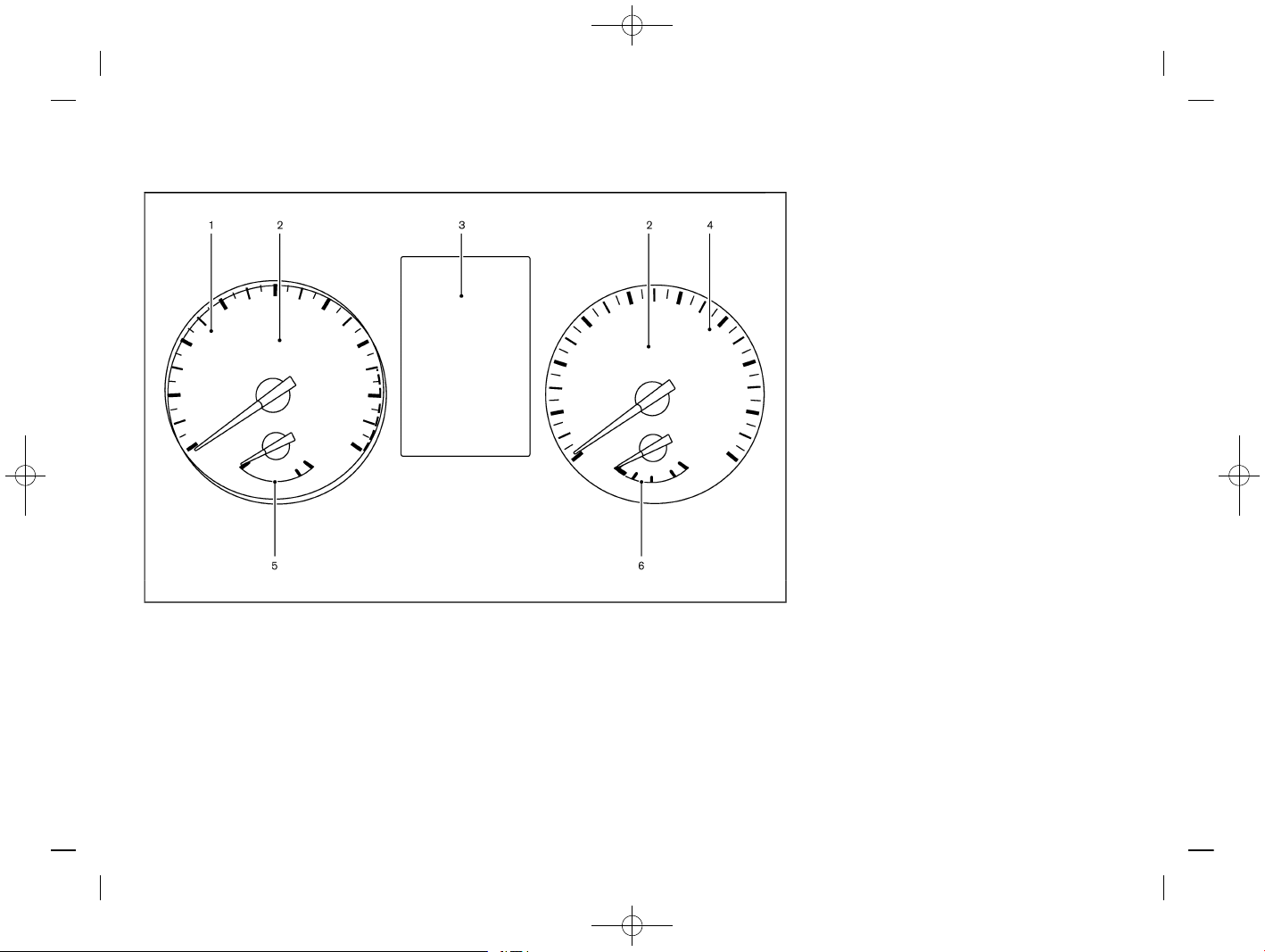

JVC0581X

1. Tachometer (P.2-8)

2. Warning/indicator lights (P.2-12)

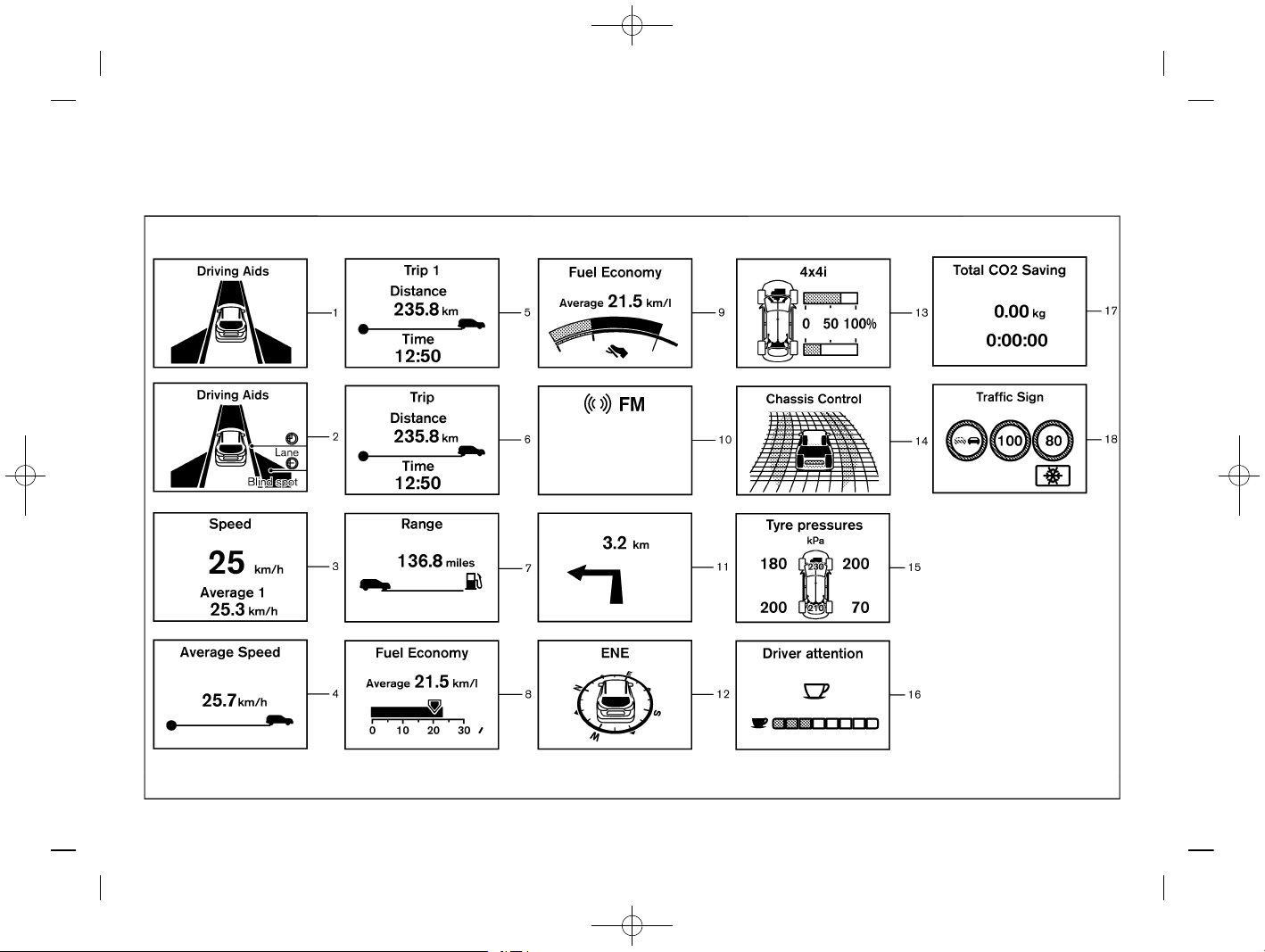

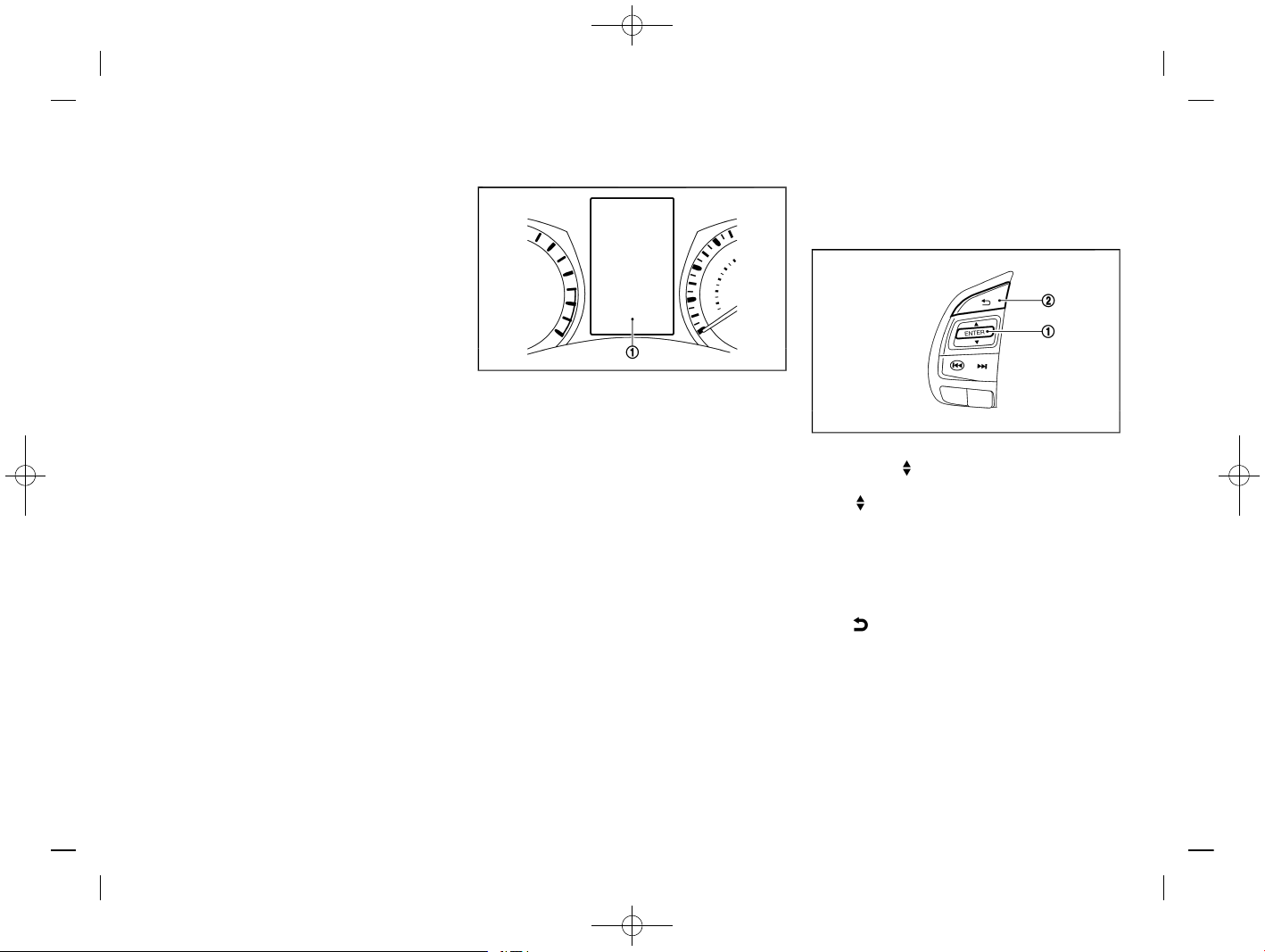

3. Vehicle information display (P.2-20) — Odometer/twin trip odometer (P.2-7, P.2-8)

4. Speedometer (P.2-7)

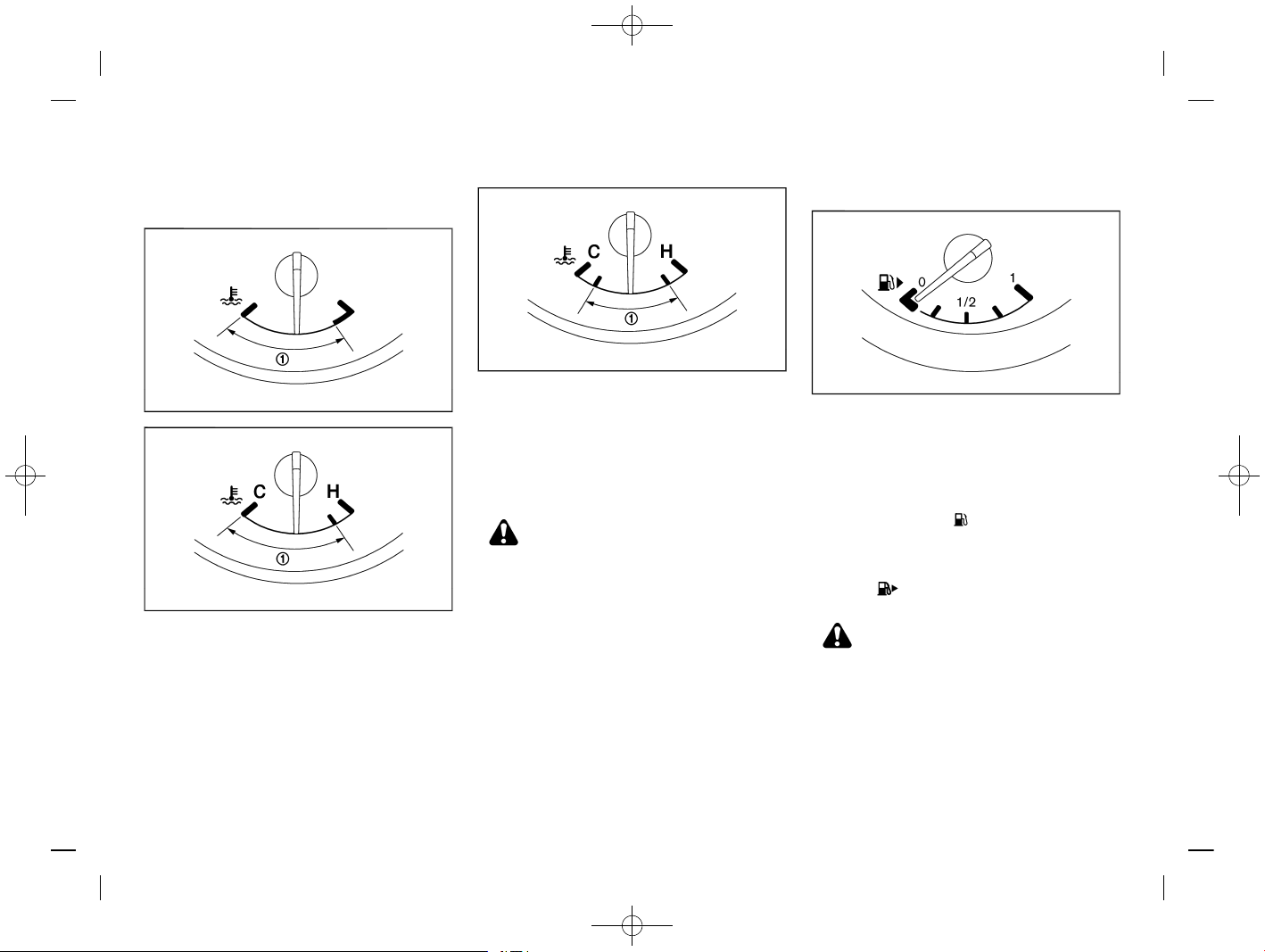

5. Engine coolant temperature gauge (P.2-9)

6. Fuel gauge (P.2-9)

METERS AND GAUGES

Condition: 'Except for China'/

Page 15

(15,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

T32A130827-5B4D951A-E33B-40B3-B46A-59CAD646A8 B4

QR25DE ENGINE MODEL

T32A130827-690FA407-2649-46DA-9338-40A3EC16529D

JVC0580X

1. Engine coolant reservoir (P.8-9)

2. Brake fluid reservoir (P.8-16) — RHD model

3. Engine oil filler cap (P.8-10)

4. Brake fluid reservoir (P.8-16) — LHD model

5. Air cleaner (P.8-17)

6. Battery (P.8-20)

7. Window washer fluid reservoir (P.8-19)

8. Engine drive belts (P.8-14)

9. Engine oil dipstick (P.8-10)

10. Radiator cap (P.8-8) — Vehicle overheat (P.6-10)

11. Fuse/fusible link box (P.8-24)

Illustrated table of contents 0-11

ENGINE COMPARTMENT

Condition: 'Except for China'/

Page 16

(16,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-12 Illustrated table of contents

MR20DD ENGINE MODEL

T32A130827-0469BBE0-67EA-4CAC-8CA8-6DA80E9EE1C A

JVC0592X

1. Engine coolant reservoir (P.8-9)

2. Brake and clutch* fluid reservoir (P.8-16) — RHD model

3. Brake and clutch* fluid reservoir (P.8-16) — LHD model

4. Air cleaner (P.8-17)

5. Fuse/fusible link box (P.8-24)

6. Window washer fluid reservoir (P.8-19)

7. Engine drive belts (P.8-14)

8. Radiator cap (P.8-8) — Vehicle overheat (P.6-10)

9. Engine oil dipstick (P.8-10)

10. Engine oil filler cap (P.8-10)

11. Battery (P.8-20)

*: For Manual Transmission (MT) Model

Condition: 'Except for China'/

Page 17

(17,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

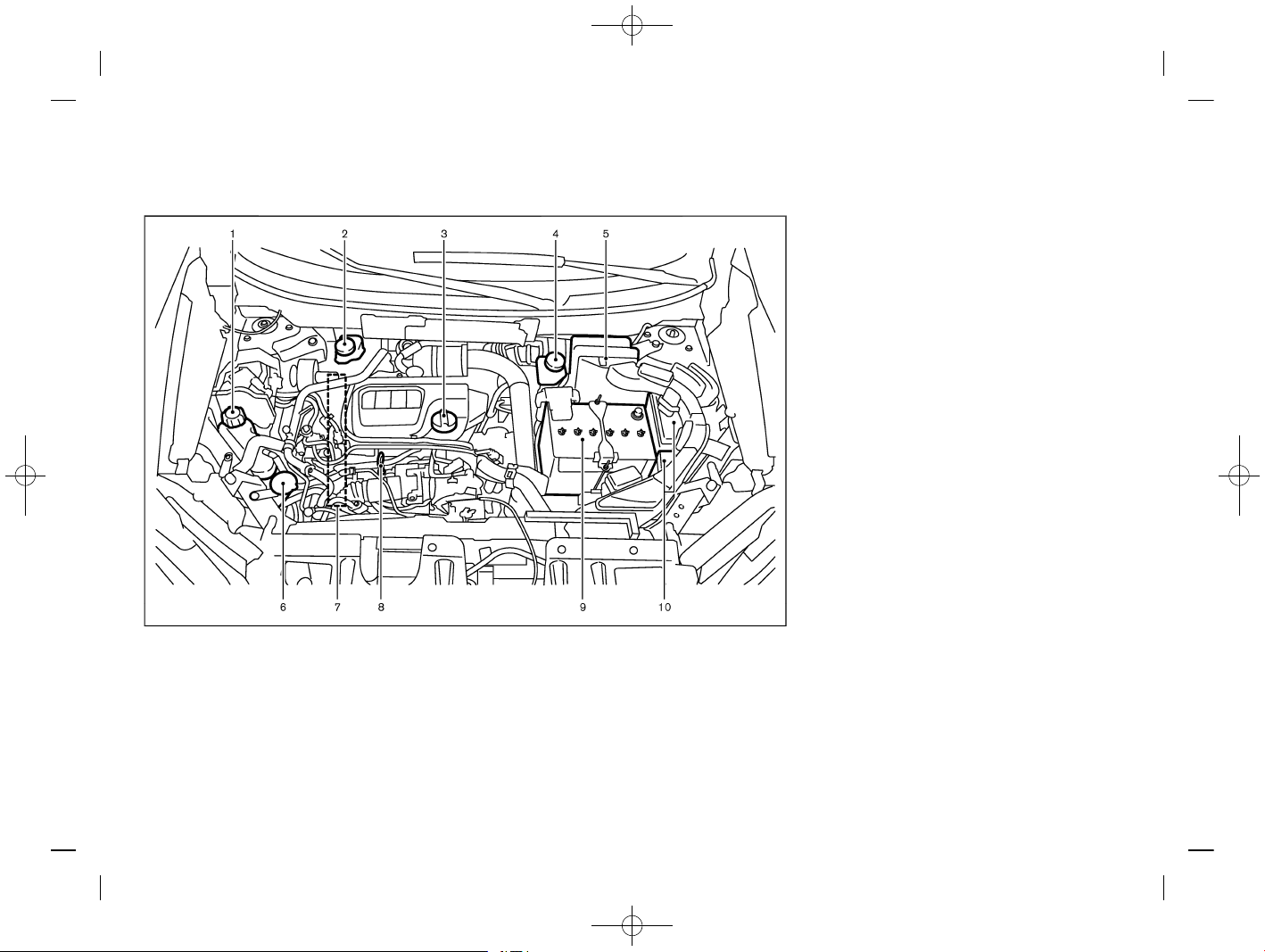

R9M ENGINE MODEL

GUID-DC3E00C5-19FD-4DBF-908D-ED1B5BC31993

JVC0640X

1. Engine coolant reservoir (P.8-9)

2. Brake and clutch* fluid reservoir (P.8-16) — RHD model

3. Engine oil filler cap (P.8-10)

4. Brake and clutch* fluid reservoir (P.8-16) — LHD model

5. Air cleaner (P.8-17)

6. Window washer fluid reservoir (P.8-19)

7. Engine drive belts (P.8-14)

8. Engine oil dipstick (P.8-10)

9. Battery (P.8-20)

10. Fuse/fusible link box (P.8-24) *: For Manual Transmission (MT) Model

Illustrated table of contents 0-13

Condition: 'Except for China'/

Page 18

(18,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

0-14 Illustrated table of contents

MEMO

Condition: 'Except for China'/

Page 19

(19,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1 Safety — seats, seat belts and supplemental

restraint system

Seats ............................................................................................................... 1-2

Front seats .............................................................................................. 1-2

Second row seats ................................................................................. 1-5

Third row seats (if equipped) ............................................................ 1-6

Armrest .................................................................................................... 1-7

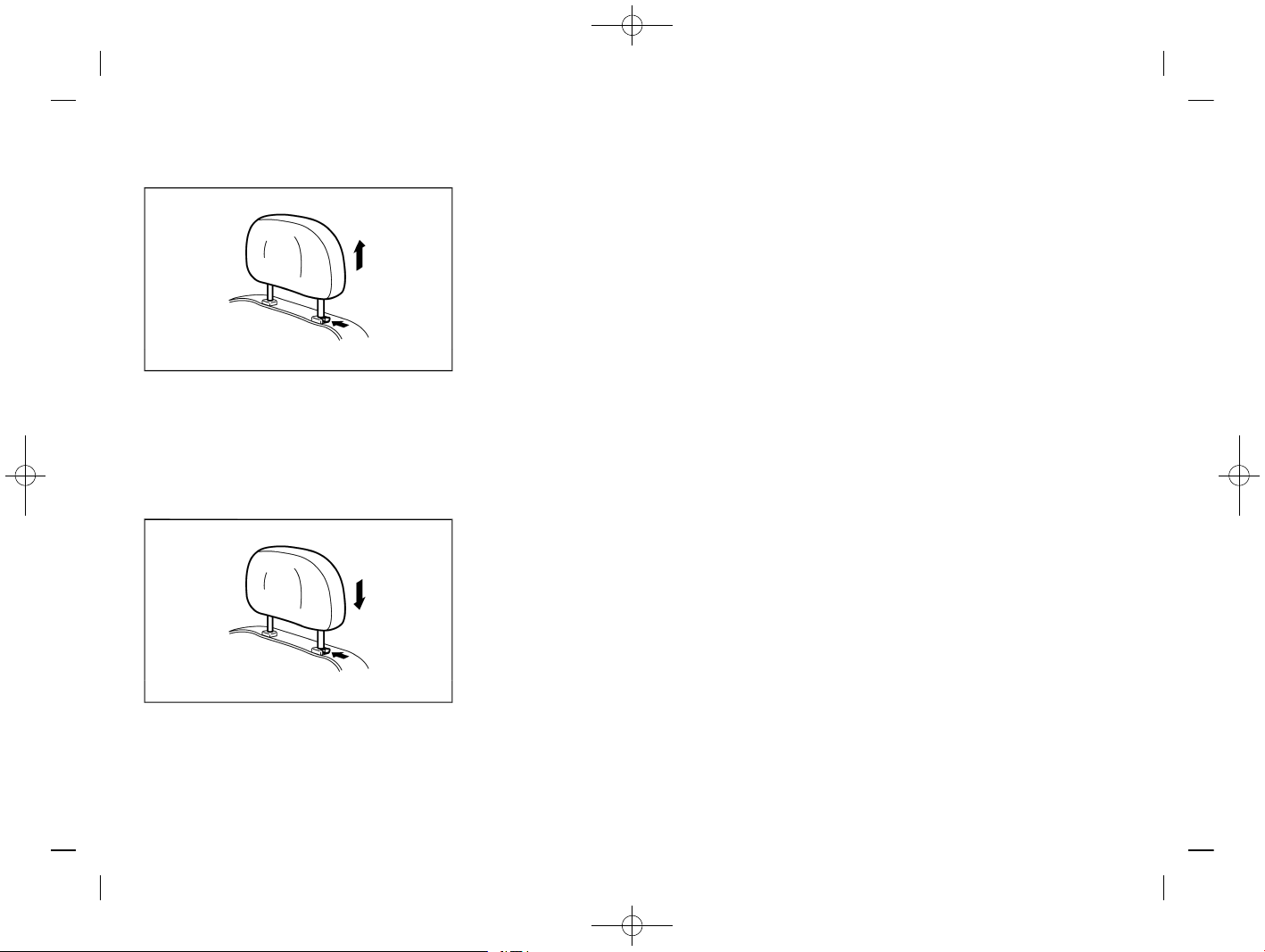

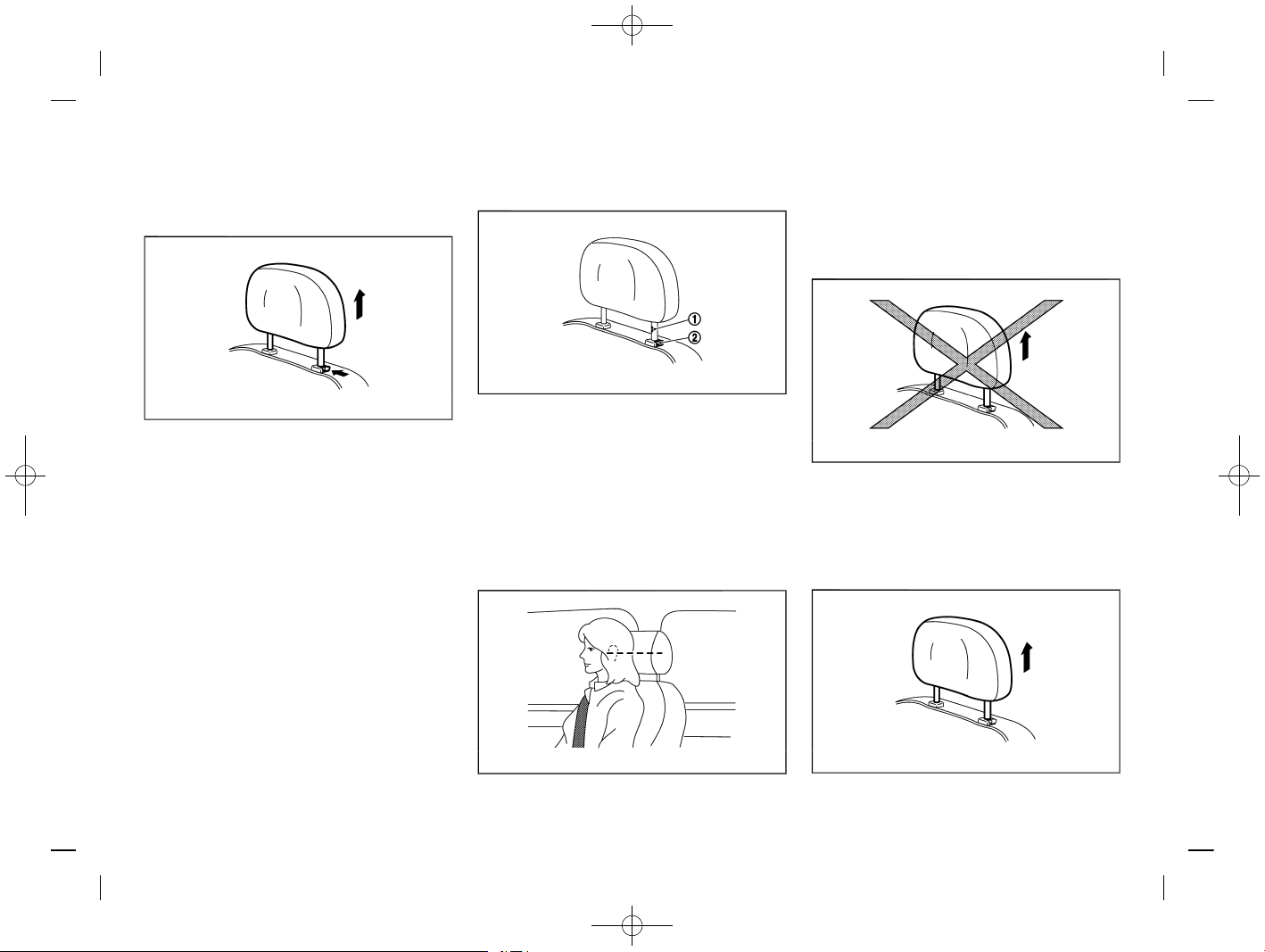

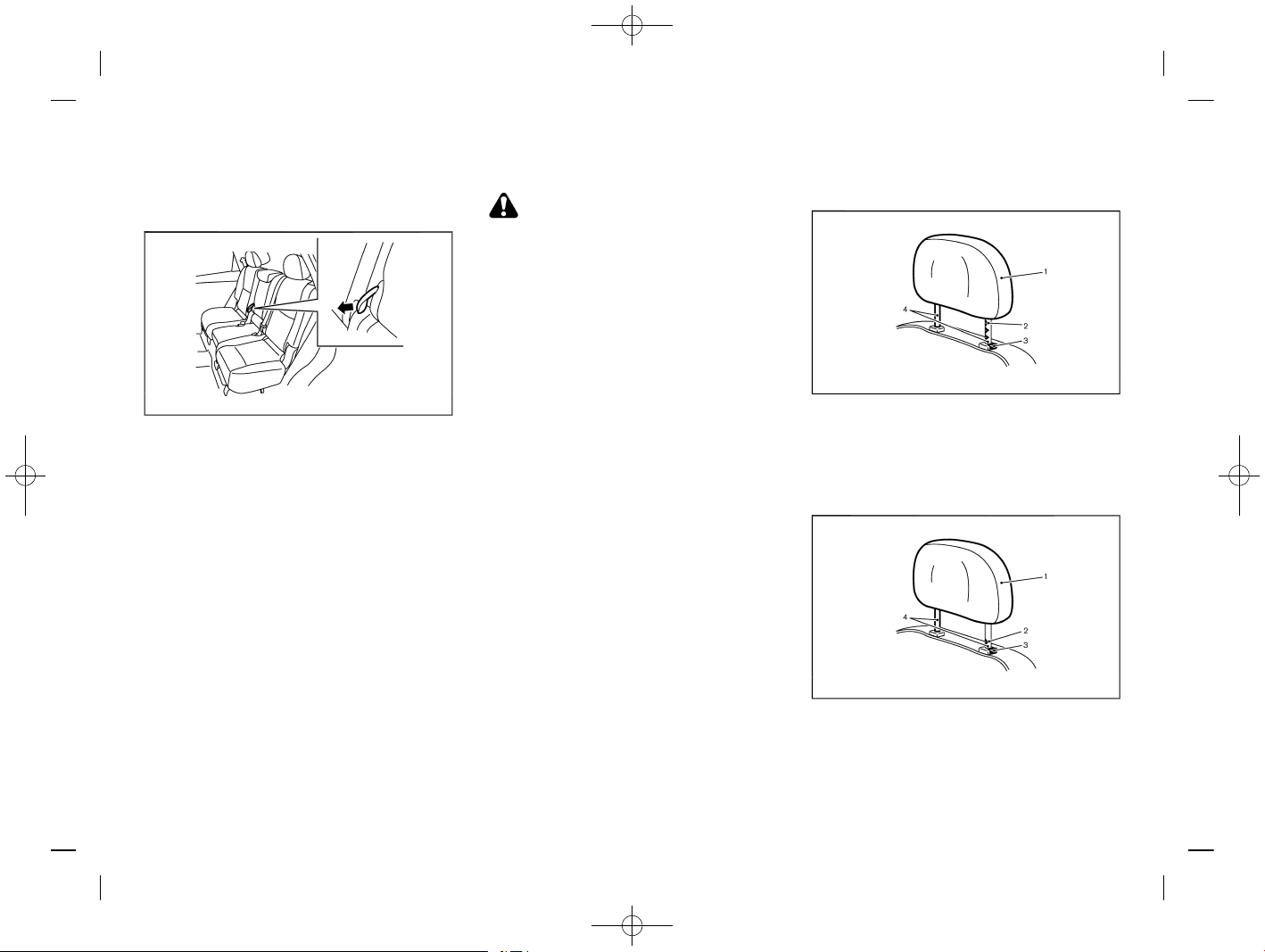

Head restraints ............................................................................................. 1-7

Adjustable head restraint .................................................................... 1-7

Non-adjustable head restraint ........................................................... 1-7

Remove .................................................................................................... 1-8

Install ........................................................................................................ 1-8

Adjust ....................................................................................................... 1-8

Seat belts ...................................................................................................... 1-9

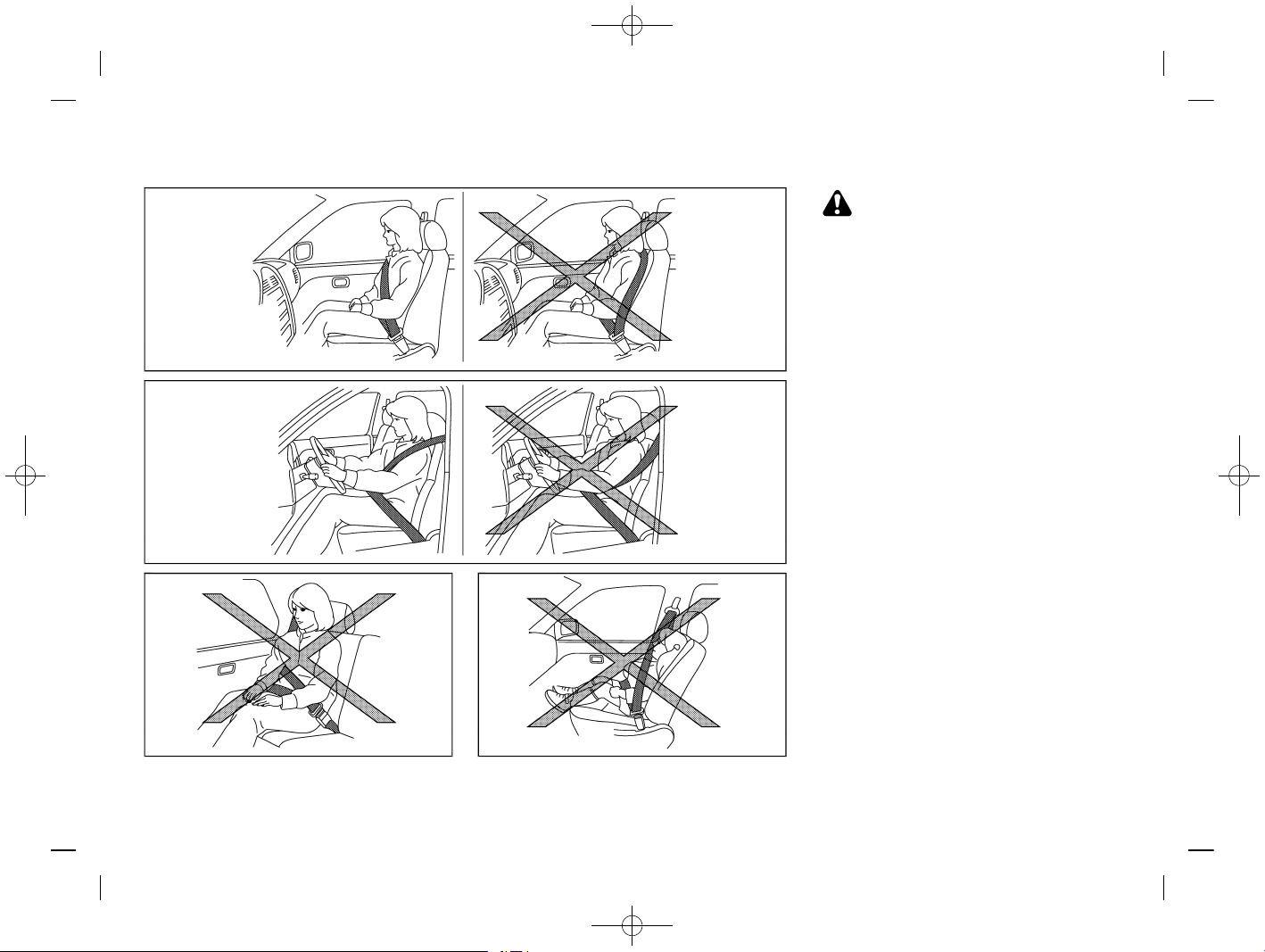

Precautions on seat belt usage ........................................................ 1-9

Child safety .......................................................................................... 1-11

Pregnant women ................................................................................ 1-12

Injured persons ................................................................................... 1-12

Center mark on seat belts ............................................................... 1-12

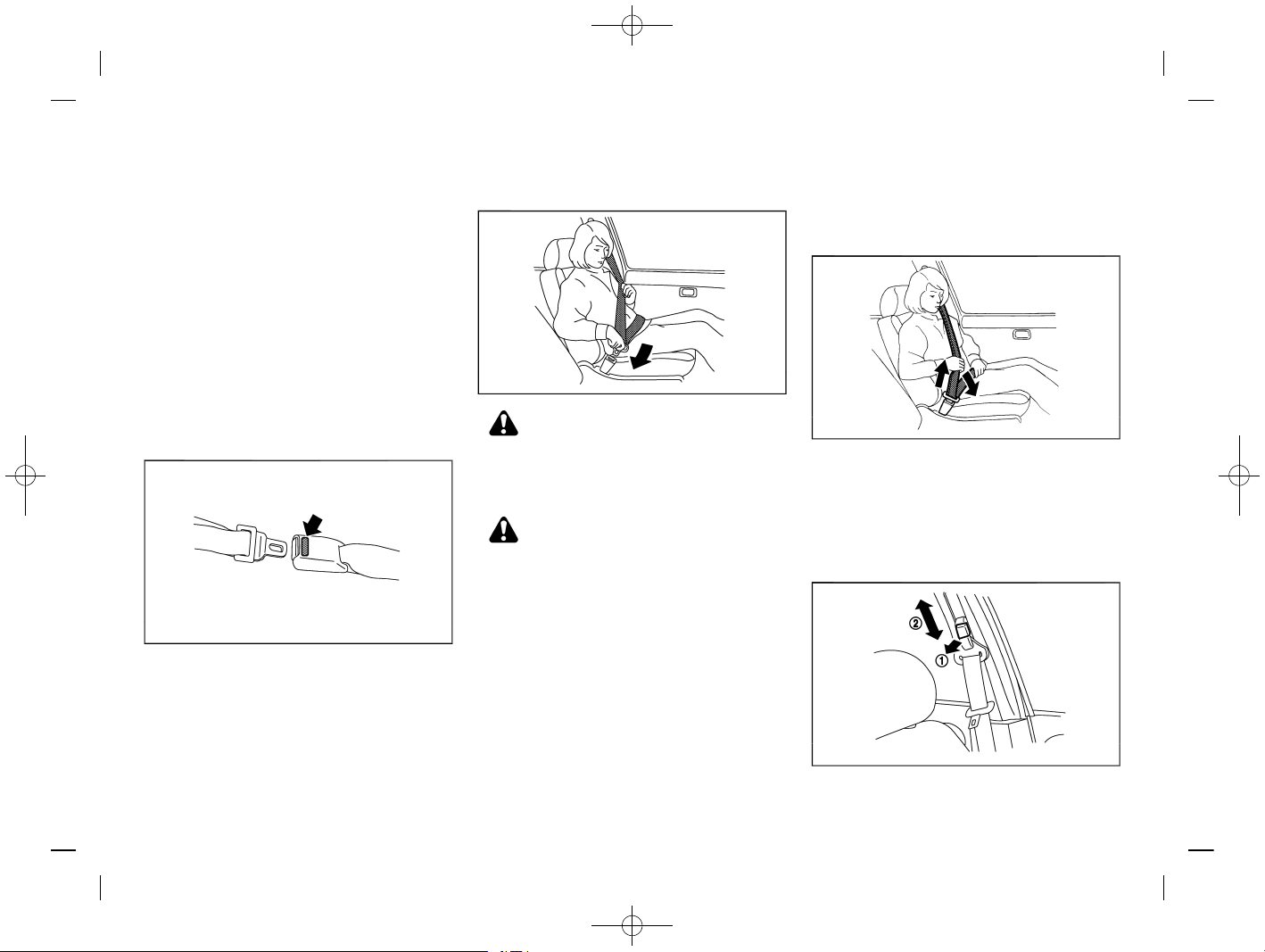

Three-point type seat belts ........................................................... 1-12

Seat belt maintenance ................................................................... 1-13

Child restraints ......................................................................................... 1-14

Precautions on child restraint usage .......................................... 1-14

Universal child restraints for front seat and rear seats

(for Europe) ....................................................................................... 1-15

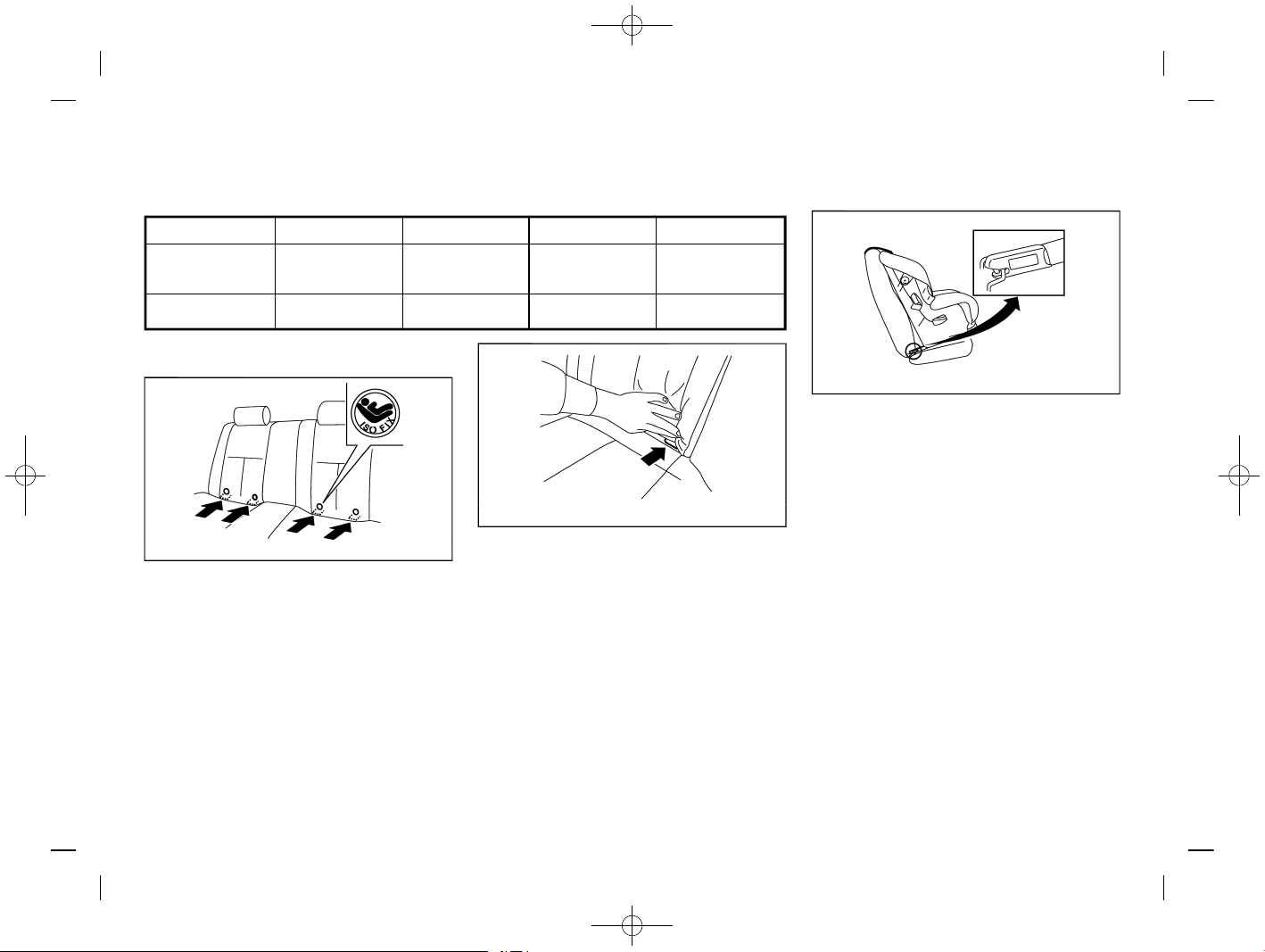

ISOFIX child restraint system (for second row seats) .......... 1-19

Child restraint anchorage (for second row seats) .................. 1-20

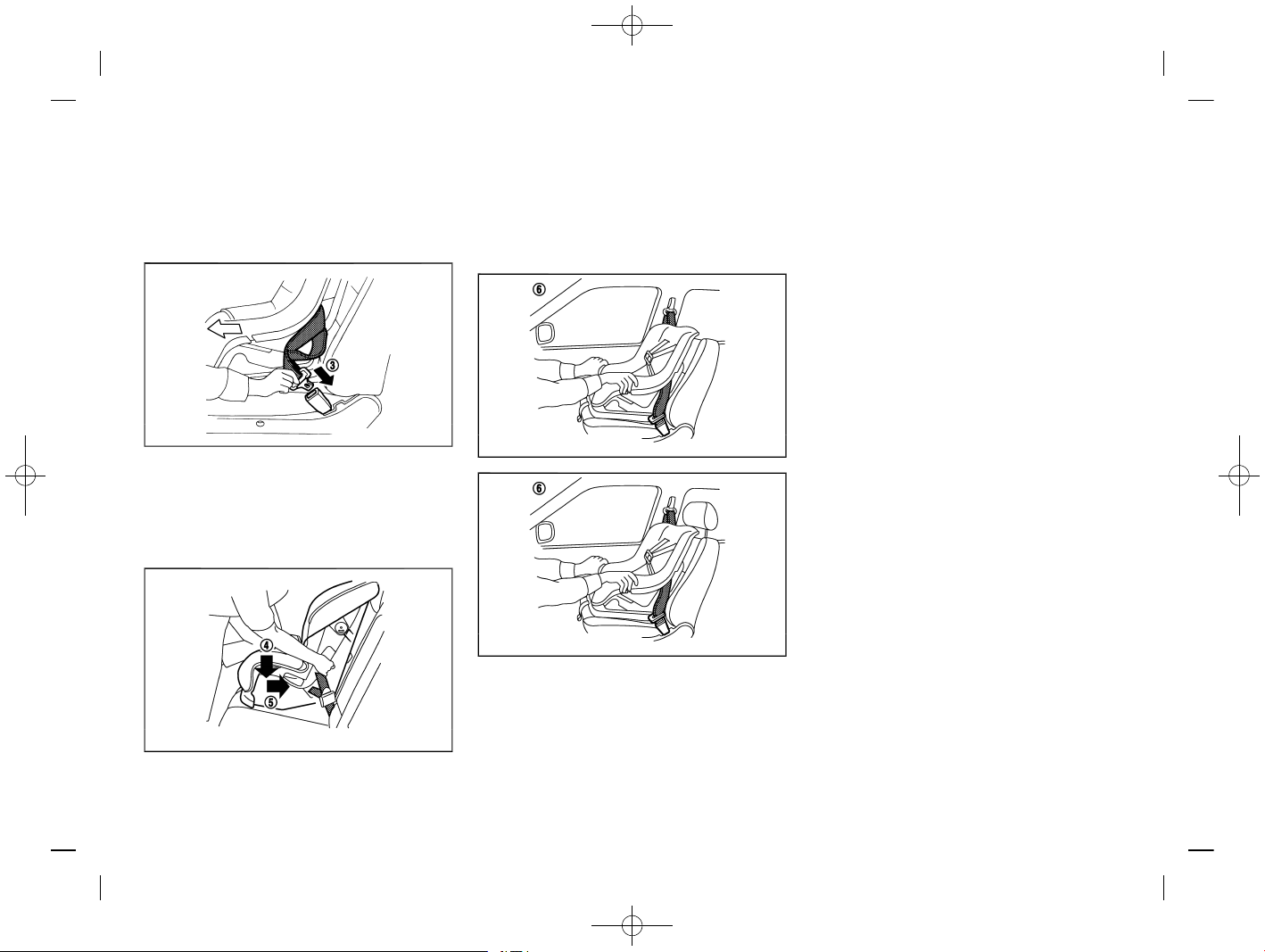

Child restraint installation using ISOFIX .................................... 1-20

Child restraint installation using 3-point type seat belt ......... 1-23

Supplemental Restraint System (SRS) .............................................. 1-27

Precautions on Supplemental Restraint System (SRS) ........ 1-27

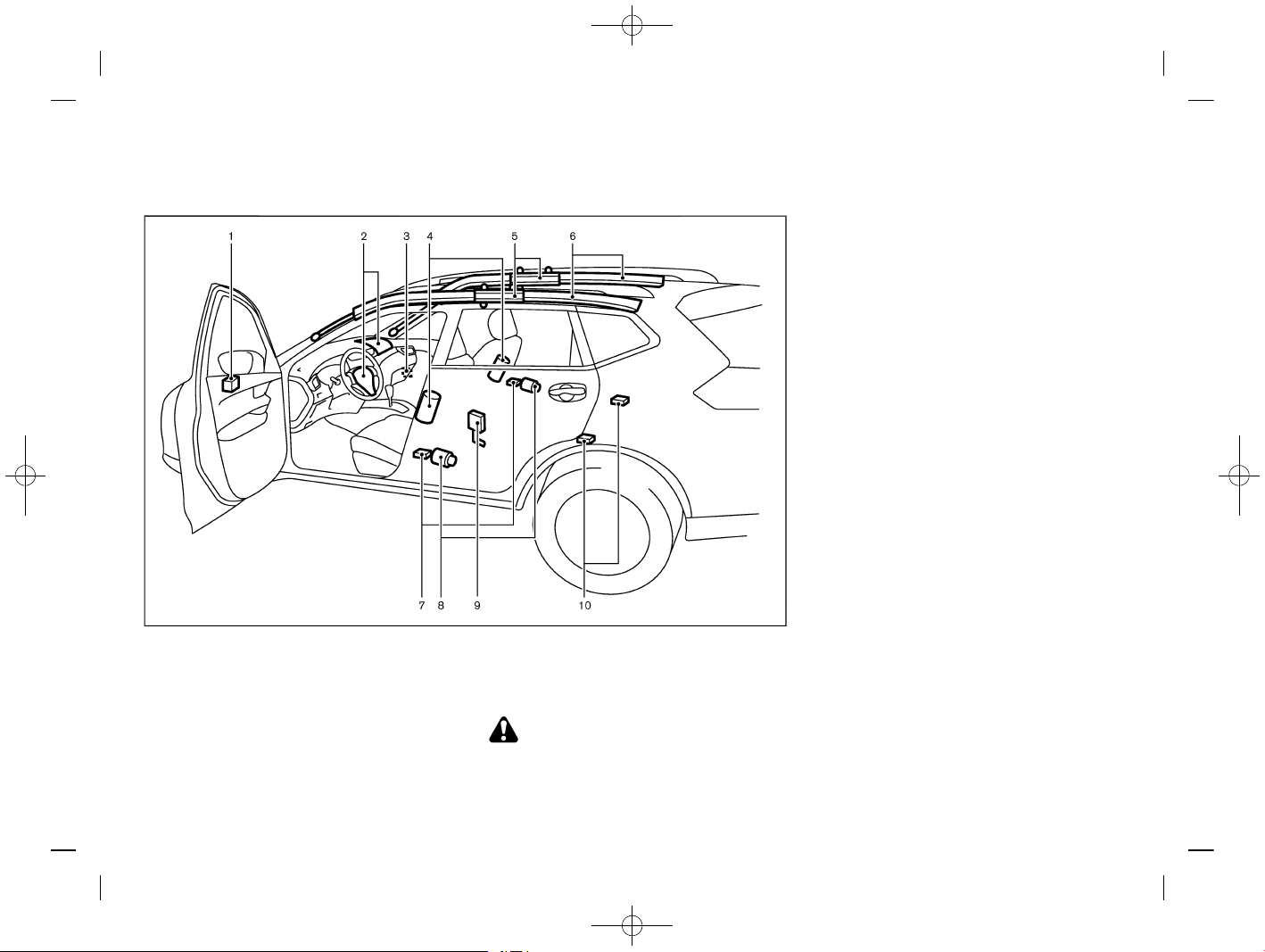

Supplemental air bag systems ..................................................... 1-32

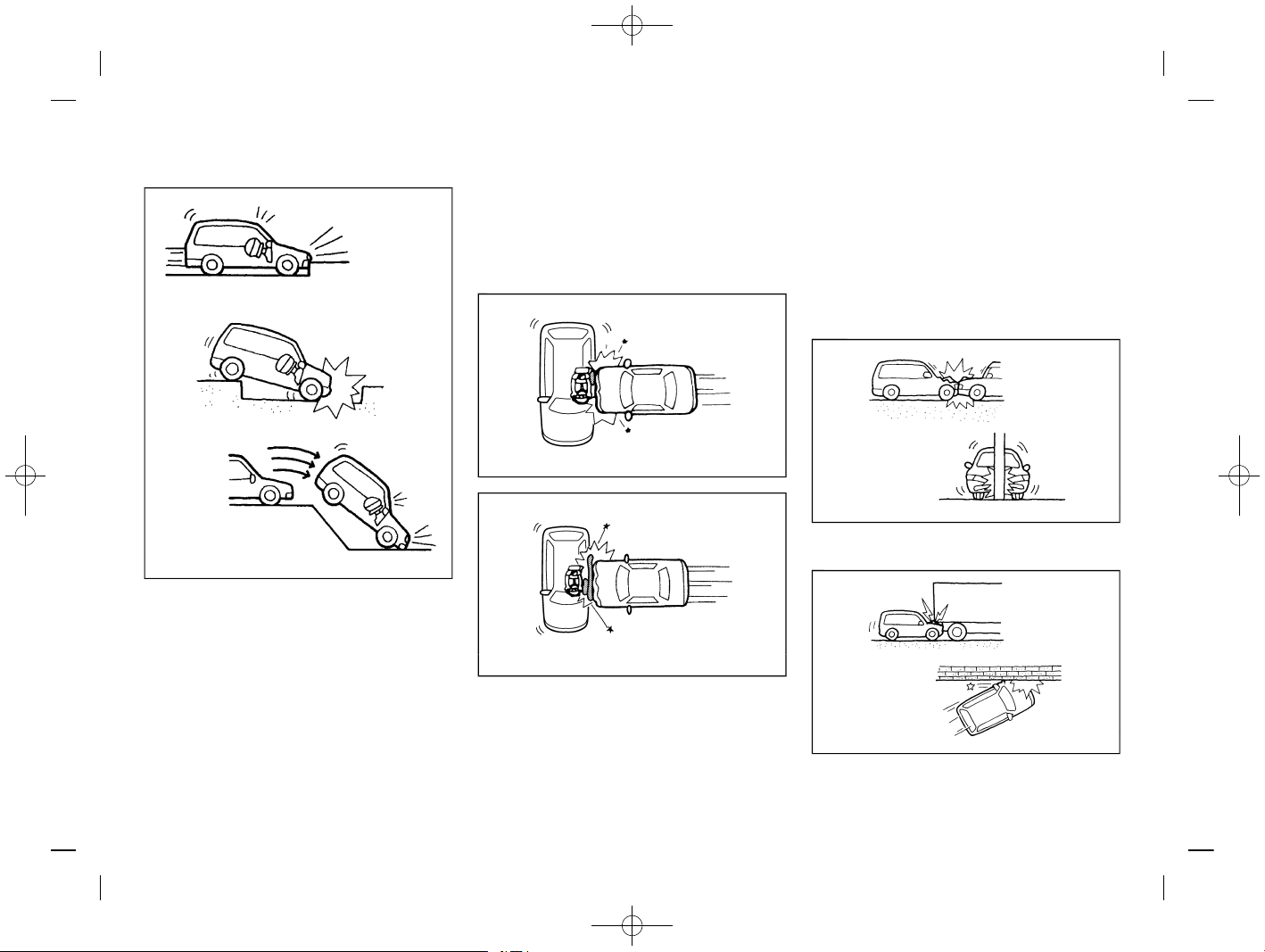

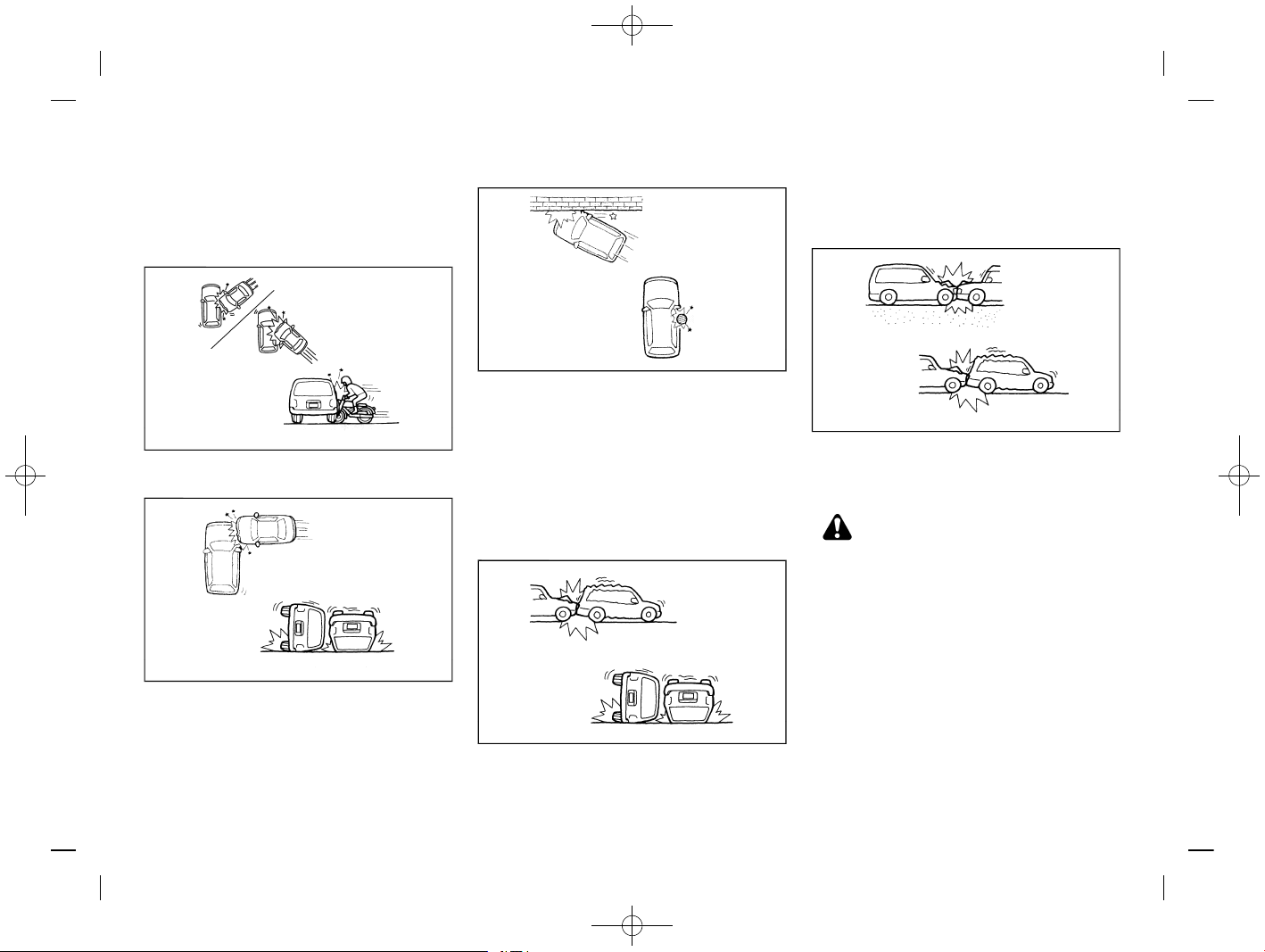

SRS air bag deployment conditions ........................................... 1-34

Pre-tensioner seat belt system ................................................... 1-36

Repair and replacement procedure ............................................ 1-37

Condition: 'Except for China'/

Page 20

(20,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-2 Safety — seats, seat belts and supplemental restraint system

T32A130827-544A337B-5822-4F19-AD26-8D99DEA6015 1

SSS0133A

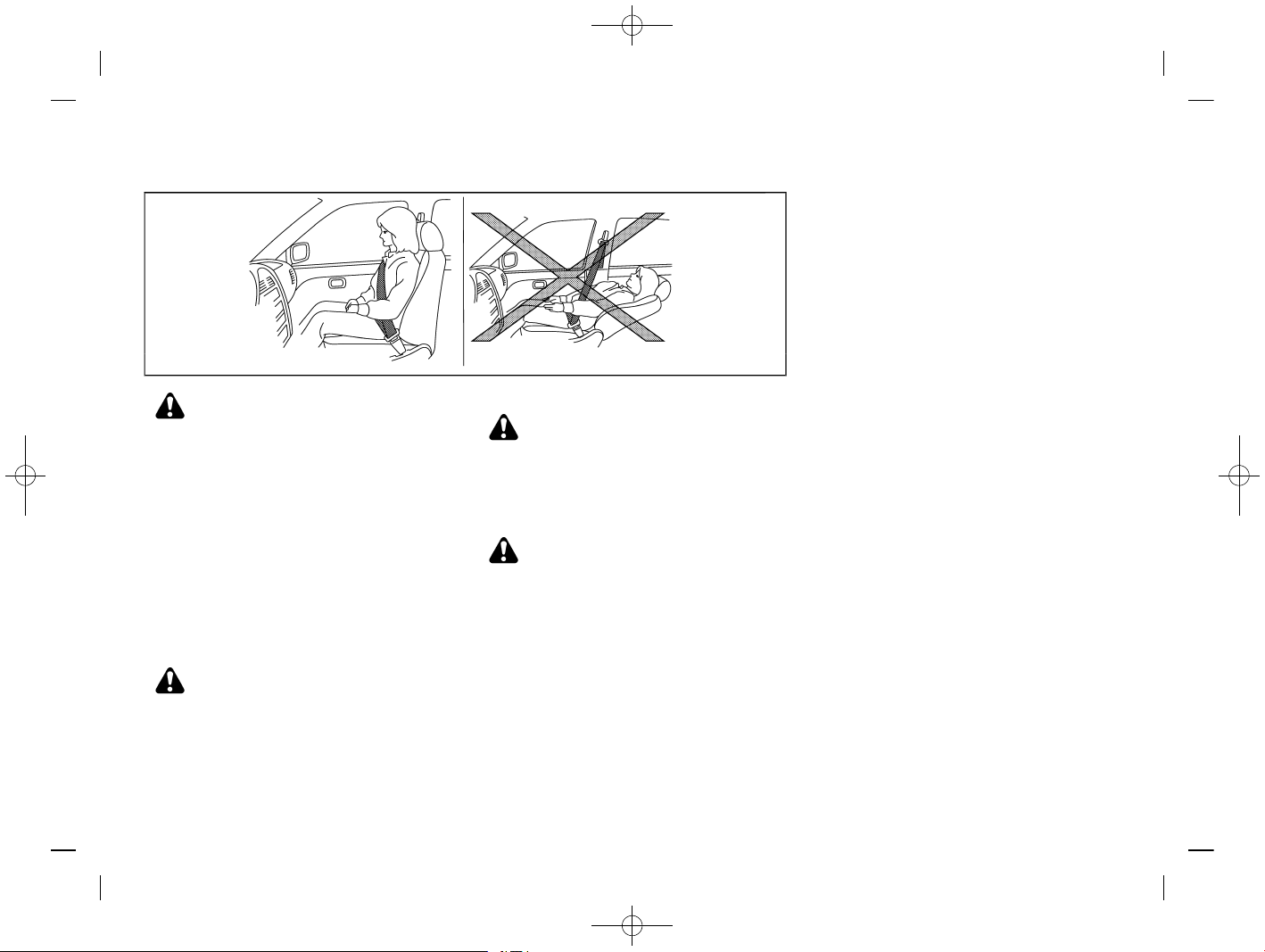

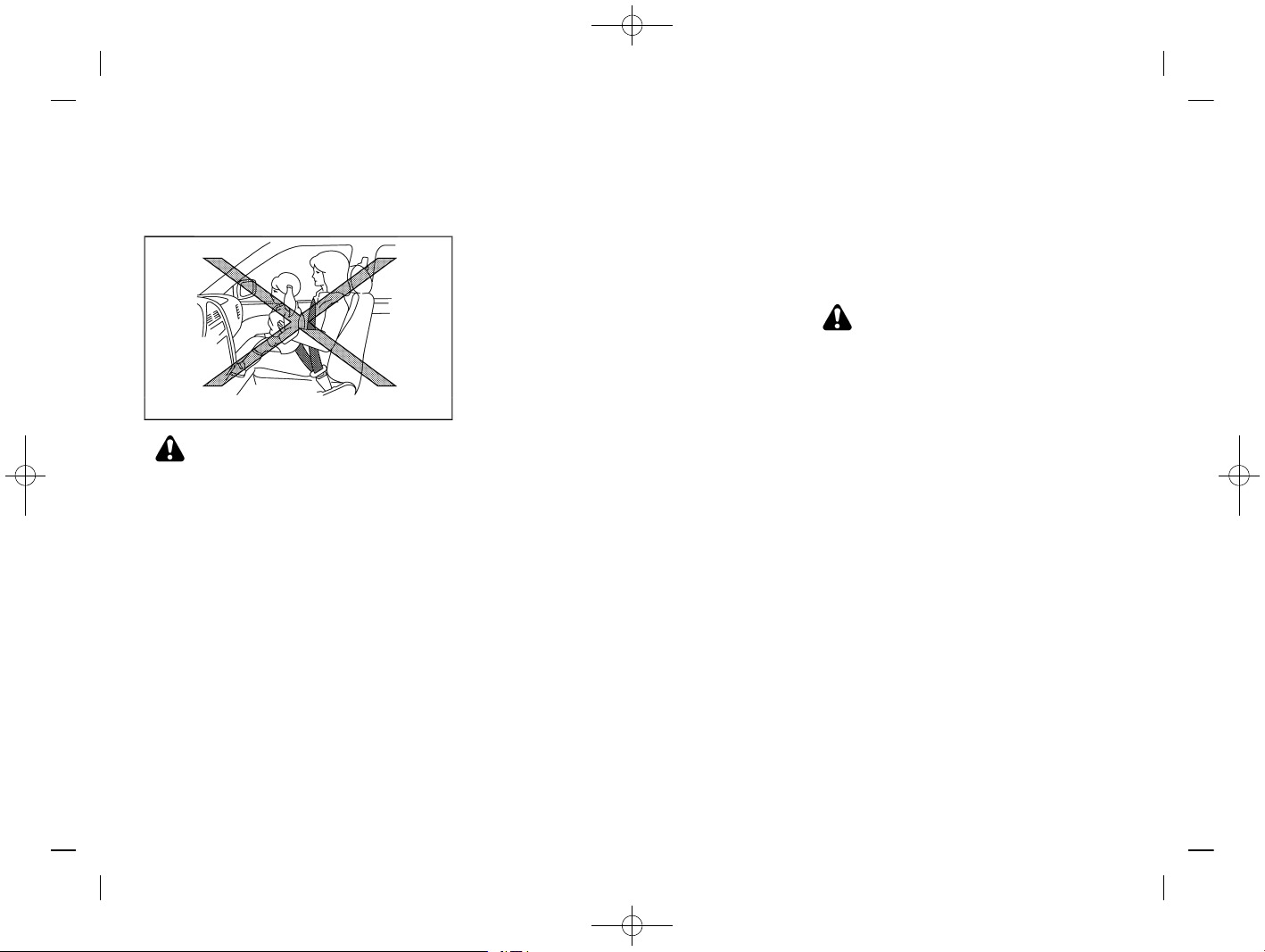

WARNING:

. Do not drive and/or ride in the vehicle with

the seatback reclined. This can be dangerous. The shoulder belt will not be properly against the body. In an accident, you and your passengers could be thrown into the shoulder belt and receive neck or other serious injuries. You and your passengers could also slide under the lap belt and receive serious injuries.

. For the most effective protection while the

vehicle is in motion, the seatback should be upright. Always sit well back in the seat and adjust the seat belt properly. (See “Seat belts” (P.1-9).)

CAUTION:

When adjusting the seat positions, be sure not to contact any moving parts to avoid possible injuries and/or damages.

FRONT SEATS

T32A130827-F0BDEADE-E0E8-43E7-B8D5-DAAAE4636 2C7

WARNING:

Do not adjust the driver’s seat while driving so that full attention may be given to vehicle operation.

Manual seat adjustment

T32A130827-44B2F3FC-EF1E-4159-AA42-22C9D53C6 CFA

WARNING:

After adjusting a seat, gently shake the seat to confirm that the seat is locked securely. If the seat is not locked securely, it may move suddenly and could cause the loss of control of the vehicle.

SEATS

Condition: 'Except for China'/

Page 21

(21,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

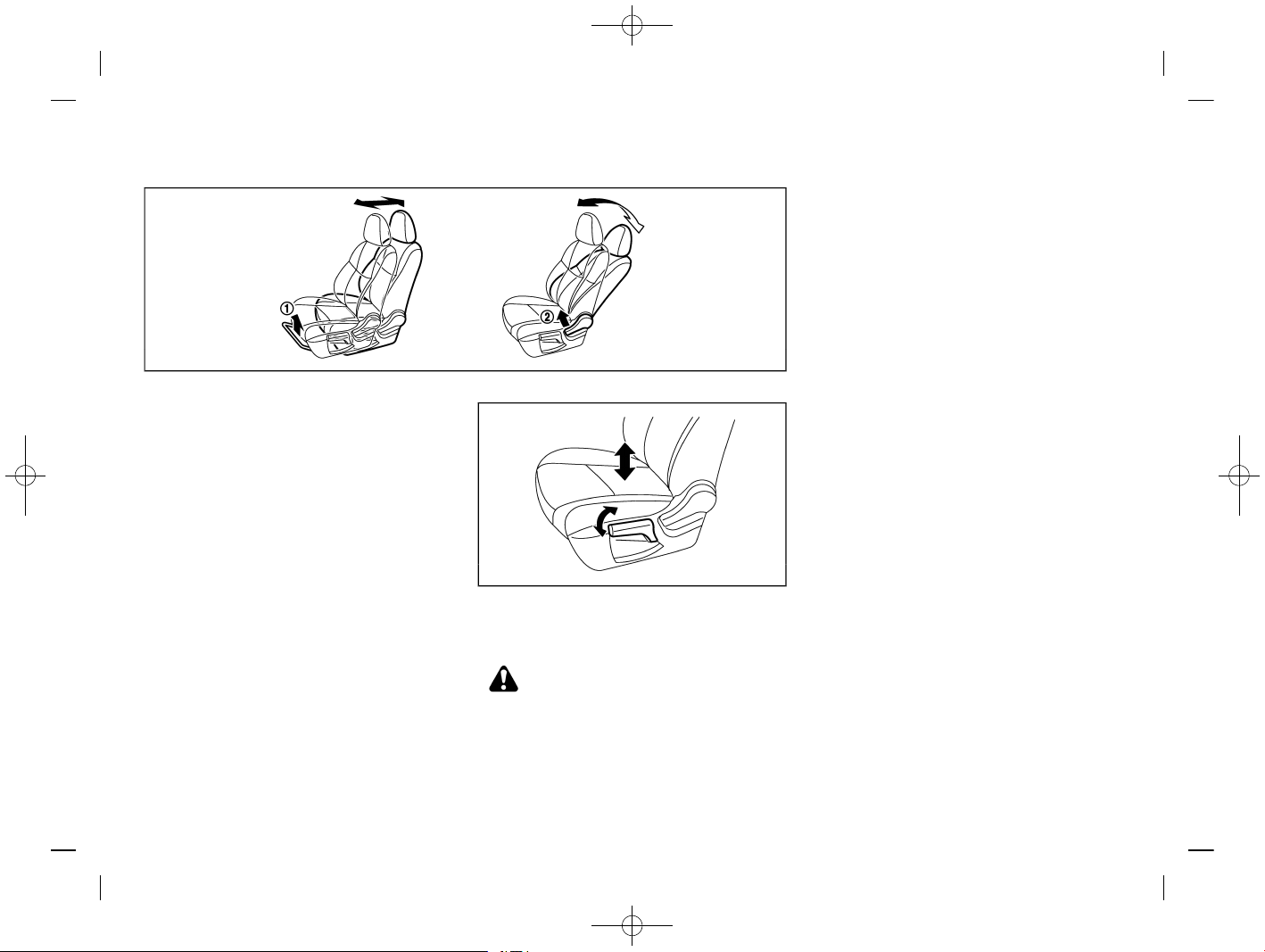

JVR0332X

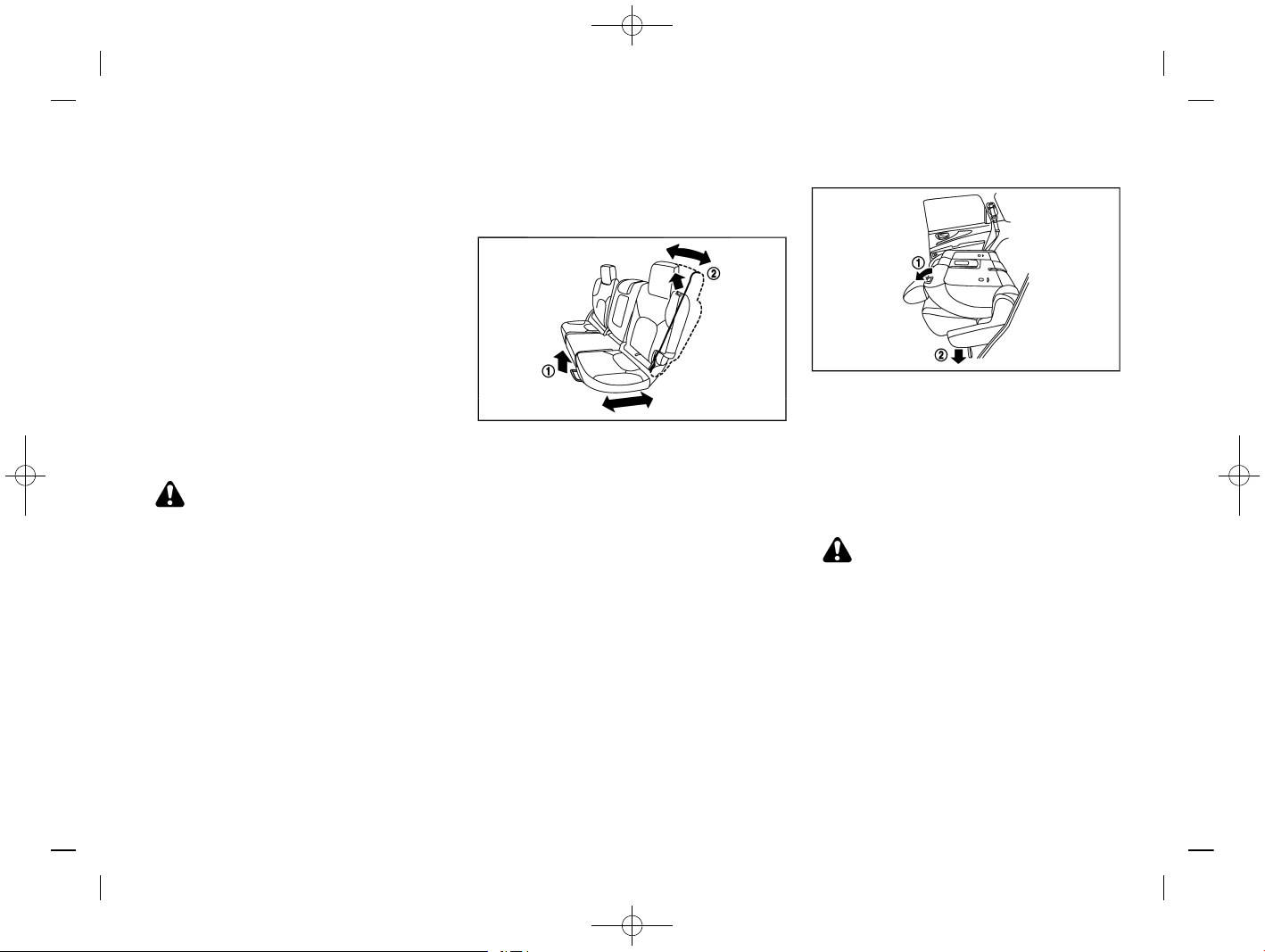

Forward and backward:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull up the adjusting lever

2. Slide the seat to the desired position.

3. Release the adjusting lever to lock the seat in position.

Reclining:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull up the adjusting lever

2. Tilt the seatback to the desired position.

3. Release the adjusting lever to lock the seatback in position.

The reclining feature allows the adjustment of the seatback for occupants of different sizes to help obtain the proper seat belt fit. (See “Seat belts” (P.1-9).)

The seatback may be reclined to allow occupants to rest when the vehicle is parked.

Seat lifter (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0333X

Pull up or push down the adjusting lever to adjust the seat height until the desired position is achieved.

Power seat adjustment

T32A130827-8BB0095E-C954-4EA7-BCA6-E3736507277F

WARNING:

Never leave children or adults who would normally require the support of others alone in the vehicle. Pets should not be left alone either. They could unknowingly activate switches or controls and inadvertently become involved in a serious accident and injure themselves.

Operating tips:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

. The power seat motor has an auto-reset overload

protection circuit. If the motor stops during the seat adjustment, wait 30 seconds, then reactivate the switch.

. To avoid discharge of the battery, do not operate

the power seats for a long period of time when the engine is not running.

Safety — seats, seat belts and supplemental restraint system 1-3

Condition: 'Except for China'/

Page 22

(22,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-4 Safety — seats, seat belts and supplemental restraint system

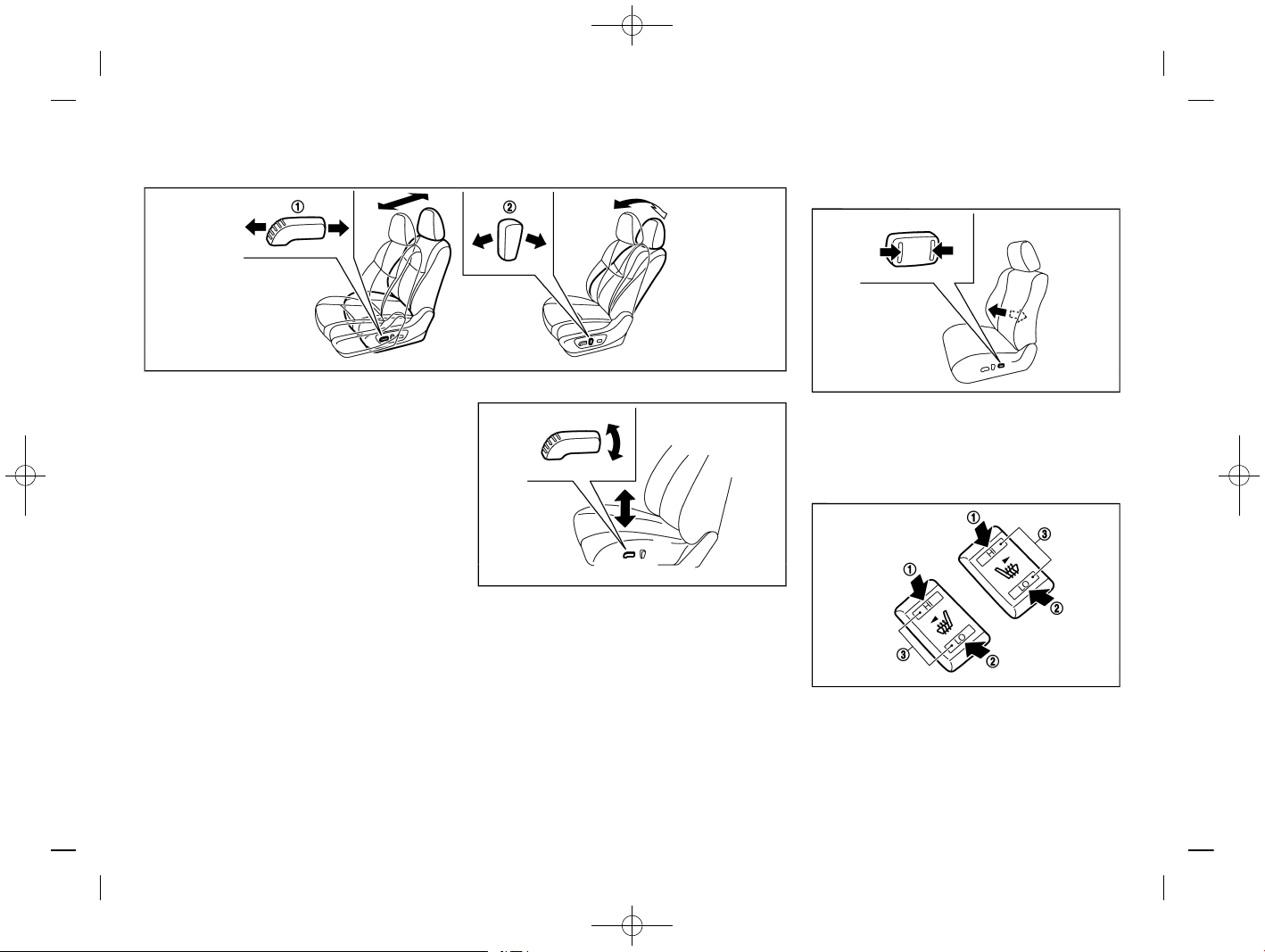

JVR0334X

Forward and backward:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Move forward or backward the adjusting switch

the desired position.

Reclining:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Move forward or backward the adjusting switch

the desired position. The reclining feature allows the adjustment of the

seatback for occupants of different sizes to help obtain the proper seat belt fit. (See “Seat belts” (P.1-9).)

The seatback may be reclined to allow occupants to rest when the vehicle is parked.

Seat lifter (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0119X

Pull up or push down the adjusting switch to adjust the seat height until the desired position is achieved.

Lumbar support (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

SSS1053

The lumbar support feature provides lower back support to the driver.

Push each side of the adjusting switch to adjust the seat lumbar area until the desired position is achieved.

Heated seats (if equipped)

T32A130827-12F30A00-21DA-4474-BB84-80C0B5836ADB

JVR0322X

The front seats can be warmed by built-in heaters. The switches located on the center console can be operated independently of each other.

1. Start the engine.

Condition: 'Except for China'/

Page 23

(23,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2. Select heat range.

For high heat, push the HI (High) side of the switch

For low heat, push the LO (Low) side of the switch

The indicator light

will illuminate when low

or high is selected.

3. To turn off the heater, return the switch to the level position. Make sure the indicator light turns off.

The heater is controlled by a thermostat, automatically turning the heater on and off. The indicator light will remain on as long as the switch is on.

When the vehicle’s interior is warmed, or before you leave the vehicle, be sure to turn off the switch.

CAUTION:

. The battery could run down if the seat heater

is operated while the engine is not running.

. Do not use the seat heater for extended

periods or when no one is using the seat.

. Do not put anything on the seat which

insulates heat, such as a blanket, cushion, seat cover, etc. Otherwise, the seat may become overheated.

. Do not place anything hard or heavy on the

seat or pierce it with a pin or similar object. This may result in damage to the seat heater.

. Any liquid spilled on the heated seat should

be removed immediately with a dry cloth.

. When cleaning the seat, never use gasoline,

thinner, or any similar materials.

SECOND ROW SEATS

T32A130827-3C944850-5F36-4EC0-8FC1-B5D4740BE525

Adjustment

T32A130827-C4C3921B-4C08-4E61-8F01-E53BD4BE934 E

JVR0330X

Forward and backward:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull up the adjusting lever

2. Slide the seat to the desired position.

3. Release the adjusting lever

to lock the seat in

position.

Reclining:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. Pull the adjusting lever

2. Tilt the seatback to the desired position.

3. Release the adjusting lever

to lock the

seatback in position.

The reclining feature allows the adjustment of the seatback for occupants of different sizes to help obtain the proper seat belt fit. (See “Seat belts” (P.1-9).)

The seatback may be reclined to allow occupants to rest when the vehicle is parked.

JVR0376X

Folding:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

1. For vehicles not equipped with third row seat: Pull up the lever

and fold the seatback flat.

For vehicles equipped with third row seat: Pull up the lever

and pull the strap

on the lower

side of the outboard seats to fold the seatback flat.

2. To return the seats to a seating position, push up on the seatback until it latches in place.

WARNING:

. Never allow anyone to ride in the luggage

area or on the rear seats when they are in the fold-down position. Use of these areas by passengers without proper restraints could result in serious injury in an accident or sudden stop.

. Do not fold down the second row seats when

occupants are in the second row seat area or any luggage is on the second row seats.

. Properly secure all luggage to help prevent it

from sliding or shifting. Do not place luggage higher than the seatbacks.

Safety — seats, seat belts and supplemental restraint system 1-5

Condition: 'Except for China'/

Page 24

(24,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-6 Safety — seats, seat belts and supplemental restraint system

. When returning the seatbacks to the upright

position, be certain they are completely secured in the latched position. If they are not completely secured, passengers may be injured in an accident or sudden stop.

Walk-in mechanism (Three-row model):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The second row seats can tilt and slide for easy entry/ exit to/from the third row seats.

WARNING:

After operating the walk-in mechanism, be sure to return the seat to the rearmost position and then tilt up the seatback until it latches.

CAUTION:

. When operating the walk-in mechanism,

push and hold the seatback and operate slowly. If the seatback is tilted down quickly and then allowed to slide, there is a risk that it could contact your face or other parts of your body, or pinch your hand or foot, causing injury.

. When operating the walk-in mechanism, be

sure not to contact any moving parts to avoid possible injuries and/or damage.

. When operating the walk-in mechanism, be

sure that the second row seats are not occupied by passengers and/or any objects to avoid possible injuries and/or damage.

. Do not operate the walk-in mechanism with

objects, drinks, etc. on the seat. This may cause objects to break or cause the passenger room to be soiled.

JVR0355X

1. Pull the lever

to tilt down the seatback.

2. Slide the seat forward.

3. When returning the seat to its original position, slide the seat backward, tilt the seatback up and then secure it in place.

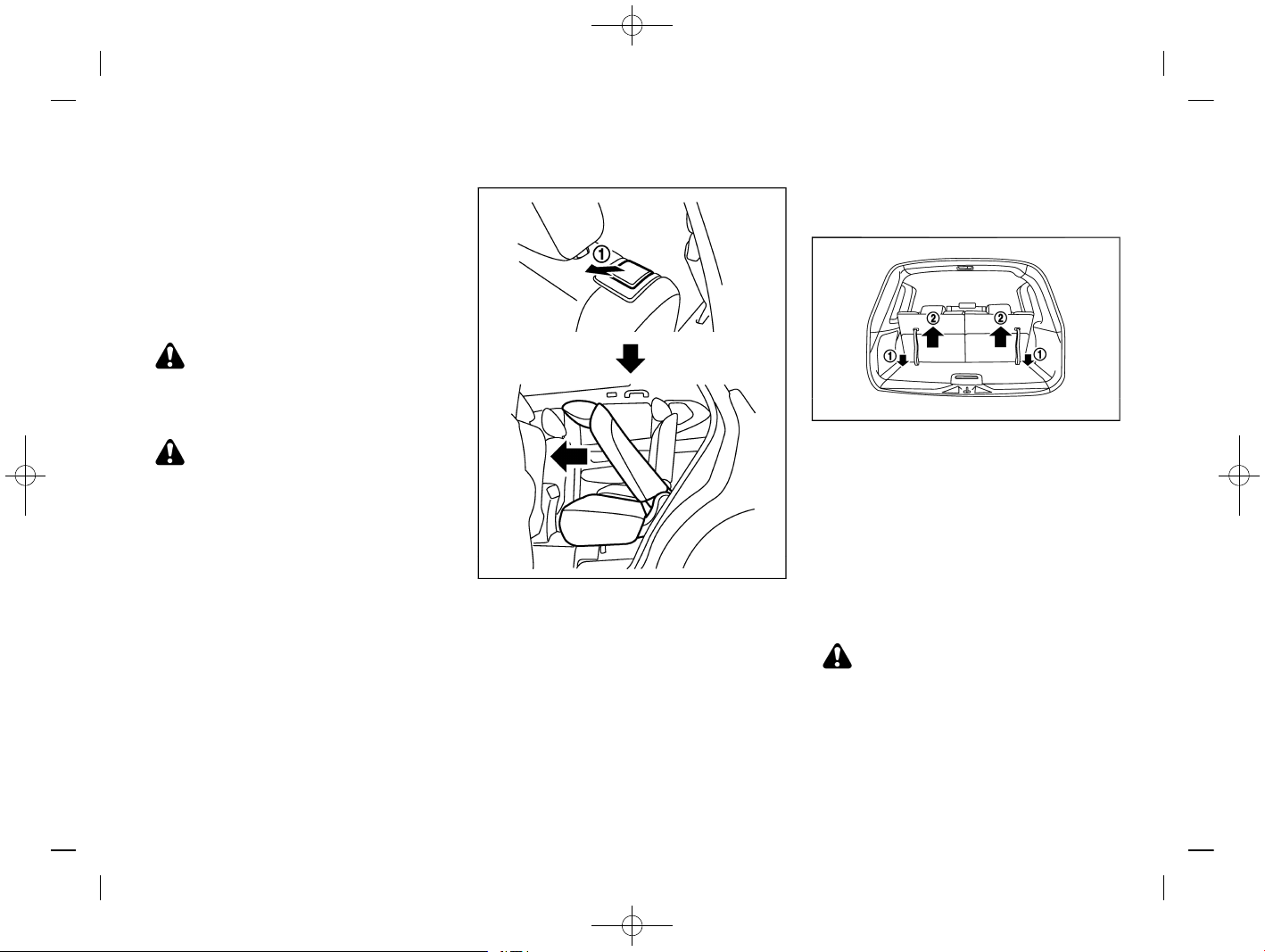

THIRD ROW SEATS (if equipped)

GUID-6AFED800-DD55-4234-8775-F187F0285680

Folding

GUID-F0E0E98B-1F35-427F-AE1C-9E5024C736F1

JVR0329X

To fold the third row seats flat for maximum cargo capacity:

1. Make sure the head restraints are all the way down.

2. Pull the strap

to release the seat.

3. Once released, push the seatback forward

. To return the third row seats to a seating position: Use the pull straps

to raise each seatback. Pull back until the seatback latches into position. Make sure to properly raise each seatback to an upright and secured position.

WARNING:

When the seat is returned to the normal seating position, the head restraints must be returned to the upright position to properly protect vehicle occupants.

Condition: 'Except for China'/

Page 25

(25,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

ARMREST

GUID-0CFA7136-CE0F-460F-B8C8-64D55ED211DE

Pull the armrest down until it rests on the seat cushion.

JVR0337X

Second row seats

Fold down the armrest while pulling the strap until it rests on the seat cushion.

T32A130827-DB0E9BDD-2C29-4173-B3C0-5A08C9BDE19 9

WARNING:

Head restraints supplement the other vehicle safety systems. They may provide additional protection against injury in certain rear end collisions. Adjustable head restraints must be adjusted properly, as specified in this section. Check the adjustment after someone else uses the seat. Do not attach anything to the head restraint stalks or remove the head restraint. Do not use the seat if the head restraint has been removed. If the head restraint was removed, reinstall and properly adjust the head restraint before an occupant uses the seating position. Failure to follow these instructions can reduce the effectiveness of the head restraint. This may increase the risk of serious injury or death in a collision.

. Your vehicle is equipped with a head restraint that

may be integrated, adjustable or non-adjustable.

. Adjustable head restraints have multiple notches

along the stalk to lock them in a desired adjustment position.

. The non-adjustable head restraints have single

locking notch to secure them to the seat frame.

. Proper Adjustment:

— For the adjustable type, align the head restraint

so the center of your ear is approximately level with the center of the head restraint.

— If your ear position is still higher than the

recommended alignment, place the head restraint at the highest position.

. If the head restraint has been removed, ensure

that it is reinstalled and locked in place before riding in that designated seating position.

ADJUSTABLE HEAD RESTRAINT

T32A130827-C9F74993-858A-41B5-9556-616AFC9796B A

SSS0992

1. Removable head restraint

2. Multiple notches

3. Lock knob

4. Stalks

NON-ADJUSTABLE HEAD RESTRAINT

T32A130827-2CDD1BB5-1601-41B1-8E92-E1A700D921 F6

JVR0203X

1. Removable head restraint

2. Single notch

3. Lock knob

Safety — seats, seat belts and supplemental restraint system 1-7

HEAD RESTRAINTS

Condition: 'Except for China'/

Page 26

(26,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-8 Safety — seats, seat belts and supplemental restraint system

4. Stalks

REMOVE

T32A130827-492400AE-FA4A-4337-994A-64826B9647C6

SSS1037

Use the following procedure to remove the head restraint.

1. Pull the head restraint up to the highest position.

2. Push and hold the lock knob.

3. Remove the head restraint from the seat.

4. Store the head restraint properly in a secure place so it is not loose in the vehicle.

5. Reinstall and properly adjust the head restraint before an occupant uses the seating position.

INSTALL

T32A130827-AC0F950A-602B-45AB-9D97-17CEDE4AA04D

SSS1038

1. Align the head restraint stalks with the holes in the seat. Make sure that the head restraint is facing the correct direction. The stalk with the adjustment notch

must be installed in the hole with the

lock knob

2. Push and hold the lock knob and push the head restraint down.

3. Properly adjust the head restraint before an occupant uses the seating position.

ADJUST

T32A130827-ED3FF471-57AE-4DB8-96D1-FF8165FFA3F4

SSS0997

For adjustable head restraint

Adjust the head restraint so the center is level with the center of your ears. If your ear position is still higher than the recommended alignment, place the head restraint at the highest position.

JVR0259X

For non-adjustable head restraint

Make sure the head restraint is positioned from the stored position or any non-latch position so the lock knob is engaged in the notch before riding in that designated seating position.

Raise

T32A130827-21BF58C9-E66B-43AB-8465-6BA3A92920D4

SSS1035

Type A

To raise the head restraint, pull it up.

Condition: 'Except for China'/

Page 27

(27,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

SSS1037

Type B

To raise the head restraint, push and hold the lock knob. Then, pull it up.

Make sure the head restraint is positioned from the stored position or any non-latch position so the lock knob is engaged in the notch before riding in that designated seating position.

Lower

T32A130827-FA4C1475-83A4-4F07-AB5A-232C4EC6648D

SSS1036

To lower, push and hold the lock knob and push the head restraint down.

Make sure the head restraint is positioned so the lock knob is engaged in the notch before riding in that designated seating position.

T32A130827-70A68760-75B8-47F3-AB2C-B69D82C30 139

PRECAUTIONS ON SEAT BELT USAGE

T32A130827-2F565D7D-05DE-4FB6-B3C3-300FCA1D36C 5

If you are wearing the seat belt properly adjusted and sitting upright and well back in the seat, chances of being injured or killed in an accident and/or the severity of injury may be greatly reduced. NISSAN strongly encourages you and all of your passengers to buckle up every time you drive, even if your seating position includes the supplemental air bag systems.

Safety — seats, seat belts and supplemental restraint system 1-9

SEAT BELTS

Condition: 'Except for China'/

Page 28

(28,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-10 Safety — seats, seat belts and supplemental restraint system

SSS0134A

SSS0136A

SSS0014 SSS0016

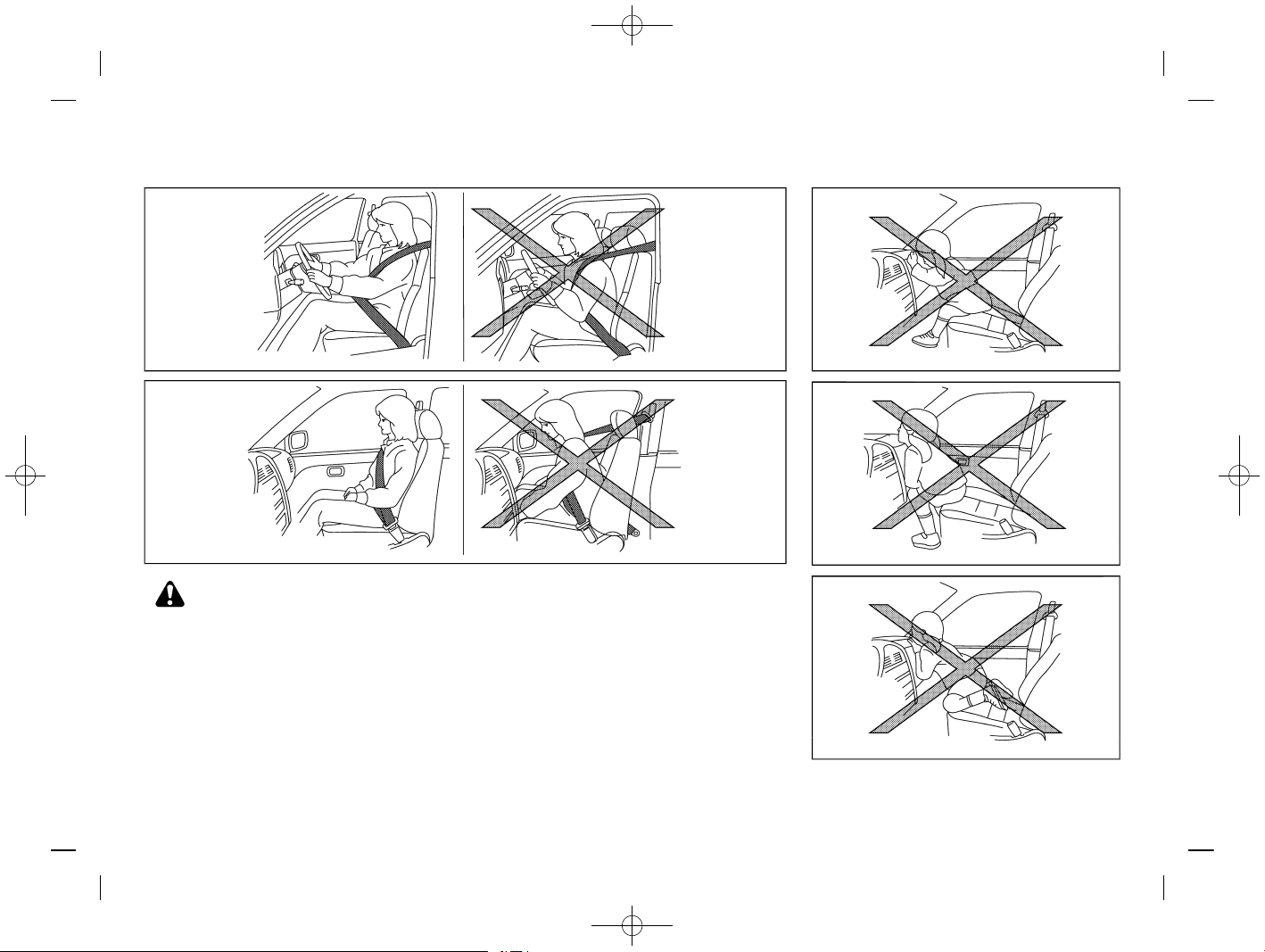

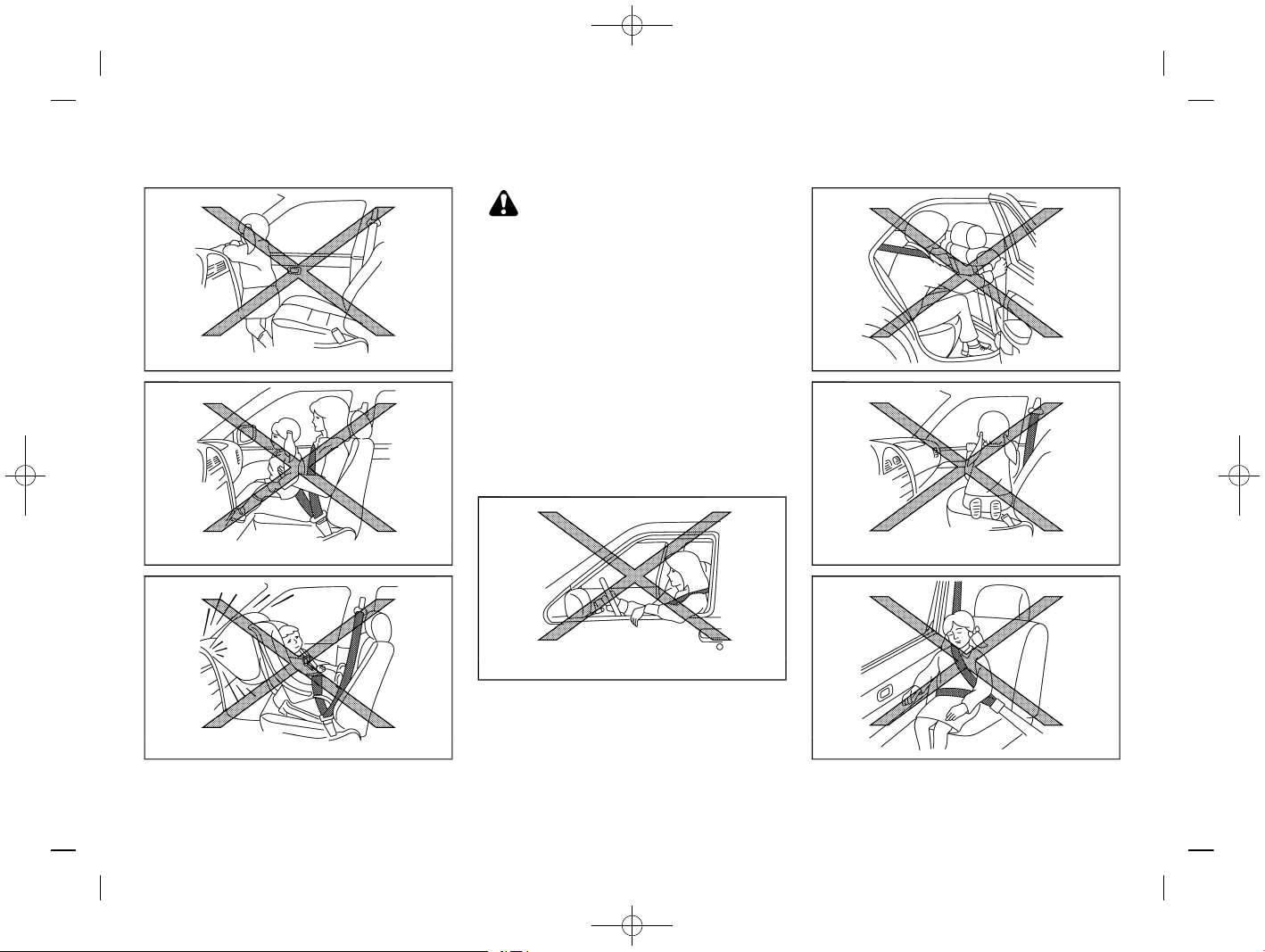

WARNING:

. Seatbelts are designed to bear upon the

bony structure of the body, and should be worn low across the front of the pelvis or the pelvis, chest and shoulders, as applicable; wearing the lap section of the belt across the abdominal area must be avoided. Serious injury may occur if a seat belt is not worn properly.

. Position the lap belt as low and snug as

possible around the hips, not the waist. A lap belt worn too high could increase the risk of internal injuries in an accident.

. Do not allow more than one person to use

the same seat belt. Each belt assembly must only be used by one occupant; it is dangerous to put a belt around a child being carried on the occupant’s lap.

. Never carry more people in the vehicle than

there are seat belts.

. Never wear seat belts inside out. Belts

should not be worn with straps twisted. Doing so may reduce their effectiveness.

. Seatbelts should be adjusted as firmly as

possible, consistent with comfort, to provide the protection for which they have been designed. A slack belt will greatly reduce the protection afforded to the wearer.

. Every person who drives or rides in this

vehicle should use a seat belt at all times. Children should be properly restrained in the rear seat and, if appropriate, in a child restraint system.

Condition: 'Except for China'/

Page 29

(29,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

. Do not run the belt behind your back or

under your arm. Always route the shoulder belt over your shoulder and across your chest. The belt should be away from your face and neck, but not falling off your shoulder. Serious injury may occur if a seat belt is not worn properly.

. No modifications or additions should be

made by the user which will either prevent the seat belt adjusting devices from operating to remove slack, or prevent the seat belt assembly from being adjusted to remove slack.

. Care should be taken to avoid contamina-

tion of the webbing with polishes, oils and chemicals, and particularly battery acid. Cleaning may safely be carried out using mild soap and water. The belt should be replaced if webbing becomes frayed, contaminated or damaged.

. All seat belt assemblies including retractors

and attaching hardware should be inspected after any collision by a NISSAN dealer. NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the collision was minor and the belts show no damage and continue to operate properly. Seat belt assemblies not in use during a collision should also be inspected and, when necessary, replaced if either damage or improper operation is noted.

. It is essential to replace the entire assembly

after it has been worn in a severe impact even if damage to the assembly is not obvious.

. Once the pre-tensioner seat belt has acti-

vated, it cannot be reused. It must be replaced together with the retractor. Contact a NISSAN dealer.

. Removal and installation of the pre-ten-

sioner seat belt system components should be done by a NISSAN dealer.

CHILD SAFETY

T32A130827-21B0DB95-14A2-473E-92AA-1384BE5E3 511

WARNING:

. Infants and children need special protection.

The vehicle’s seat belts may not fit them properly. The shoulder belt may come too close to the face or neck. The lap belt may not fit over their small hipbones. In an accident, an improperly fitted seat belt could cause serious or fatal injury.

. Always use an appropriate child restraint

system.

Children need adults to help protect them. They need to be properly restrained. The proper restraint depends on the child’s size.

Infants and small children

T32A130827-062F78D7-5A66-41DD-980F-C2B540812034

SSS0099

NISSAN recommends that infants and small children be seated in a child restraint system. You should choose a child restraint system that fits your vehicle and the child, and always follow the manufacturer’s instructions for installation and use.

Large children

T32A130827-080B8EE5-AA4F-4AF7-AC3E-2E920E4076 D3

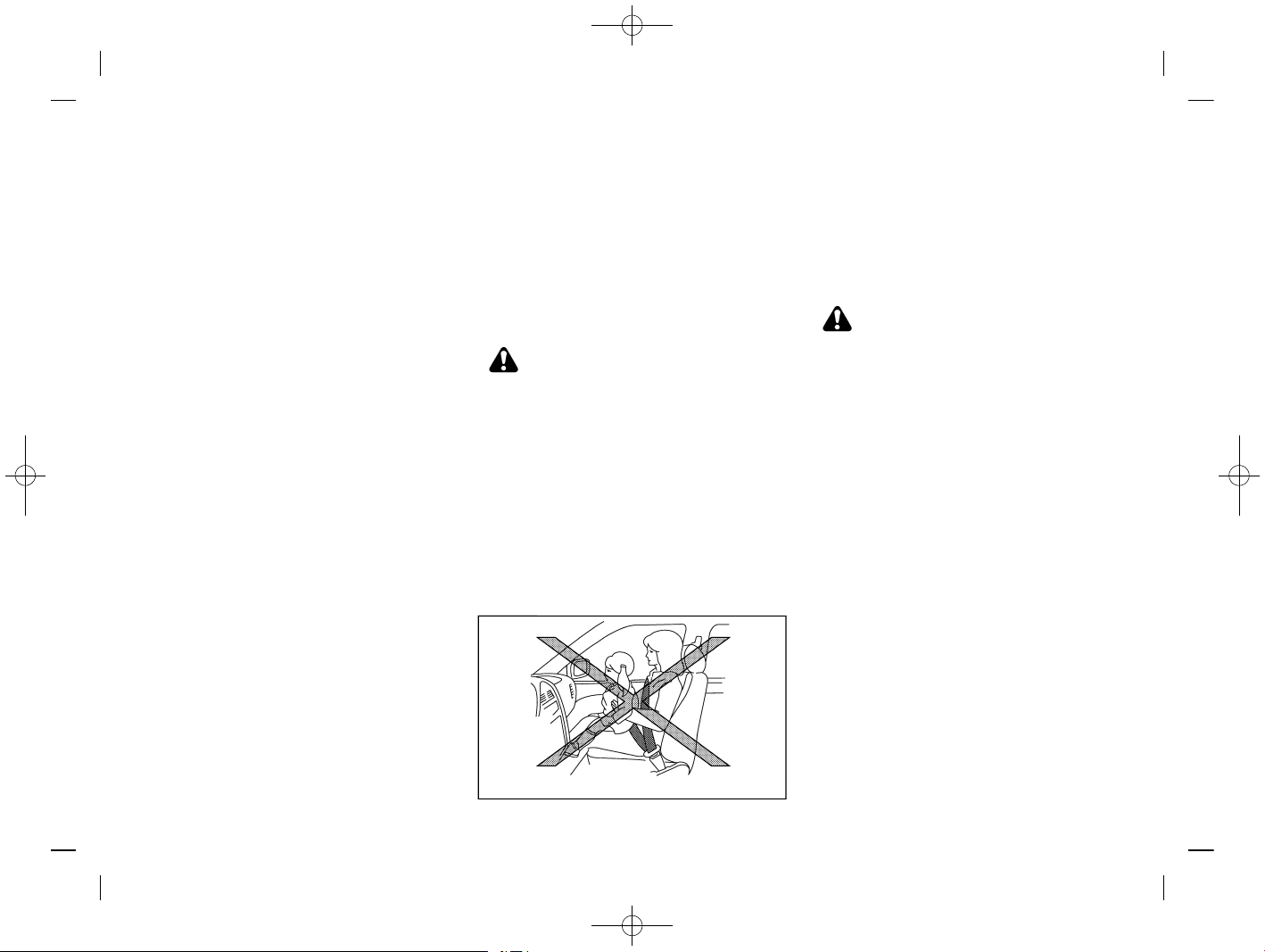

WARNING:

. Never allow children to stand or kneel on

any seats.

. Never allow children in the cargo areas while

the vehicle is moving. A child could be seriously injured in an accident or sudden stop.

Children who are too large for a child restraint system should be seated and restrained by the seat belts that are provided.

If the child’s seating position has a shoulder belt that fits close to the face or neck, the use of a booster seat (commercially available) may help overcome this. The booster seat should raise the child so that the shoulder belt is properly positioned across the top, middle portion of the shoulder and the lap belt is low on the hips. The booster seat should also fit the vehicle seat. Once the child has grown so that the shoulder belt is no longer on or near the face or neck of the child, use the shoulder belt without the booster seat. In addition, there are many types of child restraint systems available for larger children that should be used for maximum protection.

Safety — seats, seat belts and supplemental restraint system 1-11

Condition: 'Except for China'/

Page 30

(30,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-12 Safety — seats, seat belts and supplemental restraint system

PREGNANT WOMEN

T32A130827-A867B9F9-1F54-4C43-BDBA-D95D9ECBC7C 9

NISSAN recommends that pregnant women use seat belts. The seat belt should be worn snug, and always position the lap belt as low as possible around the hips, not the waist. Place the shoulder belt over your shoulder and across your chest. Never run the lap/ shoulder belt over your abdominal area. Contact your doctor for specific recommendations.

INJURED PERSONS

T32A130827-0BA2B1BE-CCEE-4963-85CA-E7F2231B869A

NISSAN recommends that injured persons use seat belts. Contact your doctor for specific recommendations.

CENTER MARK ON SEAT BELTS

T32A130827-0794F2A3-5762-4467-B86E-B51DB80CB0A 0

Selecting correct set of seat belts

T32A130827-82DC900D-2C78-496F-838E-D2570976281A

SSS0671

The center seat belt buckle is identified by the CENTER mark. The center seat belt tongue can be fastened only into the center seat belt buckle.

THREE-POINT TYPE SEAT BELTS

T32A130827-4BC79D60-6662-49C4-A68D-826748688021

SSS0292

WARNING:

Every person who drives or rides in this vehicle should use a seat belt at all times.

Fastening seat belts

T32A130827-2B97C5AF-CA20-4A75-9D52-7A34F4DFC 205

WARNING:

The seatback should not be in a reclined position any more than needed for comfort. Seat belts are most effective when the passenger sits well back and straight up in the seat.

1. Adjust the seat. (See “Seats” (P.1-2).)

2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you hear and feel the latch engage.

The retractor is designed to lock during a sudden stop or on impact. A slow pulling motion permits the seat belt to move, and allows you some freedom of movement in the seat.

If the seat belt cannot be pulled from its fully retracted position, firmly pull the belt and release it. Then smoothly pull the belt out of the retractor.

SSS0467

3. Position the lap belt portion low and snug on the hips as shown.

4. Pull the shoulder belt portion toward the retractor to take up extra slack. Be sure the shoulder belt is routed over your shoulder and is snug across your chest.

Shoulder belt height adjustment (if equipped)

T32A130827-976237C8-B793-46BA-8839-54E163FF3DE E

SSS0351A

Condition: 'Except for China'/

Page 31

(31,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

WARNING:

. The shoulder belt anchor height should be

adjusted to the position best for you. Failure to do so may reduce the effectiveness of the entire restraint system and increase the chance or severity of injury in an accident.

. The shoulder belt should rest on the middle

of the shoulder. It must not rest against the neck.

. Be sure that the seat belt is not twisted in

any way.

. Be sure that the shoulder belt anchor is

secured by trying to move the shoulder belt anchor up and down after adjustment.

The shoulder belt anchor height should be adjusted to the position best for you.

The belt should be away from your face and neck, but not falling off your shoulder.

To adjust, pull the release button

and move the

shoulder belt anchor to the proper position

, so that

the belt passes over the center of the shoulder. Release the button to lock the shoulder belt anchor

into position.

Unfastening seat belts

T32A130827-6CC264E9-D8AD-4962-9D73-34F9C8D92938

Push the button on the buckle. The seat belt automatically retracts.

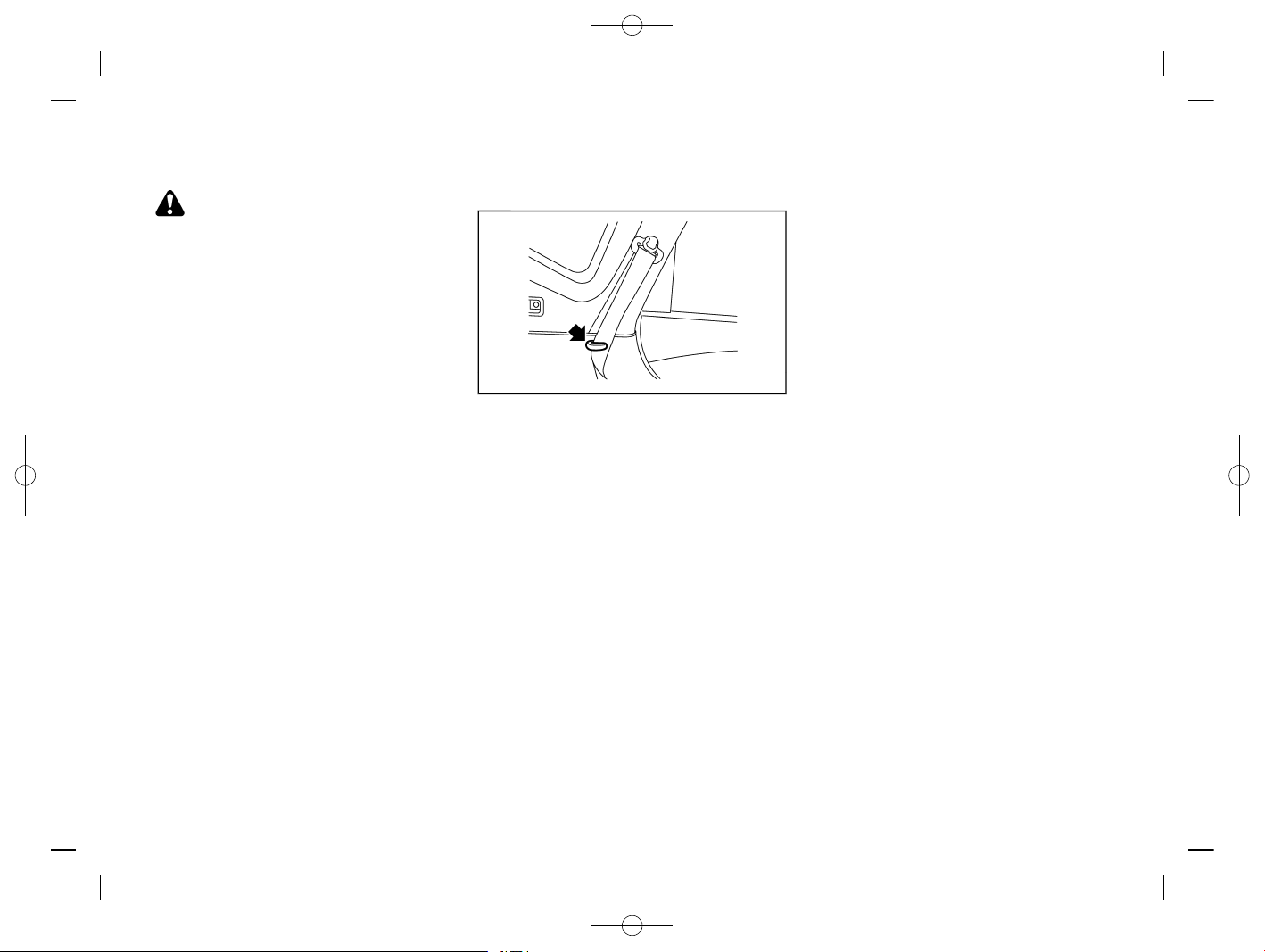

Belt hook (if equipped)

T32A130827-702349E6-D2F9-4807-B5A0-7C9EC0BE7832

JVR0353X

Seat belt can be hooked on the belt hook.

Checking seat belt operation

T32A130827-71A5C13C-A297-4A48-8CD6-FB07919F9D B4

Seat belt retractors are designed to lock seat belt movement:

. When the seat belt is pulled quickly from the

retractor. . When the vehicle slows down rapidly. To increase your confidence in the seat belts, check

the operation by grasping the shoulder belt and pulling forward quickly. The retractor should lock and restrict further belt movement. If the retractor does not lock during this check, contact a NISSAN dealer immediately.

SEAT BELT MAINTENANCE

T32A130827-09199535-EE25-4EAC-9D54-D0AED305C354

Periodically check that the seat belt and all the metal components, such as buckles, tongues, retractors, flexible wires and anchors, work properly. If loose parts, deterioration, cuts or other damage on the seat belt webbing is found, the entire seat belt assembly should be replaced.

If dirt builds up in the shoulder belt guide of the seat belt anchors, the seat belts may retract slowly. Wipe the shoulder belt guide with a clean, dry cloth.

To clean the seat belt webbing, apply a mild soap solution or any solution recommended for cleaning upholstery or carpet. Then wipe with a cloth and allow the seat belts to dry in the shade. Do not allow the seat belts to retract until they are completely dry.

Safety — seats, seat belts and supplemental restraint system 1-13

Condition: 'Except for China'/

Page 32

(32,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-14 Safety — seats, seat belts and supplemental restraint system

T32A130827-B9F2FCE8-C8FF-4419-9D1B-47BBBEB817B 8

PRECAUTIONS ON CHILD RESTRAINT USAGE

T32A130827-A2A55D3D-261B-4822-A5C9-B00E94E8AA4 A

SSS0099

WARNING:

. Infants and small children should always be

placed in an appropriate child restraint while riding in the vehicle. Failure to use a child restraint can result in serious injury or death.

. Infants and small children should never be

carried on your lap. It is not possible for even the strongest adult to resist the forces of a severe accident. The child could be crushed between the adult and parts of the vehicle. Also, do not put the same seat belt around both your child and yourself.

. NISSAN recommends that the child re-

straints be installed in the rear seat. According to accident statistics, children are safer when properly restrained in the rear seat than in the front seat.

. Improper use or improper installation of a

child restraint can increase the risk or severity of injury for both the child and other occupants of the vehicle and can lead to

serious injury or death in an accident. . Follow all of the child restraint manufac-

turer’s instructions for installation and use.

When purchasing a child restraint, be sure to

select one which will fit your child and

vehicle. It may not be possible to properly

install some types of child restraint in your

vehicle. . The direction of the child restraint, either

front-facing or rear-facing, depends on the

type of the child restraint and the size of the

child. Refer to the child restraint manufac-

turer’s instructions for details. . Adjustable seatbacks should be positioned

to ensure full contact between child restraint

and seatback. . After attaching a child restraint, test it

before you place the child in it. Push it from

side to side and tug it forward to make sure

that it is held securely in place. The child

restraint should not move more than 25 mm

(1 in). If the restraint is not secure, tighten

the belt as necessary, or install the restraint

in another seat and test it again. . When the child restraint is not in use, keep it

secured with the ISOFIX child restraint

system or a seat belt to prevent it from

being thrown around in case of a sudden

stop or accident. . Never install a rear-facing child restraint on

the front passenger’s seat when the front

passenger’s air bag is available. Supple-

mental front-impact air bags inflate with

great force. A rear-facing child restraint

could be struck by the supplemental front-

impact air bags in an accident and could

seriously injure or kill your child.

. If the seat belt in the position where a child

restraint is installed requires a locking device and if it is not used, injuries could result from a child restraint tipping over during normal vehicle braking or cornering.

CAUTION:

Remember that a child restraint left in a closed vehicle can become very hot. Check the seating surface and buckles before placing your child in a child restraint.

NISSAN recommends that infants and small children be seated in a child restraint. You should choose a child restraint that fits your vehicle and always follow the manufacturer’s instructions for installation and use. In addition, there are many types of child restraints available for larger children that should be used for maximum protection.

CHILD RESTRAINTS

Condition: 'Except for China'/

Page 33

(33,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

UNIVERSAL CHILD RESTRAINTS FOR FRONT SEAT AND REAR SEATS (for Europe)

GUID-9BFC6C9D-8671-4D95-8AAD-9E4C6F1D11F9

When selecting any child restraint, keep the following points in mind:

. Choose a child restraint that complies with the

latest European safety standard, ECE Regulation

44.04.

. Place your child in the child restraint and check

the various adjustments to be sure the child restraint is compatible with your child. Always follow all of the recommended procedures.

. Check the child restraint in your vehicle to be sure

it is compatible with vehicle’s seat belt system.

. Refer to the tables later in this section for a list of

the recommended fitment positions and the approved child restraints for your vehicle.

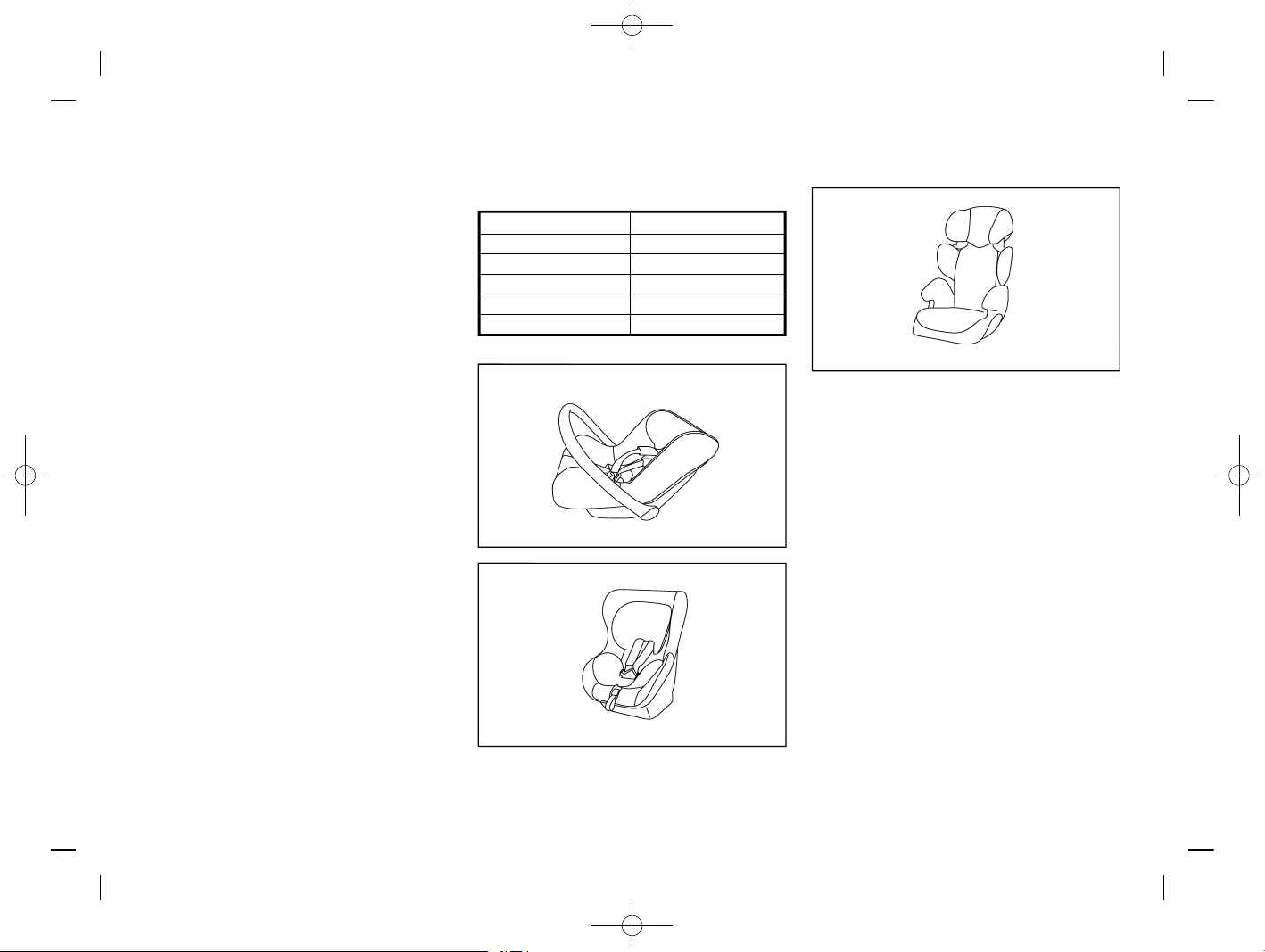

Mass group of child seat

GUID-40AF683E-378A-45A8-9406-AEFC4F5E6253

Mass group Child’s weight

Group 0 up to 10 kg

Group 0+ up to 13 kg

Group I 9 to 18 kg Group II 15 to 25 kg Group III 22 to 36 kg

Kind of child seats (example):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0371X

Child safety seat categories 0 and 0+

JVR0372X

Child safety seat categories 0+ and I

JVR0373X

Child safety seat categories II and III

Safety — seats, seat belts and supplemental restraint system 1-15

Condition: 'Except for China'/

Page 34

(34,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-16 Safety — seats, seat belts and supplemental restraint system

Approved child restraint positions

GUID-DF58DF92-1D8E-4F79-923D-075F501C68B5

The following restriction is applied when using child restraints varying by infants weight and installation position.

Mass group

Suitability

Front passen-

ger seat

(Air bag ON)

Front passen-

ger seat

(Air bag OFF)

2nd row outer

seat

2nd row cen-

ter seat

3rd row seat

<10 kg X X U*2 X

<13 kg X L*2 U/L*2 X

9 - 18 kg X L*2 U*2 X

15 - 25 kg X L*1*2 UF/L*1*2 X

III

22 - 36 kg X L*1*2 UF/L*1*2 X

X: not suitable for child restraint system U: suitable for universal category child restraint system approved for this weight group UF: suitable for forward-facing universal category child restraint system approved for this weight group L: suitable for particular child restraints given on attached list or vehicle list of child restraint manufacturer *1: If you install the child seat, remove the head restraint. *2: If you install the child seat, set to most rearward slide position.

Condition: 'Except for China'/

Page 35

(35,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Permissible options for fitting an ISOFIX child restraint

GUID-63DAAD91-D73B-44B5-94DE-8ED73D4FD718

Mass group

Suitability

Front passen-

ger seat

2nd row outer

seat

2nd row cen-

ter seat

3rd row seat

Carry-cot

F ISO/L1 X X X

G ISO/L2 X X X

0+ (<10 kg)

E ISO/R1 X IL* X

0+ (<13 kg)

E ISO/R1 X IL X

D ISO/R2 X IL* X

C ISO/R3 X IL X

I (9 - 18 kg)

D ISO/R2 X IL* X

C ISO/R3 X IL X

B ISO/F2 X IUF X

B1 ISO/F2X X IL*1/IUF X

A ISO/F3 X IUF X

II (15 - 25 kg)

— — X IL X

III (22 - 36 kg)

— — X IL X

X: not suitable for child restraint system IUF: suitable for universal category forward facing child restraint system approved for this weight group IL: suitable particular ISOFIX category child restraint system (CRS) given in the below list or vehicle list of child

seat manufacturer.

IL*: suitable particular ISOFIX category child restraint system (CRS) given in the vehicle list of child seat

manufacturer.

*1: If you install the child seat, remove the head restraint.

Safety — seats, seat belts and supplemental restraint system 1-17

Condition: 'Except for China'/

Page 36

(36,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-18 Safety — seats, seat belts and supplemental restraint system

List of Universal recommended child restraints

GUID-D1711338-0781-4CF0-82F5-1311F7C88CE3

Front passenger

seat

(Air bag OFF)

2nd row outer seat 2nd row center seat

3rd row seat

0+ (<13 kg) Maxi Cosi Cabrio Fix Maxi Cosi Cabrio Fix —

—

I (9 - 18 kg)

Ro¨mer King plus Ro¨mer King plus —

—

— Ro¨mer Duo plus —

—

II (15 - 25 kg)

Ro¨mer Kid fix

(belt mounted)

Ro¨mer Kid fix

(belt mounted)

—

III (22 - 36 kg)

Ro¨mer Kid fix

(belt mounted)

Ro¨mer Kid fix

(belt mounted)

—

List of Semi-universal recommended child restraints

GUID-B6C94BDF-4BF8-4D62-9D16-730E01E411D6

Front passenger seat

(Air bag OFF)

2nd row outer seat

2nd row center

seat

3rd row seat

0+ (<13 kg)

Maxi Cosi Cabrio Fix

plus

Easy Fix

Maxi Cosi Cabrio Fix

plus

Easy Fix

—

Maxi Cosi Cabrio Fix

plus

Easy Fix Base

—

I (9 - 18 kg) —

Maxi Cosi pearl plus

family fix

—

II (15 - 25 kg) —

Ro¨mer Kid fix

(ISOFIX mounted)

—

III (22 - 36 kg) —

Ro¨mer Kid fix

(ISOFIX mounted)

—

Condition: 'Except for China'/

Page 37

(37,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

List of approved child restraints

GUID-49B2FDAC-9DF6-4A61-9D26-15EFC8DF35E9

Name of CRS Fixture of CRS Facing position

Category

0+ (<13 kg)

Ro¨mer Baby safe

plus SHR II+ ISO-

FIX base

ISOFIX + base and

support leg

Rear facing

Semi-universal

I (9 - 18 kg)

Be safe IZI kid X3

iso fix

ISOFIX+support leg Rear facing

Semi-universal

ISOFIX CHILD RESTRAINT SYSTEM (for second row seats)

T32A130827-874B1376-633A-4872-A5DC-1561E1E4E5DA

JVR0351X

ISOFIX label location

Your vehicle is equipped with special anchor points that are used with ISOFIX child restraint systems.

ISOFIX lower anchor point locations

T32A130827-8C1B0C96-3669-40A1-9516-D03E5D85D14 6

The ISOFIX anchor points are provided to install child restraints in the second row outboard seating positions only. Do not attempt to install a child restraint in

the center seating position using the ISOFIX anchors.

SSS0637

ISOFIX lower anchor location

The ISOFIX anchors are located at the rear of the seat cushion near the seatback. A label is attached to the seatback to help you locate the ISOFIX anchors.

ISOFIX child restraint anchor attachments

T32A130827-F2AC3D59-1715-4B14-9A8F-18AD912C0E4A

SSS0644

Anchor attachment

ISOFIX child restraints include two rigid attachments that can be connected to two anchors located in the seat. With this system, you do not have to use a vehicle seat belt to secure the child restraint. Check your child restraint for a label stating that it is compatible with the ISOFIX child restraints. This information may also be in the instructions provided by the child restraint manufacturer.

ISOFIX child restraints generally require the use of a top tether strap or other anti-rotation devices such as support legs. When installing ISOFIX child restraints, carefully read and follow the instructions in this manual and those supplied with the child restraints. (See “Child restraint installation using ISOFIX” (P.1-20).)

Safety — seats, seat belts and supplemental restraint system 1-19

Condition: 'Except for China'/

Page 38

(38,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-20 Safety — seats, seat belts and supplemental restraint system

CHILD RESTRAINT ANCHORAGE (for second row seats)

T32A130827-2B9CCB11-46FB-4315-B086-05B2E330A 092

Your vehicle is designed to accommodate a child restraint system on the second row seat. When installing a child restraint system, carefully read and follow the instructions in this manual and those supplied with the child restraint system.

WARNING:

. Child restraint anchorages are designed to

withstand only those loads imposed by correctly fitted child restraints. Under no circumstances are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle. Doing so could damage the child restraint anchorages. The child restraint will not be properly installed using the damaged anchorage, and a child could be seriously injured or killed in a collision.

. The child restraint top tether strap may be

damaged by contact with the tonneau cover (if equipped) or items in the luggage area. Remove the tonneau cover from the vehicle or secure it and any luggage. Your child could be seriously injured or killed in a collision if the top tether strap is damaged.

Anchorage location

T32A130827-22786013-5A06-4566-964F-9F5FF4AF100 9

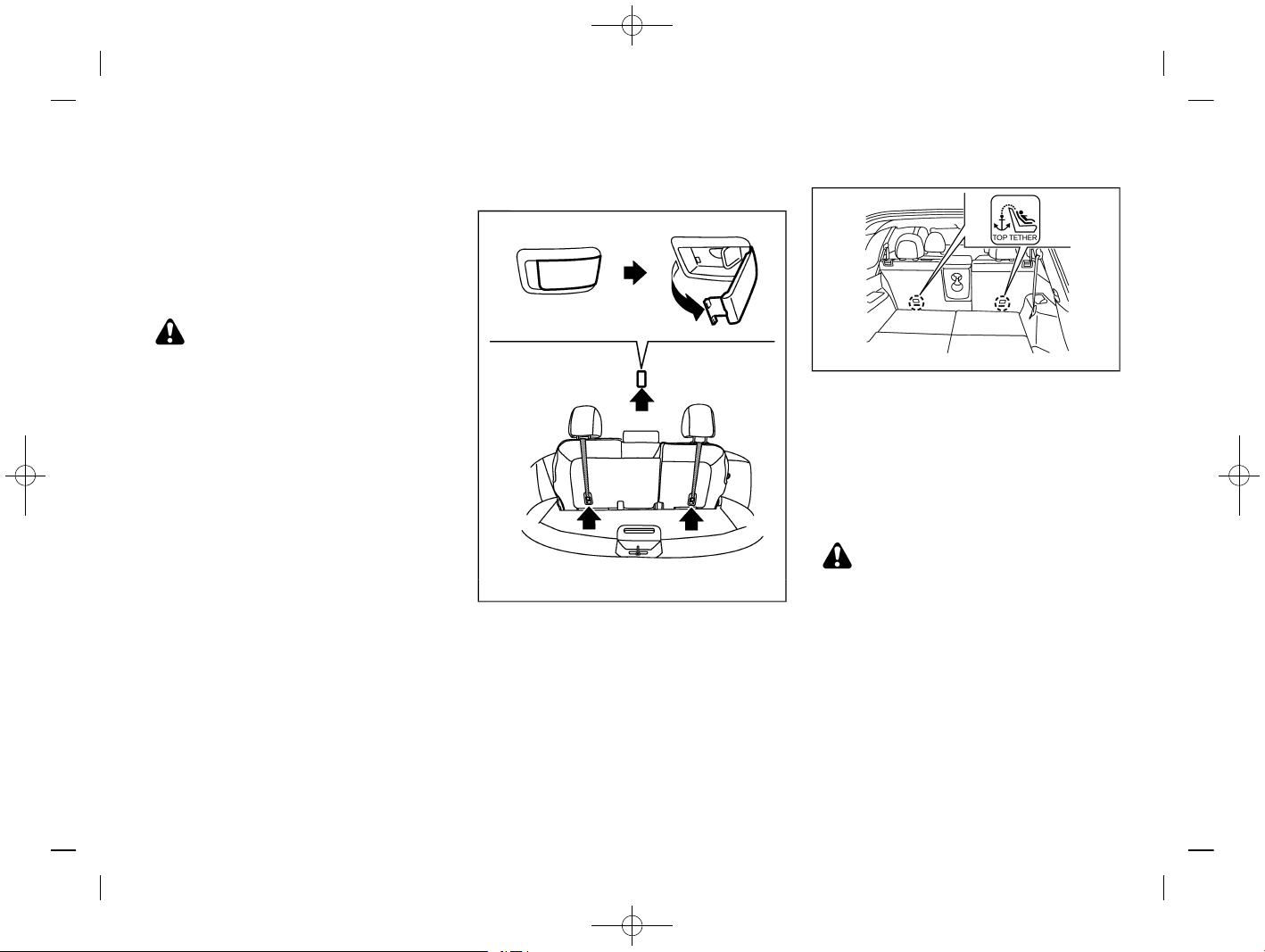

JVR0326X

Type A

JVR0366X

Type B (example)

Anchorages are located as illustrated. Position the top tether strap over the top of the

seatback and secure it to the tether anchorage that provides the straightest installation. Tighten the tether strap according to the manufacturer’s instruction to remove any slack.

CHILD RESTRAINT INSTALLATION USING ISOFIX

T32A130827-8C4D268B-3C47-4D79-AE65-5ADCF8852 558

WARNING:

. Attach ISOFIX child restraints only at the

specified locations. For the ISOFIX lower anchor locations, see “ISOFIX child restraint system (for second row seats)” (P.1-19). If a child restraint is not secured properly, your child could be seriously injured or killed in an accident.

. Do not install child restraints that require the

use of a top tether strap to seating positions that do not have a top tether anchor.

. Do not secure a child restraint in the center

rear seating position using the ISOFIX lower anchors. The child restraint will not be

Condition: 'Except for China'/

Page 39

(39,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

secured properly.

. Inspect the lower anchors by inserting your

fingers into the lower anchor area and feeling to make sure there are no obstructions over the ISOFIX anchors, such as seat belt webbing or seat cushion material. The child restraint will not be secured properly if the ISOFIX anchors are obstructed.

. Child restraint anchorages are designed to

withstand only those loads imposed by correctly fitted child restraints. Under no circumstance are they to be used for adult seat belts, harnesses or for attaching other items or equipment to the vehicle. Doing so could damage the child restraint anchorages. The child restraint will not be properly installed using the damaged anchorage, and a child could be seriously injured or killed in a collision.

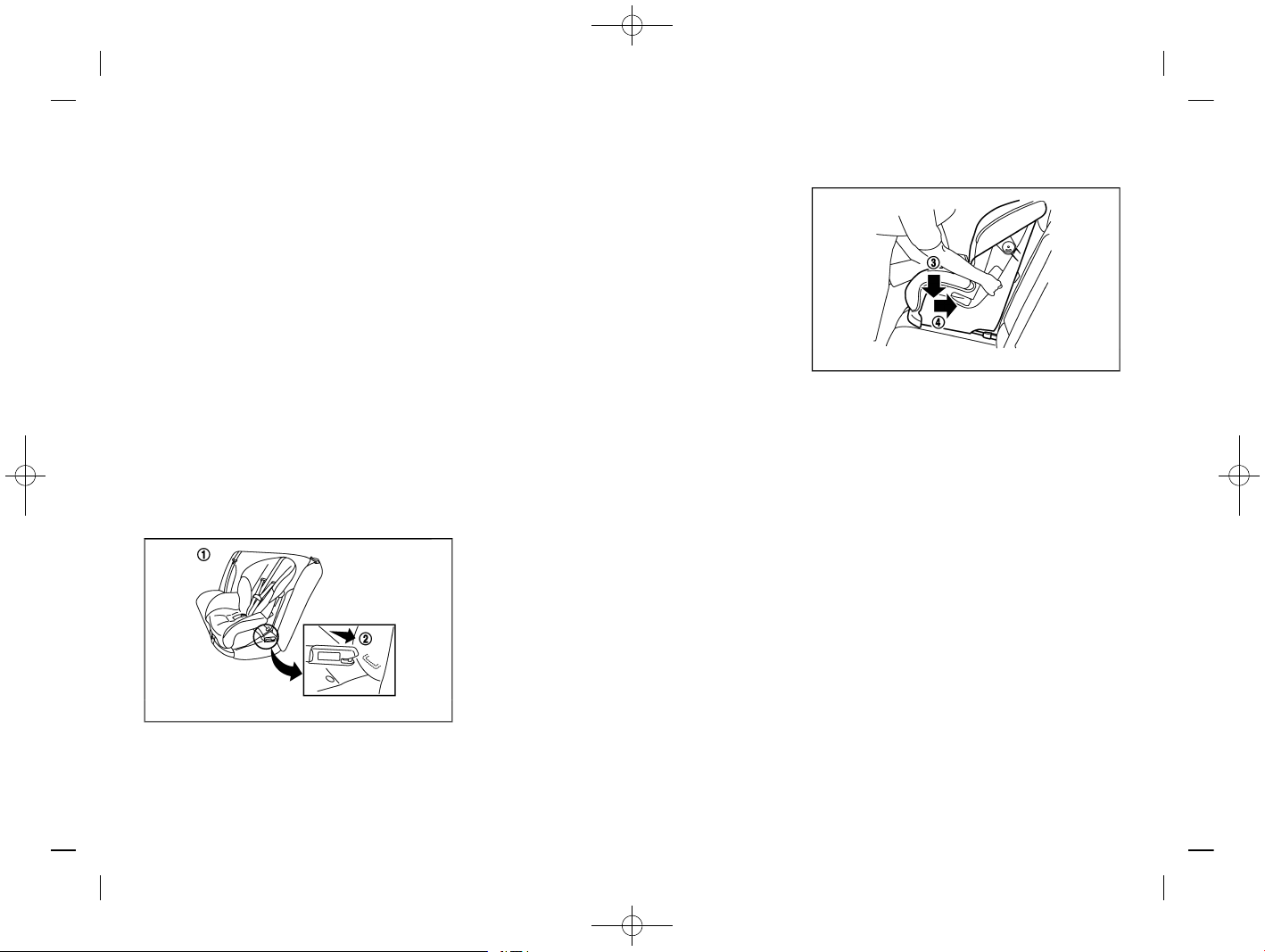

Installation on rear outboard seats

T32A130827-AE43E959-BB5F-4CFD-A4FA-CDEC3959EDC4

SSS0646A

Steps 1 and 2

Front-facing:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Be sure to follow the manufacturer’s instructions for the proper use of your child restraint. Follow these steps to install a front-facing child restraint on the second row outboard seats using ISOFIX:

1. Position the child restraint on the seat

2. Secure the child restraint anchor attachments to the ISOFIX lower anchors

3. For Europe (Mass group I-F2X): The back of the child restraint should be secured

against the vehicle seatback. The head restraint should be removed to obtain the correct child restraint fit. Store the head restraint in a secure place. Be sure to install the head restraint when the child restraint is removed. (See “Head restraints” (P.1-7) , “Universal child restraints for front seat and rear seats” (P.1-15).)

For Europe (except for Mass group I-F2X): Except for Europe:

The back of the child restraint should be secured against the vehicle seat back. If necessary, adjust or remove the head restraint to obtain the correct child restraint fit. If the head restraint is removed, store it in a secure place. Be sure to install the head restraint when the child restraint is removed. If the seating position does not have an adjustable head restraint and it is interfering with the proper child restraint fit, try another seating position or a different child restraint. (See “Head restraints” (P.1-7), “Universal child restraints for front seat and rear seats” (P.1-15).)

SSS0754A

Step 4

4. Shorten the rigid attachment to have the child restraint firmly tightened; press downward

and rearward

firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback. Adjustable seatbacks should be positioned to ensure full contact between child restraint and seatback.

5. If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. (See “Child restraint anchorage (for second row seats)” (P.1-

20).)

6. If the child restraint is equipped with other antirotation devices such as support legs, use them instead of the top tether strap following the child restraint manufacturer’s instructions.

Safety — seats, seat belts and supplemental restraint system 1-21

Condition: 'Except for China'/

Page 40

(40,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-22 Safety — seats, seat belts and supplemental restraint system

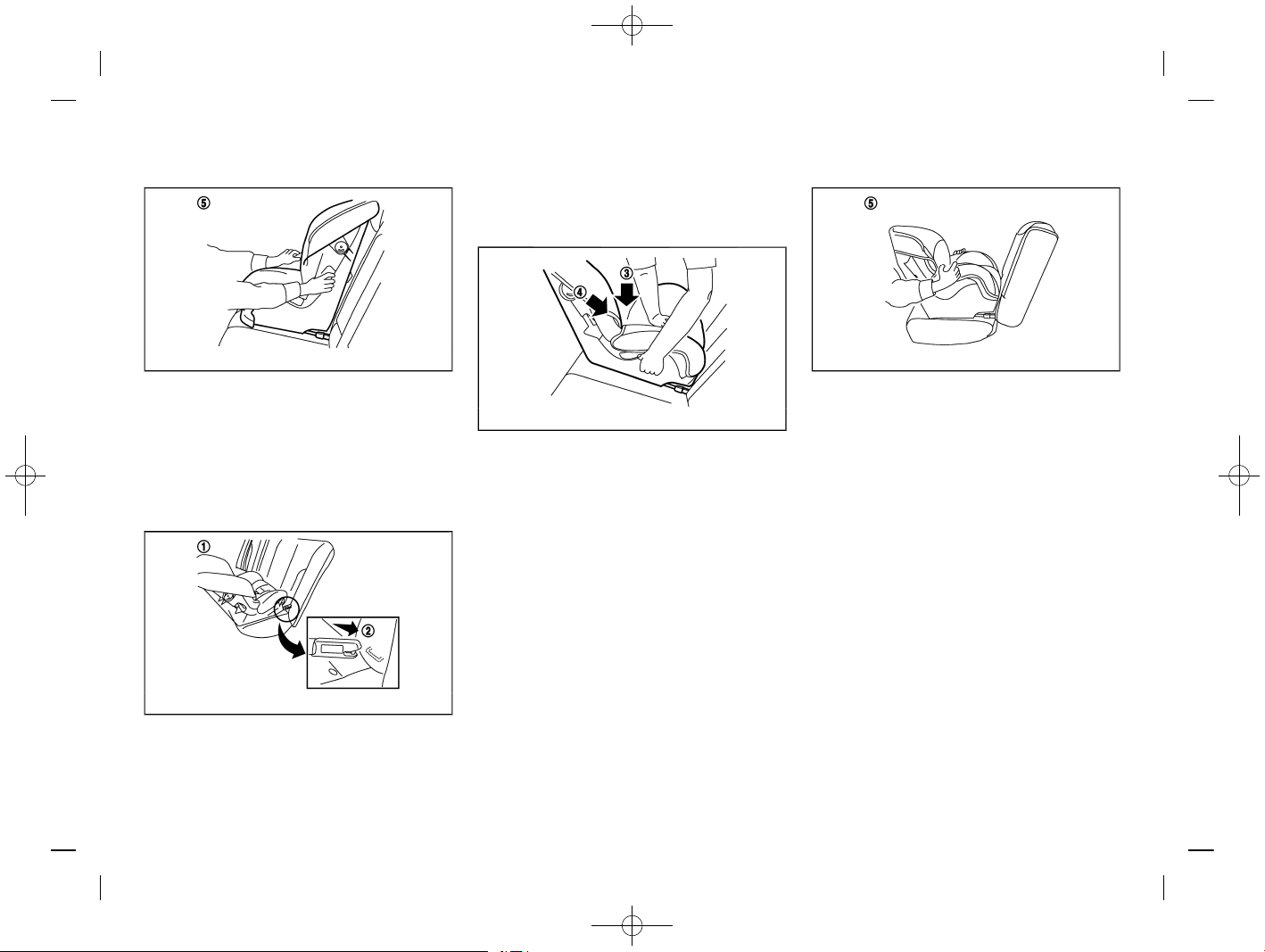

SSS0755A

Step 7

7. Test the child restraint before you place the child in it

. Push the child restraint from side to side and tug it forward to make sure that it is held securely in place.

8. Check to make sure that the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 3 through 7.

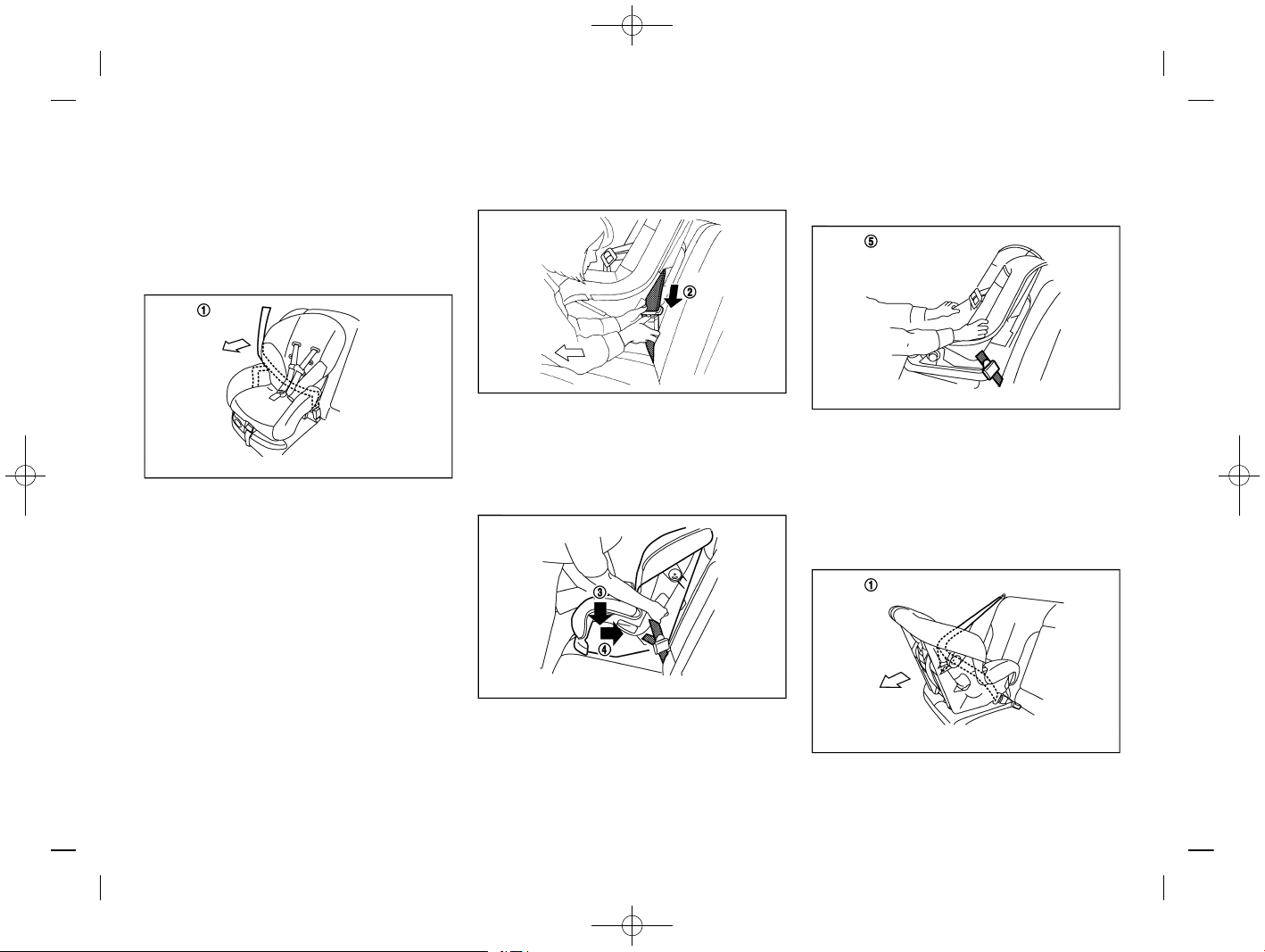

Rear-facing:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

SSS0649A

Steps 1 and 2

Be sure to follow the manufacturer’s instructions for the proper use of your child restraint. Follow these steps to install a rear-facing child restraint on the second row outboard seats using ISOFIX:

1. Position the child restraint on the seat

2. Secure the child restraint anchor attachments to the ISOFIX lower anchors

SSS0756A

Step 3

3. Shorten the rigid attachment to have the child restraint firmly tightened; press downward

and rearward

firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback.

4. If the child restraint is equipped with a top tether strap, route the top tether strap and secure the tether strap to the tether anchor point. (See “Child restraint anchorage (for second row seats)” (P.1-

20).)

5. If the child restraint is equipped with other antirotation devices such as support legs, use them instead of the top tether strap following the child restraint manufacturer’s instructions.

SSS0757A

Step 6

6. Test the child restraint before you place the child in it

. Push the child restraint from side to side and tug it forward to make sure that it is held securely in place.

7. Check to make sure that the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 3 through 6.

Condition: 'Except for China'/

Page 41

(41,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

CHILD RESTRAINT INSTALLATION USING 3-POINT TYPE SEAT BELT

T32A130827-A9515302-9112-4FC5-83E2-EA3AC508586D

Installation on rear seats - without automatic locking mode

T32A130827-96EF54C8-3581-4C46-8949-7876F5EB6CBB

Front-facing:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

SSS0758A

Step 1

Be sure to follow the manufacturer’s instructions for the proper use of your child restraint. Follow these steps to install a front-facing child restraint on the rear seats using 3-point type seat belt without automatic locking mode:

1. Position the child restraint on the seat

2. Installation on rear outboard seats (for

Europe (Mass group II and III)):

Remove the head restraint. (See “Head restraints” (P.1-7), “Universal child restraints for front seat and rear seats” (P.1-15).)

Installation on rear outboard seats (for Europe (except for Mass group II and III)):

Installation on rear outboard seats (except for Europe):

Adjust the head restraint to its highest position. (See “Head restraints” (P.1-7), “Universal child

restraints for front seat and rear seats” (P.1-15).)

SSS0493A

Step 3

3. Route the seat belt tongue through the child restraint and insert it into the buckle

until you

hear and feel the latch engage.

4. To prevent slack in the seat belt webbing, it is necessary to secure the seat belt in place with locking devices attached to the child restraint.

SSS0647A

Step 5

5. Remove any additional slack from the seat belt; press downward

and rearward

firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt. Adjustable

seatbacks should be positioned to ensure full contact between child restraint and seatback.

SSS0638A

Step 6

6. Test the child restraint before you place the child in it

. Push the child restraint from side to side and tug it forward to make sure that it is held securely in place.

7. Check to make sure that the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 3 through 5.

Rear-facing:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

SSS0759A

Step 1

Be sure to follow the manufacturer’s instructions for the proper use of your child restraint. Follow these

Safety — seats, seat belts and supplemental restraint system 1-23

Condition: 'Except for China'/

Page 42

(42,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-24 Safety — seats, seat belts and supplemental restraint system

steps to install a rear-facing child restraint on the rear seats using 3-point type seat belt without automatic locking mode:

1. Position the child restraint on the seat

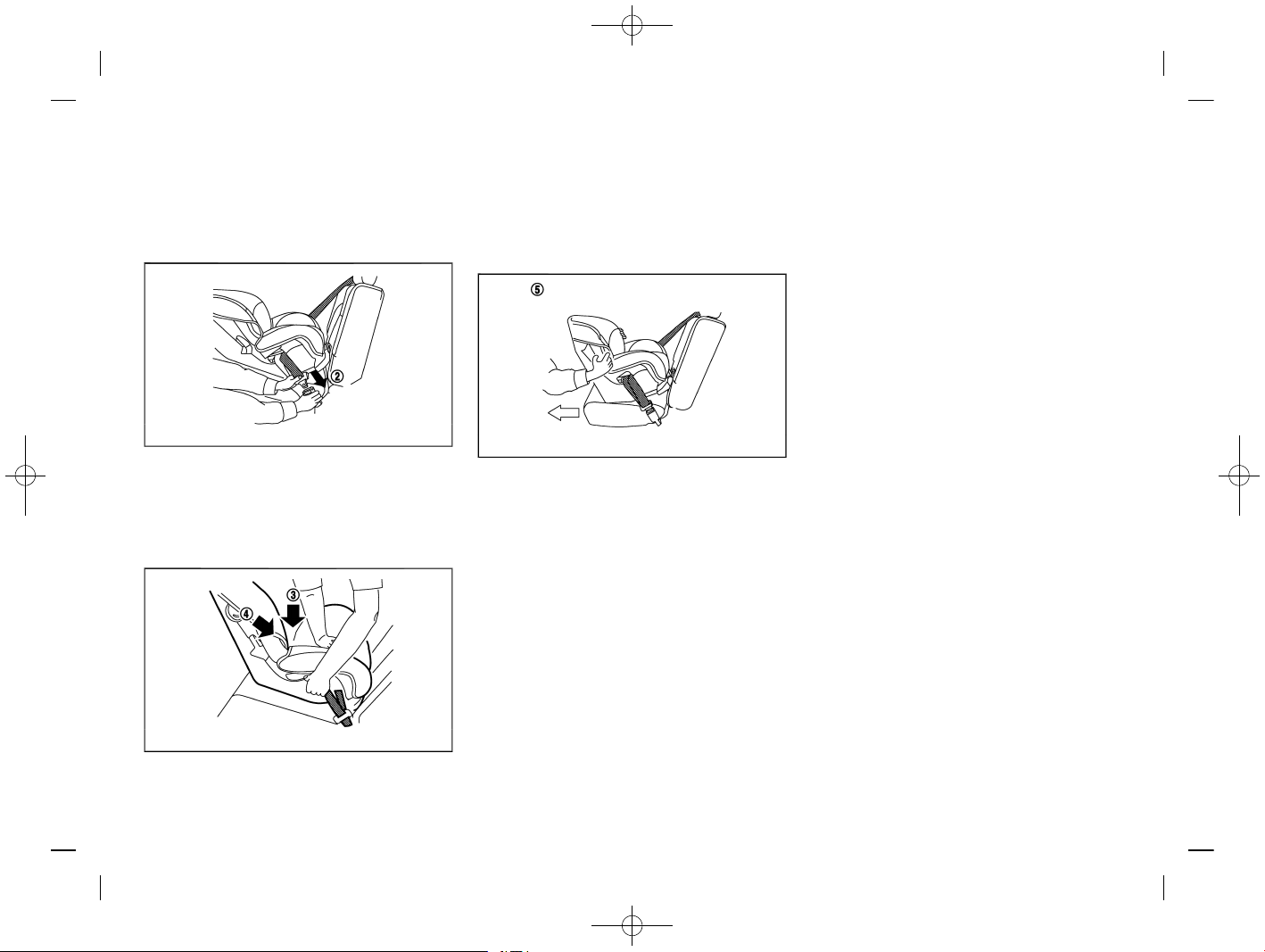

SSS0654A

Step 2

2. Route the seat belt tongue through the child restraint and insert it into the buckle

until you

hear and feel the latch engage.

3. To prevent slack in the seat belt webbing, it is necessary to secure the seat belt in place with locking devices attached to the child restraint.

SSS0639A

Step 4

4. Remove any additional slack from the seat belt; press downward

and rearward

firmly in the center of the child restraint with your hand to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

SSS0658A

Step 5

5. Test the child restraint before you place the child in it

. Push the child restraint from side to side and tug it forward to make sure that it is held securely in place.

6. Check to make sure that the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 3 through 5.

Condition: 'Except for China'/

Page 43

(43,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

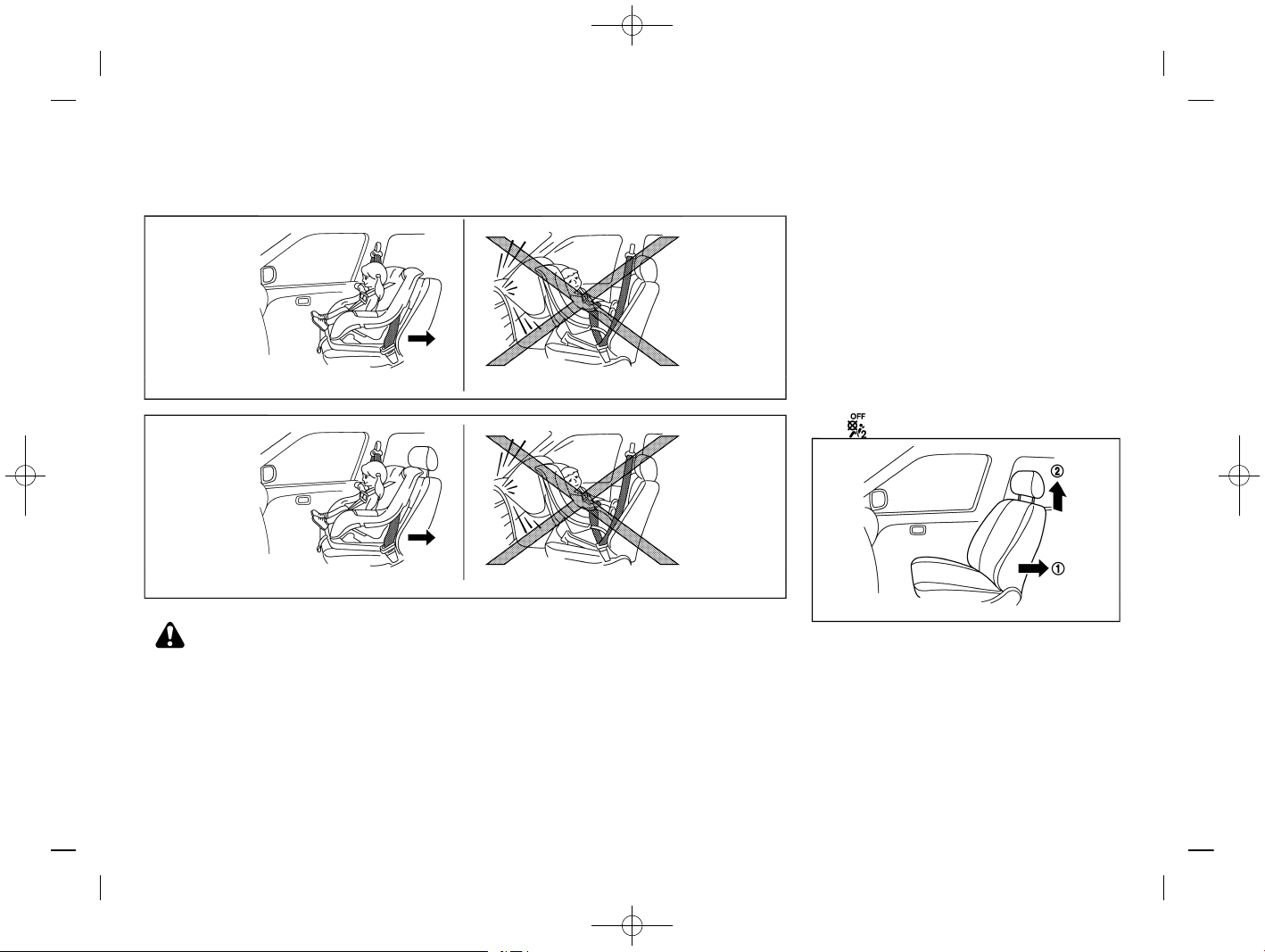

Installation on front passenger’s seat

T32A130827-3CDB1AED-379E-4B81-B7D9-2F7BF07A419F

JVR0285X

For Europe (Mass group II and III)

SSS0300A

For Europe (except for Mass group II and III) and except for Europe

WARNING:

. Never install a rear-facing child restraint on

the front passenger’s seat when the front passenger’s air bag is available. Supplemental front-impact air bags inflate with great force. A rear-facing child restraint could be struck by the supplemental frontimpact air bags in an accident and could seriously injure or kill your child.

. Never install a child restraint with a top

tether strap on the front seat.

. NISSAN recommends that a child restraint

be installed on the rear seat. However, if you must install a child restraint on the front passenger’s seat, move the passenger’s seat to the rearmost position.

. Child restraints for infants must be used in

the rear-facing direction and therefore must not be used on the front passenger’s seat

when the front passenger’s air bag is available.

Front-facing:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Be sure to follow the manufacturer’s instructions for the proper use of your child restraint. Follow these steps to install a front-facing child restraint on the front passenger’s seat using 3-point type seat belt without automatic locking mode:

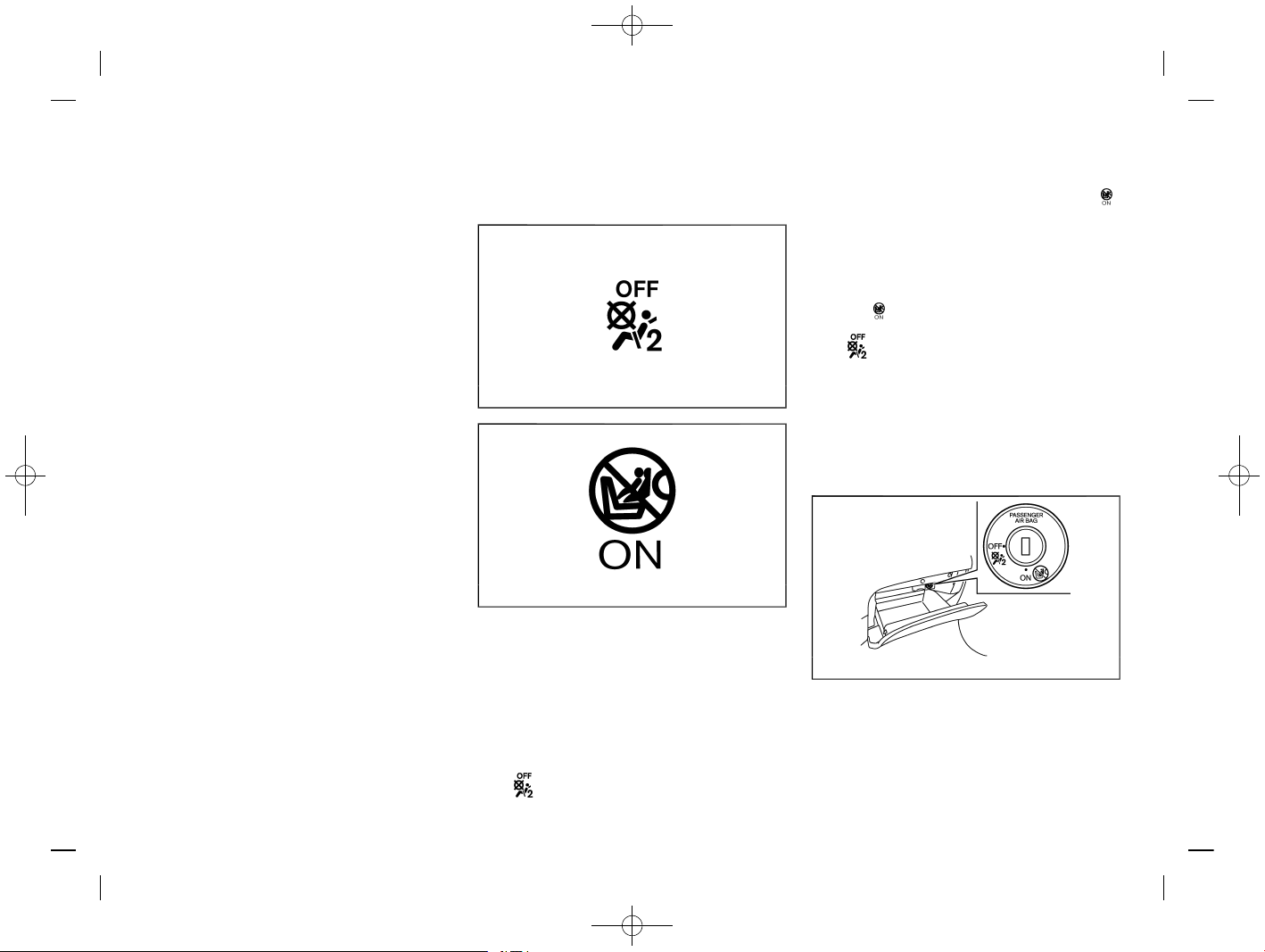

1. Turn off the front passenger’s air bag using the front passenger air bag switch (if equipped). (See “Supplemental air bag systems” (P.1-32).) Place the ignition switch in the “ON” position and make sure that the front passenger air bag status light

(OFF) illuminates. (if equipped)

SSS0627

Steps 2 and 3

2. Move the seat to the rearmost position

3. For Europe (Mass group II and III): Remove the head restraint

. (See “Head restraints” (P.1-7) , “Universal child restraints for front seat and rear seats” (P.1-15).)

For Europe (except for Mass group II and III): Except for Europe:

Adjust the head restraint

to its highest

Safety — seats, seat belts and supplemental restraint system 1-25

Condition: 'Except for China'/

Page 44

(44,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-26 Safety — seats, seat belts and supplemental restraint system

position. (See “Head restraints” (P.1-7), “Universal child restraints for front seat and rear seats” (P.1-15).)

4. Position the child restraint in the seat.

SSS0360C

Step 5

5. Route the seat belt tongue through the child restraint and insert it into the buckle

until you

hear and feel the latch engage.

6. To prevent slack in the seat belt webbing, it is necessary to secure the seat belt in place with locking devices attached to the child restraint.

SSS0647B

Step 7

7. Remove any additional slack from the seat belt; press downward

and rearward

firmly in the center of the child restraint with your knee to compress the vehicle seat cushion and seatback while pulling up on the seat belt.

JVR0286X

Step 8 (for Europe (Mass group II and III))

SSS0302G

Step 8 (For Europe (except for Mass group II and III) and

except for Europe)

8. Test the child restraint before you place the child in it

. Push the child restraint from side to side and tug it forward to make sure that it is held securely in place.

9. Check to make sure that the child restraint is properly secured prior to each use. If the child restraint is loose, repeat steps 6 through 8.

Condition: 'Except for China'/

Page 45

(45,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

T32A130827-B6157A48-56A9-4C36-B172-3AAF44191FC 9

PRECAUTIONS ON SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

T32A130827-472B749A-1D52-40E6-A55D-E253224FD3 4B

This Supplemental Restraint System (SRS) section contains important information concerning the driver’s and passenger’s supplemental front-impact air bags, supplemental side-impact air bags, supplemental curtain side-impact air bags and pre-tensioner seat belts.

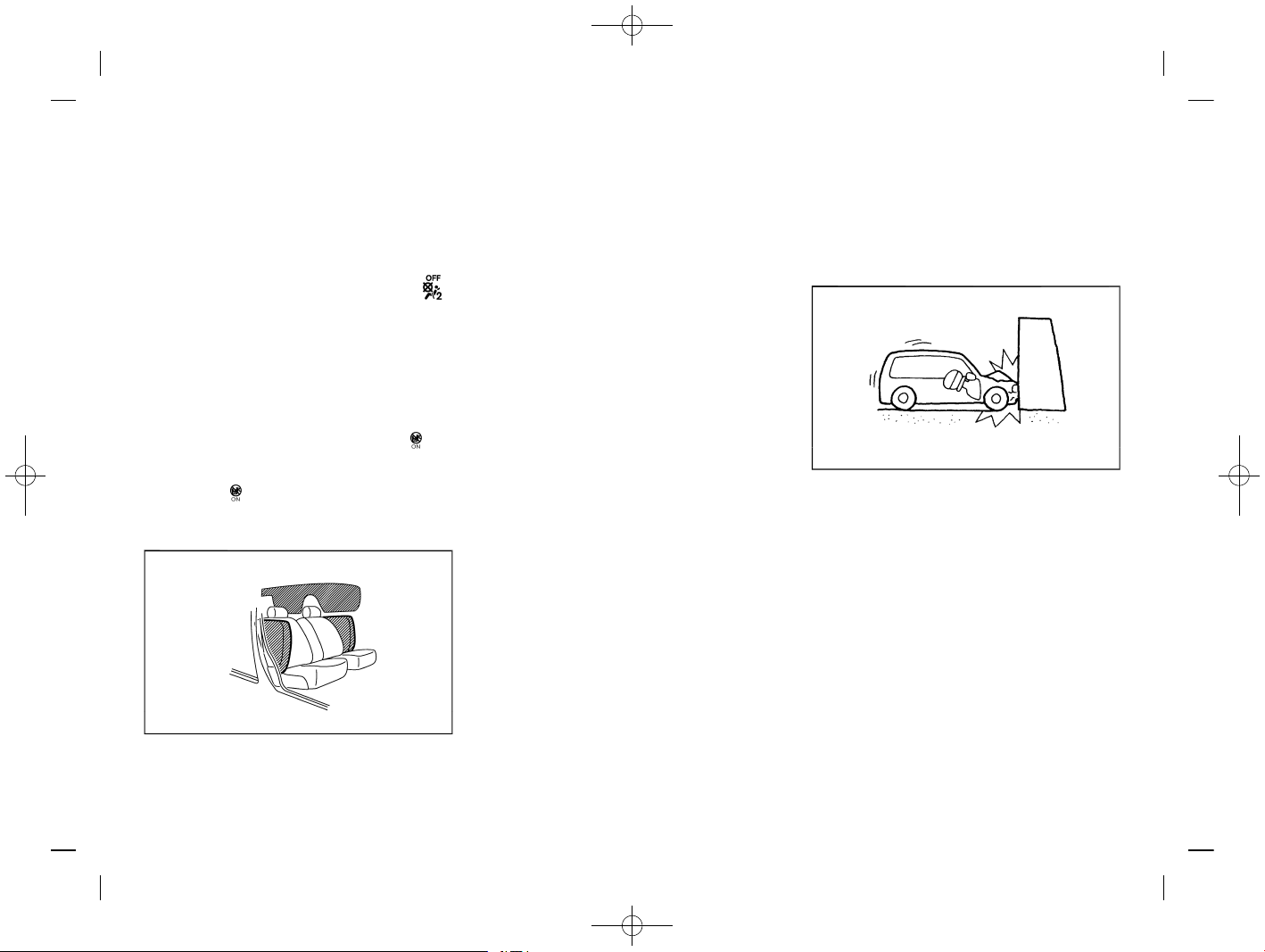

Supplemental front-impact air bag system

T32A130827-B8254390-3B61-40FC-91DE-1AC76EF9CA11

This system can help cushion the impact force to the head and chest area of the driver and/or front passenger in certain frontal collisions. The supplemental front-impact air bag is designed to inflate on the front where the vehicle is impacted.

Supplemental side-impact air bag system (if equipped)

GUID-86134849-D1CC-4A18-B616-BEDE533187A6

This system can help cushion the impact force to the chest area of the driver and front passenger in certain side-impact collisions. The supplemental side-impact air bag is designed to inflate on the side where the vehicle is impacted.

Supplemental curtain side-impact air bag system (if equipped)

GUID-9482082F-6DCB-432F-9FD0-9A1EB3E05C4C

This system can help cushion the impact force to the head of the driver and passengers in front and rear outboard seating positions in certain side-impact collisions. The supplemental curtain side-impact air bag is designed to inflate on the side where the vehicle is impacted.

The SRS is designed to supplement the accident protection provided by the driver’s and passenger’s seat belts and is not designed to substitute for them. The SRS can help save lives and reduce serious injuries. However, inflating air bags may cause abra-

sions or other injuries. Air bags do not provide protection to the lower body. Seat belts should always be correctly worn and the occupants should always be seated a suitable distance away from the steering wheel and instrument panel. (See “Seat belts” (P.1-9).) The air bags inflate quickly in order to help protect the occupants. The force of the air bags inflating can increase the risk of injury if the occupants are too close to, or are against, the air bag modules during inflation. The air bags will deflate quickly after deployment.

The SRS operates only when the ignition switch is in the “ON” position.

When the ignition switch is in the “ON” position, the SRS air bag warning light illuminates for about 7 seconds and then turns off. This indicates that the SRS air bag system is operational. (See “SRS air bag warning light” (P.1-31).)

Safety — seats, seat belts and supplemental restraint system 1-27

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Condition: 'Except for China'/

Page 46

(46,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-28 Safety — seats, seat belts and supplemental restraint system

SSS0131A

SSS0132A

WARNING:

. The supplemental front-impact air bags

ordinarily will not inflate in the event of a side impact, rear impact, rollover, or lower severity frontal collision. Always wear the seat belts to help reduce the risk or severity of injury in accidents.

. The seat belts and the supplemental front-

impact air bags are most effective when you are sitting well back and upright in the seat. The front-impact air bags inflate with great force. If you and your passengers are unrest-

rained, leaning forward, sitting sideways, or out of position in any way, you and your passengers are at greater risk of injury or death in an accident. You and your passengers may also receive serious or fatal injuries from the supplemental front-impact air bag if you are up against it when it inflates. Always sit back against the seatback and as far away as practical from the steering wheel or instrument panel. Always use the seat belts.

SSS0006

SSS0007

SSS0008

Condition: 'Except for China'/

Page 47

(47,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

SSS0009

SSS0099

SSS0100

WARNING:

. Never let children ride unrestrained or

extend their hands or face out of the window. Do not attempt to hold them in your lap or arms. Some examples of dangerous riding positions are shown in the illustrations.

. Children may be severely injured or killed

when the supplemental front-impact air bags, supplemental side-impact air bags, or supplemental curtain side-impact air bags inflate if they are not properly restrained.

. Never install a rear-facing child restraint

system on the front seat. An inflating supplemental front-impact air bag could seriously injure or kill your child. (See “Child restraints” (P.1-14).)

SSS0059A

SSS0140

SSS0159

SSS0162

Safety — seats, seat belts and supplemental restraint system 1-29

Condition: 'Except for China'/

Page 48

(48,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-30 Safety — seats, seat belts and supplemental restraint system

WARNING:

. The supplemental side-impact air bags and

supplemental curtain side-impact air bags ordinarily will not inflate in the event of a front impact, rear impact, rollover, or lower severity side collision. Always wear the seat belts to help reduce the risk or severity of injury in accidents.

. The seat belts and the supplemental side-

impact air bags and supplemental curtain side-impact air bags are most effective when you are sitting well back and upright in the seat. The supplemental side-impact air bags and supplemental curtain side-impact air bags inflate with great force. If you and your passengers are unrestrained, leaning forward, sitting sideways, or out of position in any way, you and your passengers are at greater risk of injury or death in an accident.

. Do not allow anyone to place their hands,

legs, or face near the supplemental sideimpact air bags and supplemental curtain side-impact air bags on the sides of the seatback of the front seats or near the side roof rails. Do not allow anyone sitting in the front seats or rear outboard seats to extend their hands out of the windows or lean against the doors. Some examples of dangerous riding positions are shown in the illustrations.

. When sitting in the rear seats, do not hold

onto the seatback of the front seats. If the supplemental side-impact air bags and supplemental curtain side-impact air bags inflate, you may be seriously injured. Be especially careful with children, who should

always be properly restrained.

. Do not use seat covers on the front seat-

backs. They may interfere with the supplemental side-impact air bag inflations.

Pre-tensioner seat belt system

T32A130827-4BCD70AF-5EB8-439E-9317-35CFA875C11C

The pre-tensioner seat belt system activates in conjunction with the supplemental front-impact air bag. Working with the seat belt retractor and anchor, it helps tighten the seat belt the instant the vehicle becomes involved in certain types of collisions, helping to restrain front seat occupants. (See “Pre-tensioner seat belt system ” (P.1-36).)

Air bag warning labels

GUID-0ADA328D-ED2F-4A46-963A-9AE0C024C763

SSS1023

Warning labels about the supplemental air bag system are placed in the vehicle as shown in the illustration.

The warning label

is located on the surface of the

driver’s and/or passenger’s sun visor. The warning label

(if equipped) is located on the

side of the passenger’s side body panel. The label(s) warn you not to fit a rear-facing child

restraint system on the front passenger seat as such a restraint system used in this position could cause

serious injury to the infant in case of air bag deployment during a collision.

Type A:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0260X

Air bag warning label (sample)

The label

design varies depending on the model. The label warns: “Extreme Hazard! Do not use a rearward facing child

restraint on a seat protected by an airbag in front of it!”

Type B:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0243X

Air bag warning label

The label

warns: “NEVER use a rearward facing child restraint on a seat

Condition: 'Except for China'/

Page 49

(49,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.”

In vehicles equipped with a front-impact passenger air bag system, use a rear-facing child restraint system only on the rear seats.

When installing a child restraint system in your vehicle, always follow the child restraint system manufacturer’s instructions for installation. For additional information, see “Child restraints” (P.1-14).

SRS air bag warning light

T32A130827-971922A3-CFCF-4D59-9EA7-ED964CBD8FB6

SPA1097

The SRS air bag warning light, displaying in the meter, monitors the circuits for the air bag systems, pre-tensioner seat belt systems and all related wiring.

When the ignition switch is in the “ON” position, the SRS air bag warning light illuminates for about 7 seconds and then turns off. This indicates that the SRS air bag systems are operational.

If any of the following conditions occur, the air bag and/or pre-tensioner seat belt systems need servicing:

. The SRS air bag warning light remains on after

approximately 7 seconds.

. The SRS air bag warning light flashes intermit-

tently.

. The SRS air bag warning light does not illuminate

at all.

Under these conditions, the air bag and/or pretensioner seat belt systems may not operate properly. They must be checked and repaired. Contact a NISSAN dealer immediately.

Safety — seats, seat belts and supplemental restraint system 1-31

Condition: 'Except for China'/

Page 50

(50,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-32 Safety — seats, seat belts and supplemental restraint system

SUPPLEMENTAL AIR BAG SYSTEMS

T32A130827-CC7CAE86-4F98-4522-B914-451C2CAE61E 8

JVR0379X

1. Crash zone sensor

2. Supplemental front-impact air bag modules

3. Front passenger air bag switch (if equipped)

4. Supplemental side-impact air bag modules (if equipped)

5. Supplemental curtain side-impact air bag inflators (if equipped)

6. Supplemental curtain side-impact air bag modules (if equipped)

7. Satellite sensors (if equipped)

8. Pre-tensioner seat belt retractors

9. Lap outer pre-tensioner (if equipped)

10. Satellite sensors (if equipped)

WARNING:

. Do not place any objects on the steering

wheel pad, on the instrument panel, and near the front door finishers and the front

seats. Do not place any objects between any occupants and the steering wheel pad, on the instrument panel, and near the front door finishers and the front seats. Such objects may become dangerous projectiles and cause injury if a supplemental air bag inflates.

. Immediately after inflation, several supple-

mental air bag system components will be hot. Do not touch them: you may severely burn yourself.

. No unauthorized changes should be made

to any components or wiring of the supplemental air bag systems. This is to prevent accidental inflation of the supplemental air bags or damage to the supplemental air bag systems.

. Do not make unauthorized changes to your

vehicle’s electrical system, suspension system, front end structure, and side panels. This could affect proper operation of the supplemental air bag systems.

. Tampering with the supplemental air bag

systems may result in serious personal injury. Tampering includes changes to the steering wheel and the instrument panel by placing materials over the steering wheel pad and above, around or on the instrument panel or by installing additional trim materials around the supplemental air bag systems.

. Work around and on the supplemental air

bag systems should be done by a NISSAN dealer. The SRS wiring should not be modified or disconnected. Unauthorized electrical test equipment and probing de-

Condition: 'Except for China'/

Page 51

(51,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

vices should not be used on the supplemental air bag systems.

. The SRS wiring harness connectors are

yellow and/or orange for easy identification.

When the air bags inflate, a fairly loud noise may be heard, followed by the release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

Supplemental front-impact air bag system

T32A130827-AE60A990-BBBA-4498-ADE8-040A6243FCC 1

The driver’s supplemental front-impact air bag is located at the center of the steering wheel. The passenger’s supplemental front-impact air bag is located at the instrument panel above the glove box.

The supplemental front-impact air bag system is designed to inflate in higher severity frontal collisions, although it may inflate if the forces in another type of collision are similar to those of a higher severity frontal impact. It may not inflate in certain frontal collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental front-impact air bag system operation.

Front passenger air bag status light (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0374X

OFF light

JVR0264X

ON light

The front passenger air bag status light is located on the instrument panel.

When the ignition switch is placed in the “ON” position, the front passenger air bag status ON and OFF lights illuminate and then turn off or remain on depending on the front passenger air bag status.

. When the ignition switch is placed in the “ON”

position and the front passenger air bag is active, the front passenger air bag status OFF light

will turn off after about 7 seconds.

The front passenger air bag status ON light will illuminate and then turn off after 1 minute when the front passenger air bag switch is in the “ON” position.

. When the ignition switch is placed in the “ON”

position and the front passenger air bag is inactive, the front passenger air bag status ON light

will turn off after about 7 seconds.

The front passenger air bag status OFF light

will illuminate and remain on as long as the front passenger air bag switch is in the “OFF” position.

If the front passenger air bag status light operates in a way other than described above, the front passenger air bag may not function properly. Have the system checked, and if necessary repaired, by a NISSAN dealer promptly.

Front passenger air bag switch (if equipped) :

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0365X

The front passenger air bag can be turned off with the front passenger air bag switch located in the glove box.

To turn off the front passenger air bag:

1. Place the ignition switch in the “OFF” position.

Safety — seats, seat belts and supplemental restraint system 1-33

Condition: 'Except for China'/

Page 52

(52,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-34 Safety — seats, seat belts and supplemental restraint system

2. Open the glove box and insert the mechanical key into the front passenger air bag switch. For the mechanical key usage, see “Keys” (P.3-2).

3. Push and turn the key to the “OFF” position.

4. Place the ignition switch in the “ON” position. The front passenger air bag status OFF light will illuminate and remain on.

To turn on the front passenger air bag:

1. Place the ignition switch in the “OFF” position.

2. Open the glove box and insert the mechanical key into the front passenger air bag switch.

3. Push and turn the key to the “ON” position.

4. Place the ignition switch in the “ON” position. The front passenger air bag status ON light

will

illuminate.

5. After 1 minute, the front passenger air bag status ON light

will turn off.

Supplemental side-impact air bag system (if equipped)

GUID-BEFFBC47-CAF3-4636-BD3B-266D82D846E8

SSS0978

The supplemental side-impact air bag is located at the outside of the front seats’ seatbacks.

The supplemental side-impact air bag system is

designed to inflate in higher severity side collisions, although it may inflate if the forces in another type of collision are similar to those of a higher severity side impact. It may not inflate in certain side collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental side-impact air bag system operation.

Supplemental curtain side-impact air bag system (if equipped)

T32A130827-8A1E3118-ECDC-4E98-AD6C-EE4CF12DB 35C

The supplemental curtain side-impact air bag is located at the roof rails.

The supplemental curtain side-impact air bag system is designed to inflate in higher severity side collisions, although it may inflate if the forces in another type of collision are similar to those of a higher severity side impact. It may not inflate in certain side collisions. Vehicle damage (or lack of it) is not always an indication of proper supplemental curtain side-impact air bag system operation.

SRS AIR BAG DEPLOYMENT CONDITIONS

T32A130827-183F8441-8C2D-4047-8629-31F765F616F3

The SRS air bags activate in the event of a front or side impact in which the vehicle occupants may be severely injured even if they are wearing the seat belts properly.

They may not activate when the crash energy is absorbed and/or distributed by the vehicle body. Vehicle damage (or lack of it) is not always an indication of proper SRS air bag system operation.

When the SRS air bag will deploy

T32A130827-00F11DD9-A3D1-4933-8597-3B9799B48F0F

Supplemental front-impact air bags:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The supplemental front-impact air bag system is designed to inflate in higher severity frontal collisions. Some examples are shown in the following illustrations.

JVR0151X

The supplemental front-impact air bag system will deploy in the event of an impact which exceeds a 25 km/h frontal collision with a solid wall that does not move or deform.

The supplemental front-impact air bag system may also deploy when the vehicle receives severe damage to the undercarriage.

Condition: 'Except for China'/

Page 53

(53,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

JVR0152X

. Hitting a curb, pavement edge or hard surface at

high speed

. Falling into a deep hole or ditch . Landing hard on the ground after jumping

Supplemental side-impact and curtain side-impact air bags (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The supplemental side-impact and curtain side-impact air bag systems are designed to inflate in higher severity side collisions. Some examples are shown in the following illustrations.

JVR0161X

(supplemental side-impact air bag system)

JVR0162X

(supplemental curtain side-impact air bag system)

. The supplemental side-impact and curtain side-

impact air bags will deploy in the event of a side impact with a normal passenger vehicle that exceeds at a speed of 25 km/h.

When the SRS air bag is unlikely to deploy

T32A130827-BB732676-9259-4144-A4F5-2F746D9DD70A

The SRS air bags may not deploy in cases where the impact is not forceful enough to inflate the SRS air bags.

For example, if the vehicle strikes an object, such as a parked vehicle or sign pole, which can move or deform on impact, the SRS air bags are unlikely to deploy.

Supplemental front-impact air bags:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0154X

. Striking a vehicle of the same class that is parked . Crashing into a solid utility pole

JVR0155X

Safety — seats, seat belts and supplemental restraint system 1-35

Condition: 'Except for China'/

Page 54

(54,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-36 Safety — seats, seat belts and supplemental restraint system

. Running under the tail gate of a truck . A frontal offset impact to the guard rails

Supplemental side-impact and curtain side-impact air bags (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0156X

. A collision from the side at an angle . A side impact with a two-wheeled vehicle

JVR0157X

. A collision from the side impacting the vehicle

engine room (luggage room)

. Vehicle rollover

JVR0163X

. A frontal offset impact to the guard rails . A collision with a pole

When the SRS air bag will not deploy

T32A130827-61CCFA92-4663-4E23-AD03-1EC1157430F4

Once the SRS air bag has inflated, the air bag module will not function again if your vehicle collides with another vehicle or an object.

Other examples where the SRS air bag will not deploy are shown in the following illustrations.

Supplemental front-impact air bags:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0159X

. A collision from the side or rear

. Vehicle rollover

Supplemental side-impact and curtain side-impact air bags (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVR0160X

. A frontal collision with a parked or moving vehicle . A rear collision

PRE-TENSIONER SEAT BELT SYSTEM

T32A130827-137C753A-7498-4A14-80A7-440CA88B5DC2

WARNING:

. The pre-tensioner seat belt cannot be re-

used after activation. It must be replaced together with the retractor and buckle as a unit.

. If the vehicle becomes involved in a collision

but the pre-tensioner is not activated, be sure to have the pre-tensioner system checked and, if necessary, replaced by a NISSAN dealer.

. No unauthorized changes should be made

to any components or wiring of the pretensioner seat belt system. This is to prevent accidental activation of the pre-tensioner seat belt or damage to the pre-tensioner seat belt system.

Condition: 'Except for China'/

Page 55

(55,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

. Work around or on the pre-tensioner seat

belt system should be done by a NISSAN dealer. The SRS wiring should not be modified or disconnected. Unauthorized electrical test equipment and probing devices should not be used on the pretensioner seat belt system.

. If you need to dispose of the pre-tensioner

seat belt system, or scrap the vehicle, contact a NISSAN dealer. Correct pre-tensioner disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

The pre-tensioner is encased with the front seat belt’s retractor and anchor. These seat belts are used the same as conventional seat belts.

When the pre-tensioner seat belt activates, a fairly loud noise may be heard, followed by the release of smoke. This smoke is not harmful and does not indicate a fire. Care should be taken not to inhale it, as it may cause irritation and choking. Those with a history of a breathing condition should get fresh air promptly.

REPAIR AND REPLACEMENT PROCEDURE

T32A130827-AF39DFE7-7F95-4916-B588-9FCB8971A5BA

WARNING:

. Once the air bags have been inflated, the air

bag modules will not function and must be replaced. The air bag modules must be replaced by a NISSAN dealer. The inflated air bag modules cannot be repaired.

. The air bag systems should be inspected by

a NISSAN dealer if there is any damage to the front end portion of the vehicle.

. If you need to dispose of the SRS or scrap

the vehicle, contact a NISSAN dealer. Correct disposal procedures are set forth in the appropriate NISSAN Service Manual. Incorrect disposal procedures could cause personal injury.

The air bags and pre-tensioner seat belts are designed to activate on a one-time-only basis. As a reminder, unless the SRS air bag warning light is damaged, the SRS air bag warning light remains illuminated after inflation has occurred. The repair and replacement of the SRS should be done only by a NISSAN dealer.

When maintenance work is required on the vehicle, information about the air bags, pre-tensioner seat belts and related parts should be pointed out to the person performing the maintenance. The ignition switch should always be in the “LOCK” position when working under the hood or inside the vehicle.

Safety — seats, seat belts and supplemental restraint system 1-37

Condition: 'Except for China'/

Page 56

(56,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-38 Safety — seats, seat belts and supplemental restraint system

MEMO

Condition: 'Except for China'/

Page 57

(57,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2 Instruments and controls

Cockpit ........................................................................................................... 2-3

Left-Hand Drive (LHD) model ............................................................ 2-3

Right-Hand Drive (RHD) model ........................................................ 2-4

Instrument panel .......................................................................................... 2-5

Left-Hand Drive (LHD) model ............................................................ 2-5

Right-Hand Drive (RHD) model ........................................................ 2-6

Meters and gauges ..................................................................................... 2-7

Speedometer and odometer .............................................................. 2-7

Tachometer ............................................................................................. 2-8

Engine coolant temperature gauge .................................................. 2-9

Fuel gauge .............................................................................................. 2-9

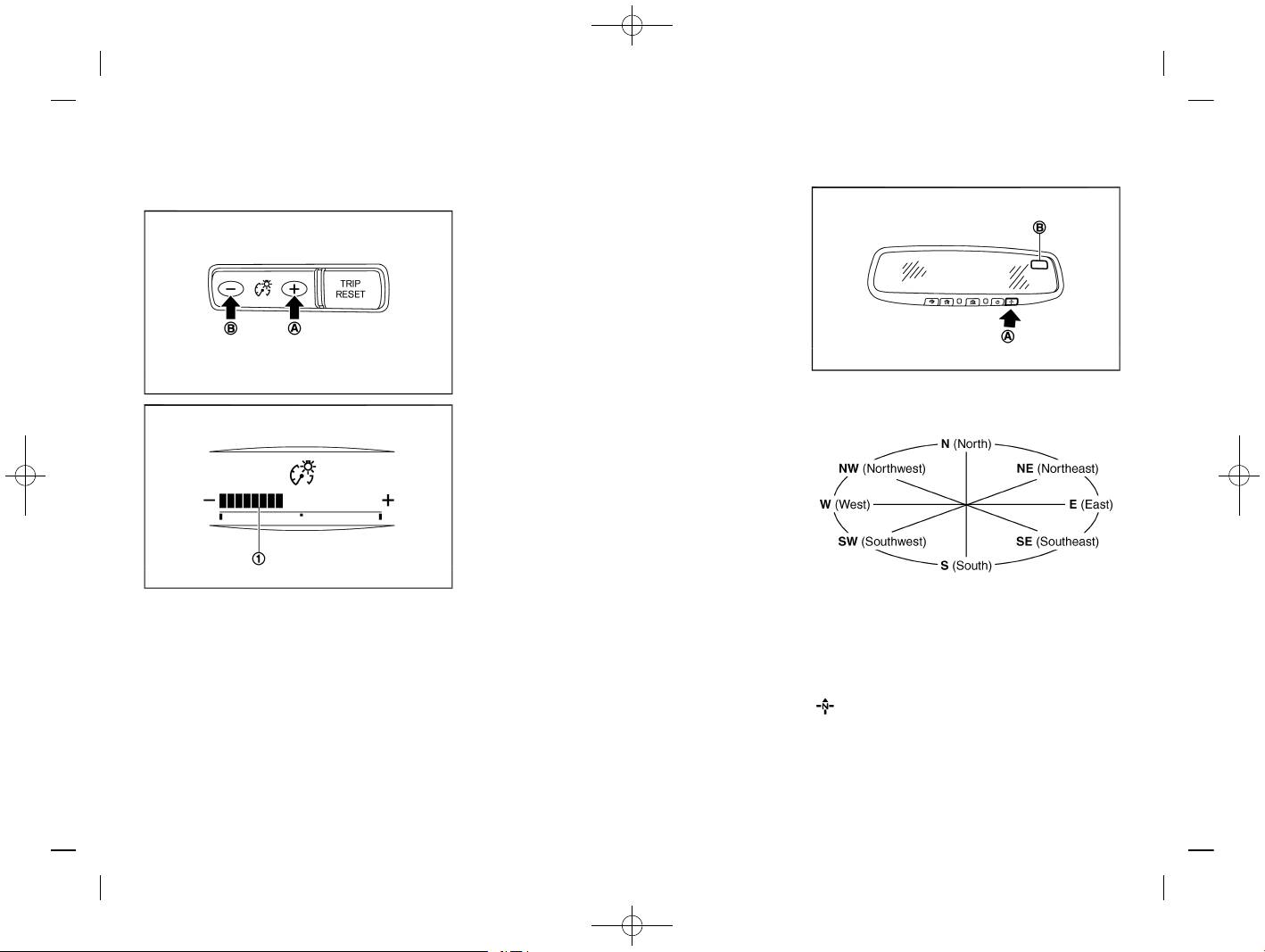

Instrument brightness control ......................................................... 2-10

Continuously Variable Transmission (CVT) position

indicator (if equipped) ...................................................................... 2-10

Compass (if equipped) ........................................................................... 2-10

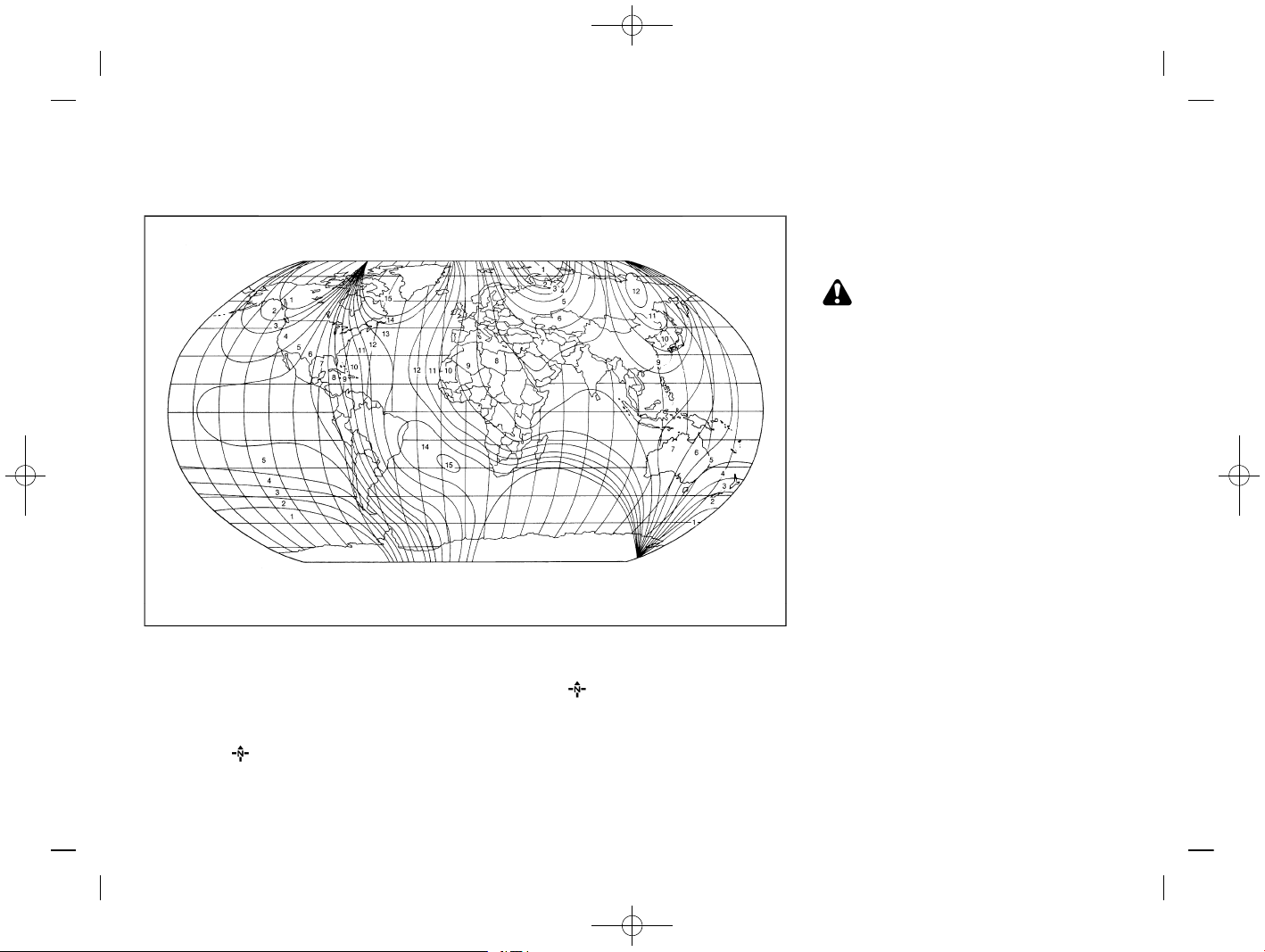

Zone variation change procedure .................................................. 2-11

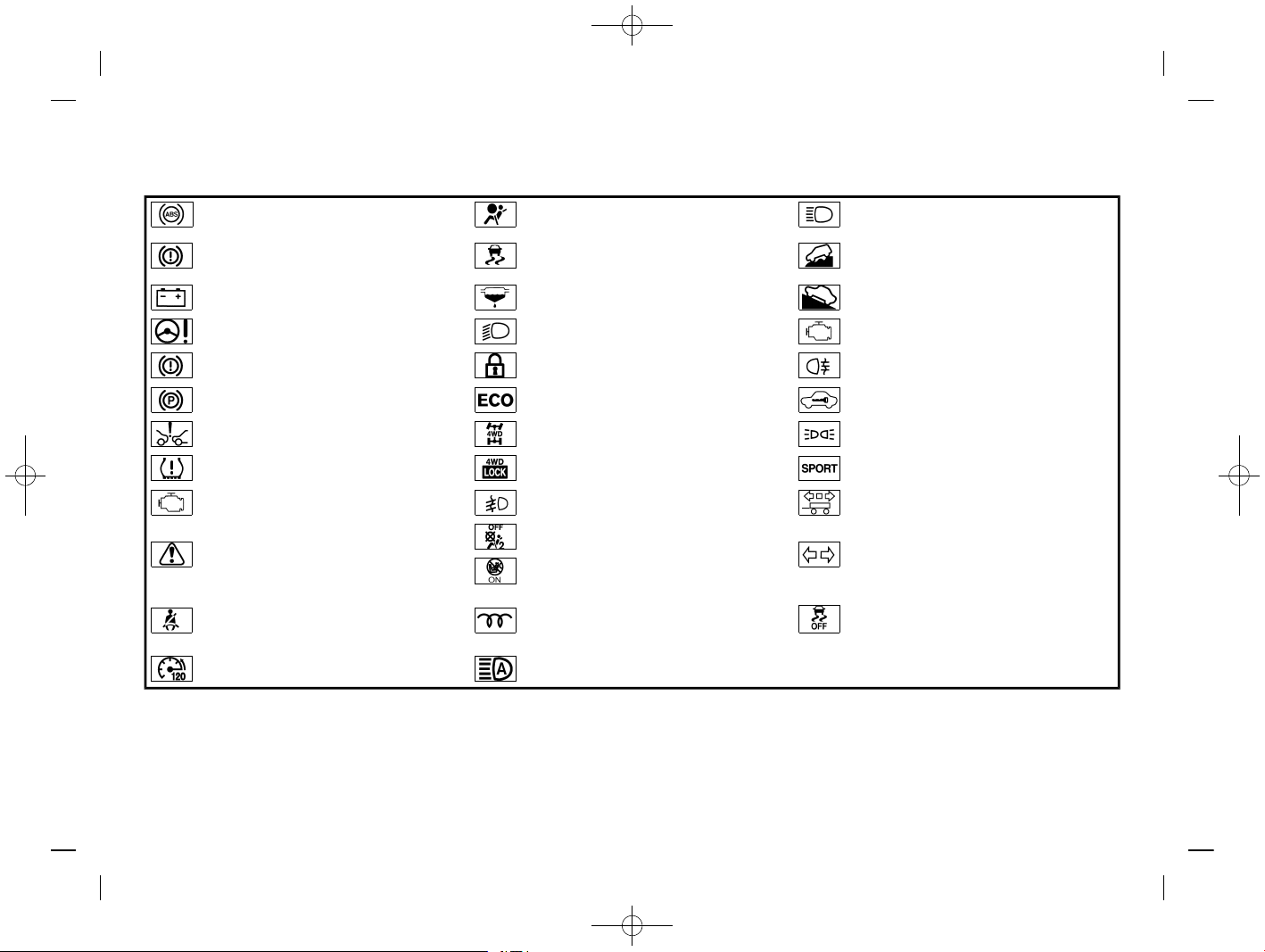

Warning/indicator lights and audible reminders ............................... 2-12

Checking bulbs .................................................................................. 2-13

Warning lights ..................................................................................... 2-13

Indicator lights .................................................................................... 2-17

Audible reminders .............................................................................. 2-19

Vehicle information display ..................................................................... 2-20

How to use the vehicle information display ................................ 2-20

Startup display .................................................................................... 2-21

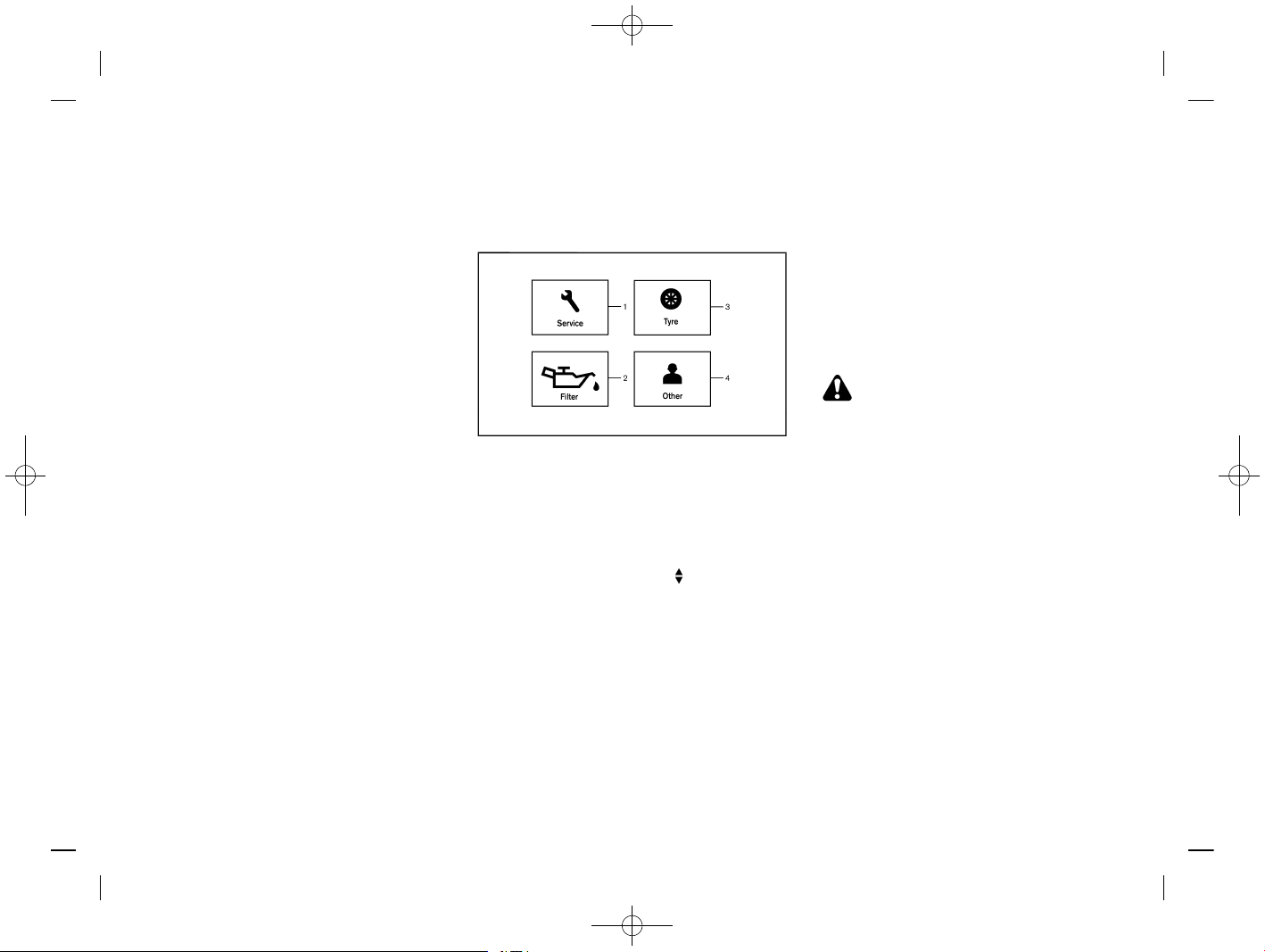

Settings ................................................................................................ 2-21

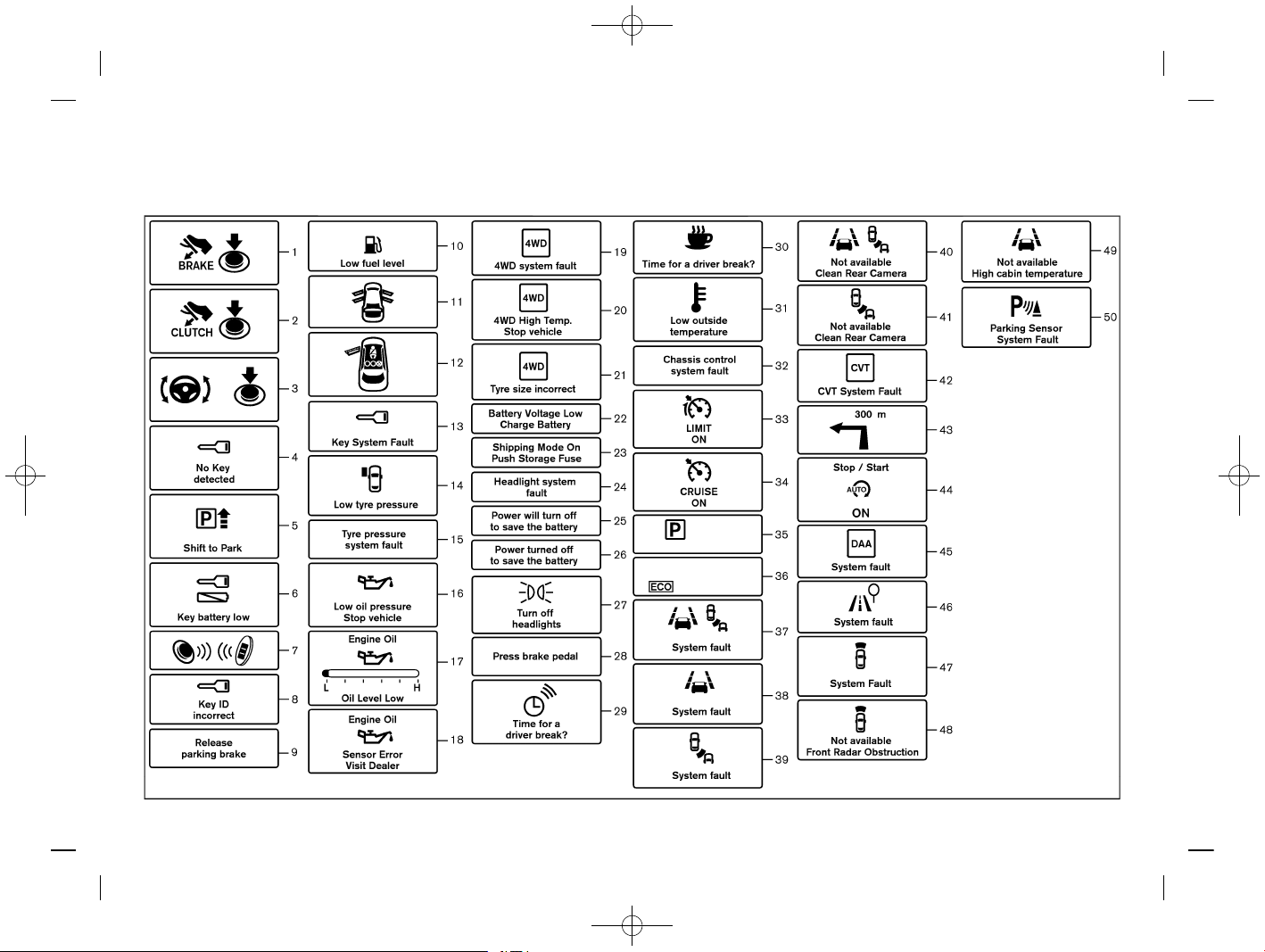

Vehicle information display warnings and indicators ................ 2-28

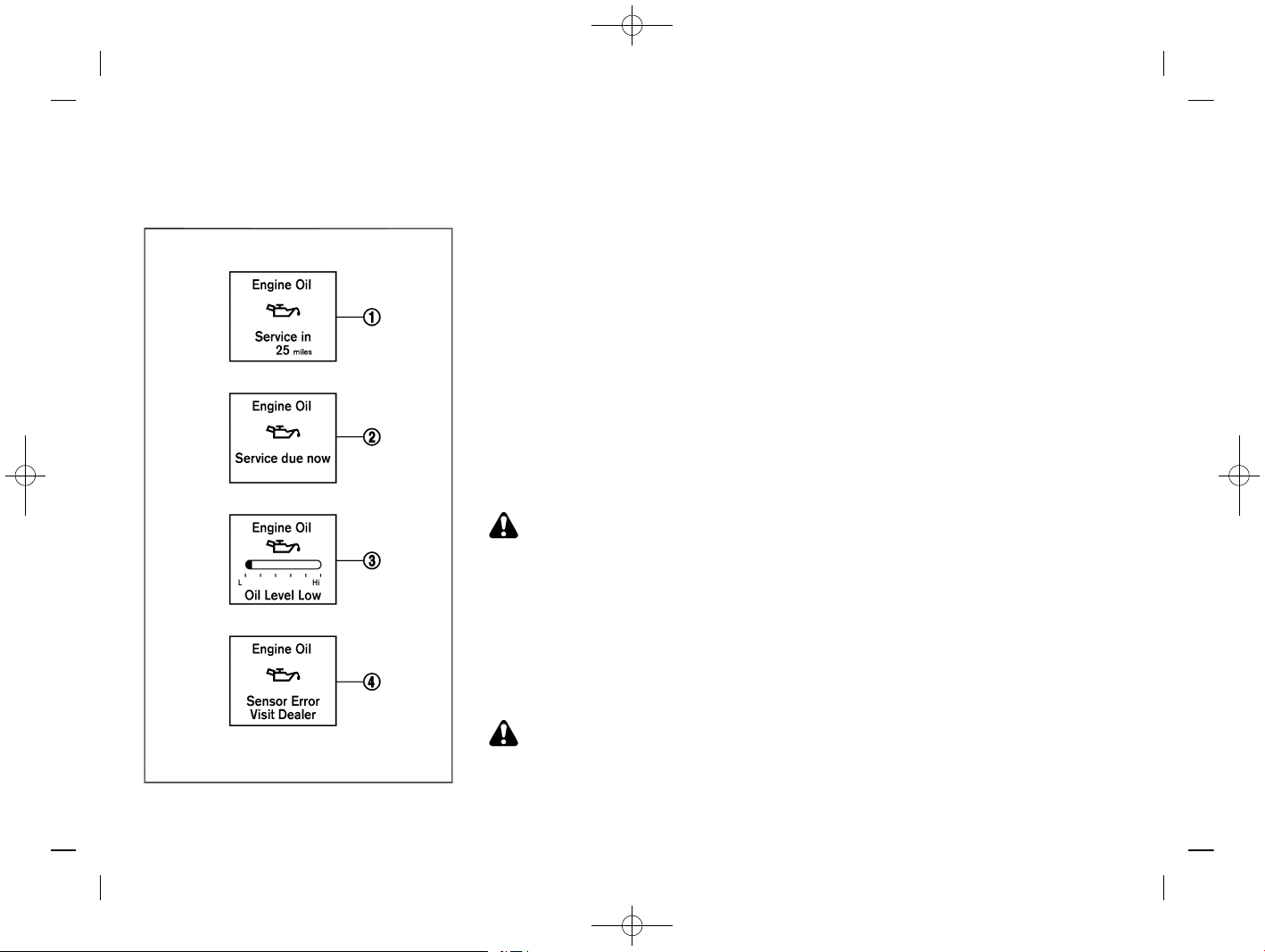

Oil control system (for diesel engine model) ............................. 2-33

Trip computer ...................................................................................... 2-34

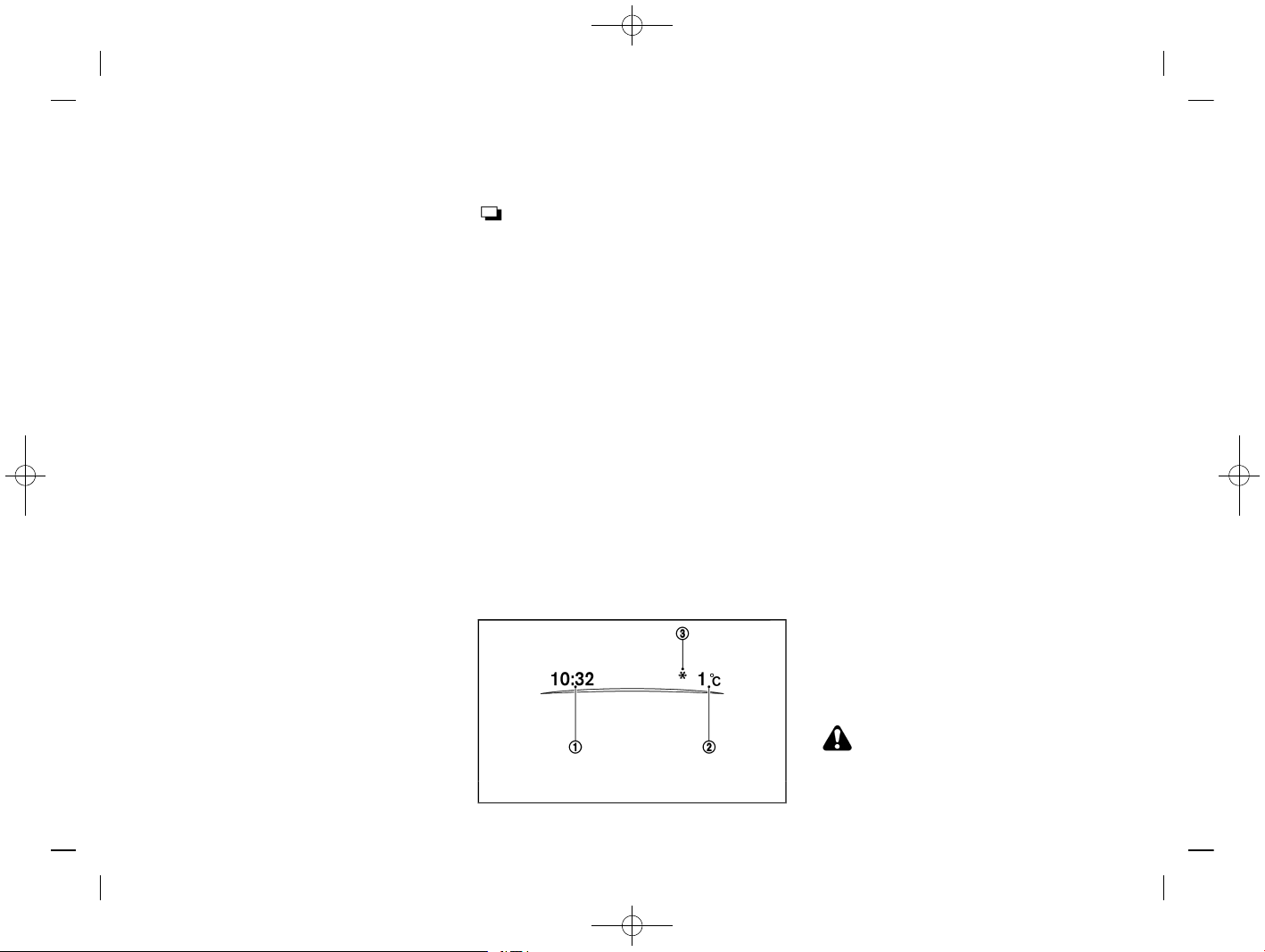

Clock and outside air temperature ................................................ 2-36

Driver Attention Alert (if equipped) ............................................... 2-36

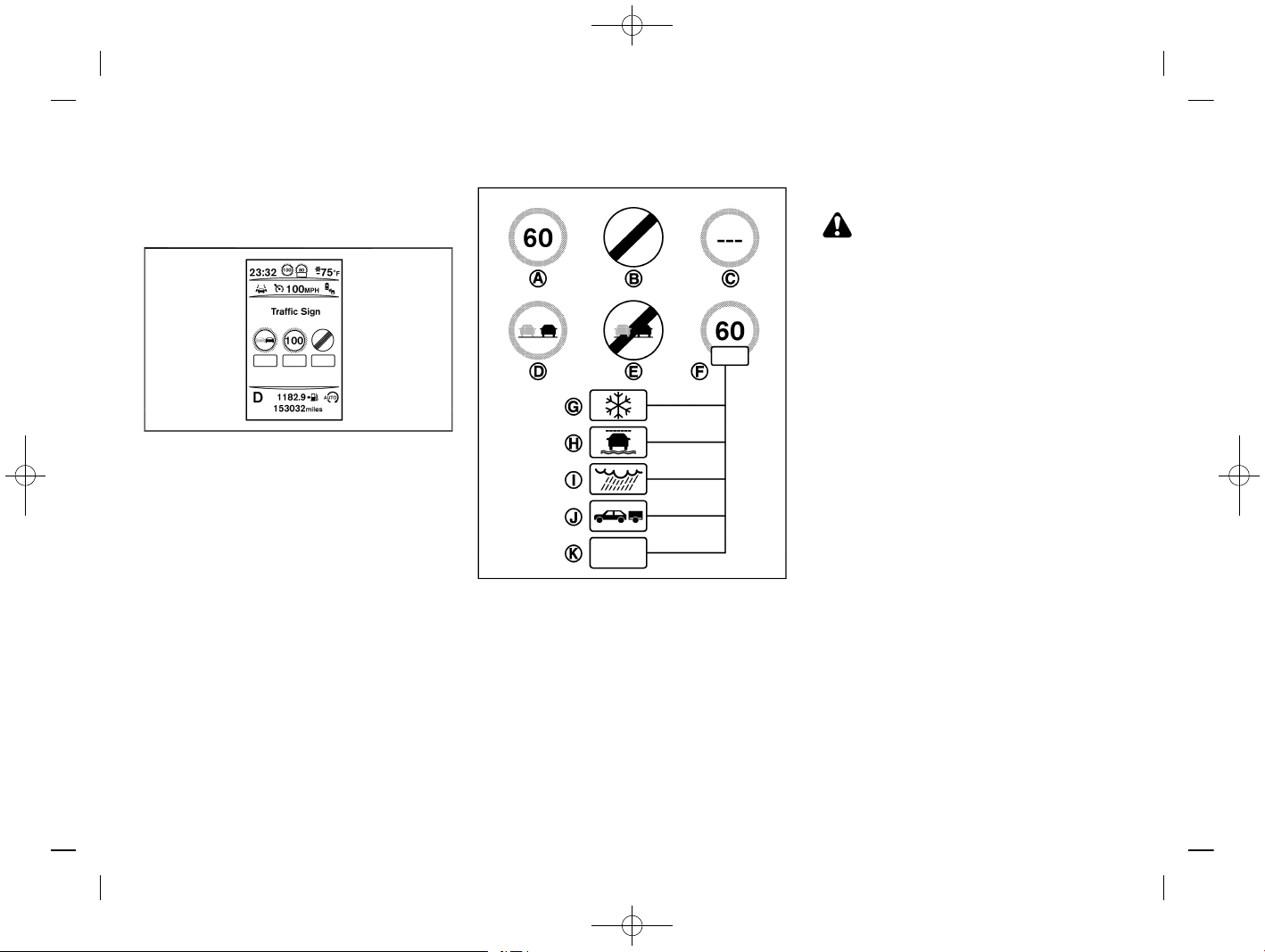

Traffic Sign Recognition (if equipped) ......................................... 2-37

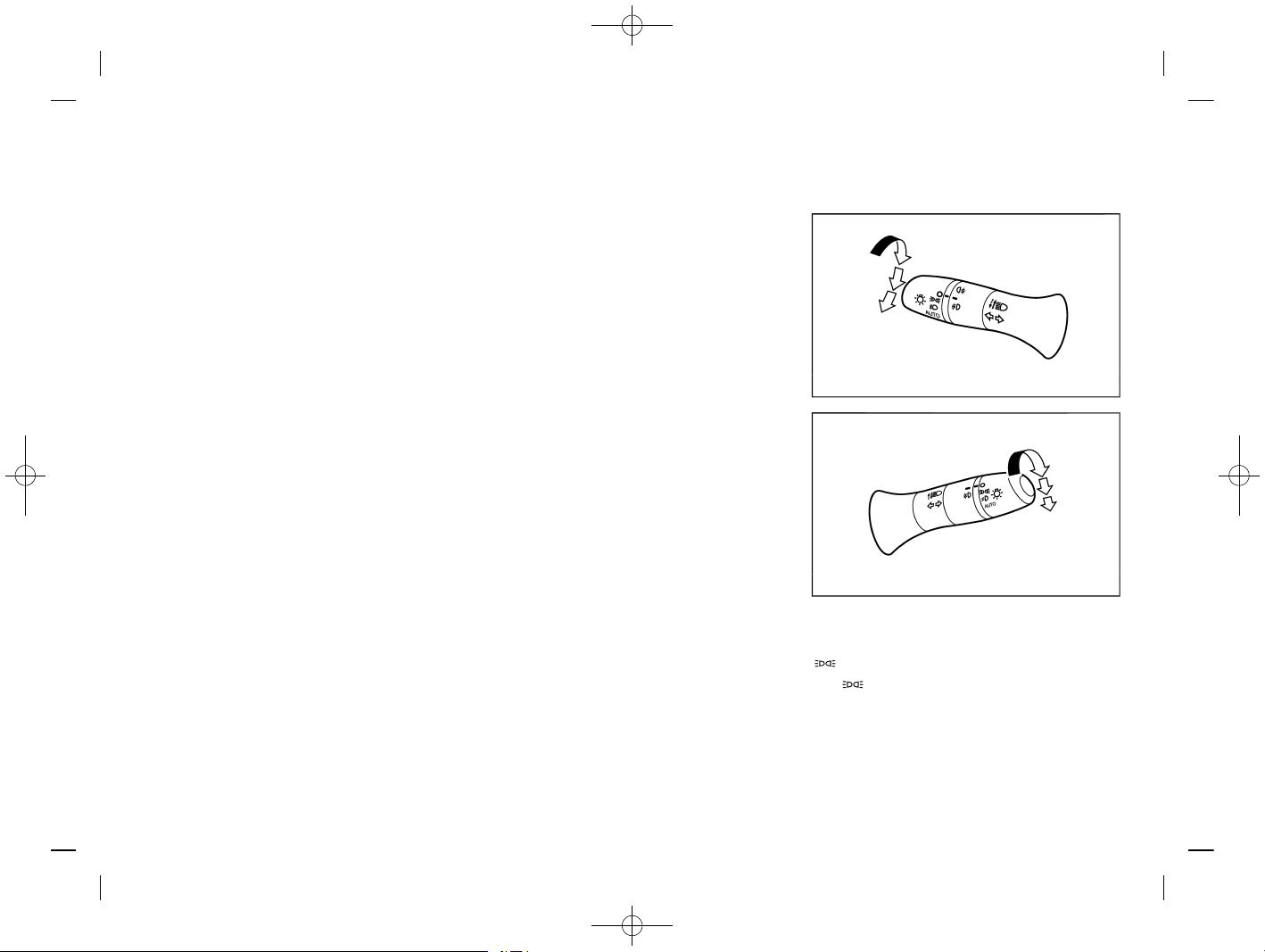

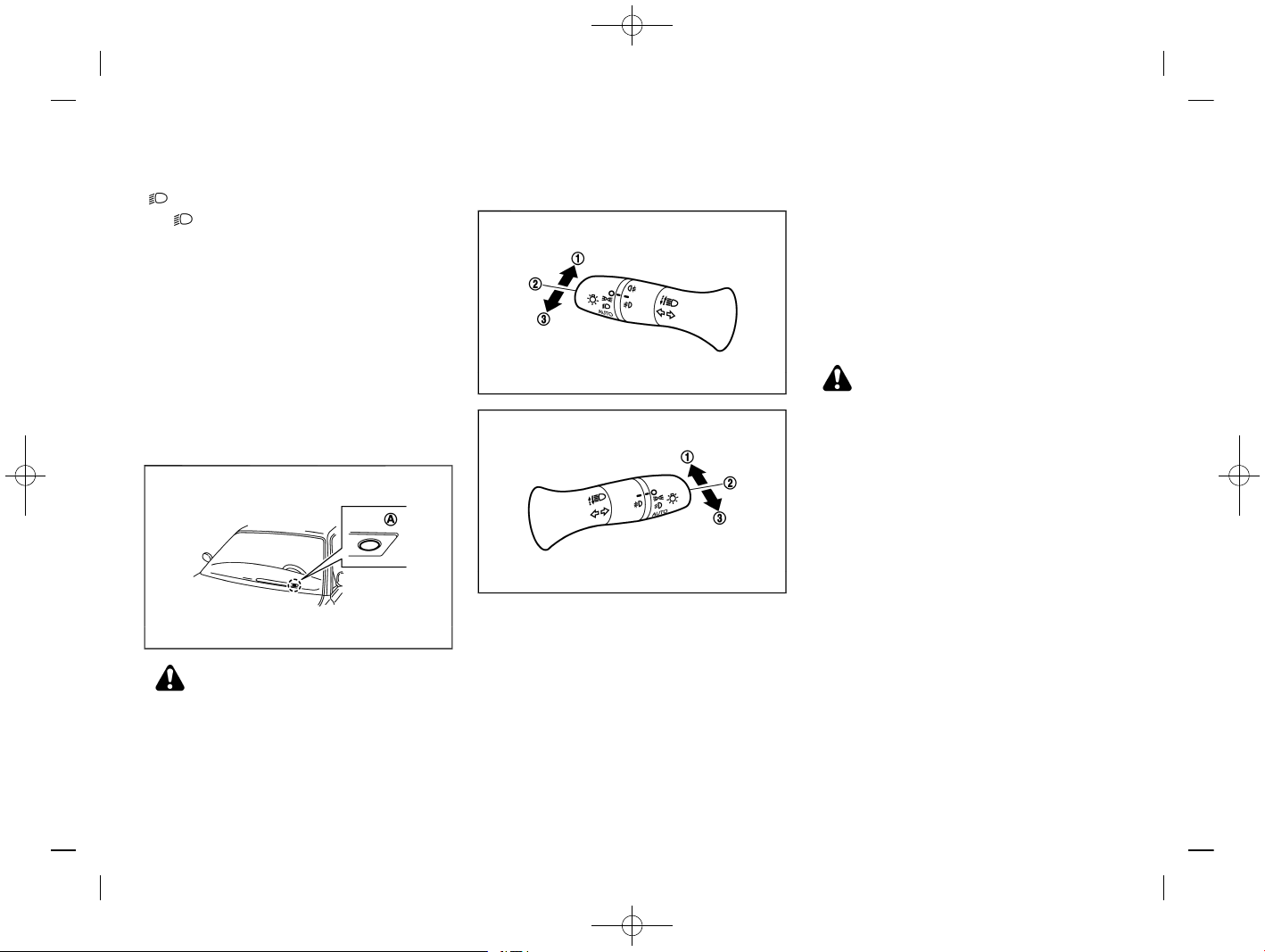

Headlight and turn signal switch ......................................................... 2-39

Headlight switch .............................................................................. 2-39

Headlight aiming control ................................................................ 2-42

Battery saver system ...................................................................... 2-44

Headlight cleaner (if equipped) ................................................... 2-44

Turn signal switch ............................................................................ 2-44

Fog light switch ........................................................................................ 2-45

Front fog lights (if equipped) ....................................................... 2-46

Rear fog light (if equipped) .......................................................... 2-46

Wiper and washer switch ...................................................................... 2-47

Windshield wiper and washer switch ........................................ 2-47

Rain-sensing auto wiper system (if equipped) ........................ 2-48

Rear window wiper and washer switch ..................................... 2-49

Defogger switch ....................................................................................... 2-49

Horn ............................................................................................................ 2-50

Windows .................................................................................................... 2-50

Power windows ................................................................................ 2-50

Sunroof (if equipped) ............................................................................. 2-52

Automatic sunroof and sunshade ................................................ 2-52

Power outlets ............................................................................................ 2-53

Ashtrays and cigarette lighter (if equipped) ..................................... 2-54

Ashtray ................................................................................................ 2-54

Cigarette lighter ............................................................................... 2-54

Storages ..................................................................................................... 2-54

Glove box .......................................................................................... 2-54

Console box ...................................................................................... 2-55

Sunglasses holder ........................................................................... 2-55

Cup holders ...................................................................................... 2-55

Soft bottle holders .......................................................................... 2-56

Card holder ....................................................................................... 2-56

Luggage hooks ................................................................................ 2-57

Condition: 'Except for China'/

Page 58

(58,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Luggage compartment ...................................................................... 2-57

Coat hook ............................................................................................ 2-59

Tonneau cover (if equipped) ........................................................... 2-60

Roof rail (if equipped) ............................................................................. 2-60

Sun visors ................................................................................................... 2-61

Type A ................................................................................................... 2-61

Type B ................................................................................................... 2-61

Interior lights .............................................................................................. 2-62

Interior light switch ............................................................................ 2-62

Console light ....................................................................................... 2-62

Map lights ............................................................................................ 2-62

Room light (if equipped) ................................................................ 2-62

Rear personal lights (if equipped) .............................................. 2-63

Vanity mirror light ............................................................................. 2-63

Luggage room light ......................................................................... 2-63

Battery saver system ...................................................................... 2-63

HomeLink

Universal Transceiver (if equipped) .............................. 2-63

Programming HomeLink

.............................................................. 2-64

Operating the HomeLink

Universal Transceiver .................... 2-64

Programming troubleshooting ...................................................... 2-64

Clearing the programmed information ....................................... 2-65

Reprogramming a single HomeLink

button ............................ 2-65

If your vehicle is stolen .................................................................. 2-65

Condition: 'Except for China'/

Page 59

(59,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

GUID-2116CED6-7CE5-4CD6-B598-371FAD3F4428

LEFT-HAND DRIVE (LHD) MODEL

GUID-A2B83D89-E666-4851-84D1-A6A6FC2F451E

JVC0643X

1. Instrument brightness control

2. TRIP RESET switch

3. Headlight and turn signal switch/Fog light switch*

4. Steering-wheel-mounted controls (left side) — Audio control* or Navigation system ** — Vehicle information display control — Bluetooth

Hands-Free Phone System (with-

out navigation)*

— Bluetooth

Hands-Free Phone System (with

navigation)*

5. Steering wheel — Horn

6. Wiper and washer switch

7. Hazard indicator flasher switch

8. Steering-wheel-mounted controls (right side) — Cruise control switches*

— Speed limiter switches* — Bluetooth

Hands-Free Phone System (with-

out navigation)* — Bluetooth

Hands-Free Phone System (with

navigation)* — Voice recognition system switch*

9. Shift lever — Continuously Variable Transmission (CVT) — Manual Transmission (MT)

10. Vehicle Dynamic Control (VDC) OFF switch or Electronic Stability Program (ESP) OFF switch

11. Headlight aiming control switch*

12. Parking brake (Pedal type)*

13. ECO switch*

14. Headlight cleaner switch*

15. Parking sensor (sonar) system OFF switch*

16. Power back door switch*

17. Stop/Start OFF switch*

18. Power back door main switch*

19. Push-button ignition switch (model with Intelligent Key system)*

20. Ignition switch (model without Intelligent Key system)*

21. Parking brake (Switch type)*

22. Hill descent control switch*

23. Four-Wheel Drive (4WD) mode switch*

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Instruments and controls 2-3

COCKPIT

Condition: 'Except for China'/

Page 60

(60,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-4 Instruments and controls

RIGHT-HAND DRIVE (RHD) MODEL

GUID-555A750C-36EE-4830-8EF4-2CFBC008F6BC

JVC0649X

1. Hill descent control switch*

2. Steering-wheel-mounted controls (left side) — Audio control* or Navigation system ** — Vehicle information display control — Bluetooth

Hands-Free Phone System (with-

out navigation)* — Bluetooth

Hands-Free Phone System (with

navigation)*

3. Hazard indicator flasher switch

4. Headlight and turn signal switch/Fog light switch* or Wiper and washer switch

5. Push-button ignition switch (model with Intelligent Key system)*

6. Steering-wheel-mounted controls (right side) — Cruise control switches* — Speed limiter switches* — Bluetooth

Hands-Free Phone System (with-

out navigation)* — Bluetooth

Hands-Free Phone System (with

navigation)* — Voice recognition system switch*

7. Wiper and washer switch or Headlight and turn signal switch/Fog light switch*

8. Power back door main switch*

9. Power back door switch*

10. Instrument brightness control

11. TRIP RESET switch

12. Vehicle Dynamic Control (VDC) OFF switch or Electronic Stability Program (ESP) OFF switch

13. Four-Wheel Drive (4WD) mode switch*

14. Shift lever — Continuously Variable Transmission (CVT) — Manual Transmission (MT)

15. Parking brake (Switch type)*

16. Steering wheel — Horn

17. Parking brake (Pedal type)*

18. Ignition switch (model without Intelligent Key system)*

19. Stop/Start or Idling Stop OFF switch*

20. Parking sensor (sonar) system OFF switch*

21. ECO switch*

22. Headlight aiming control switch*

*: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Condition: 'Except for China'/

Page 61

(61,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

T32A130827-641A2E23-D491-4DC1-B98C-8039059F20 7F

LEFT-HAND DRIVE (LHD) MODEL

T32A130827-B374733E-7D14-4DAD-BF23-B13B9E3FA835

JVC0663X

1. Side ventilator

2. Meters and gauges/Clock

3. Center ventilator

4. Audio system* or Navigation system** — Rear view monitor* — Around view monitor* — Bluetooth

Hands-Free Phone System (with-

out navigation)*

— Bluetooth

Hands-Free Phone System (with

navigation)* — Voice Recognition System*

5. Passenger’s front-impact air bag

6. Fuse box cover

7. Fuel filler lid release handle

8. Hood release handle

9. Steering wheel lock lever

10. Driver’s front-impact air bag/Horn

11. Heater/air conditioner control

12. Auxiliary input jack* and USB port*

13. Power outlet*/Cigarette lighter*

14. Defogger switch

15. Glove box

16. Fuse box cover* *: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Instruments and controls 2-5

INSTRUMENT PANEL

Condition: 'Except for China'/

Page 62

(62,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-6 Instruments and controls

RIGHT-HAND DRIVE (RHD) MODEL

T32A130827-2AD0C521-01D1-4D5C-85C8-0A39747F2 4AF

JVC0662X

1. Side ventilator

2. Passenger’s front-impact air bag

3. Audio system* or Navigation system** — Rear view monitor* — Around view monitor* — Bluetooth

Hands-Free Phone System (with-

out navigation)* — Bluetooth

Hands-Free Phone System (with

navigation)*

— Voice Recognition System*

4. Center ventilator

5. Meters and gauges/Clock

6. Driver’s front-impact air bag/Horn

7. Glove box — Fuse box

8. Heater/air conditioner control

9. Power outlet*/Cigarette lighter*

10. Auxiliary input jack* and USB port*

11. Defogger switch

12. Steering wheel lock lever

13. Hood release handle

14. Fuel filler lid release handle

15. Fuse box cover* *: if equipped **: See the separate Navigation System Owner’s

Manual (if equipped).

Condition: 'Except for China'/

Page 63

(63,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

T32A130827-61161089-B3F4-48BD-8245-F2C7861CCBF C

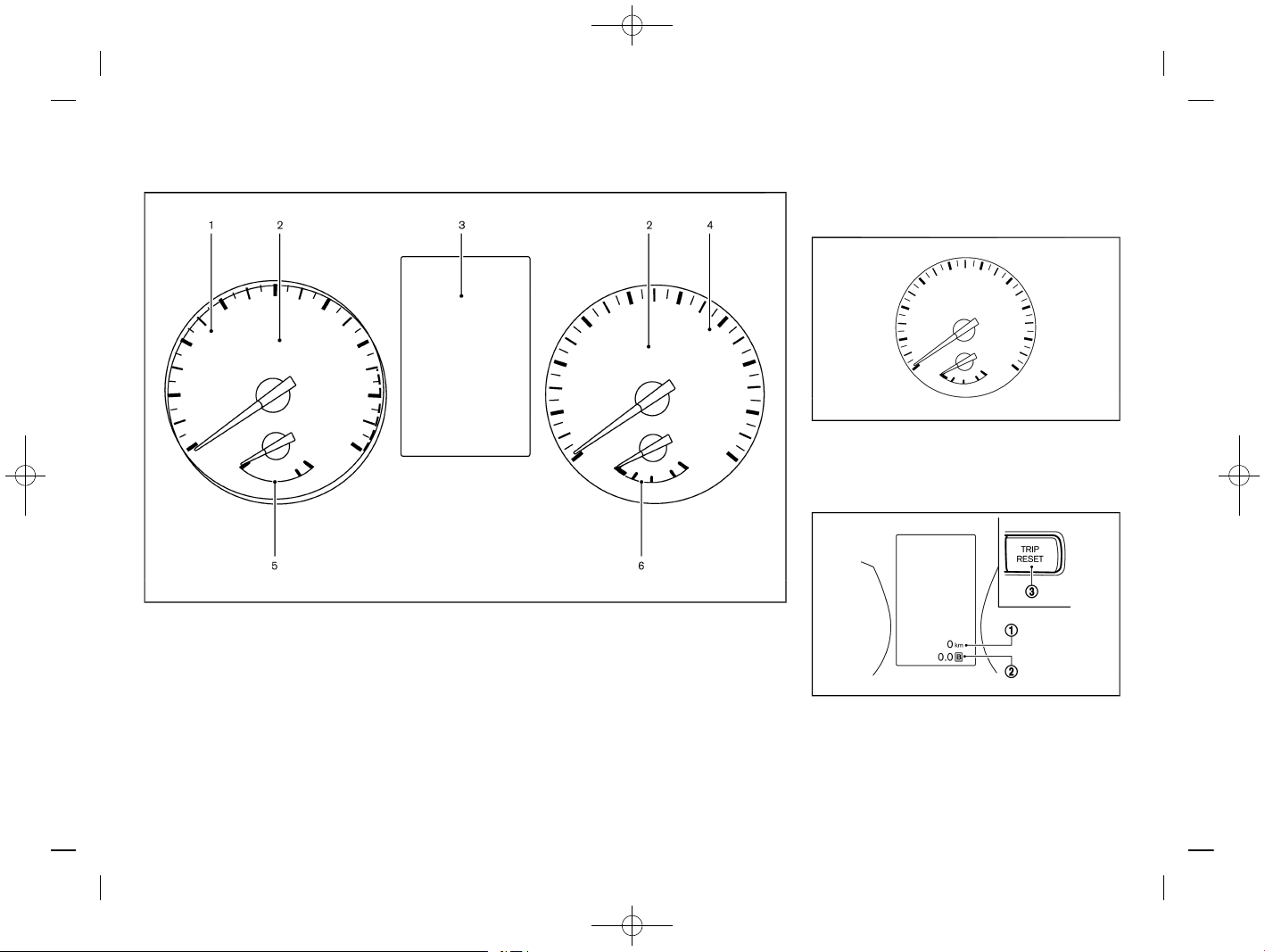

JVC0581X

1. Tachometer

2. Warning/indicator lights

3. Vehicle information display — Odometer/twin trip odometer

4. Speedometer

5. Engine coolant temperature gauge

6. Fuel gauge

SPEEDOMETER AND ODOMETER

GUID-8A0FCB7F-6CD7-4D03-AA2B-5C417FBD053B

Speedometer

T32A130827-F92754DF-EC37-413C-8470-52EDADC5C86 E

JVI1006X

The speedometer indicates the vehicle speed (km/h or MPH).

Odometer (except for Europe, Australia, New Zealand and South Africa)

GUID-E08B65C1-462B-46EE-A6C3-E65B9702325C

JVI0771X

Instruments and controls 2-7

METERS AND GAUGES

Condition: 'Except for China'/

Page 64

(64,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-8 Instruments and controls

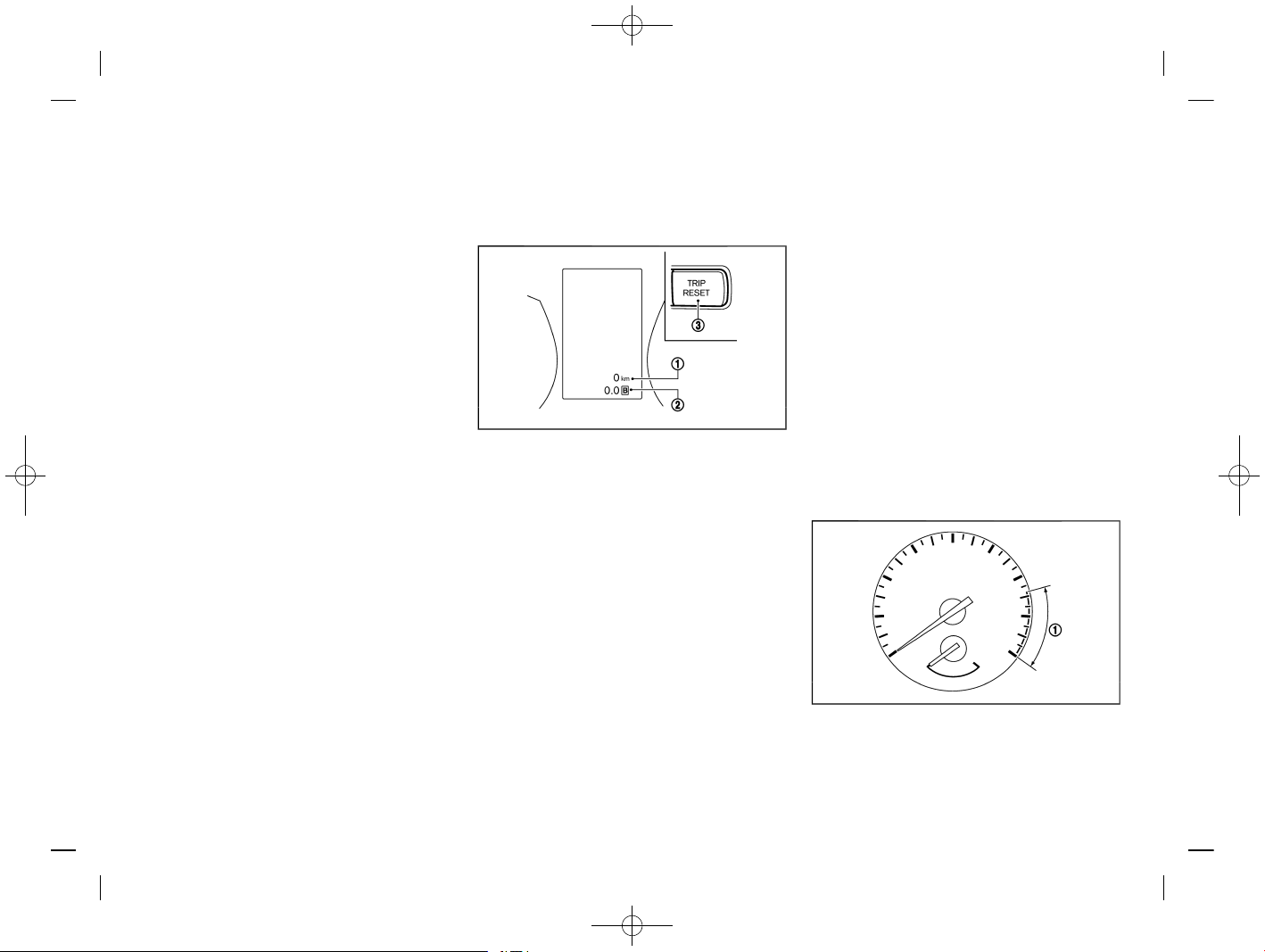

Odometer/Twin trip odometer:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The odometer/twin trip odometer is displayed in the vehicle information display when the ignition switch is in the “ON” position.

The odometer

displays the total distance the

vehicle has been driven. The twin trip odometer

displays the distance of

individual trips.

Changing twin trip odometer display:

Push the TRIP RESET switch

(located on the

instrument panel) to change the display as follows: TRIP A ? TRIP B ? TRIP A

Resetting twin trip odometer:

Push the TRIP RESET switch

for more than 1

second to reset the trip odometer to zero.

Distance to empty (dte — km or mile)/ Odometer (for Europe, Australia, New Zealand and South Africa)

T32A130827-32319E21-FB3A-4C15-B48A-C9438D83766 2

JVI0771X

Distance to empty (dte — km or mile):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The distance to empty (dte)

provides you with an estimation of the distance that can be driven before refueling. The dte is constantly being calculated, based on the amount of fuel in the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds. The dte mode includes a low range warning feature. If

the fuel level is low, the warning is displayed on the screen.

When the fuel level drops even lower, the dte display will change to “———”.

. If the amount of fuel added is small, the display

just before the ignition switch is placed in the “OFF” position may continue to be displayed.

. When driving uphill or rounding curves, the fuel in

the tank shifts, which may momentarily change the display.

Odometer/Twin trip odometer:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Odometer/Twin trip odometer:

The odometer/twin trip odometer is displayed in the vehicle information display when the ignition switch is in the “ON” position.

The odometer

displays the total distance the

vehicle has been driven. The twin trip odometer

displays the distance of

individual trips.

Changing twin trip odometer display:

Push the TRIP RESET switch

(located on the

instrument panel) to change the display as follows: ODO ? TRIP A ? TRIP B ? ODO

Resetting twin trip odometer:

Push the TRIP RESET switch

for more than 1

second to reset the trip odometer to zero.

TACHOMETER

T32A130827-C6C26C2A-AEB1-498A-A73D-8CE55B813 269

JVI0951X

The tachometer indicates the engine speed in revolutions per minute (rpm). Do not rev the engine into

the red zone

The red zone varies with models.

Condition: 'Except for China'/

Page 65

(65,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

ENGINE COOLANT TEMPERATURE GAUGE

GUID-05FC41A9-E697-4E4F-A8C0-B79DA1F7C125

JVI0999X

Type A

JVI0820X

Type B

JVI0796X

Type C

The engine coolant temperature gauge indicates the engine coolant temperature.

The engine coolant temperature is normal when the gauge needle points within the zone

shown in the

illustration. The engine coolant temperature will vary with the

outside air temperature and driving conditions.

CAUTION:

. If the gauge indicates the engine coolant

temperature is near the hot (H) end of the normal range, reduce vehicle speed to decrease the temperature.

. If the gauge is over the normal range, stop

the vehicle as soon as safely possible and let the engine idle.

. If the engine is overheated, continued op-

eration of the vehicle may seriously damage the engine. (See “If your vehicle overheats” (P.6-10) for immediate action required.)

FUEL GAUGE

T32A130827-709BDE93-1E77-47B8-94F0-E6E127F56E7 C

JVI0640X

The fuel gauge indicates the approximate fuel level in the tank when the ignition switch is in the “ON” position.

The gauge may move slightly during braking, turning, accelerating, or going up and down hills due to movement of fuel in the tank.

The low fuel warning

appears on the vehicle information display when the fuel level in the tank is getting low. Refuel as soon as it is convenient, preferably before the gauge reads 0 (empty).

The arrow,

, indicates the fuel filler lid is located on

the right side of the vehicle.

CAUTION:

Refuel before the gauge reads the empty (0) position.

There is a small reserve of fuel in the tank when the fuel gauge reads the empty (0) position.

Instruments and controls 2-9

Condition: 'Except for China'/

Page 66

(66,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-10 Instruments and controls

INSTRUMENT BRIGHTNESS CONTROL

T32A130827-4B4E1BB1-064B-41FF-BF73-F1A599D4FFD2

JVI0644X

JVI0661M

The instrument brightness control switch can be operated when the ignition switch is in the “ON” position. When the switch is operated, the vehicle information display switches to the brightness adjustment mode.

Push the + side of the switch

to brighten the meter panel lights and instrument panel lights (if equipped). The bar

moves to the + side.

Push the - side of the switch

to dim the lights. The

bar

moves to the − side.

The vehicle information display returns to the normal

display when the instrument brightness control switch is not operated for more than 5 seconds.

CONTINUOUSLY VARIABLE TRANSMISSION (CVT) POSITION INDICATOR (if equipped)

T32A130827-70DD4510-E19D-4AF8-8367-56D79B1E A242

The Continuously Variable Transmission (CVT) position indicator indicates the shift lever position when the ignition switch is in the “ON” position.

GUID-9D19DCDD-D820-4733-B7B5-DF99D34E8259

SIC3181

When the ignition switch is placed in the “ON” position, the compass display

will indicate the

direction the vehicle is heading.

NOS1741

If the display reads “C”, calibrate the compass by driving the vehicle in 3 complete circles at less than 8 km/h (5 MPH). You can also calibrate the compass by driving your vehicle on your everyday route. The compass will be calibrated once it has tracked 3 complete circles.

To turn on and off the compass manually, push the

switch

while the ignition switch is in the “ON”

position.

COMPASS (if equipped)

Condition: 'Except for China'/

Page 67

(67,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

ZONE VARIATION CHANGE PROCEDURE

GUID-30DDF5A7-BDA3-4F35-A83F-CA7319278C24

SIC2934

Zone map

The difference between magnetic north and geographical north is known as variance. In some areas, this difference can sometimes be great enough to cause false compass readings. Follow these instructions to set the variance for your particular location if this happens:

1. Push the

switch for more than 3 seconds.

The current zone number will appear in the display.

2. Find your current location and variance one number on the zone map.

3. Push the

switch repeatedly until the new zone number appears in the display. After you stop pushing the switch in, the display will show a compass direction within a few seconds.

. If the compass deviates from the correct indication

soon after repeated adjustment, have the compass checked at a NISSAN dealer.

. The compass may not indicate the correct

compass point in tunnels or while driving up or down a steep hill. (The compass returns to the correct compass point when the vehicle moves to an area where the geomagnetism is stabilized.)

CAUTION:

. Do not install a ski rack, antenna, etc. which

are attached to the vehicle by means of a magnet. They affect the operation of the compass.

. When cleaning the mirror, use a paper towel

or similar material dampened with glass cleaner. Do not spray glass cleaner directly on the mirror as it may cause the liquid cleaner to enter the mirror housing.

Instruments and controls 2-11

Condition: 'Except for China'/

Page 68

(68,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-12 Instruments and controls

T32A130827-537914DC-5D30-44AA-8E50-9E9C0943566D

Anti-lock Braking System (ABS) warning light

Supplemental Restraint System (SRS) air bag warning light

High beam indicator light

Brake warning light (red)

Vehicle Dynamic Control (VDC) warning light (except for Europe)/Electronic Stability Program (ESP) warning light (for Europe)

Hill descent control system on indicator light (if equipped)

Charge warning light

Water-in-fuel-filter warning light (diesel engine model)

Hill Start Assist system on indicator light (if equipped)

Electric power steering warning light Dipped beam indicator light (if equipped)

Malfunction Indicator Light (MIL)

Electronic parking brake system warning light (yellow) (if equipped)

Door lock indicator light (if equipped)

Rear fog light indicator light (if equipped)

Electronic parking brake warning light (if equipped)

ECO mode system indicator light (if equipped)

Security indicator light

Forward emergency braking system warning light (if equipped)

Four-Wheel Drive (4WD) AUTO indicator light (4WD model)

Small light indicator light

Low tire pressure warning light (if equipped)

Four-Wheel Drive (4WD) LOCK indicator light (4WD model)

SPORT mode indicator light (if equipped)

Malfunction warning light (red) (diesel engine model)

Front fog lights indicator light (if equipped)

Trailer direction indicator light (if equipped)

Master warning light

Front passenger air bag status light (if equipped)

Turn signals/hazard indicator lights

Seat belt warning light

Glow plug indicator light (diesel engine model)

Vehicle Dynamic Control (VDC) off indicator light (except for Europe)/Electronic Stability Program (ESP) off indicator light (for Europe)

Speed [120 km/h (75 MPH)] warning light (if equipped)

High beam assist indicator light (if equipped)

WARNING/INDICATOR LIGHTS AND AUDIBLE REMINDERS

Condition: 'Except for China'/

Page 69

(69,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

CHECKING BULBS

T32A130827-EBA59803-7D2B-4C04-B703-63489997C4 CF

With all doors closed, apply the parking brake, fasten the seat belts and place the ignition switch in the “ON” position without starting the engine. If equipped, the following lights will illuminate:

, , .

If equipped, the following lights will illuminate briefly and then turn off:

, , , , , ,

, , , .

If any lights fail to illuminate, it may indicate a burnedout bulb or an open circuit in the electrical system. Have the system checked, and if necessary repaired, by a NISSAN dealer promptly.

Some indicators and warnings are also displayed on the vehicle information display between the speedometer and tachometer. (See “Vehicle information display” (P.2-20).)

WARNING LIGHTS

T32A130827-46296CF3-37C5-4346-A68C-59CEFA75C8A1

Anti-lock Braking System (ABS)

warning light

T32A130827-7EAF4149-1838-4DB1-ABC6-DF9D1301CA4F

When the ignition switch is in the “ON” position, the Anti-lock Braking System (ABS) warning light illuminates and then turns off. This indicates the ABS is operational.

If the ABS warning light illuminates while the engine is running, or while driving, it may indicate the ABS is not functioning properly. Have the system checked by a NISSAN dealer promptly.

If an ABS malfunction occurs, the anti-lock function is turned off. The brake system then operates normally, but without anti-lock assistance. (See “Brake system” (P.5-57).)

Brake warning light (red)

T32A130827-2CAA8163-1B97-433F-9851-7D289C0747A 6

WARNING:

. If the brake fluid level is below the minimum

mark on the brake fluid reservoir, do not drive the vehicle until the brake system has been checked by a NISSAN dealer.

. Even if you judge it to be safe, have your

vehicle towed because driving it could be dangerous.

. Depressing the brake pedal without the

engine running and/or with a low brake fluid level could increase the stopping distance and require greater pedal travel distance and effort.

The brake warning light indicates the parking brake system operation (models not equipped with electronic parking brake system), a low brake fluid level of the brake system and an Anti-lock Braking System (ABS) malfunction.

Parking brake warning indicator (models not equipped with electronic parking brake system):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

When the ignition switch is placed in the “ON” position, the brake warning light illuminates. When the engine is started and the parking brake is released, the brake warning light turns off.

If the parking brake is not fully released, the brake warning light remains on. Be sure that the brake warning light has turned off before driving. (See “Parking brake” (P.3-30).)

Low brake fluid warning indicator:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

If the brake warning light illuminates while the engine is running, or while driving, and the parking brake is released, it may indicate the brake fluid level is low.

When the brake warning light illuminates while driving, stop the vehicle safely as soon as possible. Stop the engine and check the brake fluid level. If the brake fluid level is at the minimum mark, add brake fluid as necessary. (See “Brake fluid” (P.8-16).)

If the brake fluid level is sufficient, have the brake system checked by a NISSAN dealer promptly.

Anti-lock Braking System (ABS) warning indicator:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

When the parking brake is released and the brake fluid level is sufficient, if both the brake warning light and the Anti-lock Braking System (ABS) warning light illuminate, it may indicate the ABS is not functioning properly. Have the brake system checked, and if necessary repaired, by a NISSAN dealer promptly. (See “Anti-lock Braking System (ABS) warning light” (P.2-13).)

Charge warning light

T32A130827-8D7D75AC-501C-4035-BE1B-4691794A6 0C5

When the ignition switch is in the “ON” position, the charge warning light illuminates, and then turns off. This indicates the charging system is operational.

If the charge warning light illuminates while the engine is running, or while driving, it may indicate the charging system is not functioning properly and may need servicing.

When the charge warning light illuminates while driving, stop the vehicle safely as soon as possible. Stop the engine and check the alternator belt. If the alternator belt is loose, broken or missing, the charging system needs repair. (See “Drive belt” (P.8-14).)

Instruments and controls 2-13

Condition: 'Except for China'/

Page 70

(70,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-14 Instruments and controls

If the alternator belt appears to be functioning correctly but the charge warning light remains illuminated, have the charging system checked by a NISSAN dealer promptly.

CAUTION:

Do not continue driving if the alternator belt is loose, broken or missing.

Electric power steering warning light

T32A130827-6FCBDA0B-9C53-4216-8E76-3B48245A A864

When the ignition switch is in the “ON” position, the electric power steering warning light illuminates. After starting the engine, the electric power steering warning light turns off. This indicates the electric power steering system is operational.

If the electric power steering warning light illuminates while the engine is running, it may indicate the electric power steering system is not functioning properly and may need servicing. Have the electric power steering system checked by a NISSAN dealer.

When the electric power steering warning light illuminates with the engine running, the power assist to the steering will cease operation but you will still have control of the vehicle. At this time, greater steering efforts are required to operate the steering wheel, especially in sharp turns and at low speeds.

(See “Electric power steering system” (P.5-56).)

Electronic parking brake system warn-

ing light (yellow) (if equipped)

GUID-D3782E32-8974-4FEC-A10B-C58225CBD476

The electronic parking brake system warning light functions for the electronic parking brake system. When the ignition switch is placed in the “ON” position, the light illuminates for a few seconds. If the warning light illuminates at any other time, it may indicate that the electronic parking brake system is not functioning properly. Have the brake system checked, and if necessary repaired, by a NISSAN dealer promptly.

Electronic parking brake warning light

(if equipped)

GUID-DCFF7323-698B-48F3-9988-92076E0469F2

The electronic parking brake warning light indicates that the electronic parking brake system is operating.

When the ignition switch is placed in the “ON” position, the electronic parking brake warning light illuminates. When the engine is started and the parking brake is released, the warning light turns off.

If the parking brake is not fully released, the electronic parking brake warning light remains on. Be sure that the electronic parking brake warning light has turned off before driving. (See “Parking brake” (P.3-30).)

If the electronic parking brake warning light illuminates or flashes while the electronic parking brake system warning light

(yellow) illuminates, it may indicate that the electronic parking brake system is not functioning properly. Have the brake system checked, and if necessary repaired, by a NISSAN dealer promptly.

Forward emergency braking system

warning light (if equipped)

GUID-041E8DC6-F95E-4205-9E28-3C1BAB9939A0

When the ignition switch is in the “ON” position, the forward emergency braking system warning light illuminates and then turns off.

This light illuminates when the forward emergency braking system is set to OFF on the vehicle information display.

If the light illuminates when the forward emergency braking system is ON, it may indicate that the system is unavailable. See “Forward emergency braking system” (P.5-45) for more details.

Low tire pressure warning light (if

equipped)

GUID-A2AD7EC7-3E1A-4BEC-9517-43A33270B41E

When the ignition switch is in the “ON” position, the low tire pressure warning light illuminates and then turns off. This indicates that the low tire pressure warning system is operational.

This light illuminates if there is low tire pressure or a tire pressure warning system malfunction.

The Tire Pressure Monitoring System (TPMS) monitors the tire pressure of all tires except the spare.

Low tire pressure warning:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

If the vehicle is being driven with low tire pressure, the low tire pressure warning light will illuminate.

When the low tire pressure warning light illuminates, you should stop and adjust the tire pressure to the recommended COLD tire pressure shown on the tire placard. Use a tire pressure gauge to check the tire pressure. The low tire pressure warning light may not automatically turn off when the tire pressure is adjusted. After the tire is inflated to the recommended

Condition: 'Except for China'/

Page 71

(71,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

pressure, reset the tire pressures registered in your vehicle and then drive the vehicle at speeds above 25 km/h (16 MPH). These operations are required to activate the TPMS and turn off the low tire pressure warning light.

Depending on a change in the outside temperature, the low tire pressure warning light may illuminate even if the tire pressure has been adjusted properly. Adjust the tire pressure to the recommended COLD tire pressure again when the tires are cold, and reset the TPMS.

If the low tire pressure warning light still continues to illuminate after the resetting operation, it may indicate that the TPMS is not functioning properly. Have the system checked by a NISSAN dealer.

For additional information, see “Tire Pressure Monitoring System (TPMS)” (P.5-4).

TPMS malfunction:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

If the TPMS is not functioning properly, the low tire pressure warning light will flash for approximately 1 minute when the ignition switch is placed in the “ON” position. The light will remain on after the 1 minute. Have the system checked by a NISSAN dealer.

For additional information, see “Tire Pressure Monitoring System (TPMS)” (P.5-4).

WARNING:

. If the light does not illuminate with the

ignition switch placed in the “ON” position, have the vehicle checked by a NISSAN dealer as soon as possible.

. If the light illuminates while driving, avoid

sudden steering maneuvers or abrupt braking, reduce vehicle speed, pull off the road to a safe location and stop the vehicle as soon

as possible. Driving with under-inflated tires may permanently damage the tires and increase the likelihood of tire failure. Serious vehicle damage could occur and may lead to an accident and could result in serious personal injury. Check the tire pressure for all four tires. Adjust the tire pressure to the recommended COLD tire pressure shown on the tire placard to turn the low tire pressure warning light off. If you have a flat tire, replace it with a spare tire as soon as possible.

. After adjusting the tire pressure, be sure to

reset the TPMS. Otherwise, the TPMS will not warn of low tire pressure.

. When a spare tire is mounted or a wheel is

replaced, the TPMS will not function and the low tire pressure warning light will flash for approximately 1 minute. The light will remain on after the 1 minute. Contact your NISSAN dealer as soon as possible for tire replacement and/or system resetting.

. Replacing tires with those not originally

specified by NISSAN could affect the proper operation of the TPMS.

CAUTION:

. The TPMS is not a substitute for the regular

tire pressure check. Be sure to check the tire pressure regularly.

. If the vehicle is being driven at speeds of

less than 25 km/h (16 MPH) , the TPMS may not operate correctly.

. Be sure to install the specified size of tires

to all four wheels correctly.

Malfunction warning light (red) (diesel

engine model)

GUID-2C65FC1D-B231-4910-A149-20A5D287D345

When the ignition switch is placed in the “ON” position, the malfunction warning light illuminates in red. This means that the system is operational. After starting the engine, the warning light turns off.

For the orange Malfunction Indicator Light (MIL), see “Malfunction Indicator Light (MIL)” (P.2-18) for details.

If the malfunction warning light (red) illuminates continuously while the engine is running, it may indicate an engine control system malfunction. Have your vehicle inspected by a NISSAN dealer. You do not need to have your vehicle towed to the dealer.

CAUTION:

Continuing vehicle operation without proper servicing of the engine control system could lead to poor driveability, reduced fuel economy, and damage to the engine control system, which may affect the vehicle’s warranty coverage.

Master warning light

T32A130827-0F95D9CF-20B0-4CC3-943D-8E2ABAFB3D9D

When the ignition switch is in the “ON” position, the master warning light illuminates if any of the following are displayed on the vehicle information display.

. Steering lock release malfunction indicator (if

equipped)

. No Key detected warning (if equipped) . Key ID incorrect warning (if equipped) . Shift to Park warning (Continuously Variable

Transmission (CVT) models)

Instruments and controls 2-15

Condition: 'Except for China'/

Page 72

(72,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-16 Instruments and controls

. Door/back door open warning . Low fuel warning . Release parking brake warning . Engine start operation indicator (for Continuously

Variable Transmission (CVT) models)

. Key System Fault warning (if equipped) . Low Tyre Pressure warning (if equipped) . Tyre pressure system fault (if equipped) . CVT System Fault warning (for Continuously

Variable Transmission (CVT) models)

. Low oil pressure Stop vehicle warning (if

equipped)

. 4WD system fault warning (if equipped) . 4WD High Temp. Stop vehicle warning (if

equipped)

. Tyre size incorrect warning (if equipped) . Key battery low warning (if equipped) . Battery Voltage Low Charge Battery warning . Headlight system fault warning (if equipped) . Chassis control system fault warning (if equipped) . Second row seat belt warning (if equipped) . Other warning

See “Vehicle information display” (P.2-20).

Seat belt warning light

T32A130827-9DAB3AE1-1B41-4E43-80F5-F5EC8E7B154 8

Type A:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The light illuminates whenever the ignition switch is placed in the “ON” or “START” position, and will remain illuminated until the driver’s seat belt is fastened. At the same time, the chime will sound for about 6 seconds unless the driver’s seat belt is securely fastened.

Type B:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

When the ignition switch is in the “ON” position, the front seat belt warning light on the meter illuminates. The light will continue to illuminate until the driver’s and/or passenger’s seat belt are fastened. (See “Seat belts” (P.1-9).)

When the vehicle speed exceeds 15 km/h (10 MPH), the light will blink and the chime will sound unless the front seat belt is securely fastened. The chime will continue to sound for about 95 seconds until the seat belt is fastened. (See “Seat belts” (P.1-9).)

For second row seats, see “Vehicle information display warnings and indicators” (P.2-28).

Speed [120 km/h (75 MPH)] warning

light (if equipped)

GUID-9C822C2A-6FEF-4D2E-B89C-C3611A9D7E23

This light blinks when the vehicle speed goes over approximately 120 km/h (75 MPH). Be sure to observe the speed limit in the area where you are driving.

Supplemental Restraint System (SRS)

air bag warning light

T32A130827-06E12469-6BF1-45B8-83C8-E56E6F3BDF4 6

When the ignition switch is in the “ON” position, the Supplemental Restraint System (SRS) air bag warning light illuminates for about 7 seconds and then turns off. This indicates the SRS air bag system is operational.

If any of the following conditions occur, the SRS air bag system and/or pre-tensioner seat belt need servicing. Have the system checked, and if necessary repaired, by a NISSAN dealer promptly.

. The SRS air bag warning light remains illuminated

after about 7 seconds.

. The SRS air bag warning light flashes intermit-

tently.

. The SRS air bag warning light does not come on

at all.

Unless checked and repaired, the SRS air bag system and/or pre-tensioner seat belt may not function properly. (See “Supplemental Restraint System (SRS)” (P.1-27).)

Vehicle Dynamic Control (VDC) warning light (except for Europe)/Electronic Stability Program (ESP) warning light (for Europe)

GUID-A6886B4F-197A-4B65-9BBF-B46494A1002C

When the ignition switch is in the “ON” position, the Vehicle Dynamic Control (VDC)/Electronic Stability Program (ESP) warning light illuminates and then turns off.

The warning light blinks when the VDC/ESP system is operating.

When the warning light blinks while driving, the driving condition is slippery and the vehicle’s traction limit is about to be exceeded.

If the VDC/ESP warning light illuminates while the engine is running or while driving, it may indicate that the VDC/ESP system is not functioning properly and may need servicing. Have the system checked, and if necessary repaired, by a NISSAN dealer promptly. If a malfunction occurs, the VDC/ESP function is turned off, but the vehicle is still drivable. (See “Vehicle Dynamic Control (VDC)/Electronic Stability Program (ESP) system” (P.5-26).)

Condition: 'Except for China'/

Page 73

(73,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Water-in-fuel-filter warning light (diesel

engine model)

T32A130827-8784F723-B4A8-44BC-8916-AD5C9D6C8DAA

If the water-in-fuel-filter warning light illuminates while the engine is running, contact a NISSAN dealer as soon as possible.

CAUTION:

Continuing vehicle operation without properly draining could cause serious damage to the engine.

INDICATOR LIGHTS

T32A130827-40790345-29A6-4471-B7F0-97F981B3FB6 6

Dipped beam indicator light (if

equipped)

T32A130827-EE027B81-0279-4324-A0E9-0150C257691 7

The dipped beam indicator light illuminates when the headlight low beam is on. (See “Headlight and turn signal switch” (P.2-39).)

Door lock indicator light (if equipped)

GUID-36B1727D-9484-4156-A6C8-7B1BFAD5C373

The door lock indicator light, located on the instrument panel, illuminates when all the doors are locked.

. With the ignition switch in the “ON” position, the

door lock indicator light will illuminate and stay on when the doors are locked using the power door lock switch.

. With the ignition switch in the “OFF” or “LOCK”

position, the door lock indicator light will operate as follows:

— When the doors are locked with the power

door lock switch, the door lock indicator light will illuminate for 30 minutes.

— When the doors are locked by pushing the

“LOCK” button (on the remote controller or Intelligent Key) or the request switch (Intelligent Key system equipped models), the door lock indicator light will illuminate for 1 minute.

The door lock indicator light turns off when any door is unlocked.

For locking or unlocking doors, see “Door locks” (P.3-

4).

ECO mode system indicator light (if

equipped)

GUID-4249E8B4-0039-4825-A929-886FADA4F09C

The ECO mode indicator light illuminates when the ECO mode system is turned on.

(See “ECO mode system” (P.5-47).

Four-Wheel Drive (4WD) AUTO in-

dicator light (4WD model)

T32A130827-6E75C324-BD83-49D6-B3ED-A01014603 822

When the ignition switch is in the “ON” position, the Four-Wheel Drive (4WD) AUTO indicator light illuminates and then turns off.

When selecting 4WD AUTO mode while the engine is running, the 4WD AUTO indicator light illuminates. (See “Four-Wheel Drive (4WD)” (P.5-22).)

Four-Wheel Drive (4WD) LOCK in-

dicator light (4WD model)

T32A130827-18CDADBD-C5EC-4B57-91E9-14F0CD3B4D0B

When the ignition switch is in the “ON” position, the Four-Wheel Drive (4WD) LOCK indicator light illuminates and then turns off.

When selecting 4WD LOCK mode while the engine is running, the 4WD LOCK indicator light illuminates simultaneously with the 4WD AUTO indicator light illuminating. (See “Four-Wheel Drive (4WD)” (P.5-

22).)

CAUTION:

Do not drive on dry hard surface roads in the LOCK mode.

Front fog lights indicator light (if equipped)

T32A130827-EED0E205-54BF-444D-8D2E-20A50BFF6469

The front fog lights indicator light illuminates when the front fog lights are on. (See “Fog light switch” (P.2-

45).)

/ Front passenger air bag status

light (if equipped)

GUID-7666AF54-61E5-4228-BA66-70889C5030F5

The front passenger air bag status light ( ) located on the instrument panel will illuminate when the front passenger air bag is turned off with the front passenger air bag switch. When the front passenger air bag is turned on, the front passenger air bag status light (

) will illuminate.

For more details, see “Supplemental front-impact air bag system” (P.1-33).

Glow plug indicator light (diesel engine

model)

T32A130827-81D0A3A0-40C5-4FDF-BED2-8034FF5174D4

When the ignition switch is in the “ON” position, the glow plug indicator light illuminates and turns off after the glow plugs have warmed up.

If the glow plugs have already warmed up, the glow plug indicator flashes briefly and then turns off.

Instruments and controls 2-17

Condition: 'Except for China'/

Page 74

(74,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-18 Instruments and controls

High beam assist indicator light (if

equipped)

GUID-50DB9FD6-A5BA-4734-B48F-5B6262B538DF

The indicator light illuminates when the headlights come on while the headlight switch is in the “AUTO” position with the high beam selected. This indicates that the high beam assist system is operational. (See “Headlight and turn signal switch” (P.2-39).)

High beam indicator light

T32A130827-4091099F-CB07-4276-B667-3BD074F2E 546

The high beam indicator light illuminates when the headlight high beam is on. The indicator turns off when the low beam is selected. (See “Headlight and turn signal switch” (P.2-39).)

Hill descent control system on indicator

light (if equipped)

T32A130827-28B7FC03-C4D5-4C6C-8BFA-9E7561E98498

When the ignition switch is placed in the “ON” position the hill descent control system on indicator light illuminates briefly and then turns off. This indicates that the hill descent control system is operational.

The light illuminates when the hill descent control system is activated.

If the hill descent control switch is on and the indicator light blinks, the system is not engaged.

If the indicator light does not illuminate or blink when the hill descent control switch is on, the system may not be functioning properly. Have the system checked by a NISSAN dealer.

For additional information, see “Hill descent control system” (P.5-30).

Hill Start Assist system on indicator

light (if equipped)

GUID-5D3BB4C2-B651-4D95-98B6-BBF04E3208E8

The light illuminates when the conditions of the hill start assist system are satisfied when the vehicle is stopped on a hill.

Then, the light blinks when the brake pedal is released, which indicates that the hill start assist system is activated.

For additional information, see “Hill Start Assist system” (P.5-30).

Malfunction Indicator Light (MIL)

T32A130827-5D3C4685-4828-404C-A15D-A0C96B37A7ED

CAUTION:

. Continuing vehicle operation without proper

servicing of the engine control system and/ or Continuously Variable Transmission (CVT) could lead to poor driveability, reduced fuel economy, and damage to the engine control system and/or CVT system, which may affect the vehicle’s warranty coverage.

. Incorrect setting of the engine control sys-

tem may lead to non-compliance of local and national emission laws and regulations.

When the ignition switch is in the “ON” position, the Malfunction Indicator Light (MIL) illuminates. After starting the engine, the MIL turns off. This indicates that the engine control system and/or CVT system is operational.

If the MIL illuminates while the engine is running, it may indicate that the engine control system is not functioning properly and may need servicing. Have the vehicle checked, and if necessary repaired, by a NISSAN dealer promptly.

If the MIL blinks (if equipped) while the engine is running, it may indicate a potential malfunction in the emission control system. In this case, the emission control system may not function properly and may need servicing. Have the system checked, and if necessary repaired, by a NISSAN dealer promptly.

Precautions:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

To reduce or avoid possible damage to the engine control system when the MIL blinks:

. Avoid driving at speeds above 70 km/h (43 MPH). . Avoid sudden acceleration or deceleration. . Avoid going up steep uphill grades. . Avoid carrying or towing unnecessary loads.

Rear fog light indicator light (if equipped)

GUID-3BE98C0D-E553-453A-8DD7-D10AB9D1576E

The rear fog light indicator light illuminates when the rear fog light is on. (See “Fog light switch” (P.2-45).)

Security indicator light

T32A130827-CAB130D8-5BB2-4700-9816-9655A9AA77 D6

The security indicator light blinks when the ignition switch is in the “LOCK”, “OFF” position. This function indicates the security system* equipped on the vehicle is operational. (* immobilizer)

If security system is malfunctioning, this light will remain on while the ignition switch is in the “ON” position. (See “Security system” (P.3-20) for additional information.)

Condition: 'Except for China'/

Page 75

(75,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Small light indicator light

T32A130827-952927B8-E86D-40A0-ADA2-5ED657B0A 0DE

The light illuminates when the headlight switch is turned to the

position.

SPORT mode indicator light (if

equipped)

GUID-49D371AC-8067-4316-8ABD-88BA45B995CE

The SPORT mode indicator light illuminates when the SPORT mode is turned “ON”. (See “Driving with Continuously Variable Transmission (CVT)” (P.5-13) for the use of the SPORT mode switch.)

Trailer direction indicator light (if

equipped)

GUID-58827E84-89C9-468A-8CE3-E00B74876BDA

The light will illuminate whenever an additional electrical load is detected by the direction indicator system.

For additional information, see “Trailer towing (for Australia, New Zealand, South Africa and Europe)” (P.5-52).

Turn signals/hazard indicator lights

T32A130827-AEE83761-686F-466B-B3B8-EDF8D7DC0 C36

The turn signals/hazard indicator lights blink when the turn signal switch or hazard indicator flasher switch is turned on. (See “Headlight and turn signal switch” (P.2-39) or “Hazard indicator flasher switch” (P.6-2).)

Vehicle Dynamic Control (VDC) off indicator light (except for Europe)/Electronic Stability Program (ESP) off indicator light (for Europe)

GUID-10C0347A-5993-4CEC-84D6-C6D36D4E64D2

When the ignition switch is in the “ON” position, the Vehicle Dynamic Control (VDC)/Electronic Stability Program (ESP) off indicator light illuminates and then turns off.

The VDC/ESP off indicator light illuminates when the VDC/ESP off switch is pushed to the “OFF” position.

When the VDC/ESP off switch is pushed to the “OFF” position, the VDC/ESP system is turned off.

For details, see “Vehicle Dynamic Control (VDC)/ Electronic Stability Program (ESP) system” (P.5-26).

AUDIBLE REMINDERS

T32A130827-39FBB3CF-11CD-4DA8-9DB3-FBAF4F2E259 6

Brake pad wear warning

T32A130827-2C378ED7-F157-4822-BCF0-6E95CAA4B88 0

The disc brake pads have audible wear warnings. When a brake pad requires replacement, it will make a high pitched scraping sound when the vehicle is in motion. This scraping sound will first occur only when the brake pedal is depressed. After more wear of the brake pad, the sound will always be heard even if the brake pedal is not depressed. Have the brakes checked as soon as possible if the wear warning sound is heard.

Have the system checked, and if necessary repaired, by a NISSAN dealer promptly. (See “Brakes” (P.8-

15).)

Intelligent Key buzzer (if equipped)

T32A130827-4A0804B9-235D-48CF-8FEE-24C2BB97C E26

The Intelligent Key buzzer sounds if any one of the following improper operations is found.

. The ignition switch is not returned to the “LOCK”

position when locking the doors.

. The Intelligent Key is left inside the vehicle when

locking the doors.

. Any doors are not closed securely when locking

the doors.

When the buzzer sounds, be sure to check both the vehicle and the Intelligent Key. (See “Intelligent Key system” (P.3-10).)

Light reminder chime

T32A130827-6F4DC6D7-A8DC-46E9-8460-55E269AD82 EA

The chime will sound if the driver’s side door is opened while the headlight switch is in either the

or position and the ignition switch is in the “OFF” or “LOCK” position.

Be sure to turn the light switch to the “OFF” or “AUTO” (if equipped) position when you leave the vehicle.

Parking brake reminder chime

T32A130827-0DD91978-046D-4BBA-9DC9-E4F062F1D5 B0

The chime will sound if the vehicle is driven at more than 7 km/h (4 MPH) (models not equipped with electronic parking brake) or 4 km/h (2 MPH) (models equipped with electronic parking brake) with the parking brake applied. Stop the vehicle and release the parking brake.

Instruments and controls 2-19

Condition: 'Except for China'/

Page 76

(76,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-20 Instruments and controls

Stop/Start System or Idling Stop System reminder buzzer (if equipped)

GUID-69B36B73-5D2B-4FF6-93AE-B76254D6E0C7

The engine will shift to the normal stopped state if any of the following operations is made during Stop/Start System or Idling Stop System activation, and the Stop/ Start System or Idling Stop System buzzer will sound if:

. The driver’s seat belt is unfastened and the

driver’s door is open (MT models). . The vehicle engine hood is open. Close the hood or the driver’s door, or fasten the seat

belt then restart the engine using the ignition switch. For more information, see “Stop/Start System or Idling

Stop System” (P.5-18).

T32A130827-3610D9C5-CE18-4747-932A-3E708FB2DA5B

JVI0641X

The vehicle information display

is located between the tachometer and the speedometer. It displays such items as:

. Vehicle settings . Trip computer information . Driver Assistance (if equipped) . Speed limiter information (if equipped) . Cruise control system information (if equipped) . Intelligent Key operation information (if equipped) . Audio information (if equipped) . Navigation - turn by turn (if equipped) . Indicators and warnings . Tyre pressure information (if equipped) . Chassis Control . Other information

Please note that the information used in this manual is written in UK English. There are a few differences in the information for the UK and U.S. English versions of the system.

For language settings, see “Language” (P.2-26).

HOW TO USE THE VEHICLE INFORMATION DISPLAY

GUID-70381C67-CDDB-4575-A232-0CA687BCF4A0

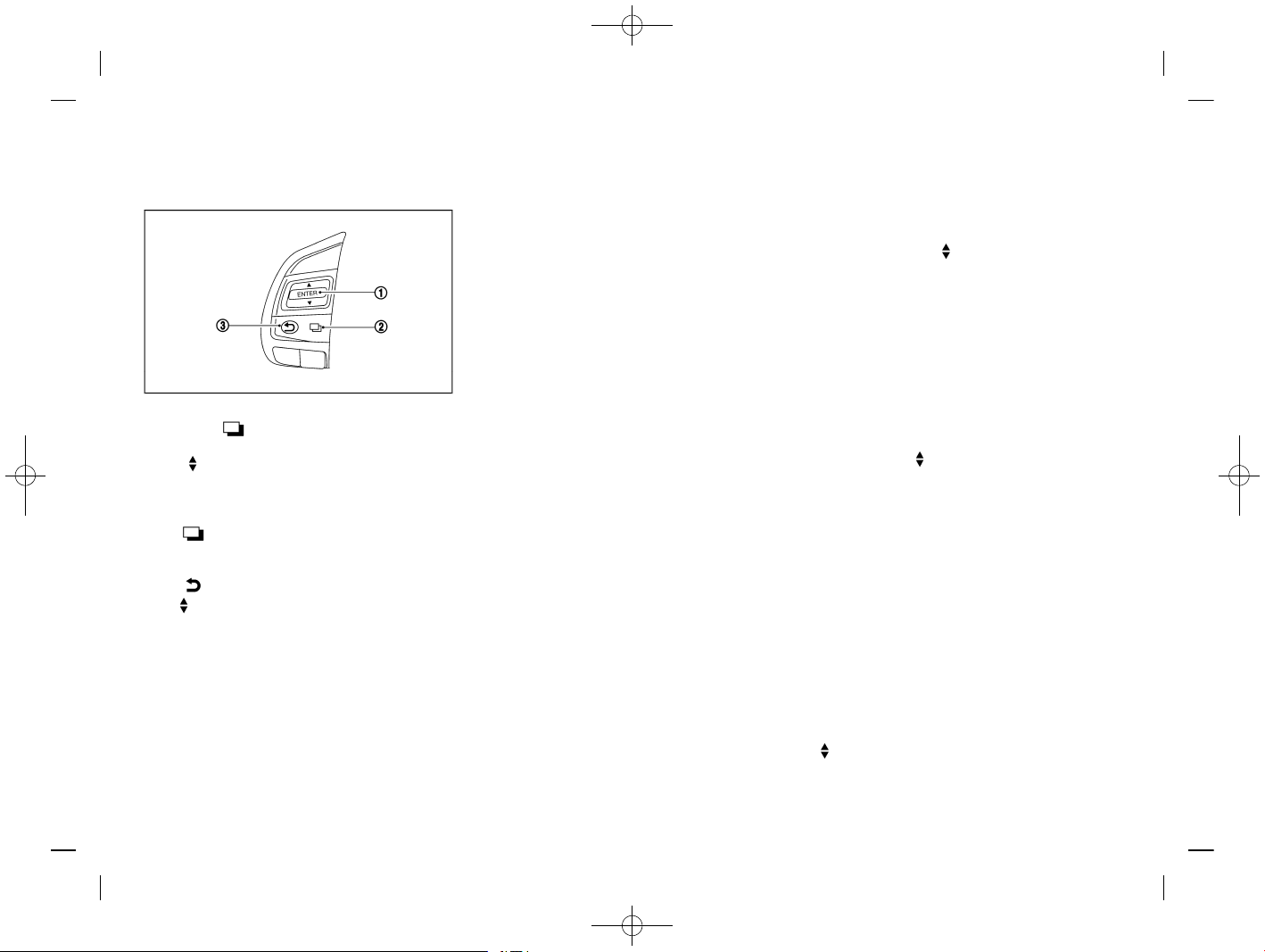

Type A:

JVI0887X

The vehicle information display can be changed using the switches

and ENTER

located on the

steering wheel.

- navigate through the items in vehicle

information display

- select/enter the Vehicle information menu items or to change from one display screen to the next (i.e. trip, Fuel economy)

ENTER - change or select an item in the vehicle information display

- go back to the previous menu

VEHICLE INFORMATION DISPLAY

Condition: 'Except for China'/

Page 77

(77,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Type B:

JVI0886X

The vehicle information display can be changed using the switches

and ENTER

located on the

steering wheel.

- navigate through the items in vehicle

information display ENTER - change or select an item in the vehicle

information display

- select/enter the Vehicle information menu items or to change from one display screen to the next (i.e. trip, Fuel economy)

- go back to the previous menu

The

switch

also controls audio and control panel functions. For additional information, see “Steering wheel mounted controls for audio (Type B)” (P.4-

76).

STARTUP DISPLAY

GUID-E828D244-7332-4BBD-A2FA-0762846370C8

When the ignition switch is placed in the “ON” position, the screens that display in the vehicle information display include:

. Trip computer . Fuel economy . Warnings

Warnings will only display if there are any present, for more information on warnings and indicators, see “Vehicle information display warnings and indicators” (P.2-28).

To control what items display in the vehicle information display, see “Settings” (P.2-21).

SETTINGS

GUID-2255583B-12E6-48CF-ACE1-EFD05B4B73DC

The setting mode allows you to change the information displayed in the vehicle information display:

. Driver Assistance (if equipped) . Clock . Display Settings . Vehicle Settings . Maintenance . Alert . Tyre Pressures (if equipped) . Units . Language (if equipped) . Factory Reset

Driver Assistance (if equipped)

GUID-27D6F794-B48A-453D-AF57-C93B0459653E

To change the status, warnings or turn on or off any of the systems/warnings displayed in the “Driver Assistance” menu, use the

switch

to select and the

ENTER

to change a menu item:

. Driving Aids . Driver Attention . Traffic Sign . Parking Aids . Chassis Control

Driving Aids:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

To change the status, warnings or turn on or off any of the systems/warnings displayed in the “Driving Aids” menu, use the

switch

to select and the

ENTER

to change a menu item:

. Lane

— Lane Departure Warning (LDW) ON/OFF

. Blind Spot

— Blind Spot Warning (BSW) ON/OFF

. Emergency Brake

— Emergency Brake ON/OFF

Driver Attention:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Driver Attention ON/OFF

Traffic Sign:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Traffic Sign ON/OFF

Parking Aids:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

To change the status or turn on or off any of the systems displayed in the “Parking Aids” menu, use the

switch

to select and the ENTER

change a menu item:

Instruments and controls 2-21

Condition: 'Except for China'/

Page 78

(78,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-22 Instruments and controls

. Moving Object

— Moving Object Detection (MOD) ON/OFF

. Front Sensor

— Front parking sensor ON/OFF

. Rear Sensor

— Rear parking sensor ON/OFF

. Display

— Parking sensor display ON/OFF

. Volume

— Parking sensor buzzer volume Low/Med./High

. Range

— Parking sensor detection range Far/Mid./Near

For additional information, see “Around view monitor” (P.4-10).

Chassis Control:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

To change the status, warnings or turn on or off any of the systems/warnings displayed in the “Chassis Control” menu, use the

switch

to select

and the ENTER

to change a menu item:

. Trace Control

— See “Active Trace Control” (P.5-28) for more

information.

. Engine Brake (if equipped)

— See “Active Engine Brake (Continuously Vari-

able Transmission (CVT) models)” (P.5-28) for more information.

Clock

GUID-5AF46434-3038-4E05-B84D-77316DA0684E

To set the clock, see “Clock” (P.4-6) or “Audio settings” (P.4-58) in this manual or the separate Navigation Owner’s Manual.

Display Settings

GUID-72E39564-A9E2-43D0-9D53-676FFB0D1A09

The meter settings allows the customer to choose from the various meter selections.

The meter settings can be changed using the

and the ENTER

buttons.

Contents Selection:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The items that display when the ignition switch is placed in the “ON” position can be enabled/disabled. To change the items that are displayed, use the

to scroll and the ENTER

to select a menu item.

Body Colour:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The color of the vehicle that displays in the vehicle information display when the ignition switch is placed in the “ON” position can be changed.

1. Use the

switch

until “Body Colour” is

selected, and press ENTER

2. Select the body color using the

switch

and press ENTER

ECO Mode Settings (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This setting allows the customer to change the ECO mode system settings.

Use the

switch

until “ECO Mode Settings” is

selected, and press ENTER

ECO Glow:

This setting allows the customer to enable/disable the ambient ECO indicator in the vehicle information display.

1. Use the

switch

to select “ECO Glow”.

2. Press the ENTER

to turn ON/OFF the

ambient ECO in the vehicle information display.

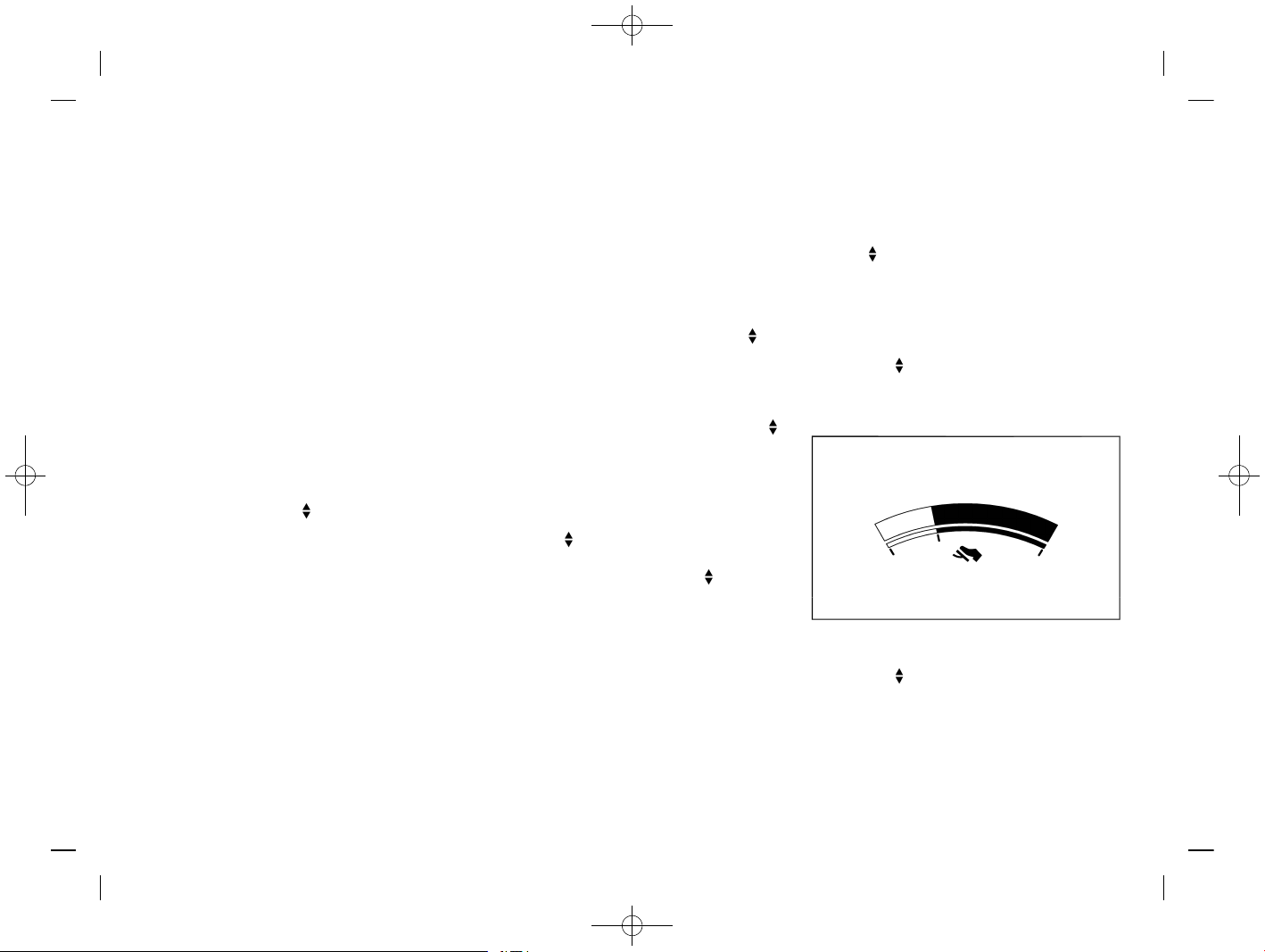

Display:

JVI0665X

This setting allows the customer to enable/disable the ECO pedal guide function.

1. Use the

switch

to select “Display”.

2. Press the ENTER

to select “Pedal Guide” or

“Fuel econ.”.

For detailed information, see “ECO mode system” (P.5-47).

Condition: 'Except for China'/

Page 79

(79,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Stop/Start (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

To change the status, warnings or turn on or off any of the systems/warnings displayed in the “Stop/Start” menu, use the

switch

to select and the

ENTER

to change a menu item:

. Display

— Stop/Start display ON/OFF

. Trip CO2 saving

The “Trip CO2 saving” and engine stop time mode shows the CO2 saving and engine stop time since the last reset. The CO2 saving and engine stop time can be reset by pushing the ENTER

(Type A) or

(Type B).

. Total CO2 saving

The “Total CO2 saving” and engine stop time mode shows:

— The estimated CO2 exhaust emissions pre-

vented.

— The engine stop time that the engine has been

stopped by the “Stop/Start or Idling Stop” System.

NOTE: The “Total CO2 saving” and engine stop time

values cannot be reset and show accumulated “Stop/Start or Idling Stop” System information since the vehicle was built.

ECO Drive Report (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Display:

This setting allows the customer to enable/disable the ECO Drive Report in the vehicle information display.

1. Use the

switch

to select “ECO Drive

Report”.

2. Press the ENTER

to turn ON/OFF the ECO management display in the vehicle information display.

View History:

This setting allows the customer to reset the past history of the fuel economy and the best fuel economy.

Welcome Effect:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

You can choose whether or not to display the welcome screen when the ignition switch is placed in the “ACC” or “ON” position. You can also choose the following items to define how the welcome screen looks:

. Dial and Pointer . Display Effect

Select “Welcome Effects” using the

switch

and press the ENTER

to select this menu. Use the

switch

to navigate between the menu options

and press the ENTER

to turn each function ON/

OFF.

Vehicle Settings

GUID-41BC8E41-F48A-4F7F-9C6C-781FDBBDDD1D

The vehicle settings allows the customer to change settings for the following settings.

. Lighting . Turn Indicator . Unlocking . Wipers

The vehicle settings can be changed using the

, and the ENTER

switches.

Lighting:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The “Lighting” menu has the following options: . Welcome Light

The welcome lighting can be set to be ON or OFF. From the “Lighting” menu, select “Welcome Light”. Use the ENTER

to turn this feature

ON or OFF.

. Int. Lamp Timer

The internal light timer can be set to be ON or OFF. From the “Lighting” menu, select “Int. Lamp Timer”. Use the ENTER

to turn this feature ON

or OFF.

. Auto Lights

The sensitivity of the automatic lighting can be adjusted. From the “Lighting” menu, select “Auto Lights”. Use the

switch

and the ENTER

to select the required sensitivity. The following

options are available: — On Earliest — On Earlier — Standard — On Later

. Headlight Off delay (if equipped)

The duration of the automatic headlights can be changed from 0 to 180 seconds. From the “Lighting” menu, select “Headlight Off delay”. Use the ENTER

to change the duration.

Turn Indicator:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The “3 Flash On” overtaking feature can be set to be ON or OFF. From the “Turn Indicator” menu, select “3 Flash On”. Use the ENTER

to turn this feature ON

or OFF.

Unlocking:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

There are the following options in the “Unlocking” menu:

. I–Key Door Lock

When this item is turned on, the request switch on the door is activated. From the “Unlocking” menu, select “I-Key Door Lock”. Use the ENTER button to activate or deactivate this function.

Instruments and controls 2-23

Condition: 'Except for China'/

Page 80

(80,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-24 Instruments and controls

. Selective Unlock

When this item is turned on, and the door handle request switch on the driver’s or front passenger’s side door is pushed, only the corresponding door is unlocked. All the doors can be unlocked if the door handle request switch is pushed again within 1 minute. When this item is turned to off, all the doors will be unlocked when the door handle request switch is pushed once. From the “Unlocking” menu, select “Selective Unlock”. Use the ENTER button to activate or deactivate this function.

. Answer Bk. Horn (if equipped)

When the answer back horn is on the horn will chirp and the hazard indicators will flash once when locking the vehicle with the Intelligent Key or remote keyless entry function.

Wipers:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

. Speed Dependent (if equipped)

The “Speed Dependent” feature can be activated or deactivated. From the “Wipers” menu, select “Speed Dependent”. Use the ENTER

to turn

this feature ON or OFF.

. Rain Sensor (if equipped)

The “Rain sensor” feature can be activated or deactivated. From the “Wipers” menu, select “Rain Sensor”. Use the ENTER

to turn this

feature ON or OFF.

. Reverse Link

The “Reverse Link” wiper feature can be set to be ON or OFF. From the “Wipers” menu, select “Reverse Link”. Use the ENTER

to turn this

feature ON or OFF.

. Drip Wipe

The “Drip Wipe” feature can be set to be ON or OFF. From the “Wipers” menu, select “Drip Wipe”.

Use the ENTER

to turn this feature ON or

OFF.

Maintenance

GUID-6417F271-F1CE-47F6-A581-84B3241915F7

JVI0978X

1. Service

2. Filter (if equipped)

3. Tyre

4. Other The maintenance mode allows you to set alerts for the

reminding of maintenance intervals. To change an item: Select “Maintenance” using the

switch

and

press ENTER

Service:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This indicator appears when the customer set distance comes for changing the engine oil and filter. You can set or reset the distance for checking or replacing these items. For scheduled maintenance items and intervals, see a separate maintenance booklet.

Filter (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This indicator appears when the customer set distance comes for changing the oil filter. You can set or reset the distance for checking or replacing these items. For scheduled maintenance items and intervals, see a separate maintenance booklet.

Tyre:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This indicator appears when the customer set distance comes for replacing tires. You can set or reset the distance for replacing tires.

WARNING:

The tire replacement indicator is not a substitute for regular tire checks, including tire pressure checks. See “Changing tires and wheels” (P.8-

37). Many factors including tire inflation, alignment, driving habits and road conditions affect tire wear and when tires should be replaced. Setting the tire replacement indicator for a certain driving distance does not mean your tires will last that long. Use the tire replacement indicator as a guide only and always perform regular tire checks. Failure to perform regular tire checks, including tire pressure checks could result in tire failure. Serious vehicle damage could occur and may lead to a collision, which could result in serious personal injury or death.

Other:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This indicator appears when the customer set distance comes for checking or replacing maintenance items other than the engine oil, oil filter and tires. Other maintenance items can include such things as air filter or tire rotation. You can set or reset the distance for checking or replacing the items.

Condition: 'Except for China'/

Page 81

(81,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Alert

GUID-E48629E9-A0E6-4E9A-8778-A498C4B794D4

This setting allows the customer to set alarms. Select “Alert” using the

switch

and press

ENTER

Outside Temp. (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This setting allows the customer to enable/disable the alert for outside temperature in the vehicle information display.

1. Use the

switch

to select “Outside

Temp.”.

2. Press the ENTER

to turn ON/OFF the alert.

Timer:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This setting allows the customer to set an alert to notify the driver that the set time has been reached.

1. Use the

switch

to select “Timer”.

2. Press the ENTER

3. To change the timer amount, use the

switch

and the ENTER

to save the selected time

amount.

Navigation (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This setting allows the customer to enable/disable the alert for navigation in the vehicle information display.

1. Use the

switch

to select “Navigation”.

2. Press the ENTER

to turn ON/OFF the alert.

Phone (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This setting allows the customer to enable/disable the alert for navigation in the vehicle information display.

1. Use the

switch

to select “Phone”.

2. Press the ENTER

to turn ON/OFF the alert.

Mail (if equipped):

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

This setting allows the customer to enable/disable the alert for navigation in the vehicle information display.

1. Use the

switch

to select “Mail”.

2. Press the ENTER

to turn ON/OFF the alert.

Tyre pressures (if equipped)

GUID-957EC358-747F-4558-9FB7-87BF7FC0C450

The settings in the “Tyre pressures” menu are all related to the Tyre pressure monitoring system TPMS (See “Tire Pressure Monitoring System (TPMS)” (P.6-

2), “Tire Pressure Monitoring System (TPMS)” (P.5-4) and “Tire Pressure Monitoring System (TPMS)” (P.8-

36).).

. Target Front . Target Rear . Tyre Pressure Unit . Calibrate

Target Front:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The “Target Front” tyre pressure is the pressure specified for the front tyres on the tyre placard (See , “Tire Pressure Monitoring System (TPMS)” (P.5-4) and “Tire placard” (P.9-9).).

Use the

and the ENTER

buttons to select and change the value for the “Target Front/ Target front” tyre pressure.

Target Rear:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The “Target Rear” tyre pressure is the pressure specified for the rear tyres on the tyre placard (see , “Tire Pressure Monitoring System (TPMS)” (P.5-4) and “Tire placard” (P.9-9).).

Use the

and the ENTER

buttons to select and change the value for the “Target Rear” tyre pressure.

Tyre Pressure Unit:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The unit for tyre pressure that displays in the vehicle information display can be changed to:

. kPa . psi . bar . Kgf/cm2

Use the

and the ENTER

buttons to

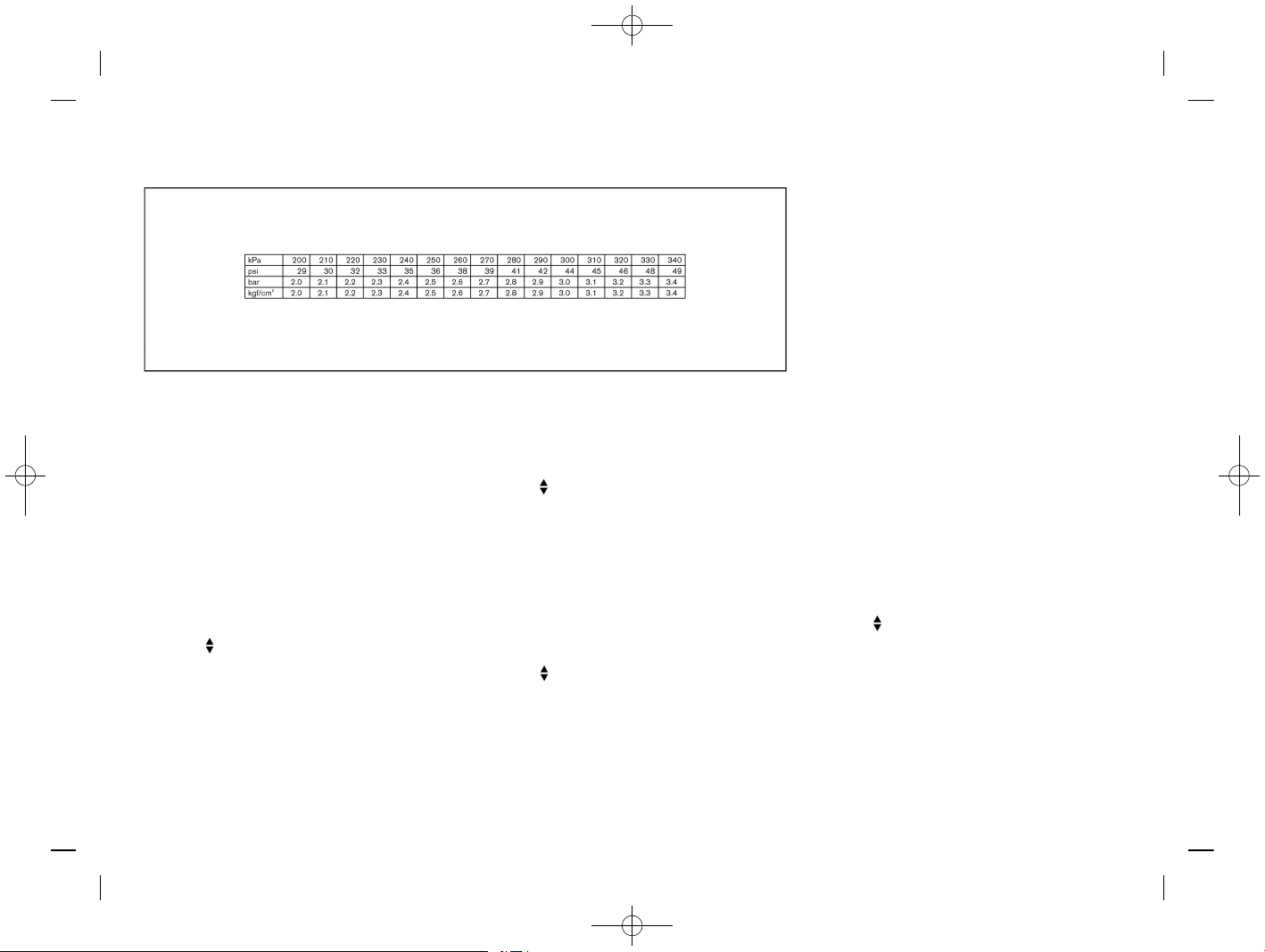

select and change the unit. If necessary, refer to the following table to convert

between units.

Instruments and controls 2-25

Condition: 'Except for China'/

Page 82

(82,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-26 Instruments and controls

JVI0938X

Calibrate:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The tyre pressure is affected by the temperature of the tyre; the tyre temperature increases when the car is driven. To be able to accurately monitor the tyre air leakage and to prevent false TPMS warnings due to changes in temperature, the TPMS system uses temperature sensors in the tyres to perform temperature compensation calculations.

On rare occasions it may be necessary to recalibrate the TPMS system reference temperature. This operation should only be performed when the actual tyre pressure has been adjusted, whilst the current ambient temperature is significantly different to the current calibration temperature. (See “Tire Pressure Monitoring System (TPMS)” (P.5-4).)

Use the

, and the ENTER

switches to start or cancel the calibration process. While the calibration process is active, the message: “Resetting tyre pressure system” will be displayed.

Units (if equipped)

GUID-A1B343C6-49C7-4BF7-9C43-DC08E31FB329

The units that are shown in the vehicle information display can be changed:

. Distance/Fuel . Temperature

Use the

, and the ENTER

switches to select and change the units of the vehicle information display.

Distance/Fuel:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The unit for the mileage that displays in the vehicle information display can be changed to:

. km, l/100km . km, km/l . miles, MPG (UK) . miles, MPG (US)

Use the

and the ENTER

switches to select and change the unit.

Temperature:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The temperature that displays in the vehicle information display can be changed from:

. 8C (Celsius)

. 8F (Fahrenheit)

Use the ENTER

to toggle choices.

Language (if equipped)

GUID-761627AF-130C-43BD-83EB-A9FF585F1E70

The language of the vehicle information display can be changed to:

Type A:

. English . French . German . Italian . Portuguese . Dutch . Spanish . Turkish . Russian

Type B:

. English . French . Spanish

Type C:

. English (U.S.) . English (UK)

Use the

, and the ENTER

switches to select and change the language of the vehicle information display. The language of the center display/navigation can be changed independently of the vehicle information display. For models with navigation system, see “Vehicle information and settings (models with navigation system)” (P.4-5). For models without navigation system, see “Audio system” (P.4-35)

Condition: 'Except for China'/

Page 83

(83,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Factory Reset

GUID-DB448A2E-FABE-4978-A5DE-79E15734EC05

The settings in the vehicle information display can be reset back to the factory default. To reset the vehicle information display:

1. Select “Factory Reset” using the

switch

and press the ENTER

2. Select “YES” to return all settings back to default by pressing the ENTER

Instruments and controls 2-27

Condition: 'Except for China'/

Page 84

(84,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-28 Instruments and controls

VEHICLE INFORMATION DISPLAY WARNINGS AND INDICATORS

GUID-2461129B-3328-48DC-B298-BC959F06E2D7

JVI0987X

Condition: 'Except for China'/

Page 85

(85,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1. Engine start operation indicator (for Con-

tinuously Variable Transmission (CVT) models)

GUID-03FA16C2-7F50-4C9B-AF2F-B0DDC79EF70D

This indicator appears when the shift lever is in the “P” (Park) position.

This indicator means that the engine will start by pushing the ignition switch with the brake pedal depressed. You can start the engine directly in any position of the ignition switch.

2. Engine start operation indicator (for Manual

Transmission (MT) models)

GUID-93501E1D-F809-4EB5-BA32-FD9965ED01CC

This indicator means that the engine will start by pushing the ignition switch with the clutch pedal depressed. You can start the engine directly in any position of the ignition switch.

You can also start the engine by pushing the ignition switch with the brake pedal depressed when the shift lever is in the “N” (Neutral) position.

3. Steering lock release malfunction indicator

(if equipped)

GUID-0EB33230-5508-4D15-B8B1-CAF190FF032F

This indicator appears when the steering lock cannot be released.

If this indicator appears, push or turn the ignition switch while lightly turning the steering wheel right and left.

See “Steering lock” (P.5-10).

4. No Key detected warning (if equipped)

GUID-045D2E0A-90AE-4116-98D3-03BD7BDA254D

This warning appears when the door is closed with the Intelligent Key left outside the vehicle and the ignition switch in the “ON” position. Make sure that the Intelligent Key is inside the vehicle.

See “Intelligent Key system” (P.3-10) for more details.

5. Shift to Park warning (Continuously Variable Transmission (CVT) models)

GUID-C5E02B99-2271-4B31-8A31-0E2BDA02DB7A

This warning appears when the ignition switch is pushed to stop the engine with the shift lever in any position except the “P” (Park) position.

If this warning appears, move the shift lever to the “P” (Park) position or place the ignition switch in the “ON” position.

An inside warning chime will also sound. (See “Intelligent Key system” (P.3-10).)

6. Key battery low warning (if equipped)

GUID-4D9408BF-3C31-4AFA-B795-838BAD3AA816

This indicator appears when the Intelligent Key battery is running out of power.

If this indicator appears, replace the battery with a new one. See “Intelligent Key battery” (P.8-22).

7. Engine start operation for Intelligent Key system indicator (if equipped)

GUID-793F2918-5212-4C83-B47E-E0B7BD34B2FB

This indicator appears when the Intelligent Key battery is running out of power and when the Intelligent Key system and vehicle are not communicating normally.

If this indicator appears, touch the ignition switch with the Intelligent Key while depressing the brake pedal. (See “Intelligent Key battery discharge” (P.5-11).)

8. Key ID incorrect warning (if equipped)

GUID-4DF72DD3-352F-4604-B40B-A6F805865315

This warning appears when the ignition switch is placed from the “LOCK” position and the Intelligent Key cannot be recognized by the system. You cannot start the engine with an unregistered key. Use the registered Intelligent Key.

See “Intelligent Key system” (P.3-10).

9. Release parking brake warning

GUID-713A5EF4-8333-4E87-8C99-5BE63E306339

This warning appears when the vehicle speed is above 7 km/h (4 MPH) (models not equipped with electronic parking brake) or 4 km/h (2 MPH) (models equipped with electronic parking brake) and the parking brake is applied. Stop the vehicle and release the parking brake.

10. Low fuel level warning

GUID-E3297D49-BBE6-4223-8D26-45B270C32608

This warning appears when the fuel level in the fuel tank is getting low. Refuel as soon as it is convenient, preferably before the fuel gauge reaches 0 (Empty). There will be a small reserve of fuel in the tank when the fuel gauge needle reaches 0 (Empty).

11. Door/back door open warning

GUID-4E093E87-E79D-4932-A6BA-D33021101EDB

This warning appears if any of the doors and/or the back door are open or not closed securely. The vehicle icon indicates which door or the back door is open on the display.

12. Second row seat belt warning (if equipped)

GUID-C58ACB5C-4A3A-40F4-8005-598C1067908C

This second row seat belt warning appears after starting the engine. If any of the second row seat passenger seat belts is not fastened, a chime will sound and the seat icon illuminates in red to show which seat belt is not fastened. The seat icon illuminates in red until the corresponding second row

Instruments and controls 2-29

Condition: 'Except for China'/

Page 86

(86,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-30 Instruments and controls

seat passenger’s seat belt is fastened. The warning will automatically turn off after approximately 35 seconds.

For precautions on seat belt usage, see “Seat belts” (P.1-9).

13. Key System Fault warning (if equipped)

GUID-45908843-CFF4-4CCD-81A0-E6055843EF07

This warning appears if there is a malfunction in the Intelligent Key system.

If this warning appears while the engine is stopped, the engine cannot be started. If this warning appears while the engine is running, the vehicle can be driven. However, contact a NISSAN dealer for repair as soon as possible.

14. Low tyre pressure warning (if equipped)

GUID-CC56E22C-950B-4BAA-AC18-501ADE36070 4

This warning (“Low tyre pressure” and a vehicle icon if equipped) appears when the low tire pressure warning light in the meter illuminates and low tire pressure is detected. The warning appears each time the ignition switch is placed in the “ON” position as long as the low tire pressure warning light remains illuminated. If this warning appears, stop the vehicle and adjust the pressure to the recommended COLD tire pressure shown on the tire placard. (See “Low tire pressure warning light” (P.2-14), “Tire Pressure Monitoring System (TPMS)” (P.6-2).), “Tire Pressure Monitoring System (TPMS)” (P.5-4) and “Tire Pressure Monitoring System (TPMS)” (P.8-36).

15. Tyre pressure system fault warning (if

equipped)

GUID-7E94FFB8-85BA-407E-86E9-35D4440D31BF

This warning illuminates when there is a problem with the Tyre Pressure Monitoring System (TPMS).

If this warning comes on, have the system checked by a NISSAN deale. See “Low tire pressure warning light” (P.2-14), “Tire Pressure Monitoring System (TPMS)” (P.6-2).), “Tire Pressure Monitoring System (TPMS)”

(P.5-4) and “Tire Pressure Monitoring System (TPMS)” (P.8-36).

16. Low oil pressure Stop vehicle warning (if equipped)

GUID-4886D40C-6E1C-481A-B24B-9147222D4154

This warning appears if low engine oil pressure is detected. If the warning appears during normal driving, pull off the road in a safe area, stop the engine immediately and call a NISSAN dealer.

The low oil pressure warning is not designed to indicate a low oil level. Use the dipstick to check the oil level. (See “Engine oil” (P.8-10).)

CAUTION:

Running the engine with the engine oil pressure warning displayed could cause serious damage to the engine.

17. Oil Level Low indicator (for diesel engine model)

GUID-44E8C9EE-A550-4578-B0BC-CD9597E9BFCC

If the low level indicator is displayed, the engine oil level is low. If the low level reminder is displayed, check the level using the engine oil dipstick. (See “Engine oil” (P.8-10).)

CAUTION:

The oil level should be checked regularly using the engine oil dipstick. Operating with an insufficient amount of oil can damage the engine and such damage is not covered by the warranty.

18. Oil level sensor warning (for diesel engine model)

GUID-FCC1D74A-FEA2-43E8-A09D-25FAB64B72FF

If the oil sensor warning is displayed, the engine oil level sensor may be malfunctioning. Contact a NISSAN dealer immediately. For more details, see “Oil control system (for diesel engine model)” (P.2-33).

19. 4WD system fault warning (if equipped)

GUID-744F018D-B3A0-46B9-98CE-8F22CB584FE0

This warning appears when the four-wheel drive (4WD) system is not functioning properly while the engine is running. Reduce vehicle speed and have your vehicle checked by a NISSAN dealer. See “4WD warning” (P.5-24).

20. 4WD High Temp. Stop vehicle warning (if equipped)

GUID-B3B19D8E-F280-4789-825F-5EC9478A9881

This warning may appear while trying to free a stuck vehicle due to increased oil temperature. The driving mode may change to Two-Wheel Drive (2WD). If this warning is displayed, stop the vehicle with the engine idling, as soon as it is safe to do so. Then if the warning turns off, you can continue driving. See “4WD warning” (P.5-24).

21. Tyre size incorrect warning (if equipped)

GUID-C179A579-3869-4DBE-B200-742582D81A9F

This warning may appear if there is a large difference between the diameters of the front and rear wheels and tires. Pull off the road in a safe area, with the engine idling. Check that all the tire sizes are the same, that the tire pressure is correct and that the tires are not excessively worn. See “4WD warning” (P.5-24).

Condition: 'Except for China'/

Page 87

(87,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

22. Battery Voltage Low Charge Battery

warning

GUID-1F3B1DD2-74A2-40F0-99DD-0C12928BF4BE

This warning appears when the battery voltage is low and the battery needs to be charged.

23. Shipping Mode On Push Storage Fuse

warning

GUID-EF1876C4-3B83-41A8-8C73-D10D23C43B8F

This warning may appear if the extended storage fuse switch is not pushed in (switched on). When this warning appears, push in (switch on) the extended storage fuse switch to turn off the warning. For more information, see “Extended storage fuse switch” (P.8-

26).

24. Headlight system fault warning (if

equipped)

GUID-CB558F6A-E537-4F05-9A4F-E89B7379F99C

This warning appears if the LED headlights are malfunctioning. Have the system checked by a NISSAN dealer.

25. Power will turn off to save the battery

warning

GUID-3C313D28-5CFD-467B-9FC2-AD5A25FA3340

This warning appears after a period of time if the shift lever has not moved from the “P” (Park) position while the ignition is in the ON position for a certain period of time.

26. Power turned off to save the battery

warning

GUID-0970ABC5-CB0F-4B5F-A533-E364CA5A37F0

This warning appears after the ignition switch is automatically turned OFF to save the battery.

27. Turn off headlights warning

GUID-DB00B5D9-C887-4399-9B39-3A515068CC94

This warning appears when the driver side door is opened with the headlight switch is left ON and the ignition switch is placed in the “OFF” or “LOCK” position. Place the headlight switch in “OFF” or “AUTO” (if equipped) position. For additional information, see “Headlight and turn signal switch” (P.2-39).

28. Press brake pedal warning (for electronic parking brake equipped models)

GUID-3E2420B9-A238-4616-97EB-11057AE200E0

This indicator appears in the following situations: . The driver tries to release the electronic parking

brake manually without depressing the brake pedal.

. The vehicle is stopped on a steep hill and there is

a possibility of moving backward, even if the electronic parking brake is applied.

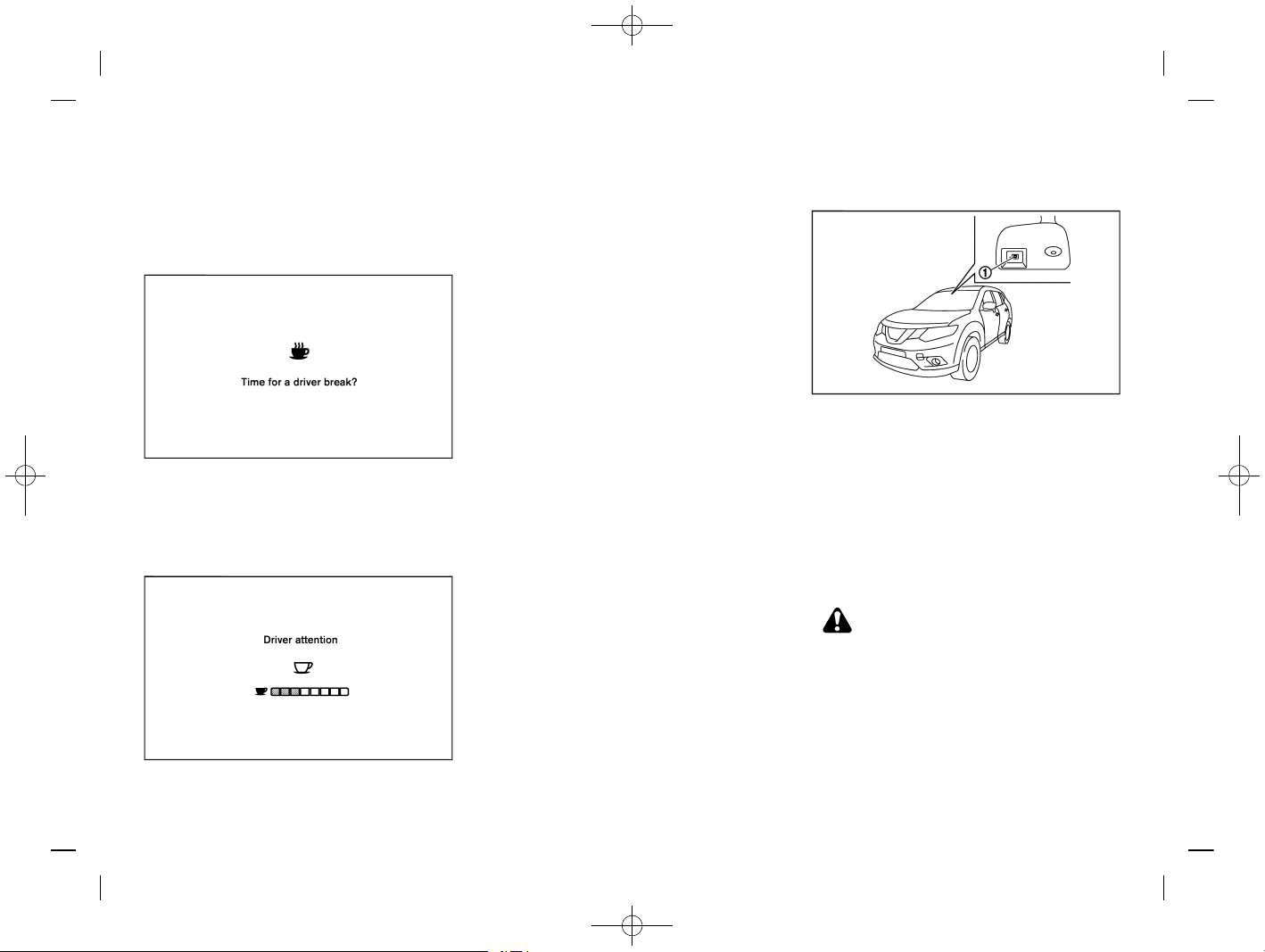

29-30. Time for a driver break? indicator

GUID-5B6EF421-742A-4370-B698-64A84139A090

This indicator appears when the set “Time for a driver break?” indicator activates. You can set the time for up to 6 hours.

31. Low outside temperature warning (if equipped)

GUID-634EFF16-8C9D-493C-A41A-0932E824F6C2

This warning appears if the outside temperature is below 38C (378F). The warning can be set not to be displayed.

32. Chassis control system fault warning

GUID-F718EB94-63B5-48EE-A64D-71D88651FC6D

This warning appears if the chassis control module detects an error in the chassis control system. Have the system checked by a NISSAN dealer. (See “Chassis control” (P.5-28).)

33. Speed limiter indicator (if equipped)

GUID-E392035D-EAB2-4999-AC5F-53B566DC53DF

This indicator shows the speed limiter system status. The status is shown by the color.

For more details, see “Speed limiter” (P.5-41).

34. Cruise indicator (if equipped)

GUID-B56BF289-E01D-4B32-9422-294302093904

This indicator shows the cruise control system status. The status is shown by the color.

See “Cruise control” (P.5-43) for details.

35. Continuously Variable Transmission (CVT) position indicator (Continuously Variable Transmission (CVT) models)

GUID-9E323961-6ABA-4FB7-B081-E0ED83362DE3

This indicator shows the automatic shift position. In the manual shift mode, when the transmission does

not shift to the selected gear due to a transmission protection mode, the CVT position indicator will blink and a chime will sound.

See “Driving with Continuously Variable Transmission (CVT)” (P.5-13) for further details.

36. ECO mode system indicator (if equipped)

GUID-B9E98019-342F-40AE-9C95-C4EB5F3AEDA6

The ECO mode indicator appears when the ECO mode system is turned on.

(See “ECO mode system” (P.5-47).

37. System fault warning (if equipped)

GUID-188904A7-8967-4328-9B5E-8F5DDC264F2B

This warning appears when the Blind Spot Warning/ Lane Departure Warning systems are not functioning properly. (See “Blind Spot Warning (BSW)/Lane Departure Warning (LDW) systems” (P.5-31) , “Blind Spot Warning (BSW) system (if equipped for Europe) ” (P.5-36) or “Lane Departure Warning (LDW) system (if equipped for Europe)” (P.5-39).)

Instruments and controls 2-31

Condition: 'Except for China'/

Page 88

(88,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-32 Instruments and controls

38. System fault warning (if equipped)

GUID-43C11339-8D15-4211-B3C2-ACB48599F434

This warning appears when the Lane Departure Warning system is not functioning properly. (See “Lane Departure Warning (LDW) system (if equipped for Europe)” (P.5-39).)

39. System fault warning (if equipped)

GUID-3B629DD1-B4DF-4353-8E61-E9312DBC4985

This warning appears when the Blind Spot Warning system is not functioning properly. (See “Blind Spot Warning (BSW) system (if equipped for Europe) ” (P.5-36).)

40. Not available Clean Rear Camera warning

(if equipped)

GUID-E57C5D68-F440-4AEA-8ED4-056CE64C71DA

This warning appears if dirt, rain or snow accumulates on the rear camera and cannot be removed by the automatic washer and blower. See “Blind Spot Warning (BSW)/Lane Departure Warning (LDW) systems” (P.5-31).

41. Not available Clean Rear Camera warning

(if equipped)

GUID-A081A902-5C70-4E43-B3D2-71F9A3651D69

This warning appears if dirt, rain or snow accumulates on the rear camera and cannot be removed by the automatic washer and blower. See “Blind Spot Warning (BSW) system (if equipped for Europe) ” (P.5-36).

42. CVT System Fault warning (for Continu-

ously Variable Transmission (CVT) models)

GUID-CD1EE263-9177-4863-B0D7-3235AB4C2F77

This warning appears when there is a malfunction with the CVT system. If this warning comes on, have the system checked by a NISSAN dealer.

43. Navigation indicator (if equipped)

GUID-A0ACEBD4-5BCB-4F36-B594-C27D3C61E41C

This indicator appears when a corner point is coming.

44. Stop/Start System or Idling Stop System indicator (if equipped)

GUID-983E95D3-0E17-413D-8088-8197FA3E767D

This indicator shows the Stop/Start System or Idling Stop System status. See “Stop/Start System or Idling Stop System” (P.5-18).

45. System fault warning (if equipped)

GUID-4444650A-081A-4768-8521-583068E7E6C0

This warning appears when the Driver Attention Alert system malfunctions.

For more details, see “Driver Attention Alert” (P.2-36).

46. System fault warning (if equipped)

GUID-389FB697-B268-42F7-AF08-1A20E8CADE9C

This warning appears when the Traffic Sign Recognition system malfunctions.

For more details, see “Traffic Sign Recognition” (P.2-

37).

47. System fault warning (if equipped)

GUID-6BC03A52-AC77-4150-B41E-C37ED5C2E7C1

This warning appears when the forward emergency braking system malfunctions.

For more details, see “Forward emergency braking system” (P.5-45).

48. Not Available Front Radar Obstruction warning (if equipped)

GUID-B918C838-18FC-4E97-93CB-4724CE47BDC3

If the sensor area of the front bumper is covered with dirt or obstructed, making it impossible to detect a vehicle ahead, the forward emergency braking system is automatically turned off. The forward emergency braking system warning light (orange) will illuminate and the [Not Available Front Radar Obstruction] warning message will appear in the vehicle information display. If the [Not Available Front Radar Obstruction] warning message appears, park the vehicle in a safe

location and turn the engine off. Check to see if the sensor area of the front bumper is

blocked. If the sensor area of the front bumper is blocked, remove the blocking material. Restart the engine. If the warning light continues to illuminate, have the forward emergency braking system checked by a NISSAN dealer.

49. Not available High cabin temperature warning (if equipped)

GUID-DACEB17F-898D-45A8-ABF0-07A342413B64

This warning appears if the interior temperature of the vehicle has reached such a high temperature that the sensor for the Traffic Sign Recognition and Lane Departure warning systems can no longer function reliably. Once the interior temperature has reached normal levels, the warning should disappear.

If the warning continues to display, have the system checked by a NISSAN dealer.

50. Parking Sensor System Fault warning (if equipped)

GUID-5581C82C-9384-4E26-9F4E-254058191995

This warning illuminates when there is a problem with the parking sensor system. If this warning comes on, have the system checked by a NISSAN dealer.

Condition: 'Except for China'/

Page 89

(89,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

OIL CONTROL SYSTEM (for diesel engine model)

GUID-F5E35C98-7F4D-4E23-9665-7CEF2BF92803

JVI0988X

When the ignition switch is in the “ON” position, engine oil information is displayed.

Engine oil information informs the distance to oil change, oil level indication and malfunction of oil level sensor.

1. Distance to oil change

GUID-0C6CE119-CD5D-44E4-907C-B28ACCB06747

The distance to oil change is displayed if the distance to oil change is less than 1,500 km (930 miles) .

2. Oil replacement indicator

GUID-537E1CBF-A948-4E30-BE63-AC30F47F8075

When the set mileage approaches, the engine oil replacement indicator will appear on the display. After the oil is changed, reset the distance to oil change. The oil replacement indicator will not be reset automatically. To reset this indicator, see “Settings” (P.2-21).

The distance to oil change interval cannot be adjusted manually. The distance to oil change interval is set automatically.

CAUTION:

If the oil replacement indicator is displayed, change the engine oil as soon as possible. Operating your vehicle with deteriorated oil can damage the engine.

3. Low level reminder

GUID-B0ADD144-90CE-4C0F-BF0D-306D7D7AFEF0

If the low level indicator is displayed, the engine oil level is low. If the low level reminder is displayed, check the level using the engine oil dipstick. (See “Engine oil” (P.8-10).)

CAUTION:

The oil level should be checked regularly using the engine oil dipstick. Operating with an insufficient amount of oil can damage the

engine and such damage is not covered by the warranty.

4. Oil level sensor warning

GUID-A99E9E17-0261-4EDD-8396-B6B68FFB9EAF

If the oil sensor warning is displayed, the engine oil level sensor may be malfunctioning. Contact a NISSAN dealer immediately.

Instruments and controls 2-33

Condition: 'Except for China'/

Page 90

(90,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-34 Instruments and controls

TRIP COMPUTER

GUID-16910388-C40D-4FCA-8490-D504D64878A0

JVI0986X

Condition: 'Except for China'/

Page 91

(91,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

1-2. Driving aids (if equipped)

GUID-1EC5FD58-F86A-452E-A3B1-FC762082EBFC

The driving aids mode shows the operating condition for the following systems.

. Lane Departure Warning (LDW) . Blind Spot Warning (BSW) . Forward Emergency Braking (if equipped)

For more details, see “Blind Spot Warning (BSW)/ Lane Departure Warning (LDW) systems” (P.5-31), “Forward emergency braking system” (P.5-45), “Blind Spot Warning (BSW) system (if equipped for Europe) ” (P.5-36) or “Lane Departure Warning (LDW) system (if equipped for Europe)” (P.5-39).

3. Speed and Average speed (km/h or MPH)

GUID-2595FB2A-042A-4F44-960A-DBB6B44ECD8F

The (digital) speed shows the current speed at which the vehicle is travelling.

The average speed mode shows the average vehicle speed since the last reset. Resetting is done by pushing the ENTER

(Type A) or

(Type B)

switch for longer than 1 second. The display is updated every 30 seconds. The first 30

seconds after a reset, the display shows “—–”.

4. Average speed (km/h or MPH)

GUID-46402B30-C682-4751-94BB-468B9070A88D

The average speed mode shows the average vehicle speed since the last reset. Resetting is done by pushing the ENTER

(Type A) or

(Type B)

switch for longer than 1 second. The display is updated every 30 seconds. The first 30

seconds after a reset, the display shows “—–”.

5-6. Elapsed time and trip odometer (km or mile)

GUID-29620F29-C173-4C39-8FA4-0268AD527CD3

Elapsed time:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The elapsed time mode shows the time since the last reset. The displayed time can be reset by pushing the ENTER

(Type A) or

(Type B) switch for longer than 1 second. (The trip odometer is also reset at the same time.)

Trip odometer:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The trip odometer mode shows the total distance the vehicle has been driven since the last reset. Resetting is done by pushing the ENTER

(Type A) or

(Type B) switch for longer than 1 second. (The

elapsed time is also reset at the same time.)

7. Distance to empty (dte — km or mile)

GUID-D8755900-BA82-4CA1-B137-5DF6AF6576DD

The distance to empty (dte) mode provides you with an estimation of the distance that can be driven before refueling. The dte is constantly being calculated, based on the amount of fuel in the fuel tank and the actual fuel consumption.

The display is updated every 30 seconds. The dte mode includes a low range warning feature. If

the fuel level is low, the warning is displayed on the screen.

When the fuel level drops even lower, the dte display will change to “——”.

. If the amount of fuel added is small, the display

just before the ignition switch is placed in the “OFF” position may continue to be displayed.

. When driving uphill or rounding curves, the fuel in

the tank shifts, which may momentarily change the display.

8-9. Fuel economy (l (litre)/100 km, km/l(litre) or MPG)

GUID-B5D9FEEB-074C-4E3A-A0E2-8E0268A990C7

Current fuel consumption:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The current fuel consumption mode shows the current fuel consumption.

Average fuel consumption:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The average fuel consumption mode shows the average fuel consumption since the last reset. Resetting is done by pushing the ENTER

(Type A) or

(Type B) switch for longer than 1 second.

The display is updated every 30 seconds. For about the first 500 m (1/3 mile) after a reset, the display shows “——”.

10. Audio (if equipped)

GUID-29443D83-E73B-4CAE-AEA0-08FD317D9E5B

The audio mode shows the status of audio information.

11. Navigation (if equipped)

GUID-A164C653-CED8-49F4-8576-81E50749D665

When the route guidance is set in the navigation system, this item shows the navigation route information.

12. Compass (if equipped)

GUID-BD7DB697-776A-4539-A5A9-55381B2AD02D

This display indicates the heading direction of the vehicle.

13. “4x4-i” display (if equipped)

GUID-6160F57A-6E13-4425-B26D-6825D16A12CD

When the “4x4-i” display is selected, you can view the distribution ratio of the transmission torque to the front and rear wheels during driving.

Instruments and controls 2-35

Condition: 'Except for China'/

Page 92

(92,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-36 Instruments and controls

14. Chassis control

GUID-869FF358-E269-4A5A-BA18-1921FD93603F

When Active Trace Control, Active Engine Brake or Active Ride Control system is operated, it shows the operating condition. It also shows operating condition of Hill Start Assist or the Hill Descent Control. See “Active Trace Control” (P.5-28), “Active Engine Brake (Continuously Variable Transmission (CVT) models)” (P.5-28), “Active Ride Control” (P.5-29), “Hill Start Assist system” (P.5-30) or “Hill descent control system” (P.5-30) for more details.

15. Tyre Pressures (if equipped)

GUID-0023E777-0057-4349-9A1D-2E51F69EEB28

The tire pressure mode shows the pressure of all four tyres while the vehicle is driven.

When the Low Tyre Pressure warning appears, the display can be switched to the tire pressure mode by pushing the ENTER switch

to reveal additional

details on the displayed warning.

16. Driver Attention Alert system (if equipped)

GUID-36827261-8F9C-4388-9529-475E767E148C

When the “Driver Attention Alert” display is selected, you can view your attention level as detected by the system. For more information see “Driver Attention Alert” (P.2-36).

17. Stop/Start System or Idling Stop System (if equipped)

GUID-258D3265-C574-4352-9FED-EB219DF828CE

The Stop/Start System or Idling Stop System mode shows the CO2 or fuel savings and the engine stop time. (See “Stop/Start System or Idling Stop System” (P.5-18).)

Trip CO2 or fuel saving and engine stop time:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The trip CO2 or fuel saving and engine stop time mode shows amount of CO2 or fuel saved and the engine stop time since the last reset.

The CO2 or fuel saving and engine stop time can be

reset by pushing the ENTER switch

(Type A) or

(Type B) in the “Stop/Start” menu. For more

information, see “Display Settings” (P.2-22).

Total CO2 or fuel saving and engine stop time:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

The total CO2 or fuel saving and engine stop time mode shows:

. The estimated CO2 exhaust emissions prevented.

(for Europe and South Africa)

. The estimated quantity of saved fuel. (for Australia

and New Zealand)

. The time that the engine has been stopped for by

the Stop/Start System or Idling Stop System.

NOTE: The Total CO2 or fuel saving and engine stop

time values cannot be reset and show accumulated Stop/Start System or Idling Stop System information since the vehicle was built.

18. Traffic Sign Recognition (if equipped)

GUID-C22DF58C-CD47-45F9-8CFC-2B5D3E42F62D

The Traffic Sign Recognition (TSR) system provides the driver with information about the most recently detected speed limit. For more details, see “Traffic Sign Recognition” (P.2-37).

CLOCK AND OUTSIDE AIR TEMPERATURE

GUID-E27E1606-2B37-4B43-92B1-ED0349E35346

JVI0932X

The clock

and outside air temperature

are displayed on the upper side of the vehicle information display.

Clock

T32A130827-CA60079E-C0A7-4156-9588-074D8F0DC1C 9

For clock adjustment, see “Clock” (P.4-6) or “Audio settings” (P.4-58).

Outside air temperature (8C or 8F )

GUID-7885796A-D264-4AB0-9D1B-EA2294C088A3

The outside air temperature is displayed in 8C or 8F in the range of −40 to 608C (−40 to 1408F ) .

The outside air temperature mode includes a low temperature warning feature. If the outside air temperature is below 38C (378F), the warning

displayed on the screen (if equipped) . The outside temperature sensor is located in front of

the radiator. The sensor may be affected by road or engine heat, wind directions and other driving conditions. The display may differ from the actual outside temperature or the temperature displayed on various signs or billboards.

DRIVER ATTENTION ALERT (if equipped)

GUID-3F4DD0FC-EDBD-4CCC-8B0E-DA2B1513CDD 0

The [Driver Attention] option can be used to activate or deactivate the Driver Attention Support feature. This system is able to detect whether the driver is displaying a lack of attention, or is distracted.

It does this by monitoring driving style, and steering behavior, and it notes deviations from the normal pattern. If the system detects that driver attention is decreasing, the system uses an audible and visual warning to suggest that the driver take a break.

WARNING:

This system is not designed to assist driving impaired due to fatigue, or other causes. Be attentive at all times, and avoid driving when

Condition: 'Except for China'/

Page 93

(93,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

tired. Failure to do so could cause you to lose control of the vehicle, resulting in a serious accident.

System operation

GUID-0B3AD093-EEF1-40B9-8695-B2ABA1B786CC

JVI0991X

If the system detects that driver attention is decreasing, the message “Time for a driver break?” appears in the vehicle information display and a buzzer sounds when the vehicle is driven at speeds above 60 km/h (37 MPH).

Attention level indicator:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVI0992X

When the “Driver attention” display is selected, you can view your attention level as detected by the

system. For more information see “Settings” (P.2-21).

NOTE: . The attention level indicator consists of

eight levels.

. When stopping the engine, the system is

reset.

Turning the Driver Attention Alert system on and off

GUID-CAEA4B27-0BBE-4162-989F-3A0A3B28B80C

To activate or deactivate this function, see “Settings” (P.2-21).

NOTE: The setting will be retained even if the engine is

restarted.

System Malfunction

GUID-9B32811F-1E3D-485A-BE8E-BEE91D110087

If the Driver Attention Alert system malfunctions, the system warning message will appear in the vehicle information display and the function will be stopped automatically.

Action to take:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

Stop the vehicle in a safe location, and then turn off and restart the engine. If the system warning message continues to appear, have the system checked by a NISSAN dealer.

TRAFFIC SIGN RECOGNITION (if equipped)

GUID-B4DC19B1-EA1A-43B9-940E-735647D4C6F8

JVI0975X

The Traffic Sign Recognition (TSR) system provides the driver with information about the most recently detected speed limit. The system captures the road sign information with the multi-sensing front camera unit

located on the windshield in front of the inside rearview mirror and displays the detected signs in the vehicle information display. For vehicles equipped with navigation system, the speed limit displayed is based on a combination of navigation system data and live camera recognition. TSR information is always displayed at the top of the vehicle information display, and optionally in the main central area of the display screen.

WARNING:

The TSR system is only intended to be a support device to provide the driver with information. It is not a replacement for the driver’s attention to traffic conditions or responsibility to drive safely. It cannot prevent accidents due to carelessness. It is the driver’s responsibility to stay alert and drive safely at all times.

Instruments and controls 2-37

Condition: 'Except for China'/

Page 94

(94,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-38 Instruments and controls

System operation

GUID-7C2EFAA2-1216-43AB-AED6-957C5B6F668D

The traffic recognition system displays the following types of road sign:

JVI1004X

JVI0973X

Latest detected speed limit.

National speed limit

No speed limit information.

No-overtaking zone.

End of no-overtaking zone.

Conditional speed limit, with the following

available conditions:

Snow

Slip (rain 1)

Rain (rain 2)

Towing

Generic

CAUTION:

. The Traffic Sign Recognition (TSR) system is

intended as an aid to careful driving. It is the driver’s responsibility to stay alert, drive safely, and observe all road regulations that currently apply, including looking out for road signs.

. The Traffic Sign Recognition (TSR) system

may not function properly under the following conditions:

— When rain, snow or dirt adheres to the

windshield in front of the TSR camera unit.

— When the headlights are not bright due

to dirt on the lens or if the aiming is not adjusted properly.

— When strong light enters the camera

unit. (For example, the light directly shines on the front of the vehicle at sunrise or sunset.)

— When a sudden change in brightness

occurs. (For example, when the vehicle enters or exits a tunnel or under a bridge.)

— In areas not covered by the navigation

system.

— If there are deviations in relation to the

navigation, for example due to changes in the road routing.

— When overtaking buses or trucks with

speed stickers.

Condition: 'Except for China'/

Page 95

(95,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Turning the TSR system on and off

GUID-1E6BCBF6-FF04-4185-8DA1-454630A7E519

Turning the LDW system on or off is done using the [Settings] menu in the vehicle information display. For details, see “Vehicle information display” (P.2-20).

Perform the following steps to enable or disable the TSR system:

1. In the [Settings] menu, select the [Driver Assistance] key.

2. Touch [Traffic Sign] to turn the system ON/OFF.

System temporarily unavailable

GUID-BA4EC994-FA78-43F4-8A11-6FA33E2CC5A5

If the vehicle is parked in direct sunlight under high temperature conditions (over approximately 408C (1048F ) and then started, the TSR system may be deactivated automatically. The [Not available high cabin temperature] warning message will appear in the vehicle information display.

Action to take:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

When the interior temperature is reduced, the TSR system will resume operating automatically.

System Malfunction

GUID-CB9A153C-B940-4796-BEC6-E0CED93B2DA4

If the TSR system malfunctions it will be turned off automatically and the system [Malfunction]/[System error] warning message will appear in the vehicle information display.

Action to take:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

If the TSR [Malfunction]/[System error] message appears, pull off the road at a safe location and stop the vehicle. Turn the engine off and restart the engine. If the TSR [Malfunction]/[System error] message continues to appear, have the system checked by a NISSAN dealer.

Maintenance

GUID-4011F179-FBB0-4982-88ED-C90E38F62B76

The TSR uses the same multi-sensing front camera unit that is used by the Lane Departure Warning (LDW) system, located in front of the interior rearview mirror. For maintenance of the camera, see “Multisensing camera unit maintenance” (P.5-41).

T32A130827-AE66DA86-EADA-49AF-BE4F-98EA59F26D 29

HEADLIGHT SWITCH

T32A130827-2D45301A-C88C-4C7B-B333-62ABD6D57 6C9

JVI0854X

Type A

JVI0859X

Type B

NISSAN recommends that you consult the local regulations concerning the use of lights.

position

T32A130827-22A6378D-658B-4901-AA34-6B632DCB958D

The position turns on the front clearance, tail, license plate and instrument panel lights.

Instruments and controls 2-39

HEADLIGHT AND TURN SIGNAL SWITCH

Condition: 'Except for China'/

Page 96

(96,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-40 Instruments and controls

position

T32A130827-7DA4961D-ADB9-48C2-AF3E-CB8FF4FAA66E

The position turns on the headlights in addition to the other lights.

AUTO position (if equipped)

T32A130827-42005CFF-F09D-4D2E-B51A-EA900BA8AB9 5

When the ignition switch is in the “ON” position and the headlight switch is in the “AUTO” position, the headlights, front clearance lights, instrument panel lights, rear combination lights and other lights turn on automatically depending on the brightness of the surroundings.

The headlights will turn on automatically at twilight or in rainy weather (when the windshield wiper is operated continuously).

When the ignition switch is placed in the “LOCK” or “OFF” position, the lights will turn off automatically.

JVI0510X

CAUTION:

Do not place any objects on top of the sensor

. The sensor senses the brightness level and

controls the autolight function. If the sensor is covered, it reacts as if it is dark, and the headlights will illuminate.

Headlight beam

T32A130827-9CEFEA7E-F212-4D2D-A4BD-2DF2318D931E

JVI0856X

Type A

JVI0994X

Type B

To turn on the high beam, push the lever towards the front position

To turn off the high beam, return the lever to the neutral position

To flash the headlights, pull the lever towards the rearmost position

. The headlights can be flashed

even when the headlights are not on. If equipped, when the lever is pulled towards the

rearmost position

after the ignition switch is placed in the “OFF” or “LOCK” position, the headlight will turn on and stay on for 30 seconds. The lever can

be pulled 4 times for up to 2 minutes.

High beam assist (if equipped)

GUID-A9E44EB1-B8C0-468F-A5B4-1A9C35090997

The high beam assist system will operate when the vehicle is driven at speeds of approximately 40 km/h (25 MPH) and above. If an oncoming vehicle or leading vehicle appears in front of your vehicle when the headlight high beam is on, the headlight will be switched to the low beam automatically.

Precautions on high beam assist:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

WARNING:

. The high beam assist system is a conve-

nience but it is not a substitute for safe driving operation. The driver should remain alert at all times, ensure safe driving practices and switch the high beam and low beam manually when necessary.

. The high beam or low beam may not switch

automatically under the following conditions. Switch the high beam and low beam manually.

— During bad weather (rain, fog, snow,

wind, etc.) .

— When a light source similar to a head-

light or tail light is in the vicinity of the vehicle.

— When the headlights of the oncoming

vehicle or the leading vehicle are turned off, when the color of the light is affected due to foreign materials on the lights, or when the light beam is out of position.

Condition: 'Except for China'/

Page 97

(97,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

— When there is a sudden, continuous

change in brightness.

— When driving on a road that passes over

rolling hills, or a road that has level differences.

— When driving on a road with many

curves.

— When a sign or mirror-like surface is

reflecting intense light towards the front of the vehicle.

— When the container, etc. being towed by

a leading vehicle is reflecting intense light.

— When a headlight on your vehicle is

damaged or dirty.

— When the vehicle is leaning at an angle

due to a punctured tire, being towed, etc.

. The timing of switching the low beam and

high beam may change under the following situations.

— The brightness of the headlights of the

oncoming vehicle or leading vehicle.

— The movement and direction of the

oncoming vehicle and the leading vehicle.

— When only one light on the oncoming

vehicle or the leading vehicle is illuminated.

— When the oncoming vehicle or the lead-

ing vehicle is a two-wheeled vehicle.

— Road conditions (incline, curve, the road

surface, etc.) .

— The number of passengers and the

amount of luggage.

High beam assist operations:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

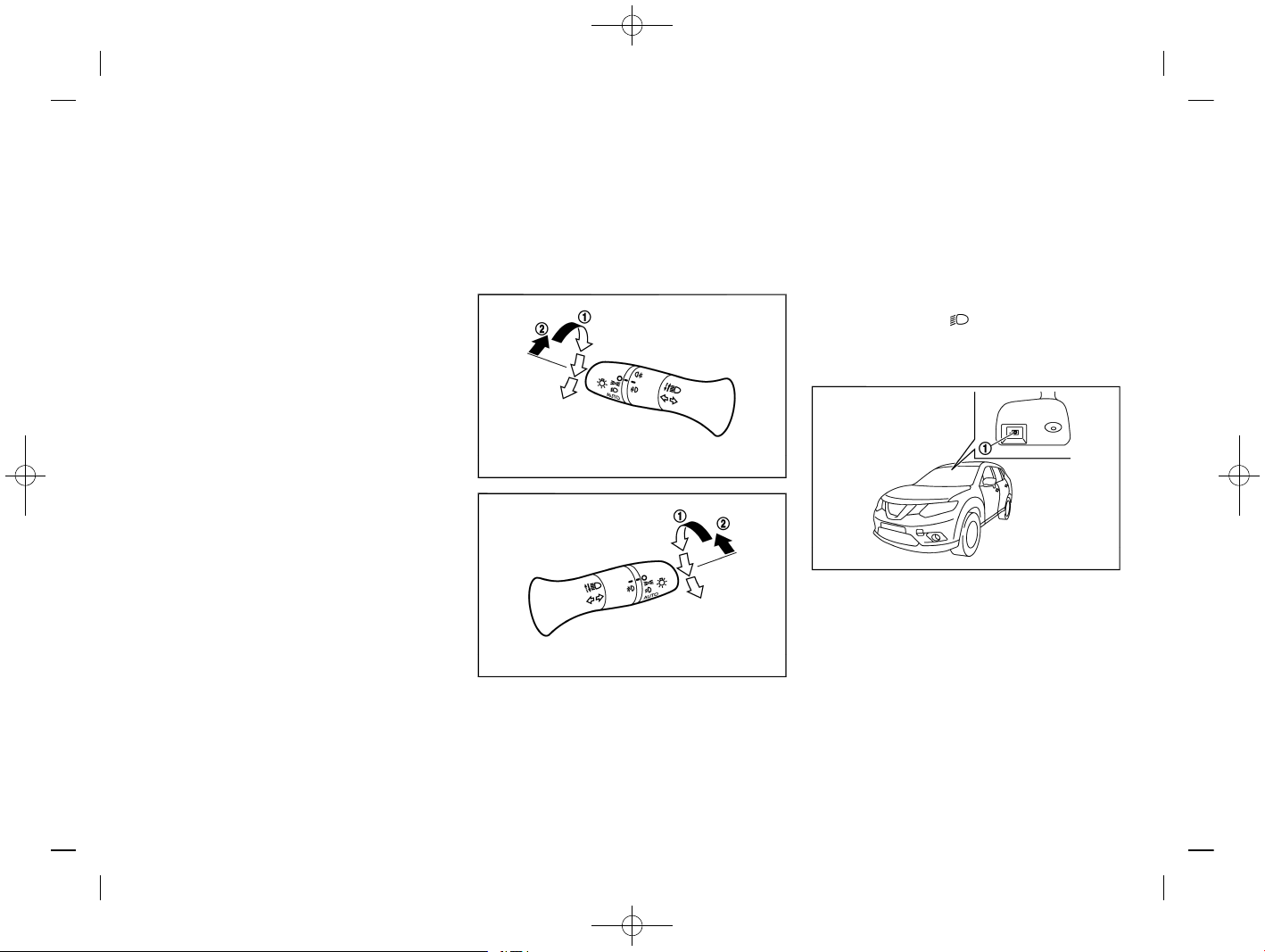

JVI0974X

Type A

JVI0996X

Type B

To activate the high beam assist system, turn the headlight switch to the “AUTO” position

and push

the lever forward

(high beam position) . The high beam assist indicator light in the meter will illuminate while the headlights are turned on.

If the high beam assist indicator light does not

illuminate in the above condition, it may indicate that the system is not functioning properly. Have the system checked by a NISSAN dealer.

When the vehicle speed lowers to less than approximately 25 km/h (16 MPH), the headlight remains the low beam.

To turn off the high beam assist system, turn the headlight switch to the

position or select the low beam position by placing the lever in the neutral position.

Ambient image sensor maintenance:

GUID-22018305-9BAB-4201-B6FC-C08EB94AEAE0

JVI0975X

The ambient image sensor

for the high beam assist system is located in front of the inside rearview mirror. To keep the proper operation of the high beam assist system and prevent a system malfunction, be sure to observe the following:

. Always keep the windshield clean. . Do not attach a sticker (including transparent

material) or install an accessory near the ambient image sensor.

. Do not strike or damage the areas around the

ambient image sensor. Do not touch the sensor lens that is located on the ambient image sensor.

If the ambient image sensor is damaged due to an

Instruments and controls 2-41

Condition: 'Except for China'/

Page 98

(98,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-42 Instruments and controls

accident, contact a NISSAN dealer.

Daytime running light system

T32A130827-03F4324C-0702-4A59-BBC8-01F30381336D

Even if the headlight switch is * position, the daytime running lights will come on after starting the engine.

When the light switch is turned to the

position, the

daytime running light will turn off.

HEADLIGHT AIMING CONTROL

T32A130827-A1D7D009-92AF-4459-81E1-BE4387A9587 0

JVI0477X

Manual type

T32A130827-76E07AD9-CA96-44FA-AB9E-4D2046E5D91B

The headlight aiming control operates when the ignition switch is in the “ON” position and the headlight is on to allow the headlight axis to be adjusted according to the driving condition.

When driving with no heavy load/luggage or driving on a flat road, select the normal position “0”.

If the number of occupants and load/luggage in the vehicle changes, the headlight axis may become higher than normal.

If the vehicle is traveling on a hilly road, the headlights may directly shine on the rearview and outside mirrors of a vehicle ahead or the windshield of an oncoming vehicle, which may obscure other drivers’ vision.

To adjust to the proper aiming height, turn the switch

accordingly. The higher the number, designated on the switch, the lower the headlight axis.

Select the switch position by referring to the following samples.

Condition: 'Except for China'/

Page 99

(99,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

Two-row model

Switch posi-

tion

Number of

front seat

occupants

Number of

rear seat oc-

cupants

Weight of load in luggage compartment [APPROX. kg ( lb )]

2WD

4WD

MR20 QR25 R9M MR20 QR25

R9M

MT M-CVT CVT M-CVT CVT MT M-CVT M-CVT CVT M-CVT CVT

0 1 or 2

No occu-

pants

No load

1 2

2 2 3

102 kg

(225 lb)

111 kg

(245 lb)

65 kg

(143 lb)

120 kg

(265 lb)

64 kg

(141 lb)

170 kg

(375 lb)

178 kg

(392 lb)

117 kg

(258 lb)

75 kg

(165 lb)

152 kg

(335 lb)

123 kg

(271 lb)

252 kg

(556 lb)

3 1

No occu-

pants

305 kg

(673 lb)

318 kg

(701 lb)

251 kg

(553 lb)

318 kg

(701 lb)

266 kg

(587 lb)

365 kg

(805 lb)

371 kg

(818 lb)

322 kg

(710 lb)

269 kg

(593 lb)

359 kg

(792 lb)

332 kg

(732 lb)

436 kg

(961 lb)

Three-row model

Switch posi-

tion

Number of

front seat

occupants

Number of

second row

seat occu-

pants

Number of

third row

seat occu-

pants

Weight of load in luggage compartment [APPROX. kg ( lb )]

2WD

4WD

MR20 QR25 R9M QR25

R9M

MT M-CVT CVT M-CVT CVT MT M-CVT M-CVT

0 1 or 2

No occu-

pants

No occu-

pants

No load

1 2

No occu-

pants or 3

2 2 3 2

95 kg

(209 lb)

62 kg

(137 lb)

61 kg

(135 lb)

134 kg

(295 lb)

57 kg

(126 lb)

137 kg

(302 lb)

142 kg

(313 lb)

30 kg (66

lb)

141 kg

(311 lb)

3 1

No occu-

pants

No occu-

pants

472 kg

(1041 lb)

438 kg

(966 lb)

428 kg

(944 lb)

509 kg

(1122 lb)

420 kg

(926 lb)

524 kg

(1155 lb)

515 kg

(1136 lb)

474 kg

(1045 lb)

525 kg

(1158 lb)

Instruments and controls 2-43

Condition: 'Except for China'/

Page 100

(100,1)

[ Edit: 2014/ 11/ 7 Model: T32-A ]

2-44 Instruments and controls

Automatic type

T32A130827-66387FF4-1CC3-4BDA-8563-27530E288 1E3

The headlights are equipped with the automatic leveling system. Headlight axis is controlled automatically.

BATTERY SAVER SYSTEM

T32A130827-61CE9F9B-3E2D-4043-B79E-11558E12A2B 4

The light reminder chime will sound if the headlight switch is in either the

or position and when the driver’s door is opened with the ignition switch in the “OFF” or “LOCK” position.

Type A:

If the ignition switch is placed in “OFF” or “LOCK” position while the headlight switch is in the

position, the battery saver function will turn off the lights after a period of time to prevent the battery from being discharged. The lights will turn on when the doors are being opened.

Type B:

If the ignition switch is placed in “OFF” or “LOCK” position while the headlight switch is in the

position, the battery saver function will turn off the lights after opening the driver’s side door.

HEADLIGHT CLEANER (if equipped)

GUID-1CA84B69-AE3D-46F1-9857-AC539E6ACDC6

JVI1002X

Headlight cleaner switch (if equipped)

The headlight cleaner operates when the headlight is on and the ignition switch is in the “ON” position.

To operate the headlight cleaner:

. Push the headlight cleaner switch (if equipped) . Pull the windshield washer switch toward you.

— The headlight cleaner operates with the wind-

shield washer operation. This operation activates once each time either the ignition switch or the headlight switch is turned off and on.

— After the first operation, the headlight cleaner

operates once at every fifth operation of the windshield washer.

See “Wiper and washer switch” (P.2-47).

CAUTION:

. Do not operate the washer if the window

washer fluid reservoir is empty.

TURN SIGNAL SWITCH

T32A130827-37FAA258-280A-4947-AF44-BF748654C1C2

JVI0857X

Type A

JVI0995X

Type B

CAUTION:

The turn signal switch will not be cancelled automatically if the steering wheel turning angle does not exceed the preset amount. After the turn or lane change, make sure that the turn signal switch is returned to its original position.

Condition: 'Except for China'/
