NISSAN

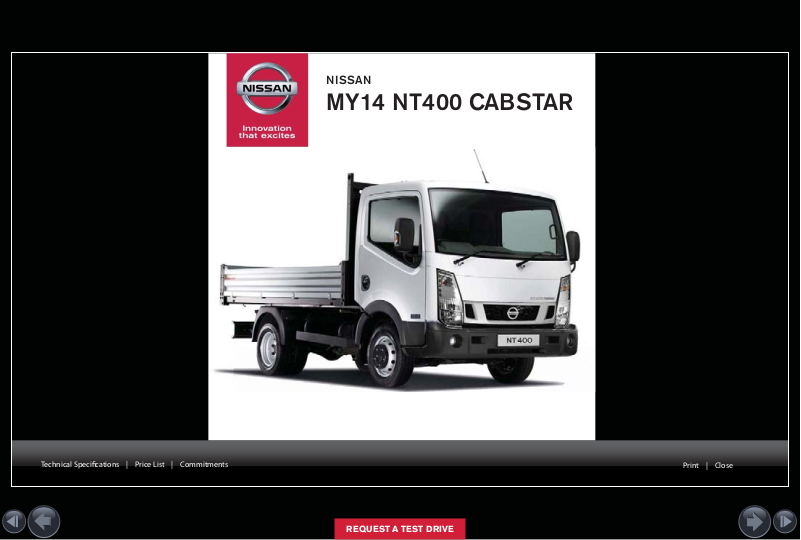

MY14 NT400 CABSTAR

cations | Price List | CommitmentsTechnical Speci

REQUEST A TEST DRIVE

Print | Close

GRADES

34.12 SWB

35.14 SWB

MWB

LWB

Maximum efficiency with an advanced functional interior, best in class payload and comfort at a reduced cost of ownership. What more could your business need? Available in three wheelbases and with a choice of threeseat single cab or six-seat double cab, NT400 Cabstar can be specified as a dropside, tipper, box van or as a chassis cab ready for conversion. Each model is equipped with a refined Common Rail diesel engine, with either 5 or 6 speed gear box.

* Not available on 45.15 version ** Standard on 4.5T at no cost *** Mandatory on 4.5T models # When vehicle equipped with optional AC

NB: 4.5T GVW conversions are by special arrangement

2.5DCI 5 SPEED

SINGLE TILT CAB SINGLE REAR WHEELS

SAFETY & SECURITY

• Driver airbag

• Daytime running lights

• Keyless entry

• Alarm

• Immobiliser

• Front bumper with shock absorber

• Lockable tilting cabin system

• Reinforced cabin structure

• Front fog lamps

• Seatbelts with pretensioners

• Spare wheel & wheel chock

• E type rear bumper

• Wheel cover

• Interior dazzle mirror

• ESP

COMFORT AND CONVENIENCE

• Radio CD player with Bluetooth®

• Multi display combimeter

• Power windows

• Numerous storage areas including:

- A4 storage

- chilled cup holders and glove box

- document glovebox

- overhead storage

- foldaway centre clipboard tray (in the back of middle seat)

3.4T BODY OPTIONS

• Chassis

• Tipper

• Dropside

OPTIONS

• Metallic paint

• Digital tachograph

• Front air conditioning

2.5DCI 6 SPEED

SINGLE TILT CAB TWIN REAR WHEELS

ADDITIONAL SPEC TO 34.12 SWB

SAFETY & SECURITY

• Limited slip differential*

• Reinforced rear suspension

3.5T BODY OPTIONS

• Chassis

• Tipper

• Dropside

• Box

• Freezer / Chiller Box

OPTIONS

• Metallic paint

• Digital tachograph

• Front air conditioning

2.5DCI 6 SPEED

SINGLE TILT CAB OR DOUBLE FIXED CAB TWIN REAR WHEELS

ADDITIONAL SPEC TO 35.14 SWB

SAFTEY & SECUR ITY

• Speed limiter (56mph***)

COMFORT AND CONVENIENCE

• Power and heated mirrors

• Rear heater (Double cab versions)

• High capacity battery (110 Ah/12V)

• Heated seat

OPTIONS

• Metallic Paint

• Digital Tachograph**

• Front Air Conditioning

3.5T BODY OPTIONS

• Chassis

• Tipper

• Dropside

• Box van (Single cab only)

• Freezer / Chiller Box (Single cab only)

2.5 DCI 6 SPEED

SINGLE TILT CAB OR DOUBLE FIXED CAB TWIN REAR WHEELS

ADDITIONAL SPEC TO MWB

COMFORT AND CONVENIENCE

• Upper seat cloth trim

• Interior trim on back panel and pillars (Single cab version)

OPTIONS

• Metallic Paint

• Digital Tachograph**

• Front Air Conditioning

3.5T BODY OPTIONS

• Chassis

• Tipper (Double cab only)

• Dropside (Single cab only)

• Box van (Single cab only)

cations | Price List | CommitmentsTechnical Speci

Print | Close

REQUEST A TEST DRIVEREQUEST A TEST DRIVE

34.12 35.14 35.15

CAB Single Cab Single Cab Double Cab Single Cab Double Cab

NT400 CABSTAR

3.4T & 3.5T

ENGINE PERFORMANCE (according to EC 8

Maximum engine power kW(PS)/rpm 90 (121) @ 3600 100 (136) @ 3600 107 (145) @ 3400

Maximum engine torque Nm/rpm 250 @ 1600-2800 270 @ 1600-3200 350 @ 1600-2800

Emission class Euro 5b OBD+ (EC) 715/2007 – (UE) 566/2011

ENGINE DESCRIPTION

No. of cylinders, conﬁ guration 4, in line

alves per cylinder, 4, DOHC

Air intake system Turbo intercooler

Control system ECCS

Engine displacement cc 2488

Bore x Stroke mm 89 x 100

Compression ratio 15.9 :1

Fuel type Diesel

Fuel supply Direct Injection + Common Rail

Emission control system EGR + Catalyst + Diesel Particulate Filter

Electrical system V 12

Starter Kw 2.2

Alternator Amps 150

TRANSMISSION SPECIFICATION

Clutch type Dry

Transmission type 5 speed M/T 6 speed M/T 6 speed M/T

Gear ratio 1st 4.66 5.36 5.3 6

Final Drive type Single reduction of hypoid

Final Drive Ratio 4.11 3.90 4.11

0/1269 directive)

ENGINE YD25 K3 L

TRANSMISSION 5MT 6MT 6MT

GVW (T) 3.4 3.5 3.5

RR WHEEL SINGLE RR WHEEL 15" TWIN RR WHEEL 15" TWIN RR WHEEL 15»

WHEELBASE SWB SWB MWB LWB MWB LWB LWB LWB

2nd 2.39 3.15 3.15

3rd 1.38 2.04 2.04

4th 1.00 1.37 1.37

5th 0.83 1.00 1.00

6th N/A 0.79 0.79

Rev 4.09 4.83 4.83

o YD25 K3 Mo YD25 K3 Ho

, single plate with Hydraulic control

type

Single reduction of hypoid type Single reduction of hypoid type

34.12 35.14 35.15

CAB Single Cab Single Cab Double Cab Single Cab Double Cab

ENGINE YD25 K3 L

TRANSMISSION 5MT 6MT 6MT

GVW (T) 3.4 3.5 3.5

RR WHEEL

WHEELBASE SWB SWB MWB LWB MWB LWB LWB

CHASSIS

Frame type C Section steel longitudinal side members and riveted cross members

rame width mm 752

Section mm 128 x 52 x 4

Front Suspension Independent, Double Wishbone with one transversal leaf, with shock absorbers and stabiliser bar

Rear Suspension Parabolic leaf spring with shock absorbers and stabiliser bar

Steering System Rack & Pinion, Power Assisted

Turning radius, wall to wall m 10.58 10.5 11.85 13.45 11.92 13.54 13.4 6 13.54

Turning radius, kerb to kerb m 9.61 9.58 10.85 12.45 10.93 12.54 12.45 12.54

Brakes System Dual hydraulic circuit with vacuum servo assistance

Front type Ventilated Discs, PF 2 x 48, Øef= 231

Rear type Solid Disc, PFC 1 x 46 Øef= 238

Wheels size Front 5 J 15, single 5 J 15, single 5 J 15, single

Rear 5 J 15, single 5 J 15, twin 5 J 15 twin

Wheel bolts 5 x M16 5 x M16 5 x M16

Tyre size 205/70 R 15 195/70 R 15 195/70 R 15

FUEL TANK

Fuel Tank Capacity ltrs 90, right side

PERFOR MANCE (at GVW and Std ﬁ nal drive)

Maximum speed (0% grade) [N2&N3 speed limit at 90 Km/h] km/h 131.8 134.5 136

PH 81.9 83.6 85

rpm engine at 90 Km/h 2518 2274 2361

Max ascending grade % >30 >30 >30

Max starting ascending grade % >30 >30 >30

DOOR & SEATING CAPACITY

Number of seats 1st row 3 3 3

2nd row

FUEL CONSUMPTION & EMISSIONS

Fuel Consumption (Urban Cycle) l/100 km / M PG 12 / 23.54 10.5 / 26.9 11.2 / 25.22

uel Consumption (Extra - Urban) l/100 km / MPG 8.5 / 33.23 8.2 / 34.45 8.8 / 32.1

Fuel Consumption (Combined) l/100 km / MPG 9.8 / 28.82 9.1 / 31.04 9.7 / 29.12

mass emissions (Combined) g/km 257 238 255

SINGLE RR WHEEL

o YD25 K3 Mo YD25 K3 Ho

15"

N/A N/A 3 N/A 3

TWIN RR WHEEL 15" TWIN RR WHEEL 16»

cations | Price List | CommitmentsTechnical Speci

Print | Close

REQUEST A TEST DRIVE

NT400 CABSTAR

4.5T

ENGINE PERFORMANCE (according to EC 8

Maximum engine power kW(PS)/rpm 100 (136) @ 3600 107 (145) @ 3400

Maximum engine torque Nm/rpm 270 @ 1600-3200 350 @ 1600-2800

Emission class Euro 5b OBD+ (EC) 715/2007 – (UE)

ENGINE DESCRIPTION

No. of cylinders, conﬁ guration 4, in line

Valves per cylinder, 4, DOHC 4, DOHC

Air intake system Turbo intercooler Turbo intercooler

Control system

Engine displacement cc 2488 24 88

Bore x Stroke mm 89 x 100 89 x 100

Compression ratio 15.9 : 1 15.9 : 1

Fuel type Diesel Diesel

Fuel supply Direct Injection + Common Rail Direct Injection + Common Rail

Emission control system EGR + Catalyst + Diesel Particulate Filter EGR + Catalyst + Diesel Particulate Filter

Electrical system V 12 12

Starter Kw 2.2 2.2

Alternator Amps 150 150

TRANSMISSION SPECIFICATION

Clutch type

ransmission type 6 speed M/T 6 speed M /T

Gear ratio 1st 5.36 5.36

Final Drive type Single reduction of hypoid type Single reduction of hypoid type

Final Drive Ratio 4.11 4.38

0/1269 directive)

CAB Single Cab Double Cab Single Cab Double Cab

ENGINE YD25 K3 Mo

TRANSMISSION 6MT 6MT

GVW (T) 4.5 4.5

RR WHEEL TWIN RR WHEEL 16 " TWIN RR WHEEL 16"

WHEELBASE MWB LWB MWB LWB MWB LWB MWB LWB

2nd 3.15 3.15

3rd 2.04 2.04

4th 1.37 1.37

5th 1.00 1.00

6th 0.79 0.79

Rev 4.83 4.83

45.14 45.15

YD25 K3 Ho

566/2011

ECCS ECCS

Euro 5b OBD+ (EC) – 715/2007 - (U E)

566/2011

4, in line

45.14 45.15

CAB Single Cab Double Cab Single Cab Double Cab

ENGINE YD25 K3 Mo

TRANSMISSION 6MT 6MT

GVW (T) 4.5 4.5

RR WHEEL TWIN RR WHEEL 16" TWIN RR WHEEL 16"

WHEELBASE MWB LWB MWB LWB MWB LWB MWB LWB

CHASSIS

Frame type C Section steel longitudinal side members and riveted cross members

rame width mm 752

Section mm 128 x 52 x 4

Front Suspension Independent, Double Wishbone with one transversal leaf, with shock absorbers and stabiliser bar

Rear Suspension Parabolic leaf spring with shock absorbers and stabiliser bar

Steering System Rack & Pinion, Power Assisted

Turning radius, wall to wall m 11.87 13.48 11.9 13.51 11.87 13.48 11.9 13.51

Turning radius, kerb to kerb m 10.8 12.4 10.89 12.49 10.8 12.4 10.89 12.49

Brakes System Dual hydraulic circuit with vacuum servo assistance (ABS standard)

Front type Ventilated Discs, PF 2 x 52, Øef= 234,6

Rear type Ventilated Discs, PF 2 x 44 Øef= 241

Wheels size

Wheel bolts 6 x M18 6 x M18

Tyre size 185/75 R 16 185/75 R 16

FUEL TANK

Fuel Tank Capacity ltrs

PERFOR MANCE (at GVW and Std ﬁ nal drive)

Maximum speed (0% grade) [N2&N3 speed limit at 90 Km/h] km/h 90 (132.9) 90 (13 0.9)

rpm engine at 90 Km/h 2335 2485

Max ascending grade % >30 >30

Max starting ascending grade % >30 >30

DOOR & SEATING CAPACITY

Number of seats 1st row

FUEL CONSUMPTION & EMISSIONS

Fuel Consumption (Urban Cycle) l/100 km / MPG 10.9 / 25.92 11.5 / 24.56

uel Consumption (Extra - Urban) l/100 km / MPG 8.5 / 33.23 9 / 31.39

Fuel Consumption (Combined) l/100 km / MPG 9.4 / 30.05 9.9 / 28.53

mass emissions (Combined) g/km 24 6 260

Front 5 1/2 J 16, single 5 1/2 J 16, single

Rear 5 1/2 J 16, twin 5 1/2 J 16, twin

90, right side

PH 55.9 (82.6) 55.9 (81.3)

2nd row N /A 3 N/A 3

YD25 K3 Ho

cations | Price List | CommitmentsTechnical Speci

Page 1 | Page 2 | Page 3 | Page 4 | Page 5

Print | Close

| Page 6 | Page 7 | Page 8

REQUEST A TEST DRIVE

CHASSIS VARIANTS

22mmm

Available in 3.4T, 3.5T and 4.5T GVW variants, with 2.5m, 2.9m and 3.4m wheelbases, single or

twin rear wheels and single or double cabs, NT400 Cabstar offers a truly comprehensive

choice to suit your application.

3 WHEEL BASES

2.5m

2.9m

Single cab

Double cab

Double ca

2,265mm (short arm mirror)

2,529mm (long arm mirror)

Single Cab Double Cab

Chassis 3.4T & 3.5T

WB Wheelbase 2,500 2,900 3,4 00 2,900 3,400

AC max Max body width (short arm mirrors) 2,050 2,050

Max body width (long arm mirrors) 2,250 2,250

MW Cabin width inc short arm mirrors 2,265 2,265

Cabin width inc long arm mirrors 2,529 2,529

CW Cabin width exc mirrors 1,870 1,870

Foh Front overhang 1,063 1,063

Roh Rear overhang 983 1,283 1,583 1,283 1,583

LT Overall length 4,546 5,246 6,046 5,246 6,046

W Max length 5,189 5,849 6,674 5,849 6,674

IC Front axle to rear body 599 1,599

LC min Body length min 2,651 2,695 3,353 4,180 4,141 2,079 3,160 3,152

LC max Body length max 3,476 4,136 4,961 3,136 3,961

RW Rear axle width 1,730 1,808 1,808 1,808 1,80 6 1,808 1,808 1,806

VD Front track 1,586 1,573 1,573 1,573 1,573 1,573

VT Rear track 1,518 1,396 1,396 1,396 1,394 1,3 96 1,396 1,394

H1 Height (unladen) 2,122 2,116 2,116 2,116

All ﬁ gures mm

Gross Vehicle Weight Total 3,400 3,500

Front Axle 1,750 1,750

Rear Axle 1,900 2,200

Kerb Weight Total 1,691 1,740 1,761 1,784 1,826 1,921 1,941 1,983

Front Axle 1,235 1,227 1,237 1,248 1,247 1,333 1,346 1,346

Rear Axle 456 513 524 536 579 588 595 637

Payload Total 1,709 1,760 1,739 1,716 1,674 1,579 1,559 1,517

Max. trailer weight (Towing Capacity) braked @ 12% slope 2,000 3,500

Max. trailer weight (Towing Capacity) unbraked 750

Gross Train weight 5,400 7,000

All ﬁ gures kg

SWB MWB LWB MWB LWB

34.12 35.14 35.14 35.14 35.15 35.14 35.14 35.15

3.4m

.4m

cations | Price List | CommitmentsTechnical Speci

Page 1 | Page 2 | Page 3 | Page 4

2,122mmm

1,870mm

Single rear wheels Twin rear wheels

| Page 5 | Page 6 | Page 7 | Page 8

2,116mm

2,135 mm for 4.5T

Kerb weight: Standard vehicle, without driver, but including fuel, spare wheel and tool kit Maximum and minimum dimensions are given as a guide, applicable to standard bodies with uniformly distributed loads without cranes lifts etc. Consult the bodybuilder standards for full details.

REQUEST A TEST DRIVE

Print | Close

Single Cab Double Cab

Chassis 4.5T

WB Wheelbase 2,900 3,400 2,900 3,400

AC max

CW Cabin width exc mirrors 1,870 1,870

Foh Front overhang 1,063 1,063

Roh Rear overhang 1,483 1,8 83 1,483 1,883

LT Overall length 5,446 6,346 5,446 6,346

W Max length 5,84 9 6,674 5,849 6,674

IC Front axle to rear body 599 1,599

LC min* Body length min 3,810 3,798 4,711 4,698 2,303 2,301 3,356 3,356

LC max* Body length max 4,136 4,961 3,136 3,961

RW Rear axle width 1,907 1,919 1,907 1,919 1,907 1,919 1,907 1,919

VD Front track 1,56 9 1,569

VT Rear track 1,480 1,492 1,480 1,492 1,480 1,492 1,480 1,492

H1 Height (unladen) 2,135 2,135

All ﬁ gures mm

Gross Vehicle Weight Total 4,500

Kerb Weight Total 1,807 1,857 1,830 1,880 1,969 2,019 1,989 2,039

Payload Total 2,693 2,643 2,670 2,620 2,531 2,481 2,511 2,4 61

Max. trailer weight (Towing Capacity) braked @ 12% slope 3,500

Max. trailer weight (Towing Capacity) unbraked 750

Gross Train weight 8,000

All ﬁ gures kg

Max body width (short arm mirrors) 2,050 2,050

Max body width (long arm mirrors) 2,250 2,250

Cabin width inc short arm mirrors 2,265 2,265

Cabin width inc long arm mirrors 2,529 2,529

Front Axle 1,750

Rear Axle 3,200

Front Axle 1,244 1,245 1,255 1,256 1,340 1,341 1,353 1,354

Rear Axle 563 612 575 624 629 678 636 685

MWB LWB MWB LWB

45.14 45.15 45.14 45.15 45.14 45.15 45.14 45.15

cations | Price List | CommitmentsTechnical Speci

Page 1 | Page 2 | Page 3 | Page 4 | Page 5

| Page 6 | Page 7 | Page 8

Print | Close

REQUEST A TEST DRIVE

Single Cab Double Cab

Dropside

WB Wheelbase 2,500 2,900 3,400 2,900 3,400

MW Cabin width inc mirrors 2,265

CW Cabin width exc mirrors 1,870

Foh Front overhang

Roh Rear overhang 1,347 1,506 1,806 1,731 2,001

LT Overall length 4,909 5,468 6,268 5,693 6,463

IC Front axle to rear body 68 6 686 686 1,681 1,681

RW Rear axle width 1,730 1,808 1,808 1,8 08 1,806 1,8 08 1,808 1,8 06

VD Front track 1,58 6 1,573

VT Rear track 1,518 1,396 1,396 1,396 1,394 1,396 1,396 1,3 94

H1 Height (unladen)

H2 Body height 400

H3 Load bed to ﬂ oor height 907

All ﬁ gures mm

Gross Vehicle Weight Total 3,400 3,500

Kerb Weight Total 1,936 1,982 2,003 2,026 2,068 2,148 2,190 2,210

Payload Total 1,257 1,518 1,497 1,474 1,432 1,352 1,310 1,290

Max. trailer weight (Towing Capacity) braked @ 12% slope 2,000 3,500

Max. trailer weight (Towing Capacity) unbraked 750

Gross Train weight 5,400 7,000

All ﬁ gures kg

Body width exterior 1,900

Body width interior 1,840

Body length exterior 3,160 3,720 4,550 2,950 3,720

Body length interior 3,100 3,660 4,490 2,890 3,660 3,760

Front Axle 1,750 1,750

Rear Axle 1,900 2,200

Front Axle 1,277 1,269 1,291 1,313 1,312 1,322 1,322 1,350

Rear Axle 659 713 712 713 756 826 868 860

SWB MWB LWB MWB LWB

34.12 35.14 35.14 35.14 35.15 35.14 35.14 35.15

1,063

2,122 2,116

Single Cab Double Cab

Tipper

WB Wheelbase 2,500 2,500 2,900 2,9 00 3,400 3,400

MW Cabin width inc mirrors 2,265

CW Cabin width exc mirrors 1,870

Foh Front overhang 1,063

Roh Rear overhang 1,300 1,510 1,700 1,950

LT Overall length 4,862 5,472 5,662 6,412

IC Front axle to rear body 650 700 1,650 1,650

RW Rear axle width 1,730 1,808

VD Front track 1,586 1,573

VT Rear track 1,518 1,396

H1 Height (unladen) 2,260 2,210 2,210 2,210

H2 Body height 400

H3 Load bed to ﬂ oor height 1,030 980 980 98 0

All ﬁ gures mm

Gross Vehicle Weight Total 3,400 3,500

Kerb Weight Total

Payload 1,189 1,233 1,157 1,087 977 918

Max. trailer weight (Towing Capacity) braked @ 12% slope 2,000 3,500

Max. trailer weight (Towing Capacity) unbraked 750

Gross Train weight 5,400 7,000

All ﬁ gures kg

Body width exterior 1,900

Body width interior 1,840

Body length exterior 3,150 3,700 2,950 3,700

Body length interior 3,075 3,625 2,875 3,625

Front Axle 1,750 1,750

Rear Axle 1,900 2,200

Front Axle 1,287 1,286 1,306 1,293 1,329 1,346

Rear Axle 924 981 1,037 1,130 1,194 1,23 6

SWB MWB MWB LWB

34.12 35.14 35.14 35.14 35.14 35.15

2,211 2,267 2,343 2,423 2,523 2,582

cations | Price List | CommitmentsTechnical Speci

Print | Close

| Page 8

REQUEST A TEST DRIVE

+ 14 hidden pages
