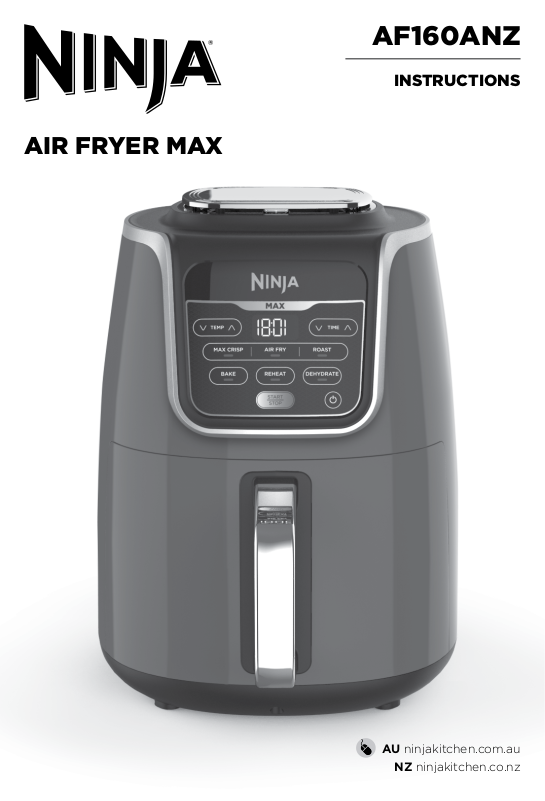

Page 1

AIR FRYER MAX

AF160ANZ

INSTRUCTIONS

AU ninjakitchen.com.au NZ ninjakitchen.co.nz

Page 2

THANK YOU

for purchasing the Ninja® Air Fryer Max

AU ninjakitchen.com.au

NZ ninjakitchen.co.nz

RECORD THIS INFORMATION

Model Number: ��

Serial Number: ��

Date of Purchase: �� (Keep receipt)

Store of Purchase: ��

TECHNICAL SPECIFICATIONS

Rated Voltage: 230V~, 50Hz

Rated Power: 1750W

TIP: You can ﬁnd the model and serial numbers label located on the back of the unit by the power cord.

CONTENTS

Product Registration ..................................3

Important Safeguards .................................4

What’s In The Box .....................................6

Additional Accessories To Purchase .....................6

Getting to Know Your Air Fryer .........................7

Function Buttons ........................................7

Operating Buttons ....................................... 7

Before First Use .......................................7

Using Your Air Fryer ...................................8

Using the Cooking Functions ..............................8

Max Crisp ............................................8

Air Fry ..............................................9

Roast .............................................. 10

Bake ................................................11

Reheat ..............................................12

Dehydrate ...........................................13

Cleaning & Maintenance .............................. 14

Cleaning Your Air Fryer .................................. 14

Helpful Tips ......................................... 15

Troubleshooting Guide ............................... 16

Warranty ............................................ 18

AU 02 8801 7666 | NZ 0800 112 660

PRODUCT REGISTRATION

Please visit AU ninjakitchen.com.au – NZ ninjakitchen.co.nz or call AU 02 8801 7666 – NZ 0800 112 660 to register your new Ninja® product within 28 days of purchase. You will be asked to provide the store name, date of purchase, and model number along with your name and address.

The registration will enable us to contact you in the unlikely event of a product safety notiﬁcation. By registering, you acknowledge you have read and understood the instructions for use and warnings set forth in the accompanying instructions.

NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

Page 3

IMPORTANT SAFEGUARDS

HOUSEHOLD USE ONLY

Read all instructions before using your Ninja

Air Fryer Max.

When using electrical appliance, basic safety precautions should always be followed, including the following:

WARNINGS

1 This appliance can be used by

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2 Keep the appliance and its cord out

of reach of children. DO NOT allow the appliance to be used by children. Close supervision is necessary when used near children

3 To eliminate a choking hazard for

young children, remove and discard all packaging materials.

4 Children should not play with

the appliance.

5 NEVER use electrical socket

below counter.

6 NEVER connect this appliance to

an external timer switch or separate remote-control system.

7 DO NOT use an extension cord. A

short power-supply cord is used to reduce the risk of children less than 8 years grabbing the cord or becoming entangled and to reduce the risk of people tripping over a longer cord.

8 To protect against electrical shock

DO NOT immerse cord, plugs, or main unit housing in water or other liquid. Cook only in the ceramic-coated pan provided .

9 Regularly inspect the appliance

and power cord. DO NOT use the appliance if there is damage to the power cord or plug. If the appliance malfunctions or has been damaged in any way, immediately stop use and call Customer Service.

10 ALWAY S ensure the appliance is

properly assembled before use.

11 DO NOT cover the air intake vent or

air socket vent while unit is operating. Doing so will prevent even cooking and may damage the unit or cause it to overheat.

12 Before placing removable ceramic-

coated pan into the main unit, ensure pan and unit are clean and dry by wiping with a soft cloth.

13 This appliance is for household

use only. DO NOT use this appliance for anything other than its intended use. DO NOT use in moving vehicles or boats. DO NOT use outdoors. Misuse may cause injury.

14 Intended for worktop use only. Ensure

the surface is level, clean and dry. DO NOT move the appliance when in use.

15 DO NOT place the appliance near the

edge of a worktop during operation.

16 DO NOT use accessory attachments not

recommended or sold by SharkNinja. Do not place accessories in a microwave, toaster oven, convection oven, or conventional oven or on a ceramic cooktop, electric coil, gas burner range or outdoor grill. The use of accessory attachments not recommended by SharkNinja may cause fire, electric shock or injuries.

17 When using this appliance, provide

adequate space above and on all sides for air circulation.

18 ALWAYS ensure pan is properly

closed before operating.

19 DO NOT use the appliance without the

removable ceramic-coated cooking pan installed.

20 DO NOT use this appliance for

deep-frying.

21 DO NOT place appliance on hot

surfaces or near a hot gas or electric burner or in a heated oven.

22 Prevent food contact with heating

elements. DO NOT overfill when cooking. Overfilling may cause personal injury or property damage or affect the safe use of the appliance.

23 Socket voltages can vary, affecting

the performance of your product. To prevent possible illness, use a thermometer to check that your food is cooked to the temperatures recommended.

24 Should the unit emit black smoke,

unplug immediately. Wait for smoking to stop before removing any cooking accessories.

25 DO NOT touch hot surfaces.

Appliance surfaces are hot during and after operation. To prevent burns or personal injury, ALWAYS use protective hot pads or insulated oven mitts and use available handles.

26 Extreme caution must be used

when the appliance contains hot food. Improper use may result in personal injury.

Indicates to read and review instructions to understand operation and use of product.

Indicates the presence of a hazard that can cause personal injury, death or substantial property damage if the warning included with this symbol is ignored.

Take care to avoid contact with hot surface. Always use hand protection to avoid burns.

27 Spilled food can cause serious burns.

Keep appliance and cord away from children. DO NOT let cord hang over edges of tables or counters or touch hot surfaces.

28 The pan and crisper plate become

extremely hot during the cooking process. Avoid physical contact while removing the pan or plate from the appliance. ALWAYS place pan or plate on a heat-resistant surface after removing. DO NOT touch accessories during or immediately after cooking.

29 Cleaning and user maintenance

should not be carried out by children.

30 To disconnect, turn off any control to

OFF, then unplug from socket when not in use and before cleaning. Allow to cool before cleaning, disassembly, putting in or taking off parts and storage.

31 DO NOT clean with metal scouring

pads. Pieces can break off the pad and touch electrical parts, creating the risk of electric shock.

32 Please refer to the Cleaning &

Maintenance section for regular maintenance of the appliance.

For indoor and household use only.

SAVE THESE INSTRUCTIONS

4 5

AU 02 8801 7666 | NZ 0800 112 660

NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

Page 4

WHAT’S IN THE BOX

AIR FRYMAX CRISP ROAST

Air Intake Vent

GETTING TO KNOW YOUR AIR FRYER

Control Panel

Ceramic-Coated

Crisper Plate

When setting time, the digital display shows HH:MM.

Display currently reads 23 minutes.

Air Outlet Unit

(located on back)

(power cord not shown)

Main Unit

Ceramic-Coated

Pan

ADDITIONAL ACCESSORIES TO PURCHASE

Mid-Level Rack

(optional accessory available

for purchase online)

To order additional parts and accessories, visit

AU ninjakitchen.com.au – NZ ninjakitchen.co.nz

or contact Customer Service

AU 02 8801 7666 – NZ 0800 112 660

Grill Rack

(optional accessory available

for purchase online)

FUNCTION BUTTONS

MAX CRISP: Use to give frozen foods extra

crispiness and crunch with little to no oil.

AIR FRY: Use this function to give your food crispiness and crunch with little to no oil.

ROAST: Use the unit as a roaster oven for tender meats, vegetables and more.

BAKE: Create tasty baked treats and desserts.

REHEAT: Revive leftovers by gently warming them, leaving you with crispy results.

DEHYDRATE: Dehydrate meats, fruits, and vegetables for healthy snacks.

OPERATING BUTTONS

TEMP arrows: Use the up and down TEMP

arrows to adjust the cook temperature in any function except Max Crisp before or during cooking.

TIME arrows: Use the up and down TIME arrows to adjust the cook time in any function before or during cooking.

START/STOP button: After selecting the time and temperature, start cooking by pressing the START/STOP button. You can stop cooking at any time by pressing the button again.

POWER button: The Power button shuts o the unit and stops all cooking modes.

NOTE: After 10 minutes with no interaction with the control panel, the unit will enter standby mode. The Power button will be dimly lit.

BEFORE FIRST USE

1 Remove and discard all packaging material, promotional labels and tape from the unit. 2 Remove all accessories from the package and read this manual carefully. Please pay

particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage.

3 Wash the ceramic-coated pan, crisper plate, and accessories in hot, soapy water,

then rinse and dry thoroughly. NEVER clean the main unit in the dishwasher.

6 7NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

AU 02 8801 7666 | NZ 0800 112 660

Page 5

USING THE COOKING FUNCTIONS

To turn on the unit, ﬁrst plug the power cord into a wall socket. Press the power button

Max Crisp 1 Ensure the crisper plate is in the pan.

2 Press the MAX CRISP button. The default

temperature setting will display. The temperature cannot be adjusted in the Max Crisp function.

AIR FRYMAX CRISP ROAST

3 Press the TIME up and down arrow

buttons to set your desired cook time.

4 Add ingredients to the pan. Insert

the pan in the unit.

5 Press START/STOP to begin cooking.

AIR FRYMAX CRISP ROAST

NOTE: To toss the ingredients during cooking, remove the pan and shake back and forth. The unit will automatically pause when the pan is removed Reinsert the pan and cooking will resume.

6 When cooking is complete, the unit will

beep and End will appear on the control panel display.

Air Fry 1 Ensure the crisper plate is in the pan.

2 Press the AIR FRY button. The default

temperature setting will display. Use the TEMP up and down arrow buttons to set your desired temperature.

AIR FRYMAX CRISP ROAST

3 Press the TIME up and down arrow

buttons to set your desired cook time.

AIR FRYMAX CRISP ROAST

4 Add ingredients to the pan. Insert

the pan in the unit.

5 Press START/STOP to begin cooking.

AIR FRYMAX CRISP ROAST

NOTE: To toss the ingredients during cooking, remove the pan and shake back and forth. The unit will automatically pause when the pan is removed. Reinsert the pan and cooking will resume.

6 When cooking is complete, the unit will

beep and End will appear on the control panel display.

AIR FRYMAX CRISP ROAST

NOTE: For best results, let the unit

7 Remove ingredients by tipping them

out or by using oven gloves or siliconetipped tongs/utensils.

preheat for 3 minutes before adding ingredients.

7 Remove ingredients by tipping them

out or by using oven gloves or siliconetipped tongs/utensils.

NOTE: For best results, let the unit preheat for 3 minutes before adding ingredients.

8 9NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

AU 02 8801 7666 | NZ 0800 112 660

Page 6

USING THE COOKING FUNCTIONS - CONT

Roast 1 Ensure the crisper plate is in the pan if

needed.

2 Press the ROAST button. The default

temperature setting will display. Press the TEMP up and down arrow buttons to set your desired temperature.

AIR FRYMAX CRISP ROAST

4 Add ingredients to the pan. Insert the

pan in the unit.

5 Press START/STOP to begin cooking.

AIR FRYMAX CRISP ROAST

6 When cooking is complete, the unit will

beep and End will appear on the control panel display.

AIR FRYMAX CRISP ROAST

Bake 1 Ensure the crisper plate is in place

if needed. If using a baking dish, the crisper plate is not needed.

2 Press the BAKE button. The default

temperature setting will display. Press the TEMP up and down arrow buttons to set your desired temperature.

NOTE: To convert recipes from your conventional oven, reduce the temperature of the Air Fryer by 10°C. Check food frequently to avoid overcooking.

AIR FRYMAX CRISP ROAST

4 Add ingredients to the pan. Insert the

pan in the unit.

5 Press START/STOP to begin cooking.

AIR FRYMAX CRISP ROAST

6 When cooking is complete, the unit will

beep and End will appear on the control panel display.

AIR FRYMAX CRISP ROAST

3 Press the TIME up and down arrow

buttons to set your desired cook time.

7 Remove ingredients by tipping them

out or by using oven gloves or siliconetipped tongs/utensils.

AIR FRYMAX CRISP ROAST

7 Remove ingredients by tipping them

out or by using oven gloves or siliconetipped tongs/utensils.

3 Press the TIME up and down arrow

buttons to set your desired cook time.

AIR FRYMAX CRISP ROAST

NOTE: For best results, let the unit preheat for 3 minutes before adding ingredients.

10 11NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

AU 02 8801 7666 | NZ 0800 112 660

NOTE: For best results, let the unit preheat for 3 minutes before adding ingredients.

Page 7

USING YOUR AIR FRYER – CONT.

Reheat 1 Ensure the crisper plate is in the pan.

2 Press the REHEAT button. The default

temperature setting will display. Press the TEMP up and down arrow buttons to set your desired temperature.

AIR FRYMAX CRISP ROAST

4 Add ingredients to the pan. Insert the

pan in the unit.

5 Press START/STOP to begin reheating.

AIR FRYMAX CRISP ROAST

6 When reheating is complete, the unit

will beep and End will appear on the control panel display.

AIR FRYMAX CRISP ROAST

Dehydrate 1 Place your ﬁrst layer of ingredients in

the bottom of the pan. Then install the crisper plate inside the pan and set a second layer of ingredients on the crisper plate.

NOTE: You can increase your dehydrating capacity with the midlevel rack. If the rack is not included with your model, it is available for purchase at

NZ ninjakitchen.co.nz

AU ninjakitchen.com.au –

Press the TIME up and down arrow buttons to set your desired dehydrating time.

AIR FRYMAX CRISP ROAST

5 Press START/STOP to start dehydrating.

AIR FRYMAX CRISP ROAST

6 When dehydrating is complete, the unit

will beep and End will appear on the control panel display.

AIR FRYMAX CRISP ROAST

3 Press the TIME up and down arrow

AIR FRYMAX CRISP ROAST

buttons to set the reheating time.

7 Remove ingredients by tipping them

out or by using oven gloves or siliconetipped tongs/utensils.

AIR FRYMAX CRISP ROAST

2 Insert the pan in the unit.

3 Press the DEHYDRATE button. The

default temperature will display. Use the TEMP up and down arrow buttons to set your desired temperature.

12 13NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

AU 02 8801 7666 | NZ 0800 112 660

Page 8

CLEANING & MAINTENANCE

HELPFUL TIPS

Cleaning Your Air Fryer

NOTE: NEVER immerse the main unit in

water or any other liquid. NEVER clean the main unit in a dishwasher.

The unit should be cleaned thoroughly after every use.

1 Unplug the unit from the wall socket

before cleaning.

2 To clean the main unit and the control

panel, wipe them clean with a damp cloth. Do not use a scouring pad.

3 The pan, crisper plate, and any

accessories can be washed in the dishwasher.

4 If food residue is stuck on the crisper

plate or pan, place them in a sink ﬁlled with warm, soapy water and allow to soak.

5 Air-dry or towel-dry all parts after use.

1 For consistent browning, make sure

ingredients are arranged in an even layer on the bottom of the pan with no overlapping. If ingredients are overlapping, make sure to shake them halfway through the set cook time.

2 Cook time and temperature can be

adjusted at any time during cooking. Simply press the up and down TIME or TEMP arrows to adjust the time or temperature.

3 To convert recipes from your conventional

oven, reduce the temperature of the Air Fryer by 10°C. Check food frequently to avoid overcooking.

4 We recommend 3 minutes of preheating.

You can use the built-in timer to set a 3-minute countdown.

5 Occasionally, the fan from the Air Fryer

will blow lightweight foods around. To alleviate this, secure foods (like the top slice of bread on a sandwich) with cocktail sticks.

6 The crisper plate elevates ingredients

in the pan so air can circulate under and around them for even, crisp results.

7 After a cooking function is selected, you

can press the START/STOP button to begin cooking immediately. The unit will run at the default temperature and time.

8 For best results, remove food

immediately after the cook time is complete to avoid overcooking.

9 For best results with fresh vegetables

and potatoes, use at least 1 tablespoon of oil. Add more oil as desired to achieve the preferred level of crispiness.

10 For best results, check progress

throughout cooking, and remove food when desired level of brownness has been achieved. We recommend using an instant-read thermometer to monitor internal temperature of foods. After the cook time is complete, remove food immediately to avoid overcooking.

14 15NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

AU 02 8801 7666 | NZ 0800 112 660

Page 9

TROUBLESHOOTING GUIDE

• Why won’t the temperature go any higher?

The max temperature is 240˚C for Max Crisp. The max temperature is 200˚C for all

other functions.

• How long does it take to preheat, and how will I know when it’s done?

We recommend 3 minutes of preheating. To preheat, select desired function and

temperature, set time to 3 minutes, and press Start/Stop

• Should I add the ingredients before or after preheating?

For best results, let the unit preheat for 3 minutes before adding ingredients.

• When should I use Max Crisp instead of Air Fry?

For best results, use Max Crisp when cooking prepackaged frozen foods such as french

fries or chicken nuggets.

• Do I need to defrost frozen foods before air frying?

It depends on the food. Follow package instructions.

• How do I pause the countdown?

The countdown timer will pause automatically when you remove the pan from the unit.

Pressing Start/Stop during cooking will stop the cooking function and reset the timer.

• Is the pan safe to put on my worktop?

The pan will heat during cooking. Use caution when handling, and place

on heat-safe surfaces only.

• How do I know when to use the crisper plate?

Use the crisper plate when you want food to come out crispy. The plate elevates the

food in the pan so that air can ﬂow under it to cook ingredients evenly.

• Why do some ingredients blow around when air frying?

Occasionally, the fan from the Air Fryer will blow lightweight foods around. Use

toothpicks to secure loose lightweight food, like the top slice on a sandwich.

• Can I air fry fresh battered ingredients?

Yes, but use the proper breaded coating technique. It is important to coat foods ﬁrst

with ﬂour, then with egg, and then with bread crumbs. Be sure to press the bread crumbs onto the food so they stick in place. Loose coating may be blown o by the unit’s powerful fan.

• Why is the unit beeping?

The cooking function is complete.

• The screen went black.

The unit is in standby mode. Press the power button to turn it back on.

• An “E” message appears on display screen.

The unit is not functioning properly. Please contact Customer Service at

AU 02 8801 7666 – NZ 0800 112 660

• My food didn’t cook.

Make sure the pan is fully inserted during cooking. For consistent browning, make sure

ingredients are arranged in an even layer on the bottom of the pan with no overlapping. Shake to toss loose ingredients for consistent crispiness. Cook time and temperature can be adjusted at any time during cooking. Simply press the TIME or TEMP buttons and rotate the dial.

• My food is over-cooked.

For best results, check progress throughout cooking, and remove food when desired

level of brownness has been achieved. Remove food immediately after the cook time is complete to avoid overcooking.

16 17NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

AU 02 8801 7666 | NZ 0800 112 660

Page 10

WARRANTY

ONE (1) YEAR LIMITED REPLACEMENT WARRANTY

For guarantee claims, you will need to submit a proof of purchase in the form of a valid receipt that displays date and place of purchase. This warranty does not replace but is in addition to your statutory rights.

If your product becomes defective due to faulty material or workmanship within a period of 1 years from the date of purchase, we warrant to do the following:

• For New Zealand Consumers: We will replace the defective/faulty part with a new

product, free of charge, or if the unit is deemed defective/faulty we replace the unit with an equivalent or upgraded model, at our discretion.

• For Australian Consumers: Our goods come with guarantees that cannot be

excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Replacement items will be covered by the limited warranty for the balance of the warranty period from the date of the original purchase.

Your warranty is subject to the following conditions

• DO NOT operate the appliance with a damaged plug or cord, or if the unit has been

dropped, damaged or dropped in water.

• To avoid the risk of electric shock, do not disassemble or attempt to repair the

appliance on your own. If the supply cord is damaged, it must be replaced by a qualiﬁed electrician to avoid a hazard. Incorrect re-assembly or repair can cause a risk of electric shock or injury to persons when the appliance is used.

• The item has not been misused, abused, neglected, altered, modiﬁed or repaired by

anyone.

• The item has been subjected to fair wear and tear.

• The item has not been used for trade, professional or hire purposes.

• The item has not sustained damage through foreign objects, substances or accident

Customer costs within warranty

The customer is responsible for any inwards freight charge to return a product for warranty if requested, and outward freight charge for warranty parts and or replacement unit.

Who is covered?

This warranty applies only to the original purchaser, who bought the product from an authorised retailer and may not be transferred. Proof of purchase is required.

What is not covered?

• Accessories supplied with the item.

• Components that are subject to natural wear and tear caused by normal use in

accordance with operating instructions.

• Unauthorised/improper maintenance/handling or overload is excluded from this

warranty.

18 19NZ ninjakitchen.co.nz | AU ninjakitchen.com.au

AU 02 8801 7666 | NZ 0800 112 660

Page 11

VISIT US ONLINE AT:

AU ninjakitchen.com.au – NZ ninjakitchen.co.nz

Or follow us on any of our social media pages:

@ninjakitchenapac

NOTE: Save these instructions. Keep for future reference.

Mann&Noble No 1 Southridge Unit Estate 2 Southridge Street Eastern Creek NSW 2766, Australia AU 02 8801 7666 | NZ 0800 112 660 AU ninjakitchen.com.au | NZ ninjakitchen.co.nz

Illustrations may dier from actual product. We are constantly striving to improve our products, therefore the speciﬁcations contained herein are subject to change withoutnotice.

NINJA is a registered trademark of SharkNinja Ope rating LLC.

AF160ANZ�IB�REV�Mv4
