Page 1
Doc No:：NLT-DFXXXX-SSEN
Version：V121112
10 INCH LCD DIGITAL FISH FINDER
OPERATION MANUAL
Model：DF SERIES
Page 2
CONTENTS
SYSTEM DESCRIPTION ........................................................ 1
Specifications .................................................................... 2
Performance .................................................................. 2
Environment .................................................................. 2
Operation .......................................................................... 3
Keyboard ..................................................................... 3
Fixed key functions .......................................................... 4
POWER .................................................................. 4
RANGE ................................................................... 4
SHIFT .................................................................... 4
GAIN & GAIN 1 & GAIN 2 ............................................. 4
Color (single-freq fish finder) .......................................... 4
ZOOM .................................................................... 4
BRILL ..................................................................... 5
MENU .................................................................... 5
OK ........................................................................ 5
DISP ...................................................................... 5
MODE .................................................................... 5
Arrows (UP▲/DOWN▼/LEFT / RIGHT ) ....................... 5
MENU contents and factory setting........................................ 6
MENU <1> ............................................................... 6
MENU <2> (DF612 & DF1011 & DF1511 & DF2022) ............. 6
MENU <2> ( DF5088 & DF2099 ) .................................... 7
Setting on MENU ............................................................. 7
Pic Speed ................................................................ 7
Auto Range .............................................................. 7
Page 3
Max A-Range ............................................................ 8
Zoom ..................................................................... 8
Fish Alarm ............................................................... 8
Back Ground ............................................................ 8
Pulse Width .............................................................. 8
TVG ....................................................................... 9
Noise Rej. ................................................................ 9
Color Del ................................................................. 9
Palette .................................................................... 9
Depth Alarm .......................................................... 10
Shallow Set ........................................................... 10
Deep Set ............................................................... 10
WaterTemp Al ........................................................ 11
Low Set ................................................................ 11
High Set ................................................................ 11
How to get the steady data .................................................. 12
Installation ...................................................................... 13
Operating unit installation .................................................. 13
Installation ...................................................................... 14
Connection ................................................................... 14
VGA ........................................................................... 14

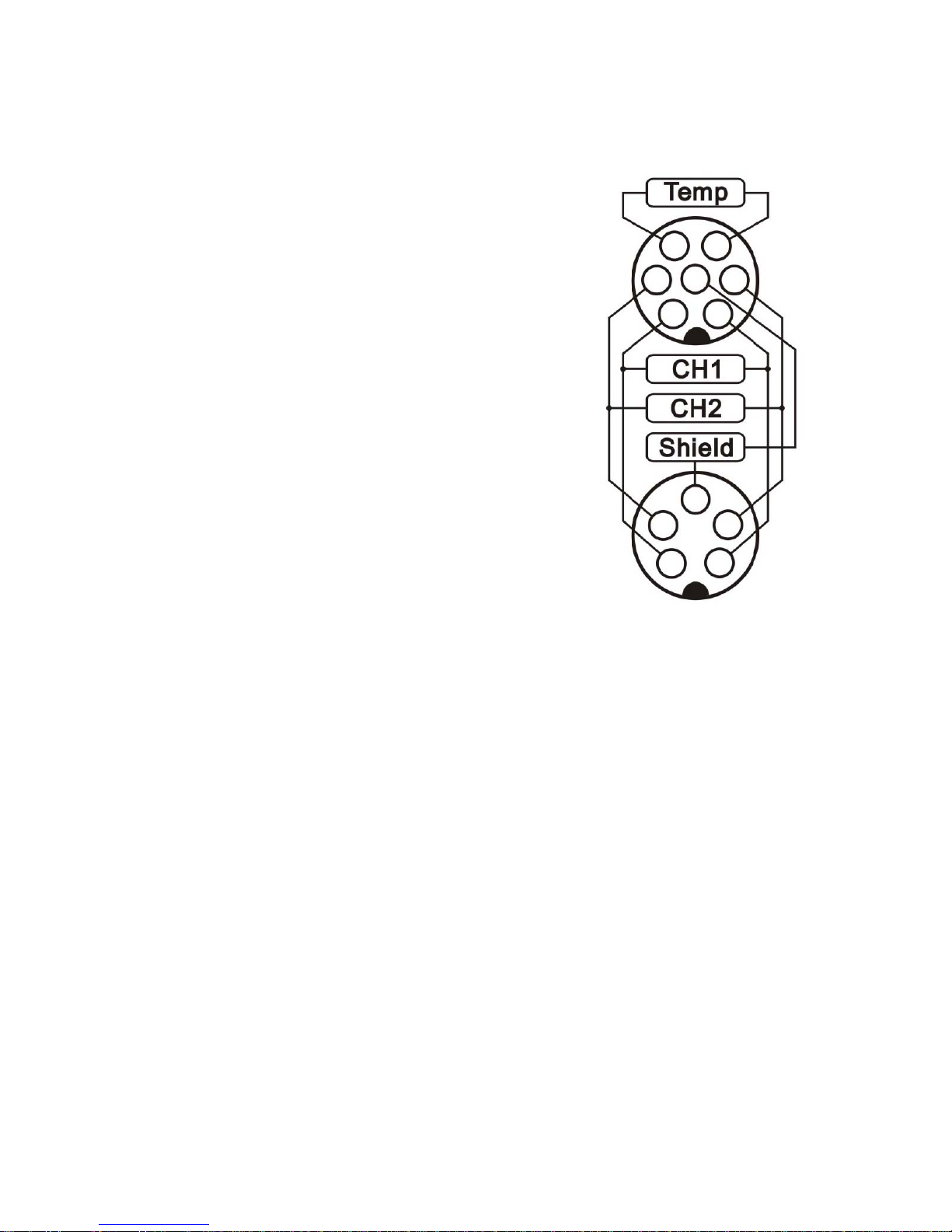

Transducer wiring ........................................................... 15
Page 4
1
SYSTEM DESCRIPTION
We thank you very much for your purchasing our fish finder.
Please be sure to read this operation manual carefully and understand
what it describes before operating this unit. Your fish finder will perform to
the utmost of its ability only if it is operated and maintained in accordance
with the correct procedures.
Summary:
Model Channel
Frequency &
Output power
Transducer cable(m)
Transducer
maker
DF612 single 50/200 kHz - 600W BP60-200-15L 15 NINGLU
DF1011 single 50 kHz - 1000W 50B-9B-15L 15 JAPAN
DF1511 single 50 kHz - 1500W TGM60-50B-10L 10 NEC
DF2022 double
50 kHz - 600W
TGM50/200B-12L 12 NEC
200 kHz - 600W
DF5088 double
50 kHz - 2000W
CM199 15 AIRMAR
200 kHz -1000W
DF2099 single 100 kHz -1000W B258 15 AIRMAR
Features
z Clear viewing applying high quality 10.4 inch color LCD.
z Bottom zoom function as well as fixed-zoom function.
z Beginners can operate without worry using auto-range control.
z High sensitivity, digital signal technology.
System:
The whole fish finder system consists of operating unit and transducer.
Operating unit：
Display LCD: 10.4 inch color TFT LCD.

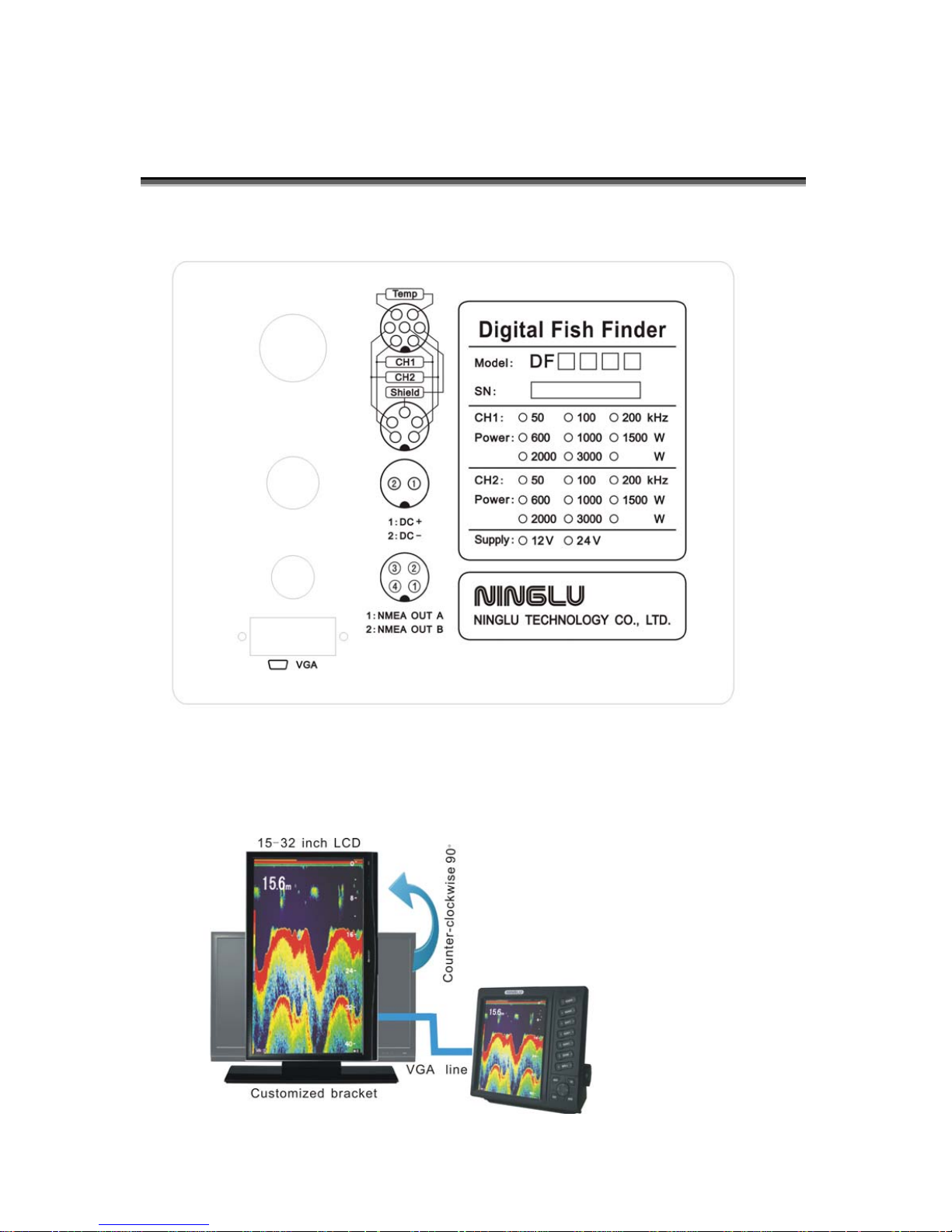

Back cabinet: ground stud and interface of power & transducer.
Page 5
2
Specifications
Performance

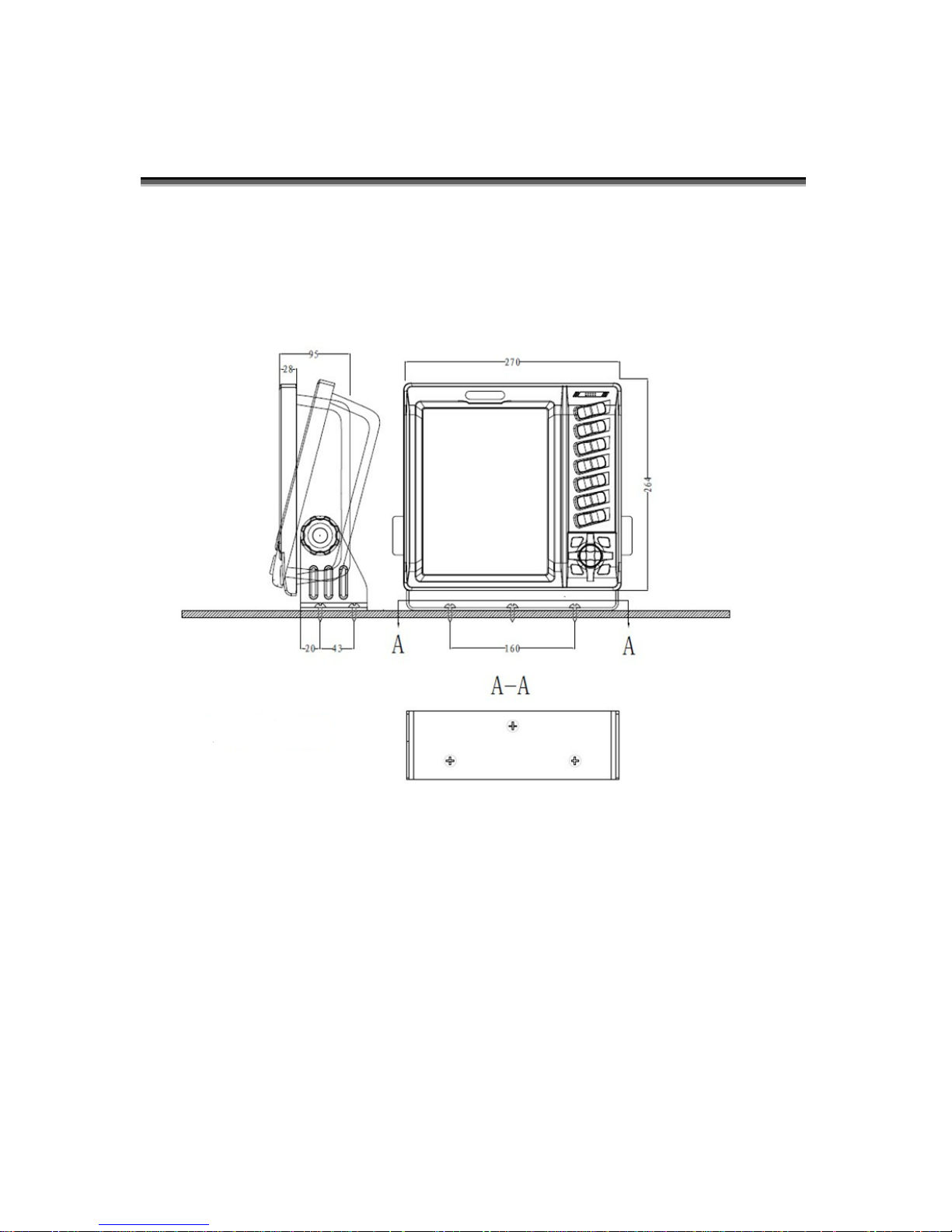

Dimension: 264(H) x 270(W) x 93(D) mm
Power: DC24V (19~36V)
Fish finder will automatically shut down when voltage is too high
Consumption: <24W
Frequency & DF612 50/200kHz 600W
Output power DF1011 50kHz 1000W
DF1511 50kHz 1500W
DF2022 50 kHz 600W，200 kHz 600W
DF5088 50kHz 2000W，200kHz 1000W
DF2099 100kHz 1000W
LCD: 10.4 inch TFT color LCD, 640X480 pixels
Back colors： Grey Blue D-Blue Black
Echo colors： 7 kinds of color configuration
Time scale: 30s
Range scope: 5 10 20 30 40 50 60 80 100 120 150 180 200 250 300
400 500 600 800 1000 1500 2000m
Shift range： 5 ～ 500 m
Alarm: shallow alarm (prior), fish alarm
Alarm mode： buzzing, letters glittering on screen
Environment
Working temperature: -10 ～ 40℃,complying to IEC60945
Working humidity: 10 ～ 90% relative humidity
Operating unit waterproofing: IP23, complying to IEC60529
Transducer waterproofing: IP66
Page 6
3
Operation

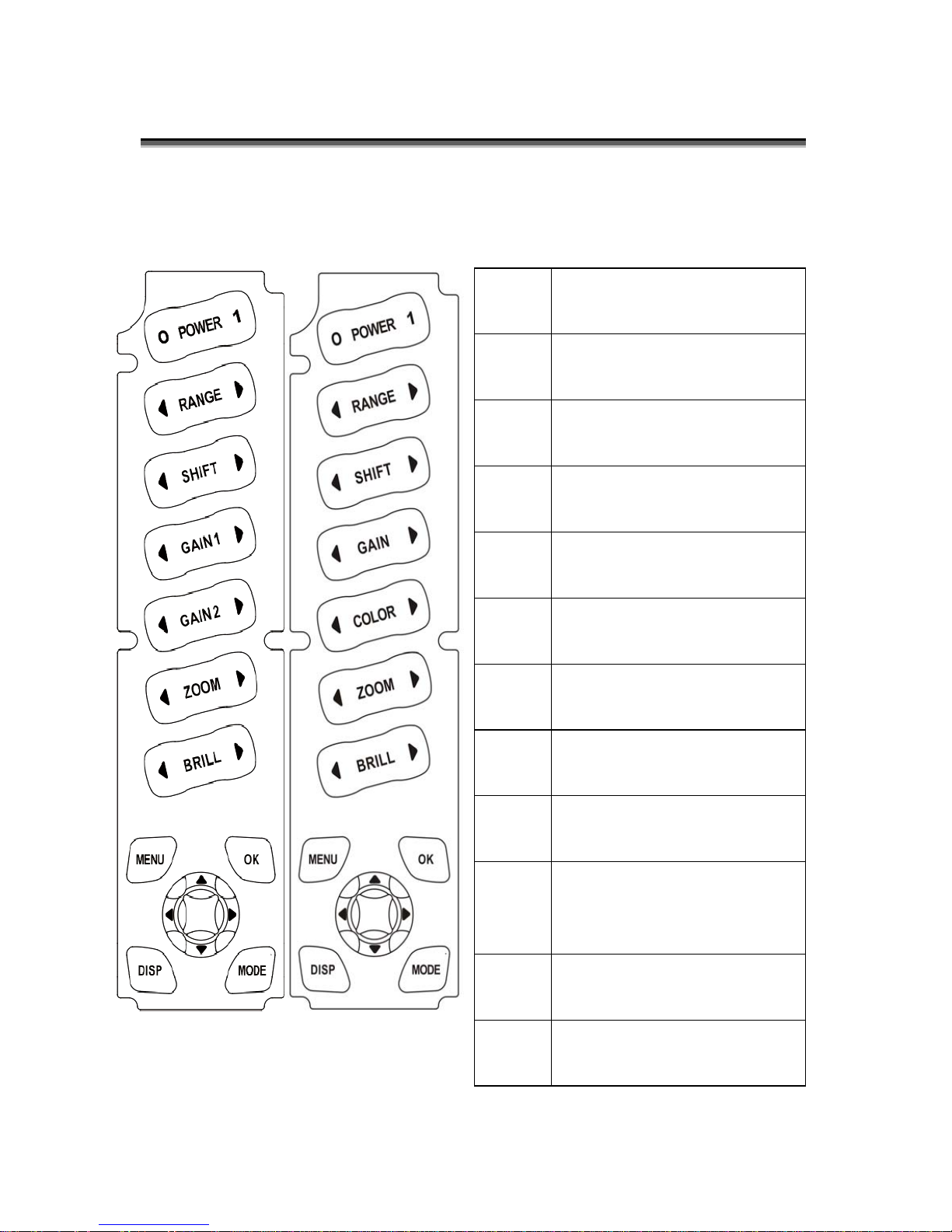

Keyboard
POWER
Turn power off/on.
RANGE
Set the displayed depth range.
SHIFT
Shift displayed depth range.
GAIN 1
Adjust sensitivity of frequency 1.
GAIN 2
Adjust sensitivity of frequency 2.
ZOOM
Move the expanded area toward
sea surface or sea bottom.
BRILL
Adjust the brightness of display.
MENU
Open MENU<1>, MENU<2>,
Quit.
OK
Execute selected items.
Arrows
Select items or change the
setting in MENU.
DISP
Select display mode:
High- freq / Low-freq / High-freq
& Low-freq.
MODE
Switch Normal mode / Bottom-Z
/ Fixed-Z
Dual-freq
Fish finder
Single-freq
Fish finder
Page 7
4
Fixed key functions
POWER
【POWER】button is used to turn on/off the system.
RANGE
【RANGE】 button sets the depth range(how deep from the surface)
showed on the screen: 5 10 20 30 40 50 60 80 100 120 150 180 200 250
300 400 500 600 800 1000 1500 2000m (22 optional values).
SHIFT
You can shift the initial displaying depth downward. For example, when you
shift 5m downward at 0 ～ 5m depth range, initial display depth becomes
to 5m and display range becomes to 5 ～ 10m. Shift range: 5 ～ 500m.
GAIN & GAIN 1 & GAIN 2
This adjusts the sensitivity to distinguish the bottom or fish school easily.
Dual-freq fish finder:
【GAIN 1】: adjust the sensitivity of 50 kHz signal received.
【GAIN 2】: adjust the sensitivity of 200 kHz signal received.
Color (single-freq fish finder)
This facilitates clear observation by eliminate weak echo.
ZOOM
Expanded display is shown on the left half screen.
Zoom mode is set by【MODE】key, more details refer to page 5 MODE.

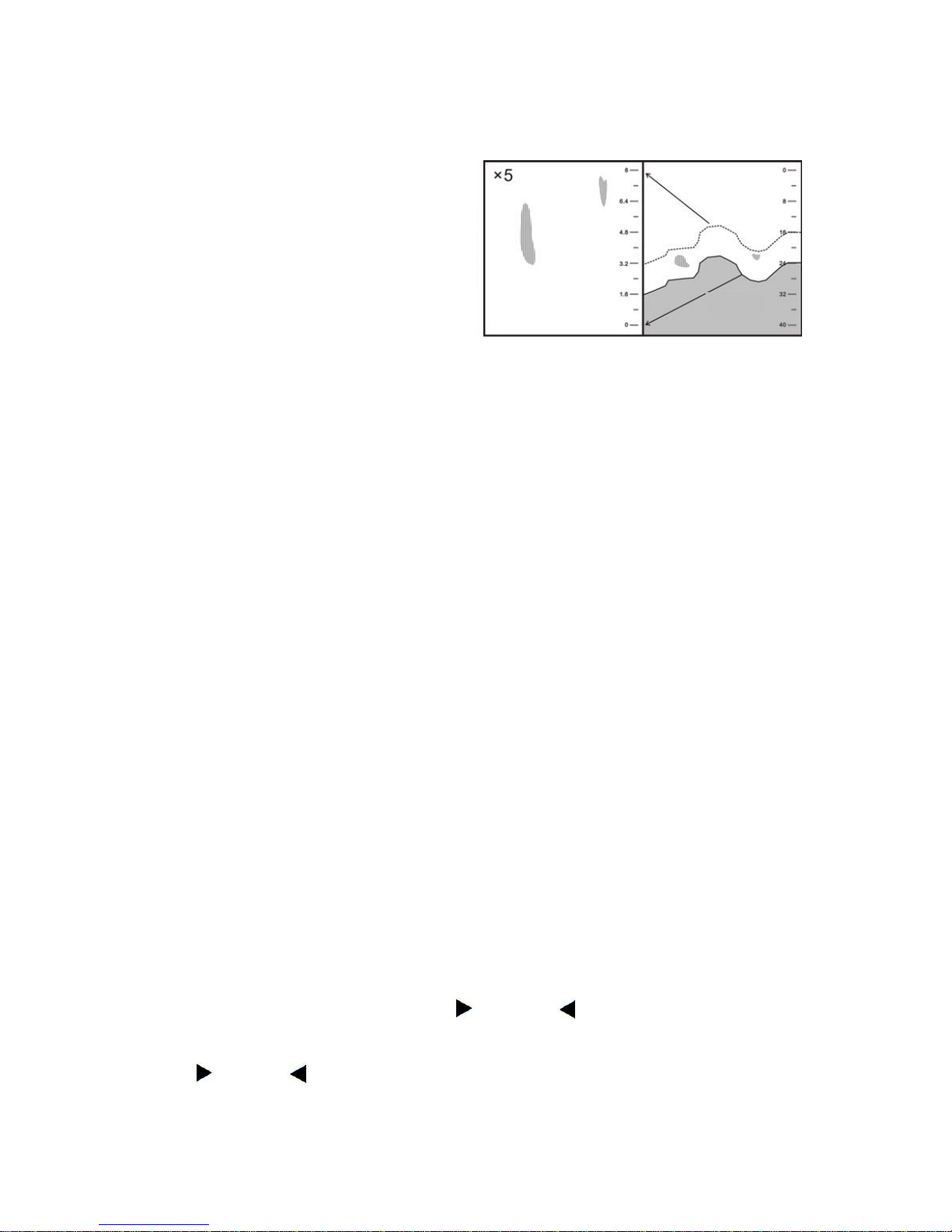

Fixed-Z
You can choose expansion area by【ZOOM】key as you wish.
Expansion rate is set in MENU 1 Zoom: ×2.5, ×5, ×10.
Page 8
5
Seabed
Bottom-Z
Bottom contour is indicated as a
straight line and expansion view of
certain area from its contour is
shown. Zoom rate is set in MENU 1
Zoom: ×2.5, ×5, ×10.
BRILL
【BRILL】key is used to adjust the LCD brightness.
MENU
【MENU】button facilitates selection of MENU 1, MENU 2, quit MENU.
OK
【OK】button confirms the setting value and quits from MENU.
DISP
Frequency displayed toggles among 50 kHz, 200 kHz, 50 / 200 kHz.
MODE
Three modes are optional toggled by pressing【MODE】key:
Normal mode
Display normal echo graphic.
Bottom-Z
Bottom contour is indicated as a straight line and expansion view of certain
area from its contour is shown.
Fixed-Z
Expansion display a certain area.
Arrows (UP▲/DOWN▼/LEFT / RIGHT )
UP▲/DOWN▼: select the item of the MENU.
LEFT / RIGHT : set value of item selected.
Page 9
6
MENU contents and factory setting
Note: In the following MENU list, the factory setting is marked with grey back color, such as 100m.
MENU <1>
MENU <2> (DF612 & DF1011 & DF1511 & DF2022)
Pic Speed Stop 1 2 3 4 ×2 ×4
Auto Range
Off On
Max A-Range 30m 100m 200m 300m Max
Zoom ×2.5 ×5 ×10
Fish Alarm Off Small Big
Back Ground Grey Blue D-Blue Black
Pulse Width Short Long
TVG 0 ～ 40
Noise Rej. Off Low High
【MENU】Æ MENU <2> Press 【MENU】into MENU <2>
Color Del 0 ～ -12
Palette 0 1 2 3 4 5 6
Unit m fm

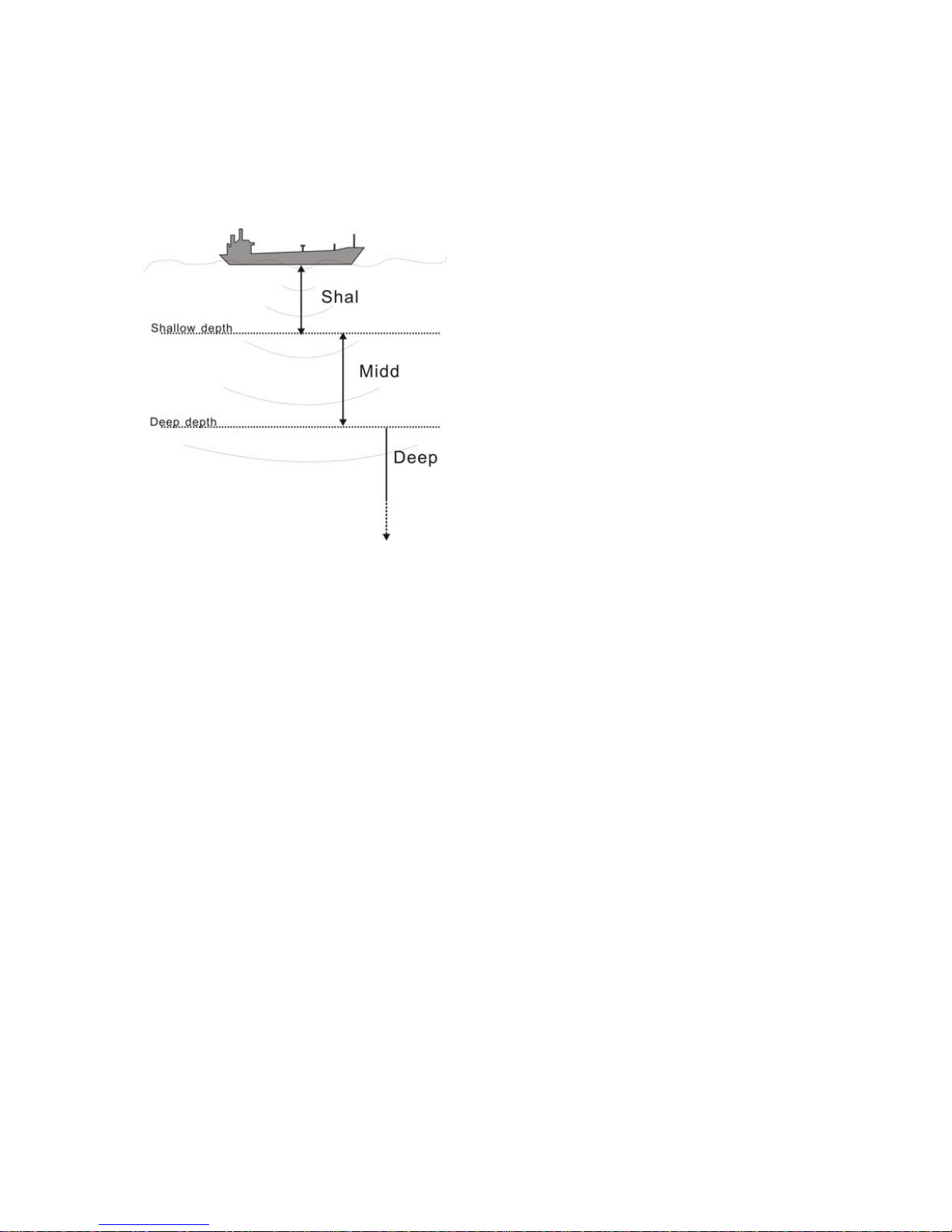

Depth Alarm Off Shal Midd Deep
Shallow Set 1m ～ 50m
Deep Set 16m ～ 501m
Page 10
7
MENU <2> ( DF5088 & DF2099 )
Setting on MENU
Pic Speed
On fish finder, the newest display (display just under the boat) is shown on
the right edge of screen. At the same time previous display moves leftward.
Display of fish finder is formed by repeating such movement. Pic speed is
speed that display forwards. Display expands or reduces horizontally by
changing the pic speed.
Set Pic speed on MENU 1: OFF, 1, 2, 3, 4, ×2, ×4.
Auto Range
Depth range is automatically changed so that sea bottom is always shown
on the optimum position of the screen (lower half area).
When auto range function is operating, 【DEPTH】key is non-functional.
Set Auto range on MENU 1: Off, On.
Color Del 0 ～ -12
Palette 0 1 2 3 4 5 6
Unit m fm
Depth Alarm Off Shal Midd Deep
Shallow Set 1m ～ 50m
Deep Set 16m ～ 501m

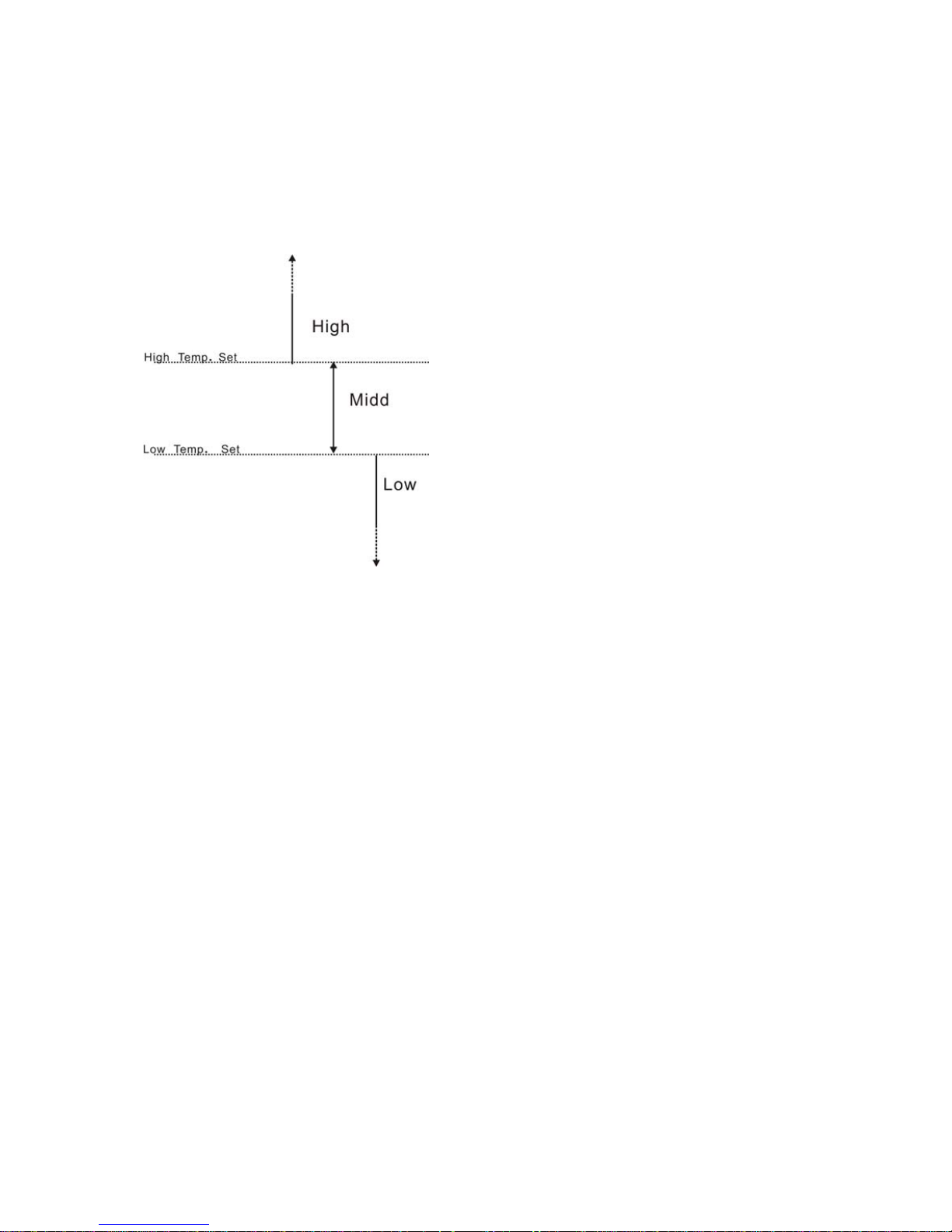

WaterTemp AL Off Low Midd High
Low Set 0 ℃ ～ High Set Value – 1 ℃
High Set 1 ℃ ～ Low Set Value + 1 ℃
Page 11
8
Max A-Range
It sets maximum depth when auto range is operating.
Set Max A-Range on MENU 1: 30, 100, 200, 300m, Max.
Zoom
Set zoom rate in MENU 1:×2.5, ×5, ×10.
Fish Alarm
When the response to be supposed fish school is displayed and the fish
depth is above 4m, alarm goes off.
Off：fish alarm is cancelled.
Small：to catch the response form big and small fish school.
Big：to catch the response from big fish school only.
Note: Fish alarm sometimes reflects to floating matter except fish.
Set Fish Alarm on MENU 1: Off, Small, Big.
Back Ground
Reflected echo is indicated in different colors according to its strength.
Visual image of display differs from surrounding brightness. It becomes
easy to see the display by selecting different the background color.
Select Back Ground color in MENU 1: Grey, Blue, D-Blue, Black.
Pulse Width
Normally pulse length is set to short automatically according to set
displayed depth range.
Set Pulse Width in MENU 1: Short, Long.
Page 12
9

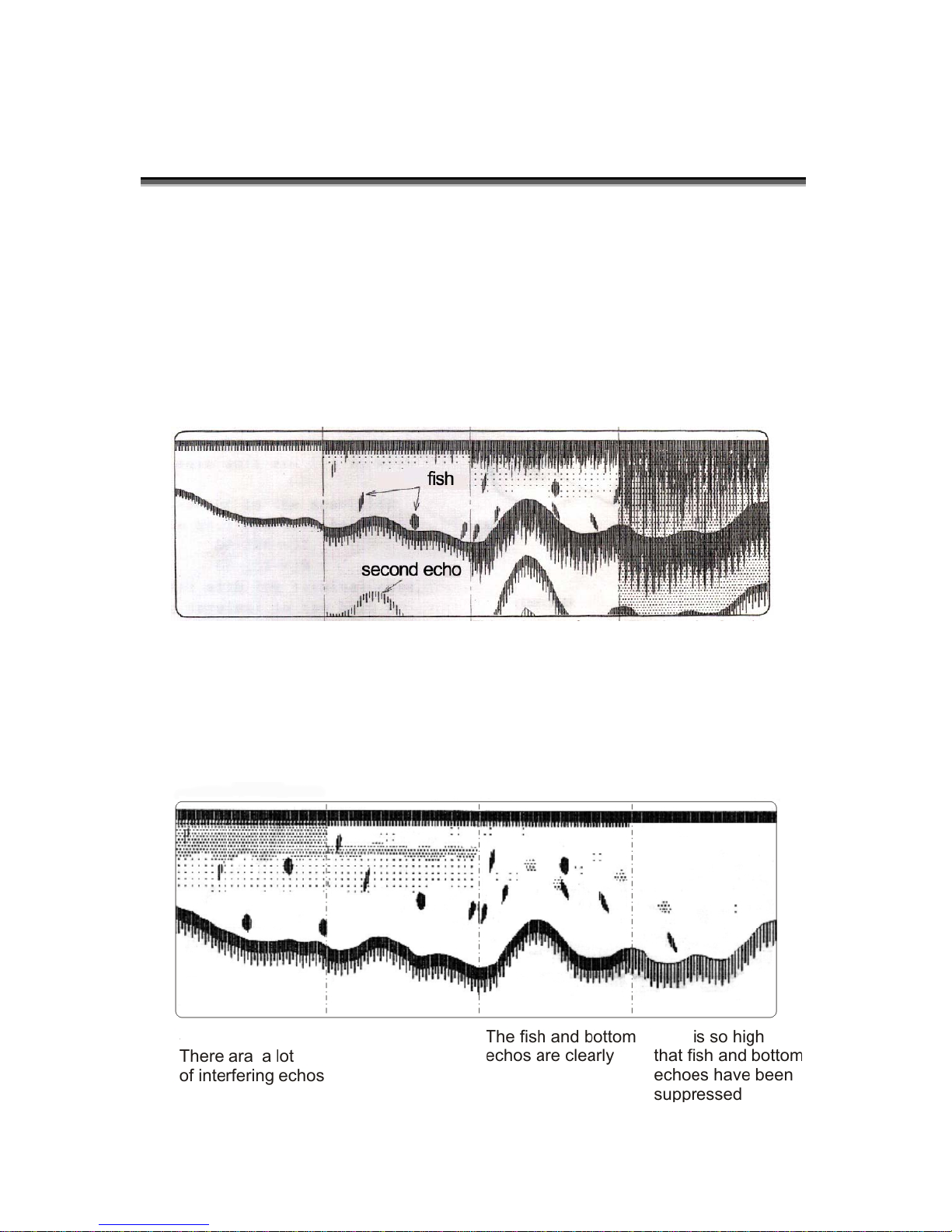

TVG
This function suppresses sensitivity shallower than approx. 100m and
eliminates reflected signal form plankton and air bubble. Stronger TVG is
set, sensitivity near sea surface decreases. When you make TVG too
strong, response near sea surface disappears. On the other hand, when
you make TVG too weak, response near sea surface becomes strong and
you can not judge the image in some case.
Set TVG on MENU 1: 0 ～ 40. More details refer to How to get steady data in page 12.
Noise Rej.
The echo interferences of the same frequency transducers nearby are
eliminated.
Set Noise Rej. on MENU 1: Off, Low, High.
Color Del
This function facilitates clear observation by eliminate weak echo.
Set Color Del on MENU 2: 0 ～ -12.
Palette
Reflected signals of sound wave are converted into 16 ranks of digital
signals according to the strength of response. 16 ranks of color are
arranged and it is called color configuration.
As image of fish finder is displayed in colors by this color configuration, you
can know the strength of response by displayed color. As display of
response varies by changing color configuration in Palette, it enables to
displayed color specially.
Set Palette in MENU 2: 0 ～ 6.
Page 13
10
Depth Alarm
Depth alarm goes off within the 3 depth ranges.
Set depth alarm on MENU 2:
Off, Shal, Midd, Deep
Shallow depth and deep depth are set
in MENU 2: Shallow Set, Deep Set.
Shallow Set
Set shallow depth alarm value.
Set Shallow Set in MENU 2: 1m ～ 50m.
Deep Set
Set deep depth alarm value.
Set Deep Set in MENU 2: 16 m ～ 501m.
Page 14
11
WaterTemp Al
Water temperature alarm goes off within 3 temperature ranges.
Set WaterTemp Al on MENU 2:
Off, Low, Midd, High.
Low set and High Set are set in MENU 2:
Low Set, High Set.
Low Set
Set low alarm temperature value.
Set Low Set temperature value in MENU 2: 0℃ ～ High Set Value – 1 ℃.
High Set
Set high alarm temperature value.
Set Low Set temperature value in MENU 2: 1℃ ～ Low Set Value + 1 ℃.
Page 15
12
How to get the steady data
The key to getting the steady data lies in the correct adjustment of GAIN &
Color Del.
【GAIN 1】/【GAIN 2】 are used to adjust the sensitivity of signal received.
GAIN may be adjusted from the min value to max one and you can get the
appropriate sensitivity at one time point which comes before the time point
of showing littery wave on screen.
【TVG】: suppress unwanted echoes and noise to be adapted with different
waters environment.
Too low
A
ppropriate
A
ppropriate
but littery
Too high
TVG = 0
TVG
Page 16
13
Installation
Operating unit installation
Installation mode: Table
Unit：mm
Page 17
14
Installation
Connection
VGA
VGA interface realizes external 15-32 inch LCD to display the echo graphics.
Page 18
15
Transducer wiring
DF612 -- BP60-200-15L
DF1011 -- 50B-9B-15L,
DF1511 -- TGM60-50B-10L,
wiring method:
Shielded wire → Pin 1 of 5-pin plug
Other signal wires → Pin 3/ Pin 4 of 5-pin plug
DF2022 -- TGM50/200B-12L wiring method:
Shielded wire → Pin 1 of 5-pin plug
White/ Black wire (50kHz) → Pin 3/ Pin 4 of 5-pin plug
Red/ Green wire (200kHz) → Pin 2/ Pin 5 of 5-pin plug
DF5088 -- CM199 wiring method:
Yellow/ Black wire (50kHz) → Pin 3/ Pin 4 of 7-pin plug
Blue/ Black wire (200kHz) → Pin 2/ Pin 5 of 7-pin plug
White/ Brown wire (Temperature) → Pin 1/ Pin 6 of 7-pin plug
Shielded wire → Pin 7 of 7-pin plug
Cut off orange wire from the root.
DF2099 -- B258 wiring method:
Blue/ Black wire (100kHz) → Pin 3/ Pin 4 of 7-pin plug
White/ Brown wire (Temperature) → Pin 1/ Pin 6 of 7-pin plug
Shielded wire → Pin 7 of 7-pin plug
Cut off the rest wires from the root.
Loading...
