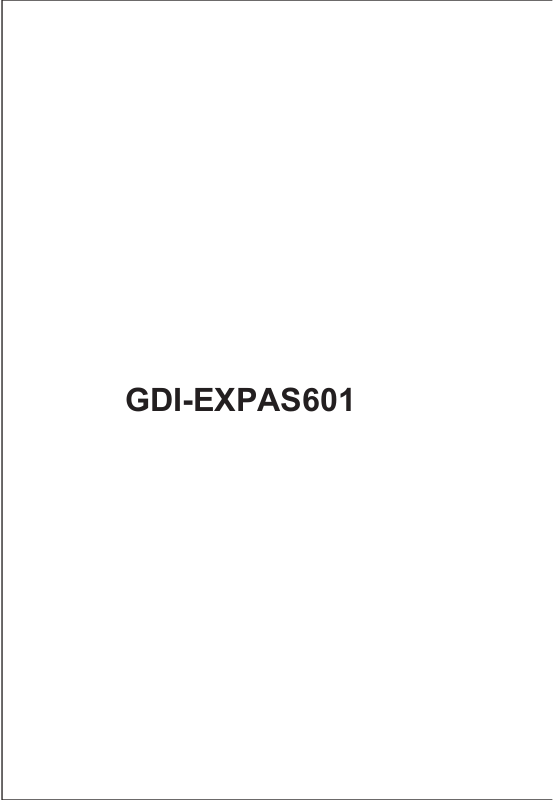

GDI-EXPAS601
IMPORTANT SAFETY INSTRUCTIONS
1. Prior to switching on turn volume down to a minimum.
2. Connect to the audio source to the appropriate input socket.
3. Connect to the mains supply.
4. Switch on the audio source,followed by the active speaker
5. Set the volume with the applicable control
6. Adjust the bass+treble to midpoint
Page 1
Impor tant Safety
Instru ctions
Terminals marked with
this symbol carry
electrical current of
of electric shock. Use only high-quality
professional speaker cables with ¼" TS
or twist-locking plugs pre-installed.
should be performed only by
This symbol, wherever it
appears, alerts you to the
presence of uninsulated
dangerous voltage inside the enclosure
This symbol, wherever it
appears, alerts you to
important operating and
maintenance instructions in the
accompanying literature. Please read
Caution
To reduce the risk of
electric shock, do not
remove the top cover (or the rear
section). No user serviceable parts inside.
Caution
To reduce the risk of
not expose this appliance to rain and
be exposed to dripping or splashing
liquids, such as vases, shall be placed
on the apparatus.
Caution
These service instructions
the risk of electric shock do not
perform any servicing other than that
contained in the operation instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus
near water.
6. Clean only with dry cloth.
7. Do not block any ventilation
openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat
sources such as radiators, heat registers,
stoves, or other apparatus (including
9. Do not defeat the safety purpose
of the polarized or grounding-type
plug. A polarized plug has two blades
with one wider than the other.
A grounding-type plug has two blades
and a third grounding prong. The wide
blade or the third prong are provided
an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being
walked on or pinched particularly
at plugs, convenience receptacles,
and the point where they exit from
the apparatus.
11. Use only attachments/accessories
12. Use only with
the cart, stand,
tripod, bracket, or
the manufacturer,
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during
lightning storms or when unused for
long periods of time.
14.
service personnel. Servicing is required
when the apparatus has been damaged
in any way, such as power supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
to a MAINS socket outlet with a
protective earthing connection.
16. Where the MAINS plug or an
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily operable.
17. Correct disposal of
this product: This
symbol indicates that
this product must not
be disposed of with
household waste, according to the
WEEE Directive (2012/19/EU) and your
national law. This product should be
taken to a collection center licensed for
the recycling of waste electrical and
electro
nic equipment (EEE).
The mishandling of this type of was te
could have a possible negative impact
on the environment and human health
due to potentially hazardous
substances that are generally
associated with EEE. At the same time,
your cooperation in the correct disposal
of this product will contribute to the
take your waste equipment for
recycling, please contact your local city
collection service.
18.
such as a book case or similar unit.
19.
sources, such as lighted candles,
on the apparatus.
20. Please keep the environmental
aspects of battery disposal in mind.
Batteries must be disposed-of at a
battery collection point.
21. Use this apparatus in tropical
and/or moderate climates.
Page 2
WARNING
Do not ingest the battery, Chemical Burn Hazard
(The remote control supplied with) This product
contains a coin/button cell battery. If the
coin/button cell battery is swallowed, it can
cause severe internal in just 2 hours and can
lead to death . Keep new and used batteries away
from children. If the battery compartment does
not close securely, stop using the product and
keep it away from children. If you think batteries
might have been swallowed or placed inside any
part of the body, seek immediate medical
attention.
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with minimum distance 20cm between the radiat
or & your body
Page 3
Do not overload the box to avoid damage to the speakers.
Do not place an open fire(candles etc)on top or next to the box-FIRE HAZARD.
Only connect to an earthed mains output of AC 115/230V~60/50Hz.
For indoor use only. If the box is used outdoors,you need to make sure that no
humidity can enter the box.
When not in use,unplug the unit from the mains.
Unplug the unit from the mains prior to checking or replacing the fuse.
Make sure that the box is placed on a stable, strong surface.
Only use suitable means of transportation if you want to move the box-BEWARE
OF YOUR BACK!
Always unplug the unit during a thunderstorm when it is not in use.
If the unit has not been used for a long period of time, condensation can be
occurred inside the house.
Please wait the unit reaching room temperature before switching it on.
Never try to repair the unit by yourself.It does not contain any user repairable
parts.
Run the main lead in a way that nobody can fall over it and nothing can be
put onto it.
Set the unit to the lowest volume before switching it on.
Keep the unit out of the reach to children.
RMS
15"Speaker box
15 ”
"
1
180W
4 ohm
40
92dB(+/-2dB)
10mV
700mV
Page 4
CONTROLS LOCATION
MP3 DIGI TAL DISPL AY WITH REM OTE CON TROL
1
2
ECHO LINE LEVE L VOLUME
7
MIC LEVEL
8
9
10
13
11
LINE OUT
12
MIC IN
LINE IN
BEAT
SYNC
OFF
17
POWER
LED
10K
4K
1K
480
60
AUTO 2
AUTO 1
6
0dB +6
GRAPHIC EQU ALIZE R
USB
MAXMAXMAXMAX MINMI NMINMI N
+1212
LED
115V/230 V
VOLTAGE SELECT
115V~ 60Hz Fuse 5A
230V~ 50Hz Fuse 3.15A
SD
3
4
6
5
14
15
16
18
1.LCD screen
2.MP3 control
MODE:USB/SD/BT/Hold to ON/OFF
BT:Long press to disconnect
:Play / Pause
:Stop
:Repeat one/Repeat all/Random/Folder
:Previous Song
:Next Song
3.SD card input
4.USB input
5.Main volume control
6.Online level control
7.Echo control
8.Microphone level control
9.XLR input
10.6.35mm microphone input
11.XLR microphone input
12.Line output
13.3.5mm line input
14.5 band EQ control
15.RCA line inputs (R + L)
16.LED mode selection
17.Switch ON and oF
18.AC input(AC115/230V 60/50Hz)
