Operating Instructions
NILOS® Pneumatic Cutter
Type PS 50

© 07/2009

Subject to technical alterations

For cutting rubber with a thickness of up to 50 mm

• High transverse stability due to reinforced bracing

• Use of standardized components

• High stability against tilting due to lateral support rollers

• Ball bearing-mounted material guide rollers

• Motor easily replaceable (no adjustment necessary)

• Easy replacement of the circular knives

• Cuts rubber and PU material up to a thickness of 50 mm

Shore hardness: 40-70°
Speed of rotation of circular knives: 30 min

-1

Air pressure: 4-6 bar
Air consumption: 11,33 l/sek
Circular knife: Ø 200 mm

The pneumatic rubber cutter is only intended for cutting rubber sheets,
conveyor belts with fabric plies and polyurethane panels and must not
be used for the cutting of any other materials. Improper use releases us
from any claims under the guarantee and from product liability.

Compressed air-driven motors pose an only very slight risk even in an
explosive atmosphere. Irrespective of this, the user is obliged to take
responsibility for assessing the risks in individual cases in the case of an
extreme atmosphere at the place of use.

For better cutting, the circular knife should – especially at material
thicknesses of 50 mm – be sprayed with silicone.

We supply the pneumatic rubber cutter ready for connection for a fast
plug-in coupling to the compressed air network.

The pneumatic rubber cutter is operated with both hands, one hand
regulating the air pressure and the other opening the knife guard.

Advantages

Area of use

Operating Instructions
NILOS ® Pneumatic Cutter Type PS 50

3

© 07/2009

Subject to technical alterations

Warning!

Before every replacement or readjustment of the circular knife ensure
that it is not under pressure or jammed.

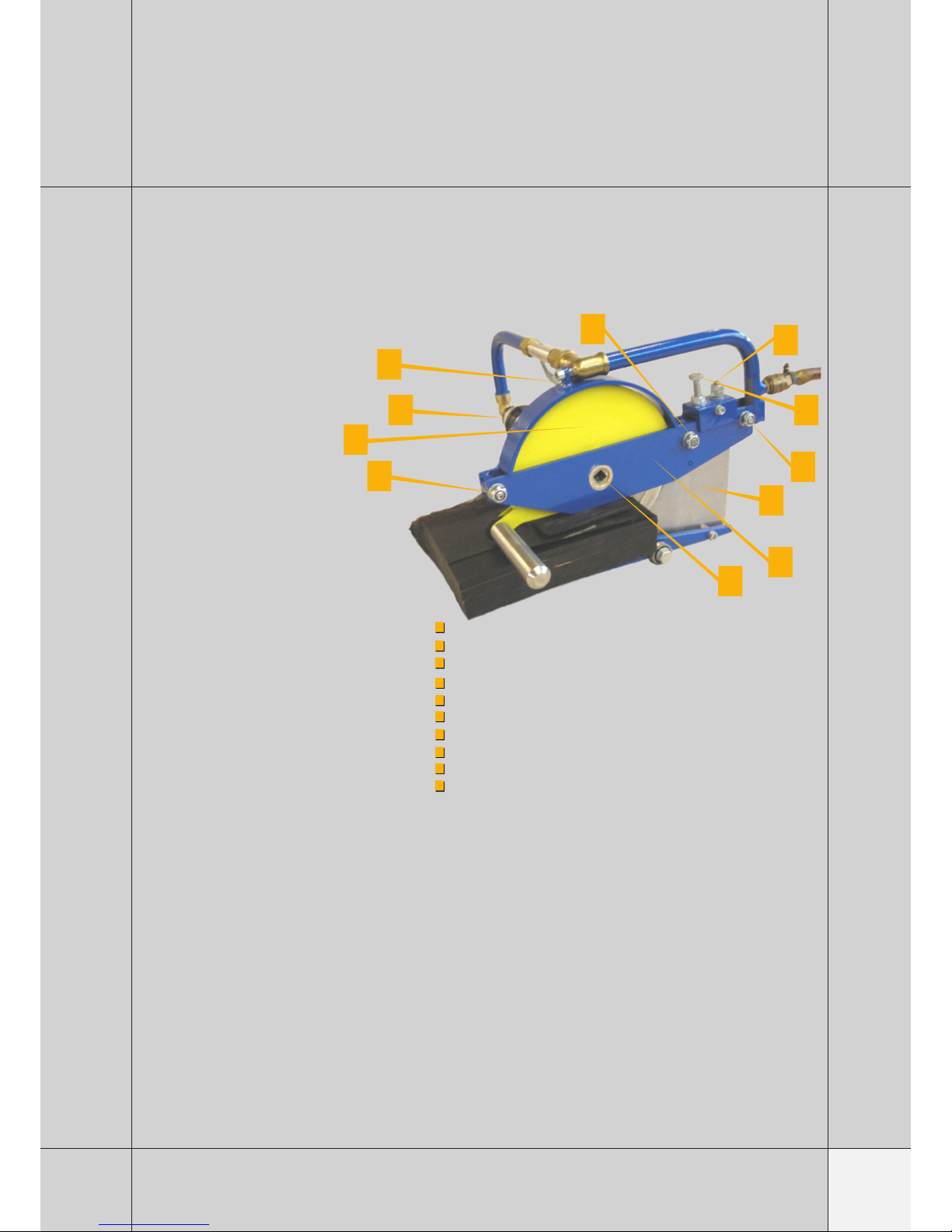

Item 1 Setting screw
Item 2 Adjusting screw
Item 3 Centres of rotation with clamping screw
Item 4 Clamping screws
Item 5 Compressed-air motor
Item 6 Compressed air regulation
Item 7 Covering hood for the circular knife
Item 8 Bracing
Item 9 Bracing
Item 10 Bearing retainer

• Loosen clamping screws (Item 3)

• Set the knife position approx. 5 mm into lower guide

rollers via setting screw and then tighten (item1)

• Check setting of the circular knife

• Fine adjustment via setting screw (Item 2)

• Firmly tighten clamping screws and lock nuts

• Make a trial cut

Settings

Replacement of the circular knife

6

4

7

5

2

3

1

4

8

9

10

Operating Instructions
NILOS ® Pneumatic Cutter Type PS 50

© 07/2009

Subject to technical alterations

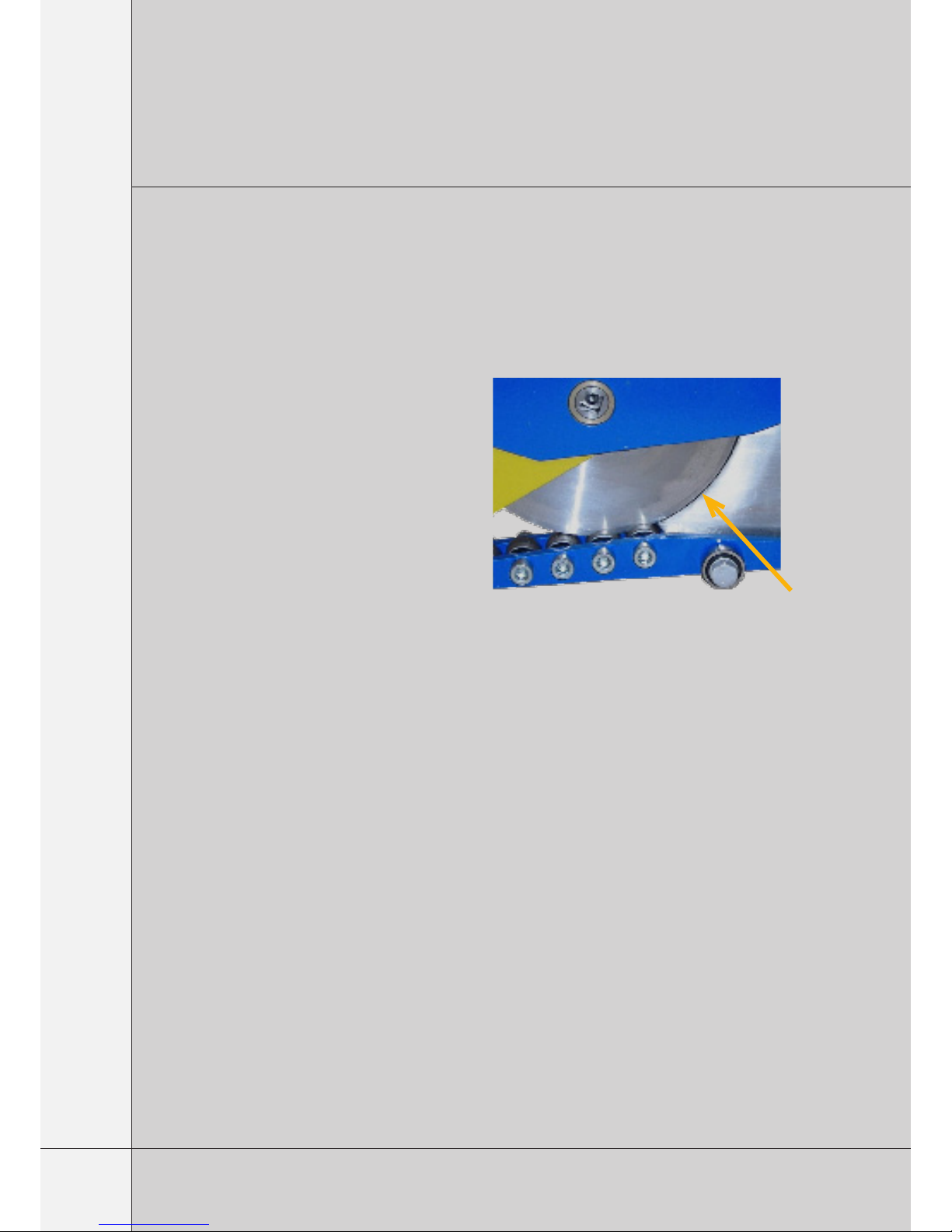

The setting of the circular knife is to be approx. 5 mm deep between
the guide rollers. The depth setting is made with the setting screw
(Item 2). It must be ensured that the circular knife does not rest on
the hexagon socket screws of the roller fastening system.
In order to prevent injuries, the gap between the circular knife and
the bracing (Item 8) has been reduced to 2-3 mm.

Wear protective gloves to avoid injuries!

Lubricating the compressed-air motor

For the faultless functioning and long service life of the compressed­air motor, according to the manufacturer the motor should, as far as
possible, be operated with an oiler. Lubrication is absolutely essential
for ensuring optimum tool performance. The air line lubricating de­vice should be installed in the ow direction of the lters. Otherwise
regularly lubricate every operating hour with an oil of the Class ISO
VG 15.

Warning

If the device is not used for a relatively long time, the compressed-air
motor should, according to the manufacturer, be lled with com­pressed-air oil (put some oil in the compressed air connection and
let the motor run). In that way you will avoid corrosion caused by
humidity and condensate.

Grinding the circular knife

The circular knife can be ground in the installed state. In the removed
state the circular knife should be ground in a jig. During the grinding
process the circular knife must turn slowly. The cutting edge must
be ground sharp and uniformly. Burns are to be avoided. We recom­mend a chamfer of 10° on both sides of the knife edge.

Setting the circular knife

Operating Instructions
NILOS ® Pneumatic Cutter Type PS 50

5

© 07/2009

Subject to technical alterations

NILOS® Pneumatisches Schneidegerät
Typ PS 50 Betriebsanleitung

Wear protective gloves to avoid injuries!

Cleaning

Do not use any cleansers containing solvents!

Maintenance

At intervals of about 300 operating hours, maintenance should
be carried out. During this the brass bearings are to be greased.
Wear parts – such as brass bearings, lamellae and O-rings of the
compressed-air motor – should be replaced as required. The com­pressed-air motor is to be inspected only by the manufacturer as the
guarantee provided otherwise expires.

Compressed-air motor HM-01-30

Purpose of use

This motor is intended for installation in stationary or moving
machines.
It rotates in a clockwise direction and may be installed only on the
ange or the threaded neck. The risk of the motor leading to a
potentially explosive atmosphere is extremely slight. The user bears
the responsibility for an assessment of the risks for the entire machine
in which the motor is to be installed.

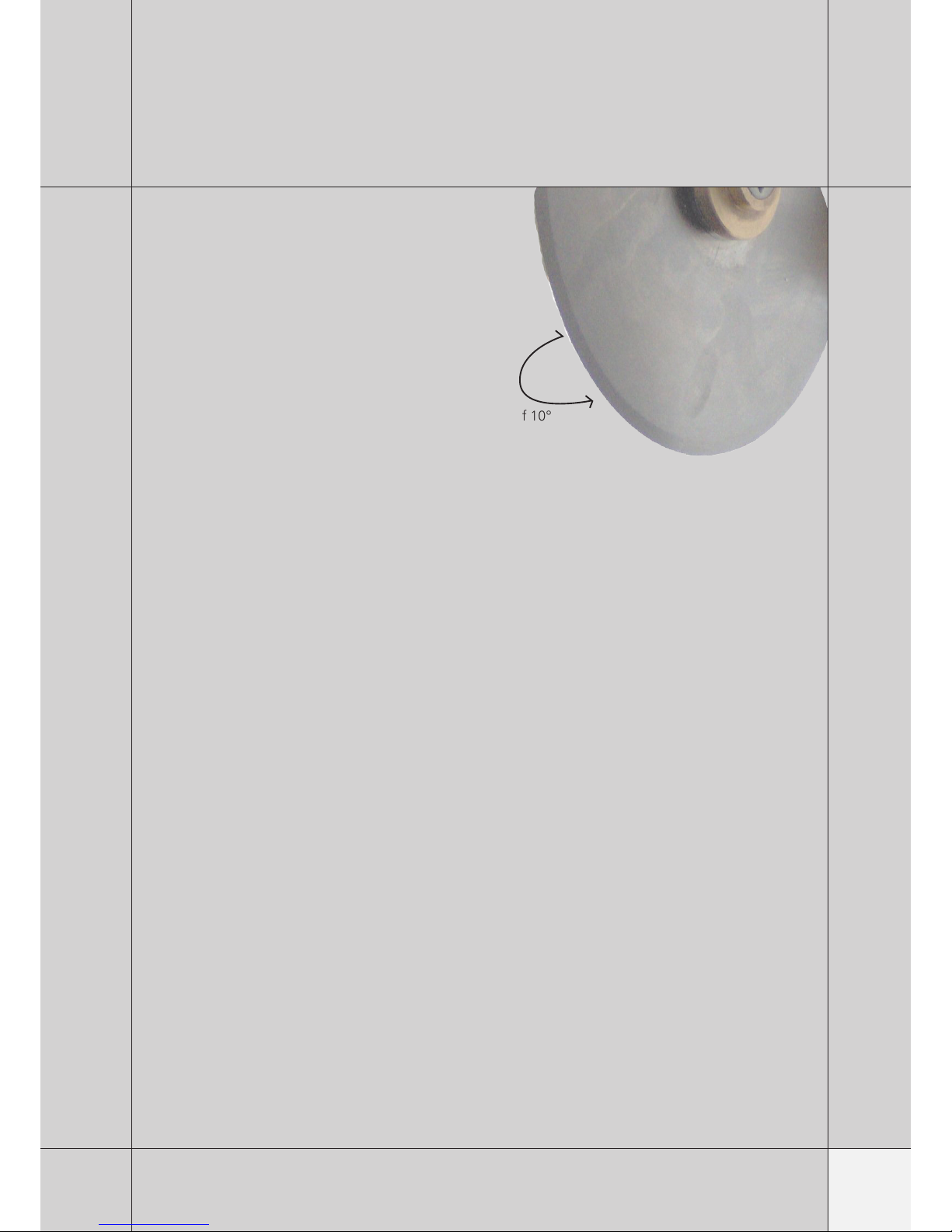

Grind on
both sides
at an angle of 10°

NILOS® GmbH & CO. KG

Reisholzstraße 15
D-40721 Hilden
Phone: [phone]
Fax: [phone]
Email: [email protected]
Web: www.nilos.com
