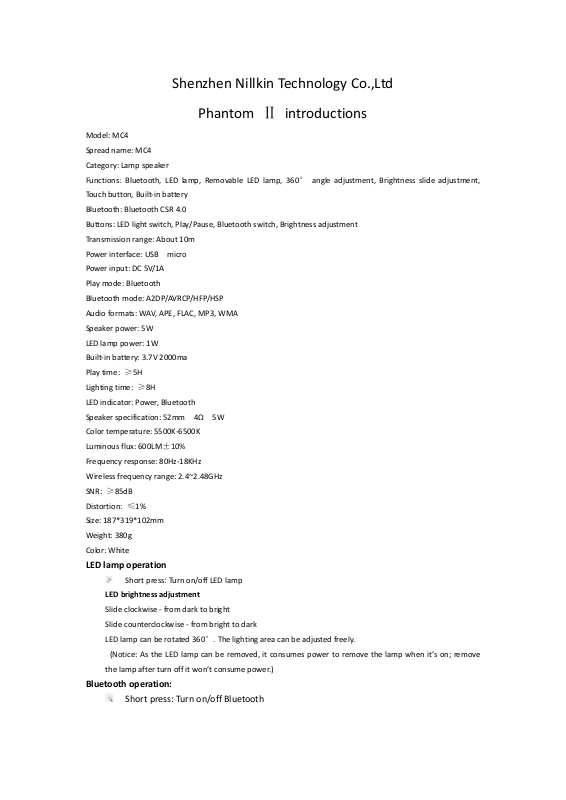

Shenzhen Nillkin Technology Co.,Ltd
Phantom Ⅱ introductions
Model: MC4
Spread name: MC4
Category: Lamp speaker
Functions: Bluetooth, LED lamp, Removable LED lamp, 360° angle adjustment, Brightness slide adjustment,
Touch button, Built-in battery
Bluetooth: Bluetooth CSR 4.0
Buttons: LED light switch, Play/Pause, Bluetooth switch, Brightness adjustment
Transmission range: About 10m
Power interface: USB micro
Power input: DC 5V/1A
Play mode: Bluetooth
Bluetooth mode: A2DP/AVRCP/HFP/HSP
Audio formats: WAV, APE, FLAC, MP3, WMA
Speaker power: 5W
LED lamp power: 1W
Built-in battery: 3.7V 2000ma
Play time: ≥5H
Lighting time: ≥8H
LED indicator: Power, Bluetooth
Speaker specification: 52mm 4Ω 5W
Color temperature: 5500K-6500K
Luminous flux: 600LM±10%
Frequency response: 80Hz-18KHz
Wireless frequency range: 2.4~2.48GHz
SNR: ≥85dB
Distortion: ≤1%
Size: 187*319*102mm
Weight: 380g
Color: White
LED lamp operation
Short press: Turn on/off LED lamp
LED brightness adjustment
Slide clockwise - from dark to bright
Slide counterclockwise - from bright to dark
LED lamp can be rotated 360°. The lighting area can be adjusted freely.
(Notice: As the LED lamp can be removed, it consumes power to remove the lamp when it’s on; remove
the lamp after turn off it won’t consume power.)
Bluetooth operation:
Short press: Turn on/off Bluetooth
Page 2
Short press: Play/Pause
(Disconnect Bluetooth: Long press to disconnect with current device, it will enter to paring state)
Bluetooth connection:
Step 1: Press the speaker’s Bluetooth switch to turn on, then blue light flashes and there will be warning tone,
enter Bluetooth mode.
Step 2: Turn on the Bluetooth of your phone, click scan and search the device. (iPhone will enter to Bluetooth
searching mode automatically)
Step 3: Search and click “MC4” to connect Bluetooth. (The pass code is 0000 if necessary)
After successful connection, the blue light is on and there is warning tone.
Pairing and connecting.
When the Bluetooth turned on, it will automatically connect the last paired device. Conversely, it will enter to
paring state after 15-30 seconds.
(Attention: Pairing state duration is 10 minutes. If the device cannot be connected in 10 mins, it will enter to
standby mode. Also, it will not be connected by other devices; it is required to reboot the speaker.)
Attention here:
A. Please make sure your Bluetooth device is connected.
B. If the Bluetooth icon is not blinking, it means the Bluetooth is not in the match mode, please reboot the
speaker.
Phone supports A2DP agreement, computer supports Windows and iOS compatible Bluetooth drivers.
Unable to connect to last paired device
When Bluetooth Speaker rapid shutdown and then reboot, the Bluetooth speaker will automatically connect to
the last paired device, if unable to pair, please checkwhether the Bluetooth is turned on.
Packing list
Speaker*1 USB cable*1 Introductions*1
【Attention】
Please keep the chargerand receiver away from water and other liquid.
If you need to clean the charger, please make sure it’s not inserted into power supply.
Using environment temperature is 0-45℃.
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
Page 3
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen
Nillkin Technology Co.,Ltd may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
