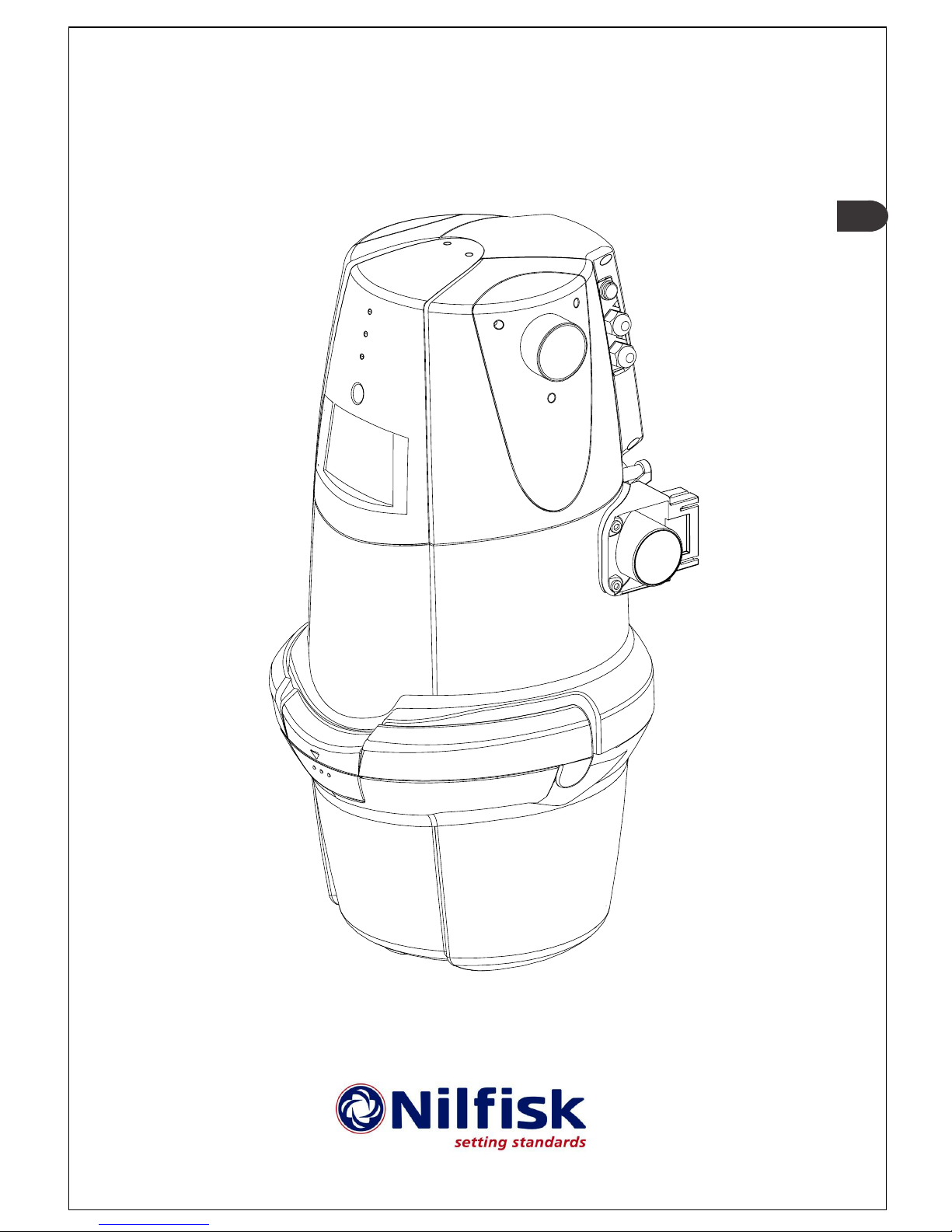

TECHNICAL MANUAL
EN
3
EN
INSTALLATION, USE AND MAINTENANCE MANUAL

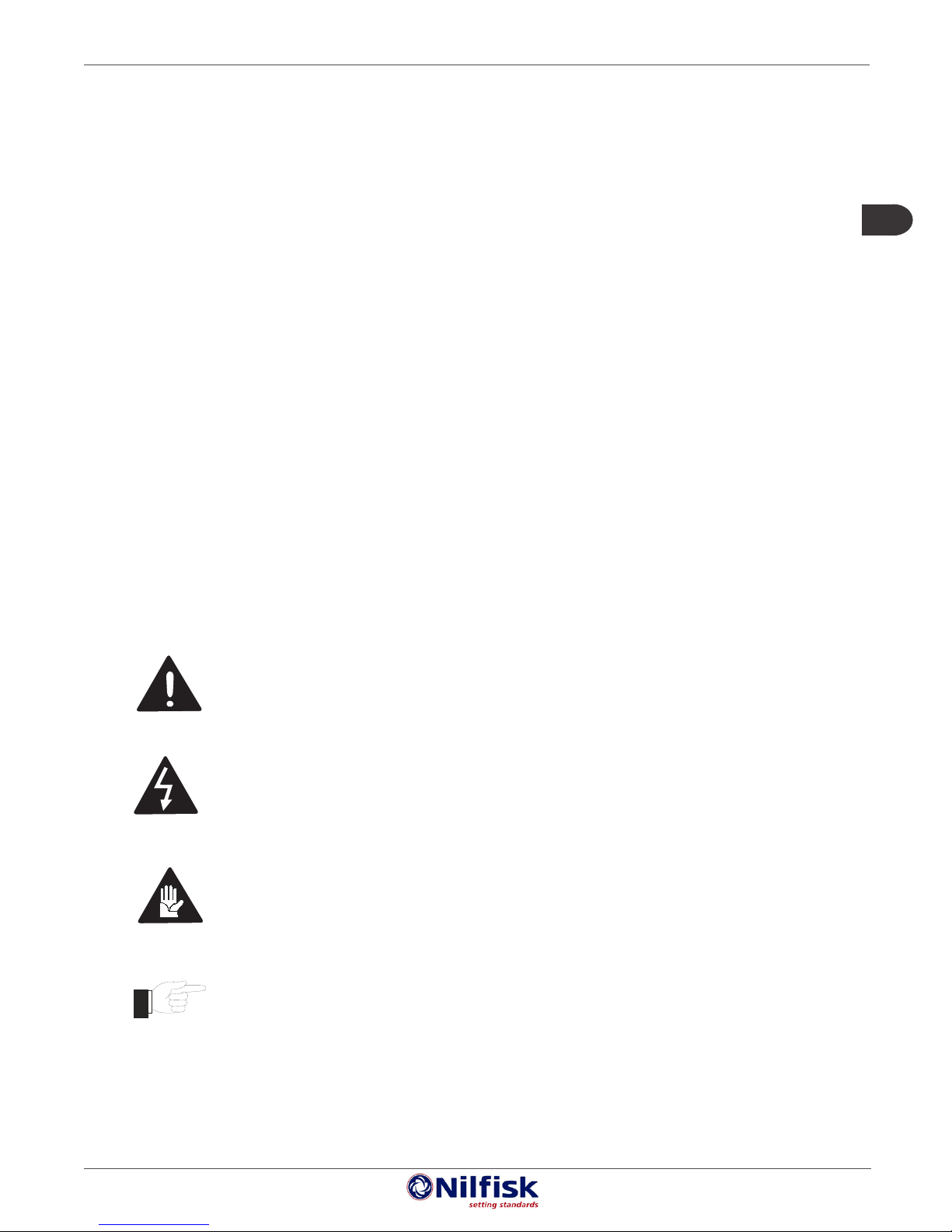

Danger – Attention
Denotes situations of extreme danger that if ignored could create serious risks for
the health and safety of persons
Caution
Denotes that suitable conduct must be followed to avoid accidents and/or causing
economic damage
Information
Denotes technical information of particular importance that must not be ignored.
Danger of electrical shock
Attention electrical equipment under tension.
Rev.00-05/10
Purpose of this manual
This installation, use and maintenance manual is an integral and essential part of the vacuum cleaner
system. Its purpose is to provide all necessary information to allow the installer to install the system in
full compliance with the manufacturer’s specifications, the user to operate the system in the safest and
most independent way, and maintenance technicians carrying out programmed maintenance operations
to ensure the correct operation of machinery and the system as a whole.
The manufacturer declines all liability for damage deriving from failure to observe the instructions given
in this manual. In case of doubts on the correct interpretation of instructions, contact the manufacturer to
receive the necessary explanations.
Composition of the manual and consultation details
This installation, use and maintenance manual is composed of chapters divided into sections, identified
by a progressive numbering system at the start of each different topic.
The table of contents lists the chapters and sections, allowing the desired topic to be easily found.
The following symbols are used in this manual to indicate and highlight particularly important parts of the
manual that must not be ignored:
GENERAL INFORMATION
4
INSTALLATION, USE AND MAINTENANCE MANUAL
ATTENTION: Uses other than those indicated above are not permitted.
Modifications or adaptations of the main vacuum unit are not permitted.
Any use of the product other than that for which it has been designed constitutes
an abnormal condition that may cause damage to the main vacuum unit and be a
serious hazard for users.
This manual has been compiled to permit use of the system in optimal conditions respecting
the conditions of guarantee. You are advised to read it carefully.
RECOMMENDATIONS FOR USE
• Vacuum units are destined for use in residential buildings. Their use during building work may cause serious
deterioration that is not covered by the guarantee. Do not suck up plaster, cement or rubble. These
operations can be performed using the liquid cleaner accessory (see accessories brochure).
• Do not use the machine for inappropriate purposes. Do not suck up glowing embers, cigarette ends still
lit, inflammable products or materials that could cause flames in the dust collection container, materials with
a high risk of explosions or materials that individually are inert but that when mixed together may cause
dangerous chemical reactions.
• It is prohibited to use vacuum units for unintended purposes in industrial facilities in the presence of values
of temperatures, pressure and humidity in excess of those of normal workplaces.
• Do not suck up liquids, ashes in fireplaces, large quantities of flour, printer toner, building site
dust, fine powder, cement or plaster.
• Unplug the unit from the 230V power supply wall socket in these cases:
I. If the main vacuum unit receives an impact.
II. If maintenance or repair operations are necessary, and always before any other kind of work.
III. If the system is not to be used for a long period.
• Do not under any circumstances whatsoever work on the main unit while it is operating.
• Wear protective gloves and a facemask for all maintenance work (emptying of dust container, cleaning or
replacement of filter).
• Use only original spare parts.
• Do not use the main vacuum unit without the filter.
• After all maintenance operations ensure that the filter has been replaced and correctly tightened.
• Do not obstruct air inlets or outlets.
• Do not allow parts of the body to be kept in contact with accessories of the main vacuum unit and never
direct the suction mouthpiece toward persons or animals.
• The vacuum cleaner system and its accessories are not toys. Do not allow children to use them without
adult supervision.
• Ask the installer carrying out the final system trial to certify that the system has been correctly installed.
according to the state of the art.
5
EN
INSTALLATION, USE AND MAINTENANCE MANUAL
CONTENTS
1. Description of the centralized vacuum cleaning system
1.1. Exploded diagram of main vacuum unit
1.2. Accessories supplied
1.3. Technical characteristics
1.4. Description of user interface
2. Installation
2.1. Choice of installation position for main vacuum unit
2.2. Dimensions and technical data chart
2.3. Installation of main vacuum unit
2.4. Reversibility of suction and outlet connections
3. Self-cleaning function
4. Maintenance
4.1. Emptying the dust container
4.2. Manual filter cleaning
5. Safety components
5.1. Protection fuse
5.2. Cut-out breaker against overheating
6. Programming the user interface
6.1. General information
6.2. Personalization of maintenance parameters
6.3. Display of personalized maintenance parameters
7. Most frequent problems
7.1. The main vacuum unit does not work…
7.2. Suction power is very low…
8. Repairs
9. Decommissioning
10. Declaration of EC Conformity
6
INSTALLATION, USE AND MAINTENANCE MANUAL
1. DESCRIPTION OF THE CENTRALIZED VACUUM CLEANING SYSTEM

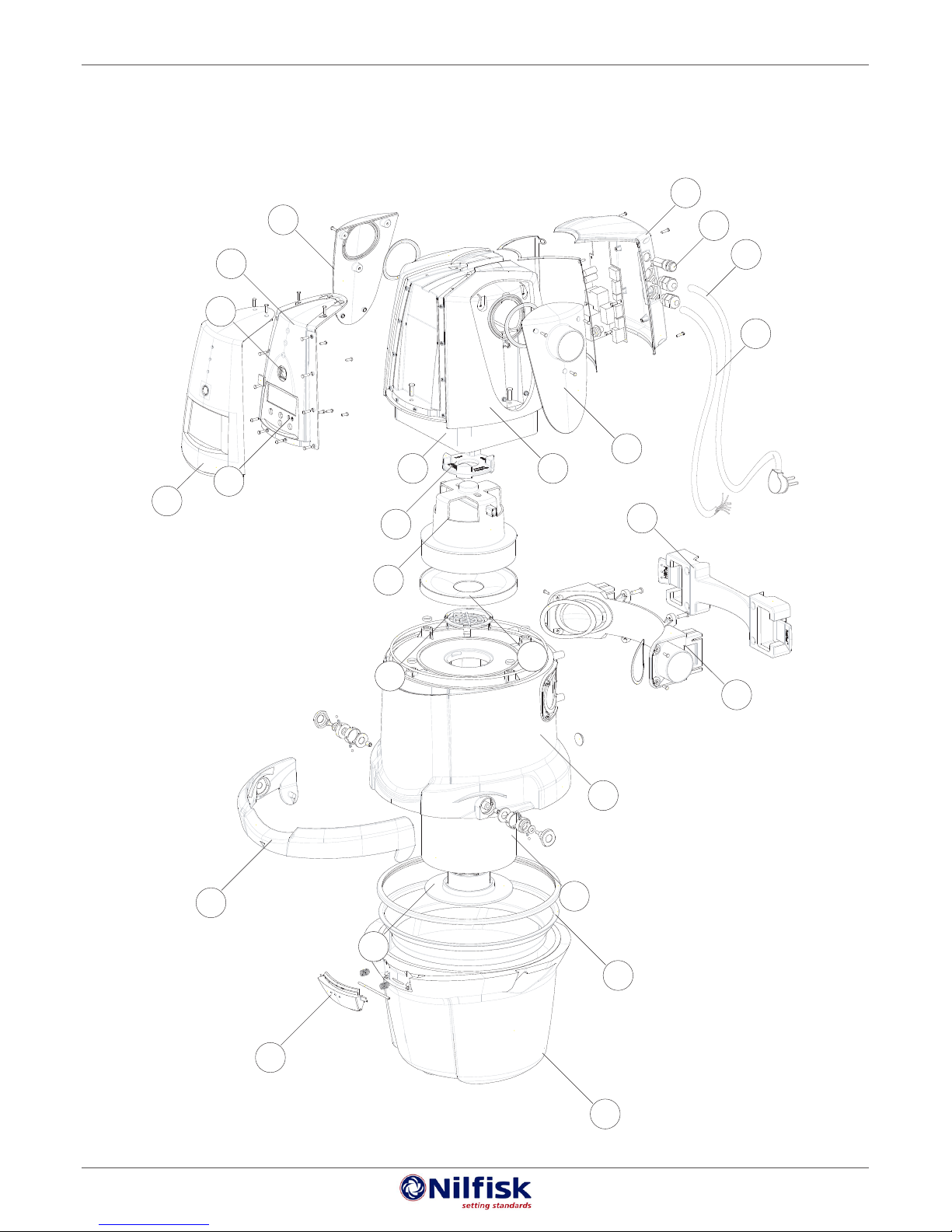

1.1 Exploded diagram of main vacuum unit
12
1
2
3
4
5
6
7
8
9
11
14
15
16
13
17
18
19
20
24
21
22
23
10
25
7
EN
INSTALLATION, USE AND MAINTENANCE MANUAL
MAIN VACUUM UNIT
1. Dust collection container
2. Container release button
3. Channelling cone
4. Filter retention ring
5. Secondary filter in washable polyester
6. Container locking handle
7. Central section
8. Anti-intrusion grille
9. Lower anti-vibration gasket
10. Motor/rotor unit
11. Anti-rotation
12. Incorporated reversible silencer
13. Top section
14. User interface
15. LED light
16. Shield
17. Front cover
18. Side cover with expulsion
19. Side cover without expulsion
20. Rear cover
21. 230 V power supply cable
22. Cable for Micro Line and embedded user interface (optional)
23. Reversible support/inlet
24. Wall bracket
25. Fuse

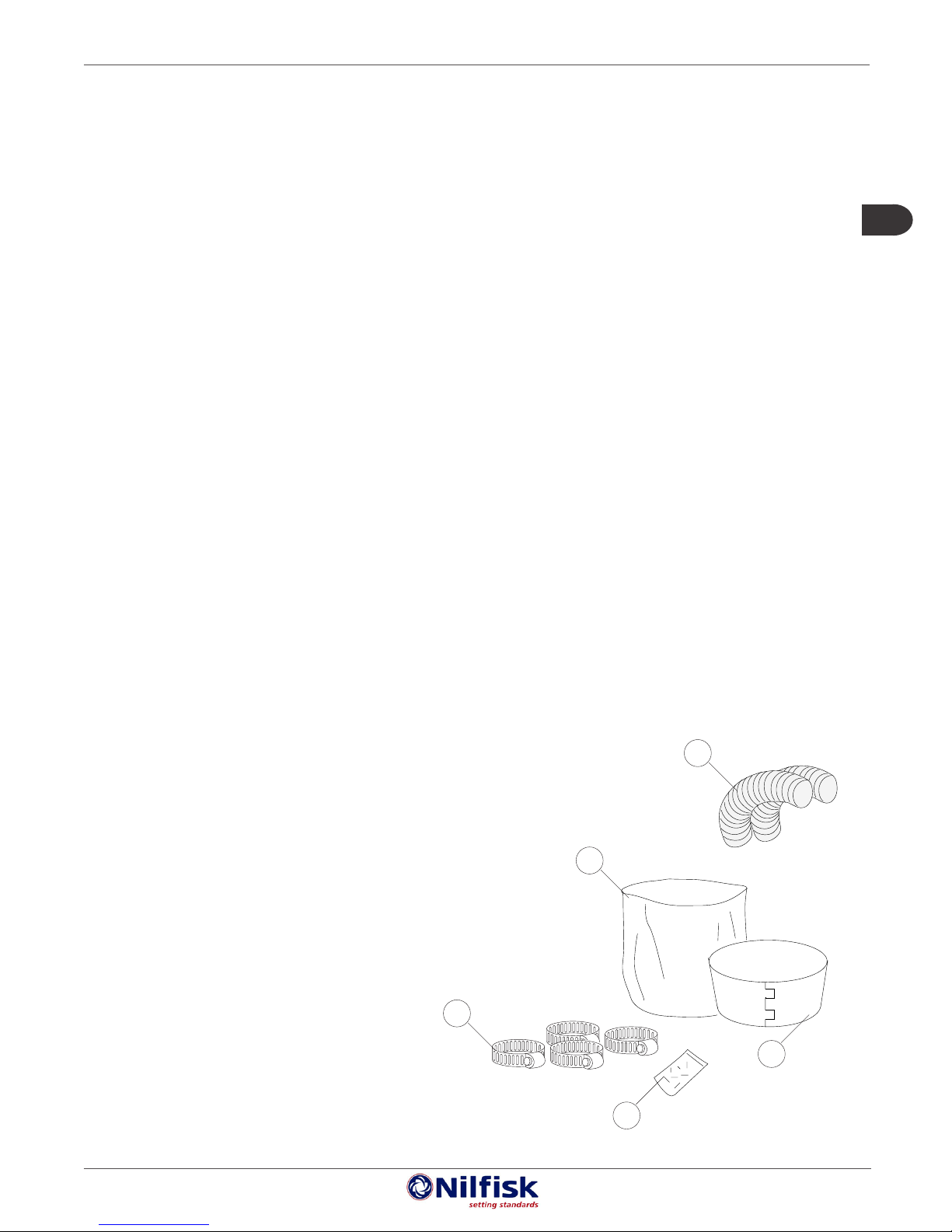

1.2 Accessories supplied
A. 2 flexible hoses for inlet and outlet connections
B. 4 metal clamps
C. 1 kit of screws for fixing wall bracket
D. 1 dust collection bag
F. 1 bag stretcher
A
D
F
B
C
8
INSTALLATION, USE AND MAINTENANCE MANUAL
DIAMOND
C30
420
YES
NO
YES
YES
55
230
50/60
1600
10
5
250
3.000
8000
18
50
66
YES
POLYESTER
8
700
YES
NO
YES
YES
55
230
50/60
1750
10
5
210
3.450
8000
18
50
69
YES
POLYESTER
9
Model
Series
Maximum surface area (m³)
Smart electronics
Self-cleaning function
Air expulsion
Incorporated silencer
IP protection rating
Power supply V AC
Frequency Hz
Motor power W
External SB fuse (AM) A
Socket power supply V dc (SELV)
Max. airflow m³/h
Suction pressure mm H2O
Filter surface area cm²
Dust container capacity lit.
Air inlet/outlet diam. mm
Noise emission dB (A)
Soft Start
Filter material
1.3 Technical characteristics
Current absorbed (A)
700
YES
YES
YES
YES
44
230
50/60
1750
10
5
210
3.450
8000
18
50
69
YES
POLYESTER
9
DIAMOND
COMPRESSOR
C40 T40
