Nilfisk-Advance IVB 963-2M ED XC, IVB 965-2M SD XC, IVB 965-2H SD XC Operating Instructions Manual
Operating Instructions
Betriebsanleitung
Notice d’utilisation
Gebruiksaanwijzing
Istruzioni sull’uso
Driftsinstruks
Bruksanvisning
Driftsvejledning
Käyttöohje
Navodilo za uporabo
Uputstvo za rad
Prevádzkový návod
Provozní návod
Instrukcja obsługi
Kezelési utasítás
Руководство по эксплуатации
Instrucciones de manejo
Instruções de operação
Οδηγίες λειτουργίας
Ýþletme kýlavuzu
Naudojimo instrukcija
Kasutusjuhend
Lietošanas instruckcijas
IVB 963-2M ED XC
IVB 965-2H/M SD XC
107401236 A
auto
ø
ø
0
ø
ø
3
3
6
5
2
2
7
auto
ø
ø
ø
ø
3
Printed in Hungary
1
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
Contents
1 Important safety
instructions
2 Description
3 Before starting the
cleaner
4 Control / Operation
5 Applications and
methods
6 After using the cleaner
7 Maintenance
8 Troubleshooting
9 Further information
............................................................................................2
2.1 Operating elements ..............................................................8
2.2 Operating panel ....................................................................9
3.1 Assembling the vacuum cleaner.........................................10
3.1.1 Taking accessories out of the packaging ............................10
3.1.2 Before starting the cleaner .................................................11
3.1.3 Inserting the safety filter bag (IVB 965-2H/M SD XC) ........11
3.1.4 Inserting the disposal bag (IVB 965-2H/M SD XC) ............13
3.1.5 Inserting the disposal bag (IVB 963-2M ED XC) ................15
4.1 Connections .......................................................................16
4.1.1 Electrical connection ..........................................................16
4.2 Switching on the vacuum cleaner .......................................16
4.2.1 Switch „ auto-0-I “ ...............................................................16
4.2.2 Suction power control .........................................................16
4.2.3 Auto-On/Off-Operation - "auto" switch position .................17
4.3 Check volume flow monitor ................................................18
4.4 Acoustic warning ................................................................18
4.5 Cleaning the filter element .................................................18
5.1 Techniques .........................................................................19
5.1.1 Picking up dry substances..................................................19
5.1.2 Picking up liquids ................................................................19
6.1 Switching the vacuum cleaner off and storage ...................20
7.1 Maintenance plan ...............................................................21
7.2 Maintenance work ..............................................................22
7.2.1 Emptying the dirt tank ........................................................22
7.2.2 Replacing the disposal bag ................................................23
7.2.3 Replacing the safety filter bag ............................................24
7.2.4 Replacing filter element "H" ................................................25
7.2.5 Replacing the disposal bag (IVB 963-2M ED XC) ..............27
..........................................................................................28
9.1 Recycling the cleaner .........................................................29
9.2 Guarantee ..........................................................................29
9.3 Tests and approvals............................................................29
9.4 EC declaration of conformity ..............................................29
9.5 Technical data ....................................................................30
9.6 Optional accessories ..........................................................30
2
IVB 9 H/M
1)
OEL = Occupational Exposure Limit
Original Instructions
1 Important safety instructions
Symbols used to mark
instructions
Prior to using the appliance for the first time, be sure to read
this document through and keep it ready to hand.
DANGER
Danger that leads directly to serious or irreversible injuries,
or even death.
WARNI NG
Danger that can lead to serious injuries or even death.
CAUTION
Danger that can lead to minor injuries and damage.
The appliance must
• only be used by persons, who have been instructed in its correct
usage and explicitly commissioned with the task of operating it
• only be operated under supervision
• not be used by children
Before starting work, the operating staff must be informed on
• use of the vacuum cleaner
• risks associated with the material to be picked up
• safe disposal of the picked up material
1. Do not use any unsafe work techniques.
2. Never use the vacuum cleaner without a filter.
3. Switch off the appliance and disconnect the mains plug in the
following situations:
- Prior to cleaning and servicing
- Prior to replacing components
- Prior to changing over the appliance
- If foam develops or liquid emerges
Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.
Purpose and intended use
Since 1997, there is a new division of hazardous dusts and their assigned vacuum machines. These are regulated by IEC 60335-2-69
(world wide) and by EN 60335-2-69 (European wide).
The safety label on the machine warns:
This appliance contains dust hazardous to health. Emptying and
maintenance operations, including removal of the dust collecting
means, must only be carried out by authorized personnel wearing
suitable personal protection. Operate only after the full filtration system has been fitted and checked.
IVB 9 H/M
3
1)
OEL = Occupational Exposure Limit
Original Instructions
Dust Class M (medium). The dusts which belong to this class
are: dusts with OEL values1) > 0.1 mg/m³ as well as saw dust.
The machine is tested in its entirety by vacuums for this dust
class. The maximum degree of permeability is 0.1% and the disposal must be low dust.
Dust Class H (high). The dusts which belong to this class are:
dusts with OEL values1), all carcinogenic dusts and dusts
which are mixed with pathogenic agents. Vacuums for Dust
Class H are tested in their entirety and have a maximum degree of
permeability of 0.005%. The disposal must be dust free.
The air flow in Safety Vacuum systems has to be strictly controlled to
achieve a minimum flow rate of V
min
= 20 m/s in the suction hose.
The vacuum cleaner IVB 963-2M ED XC is suitable to pick up dry,
nonflammable dust, sawdust and hazardous dusts with OEL values1)
> 0.1 mg/m³.
Do not use the IVB 963-2M ED XC to pick up liquids.
The vacuum cleaner IVB 965-2H/M SD XC is suitable to pick up
• dry, nonflammable dust, non flammable liquids, sawdust and haz-
ardous dusts with OEL values1), carcinogenic dusts, dusts containing germs
When dust removers are used, the rate at which air is exchanged
in the room must be adequate if the exhaust air from the vacuum
cleaner is blown into the room (please observe regulations valid in
your country).
The vacuum cleaner is suitable for commercial use, such as e.g. in
• Hotels, Schools, Hospitals, Factories, Shops, Offices, Hire shops
Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such use. The risk for
such use is borne solely by the user.
Proper use also includes proper operation, servicing and repairs as
specified by the manufacturer.
Transport
1. Before transporting the dirt tank, close all the locks.
2. Make sure that both plugs are inserted in fittings.
3. Do not tilt the cleaner if there is liquid in the dirt tank.
4. Do not use a crane hook to lift the cleaner.
Storage
1. Store the appliance in a dry place, protected from frost.
4
IVB 9 H/M
1)
OEL = Occupational Exposure Limit
Original Instructions
Maintenance, cleaning and
repair
During the following work, ensure that dust is not unnecessarily
spread around. Wear a P2 breathing mask.
Only carry out maintenance work described in the operating instructions.
Always pull out the mains plug before cleaning and maintenance of
the vacuum cleaner.
During maintenance and cleaning, handle the vacuum cleaner in
such a manner that there is no danger for maintenance staff or other
persons.
In the maintenance area
1. Use filtered compulsory ventilation
2. Wear protective clothing
3. Clean the maintenance are so that no harmful substances get
into the surroundings
Before removing the vacuum cleaner from the area contaminated
with harmful substances:
1. Clean the outside of the vacuum cleaner, wipe it clean or pack
the vacuum cleaner in well sealed packaging
2. and avoid spreading deposited harmful dust.
Warning: Do not reuse the essential filter element after removal out
of the appliance (only for class H appliances).
Extension lead
As an extension lead, only use the version specified by the manufacturer or one of a higher quality.
When using an extension lead, check the minimum cross-sections
of the cable:
Cable length Cross section
< 16 A < 25 A
up to 20 m 1.5 mm
2
2.5 mm
2
20 to 50 m 2.5 mm
2
4.0 mm
2
Electrical connection
1. It is recommended that the vacuum cleaner should be connected
via a residual current circuit breaker.
2. Arrange the electrical parts (sockets, plugs and couplings) and
lay down the extension lead so that the protection class is maintained.
3. Connectors and couplings of power supply cords and extension
leads must be watertight.
IVB 9 H/M
5
1)
OEL = Occupational Exposure Limit
Original Instructions
During maintenance and repair work all contaminated parts that
could not be cleaned satisfactorily must be:
1. packed in well sealed bags
2. disposed of in a manner that complies with valid regulations for
such waste removal.
At least once a year, a Nilfisk-ALTO technician or an instructed person must perform a technical inspection including filters, air tightness and control mechanisms. According to AA.22.201.2 appliances
in class H must have their filtration efficiency checked once a year. If
the effiency of the filter does not fulfil the requirements for dust class
H, the filter must be replaced, and the new filter must be tested according to AA.22.201.2.
6
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
Risks
Electrical components
DANGER
Electric shock due to faulty mains connecting lead.
Touching a faulty mains connecting lead can result in
serious or even fatal injuries.
1. Do not damage the mains power lead (e.g. by driving
over it, pulling or crushing it).
2. Regularly check whether the power cord is damaged or
shows signs of ageing.
3. Have the faulty mains connecting lead replaced by your
Nilfisk-Advance service representative or a qualified
electrician prior to using the appliance again.
DANGER
The upper section of the vacuum cleaner contains live
components.
Contact with live components leads to serious or even fatal
injuries.
1. Never spray water on to the upper section of the vacuum cleaner.
CAUTION
Damage due to unsuitable mains voltage.
The appliance can be damaged as a result of being
connected to an unsuitable mains voltage.
1. Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply.
CAUTION
Appliance socket
1)
The appliance socket is only designed for the purposes
defined in the operating instructions. The connection of
different appliances can result in damage.
1. Prior to plugging in an appliance, always switch off the
vacuum cleaner and the appliance that is to be connected.
2. Read the operating instructions to the appliance to be
connected and observe the safety notes contained in
these.
Picking up liquids
CAUTION
Picking up liquids.
Due to their construction vacuum cleaners with a removable
tank (SD) do not have an automatic level indicator. There is
a risk of damage to the vacuum cleaner due to overfilling or
of damage due to leakage of the picked up liquid.
1. Never pick up more than 40 litres at once.
2. Switch off the vacuum cleaner and empty the dirt tank.
7
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
WARNI NG
Hazardous materials.
Vacuuming up hazardous materials can lead to serious or
even fatal injuries
1. The following materials must not be picked up by the
vacuum cleaner:
- hot materials (burning cigarettes, hot ash, etc.)
- flammable, explosive, aggressive liquids (e.g. petrol,
solvents, acids, alkalis, etc.)
- flammable, explosive dust (e.g. magnesium or alumin-
ium dust, etc.)
WARNI NG
When the vacuum cleaner has been used with dust
classified as “H”, it is necessary to clean the machine
thoroughly before using the machine with dust classified
as “M” or lower.
Hazardous materials
Spare parts and accessories
CAUTION
Spare parts and accessories.
The use of non-genuine spare parts and accessories can
impair the safety of the appliance.
1. Only use spare parts and accessories from Nilfisk-Advance.
2. Use only the brushes supplied with the vacuum cleaner
or specified in the operating manual.
Emptying dirt tank
CAUTION
Picking up environmentally hazardous materials.
Materials picked up can present a hazard to the
environment.
1. Dispose of the dirt in accordance with legal regulations.
8
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
2 Description
2.1 Operating elements
auto
ø
ø
3
2
17
3
4
7
8
14
13
12
11
18
1
15
auto
ø
ø
0
3
6
1
2
3
5
6
15
14
13
12
11
10
9
8
7
4
16
16
IVB 965-2H/M SD XC
IVB 963-2M ED XC
9
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
1 Handle
2 Outlet for waste air
3 Inlet for fresh air
4 Retaining clamp
5 Handle to remove dirt tank
6 Swivel bar to remove dirt tank
7 Bracket for floor nozzle
8 Castor with brake
9 Dirt tank
10 Inlet fitting "H"
11 Inlet fitting "M"
12 Receptacle for electrical lead
13 Applicance switch with suction power control 'auto-0-I"
14 Appliance socket
15 Hose diameter setting
16 Accessory holder
17 Suction pipe support
18 Disposal bag
2.2 Operating panel
10
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
B B
C
3 Before starting the cleaner
3.1 Assembling the
vacuum cleaner
3.1.1 Taking accessories out
of the packaging

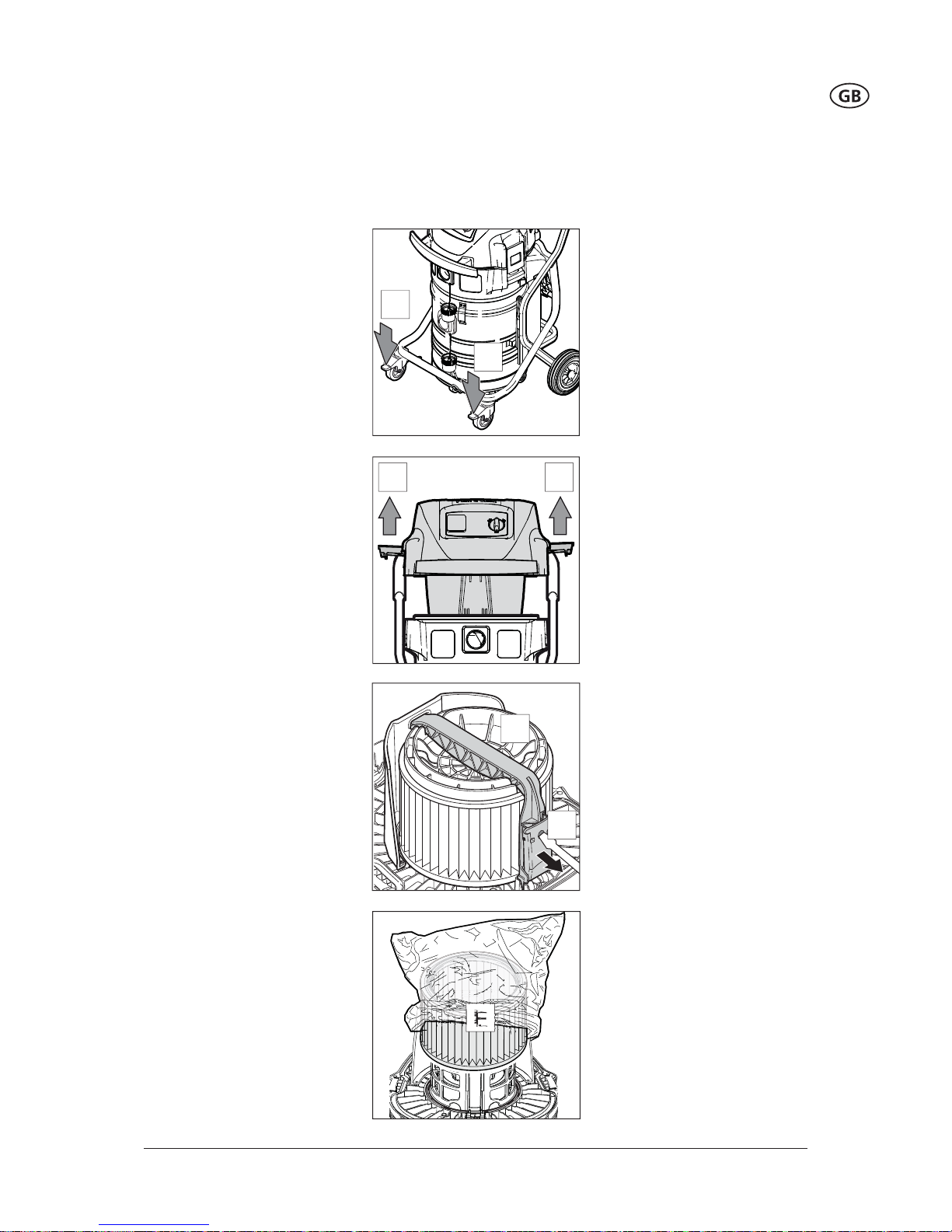

1. Take vacuum cleaner and
accessories out of the packaging.
2. The mains plug should not
yet be inserted into a socket.
3. Apply parking brakes (A) on
both castors.
4. Open the retaining clamps (B)
and remove the upper section of the vacuum cleaner.
5. Take the accessories (C) out
of the dirt tank and the packaging.
A
A
11
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
3.1.3 Inserting the
safety filter bag
(IVB 965-2H/M SD XC)
1. The mains plug should not
yet be inserted into a socket.
2. Apply parking brakes
(A) on both castors.
3. Swing the bar (B) upwards.
4. Use the handle (C) to
pull the dirt tank out of
the vacuum cleaner.
A
A
3.1.2 Before starting the
cleaner
Depending on how hazardous the dust is, the cleaner must be fitted
with appropriate filters:
Type of dust Filter bag /waste bag
IVB 965 2H /M SD XC / IVB 963-2M ED XC:
Non-hazardous dust
Non-carcinogenic dust with OEL values
>0.1 mg/m³ (observe any additional
national regulations)
Waste bag
Order No.
965 2H/M SD XC:
302001480
(5pcs.)
963-2M ED XC:
302003723
(25 pcs.)
IVB 965 2H /M SD XC:
All dusts with OEL values
Wood dust
Safety fi lter bag
Order No. 302003473
(5 pcs.)
IVB 965 2H /M SD XC / IVB 963-2M ED XC:
All dusts with OEL values
Wood dust
Filter element
Order No.
965 2H/M SD XC:
107400564
963-2M ED XC:
107400562
Before picking up dust with occupational exposure limit values:
1. Check that all the filters are present and properly fitted.
2. The hose diameter and the setting for the suction hose diameter
must be the same.
3. When the motor is running, hold the suction hose shut. For safety
reasons, an acoustic warning sounds if the air speed in the suction hose drops to below 20 m/s.
B
C
12
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M

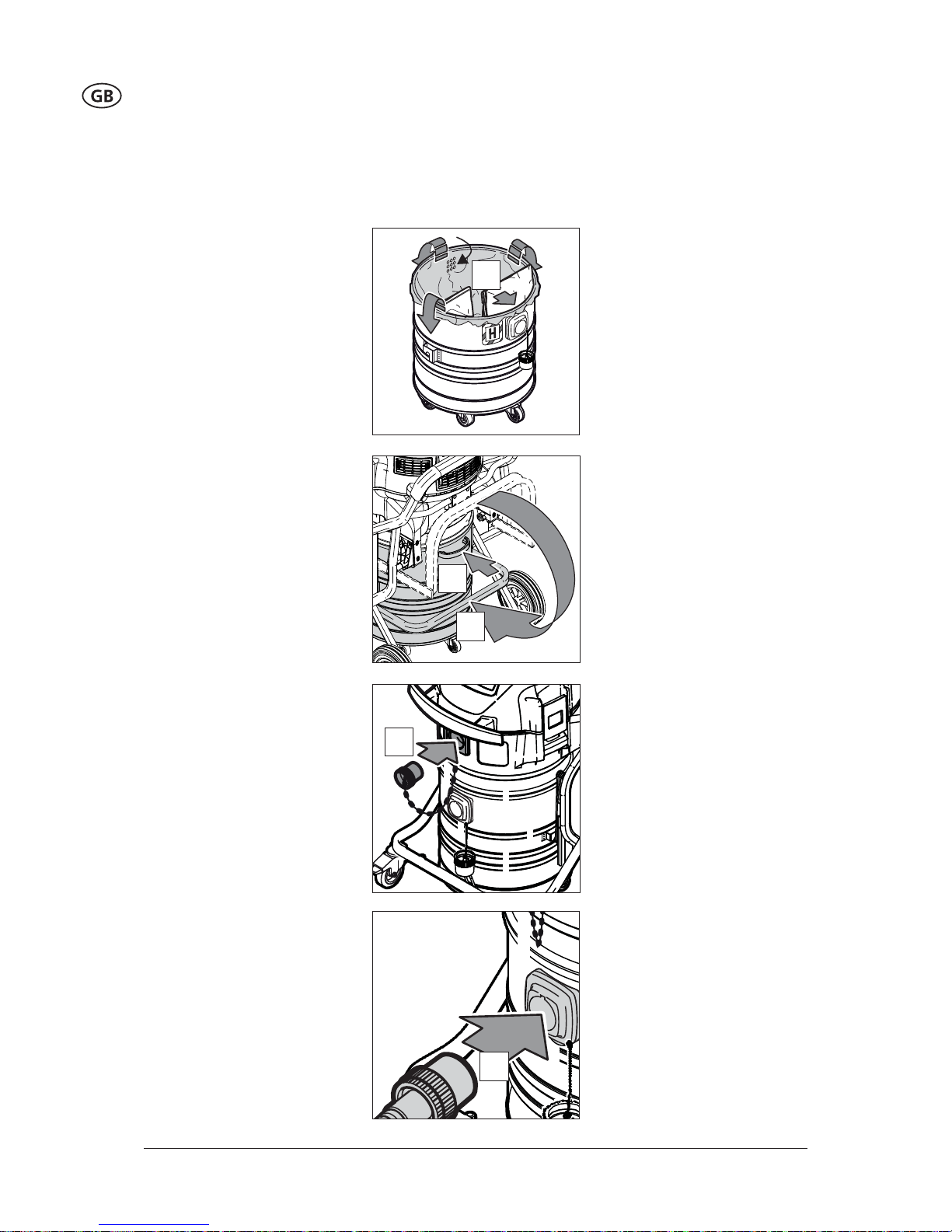

5. Insert the safetyfilter bag (D)
in the dirt tank.
6. Fold the top edge of
the disposal bag over
the rim of the dirt tank.
D
B
C
7. Push the dirt tank as far as
possible into the vacuum
cleaner.
8. Swing the bar (B) downwards without forcing it.
9. Close inlet fitting "M"
(top) with plug (E).
10. Connect suction hose to inlet
fitting "H" (bottom) (F).
E
F
13
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M

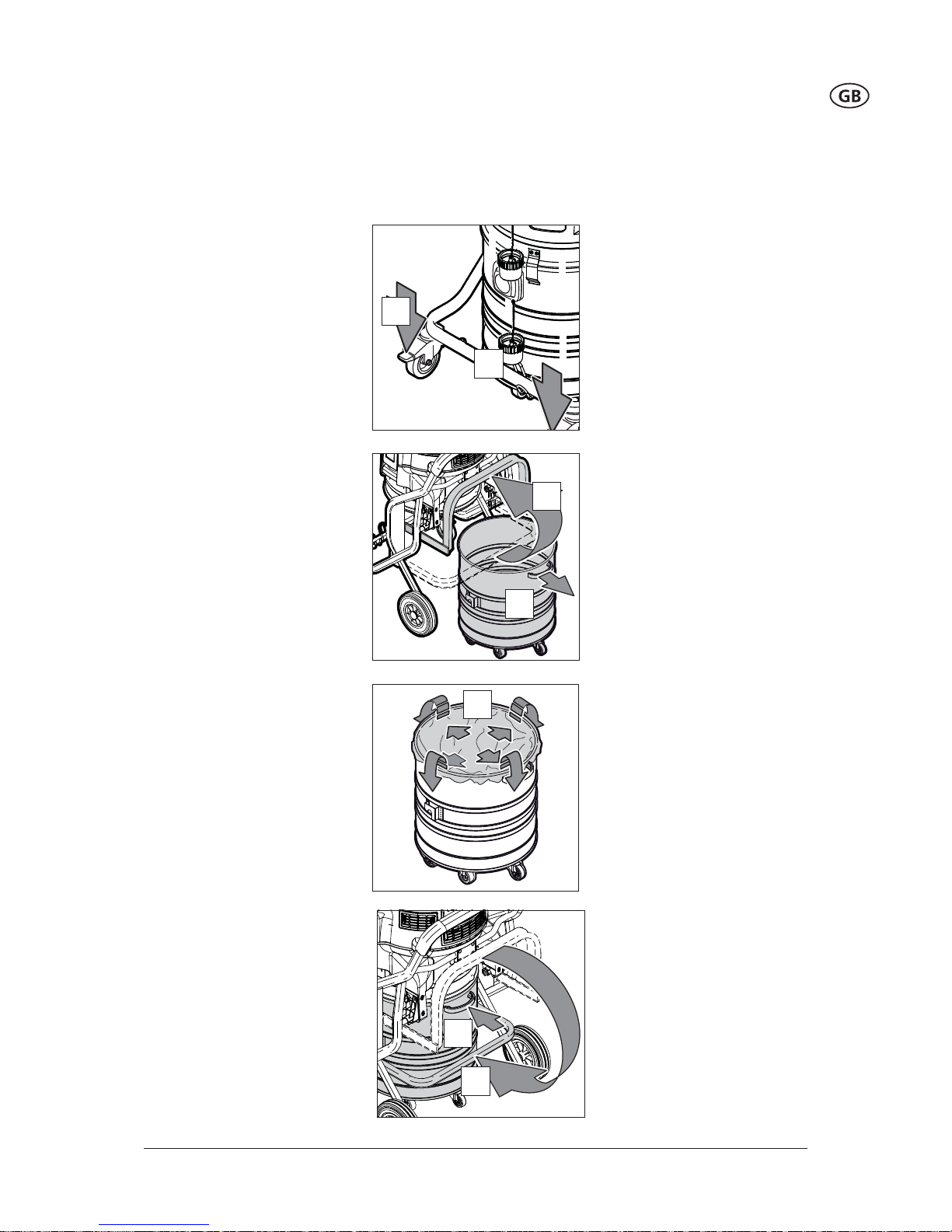

3.1.4 Inserting the
disposal bag
(IVB 965-2H/M SD XC)
1. The mains plug should not
yet be inserted into a socket.
2. Apply parking brakes (A) on
both castors.
3. Swing the bar (B) upwards.
4. Use the handle (C) to pull the
dirt tank out of the vacuum
cleaner.
A
A
B
C
D
B
C
5. Insert the disposal bag (D) in
the dirt tank.
6. Fold the top edge of the disposal bag over the rim of the
dirt tank.
7. Push the dirt tank as far as
possible into the vacuum
cleaner.
8. Swing the bar (B) downwards without forcing it.
14
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
E
F
9. Close inlet fitting "H"
(bottom) with plug (E).
10. Connect suction hose to inlet
fitting "M" (top) (F).
15
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
1. The mains plug should not
yet be inserted into a socket.
2. Apply parking brakes (A) on
both castors.
3. Open clamping ring (B).
3.1.5 Inserting the
disposal bag
(IVB 963-2M ED XC)
4. Insert disposal bag (C) into
clamping ring.
5. Fold the top edge of the disposal bag over the rim of the
clamping ring.
6. Attach the new disposal bag
(C) onto the storage container (D).
7. Close clamping ring (B).
C
C
A
A
B
D
B
16
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
4 Control / Operation
4.1 Connections
4.1.1 Electrical connection
The operating voltage shown on the
rating plate must corres pond to the
voltage of the mains power supply.
1. Ensure that the cleaner is
switched off.
2. Insert the power cord into a
properly installed and fused
socket with earthing contact.
4.2 Switching on the
vacuum cleaner
4.2.1 Switch „ auto-0-I “
The hose diameter and the setting
for the suction hose diameter must
be the same.
ø27 ø27
ø32 ø32
ø38 ø38
ø50 ø50
Switch
position
Function
I
Maximum
suction
4.2.2 Suction power control
Switch
position
Function
The suction
power control
switch allows
precise
adaptation of
the suction
power for
different
cleaning tasks.
17
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
4.2.3 Auto-On/Off-Operation
- "auto" switch position
The vacuum cleaner is switched on
and off by the power tool connected.
Dirt is picked up from the source of
dust immediately.
To comply with regulations, only approved dust producing tools should
be connected.
The maximum power consumption
of the connected electrical appliance is stated in section 9.5 "Technical data".
Before switching the switch to position „auto“, ensure that the tool connected to the appliance socket is
switched off.
1. Switch off the vacuum cleaner.
2. Switch off the power tool.
auto
ø
ø
0
ø
ø
3
3
6
5
2
2
7
3. Connect the power tool and
the vacuum cleaner with a
suction hose.
4. Insert the plug of the power tool into the tool socket
on the operating panel
of the vacuum cleaner.
5. Switch on the vacuum cleaner. Switch in "auto" position.
6. Switch on the power tool. The
vacuum cleaner motor starts
when the connected power
tool is switched on.
When the power tool is
switched off, the vacuum
cleaner continues to run for
a short moment so that any
dust in the suction hose is
conveyed to the filter bag.
18
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
4.3 Check volume flow
monitor
Before picking up dust with maximum room concentration values:
1. Check that all the filters are
present and properly fitted.
2. When the motor is running,
hold the suction hose shut.
An acoustic warning sounds
after approx. 1 second.
4.4 Acoustic warning
For safety reasons, an acoustic
warning sounds if the air speed
in the suction hose drops to below 20 m/s. See section “Troubleshooting”.
4.5 Cleaning the filter
element
After picking up harmless dust using the waste bag.
10 sec.
To ensure that suction performance is always at its best, the filter
element is automatically cleaned during operation. We recommend
complete cleaning if the filter element becomes extremely dirty.
1. Switch off the vacuum cleaner
2. Close the nozzles or suction hose opening with the palm of your
hand.
3. Turn the switch to position „I“ and let the cleaner operate for approx. 10 seconds with the suction hose opening closed.
19
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
5 Applications and methods
5.1 Techniques
If used correctly, additional accessories, suction nozzles and suction hoses can enhance the cleaning action and reduce the cleaning
effort.
Effective cleaning is achieved if you follow just a few guidelines in
combination with your own practical experience in special fields.
Here are some basic tips.
5.1.1 Picking up dry
substances
CAUTION!
Do not pick up flammable substances.
There must always be a safety filter bag in the tank before dry substances with maximum room concentration values are picked up.
See section “Accessories” for ordering number.
To pick up harmless dust we recommend the use of a waste bag. See
section “Accessories” for ordering number. Disposal of the picked up
material is then simple and hygienic.
After picking up liquids, the filter element is wet. A damp filter element clogs more quickly when dry substances are picked up. For this
reason the filter element should be washed and dried or replaced by
a dry element before dry substances are picked up.
5.1.2 Picking up liquids CAUTION!
Do not pick up flammable liquids.
Do not use the IVB 963-2M ED XC to pick up liquids.
Before liquids are picked up, always remove the filter bag/disposal
bag.
The use of a separate filter element or filter screen is recommended.
If foam appears, stop work immediately and empty the tank.
To reduce the amount of foam, use foam killer Alto Foam Stop (see
section "Accessories" for order number).
20
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
6 After using the cleaner
6.1 Switching the vacuum
cleaner off and storage
1. After picking up hazardous
dust, vacuum clean the outside of the cleaner.
2. Switch off the vacuum cleaner and pull the mains plug
out of the socket.
3. Make sure that both plugs
are inserted in fittings.
4. Wind up the power cord and
hang it on the handle.
5. Empty the tank and clean the
vacuum cleaner.
6. After picking up liquids: Store
the upper section of the
cleaner separately so that
the filter element can dry.
7. Store the vacuum cleaner in
a dry room where it is protected from unauthorized
use.
au
to
ø
ø
0
ø
ø
3
3
6
5
2
2
7
21
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
7 Maintenance
7.1 Maintenance plan
IVB 965-2H/M SD XC:
After finishing work When required
7.2.1 Emptying dirt tank
7.2.2 Replacing the disposal bag
7.2.3 Replacing the safety filter bag
7.2.4 Replacing filter element "H"
IVBw 963-2M ED XC:
After finishing work When required
7.2.4 Replacing filter element
7.2.5 Replacing the disposal bag
22
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
7.2 Maintenance work
7.2.1 Emptying the dirt tank
1. Switch off the vacuum cleaner and pull the mains plug
out of the socket.
2. Apply parking brakes (A) on
both castors..
Removing the dirt tank:
3. Swing the bar (B) upwards.
4. Use the handle (C) to pull the
dirt tank out of the vacuum
cleaner.
5. Tipping out the collected
dirt:WARNING! If heavy dirt
has been picked up, never
lift the dirt tank alone. Use
the FORKLIFT (D), which is
available as an accessory.
6. Use a crane or fork lift truck
to position the FORKLIFT
above the dirt tank.
7. Attach the tank to the accessory.
8. Dispose of the dirt in accordance with legal regulations.
A
A
B
C
D
Inserting the dirt tank:
9. Clean the dirt tank.
10. Check the seals (E) between
the tank and the upper section of the vacuum cleaner.
11. Push the dirt tank as far as
possible into the vacuum
cleaner.
12. Swing the bar (B) downwards
without forcing it.
E
23
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
7.2.2 Replacing the disposal
bag
1. Switch off the vacuum cleaner and pull the mains plug
out of the socket.
2. Apply parking brakes (A) on
both castors.
Removing the disposal bag:
3. Swing the bar (B) upwards.
4. Use the handle (C) to pull the
dirt tank out of the vacuum
cleaner.
5. Close the disposal bag with
string (D) and remove it from
the dirt tank.
WARNING!
If heavy dirt has been picked
up, never lift the dirt tank
alone. Use the FORKLIFT
(E), which is available as an
accessory.
6. Use a crane or fork lift truck
to position the FORKLIFT
above the dirt tank.
7. Attach the tank to the accessory.
8. Dispose of the dirt in accordance with legal regulations.
Inserting the disposal bag:
9. Clean the dirt tank.
10. Check the seals (F) between
the tank and the upper section of the vacuum cleaner.
11. Insert the disposal bag (G) in
the dirt tank.
12. Fold the top edge of the disposal bag over the rim of the
dirt tank.
13. Push the dirt tank as far as
possible into the vacuum
cleaner.
14. Swing the bar (B) downwards
without forcing it.
B
C
E
F
B
G
D
A
A
24
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
7.2.3 Replacing the safety
filter bag
During the following work, ensure
that dust is not unnecessarily spread
around. Wear a P2 breathing mask.
1. Switch off the vacuum cleaner and pull the mains plug
out of the socket.
2. Apply parking brakes
(A) on both castors.
Removing the safety filter
bag:
3. Swing the bar (B) upwards.
4. Use the handle (C) to pull the
dirt tank out of the vacuum
cleaner.
5. Close the disposal bag with
string (D) and remove it from
the dirt tank.
WARNING! If heavy dirt
has been picked up, never
lift the dirt tank alone. Use
the FORKLIFT (E), which is
available as an accessory.
6. Use a crane or fork lift truck
to position the FORKLIFT
above the dirt tank.
7. Attach the tank to the accessory.
8. Dispose of the dirt in accordance with legal regulations.
Inserting the safety filter bag:
9. Clean the dirt tank.
10. Check the seals (F) between
the tank and the upper section of the vacuum cleaner.
11. Insert the safety filter bag (G)
in the dirt tank.
12. Fold the top edge of the disposal bag over the rim of the
dirt tank.
13. Push the dirt tank as far as
possible into the vacuum
cleaner.
14. Swing the bar (B) downwards without forcing it.
A
A
B
C
D
E
F
B
G
D
25
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
1. Switch off the vacuum cleaner and pull the mains plug
out of the socket.
2. Apply parking brakes
(A) on both castors.
3. Open the retaining clamps (B)
and remove the upper section of the vacuum cleaner.
Remove the filter element:
4. Lay the upper section of the
cleaner down with the filter
element facing upwards.
5. Unscrew the screw (C), open
the bar handle and remove
it.
6. Remove the filter holder (D).
7. Place the protective filter
bag over the filter element.
7.2.4 Replacing filter element
"H"
During the following work, ensure
that dust is not unnecessarily spread
around. Wear a P2 breathing mask.
B B
A
A
C
D
E
26
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
E
F G
C
D
8. Carefully remove the filter
element and close the protective filter bag with a knot.
Inserting the filter element:
9. Clean the filter seal (F).
Check it for damage and replace it if necessary.
10. Check the antistatic clamp
(G) for damage and have it
replaced by Nilfisk-Advance
Service if necessary.
11. Fit a new filter element.
12. Fit the filter holder (D). Ensure that it is in the correct
position.
13. Fit bar and close bar handle
(C).
14. Dispose of the used filter element in accordance with legal regulations.
27
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
7.2.5 Replacing the disposal
bag (IVB 963-2M ED XC)
1. Switch off the vacuum cleaner and pull the mains plug
out of the socket.
2. Apply parking brakes (A) on
both castors.
Remove the disposal bag:
3. Open clamping ring (B).
4. Detach the disposal bag (C)
from the storage container
and seal it.
5. Dispose of the dirt in accordance with legal regulations.
Inserting the disposal bag:
6. Insert disposal bag (C) into
clamping ring.
7. Fold the top edge of the disposal bag over the rim of the
clamping ring.
8. Attach the new disposal bag
(C) onto the storage container (D).
C
B
C
C
A
A
D
B
9. Close clamping ring (B).
28
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
8 Troubleshooting
Fault Cause Remedy
‡ Motor does not start > Fuse of the mains socket has
blown.
• Connect mains fuse.
> Overload protection switch
has tripped.
• Switch off the vacuum
cleaner and allow it to cool
for approx. 5 minutes. If the
cleaner cannot be started
again, contact the Alto service
department.
> Motor is faulty. • Have motor changed by
Nilfisk-Advance Service.
‡ Motor does not run in
automatic mode
> Power tool/pneumatic tool is
defective or not connected
properly.
• Check that the power tool
works or that the plug is
inserted correctly.
> The power rating of the
electrical tool is too low.
• Note that minimum power
rating is P>40W
‡ The acoustic warning
sounds (Reduced suction
power)
> Suction power selected with
suction power control is too
low.
• Set suction power in
accordance with section
„Setting suction power“.
> Hose diameter does not
correspond with switch
position.
• Set correct switch position for
hose diameter.
> Clogged suction hose/nozzle. • Clean suction hose/nozzle
> The safety filter bag is full. • See section „Replacing the
filter bag“.
> Filter element is clogged. • See section „Cleaning filter
element“ and „Replacing filter
element“.
> Cleaning mechanism is
defective.
• Contact Nilfisk-Advance
Service.
‡ No suction power during
wet cleaning
> Tank is full. • Switch off the cleaner. Empty
the tank.
‡ Voltage fluctuations > Impedance of power supply is
too high.
• Connect the cleaner to
another socket closer to the
fuse box. Voltage fluctuations
over 7% should not occur if
the impedance at the transfer
point is 0.15 .
29
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
9 Further information
9.1 Recycling the cleaner
Make the old cleaner unusable immediately.
1. Unplug the cleaner.
2. Cut the power cord.
3. Do not discard of electrical appliances with household waste.
As specified in European Directive 2002/96/EC on old electrical and electronic appliances, used electrical goods must
be collected separately and recycled ecologically. Contact
your local authorities or your nearest dealer for further information.
9.2 Guarantee
Our general conditions of business are applicable with regard to the
guarantee.
Unauthorised modifications to the appliance, the use of incorrect
brushes in addition to using the appliance in a way other than for the
intended purpose exempt the manufacturer from any liability for the
resulting damage.
9.3 Tests and approvals
Electrical tests must be per formed in accordance with the provisions
of safety regulations (VBG4) and to DIN VDE 0701 Part 1 and Part
3. In ac cord ance with DIN VDE 0702 these tests must be performed
at regular intervals and after repairs or modifications.
The vacuum cleaner has been approved in accordance with IEC/EN
60335-2-69.
9.4 EC declaration of
conformity
EC declaration of
conformity
NILFISK-ADVANCE A/S
Sognevej 25
DK-2605 Brøndby
Product:
Vacuum cleaner for wet and dry operation
Model:
IVB 963-2M ED XC
IVB 965-2H/M SD XC
Description:
230-240 V~, 50/60 Hz
The design of the appliance
corresponds to the following
pertinent regulations:
EC Machine Directive 98 /37/EC
EC Low Voltage Directive 73/23/EC
EC EMC Directive 89/336/ EC
Applied harmonized standards:
EN ISO 12100-1,
EN ISO 12100-2
EN 60335-1
EN 60335-2-69
EN 55014-1, EN 55014-2, EN 61000-3-2
Applied national standards and
technical specifi cations:
DIN EN 60335-1
DIN EN 60335-2-69
Anton Sørensen
General Manager EAPC
Technical Operations Brøndby, 01.04.2008
30
1)
Optional accessories / Option depending on model
Original Instructions
IVB 9 H/M
9.5 Technical data
9.6 Optional accessories
IVB
963-2M ED XC 965 2H /M SD XC
EU EU
Voltag e V 230
Mains frequency Hz 50/60
Fuse A 16
Power consumption
IEC
W 2 x 1200
Connected load for appliance
socket
W1200
Total connected load W 3600
Air fl ow rate
m
3
/h
l/min
2 x 216
2 x 3600
Vacuum
hPa/mbar
kPa
230
23
Sound pressure level at a distance
of 1m, EN 60704-1
dB(A) 70 ± 2
Working sound pressure level dB(A) 67 ± 2
Power cord: Length m 10
Power cord: Type H07RN-F3G1,5 mm²
Protection class I
Type of protection (splash water
protected)
IP X4
Radio interference level EN 55014-1
Tan k vo lum e l 30 50
Width mm 620 615
Depth mm 605 690
Height mm 1200 990
Weight kg 30 45
Description Order No.
Safety fi lter bag (5 pcs.) 302003473
Disposal bag IVB 965-2H/M SD XC (5 pcs.) 302001480
Disposal bag IVB 963-2M ED XC (25 pcs.) 302003723
Filter element "H" IVB 965-2H/ M SD XC 107400564
Filter element IVB 963-2M ED XC 107400562
Alto-Foam-Stop (6 x 1 l) 8469
Nilfi sk-Advance A/S
Sognevej 25
DK-2605 Brøndby
Denmark
Tel.: +45 43 23 81 00
Fax: +45 43 43 77 00
www.nilfi sk-advance.com
Loading...
