4/04 Form Number 56041590
English
AX 300 / AX 400
Nilfisk MODELS 56264400, 56262170, 56262171
56264401, 56262175, 56262174 56262054
56262055, 56262213, 56262214, 56264466
Instructions For Use
2 - FORM NO. 56041590 / AX 300 / AX 400
Table of Contents
Page
Introduction........................................................................2
Parts and Service ..............................................................2
Nameplate .........................................................................2
Unpacking the Machine .....................................................2
Important Safety Instructions............................................. 3
Importantes mesures de sécurité ......................................4
Preparing the Machine for Use....................................5-8
Installing the Brush............................................................5
For Use on Carpeted Floors ..............................................6
For Use on Hard Floors..................................................... 7
Filling the Solution Tank ....................................................8
Operation......................................................................9-10
After Use ......................................................................... 11
Maintenance..............................................................12-13
Maintenance Schedule ....................................................12
Storing the Machine.........................................................12
Brush Maintenance..........................................................12
Pick-Up Tool Maintenance ..............................................12
Power Cord Maintenance ................................................12
Spray Nozzle Maintenance..............................................12
Lubrication....................................................................... 13
Vacuum Motor Maintenance............................................13
Optional Accessories.................................................... 14
Hard Floor Kits ................................................................14
Brush Options..................................................................14
Optional Accessory Tools................................................ 14
Technical specifications...................................................14
For UK and Ireland only:
IMPORTANT!
THE PLUG IS NOT WATERPROOF - KEEP DRY
The cord is already fitted with a molded plug incorporating a fuse, the value of which is indicated on the pin face of the
plug. Should the fuse need to be replaced, an ASTA approved BS 1362 fuse must be used of the same rating marked
thus "10A". If the fuse cover is detachable, never use the plug with the cover omitted. If a replacement fuse cover is
required, ensure it is of the same color as that visible on the pin face of the plug (i.e. red or orange). Fuse covers are
available from the Parts Department indicated on the last page. If the plug supplied is not suitable for your socket outlet,
it should be cut off and destroyed. The end of the flexible cord should be suitably prepared and the correct plug fitted.
The wires in the main lead are colored in accordance with the following code: Blue - Neutral, Brown - Live. As these colors
may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: The wire which
is colored Blue must be connected to the terminal in the plug which is marked with the letter N or colored Blue or Black.
The wire which is colored Brown must be connected to the terminal which is marked with the letter L, or colored Brown
or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER
E, BY THE EARTH SYMBOL OR COLORED GREEN OR GREEN/YELLOW.
*WARNING: A PLUG WITH BARED FLEXIBLE CORDS IS HAZARDOUS IF ENGAGED IN A LIVE SOCKET OUTLET.
INTRODUCTION
This manual will help you get the most from your Nilfisk AX 300/
400. Read it thoroughly before operating the machine.
This product is intended for commercial use only.
PARTS AND SERVICE
Repairs, when required, should be performed by Nilfisk service
personnel using Nilfisk original replacement parts and accessories.
Call Nilfisk for repair parts or service. Please specify the Model and
Serial Number when discussing your machine.
NAME PLATE
The Model and Serial Number of your machine are shown on the
Nameplate on the back panel of the machine. This information is
needed when ordering repair parts for the machine. Use the space
below to note the Model and Serial Number of your machine for
future reference.
MODEL
SERIAL NUMBER
UNPACKING THE MACHINE
When the machine is delivered, carefully inspect the shipping
carton and the machine for damage. If damage is evident, save the
shipping carton so that it can be inspected by the carrier that
delivered it. Contact the carrier immediately to file a freight
damage claim.
FORM NO. 56041590 / AX 300 / AX 400 - 3
IMPORTANT SAFETY INSTRUCTIONS
This machine is only suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices other
than normal residential housekeeping purposes.
When using an electrical appliance, basic precautions should always be followed, including the following:
Read all instructions before using this appliance.
WARNING!
To reduce the risk of fire, electric shock, or injury:
• Do not leave the appliance when it is plugged in. Unplug the unit from the outlet when not in use and before servicing.
• To avoid electric shock, do not expose to rain. Store indoors.
• Do not allow to be used as a toy. Close attention is necessary when used near children.
• Use only as described in this manual. Use only the manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If the appliance is not working as it should be, has been dropped, damaged, left outdoors
or dropped into water, return it to a service center.
• Do not pull or carry by the cord, use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners.
Do not run the appliance over the cord. Keep the cord away from heated surfaces.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not handle the plug, cord or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may
reduce air flow.
• Keep loose clothing, hair, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes, or any health endangering dusts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids such as petrol or use in areas where they may be present.
• If foam or liquid comes out with the vacuum exhaust, switch power off immediately. Verify that there are no foreign objects
obstructing the float ball from moving freely. Contact Nilfisk if the problem persists.
• Liquid ejected at the spray nozzle could be dangerous as a result of its temperature, pressure or chemical content.
• Only use the brushes provided with the appliance or those specified in the instruction manual. The use of other brushes may
impair safety.
SAVE THESE INSTRUCTIONS
4 - FORM NO. 56041590 / AX 300 / AX 400
IMPORTANTES MESURES DE SÉCURITÉ
Cette machine ne convient qu´à un usage industriel, par exemple dans des hôtels, écoles, hôpitaux, usines, boutiques et
bureaux et autres à l´exclusion de tout usage de maintenance résidentielle normale.
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER CET APPAREIL
AVERTISSEMENT!
Pour réduire les risques d’incendie, de choc électrique ou de blessure:
• Ne pas laisser l’appareil sans surveillance lorsqu’il est branché. Débrancher lorsque l’appareil n’est pas utilisé et avant
l’entretien.
• Pour réduire les risques de choc électrique, utiliser à l’intérieur seulement.
• Ne pas permettre aux enfants de jouer avec l’appareil. Une attention particulière est nécessaire lorsque l’appareil est utilisé
par des enfants ou à proximité de ces derniers.
• N’utiliser que conformément à cette notice avec les accessoires recommandés par le fabricant.
• Ne pas utiliser si le câble ou la fiche est endommagé. Retourner l’appareil à un atelier de réparation s’il ne fonctionne pas bien,
s’il est tombé ou s’il a été endommagé, oublié à l’extérieur ou immergé.
• Ne pas tirer soulever ou traîner l’appareil par le câble. Ne pas utiliser le câble comme une poignée, le coincer dans l’embrasure
d’une porte ou l’appuyer contre des arêtes vives ou des coins. Ne pas faire rouler l’appareil sur le câble. Garder le câble à l’écart
des surfaces chaudes.
• Ne pas débrancher en tirant sur le câble. Tirer plutôt la fiche.
• Ne pas toucher la fiche ou l’appareil avec des mains humides.
• N’insérer aucun objet dans les ouvertures. Ne pas utiliser l’appareil lorsqu’une ouverture est bloquée. S’assurer que de la
poussière, de la peluche, des cheveux ou d’autres matières ne réduisent pas le débit d’air.
• Maintenir les cheveux, les vêtements amples, les doigts et toutes les parties du corps à l’écart des ouvertures et des pièces
mobiles.
• Ne pas aspirer de matières en combustion ou qui dégagent de la fumée, comme des cigarettes, des allumettes ou des cendres
chaudes.
• Mettre toutes les commandes à la position ARRÊT avant de débrancher l’appareil.
• User de prudence lors du nettoyage des escaliers.
• Ne pas aspirer des liquides inflammables ou combustibles, comme de l’essence, et ne pas faire fonctionner dans des endroits
ou peuvent se trouver de tels liquides.
• Si de la mousse ou un liquide s’échappe avec l’air évacué, mettez immédiatement l’aspirateur hors tension. Assurez-vous
qu’aucun corps étranger n’empêche le flotteur de se déplacer librement. Si le problème persiste, contactez Nilfisk.
• Le liquide qui sort de l’embout de vaporisation peut s’avérer dangereux en raison de sa température, de sa pression ou du produit
chimique qu’il contient.
• Utilisez uniquement les brosses fournies avec l’appareil ou celles spécifiées dans le manuel d’instructions. L’utilisation d’autres
brosses peut mettre la sécurité en péril.
CONSERVER CES INSTRUCTIONS
FORM NO. 56041590 / AX 300 / AX 400 - 5
12
34
56
78
carpet
smooth surface
light grit
standard black
(optional) gray 240
(optional) blue
(optional) gray 500
grout grit
Select the correct brush for your cleaning application.
6 - FORM NO. 56041590 / AX 300 / AX 400
12
78
56
34
Remove wheel
FORM NO. 56041590 / AX 300 / AX 400 - 7
12
34
56
78
Slide wheel on
8 - FORM NO. 56041590 / AX 300 / AX 400
12
78
140° F60° C
56
34
1"
2.5 cm
MAX TEMP
Read the cleaning chemical label and figure the proper amount of chemical for your machine.
AX 300
15 litres (4 gallons)
AX 400
30 litres (8 gallons)
FORM NO. 56041590 / AX 300 / AX 400 - 9
12
34 5
6
7
To adjust the brush on carpet, first turn the knob to the LEFT to LOWER the brush until the light comes on.
Then turn the knob to the RIGHT to RAISE the brush until the light just turns off. The machine will help propel itself (on carpet) when the brush is properly adjusted.
Start the vacuum
Start the brush
10 - FORM NO. 56041590 / AX 300 / AX 400
89
10
Overlap 2" (5 cm) on each pass.
FORM NO. 56041590 / AX 300 / AX 400 - 11

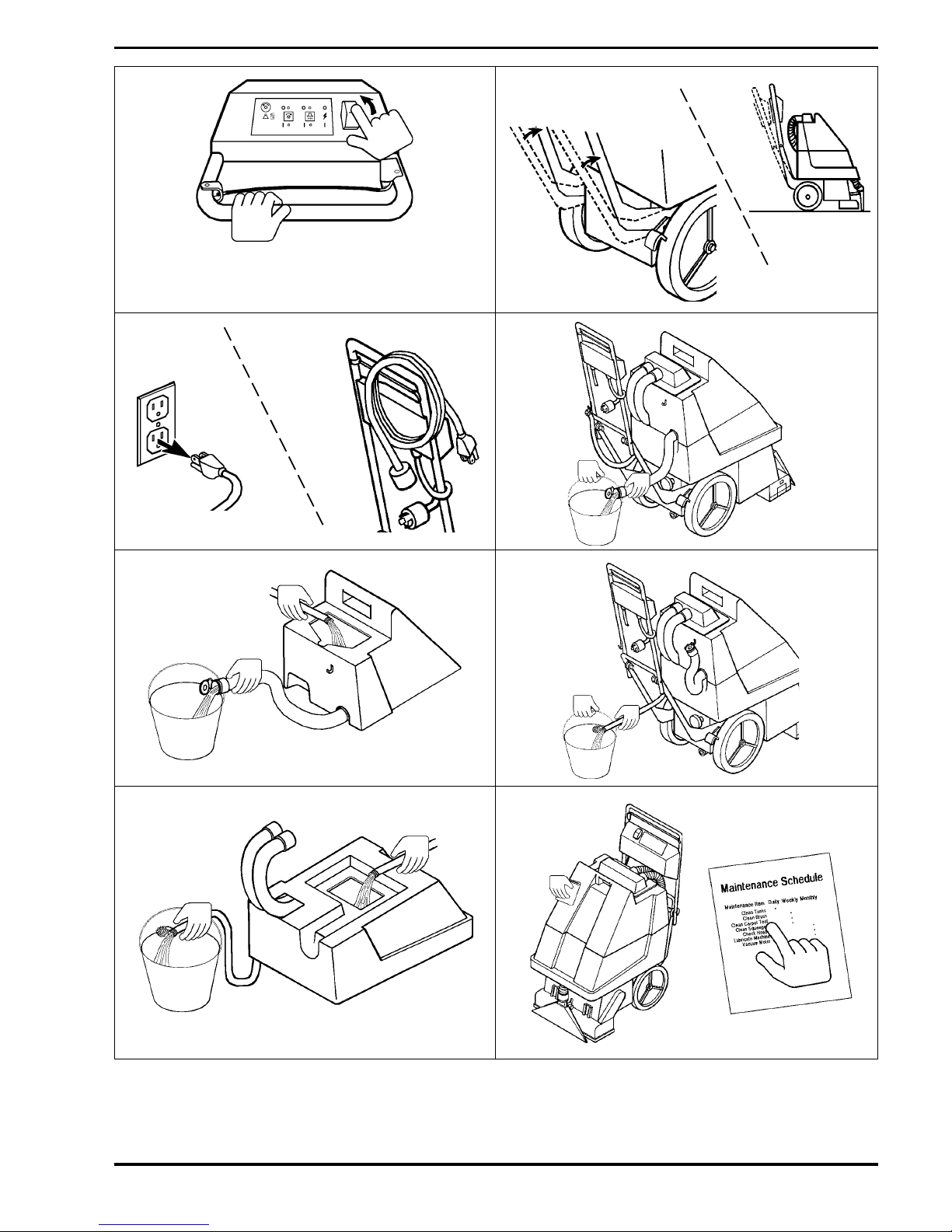

12
34
56
78
Turn machine OFF.
12 - FORM NO. 56041590 / AX 300 / AX 400
MAINTENANCE SCHEDULE
MAINTENANCE ITEM WEEKLY MONTHLY YEARLY
Clean the Brush X
Clean the Pick-Up Tool X
Check the Power Cord X
Clean the Spray Nozzle X
Lubricate the Machine X
Check the Vacuum Motor Airways X
*Check the Vacuum Motor Brushes X
*Have Nilfisk check the carbon motor brushes once a year or after 500 operating hours.
STORING THE MACHINE
Store the machine indoors in a clean, dry place. Keep from freezing. Leave the tanks open to air them out..
WARNING!
To reduce the risk electric shock or injury, unplug the power cord before servicing.
BRUSH MAINTENANCE
Once a week (or more often if necessary), remove debris from the brush.
PICK-UP TOOL MAINTENANCE
Once a week (or more often if necessary), remove debris from the pick-up tool.
POWER CORD MAINTENANCE
Once a week (or more often if necessary), check the power cord for cracked or damaged insulation, exposed wires in the cord or plug, and
damaged or missing ground pin. Repair or replace damaged cord or plug immediately.
SPRAY NOZZLE MAINTENANCE
Once a month (or more often if necessary), remove the spray nozzle from the machine and soak it overnight in a vinegar and water rinse to
remove chemical deposits.
The spray nozzle is located just behind the brush, on the bottom of the machine.
Die Spritzdüse ist knapp hinter der Bürste, unten an der Maschine, angeordnet.
FORM NO. 56041590 / AX 300 / AX 400 - 13
LUBRICATION
Once a month, wipe the solution valve with a clean cloth. Then use a spray silicone lubricant on all pivot points associated with the valve
assembly, especially the valve plunger.
Once a month, lubricate the pivot points of the handle and the wheel axles. Wipe off any excess to avoid staining floor surfaces.
The Solution Valve Assembly is located on the bottom of the machine.
Valve Plunger
VACUUM MOTOR MAINTENANCE
Once a month, check the vacuum motor to make sure the airways are not blocked. Clean the dome lid on the recovery tank thoroughly.
Clear hoses of debris and keep the vacuum motor exhaust area clean.
Vacuum Exhaust
Float Ball and Cage
Vacuum Hose
VACUUM MOTOR AIRWAYS
Dome Lid
Recovery Hose
Recovery Hose
Vacuum Exhaust
Pick Up Tool
Have Nilfisk check the carbon motor brushes once a year or after 500 operating hours. Replace the carbon brushes if they are worn to 9.5
mm or less.
IMPORTANT!
Motor damage from failure to service the carbon brushes is not covered under warranty.
14 - FORM NO. 56041590 / AX 300 / AX 400
OPTIONAL HARD FLOOR KITS
The AX 300 and 400 come standard with a carpet tool. Optional hard floor kits include a squeegee, squeegee mount, support wheel and
solution adjustment valve. Brushes for hard floor use are not included in these kits and must be ordered separately.
DESCRIPTION AX 300 AX 400
Hard Floor Kit** ................................................................... 56264369 ............. 56262164
** Kits do not include brushes.
OPTIONAL HARD FLOOR BRUSHES
The AX 300 and 400 come standard with a carpet brush. Optional brushes for use on hard floors must be ordered separately. If you plan to
clean hard floors, you should also order the Hard Floor Kit (see above) for your machine.
DESCRIPTION AX 300 AX 400
Standard Carpet Brush (Black Bristles)...............................56264357 ............. 56264358
Optional Smooth Hard Floor (Blue Bristles).........................56264360 ............. 56264363
Optional Light Grit Hard Floor (Gray 500) ..........................56264361 ............. 56264364
Optional Grout Grit Hard Floor (Gray 240) .......................... 56264362 ............. 56264365
OPTIONAL ACCESSORY TOOLS
The AX 300 and 400 can be fitted with optional attachments which must be ordered separately. To use these accessory tools, attach the
accessory vacuum hose to the left tube on the recovery tank cover. Attach the accessory solution hose to the fitting on the right rear side of
the machine. Connect the other end of the vacuum and solution hoses to the accessory tool. When using accessory tools, turn the brush
motor switch OFF.
CARPET TOOLS REF. NUMBER
4' Stainless Steel Drag Tool ................................................ 56204223
Stainless Steel Hand Tool ...................................................56204224
Plastic Hand Tool ................................................................56800385
Plastic & Stainless Drag Tool ..............................................56800390
15' Scrub and Vac Hose...................................................... 56249318
HARD FLOOR TOOLS REF. NUMBER
4' Scrub and Vac Wand....................................................... 56204197
15' Scrub and Vac Hose...................................................... 56249318
TECHNICAL SPECIFICATIONS (as installed and tested on the unit)
Model AX 300 AX 400 AX 400
Voltage/frequency V/Hz 230 / 50 230 / 50 100 / 50/60
Rated Power W 1500 1500 1220
Protection Class (electrical)
Protection grade (mec, moist, dust) IP34 IP34 N/A
Sound Pressure Level (at 1.5m) dB(A)/20µPa 72.8 72.8 72.8
Total Weight kg 60 78 78
Austria (Sales Sub)
Nilfi sk-Advance GmbH Phone: +43
Voralberger Allee 46 1616 58 30 22
A-1230 Wien Fax: +43
info@nilfi sk-advance.at 1616 58 30 40
www.nilfi sk-advance.at
Belgium (Sales Sub)
Nilfi sk-Advance NV/SA Phone: +32
Doornveld Sphere Business Park (0)2467 60 50
Industrie Asse 3, No. 11 Fax: +32
B-1731 Zellik-Asse (0)2463 44 16
www.nilfi sk-advance.be
Czech Republic (Sales Sub)
Nilfi sk-Advance s.r.o. Phone: +420
Lysinská 44/1863 2 44 09 09 12
143 00 Praha - Modrany +420
Czech Republic 2 44 09 09 21 4
Fax: +420
2 44 40 23 93
Denmark
Nilfi sk-Advance A/S Phone: +45
Sognevej 25 43 23 81 00
DK-2605 Brøndby Fax: +45
mail@nilfi sk-advance.dk 43 43 77 00
www.nilfi sk-advance.com
Denmark (Prod. Sub)
Gerni A/S Phone: +45
Myntevej 2 89 12 22 00
DK-8900 Randers Fax: +45
www.gerni.com 86 43 14 81
Denmark (Sales Sub)
Nilfi sk-Advance Nordic A/S Phone: +45
Sognevej 25A 43 23 40 50
Postbox 344 Fax: +45
DK-2605 Brøndby 43 23 40 60
kundeservice@nilfi sk-advance.dk
www.nilfi sk-advance.dk
France (Sales Sub)
Nilfi sk-Advance S.A. Phone: +33
27 avenue de la Baltique 1695 98 700
Villebon sur Yvette Fax: +33
P.B. 246 1695 98 701
F-91944 Courtaboeuf Cedex
info@nilfi sk-advance.fr
www.nilfi sk-advance.fr
Germany (Sales Sub)
Nilfi sk-Advance AG Phone: +49
Siemensstrasse 25-27 4101 3990
Postfach 1361 Fax: +49
D-25462 Rellingen 4101 39 91 91
info@nilfi sk-advancede
www.nilfi sk-advance.de
Greece (Sales Sub)
Nilfi sk-Advance A.E. Tel.: +30
8, Thoukididou Str. 210 963 3443
Argioupoli Fax: +30
Gr - 164 52 Athens 210 965 0975
Greece
Holland (Sales Sub)
Nilfi sk-Advance B.V. Phone: +31
Camerastraat 9 (2e verdieping) 36 546 07 00
1322 BB Almere Fax: +31
Postbus 60112 36 523 51 48
1320 AC Almere
www.nilfi sk-advance.nl
Ireland (Sales Sub)
Nilfi sk-Advance Limited Phone: +35
28 Sandyford Offi ce Park 3 12 94 38 38
Sandyford, Dublin 18 Fax: +35
Ireland 3 12 94 38 45
Italy (Prod & Sales Sub)
CFM SpA Phone: +39
Nilfi sk-Advance Div. Guardamiglio 0377 /414021
Localita Novella III /45 1124
I-26862 Guardamiglio (Mi) Fax: +39
0377 51 443
Italy (Prod & Sales Sub)
CFM S.p.A. Phone: +39
Via Porrettana 1991 059 973 0000
I-41059 Zocca (Modena) Fax: +39
cfm@cfm.it 059 973 0099
Norway (Sales Sub)
Nilfi sk-Advance AS Phone: +47
Ulvenveien 89C 23 06 75 00
N-0581 Oslo Fax: +47
23 06 75 01
Poland (Sales Sub)
Nilfi sk-Advance Sp.Z.O.O. Phone: +48
05-800 Pruszków 22 738 37 50
ul. 3-go MAJA 8 Fax: +48
Poland 22 738 37 51
Portugal (Sales Sub)
Nilfi sk-Advance, Lda. Phone: +35
Sintra Business Park 121 911 2670
Zona Industrial Da Abrunheira Fax: +35
Edifi cio 1, 1o A 121 911 2679
P-2710-089 Sintra
Russia (Sales Sub)
Nilfi sk-Advance LLC Phone: 7
Vyatskaya str. 27, bld. 7 095 783 9602
127015 Moscow Fax: +7
Russia 095 783 9603
Spain (Sales Sub)
Nilfi sk-Advance S.A. Phone: +34
Torre D’Ara 93 741 2400
Passeig del Rengle, 5 Pl.10 Fax: +34
E-08302 Mataró (Barcelona) 93 757 8020
nilfi sk@nilfi sk-advance.es
Sweden (Sales Sub)
Nilfi sk -Advance A/S Phone: +46
Sjöbjörnsvägen 5 8555 94400
Box 44045 Fax: +46
S-100 73 Stockholm 8555 94430
info@nilfi sk-advance.se
www.nilfi sk-advance.se
Sweden (Prod.)
Nilfi sk-Advance A/S Phone: +46
Åmål Branch 5321 7500
Strömsbergsgatan Fax: +46
Box 127 5321 7595
S-662 23 Åmål
Switzerland (Sales Sub)
Nilfi sk-Advance AG Phone: +41
Ringsstrasse 19 71 92 38 444
Kirchberg/Industrie Stelzl Fax: +41
CH-9500 Wil 71 92 35 283
www.nilfi sk-advance.ch
UK (Sales Sub)
Nilfi sk-Advance Limited Phone: +44
Newmarket Road 1284 763163
Bury St. Edmunds Fax: +44
UK-Suffolk IP33 3SR 1284 750 562
USA (Prod.)
Nilfi sk-Advance Inc. Phone: +1 763
14600 21.st Avenue North 745 3500
Plymouth, MN 55447-3408 Fax: +1 763
www.mn.nilfi sk-advance.com 745 3718
USA (Sales Sub)
Nilfi sk-Advance America Inc. Phone: +1 610
300 Technology Drive 647 6420
Malvern, PA 19355 Fax: +1 610
www.pa.nilfi sk-advance.com 647 6427
Canada (Sales Sub)
Nilfi sk-Advance Canada Comp. Phone: + 1 905
396 Watline Avenue 712 3260
Mississauga, Ontario L4Z 1X2 Fax: +1 905
712 3255
Australia (Sales Sub)
Nilfi sk-Advance Pty. Ltd. Phone: +61(0)2
48 Egerton Street 9648 2700
Silverwater, NSW 2128 Fax: +61(0)2
Postal addresse: 9648 2711
PO Box 6046
Silverwater. NSW 1811
info@nilfi sk-advance.com.au
www.nilfi sk-advance.com.au
China (Shenzhen)
Nilfi sk-Advance (Shenzhen) Ltd Phone: +86 755
Blok 3, Unit 130, 1001 Honghua Road 8359 7937 el.
Int. Commercial & Trade Center 8359 7939-42
Fuitian Free Trade Zone Fax: +86 755
518038 Shenzhen 8359 1063
P.R. China
China (Suzhou)
Nilfi sk-Advance Professional Phone: +86 512
Cleaning Equipment (Suzhou) Co. Ltd. 8918 5656
306 Su Hong Zhong Road, Build. 2 Fax: +86 512
Suzhou Industrial Park 8918 5666
215021 Suzhou
P.R. China
Hong Kong (Sales Sub)
Nilfi sk-Advance Ltd. Phone: +852
2001 HK Worsted Mills Ind’l Bldg., 2427 5951
31-39 Wo Tong Tsui St. Fax: +852
Kwai Chung, Hong Kong 2487 5828
Japan (Sales Sub)
Nilfi sk-Advance Inc. Phone: +8145
3-17-40-101 Chigasaki Higashi 942 7741
Tsuzuki-ku, Yokohama 224-0033 Fax: +8145
Japan 942 6545
Malaysia (Sales Sub)
Nilfi sk-Advance Sdn Bhd Phone: +60 3
No. 21, Jalan SS 25/41 7956 8188
Mayang Industrial Park Fax: +60 3
47301 Petaling Jaya 7966 6828
Selangor, Malaysia
New Zealand (Sales Sub)
Nilfi sk-Advance Limited Phone: +64(0)9
Danish House 525 0092
6 Rockridge Avenue Fax: +64(0)9
Penrose 92-829 525 6440
Auckland1135
Postal addresse:
Private Bag 92 825
Auckland
New Zealand
Singapore (Sales Sub)
Nilfi sk-Advance Pte. Ltd. Phone: + 65
22,Woodlands Industrial Park E1 6 7599100
Singapore 757740 Fax: +65
sales@nilfi sk-advance.com.sg 7599133
Taiwan, ROC (Sales Sub)
Nilfi sk-Advance Ltd. Phone: +886
Taiwan Branch (H.K.) 2 2239 8812
1F, No. 193, Sec.2 Fax: +886
Xing Long Rd., Taipei 2 2239 8832
Taiwan, R.O.C.
Thailand (Sales Sub)
Nilfi sk-Advance Co. Ltd. Phone: +66 2
89 Soi Chokechai-Ruammitr 275-5630
Viphavadee-Rangsit Road Fax: +66 2
Ladyao, Jatuchak, Bangkok 10900 691-4079
Thailand
©Nilfisk-Advance Inc., F00018, 1/03
.pas
_____________________________________________________
TYPE: AX300, AX400
EU Overensstemmelseserklæring DK Déclaration CE de conformité B, F
Tæpperensemaskine Injecteur- extracteur
Maskinen er fremstillet i overensstemmelse med følgende
direktiver:
Cette machine a été fabriquée conformément aux directives
suivantes:
Maskindirektiv: 98/37/EØF Réglementation machine: 98/37/CEE
EMC-direktiv: 89/336/EØF 92/31/EØF 93/68/EØF 98/13/EOF Réglementation CEM:
89/336/CEE,92/31/CEE,93/68/CEE,98/13/CEE
Lavspændingsdirektiv: 73/23/EØF 93/68/EØF
Harmoniserede standarder: EN 60 335-2-67
Règlement basse tension: 73/23/CEE 93/68/CEE
Normes harmonisées: EN 60 335-2-67
EU Överensstämmelseförsäkran S, FIN EG-conformiteitsverklaring NL, B
Golvvårdsmaskin Sproei-extractie machine
Maskinen är tillverkad i överensstämmelse med följande
direktiver:
Deze machine is vervaardigd overeenkomstig de volgende
richtlijnen:
Maskindirektiv: 98/37/EEG Machine richtlijn: 98/37/EEC
EMC-direktiv: 89/336/EEG 92/31/EEG 93/68/EEG 98/13/EEG EMC-richtlijn: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC
Lågspänningsdirektiv: 73/23/EEG 93/68/EEG
Harmoniserade standarder: EN 60 335-2-67
Laagspanning richtlijn: 73/23/EEC 93/68/EEC
Geharmoniseerde normen: EN 60 335-2-67
EU Declaration of Conformity GB, IRL Declaración de conformidad de la CEE E
Spray extraction machine Máquina inyección/extracción
This machine was manufactured in conformity with the following
directives and standards:
Esta máquina ha sido fabricada en conformidad a las siguientes
normativas:
Machine Directive: 98/37/EEC Normativa de la máquina: 98/37/CEE
EMC-directive: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC Normativa EMC: 89/336/CEE 92/31/CEE 93/68/CEE 98/13/CEE
Low voltage directive: 73/23/EEC 93/68/EEC
Harmonized standards: EN 60 335-2-67
Normativa sobre baja tensión: 73/23/CEE 93/68/CEE
Normas armonizadas: EN 60 335-2-67
Dichiarazione di conformità - CEE I EU Declaração de conformidade da CE P
Macchina ad estrazione Máquina de injecção/extrcção
È prodotto in conformità alle disposizioni contenute nelle Direttive
del Consiglio dei Ministri:
Esta máquina foi fabricada em conformidae com as seguintes
directrizes:
M-direttiva: 98/37/EEC Directriz de maquinaria: 98/37/CEE
EMC-direttiva: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC Directriz EMC: 89/336/CEE 92/31/EEC 93/68/CEE 98/13/CEE
LV-direttiva: 73/23/EEC 93/68/EEC
Norme armonizzate: EN 60 335-2-67
Directriz de baixa voltagem: 73/23/CEE 93/68/CEE
Normas harmonizadas: EN 60 335-2-67
EG – Konformitätserklärung D, A EU:n yhdenmukaisuudesta direktiiveihin FIN
Sprühextraktionsmaschine Painehuuhtelukone
Diese Maschine wurde gemäβ den folgenden Richtlinien
hergestellt:
On valmistettu noudattaen yhteisön määräämiä direktiivejä:
Maschinerichtlinie: 98/37/EWG M-direktiivi: 98/37/CEE
EMV-Richtlinie: 89/336/EWG 92/31/EWG 93/68/EWG 98/13/EWG EMC-direktiivi: 89/336/CEE 92/31/CEE 93/68/CEE 98/13/CEE
Niederspannungsrichtlinie: 73/23/EWG 93/68/EWG
Harmonisierte normen: EN 60 335-2-67
LV-direktiivi: 73/23/CEE 93/68/CEE
Yhdenmukaistetut standardit: EN 60 335-2-67
∆ηλωσηπροσαρµογης/συóρϕωσης EU GR
EL vastavusdeklaratsioon ET
Μηχανηµα καθαρισµου χαλιων ψεκασµου−αναρρóϕησης
Pihustusmasin
Το µηχανηµα ιχει καταοκευαοτει ονµψωϖα µε τις παρακατω προσ
ιαγραψες:
Käesolev masin on valmistatud kooskõlas järgmiste direktiivide ja
standarditega:
Προσιαγραωη µηχανηµατος: 98/37/EEC
Masinadirektiiv: 98/37/EEC
Προσιαραψη−EMC:
89/336/EEC,92/31/EEC,93/68/EEC,98/13/EEC
Elektromagnetilise sobivuse direktiiv: 89/336/EEC 92/31/EEC
93/68/EEC 98/13/EEC
Προσιαγραψη χαµηλης ταοεως: 73/23/EEC 93/68/EEC
Madalpinge direktiiv: 73/23/EEC 93/68/EEC
Εναρµον ισµενα προτυπα: EN 60 335-2-67
Ühtlustatud standardid: EN 60 335-2-67
©Nilfisk-Advance Inc., F00018, 1/03
.pas
ES atbilstības deklarācija LV Pareiškimas apie atitikimą ES direktyvoms LT
Šļakatu ekstrakcijas mašīna Skysčio surinkimo mašina
Šī mašīna izgatavota atbilstoši šādām direktīvām un standartiem: Šis įrenginys pagamintas laikantis tokių direktyvų bei standartų:
Mašīnu direktīva: 98/37/EEC Įrengimų direktyva: 98/37/EEC
Elektromagnētiskās savietojamības (EMC) direktīva: 89/336/EEC
92/31/EEC 93/68/EEC 98/13/EEC
EMC direktyva: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC
Zemsprieguma direktīva: 73/23/EEC 93/68/EEC
Saskaņotie standarti: EN 60 335-2-67
Žemos įtampos įrengimų direktyva: 73/23/EEC 93/68/EEC
Harmonizuoti standartai: EN 60 335-2-67
Deklaracija EU o skladnosti SL Prehlásenie o súlade EÚ SK
Stroj za razprševanje čistila Zariadenie na odsávanie povrchového postreku
Ta stroj je izdelan v skladu z naslednjimi smernicami in standardi: Toto zariadenie bolo vyrobené v súlade s nasledujúcimi
direktívami a normami:
Smernica o strojih: 98/37/EEC Direktíva o zariadeniach: 98/37/EEC
Smernica o elektromagnetni združljivosti (EMC): 89/336/EEC
92/31/EEC 93/68/EEC 98/13/EEC
Direktíva EMC: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC
Smernica o nizki napetosti: 73/23/EEC 93/68/EEC
Harmonizirani standardi: EN 60 335-2-67
Direktíva o nízkom napätí: 73/23/EEC 93/68/EEC
Súvisiace normy: EN 60 335-2-67
EU Prohlášení o shodě CS
Deklaracja zgodności z normami UE PL
Odsávací stroj
Urządzenie do wysokociśnieniowego prania dywanów
Tento stroj byl vyroben ve shodě s následujícími
směrnicemi a normami:
Niniejsze urządzenie zostało wyprodukowane w zgodzie z
następującymi dyrektywami i normami UE:
Směrnice o strojním zařízení: 98/37/EEC
Dyrektywa dotycząca maszyn: 98/37/EEC
Směrnice o elektromagnetické kompatibilitě:
89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC
Dyrektywa: kompatybilność elektromagnetyczna 89/336/EEC
92/31/EEC 93/68/EEC 98/13/EEC
Směrnice o nízkém napětí: 73/23/EEC 93/68/EEC
Harmonizované normy: EN 60 335-2-67
Dyrektywa: urządzenia elektromagnetyczne niskonapięciowe
73/23/EEC 93/68/EEC
Zharmonizowane normy: EN 60 335-2-67
EU megfelelőségi nyilatkozat HU Декларация изготовителя о соответствии директивам ЕС
Permetfelszívógép Распылительный пылесос
Ez a gép az alábbi irányelvekkel és szabványokkal összhangban
készült:
Данная машина разработана в соответствии со следующими
инструкциями и стандартами:
Gépészeti irányelvek 98/37/EEC Инструкция по разработке машин: 98/37/EEC
EMC-irányelvek 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC Инструкция EMC: 89/336/EEC 92/31/EEC 93/68/EEC 98/13/EEC
Kisfeszültségű irányelvek: 73/23/EEC 93/68/EEC
Harmonizált szabványok: EN 60 335-2-67
Инструкция по использованию низких напряжений: 73/23/EEC
93/68/EEC
Согласованные стандарты: EN 60 335-2-67
4.4.2004 .
Larry Doerr, Vice President Operations
Nilfisk-Advance, Inc. Nilfisk-Advance A/S
14600 21st Avenue North Sognevej 25
Plymouth, MN 55447 USA DK-2605 Brøndby, Denmark
www.nilfisk-advance.com © 2004 Printed in USA
Loading...
