NILFISK Proterra Parts List

Proterra™

PARTS LIST
Advance models: 13300106 (3 cyl Diesel)

13300109 (3 cyl LPG)

13300108 (3 cyl Gasoline)

33019865(1)2009-06

2009-06

TABLE OF CONTENTS

Proterra™

1

DESCRIPTION PLAN

GENERAL VIEW 2 - 3
CHASSIS ASSEMBLY 4 - 7
HOPPER SYSTEM 8 - 9
ASSY VAC FAN 10 - 11
ASSY PANEL FILTER 12 - 13
RT SIDE BROOM ASSY 14 - 15
LT SIDE BROOM ASSY 16 - 17
MAIN BROOM SYSTEM 18 - 19
ASSY HYDRAULIC PLANT 20 - 21
HYDRAULIC PLANT - DRIVE MOTOR SCHEME 22 - 23
HYDRAULIC PLANT - STEERING SCHEME 24 - 25
HYDRAULIC PLANT - FLAP AND HOPPER SCHEME 26 - 27
HYDRAULIC PLANT - SIDE BROOM SCHEME 28 - 29
ASSY CONTROL 30 - 33
ASSY SPEED LIMITING 34 - 35
ASSY CONTROL PANEL AND REALYS 36 - 37
ASSY REAR COVER 38 - 39
ASSY FUEL TANK 3 CYL DIESEL 40 - 41
ASSY SUPPORT 3 CYL LPG 42 - 43
ASSY ENGINE 3 CYL DIESEL 44 - 45
ASSY ENGINE 3 CYL LPG 46 - 47
ACCESSORIES 48 - 55
WIRING DIAGRAM DIESEL 56 - 57
WIRING DIAGRAM LPG 58 - 59
HYDRAULIC DIAGRAM 60 - 61
RECOMMENDED SPARE PARTS 62

WHEN ORDERING PARTS

* Use the 8, 9 or 10 digit numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.

Model ___________________ Serial No. ___________________

* = Optional
[] = Not shown

33019865(1)2009-06

2009-06

2

Proterra™

33019865(1)2009-06

1

2

3

9

4

15

5

6

7

8

8

8

11

16

17

12

13

14

10

2009-06

Proterra™

3

33019865(1)2009-06

GENERAL VIEWGENERAL VIEW

Item Ref. No. Qty Description

1 1 CHASSIS ASSEMBLY
2 1 HOPPER SYSTEM
3 1 VAC FAN ASSY
4 1 PANEL ASSY
5 1 POCKET FILTER ASSY (OPTIONAL)
6 1 RIGHT SIDE BROOM ASSY
7 1 LEFT SIDE BROOM ASSY (OPTIONAL)
8 1 HYDRAULIC PLANT ASSY

9 1 CONTROL ASSY
10 1 CONTROL PANEL AND RELAYS ASSY
11 1 REAR COVER ASSY
12 1 FUEL TANK ASSY
13 1 ENGINE 3 CYL DIESEL ASSY
14 1 MAIN BROOM SYSTEM
15 33020132 1 LABES KIT Proterra™
16 1 LPG ASSY
17 1 ENGINE 3 CYL LPG ASSY

2009-06

4

Proterra™

33019865(1)2009-06

1

2

24

25

4

5

6

7

8

10

11

12

9

27

6

1

13

27

27

27

27

27

27

27

27

26

27

27

14 15

16

17

18

19

20

22

23

3

21

4

16

27

27

2009-06

Proterra™

5

33019865(1)2009-06

CHASSIS ASSEMBLYCHASSIS ASSEMBLY

Item Ref. No. Qty Description

1 33018794 1 CONNECTION BRAKE KIT

2 33018790 2 SUPPORT FRONT WHEEL KIT

3 33017168 1 FLAP BROOM CHAMBER HOSES

4 33016901 2 WHEEL ASM WITH BEARINGS

5 33009649 1 WHEEL PNEUMATIC

6 33019101 1 HATCH RIGHT KIT

7 33018796 1 CLOSING HATCH RIGHT SIDE KIT

8 33017129 1 TRIM EDGE BULB L 670MM

9 33018792 1 SUPPORT REAR WHEEL KIT
10 33017103 1 HUB REAR WHEEL
11 33003175 1 BEARING 32007
12 145 4691 000 1 BEARING
13 33017199 1 SPRING
14 33017113 1 BAR JOINT BRAKE
15 33017114 1 PLATE BAR JOINT BRAKE
16 33017266 2 FLAP WHEEL WELL TOP
17 33017055 1 FRAME
18 33016904 2 CAP
19 33016911 1 WASHER LOWER
20 33003125 1 RING NILOS AV
21 33016912 1 PIN DRIVE YOKE PIVOT
22 33016909 1 RING NILOS AV
23
24 33020204 2 DRUM BRAKE
25 33020206 2 BRAKE LINING AND SPRING
26 33017128 1 STOP BROOM ARM
27 33020332 1 CHASSIS HARDWARE KIT

33016910 1 WASHER UPPER

2009-06

6

Proterra™

33019865(1)2009-06

2

2

3

4

5

6

1

11

11

1

1

7

7

8

9

11

11

11

11

11

10

2009-06

Proterra™

7

33019865(1)2009-06

CHASSIS ASSEMBLYCHASSIS ASSEMBLY

Item Ref. No. Qty Description

1 33018791 1 FIXING GASKETS KIT

2 33017173 2 FOAM HOPPER SIDE

3 33017172 1 FLAP SIDE

4 33017171 1 FLAP SIDE

5 33017174 1 FLAP REAR BROOM

6 33017262 1 STATIC STRAP

7 33003129 2 VIBRATION -DAMPING

8 146 1966 000 1 GASKET L 100

9 33017057 1 DOOR LEFT WELDT
10 33009812 1 PLUG
11 33020333 1 FLAP HARDWARE KIT

2009-06

8

Proterra™

33019865(1)2009-06

1

2

3

20

20

20

20

5

4

5

5

7

8

6

6

6

9

12

14

15

16

17

18

19

13

13

13

11

11

11

11

10

11

6

6

2009-06

Proterra™

9

33019865(1)2009-06

HOPPER SYSTEMHOPPER SYSTEM

Item Ref. No. Qty Description

1 33017061 1 COVER HOPPER MOLDED

2 33017126 1 SEAL HOPPER COVER L 2930

3 33018803 1 LATCH KIT

4 33019115 1 HINGES BONNET KIT

5 33018798 1 HARDWARE LIFTING CONTAINER

6 33019116 1 CLAMPS HOSES FIXING KIT

7 33018801 1 FIXING ROD CONTAINER

8 33018799 1 PLATE CONTAINER KIT

9 33017257 1 TRIM EDGE BULB L 900MM
10 33017058 1 HOPPER
11
12
13
14
15
16
17
18
19
20

[21]

33018800 1
33019118 1 SKIRT HATCH CONTAINER KIT
33019117 1
33017059 1 ARM HOPPER
33017108 1 BAR SECURITY
33017138 1 PLATE HOPPER BUTTOM
33017139 2 PIN HOPPER DOOR
33017229 1 PLATE HOPPER FLAP
33017288 1 PLATE W/BOLTS
33020334 1 HOPPER HARDWARE KIT
33017366 1 HARNESS HOPPER

MECHANISM LIFTING KIT

GASKETS HATCH KIT

2009-06

10

Proterra™

33019865(1)2009-06

1

2

3

3

3

4

2009-06

Proterra™

11

33019865(1)2009-06

ASSY VAC FANASSY VAC FAN

Item Ref. No. Qty Description

1 33015222 1 ENGINE ELECTRIC 12VOLT

2 33016950 1 GASKET

3 33018804 1 FIXING ELECTROFAN KIT

4 33018805 1 GRILL ELECTROFAN KIT

2009-06

12

Proterra™

33019865(1)2009-06

1

4

2

2

2

5

7

7

7

2

3

6

7

7

2009-06

Proterra™

13

33019865(1)2009-06

ASSY PANEL FILTERASSY PANEL FILTER

Item Ref. No. Qty Description

1 8-24-04139-1 1 PANEL FILTER

1* 8-24-04139-2 1 PANEL FILTER WATER RESISTENT

2 L08603675 4 NUT THUMB, FIXING

3 146 1104 000 1 MOTOR FILTER SHAKER 90W

4 33018634 1 GASKET ASSY FILTER L 2560

5 33017118 1 PLATE LOCK SHAKER

6 33017119 1 FRAME PANEL FILTER

7 33020335 1 PANEL FILTER HARDWARE KIT

2009-06

14

Proterra™

33019865(1)2009-06

1

2

5

5

5

6

7

7

7

7

6

6

3

4

2009-06

Proterra™

15

33019865(1)2009-06

RT SIDE BROOM ASSYRT SIDE BROOM ASSY

Item Ref. No. Qty Description

1 33017255 1 BROOM SIDE PPL 1,4-1,7

1* 33018889 1 BROOM SIDE PPL 1,5/STEEL
1* 33018890 1 BROOM SIDE NYLON 0,5

2 33017290 1 PIN CLEVIS W/LOOP 8MM

3 33017107 1 SUPPORT RIGHT SIDE MOTOR

4 33017115 1 ARM RIGHT SIDE BRUSH

5 33020336 1 SUPPORT HARDWARE KIT

6 33020337 1 SIDE BROOM CYLINDER HARDWARE KIT

7 33020338 1 SETTING SIDE BROOM HARDWARE KIT

2009-06

16

Proterra™

33019865(1)2009-06

5

5

3

4

6

7

7

7

5

8

6

9

6

1

2

2009-06

Proterra™

17

33019865(1)2009-06

LT SIDE BROOM ASSYLT SIDE BROOM ASSY

Item Ref. No. Qty Description

1 33017255 1 BROOM SIDE PPL 1,4-1,7

1* 33018889 1 BROOM SIDE PPL 1,5/STEEL
1* 33018890 1 BROOM SIDE NYLON 0,5

2 33017290 1 PIN CLEVIS W/LOOP 8MM

3 33017117 1 SUPPORT LEFT SIDE MOTOR

4 33017115 1 ARM LEFT SIDE BRUSH

5 33020336 1 SUPPORT HARDWARE KIT

6 33020337 1 SIDE BROOM CYLINDER HARDWARE KIT

7 33020338 1 SETTING SIDE BROOM HARDWARE KIT

8 33018802 1 MICRO CYLINDER KIT

9 33018807 1 MOTOR SIDE BROOM KIT

[7]* 33019173 1

[8] 33018767 1 INSTRUCTIONS ASSEMBLY

LEFT SIDE BROOM KIT

2009-06

18

Proterra™

33019865(1)2009-06

1

4

4

4

5

5

6

9

9

7

8

7

2

2

2

3

3

3

2009-06

Proterra™

19

33019865(1)2009-06

MAIN BROOM SYSTEMMAIN BROOM SYSTEM

Item Ref. No. Qty Description

1 33018858 1 BROOM MAIN SPIRAL PPL 0.5 WHITE NAVY/STEEL 0.36

33018856 1 BROOM MAIN SPIRAL NYLON 1.2

1*

33018857 1 BROOM MAIN SPIRAL PPL 0.5 WHITE NAVY

1*

33018859 1 BROOM MAIN SPIRAL UNION MIX

1*

2 33018871 1 SUPPORT MOTOR KIT

3 33018870 1 BALL BEARING KIT

4 33018866 1 SUPPORT BEARING KIT

5 33018865 1 PLATE MAIN BROOM KIT

6 33018868 1 LEVER WELDT KIT

7 33018867 1 ROD SPRING KIT

8 33002106 1 SPRING

9 33018869 1 ROD LEVER KIT

2009-06

20

Proterra™

33019865(1)2009-06

1

2

36

8

12

9

10

21

11

14

15

16

17

18

19

20

13

47 5

9

9

2009-06

Proterra™

21

33019865(1)2009-06

ASSY HYDRAULIC PLANTASSY HYDRAULIC PLANT

Item Ref. No. Qty Description

1 33017051 1 STEERING UNIT

2 33018808 1 CYLINDER POWER STEERING KIT

3 33010199 1 OIL FILTER HYDRAULIC

4 33011530 1 PLUG

5 33001307 1 GASKET

6 33018809 1 TANK OIL KIT

7 33018810 1 FILTER PRESSURE KIT

8 33018793 1 MOTOR DRIVE KIT

9 33018802 3 MICRO CYLINDER KIT
10 33018811 1 CYLINDER LIFTING CONTAINE
11 33018873 1 RADIATOR KIT
12 33018872 1 MOTOR MAIN BROOM KIT
13 33018807 1 MOTOR SIDE BROOM KIT
14 33018812 1 DISTRIBUTOR 3 ELEMENTS KIT
15 33018815 1 DISTRIBUTOR 1 ELEMENT KIT
16 33018874 1 PUMP GEAR KIT
17 33019104 1 PUMP DRIVE KIT
18 33018816 1 VALVE PRIORITY KIT
19 33018817 1 CUTOFF VALVE DOUBLE KIT
20 33018840 2 CUTOFF VALVE KIT
21 33017110 1 PIN HYDRAULIC CYLINDER

[22] 33020339 1 HYDRAULIC HARDWARE KIT

2009-06

22

Proterra™

33019865(1)2009-06

2

1

4

3

8

5

6

7

2009-06

Proterra™

23

33019865(1)2009-06

HYDRAULIC PLANT - DRIVE MOTOR SCHEMEHYDRAULIC PLANT - DRIVE MOTOR SCHEME

Item Ref. No. Qty Description

1 33017649 1 HOSE HYDRAULIC 1/2 L= 450

2 33017636 1 HOSE HYDRAULIC 1/2 L=1040

3 33017641 1 HOSE HYDRAULIC 1/2 L=1470

4 33017630 1 HOSE HYDRAULIC 1/2 L=1470

5 33020134 1 HOSE HYDRAULIC 1/2 L 500

6 33017651 1 HOSE HYDRAULIC 3/4 L= 900

7 33017618 1 HOSE HYDRAULIC 1/2 L=1100

8 33017619 1 HOSE HYDRAULIC 1/2 L 1200

9 33017641 1 HOSE HYDRAULIC 1/2 L=1470

2009-06

24

Proterra™

33019865(1)2009-06

1

2

3 4

2009-06

Proterra™

25

33019865(1)2009-06

HYDRAULIC PLANT - STEERING SCHEMEHYDRAULIC PLANT - STEERING SCHEME

Item Ref. No. Qty Description

1 33020136 1 HOSE HYDRAULIC 3/8 L 1000

2 33020137 1 HOSE HYDRAULIC 3/8 L 1380

3 33017622 1 HOSE HYDRAULIC 1/4 L=1320

4 33017625 1 HOSE HYDRAULIC 1/4 L=1000

2009-06

26

Proterra™

33019865(1)2009-06

1

2

9

10

3

5

8

7

4

6

11

12

13

14

15

2009-06

Proterra™

27

33019865(1)2009-06

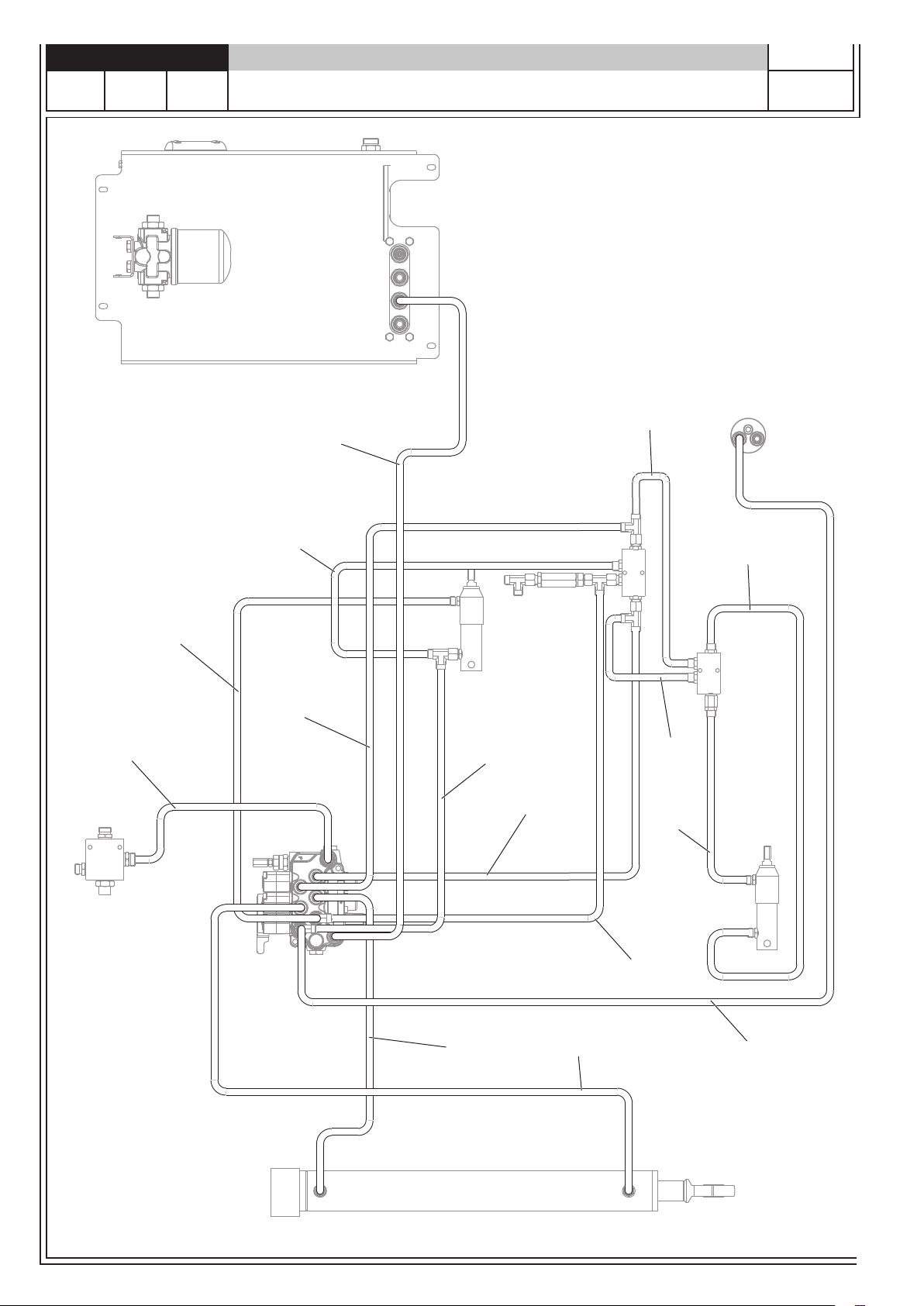

HYDRAULIC PLANT - FLAP AND HOPPER SCHEMEHYDRAULIC PLANT - FLAP AND HOPPER SCHEME

Item Ref. No. Qty Description

1 33017650 1 HOSE HYDRAULIC 1/2 L=1050

2 33017635 1 HOSE HYDRAULIC 1/4 L=1580

3 33017634 1 HOSE HYDRAULIC 1/4 L= 500

4 33017628 1 HOSE HYDRAULIC 1/4 L=1560

5 33017652 1 HOSE HYDRAULIC 1/4 L= 650

6 33017627 1 HOSE HYDRAULIC 1/4 L= 460

7 33017632 1 HOSE HYDRAULIC 1/4 L=1650

8 33020135 1 HOSE HYDRAULIC 1/2 L 950

9 33017653 1 HOSE HYDRAULIC 1/4 L=1340
10 33017633 1 HOSE HYDRAULIC 1/4 L=1390
11 33017655 1 HOSE HYDRAULIC 3/8 L=1350
12 33019714 1 HOSE HYDRAULIC 1/4 L= 450
13 33017638 1 HOSE HYDRAULIC 1/4 L=3020
14 33017647 1 HOSE HYDRAULIC 1/4 L=2320
15 33019713 1 HOSE HYDRAULIC 1/4 L= 450

2009-06

28

Proterra™

33019865(1)2009-06

1

2

10

11

12

13

4

58

6

7

9

3

2009-06

Proterra™

29

33019865(1)2009-06

HYDRAULIC PLANT - SIDE BROOM SCHEMEHYDRAULIC PLANT - SIDE BROOM SCHEME

Item Ref. No. Qty Description

1A 33018689 1 HOSE HYDRAULIC 1/2 L=2900

2 33017640 1 HOSE HYDRAULIC 3/8 L= 625

3 33017654 1 HOSE HYDRAULIC 1/4 L=2600

4 33017643 1 HOSE HYDRAULIC 1/4 L=3400

5 33017646 1 HOSE HYDRAULIC 1/4 L=1460

6 33017637 1 HOSE HYDRAULIC 1/4 L= 330

7 33017639 1 HOSE HYDRAULIC 1/4 L=1620

8 33017631 1 HOSE HYDRAULIC 3/8 L=1520

9 33017648 1 HOSE HYDRAULIC 1/2 L=1050

10B 33017644 1 HOSE HYDRAULIC 1/4 L=2500
11B 33017629 1 HOSE HYDRAULIC 3/8 L=2900
12B 33017642 1 HOSE HYDRAULIC 3/8 L= 660
13B 33017645 1 HOSE HYDRAULIC 1/2 L=2170

A: ONLY FOR MACHINE WITH ONE SIDE BROOM
B: ONLY FOR MACHINE WITH TWO SIDE BROOM

2009-06

30

Proterra™

33019865(1)2009-06

1

2

13

3

4

5

6

7

8

9

10

13

13

13

13

13

13

13

2009-06

Proterra™

31

33019865(1)2009-06

ASSY CONTROLASSY CONTROL

Item Ref. No. Qty Description

1 33018170 1 STEERING WHEEL

2 8-33-02360 1 HOLE HEAT SHIED

3 33018845 1 PEDAL BRAKE KIT

4 33017199 1 SPRING

5 33017259 1 MAT PEDAL

6 33019212 1 HOPPER STOP KIT

7 33018803 1 LATCH KIT

8 33017169 1 COVER SIDE ROTOMOLD

9 145 3801 000 1 HORN 12V

10* 33019574 1 BACKUP ALARM KIT

[11] 33019168 1 INSTRUCTIONS ASSEMBLY
[12] 33017355 1 HARNESS MAIN ENGINE VERSION

13 33020341 1

CONTROL LEFT HARDWARE KIT

2009-06

32

Proterra™

33019865(1)2009-06

1

2

4

5

7

8

9

6

10

11

12

12

13

15

16

14

2009-06

Proterra™

33

33019865(1)2009-06

ASSY CONTROLASSY CONTROL

Item Ref. No. Qty Description

1 33018841 1 FOOT PEDAL UPPER KIT

2 33018842 1 CONNECTION PEDAL KIT

4 33018861 1 BLOCK BONNET KIT

5 33017164 1 FLAP LEVER COVER

6 33017379 1 DECAL MANIFOLD

7 33017163 1 PLATE

8 33017246 1 PLATE

9 33017224 1 COVER PLATE NON TILT
10 909 5836 000 3 CAP
11 33017256 1 CONSOLE
12 33003201 2 SUPPORT SBPP 204
13 33017218 1 LINKAGE WELDT (THROTTLE)
14 33017439 1 BRAKET SENSOR
15 33018521 1 SWITCH BACK UP PROXIMITY
16 33017175 1 PLATE REAR COVER LATCH

[17]

33020342 1

CONTROL RIGHT HARDWARE KIT

2009-06

34

Proterra™

33019865(1)2009-06

1

2

4

3

5

2009-06

Proterra™

35

33019865(1)2009-06

ASSY SPEED LIMITINGASSY SPEED LIMITING

Item Ref. No. Qty Description

1 33019995 1 BASE SPEED LIMITING

2 33019996 1 LEVER SPEED LIMITING

3 33019997 1 LEVER ADJUSTER

4 33019998 2 PLATE FOR SPEED LIMITING

5 33020212 1 SUPPORT COLLAR
[6] 33020350 1 SPEED LIMITING HARDWARE KIT

2009-06

36

Proterra™

33019865(1)2009-06

1

8

10

12

13

13

14

14

15

16

11

2

3

4

5

6

7

9

2009-06

Proterra™

37

33019865(1)2009-06

ASSY CONTROL PANEL AND RELAYSASSY CONTROL PANEL AND RELAYS

Item Ref. No. Qty Description

1 33017223 1 GASKET PLATE

2 33017375 1 DECAL GAGE PANEL

3 33017228 1 GAUGE 12V

4 145 3761 000 1 SWITCH KEY

5 146 0073 00 1 KEY (1PC)

33018844 1

6

7 33018843 1 SWITCH VACUUM KIT

8 33017381 1 GASKET

9 33017254 1 PLATE FUSES
10 33017249 1 DECAL FUSES
11 33017359 1 RELAY TIMER 20 SECONDS
12 33017385 1 RELAY TIMER 0,5 SEC.
13 909 5706 000 2 CIRCUIT BREAKER 30A
14
15 33001990 1 PLUG POWER BOX
16 146 3113 000 2 RELAIS 12V 70 A TYCO

[17] 33017358 1 HARNESS RELAY ENGINE VERSION

33017360 2 BREAKER CIRCUIT 16A

SWITCH HORN KIT

2009-06

38

Proterra™

33019865(1)2009-06

1

11

8

12

2

3

45

6 6 6 6

7

7

13

14

7

9

10

2009-06

Proterra™

39

33019865(1)2009-06

ASSY REAR COVERASASSY REAR COVER

Item Ref. No. Qty Description

1 145 5975 000 1 SEAT

2 33017230 1 COVER ENGINE

3 33017247 1 GRILL REAR

4 33018759 1 GASKET FOR RADIATOR

5 33017682 1 INSULATION FOAM

6 33018862 1 BONNET BLOCK KIT

7 33019103 1 REINFORCEMENT BONNET KIT

8

33019556 1 ARMREST RIGHT KIT

9

33017244 1 GRILL SIDE SMALL
10
11
12
13
14

[15]
[16] 33019554 1 SEAT BELT KIT
[17] 33020340 1 REAR COVER HARDWARE KIT

33018732 1 BRACKET CLOSING REAR COVEr

33019197 1 RELAY TIMER 0.5 SECONDS

33019718 1 COMPARTEMENT LID TIMER

33017177 1 CATCH LATCH

33017261 1 PLATE CATCH

33019697 1 HARNESS REAR COVER ENGINE

2009-06

40

Proterra™

33019865(1)2009-06

1

2

2

3

2009-06

Proterra™

41

33019865(1)2009-06

ASSY FUEL TANK 3 CYL DIESELASSY FUEL TANK 3 CYL DIESEL

Item Ref. No. Qty Description

1 33017215 1 CAP W/TETHER
2 33018863 1 TANK FUEL KIT
3 33018864 1 INDICATOR LEVEL FUEL KIT

2009-06

42

Proterra™

33019865(1)2009-06

1

2

3

3

11

10

12 13

14

15

16

17

18

19

4 5

6

7

8

9

2009-06

Proterra™

43

33019865(1)2009-06

ASSY SUPPORT 3 CYL LPGASSY SUPPORT 3 CYL LPG

Item Ref. No. Qty Description

1 33017388 1 TIMER
2 33009141 1 RELE 12 COM 1
3 146 1873 000 2 FUSE 50A
4 33017756 1 SOLENOID VALVE 12V THREAD
5 33019307 1 SWITCH PRESSURE
6 33019310 1 HOSE GPL LENGH 1450
7 33019306 1 VALVE SECURITY 400PSI
8 33019309 1 HOSE GPL LENGH 620

9 33019848 1 ADAPTER 1/4 NPT
10 33019507 1 BULKHEAD TANK SPACE
11 33020028 1 TRIM EDGE BULB L 995MM
12 33020027 1 GASKET LENGH 2000
13 33019999 1 BAND LPG TANK
14 33019929 1 RUBBER GAS TANK
15 33019908 1 GASKET TANK LPG
16 33019841 1 BRACKET FOR FITTING
17 33018366 1 SUPPORT
18 33019909 2 BAND
19 33020059 1 GASKET ADHESIVE

[20] 33020343 1 SUPPORT TANK HARDWARE KIT

2009-06

44

Proterra™

33019865(1)2009-06

1

2

3

4

5

5

16

6

7

8

9

10

1

32

33

34

35

25

26

1

15

14

1284

8

29

19

20

19

21

22

23

30

31

24

24

13

12

18

17

2009-06

Proterra™

45

33019865(1)2009-06

ASSY ENGINE 3 CYL DIESELASSY ENGINE 3 CYL DIESEL

Item Ref. No. Qty Description

1 33019119 1 ACCELERATOR KIT

2 33018468 1 WORKING LEVER PUMP

3 33017231 1 MUFFLER

4 33017211 1 TUBE EXHAUST PIPE

5 33019120 1 VIBRATION DAMPING ENGINE KIT

6 33019628 1 BATTERY 12V 77AH

7 146 1873 000 2 FUSE 50A

8 33019121 1 VIBRATION DAMPING RADIATOR KIT

9 33017234 1 TUBE RADIATOR
10 33019460 1 ENGINE KUBOTA
11 33017233 1 TUBE RADIATOR
12 33017251 1 INDICATOR AIR FILTER
13 145 0231 000 1 AIR FILTER
14 33019122 1 HOSES FUEL KIT
15 33018814 1 GRILL SAFETY
16 33020344 1 KIT CONNECTION PEDAL DIESEL
17 33017252 1 FILTER FUEL
18 33018850 1 FILTER OIL ENGINE
19 33019147 1 ALTERNATOR 12V 60 AH
20 33019149 1 STARTER 12V
21 33019148 1 BELT ALTERNATOR
22
23
24
25
26
27
28
29
30
31
32
33
34
35 33019456 1 TANK WATER OVERFLOW W/MOUNT

[36]
[37]
[38]

33017208 1 BELL HOUSING
33017209 1 BRACKET
33017210 2 BRACKET
33017226 1 BRACKET RADIATOR MOUNT
33017227 1 BRACKET RADIATOR MOUNT
33017237 1 PLATE FILTER AIR
33017253 1 SUPPORT FUEL FILTER
33017293 1 SUPPORT PLASTIC AIR
33017441 1 CLAMP BATTERY
33017442 1 SUPPORT BATTERY
33018697 1 FAN MULTIWING D.370 8 BLADE
33018813 1 PLATE RADIATOR RIGHT
33019468 1 BRACKET FOR TANK WATER

33019467 2 STIFFENER MUFFLER
33019244 1 HARNESS DIESEL ENGINE KIT
33020346 1 ENGINE DIESEL HARDWARE KIT

2009-06

46

Proterra™

33019865(1)2009-06

1

12

2

3

28

4

5

6

5

9

26

9

29

30

33

32 37

31

10

25

20

21

9

8

7

8

14

16

15

35

36

17

19

18

41

27

23

24

38

39

40

13

22

34

2009-06

Proterra™

47

33019865(1)2009-06

ASSY ENGINE 3 CYL LPGASSY ENGINE 3 CYL LPG

Item Ref. No. Qty Description

1 33019119 1 ACCELERATOR KIT

2 33018468 1 WORKING LEVER PUMP

3 33017231 1 MUFFLER

4 33017914 1 TUBE EXHAUST PIPE

5 33019120 1 VIBRATION DAMPING ENGINE KIT

6 33019628 1 BATTERY START 12V 77 AH

7 33019894 1 HOSE LENGH 540 MM KIT

8 33019121 1 VIBRATION DAMPING RADIATOR KIT

9 33020348 1 HOSES KIT
10 33017064 1 ENGINE LPG
11 33017915 HOSE
12 33017251 1 INDICATOR AIR FILTER
13 145 0231 000 1 AIR FILTER
14 33018004 1 HOSE VALVE REGULAT. L 650
15 33018814 1 GRILL SAFETY
16 33018005 1 HOSE
17 33018006 1 HOSE
18 33020324 1 CABLE CHOKE
19 33020345 1 KIT CONNECTION PEDAL LPG
20 33019147 1 ALTERNATOR 12V 60AH
21 33020015 1 GASKET EXAUST
22 33020016 1 LPG REGULATOR
23 33020017 1 STARTER
24 33020018 1 BELT ALTERNATOR
25 33018851 1 FILTER OIL ENGINE
26 33019456 1 TANK WATER OVERFLOW W/MOUNT
27 33020209
28 33017265
29 33017293
30 33017441
31 33017442
32 33017913
33 33017918
34 33017919
35 33018002
36 33018003
37 33018628
38 33018697
39 33018813
40 33019468
41 33020208

[42] 33020347
[43]

33020349 1 ENGINE LPG HARDWARE KIT

1 PLATE PROTECTION
1 BELL HOUSING
1 SUPPORT PLASTIC AIR
1 CLAMP BATTERY
1 SUPPORT BATTERY
1 SUPPORT MOTOR
1 PLATE
1 SUPPORT
1 BRACKET
1 BRACKET
1 CRANKCASE MUFFLER PROTECT
1 FAN MULTIWING D.370 8 BLADE
1 PLATE RADIATOR RIGHT
1 BRACKET FOR TANK WATER
1 BRACKET RPM SETTING
1 HARNESS LPG ENGINE KIT

2009-06

48

Proterra™

33019865(1)2009-06

1

2

3

4

6

9

7

8

5

2009-06

Proterra™

49

33019865(1)2009-06

ACCESSORIESACCESSORIES

Item Ref. No. Qty Description

1 9097385000 1 CAP SOLUTION TANK

2 9097404000 1 FILTER WATER

3 33019329 1 PUMP WATER KIT

4 33018485 1 BREAKER CIRCUIT 1A

5 33019325 1 SWITCH WATER FLUSHING KIT

6 33019324 2 NOZZLE SPRAY KIT

7 56508450 1 NOZZLE SPRAY

8 56507916 1 STRAINER CHECK VALVE

9 33019326 1 HOSES/FITTINGS MISTING SYSTEM KIT

[10]* 33019175 1 PRE MISTING SYSTEM 12V KIT

[11] 33019169 1 INSTALLATION INSTRUCTIONS

2009-06

50

Proterra™

33019865(1)2009-06

1 2

5 8

9

2009-06

Proterra™

51

33019865(1)2009-06

ACCESSORIESACCESSORIES

Item Ref. No. Qty Description

1* 33019172 1 WHEEL SOLID KIT
1* 33019139 1 WHEEL SOLID NON MARKING KIT
2* 33019171 1 OVER HEAD GUARD KIT

[3]* 56508663 1 MIRROR KIT

[4] 56040968 1 INSTRUCTIONS ASSEMBLY

5* 33019176 1 POCKET FILTER KIT 12V

[6]* 56507740 1 POCKET WATER RESISTANT FILTER

[7] 33018766 1 INSTRUCTIONS ASSEMBLY

8* 33019174 1 TILT STEERING KIT

9 33017925 1 STEERING UNIT

[10] 33019157 1 INSTRUCTIONS ASSEMBLY

[11]* 56507027 1 FIRE EXTIGUISHER KIT

[12] 56040936 1 INSTRUCTIONS ASSEMBLY

2009-06

52

Proterra™

33019865(1)2009-06

1 3

2009-06

Proterra™

53

33019865(1)2009-06

ACCESSORIESACCESSORIES

Item Ref. No. Qty Description

1* 33019570 1 MAT FLOOR KIT

[2] 33019195 1 INSTRUCTIONS ASSEMBLY

3* 33019572 1 GUARD REAR BUMPER KIT

[4] 33019205 1 INSTRUCTIONS ASSEMBLY

2009-06

54

Proterra™

33019865(1)2009-06

1

8

3

5

4

4

2009-06

Proterra™

55

33019865(1)2009-06

ACCESSORIESACCESSORIES

Item Ref. No. Qty Description

1* 33019558 1 FRONT LIGHT 12V KIT

[2] 33019561 1 INSTRUCTIONS INSTALLATION

3 33019736 1 SWITCH FRONT LIGHT

4 146 1587 000 2 HEADLIGHT

5 33017361 1 BREAKER CIRCUIT 10A
[6] 146 1588 000 2 LAMP
[7] 33019220 1 HARNESS FRONT HEADLIGHT

8* 33019573 1 METAL LINER HOPPER KIT

[9] 33019207 1 INSTRUCTIONS INSTALLATION

2009-06

56

Proterra™

33019865(1)2009-06

2009-06

Proterra™

57

33019865(1)2009-06

WIRING DIAGRAM 3 CYL. DIESELWIRING DIAGRAM 3 CYL. DIESEL

Key Description Ref. No.

ALT ALTERNATOR
BAT BATTERY
BE1 PIVOTING LIGHT
BZ1 REVERSE GEAR BUZZER
ES1 VACUUM SYSTEM RELAY
ES2 FILTER SHAKER RELAY
EV1 SOLENOID VALVE
F1 VACUUM SYSTEM CIRCUIT BREAKER (30 A)
F2 FILTER SHAKER CIRCUIT BREAKER (16 A)
F3 WATER PUMP CIRCUIT BREAKER (10 A) (OPTIONAL)
F4 IGNITION KEY CIRCUIT BREAKER (30 A)
F5 ENGINE ACCESSORY CIRCUIT BREAKER (16 A)
F8 CAB BLOWER CIRCUIT BREAKER (OPTIONAL)
F9 GLOW PLUG FUSE (50 A)
F10 ALTERNATOR FUSE BOX AND FUSE (50 A)
F11 HOOD INNER LIGHT FUSE (1 A) (OPTIONAL)
HN HORN
K1 IGNITION SWITCH
L1 FRONT WORKING LIGHT (OPTIONAL)
L2 FRONT WORKING LIGHT (OPTIONAL)
L3 DRIVER’S SIDE WORKING LIGHT (OPTIONAL)
L4 REAR WORKING LIGHT (OPTIONAL) 56507830
L5 HOOD INNER LIGHT (OPTIONAL) 56305627
M1 VACUUM SYSTEM MOTOR 33015222
M2 FILTER SHAKER MOTOR
M3 WATER PUMP MOTOR (OPTIONAL)
M4 CAB BLOWER (OPTIONAL)
MST STARTER
PLG GLOW PLUGS -
R1 GLOW PLUG WARNING LIGHT RESISTANCE -
SE1 OIL PRESSURE SENSOR -
SE2 WATER TEMPERATURE SENSOR -
SE3 CLOGGED AIR FILTER SENSOR (OPTIONAL) 56305518
SE5 FUEL TANK FLOAT 33017215
SE6 HOPPER TEMPERATURE SENSOR (OPTIONAL) 56507029
STR GAUGE 33017228
SW1 VACUUM SYSTEM/FILTER SHAKER SWITCH 33018843
SW2 HORN SWITCH 33018844
SW3 DRIVER’S SEAT MICROSWITCH -
SW4 REVERSE GEAR PROXIMITY SENSOR 33018521
SW5 CAB BLOWER SWITCH (OPTIONAL) -
SW6 WATER PUMP SWITCH (OPTIONAL) 33019325
SW7 WORKING LIGHT SWITCH (OPTIONAL) -
SW13 DRIVER’S SIDE WORKING LIGHT SWITCH (OPTIONAL) -
SW14 REAR WORKING LIGHT SWITCH (OPTIONAL) -
SW15 HOOD INNER LIGHT SWITCH (OPTIONAL) -
T1 FILTER SHAKER TIMER 33017359
T2 FILTER SHAKER TIMER 2 33017385
T3 DRIVER’S SEAT TIMER
TC GLOW PLUG TIMER

33019147
33019628
56305223
146 2487 000
146 3113 000
146 3113 000

­909 5706 000
33017360
33017361
909 5706 000
33017360

­146 1873 000
146 1873 000

­145 3801 000
145 3761 000
146 1587 000
146 1587 000
56507830

146 1104 000
33019329

-

-

33019197
33019990

Color

BK BLACK
BU LIGHT BLUE
BN BROWN
GN GREEN
GY GREY
OG ORANGE
PK PINK
RD RED
VT VIOLET
WH WHITE
YE YELLOW

2009-06

58

Proterra™

33019865(1)2009-06

2009-06

Proterra™

59

33019865(1)2009-06

WIRING DIAGRAM 3 CYL. LPGWIRING DIAGRAM 3 CYL. LPG

Key Description Ref. No.

ALT ALTERNATOR
BAT BATTERY
BE1 PIVOTING LIGHT
BZ1 REVERSE GEAR BUZZER
ES1 VACUUM SYSTEM RELAY
ES2 FILTER SHAKER RELAY
ES3 LPG SAFETY RELAY
EV2 LPG SOLENOID VALVE
EV3 LPG SAFETY SOLENOID VALVE
F1 VACUUM SYSTEM CIRCUIT BREAKER (30 A)
F2 FILTER SHAKER CIRCUIT BREAKER (16 A)
F3 WATER PUMP CIRCUIT BREAKER (10 A) (OPTIONAL)
F4 IGNITION KEY CIRCUIT BREAKER (30 A)
F5 ENGINE ACCESSORY CIRCUIT BREAKER (16 A)
F6 WORKING LIGHT FUSE (10 A) (OPTIONAL)
F8 CAB BLOWER CIRCUIT BREAKER (OPTIONAL)
F10 ALTERNATOR FUSE BOX AND FUSE (50 A)
F11 HOOD INNER LIGHT FUSE (1 A) (OPTIONAL)
HN HORN
K1 IGNITION SWITCH
L1 FRONT WORKING LIGHT (OPTIONAL)
L2 FRONT WORKING LIGHT (OPTIONAL)
L3 DRIVER’S SIDE WORKING LIGHT (OPTIONAL)
L4 REAR WORKING LIGHT (OPTIONAL) 56507830
L5 HOOD INNER LIGHT (OPTIONAL) 56305627
M1 VACUUM SYSTEM MOTOR 33015222
M2 FILTER SHAKER MOTOR
M3 WATER PUMP MOTOR (OPTIONAL)
M4 CAB BLOWER (OPTIONAL)
MST STARTER
SE1 OIL PRESSURE SENSOR -
SE2 WATER TEMPERATURE SENSOR -
SE3 CLOGGED AIR FILTER SENSOR (OPTIONAL) 56305518
SE6 HOPPER TEMPERATURE SENSOR (OPTIONAL) 56507029
SE7 ENGINE SPEED SENSOR -
SE8 LOW FUEL SENSOR 33019307
SPK GLOW PLUG COILS -
STR GAUGE 33017228
SW1 VACUUM SYSTEM/FILTER SHAKER SWITCH 33018843
SW2 HORN SWITCH 33018844
SW3 DRIVER’S SEAT MICROSWITCH -
SW4 REVERSE GEAR PROXIMITY SENSOR 33018521
SW5 CAB BLOWER SWITCH (OPTIONAL) -
SW6 WATER PUMP SWITCH (OPTIONAL) 33019325
SW7 WORKING LIGHT SWITCH (OPTIONAL) -
SW13 DRIVER’S SIDE WORKING LIGHT SWITCH (OPTIONAL) -
SW14 REAR WORKING LIGHT SWITCH (OPTIONAL) -
SW15 HOOD INNER LIGHT SWITCH (OPTIONAL) -
T1 FILTER SHAKER TIMER 33017359
T2 FILTER SHAKER TIMER 2 33017385
T3 DRIVER’S SEAT TIMER
T4 TIMER LPG 33017388

33019147
33019628
56305223
146 2487 000
146 3113 000
146 3113 000
33009141

­33017756
909 5706 000
33017360
33017361
909 5706 000
33017360
33017361

­146 1873 000

­145 3801 000
145 3761 000
146 1587 000
146 1587 000
56507830

146 1104 000
33019329

-

-

33019197

Color

BK BLACK
BU LIGHT BLUE
BN BROWN
GN GREEN
GY GREY
OG ORANGE
PK PINK
RD RED
VT VIOLET
WH WHITE
YE YELLOW

2009-06

60

Proterra™

33019865(1)2009-06

10

13

17

17

18

16

22

15

21

14

12

19

11

6

7

1

2

5

4

8

2

20

9

23

3

ENGINE

2009-06

Proterra™

61

33019865(1)2009-06

HYDRAULIC DIAGRAMHYDRAULIC DIAGRAM

Item Description Ref. No.

1 OIL TANK

2 OIL FILTER

3 DRIVE SYSTEM PUMP

4 GEAR PUMP

5 DRIVE SYSTEM MOTOR

6 POWER STEERING

7 STEERING CYLINDER

8 PRIORITY VALVE

9 MANIFOLD 3 LEVERS
10 HOPPER LIFTING CYLINDER
11 SKIRT CYLINDER
12 MAIN BROOM MOTOR
13 MAIN BROOM CYLINDER
14 MANIFOLD 1 LEVER
15 RIGHT SIDE BROOM MOTOR
16 RIGHT SIDE BROOM CYLINDER
17 CHECK VALVE
18 ONE-WAY VALVE
19 DOUBLE CHECK VALVE
20 MANIFOLD BLOCK
21 LEFT SIDE BROOM MOTOR (OPTIONAL)
22 LEFT SIDE BROOM CYLINDER (OPTIONAL)
23 OIL COOLER

33018809
33010199
33019104
33018874
33018793
33017051
33018808
33018816
33018812
33018811
33018802
33018872
33018802
33018815
33018807
33018802
33018840

33018816

33018807
33018802
33018873

2009-06

62

Proterra™

33019865(1)2009-06

RECOMMENDED SPARE PARTS

Ref. No. Qty Description Version

146 1104 000 1 MOTOR FILTER SHAKER 90W Diesel - LPG

33017255 1 BROOM SIDE PPL 1,4-1,7 Diesel - LPG
33017375 1 DECAL GAUGE PANEL Diesel - LPG
33017129 1 TRIM EDGE BULB L 670MM Diesel - LPG
33018803 1 LATCH KIT Diesel - LPG
33018634 1 GASKET ASSY FILTER L 2560 Diesel - LPG
33019102 1 PIN SIDE BROOM KIT Diesel - LPG
33018812 1 DISTRIBUTOR 3 ELEMENTS KIT Diesel - LPG
33018815 1 DISTRIBUTOR 1 ELEMENT KIT Diesel - LPG
33018816 1 VALVE PRIORITY KIT Diesel - LPG
33018817 1 CUTOFF VALVE DOUBLE KIT Diesel - LPG
33018840 1 CUTOFF VALVE KIT Diesel - LPG
33018841 1 FOOT PEDAL UPPER KIT Diesel - LPG
33018864 1 INDICATOR LEVEL FUEL KIT Diesel - LPG
33018866 1 SUPPORT BEARING KIT Diesel - LPG
33018867 1 ROD SPRING KIT Diesel - LPG
33018868 1 LEVER WELDT KIT Diesel - LPG
33018869 1 ROD LEVER KIT Diesel - LPG
33017234 1 TUBE RADIATOR Diesel - LPG
33017233 1 TUBE RADIATOR Diesel - LPG

145 0231 000 1 AIR FILTER Diesel - LPG

33020016 1 LPG REGULATOR LPG
33020017 1 STARTER LPG
33020018 1 BELT ALTERNATOR LPG
33018851 1 FILTER OIL ENGINE LPG
33017171 1 FLAP SIDE Diesel - LPG
33017172 1 FLAP SIDE Diesel - LPG
33017173 2 FOAM HOPPER SIDE Diesel - LPG
33017174 1 FLAP REAR BROOM Diesel - LPG
33009649 1 WHEEL PNEUMATIC Diesel - LPG
33016901 2 WHEEL ASM WITH BEARINGS Diesel - LPG
33016950 1 GASKET Diesel - LPG

L08603675 4 NUT THUMB, FIXING Diesel - LPG

33017259 1 MAT PEDAL Diesel - LPG
33003175 1 BEARING 32007 Diesel - LPG

145 4691 000 1 BEARING Diesel - LPG

33010199 1 FILTER HYDRAULIC OIL Diesel - LPG

33011530 1 PLUG Diesel - LPG

33017228 1

145 3761 000 1

146 0073 00 1 KEY (1PC)

33017385 1 RELAY TIMER 0,5 SEC.
33017358 1 HARNESS RELAY ENGINE VERSION
33017359 1 RELAY TIMER 20 SECONDS Diesel - LPG
33017360 1 CIRCUIT BREAKER 16A Diesel - LPG

909 5706 000 3 CIRCUIT BREAKER 30A Diesel - LPG

33017199 1 SPRING
33002106 1 SPRING
33015222 1 MOTOR VACUUM 12V

8-24-04139-1 1 PANEL FILTER

33017252 1 FILTER FUEL
33018850 1 FILTER OIL ENGINE
33019147 1 ALTERNATOR 12V 60 AH
33019149 1 STARTER 12V
33019148 1 BELT ALTERNATOR
33019628 1 BATTERY Diesel - LPG
33017388 1 TIMER LPG LPG
33019197 1 DRIVER’S SEAT TIMER Diesel - LPG
33018521 1 REVERSE GEAR PROXIMITY SENSOR Diesel - LPG
33019307 1 LOW FUEL SENSOR LPG
33017756 1 LPG SAFETY SOLENOID VALVE LPG
33019306 1 VALVE SECURITY 400PSI
33019998 2 PLATE FOR SPEED LIMITING

GAUGE 12V Diesel - LPG
SWITCH KEY Diesel - LPG

Diesel - LPG
Diesel - LPG
Diesel - LPG

Diesel - LPG
Diesel - LPG
Diesel - LPG
Diesel - LPG
Diesel
Diesel
Diesel - LPG
Diesel
Diesel

LPG
Diesel - LPG

2009-06

Proterra™

63

33019865(1)2009-06

ACCESSORIES

Item Ref. No. Qty Description

8-24-04139-2 1 PANEL FILTER WATER RESISTENT

33018889 1 BROOM SIDE PPL 1,5/STEEL
33018890 1 BROOM SIDE NYLON 0,5
33018856 1 BROOM MAIN SPIRAL NYLON 1.2
33018857 1 BROOM MAIN SPIRAL PPL 0.5 WHITE NAVY
33018859 1 BROOM MAIN SPIRAL UNION MIX
33019173 1 LEFT SIDE BROOM KIT
33019175 1 PRE MISTING SYSTEM KIT
33019172 1 WHEEL SOLID KIT
33019139 1 WHEEL SOLID NON MARKING KIT
33019171 1 OVER HEAD GUARD KIT
33019176 1 POCKET FILTER KIT 12V
33019174 1 TILT STEERING

56507740 1 POCKET WATER RESISTANT FILTER
56507027 1 FIRE EXTIGUISHER KIT
56508663 1 MIRROR KIT
33019554 1 SEAT BELT KIT
33019570 1 MAT FLOOR KIT
33019572 1 GUARD REAR BUMPER KIT
33019558 1 FRONT LIGHT 12V KIT
33019573 1 HOPPER STOP KIT
33019574 1 BACKUP ALARM KIT
56305223 1 PIVOTING LIGHT
56507830 1 DRIVER’S SIDE WORKING LIGHT
56507830
56305627
56305518
56507029

REAR WORKING LIGHT

1

HOOD INNER LIGHT

1

CLOGGED AIR FILTER SENSOR

1

HOPPER TEMPERATURE SENSOR

1

Nilsk-Advance, Inc.

14600 21st Avenue North

Plymouth, MN, 55447-3408

www.nilsk-advance.com

Phone: [phone]

Fax: [phone]

©2009 Nilsk-Advance, Inc.,

Plymouth, MN 55447-3408

Printed in Italy
