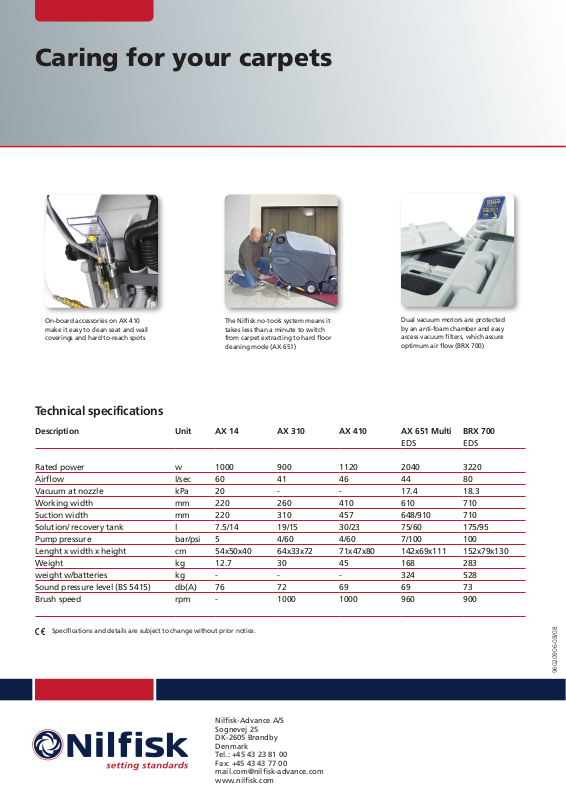

Page 1
Caring for your carpets
On-board accessories on AX 410
make it easy to clean seat and wall
coverings and hard to-reach spots
The Nilfisk no-tools system means it
takes less than a minute to switch
from carpet extracting to hard floor
cleaning mode (AX 651)
Dual vacuum motors are protected
by an anti-foam chamber and easy
access vacuum filters, which assure
optimum air flow (BRX 700)
Technical specifications
Description Unit AX 14 AX 310 AX 410 AX 651 Multi BRX 700
EDS EDS
Rated power w 1000 900 1120 2040 3220
Airflow l/sec 60 41 46 44 80
Vacuum at nozzle kPa 20 - - 17.4 18.3
Working width mm 220 260 410 610 710
Suction width mm 220 310 457 648/910 710
Solution/ recovery tank l 7.5/14 19/15 30/23 75/60 175/95
Pump pressure bar/psi 5 4/60 4/60 7/100 100
Lenght x width x height cm 54x50x40 64x33x72 71x47x80 142x69x111 152x79x130
Weight kg 12.7 30 45 168 283
weight w/batteries kg - - - 324 528
Sound pressure level (BS 5415) db(A) 76 72 69 69 73
Brush speed rpm - 1000 1000 960 900
Specifications and details are subject to change without prior notice.
Nilfisk-Advance A/S
Sognevej 25
DK-2605 Brøndby
Denmark
Tel.: +45 43 23 81 00
Fax: +45 43 43 77 00
mail.com@nilfisk-advance.com
www.nilfisk.com
96020906-08/08
Page 2
Nilfisk
Carpet range
Nilfisk AX 14, AX 310/410, AX 651 MULTI EDS, BRX 700 EDS
Page 3
Keeping operation cost down
2
The AX 14 provide an easy-to-use, effective way of taking
care of stains on carpet and textile coverings. Designed with
the user in mind, these machines are light and compact, easy
to store and simple to transport from area to area or job to
job. When fast spot cleaning is required, the AX9 or AX 14
will take care of it.
A full range of accessory tools for flexibility in handling •
various applications
Perfect for spot cleaning and cleaning of carpets or fab-•
rics in small or hard-to-reach areas
Superb design provides effective cleaning with a light-•
weight, easy-to-move machine
Polyethylene body and accessories with inox tubes en-•
sure durability and long-life
The 4 pivot wheels provide full mobility•
Nilfisk AX 14
The ideal extractors for cleaning contractors, institu-•
tions, restaurants, rental stores, hotels etc.
Nilfisk AX 410
The AX 310/410 offer you the unique dual cleaning mode
system to allow you to switch between a real deep clean of
the carpet, and a low moisture maintenance mode that en-
sures a fast turnaround of the area. They are ideal for clean-
ing medium sized carpeted areas in offices, schools, airports,
restaurants, hotels, shopping malls, and other heavy traffic
areas.
AX 410 offers dual mode cleaning - choose maintenance •
and renovation mode by turning a simple valve
AX 310 is the rugged no-frills version for rental and •
simplified applications
Quality design and first-class engineering saves water •
and chemicals
State-of-the-art moisture recovery speeds up drying time•
Durable construction for long-life•
Page 4
The choice is yoursKeeping operation cost down
Nilfisk AX 651 MULTI EDS
3
In less than 30 seconds the Nilfisk AX 651 multi EDS can go
from a carpet extractor to scrubber mode. And no tools are
needed either! This versatile unit cleans effectively and
quickly, whatever the surface. It’s the ideal solution for
contractors, and for facilities with multi-types of flooring.
EDS –ECO Dosage Solution as standard. Saves water and •
chemicals, and accurately meters detergent.
Low noise level allows daytime cleaning – even in noise-•
sensitive areas
No tools required for maintenance and changing of •
squeegee, brushes and vacuum shoe
Unique vacuum system adjusts to either scrubbing or •
carpet mode for optimal drying capability
Dual rotating brushes provide effective floor sweeping•
The EDS - ECO Dosage Solution – is your guarantee of precise detergent metering. The water-detergent
mixing ratio is always accurate, never guesswork. Plus, the mixing takes place at the scrub deck – not in
the tank, thus eliminating the need to empty and clean the tank since it only contains water. One
bottle of highly concentrated detergent allows up to 39 water tank loads (of 40 litres) of operating
time before needing to be changed or refilled. EDS offers better productivity by cutting cleaning time.
Furthermore, on ECO Solution mode, water consumption is reduced by as much as 50%.
The BRX 700 EDS is the sensible answer for large area carpet
cleaning and designed to improve productivity, reduce op-
erator fatigue and drive down the overall cost of cleaning.
Debris is swept into the integrated hopper and dirt is ex-
tracted from the carpet in one pass. Due to the dual counter
rotating brushes the carpet is left with a groomed appear-
ance. With the 71 cm cleaning path and 170 litre solution
tank, your productivity is increased up to 400%!
ECO Solution reduces water consumption by 50%, only 1 •
litre of water is used for cleaning as much as 15 m²
Cleans up to 1720 m²/h•
160 cm turning radius; can fit through a 83 cm doorway•
One touch control, and excellent driver visibility•
Dual vacuum motors allow short drying time•
Designed to eliminate vacuuming before extracting by •
Nilfisk BRX 700 EDS
sweeping and extracting in one pass!
