SPECIFICATIONS SHEET
SRK-1W

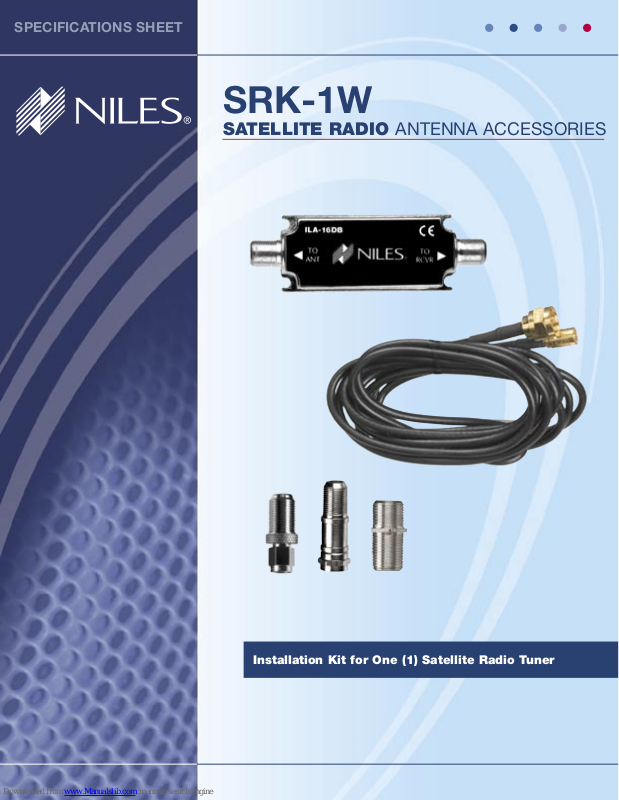

SATELLITE RADIO ANTENNA ACCESSORIES
Installation Kit for One (1) Satellite Radio Tuner
Page 2
SRK-1W Kit
SRK-1W
Stock Number
FG01258
SATELLITE RADIO ANTENNA ACCESSORIES
CONTENTS
■ One F-female to F-female connection coupler
■ One ILA-16dB amplifier; F-female input to F-female output
■ One IMT-75/50 transformer; F-male input 75Ω to F-female output 50Ω
■ One SRC-2M F to SMB extension cable
■ One IMT-50/75 MF transformer; Mini F-male input 50Ω to F-female output 75Ω
Warranty: Two-year limited

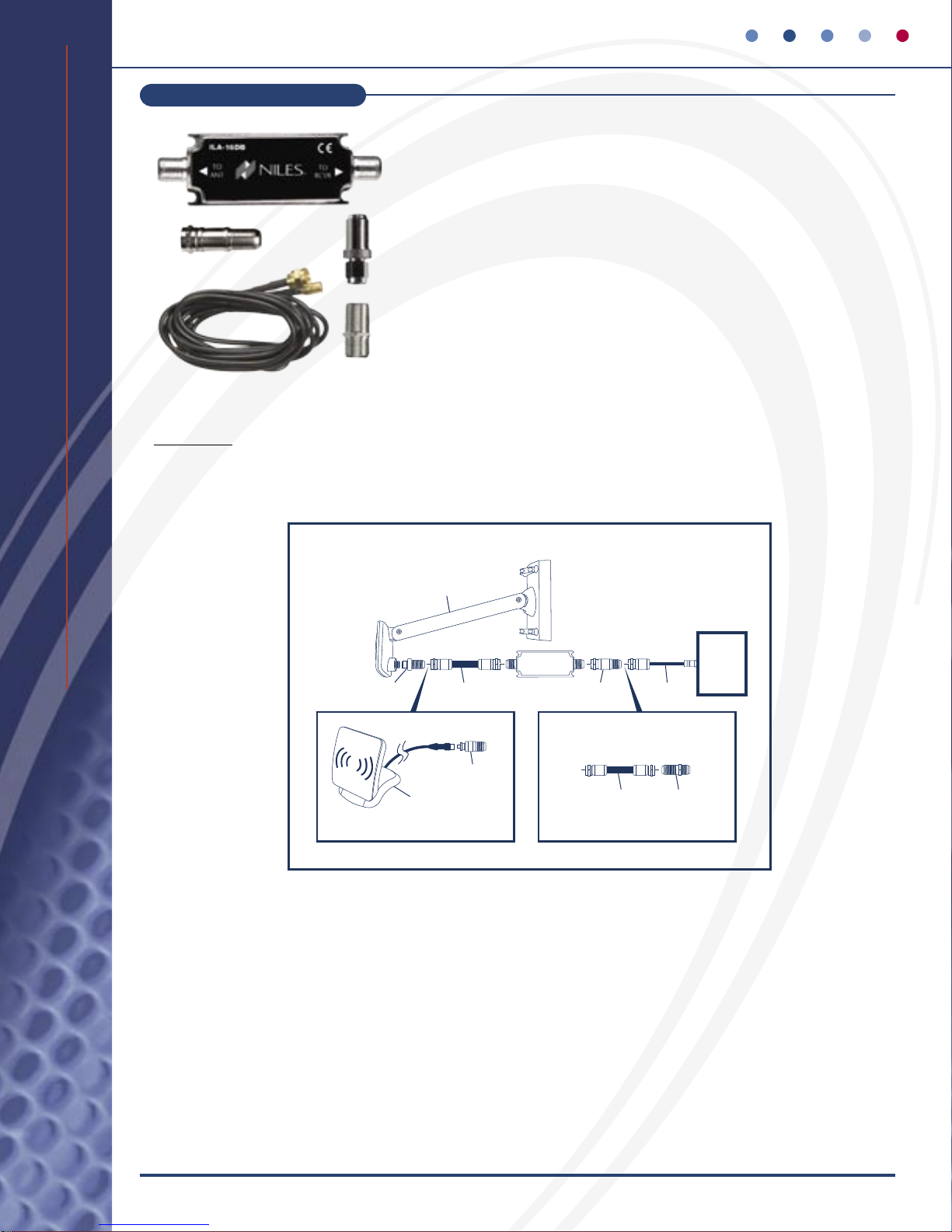

TYPICAL SYSTEM INSTALLATION DIAGRAM
ANT– SAT*
XM®/SIRIUS® SATELLITE
RADIO ANTENNA
IMT–50/75 MF
IMT–50/75 SMB*
CUSTOMER
SUPPLIED
ANTENNA
USE WITH UNIVERSAL SATELLITE ANTENNA
ILA–16dB
IMT–75/50 SRC–2MCOAX CABLE
COAX CABLE F2F
ALTERNATIVE CABLING
*
SOLD SEPARATELY
Individual items sold separately in bulk quantities.
Page 3
Specifications
F2F
Stock Number
FG01256
IMT-75/50
Stock Number
FG01248

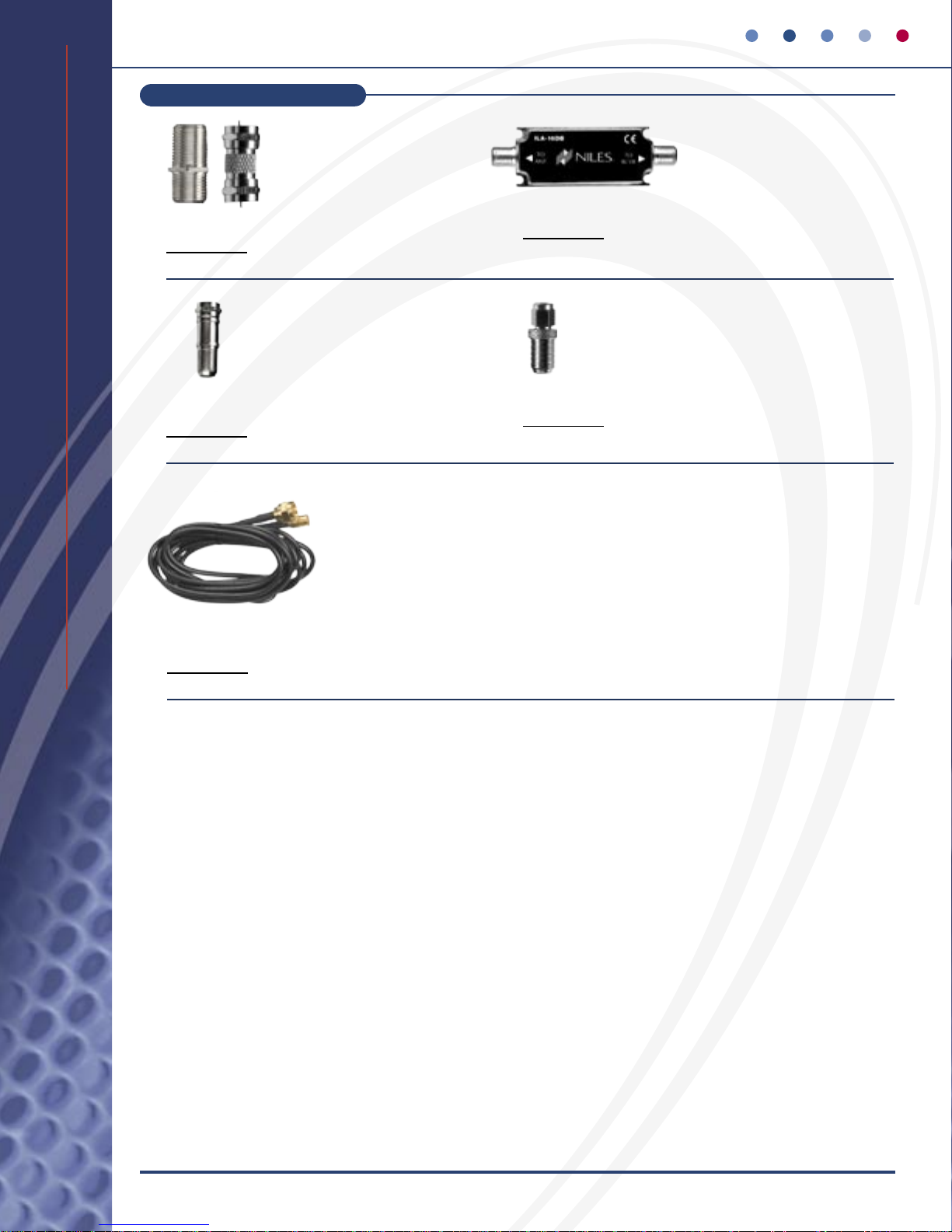

SATELLITE RADIO ANTENNA ACCESSORIES
SPECIFICATIONS
■ Quantity: 1
■ Connection
■ Male to male coupler
■ Female to female coupler
■ 2.3GHz – 2.4GHz
SPECIFICATIONS
■ Quantity: 1
■ Impedance matching transformer
■ F-male input 75Ω to
F-female output 50Ω
■ 2.3GHz – 2.4GHz
SPECIFICATIONS
■ Quantity: 1
■ 2-meter low-loss 50-ohm
F to SMB extension cable
■ F-male to SMB terminations
■ 2.3GHz – 2.4GHz
ILA-16dB
Stock Number
FG01250
IMT-50/75 MF
Stock Number
FG01246
SPECIFICATIONS
■ Quantity: 1
■ In-line antenna amplifier
■ F-female input to
F-female output
■ 2.3GHz – 2.4GHz
SPECIFICATIONS
■ Quantity: 1
■ Impedance matching
transformer
■ Mini F-male input 50Ω
To F-female output 75Ω
■ 2.3GHz – 2.4GHz
SRC-2M
Stock Number
FG01252
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI – www.nilesaudio.com
©2006 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation.
All other trademarks are the property of their respective owners.
CS0020B
