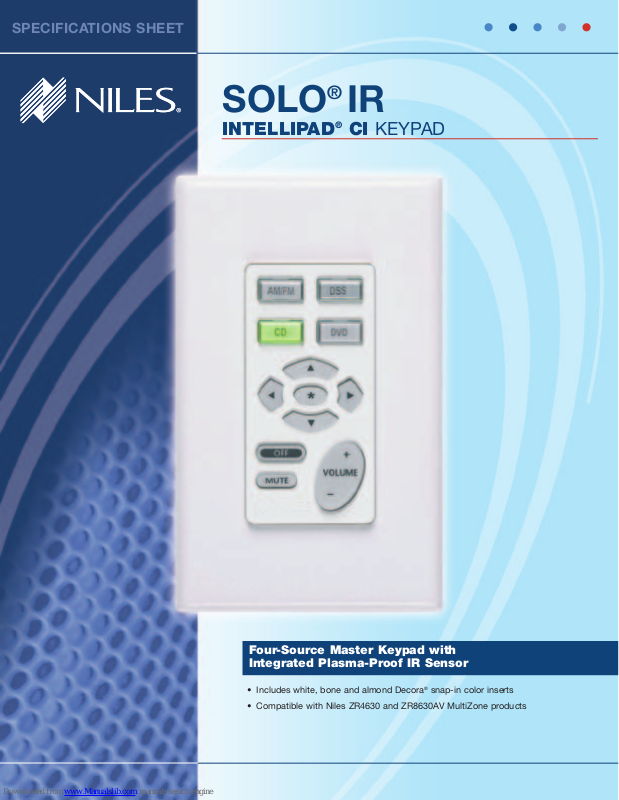

SPECIFICATIONS SHEET
®
SOLO
IR
INTELLIPAD®CI KEYPAD
Four-Source Master Keypad with
Integrated Plasma-Proof IR Sensor
• Includes white, bone and almond Decora®snap-in color inserts
• Compatible with Niles ZR4630 and ZR8630AV MultiZone products
Page 2
MULTIZONE PRODUCTS
Solo® IR Master Keypad
Remote
*
DSS
AM/FM
RELAX
DVD
MUTE
*
OFF
VOLUME
+
_
Solo® IR Master Keypad and
Numeric Accessory Keypad
a
b
c
d
e
f
g
Front View: Solo® IR
(a) Master Keys for system automation.
(b) Function Keys for individual
component control.
(c) OFF Key for room/zone and system
OFF control.
(d) Volume and Mute Key.
Back View: Solo
®
IR
(e) IR Sensor Connection: RJ-45
connection port to extend IR Sensors
(use the Niles RJ-45 to four wire adapter).
(f) System: RJ-45 connector for connection
to a Niles MultiZone System.
(g) Accessory Keypads: RJ-45 connector
for connection to Accessory Keypad
Modules.
IntelliPad®Ci Keypad
Solo® IR
Stock Number
FG00936
Product Detail
FEATURES
■ Built-in plasma-proof IR sensor receives Niles R-4 and R-8 remote control commands
■ Four custom-labeled Master Keys provide “One Touch to Music” system activation
■ Over 200 Master Key labels included
■ Cursor keys provide basic transport and menu control
■ Volume control buttons provide local zone volume control
■ Mute button provides local zone mute
■ Off button turns local zone off. Pressing and holding Off button, turns entire system off
■ Connects to Niles MultiZone Receivers and Preamplifier via CAT-5
SPECIFICATIONS:
■ Dimensions: 1-3/4" wide x 4" high x 1-5/8" deep
Warranty: Two-year limited
