Page 1

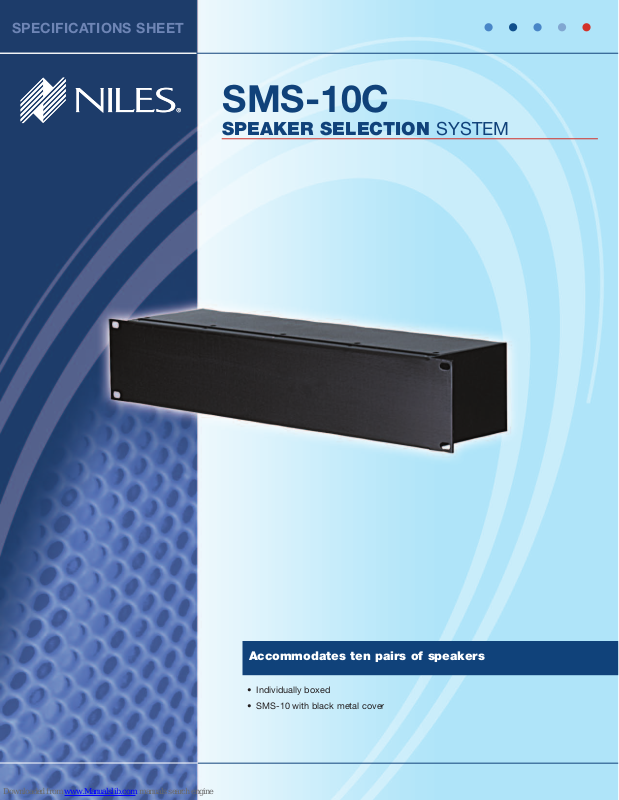

SPECIFICATIONS SHEET
SMS-10C
SPEAKER SELECTION SYSTEM
Accommodates ten pairs of speakers
• Individually boxed
• SMS-10 with black metal cover
Page 2
SPEAKER SELECTION SYSTEM
High-Power Impedance Matching System
FEATURES
■ Power handling: 200 watts per channel RMS
■ Adjustable impedance to match between 4-, 6-, or 8-ohm protection
■ Premium autoformers ensure efficient impedance matching, low power loss, and no heat
generation
■ Enables direct attachment of 3/4" conduit for wiring
■ Top of cover has eight “electrical box” style knockouts
■ Speaker output terminals accommodate up to 14-gauge wire
■ Amplifier input terminals accommodate up to 8-gauge wire
SMS-10C
Stock Number
FG00260
■ Freestanding or rack-mountable
■ 2 rack spaces high
SPECIFICATIONS
■ Dimensions: 19" wide x 3-1/2" high x 3-7/8" deep
Warranty: Ten-year limited
Technology
RUGGED CONSTRUCTION
Provides Niles legendary performance that is backed by a 10-year warranty
SELECTABLE IMPEDANCE MAGNIFYING
Provides optimal electrical loads when connecting multiple pairs of speakers to a single amplifier
NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: 800.289.4434 – www.nilesaudio.com NASMS10CPDF
©2004 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation.
