Page 1

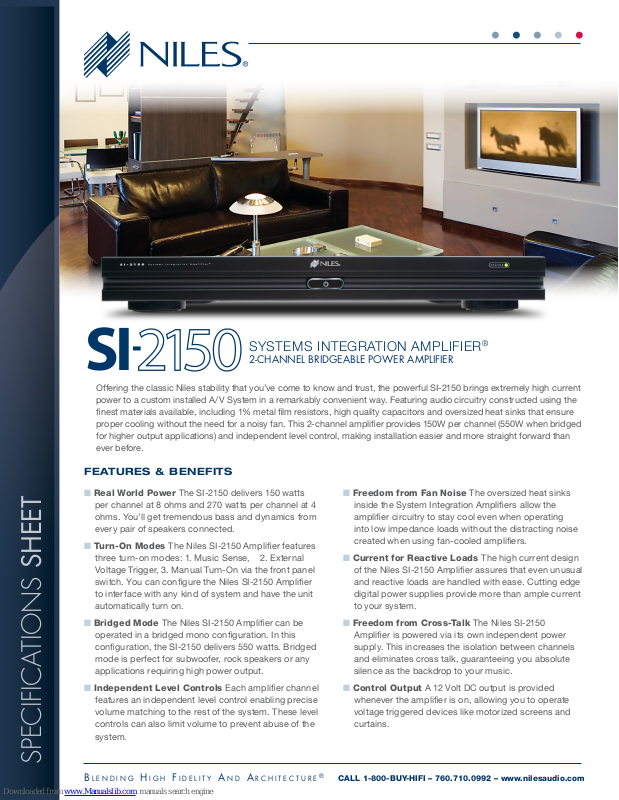

SPECIFICATIONS SHEET
SYSTEMS INTEGRATION AMPLIFIER
SI
Offering the classic Niles stability that you’ve come to know and trust, the powerful SI-2150 brings extremely high current
power to a custom installed A/V System in a remarkably convenient way. Featuring audio circuitry constructed using the
nest materials available, including 1% metal lm resistors, high quality capacitors and oversized heat sinks that ensure
proper cooling without the need for a noisy fan. This 2-channel amplier provides 150W per channel (550W when bridged
for higher output applications) and independent level control, making installation easier and more straight forward than
ever before.
Features & beneFits
-
2-CHANNEL BridgEABLE POWEr AMPLiFiEr
®
■ Real World Power The SI-2150 delivers 150 watts
per channel at 8 ohms and 270 watts per channel at 4
ohms. You’ll get tremendous bass and dynamics from
every pair of speakers connected.
■ Turn-On Modes The Niles SI-2150 Amplier features
three turn-on modes: 1. Music Sense, 2. External
Voltage Trigger, 3. Manual Turn-On via the front panel
switch. You can congure the Niles SI-2150 Amplier
to interface with any kind of system and have the unit
automatically turn on.
■ Bridged Mode The Niles SI-2150 Amplier can be
operated in a bridged mono conguration. In this
conguration, the SI-2150 delivers 550 watts. Bridged
mode is perfect for subwoofer, rock speakers or any
applications requiring high power output.
■ Independent Level Controls Each amplier channel
features an independent level control enabling precise
volume matching to the rest of the system. These level
controls can also limit volume to prevent abuse of the
system.
B l e n d i n g H i g H F i d e l i t y A n d A r c H i t e c t u r e
■ Freedom from Fan Noise The oversized heat sinks
inside the System Integration Ampliers allow the
amplier circuitry to stay cool even when operating
into low impedance loads without the distracting noise
created when using fan-cooled ampliers.
■ Current for Reactive Loads The high current design
of the Niles SI-2150 Amplier assures that even unusual
and reactive loads are handled with ease. Cutting edge
digital power supplies provide more than ample current
to your system.
■ Freedom from Cross-Talk The Niles SI-2150
Amplier is powered via its own independent power
supply. This increases the isolation between channels
and eliminates cross talk, guaranteeing you absolute
silence as the backdrop to your music.
■ Control Output A 12 Volt DC output is provided
whenever the amplier is on, allowing you to operate
voltage triggered devices like motorized screens and
curtains.
®
CALL 1-800-BUY-HIFI – 760.710.0992 – www.nilesaudio.com
Page 2
SyStemS IntegratIon amplIfIer
®
SI-215 0
2-CHANNEL BRIDGEABLE
POWER AMPLIFIER
ST OCK # FG 017 03
Featu r e s
■ Digital, high current bridgeable stereo amplier
■ 150 watts RMS per channel into 8 Ohms (all channels driven)
■ 270 watts RMS per channel into 4 Ohms (all channels driven)
■ Channels are bridgeable to 550 watts RMS into 8 Ohms
■ Auto switching 110V-230V power supply
■ Three turn-on modes: music sense, voltage trigger, and manual
■ Voltage trigger input accepts 3-24VAC/DC
■ Audio circuitry constructed with the nest parts available, including 1% metal lm
resistors, high quality capacitors and oversized heat sinks for clear and uncolored
sound
■ Independent level controls
speciFications
■ 12-volt control out
■ Removable line cord
■ Two year limited warranty
■ Rack mount ears included
■ Tested and certied to US, Canada, EU , and Australian safety and EMC standards
■ Overall dimensions:
17 ¼” (43.81 cm) wide – 2 ¼” (5.6 cm) high (including feet)
13 ½” (34.35 cm) deep
■ Weight: 10.8 lb. (4.9 kg)
APPLICATION
SI-250
This Class B digital apparatus complies with Canadian
S I- 2 5 0
ICES-003.
Cet appareil numérique de la classe B est conforme à la
Sy st e ms
norme NMB-003 du Canada.
In te g ra ti on
®
Am plif i er
TURN ON MODE
AUDIO SENSE
CONSTANT
WIRING LEGEND
3-24V
AC/DC
TRIGGER
12V
INPUT
CONTROL
OUT
LEVELS
L R
Audio
Speaker Cable
3.5 mm
AC
CASCADE TO INCREASE POWER IN CRITICAL AREAS
Switched
AC Outlet
Tape Out
L
FOR
BRIDGED
MODE
R
MAIN BUS
INPUT
OUTPUT
Audio
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
L
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
R
STEREO BRIDGED
BUS
HOME THEATER RECEIVER
CLASS 2 WIRING
LEFT RIGHT
Minimum impedance:
2.66 Ω (stereo mode)
4 Ω (bridged mode)
Niles Audio, Petaluma, California, USA
Designed and Engineered in the U.S.A. Made in China
Parallel
Connection
Loudspeakers
MASTER BATH
31 WATTS PER SPEAKER - 4 Ω
Loudspeakers
DINING ROOM
SI-2150
This Class B digital apparatus complies with Canadian
S I- 2 1 50
ICES-003.
Cet appareil numérique de la classe B est conforme à la
Sy st e ms
norme NMB-003 du Canada.
In te g ra ti o n
®
Am plif i er
TURN ON MODE
AUDIO SENSE
3-24V
AC/DC
CONSTANT
TRIGGER
12V
INPUT
CONTROL
OUT
100-120V / 220-240V~
T5AL, 250V
50 / 60Hz 200W
CAUTION: replace only with same type and rating of fuse.
ATTENTION: remplacer uniquement avec le même type
et calibre du fusible.
Loudspeakers
KITCHEN
Serial No.
LEVELS
L R
L
L
FOR
BRIDGED
MODE
R
R
BUS
MAIN BUS
INPUT
OUTPUT
Loudspeakers
OFFICE
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
STEREO BRIDGED
CLASS 2 WIRING
LEFT RIGHT
MASTER BEDROOM
85 WATTS PER SPEAKER - 4 Ω
Loudspeakers
Minimum impedance:
2.66 Ω (stereo mode)
4 Ω (bridged mode)
Niles Audio, Petaluma, California, USA
Designed and Engineered in the U.S.A. Made in China
Parallel
Connection
Serial No.
T5AL, 250V
OS Loudspeakers
PATIO
100-120V / 220-240V~
50 / 60Hz 200W
CAUTION: replace only with same type and rating of fuse.
ATTENTION: remplacer uniquement avec le même type
et calibre du fusible.
1-800-BUY-HIFI – www.nilesaudio.com
©2013 Core Brands, LLC. All Rights Reserved. Niles, the Niles logo and Blending High Fidelity and Architecture are registered trademarks of Core Brands, LLC. All other trademarks are the
property of their respective owners. We reserve the right to change features, descriptions, and/or specifications at any time without notice. CS0334A
