SPECIFICATIONS SHEET

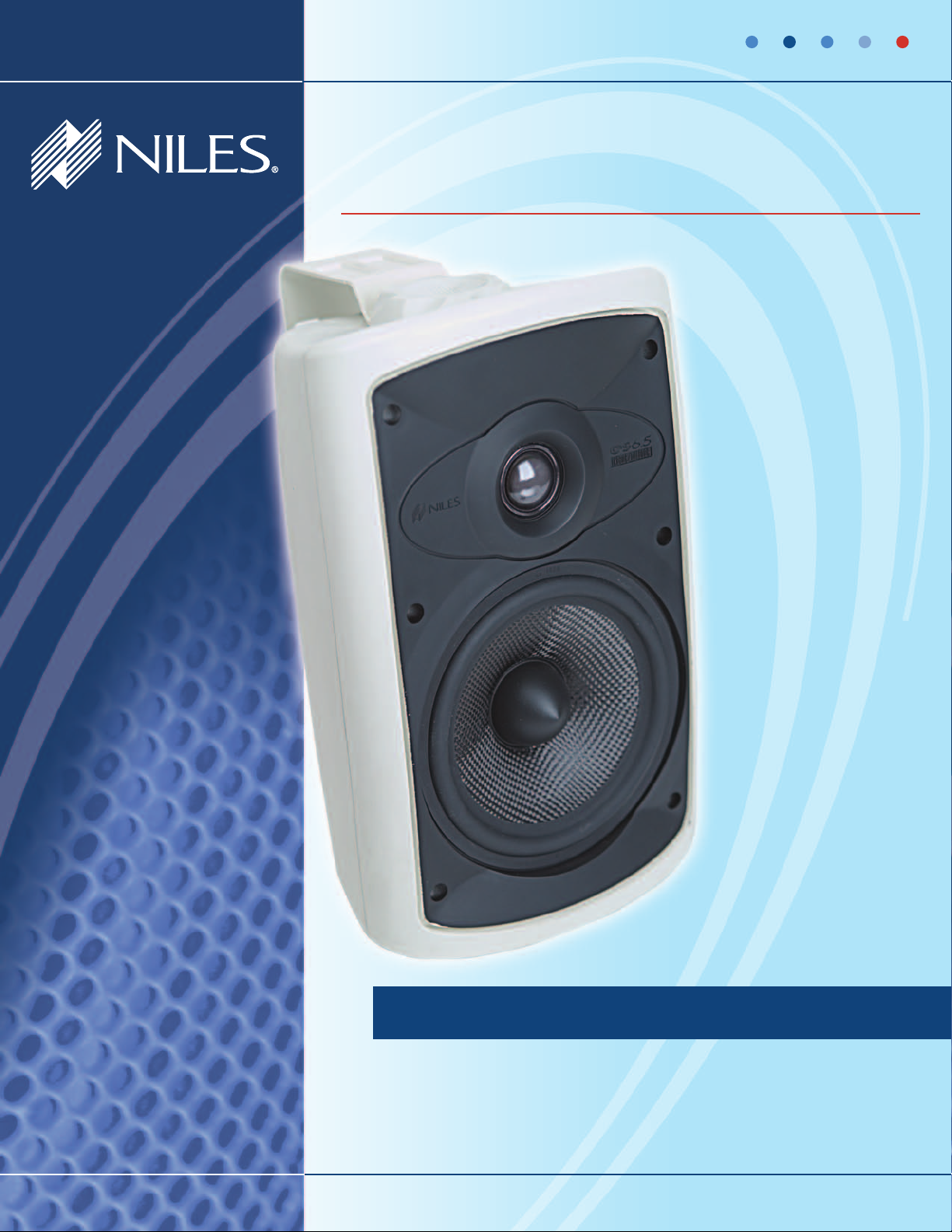

OS6.5
OS INDOOR/OUTDOOR LOUDSPEAKER
High Performance
Indoor/Outdoor Loudspeaker
• Exceeds military anti-corrosion specifications (MIL-STD-883D)
• Integrated mounting bracket
OS Indoor/Outdoor Loudspeaker
OS6.5
Color Stock Number
White FG00994
Black
INDOOR/OUTDOOR LOUDSPEAKER
Technology
INTEGRATED PATENT PENDING WOOFER/BAFFLE ASSEMBLIES
Increases woofer cone area which produces powerful bass from small enclosures
FG00995
WOOFER TECHNOLOGY
■ Integrated woofer/baffle assembly increases cone area to provide powerful bass output
■ 6" interlaced carbon fiber cone is extremely rigid to reduce breakup and lower distortion
■ Butyl rubber cone surround damps resonance and provides exceptional durability
■ Dispersion stabilizer distributes midrange tones for clear off-axis sound
TWEETER TECHNOLOGY
■ 1" tri-laminate Teteron dome with fluid-cooling and ultra-wide dispersion for clear and detailed high-
frequencies
SPECIFICATIONS
■ Impedance: 8 ohms
■ Recommended amplifier power: 5W to 125W
■ Frequency response: 70 Hz-23 kHz +/-3dB
■ Sensitivity: 90dB for 2.83V pink noise
■ Dimensions (includes bracket): 12" high x 7-7/16" wide x 7-3/4" deep
arranty: Two-year limited
W
WEATHERPROOF ENGINEERING
Enables OS Loudspeakers to handle extreme hot, cold and moist environments.
ADVANCED MATERIAL SCIENCE
Elevates appearance and longevity of the cabinet and grille, plus enhances the performance of the woofers, tweeters and crossovers
ARCHITECTURAL FRIENDLY DESIGN
Delivers stellar acoustical performance yet tucks discretely away into corners and under eves
LOW DIFFRACTION GRILLE AND FRONT BAFFLE
Ensures that the sound waves emanating from the woofer and tweeter are not reflected by the surrounding parts of the speaker for precise
imaging and acoustical accuracy
RIGID, ACOUSTICALLY INERT CABINET
Prevents transmission of unwanted vibrations for clean and dynamic bass response
Details
INTEGRAL WOOFER AND BAFFLE
eases the woofer cone-ar
Incr
ea to cabinet-width ratio for enhanced bass output
ALL-WEATHER VERSATILITY
Reduces installation limitations to provide great sound from the beaches of Miami to the harsh winters of Minneapolis
HOME THEATER APPLICABILITY
Enables OS Loudspeakers to be used as left, center, right, or surround speakers in home theater systems
INTEGRATED MOUNTING BRACKET
Provides a variety of secure, quick and easy mounting solutions
TAPERED SHAPE
Facilitates mounting in cor
ners and under eves
Y BINDING POSTS
TED GOLD PLA
INVER
Repel moisture and ensure positive connections in virtually any conditions over long periods of time
ABLE SHELF PLACEMENT
ST
Allows OS Loudspeakers to be used as traditional bookshelf speakers
NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: 800.289.4434 – www.nilesaudio.com NAOS6.5PDF
©2004 Niles Audio Corporation. All Rights Reserved. Niles and the Niles logo are registered trademarks of Niles Audio Corporation.
