Niles Expander, INTELLIPAD CI Specifications

SPECIFICATIONS SHEET

EXPANDER

™

INTELLIPAD®CI KEYPAD ACCESSORY

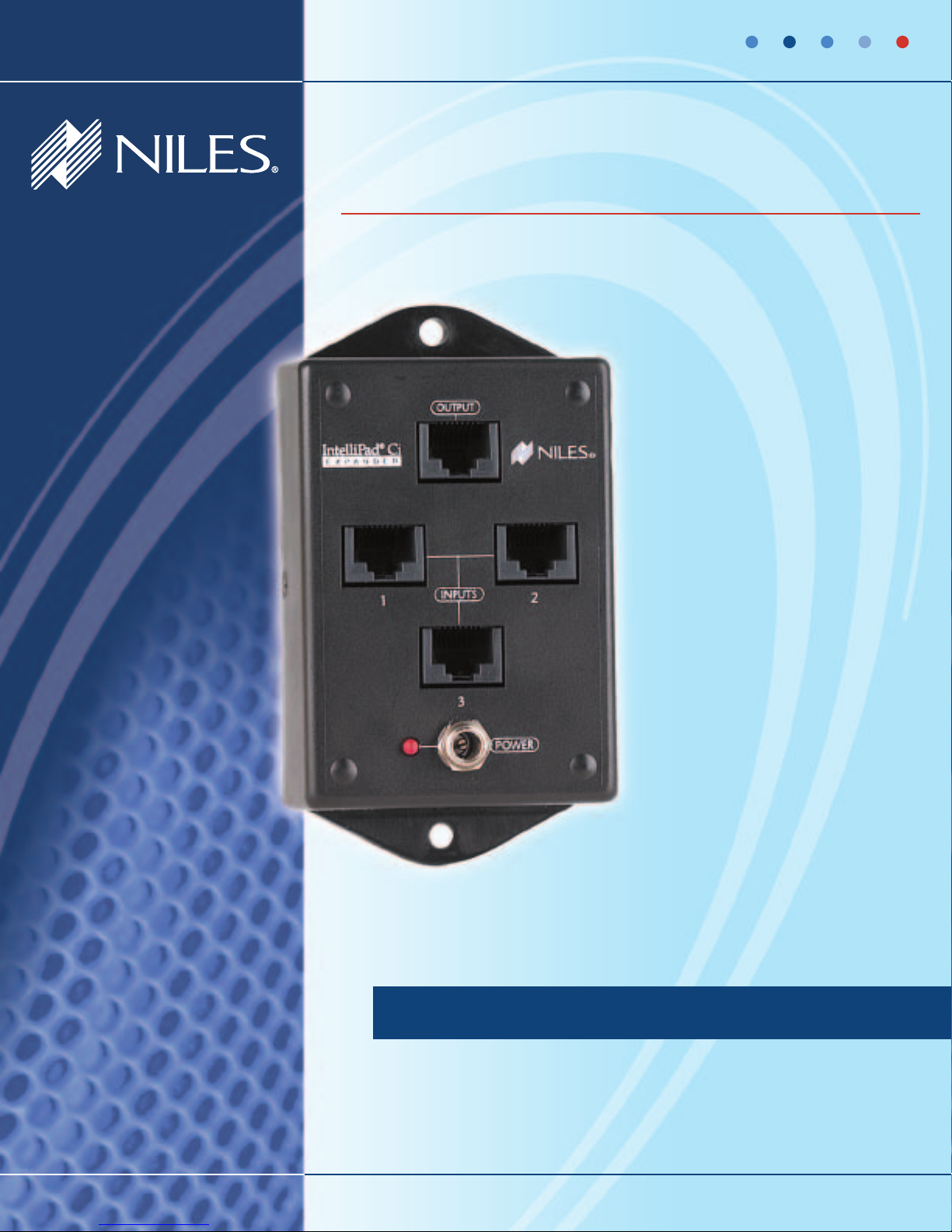

IntelliPad®Ci Keypad Expander

• Allows up to three Niles IntelliPad®Ci keypads to be connected using a single
keypad connection on a Niles multizone system

MULTIZONE PRODUCTS

I

N

F

R

A

R

E

D

S

E

N

S

O

R

K

N

O

C

K

O

U

T

I

N

F

R

A

R

E

D

S

E

N

S

O

R

K

N

O

C

K

O

U

T

I

N

F

R

A

R

E

D

S

E

N

S

O

R

K

N

O

C

K

O

U

T

I

N

F

R

A

R

E

D

S

E

N

S

O

R

K

N

O

C

K

O

U

T

1

2

3

OUTPUT

POWER

INPUTS

ZONE 3

(Living / Dining Room)

Speakers

Living Room Dining Room

Four-Pair

Twisted Cable

Unswitched

AC Outlet

Four-Pair

Twisted Cable

Power

Supply

Niles

IntelliPad

®

Ci Expander

™

KeypadKeypad

Niles ZR-4630

Two-Conductor

Speaker Cable

IntelliPad®Ci Keypads Accessories

FEATURES

■ Expands a single keypad input on a Niles MultiZone Control System

to connect up to three Master Keypads

■ The Expander™ can be daisy-chained with another

Expander to connect up to five Master Keypads

■ LED indicator monitors power status

■ Convenient mounting wings for easy installation

■ Includes UL-listed regulated in-line power supply

with universal voltage capability

PECIFICATIONS:

S

■ Dimensions: 1-3/4" wide x 4" high x 1-5/8" deep

Warranty: Two-year limited

Expander

™

Stock Number

FG00853

Product Detail

Connecting two keypads to a single zone using the Intellipad®Ci Expander™.

NILES AUDIO CORPORATION 12331 S.W. 130 Street, Miami, FL 33186 Tel: [phone] – www.nilesaudio.com NAEXPANDERPDF
