Nikon Sport Optics Brochure

2013-2014

Bring REAL to Life

With a sharp, clear image throughout the entire field of view, you can feel reality,

as though you are actually right in front of nature’s beautiful colours.

Nikon gives you the excitement

and joy of feeling “real” which you have never before experienced.

2 3

4

Pure Optical Performance

Three key factors that produce reality:

1

Nikon’s original optical design software

Incorporating precisely calculated measures that prevent fl are and ghosting,

Nikon’s original optical design software is used to realise an ideal view.

2

Proven optical technology

Since its founding in 1917, Nikon and its group companies have continued to develop

and improve proprietary, comprehensive lens design processes including developing glass materials

and glass fusing technologies.

3

Quality control via a strict inspection standard

Product quality is assured by a strict

and completely controlled inspection standard that is worthy of users’ trust.

4

5

Binocular basics

Performance factors

Nikon offers an extensive lineup of binoculars — including several of
the world´s most popular series — for a diverse range of applications.
Each model features various technical specifications that can help you
in making the right selection. Magnification is usually considered most
important, but field of view, brightness, ease of handling (weight, feel,
ergonomics), suitability for eyeglass wearers and overall construction
should also be taken into account.

Magnification

Magnification, represented by a numerical value, is the relationship between a subject´s
actual proportions and its magnified size. With 7x magnification, for example, a subject
700 metres distant appears as it would when viewed from 100 metres with the naked
eye. As a rule, magnifications of 6x to 10x are recommended for handheld outdoor use.
With magnifications of 12x or greater, any shaking by hand movement is more likely to
create an unstable image and uncomfortable viewing.

Field of view

All binoculars use number codes to designate various specifications. In “8x40 8.8°”, for
example, “8.8°” represents the real field of view, which is the angle of the viewing field
measured from the central point of the objective lens. The apparent field of view, on the
other hand, conveys how wide that field of view appears to the naked eye. The real field
of view at 1,000 metres listed in the specifications is the width of the visible area at a
distance of 1,000 metres.

1,000m

125m

154m

Apparent field of view

Real field of view

8x binoculars

Objective lens diameter

The objective lens diameter, combined with the quality of lens and prism coatings,
determines the amount of light gathered to form an image. If you are regularly observing
in poor light conditions, such as early dawn or dusk, or in forested areas, you may need a
larger objective lens. But large-diameter objective lenses make binoculars heavier, so
50mm is the general limit for handheld use.

Exit pupil

The exit pupil is the image formed by the eyepiece lenses. The diameter of the exit pupil
(in mm) is the effective aperture divided by the magnification. The diameter of the human
eye pupil varies from 2-3mm in daylight to 7mm in the dark. An exit pupil of 7mm gives
maximum light to the dilated eye and is ideal for use in the twilight and at night.

Diameter of exit pupil

10mm pupil diamet er of t he binocular s and
7mm pupil diameter of a human eye

7mm

10mm

Brightness

The relative brightness value is obtained by squaring the diameter of the exit pupil. The
greater the relative brightness, the brighter the image will be. However, this value does
not correspond exactly to increases in brightness viewed with the naked eye because light
coming through the binoculars is 100% effective only if the exit pupil is the same diameter
as the pupil of the eye.

In daylight

Exit pupil diameter: 2.9mm
Pupil diameter of human eye: 2 to 3 mm

In darkness

Exit pupil diameter: 2.9mm
Pupil diameter of human eye: 7mm

How to read the numerical information code for
binoculars

All Nikon binoculars are designated with a numerical formula, such as “10x25 5.4°”.
The value “10x” indicates the magnification of the binoculars. If a person uses 10x
binoculars to observe a wild bird from a distance of 100 metres, for example, it will
appear to the observer as if he or she were viewing the bird from a distance of 10
metres (100 divided by 10 equals 10) with the naked eye.
The next number, “25”, tells you that the effective diameter of the objective lens is
25mm. The greater the diameter of the objective lens, the brighter your image will
be with the same illumination. (Nikon´s superior lens coatings also play a vital role in
improving lens brightness.) If the objective lens is too large, however, the binoculars
will be heavy and may cause trembling of the hands.
Finally, the number “5.4°” represents the real field of view of the binoculars. This is
the angle of the visible field, as measured from the centre of the objective lenses.
The bigger the value, the easier it is to locate an object.
Understanding the meaning of these numbers should provide you with greater
freedom in selecting and using binoculars.

Check the letters in the name of any Nikon binoculars —
they convey helpful information about each model.

Magnification (10x)

Individual focusing

Water proof

10x50IF HP WP

D: Roof (Dach) prism

Objective diameter (mm)

High eyepoint

WP: Waterproof
CF: Ce ntral focu sing
IF: Individual focusing
HP: High eyepoint

The following icons indicate the purpose for which each
series is best suited:

Outdoors, camping, hiking

Rugged outdoor activities demand portabilit y and durability. Models that also feature
rubber armouring and waterproofing are ideal when you're up against the elements. For
early morning and evening use, binoculars with a large objective diameter and Nikon's
multicoated lenses are recommended.

Birdwatching, nature watching

Binoculars with a wide field of view and 7x to 10x magnification are suited for general
nature viewing. Observing whales or birds at a greater distance is more comfortable
with 8x to 12x magnification models. For even closer views,

recommended.

Marine sports, fishing

Waterproofing and durability are essential for these activities. Enhanced brightness and
a wide field of view are desirable, too. Models that feature vibration reduction are
favoured for on-board use.

Spectator sports

Binoculars that feature a wide field of view and 7x to 10x magnification are handy for
fast-moving sports. Zoom-type binoculars are convenient, too, enabling quick and easy
changes in magnification to suit the viewing situation.

Travelling

Compact, lightweight models with midrange magnification and field of view are ideal
for travelling.

Theatre

Compact models with magnification of 4x to 8x are recommended for theatre and
concert use. To focus on a particular performer, 7x to 10x models are more appropriate.

Stargazing

Astronomical observation requires a bright optical system with a large objective
diameter and exit pupil. Waterproof and aberration-corrected binoculars are preferred.

Museum

In museums, compact, lightweight models with low magnification and a close focusing
distance of less than 2m are recommended.

For eyeglass wearers

Choose a long eye relief (high eye point) design so that eyeglass wearers can also enjoy
a full, clear field of view.

Fieldscopes are

* Apparent field of view is calculated based on the ISO14132-1:2002 s tandard.

For det ails, see p 56.

Exit pupil diameter: 7.1mm
Pupil diameter of human eye: 7mm

6 7

Table of contents

Binoculars

Binoculars pp 9 - 26

EDG pp 10 - 11

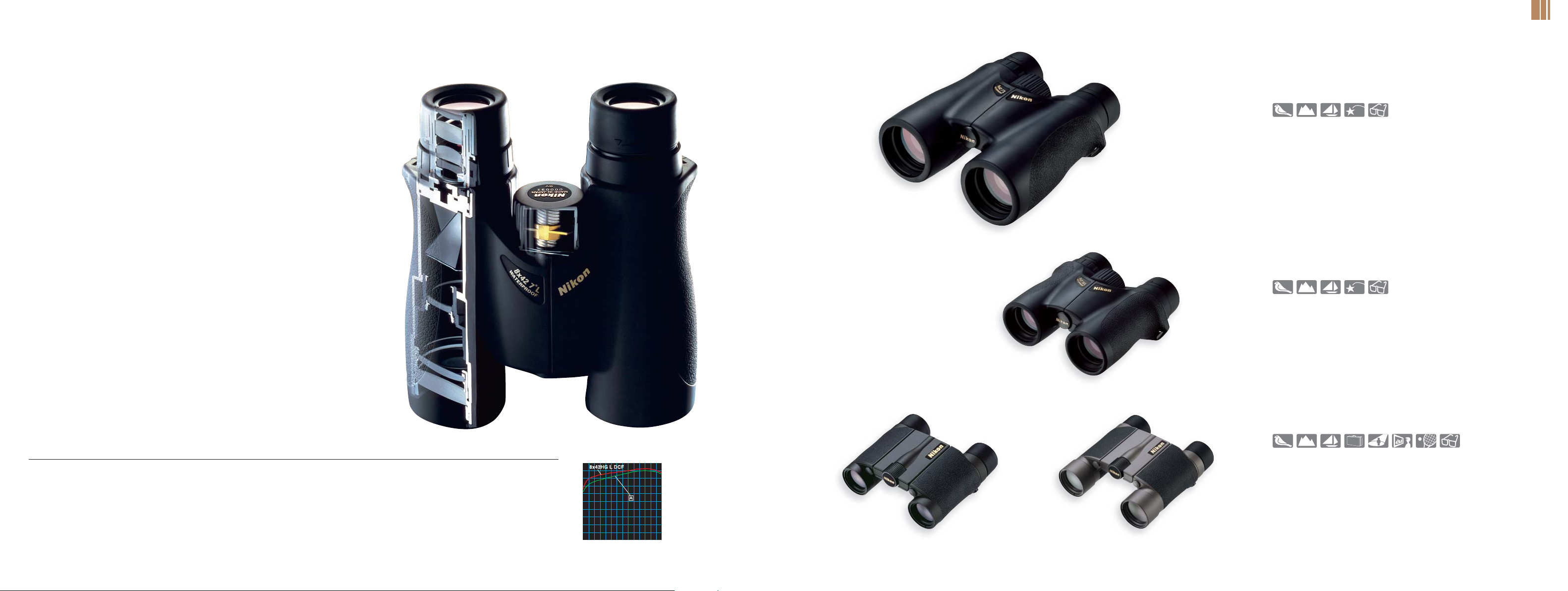

MONARCH pp 12 - 13

PROSTAFF pp 14 - 15

ACULON

High Grade pp 20 - 21

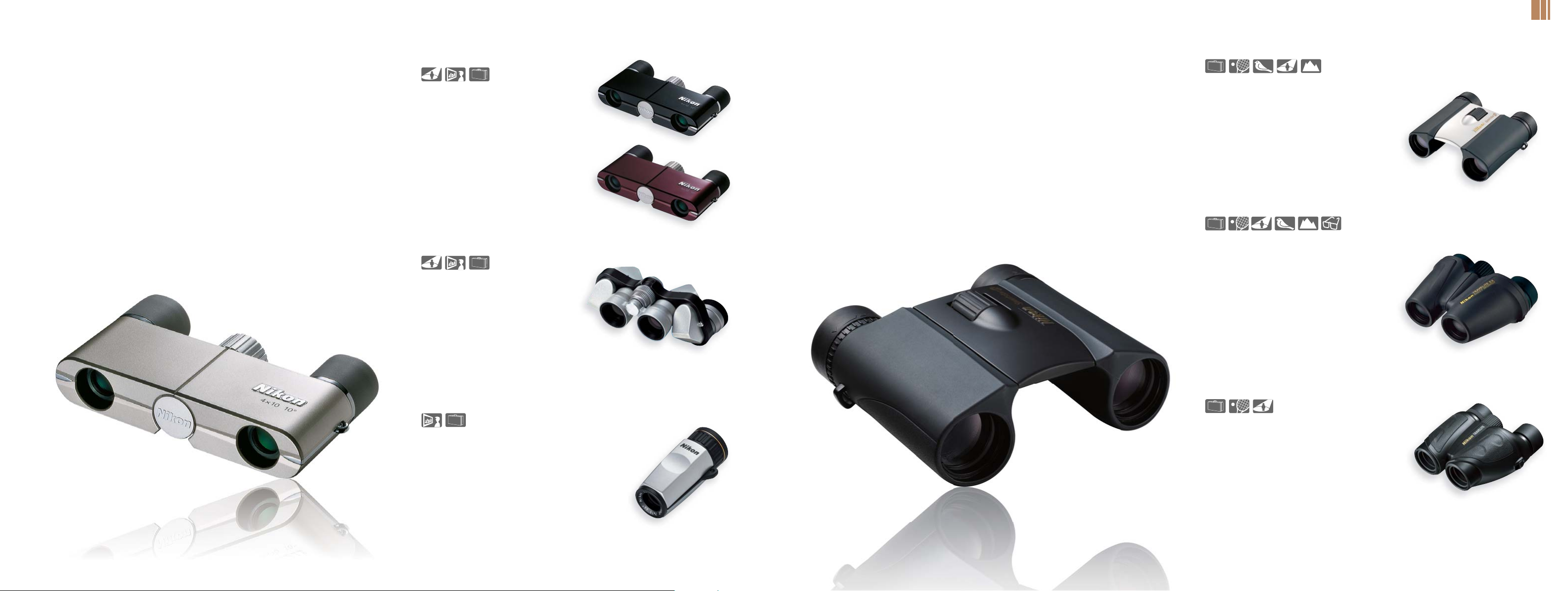

Elegant Compact p 22

Compact p 23

Marine pp 24 - 25

Standard p 25

The Standard for Advanced Nature Observation p 26

pp 16 - 19

Laser Rangefinders pp 38 - 44

Laser 1000A S p 39

Laser 1200S p 39

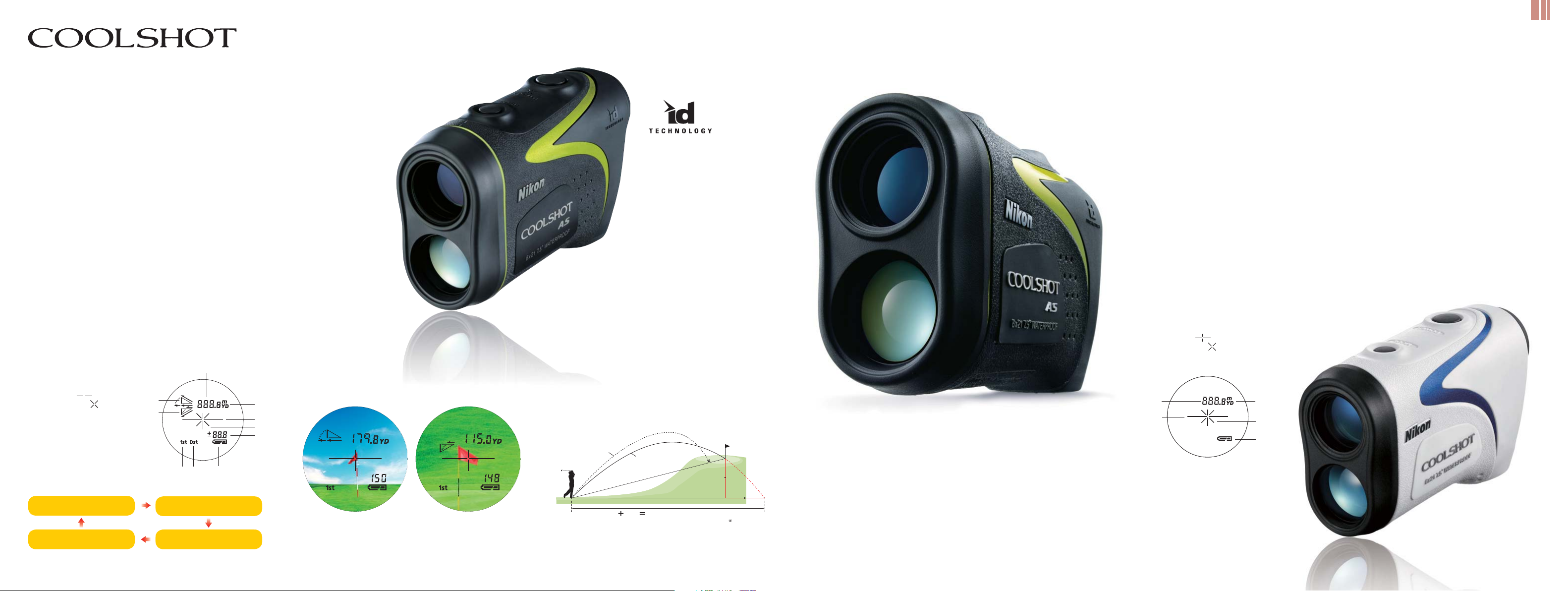

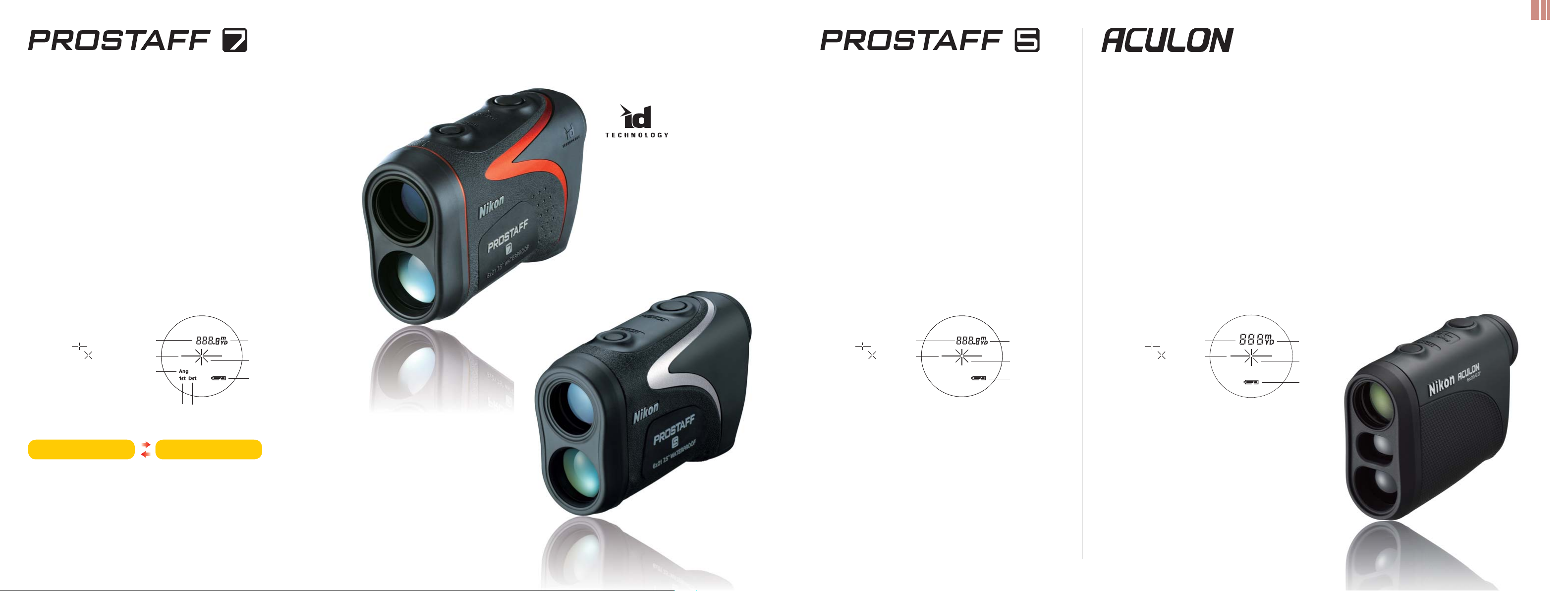

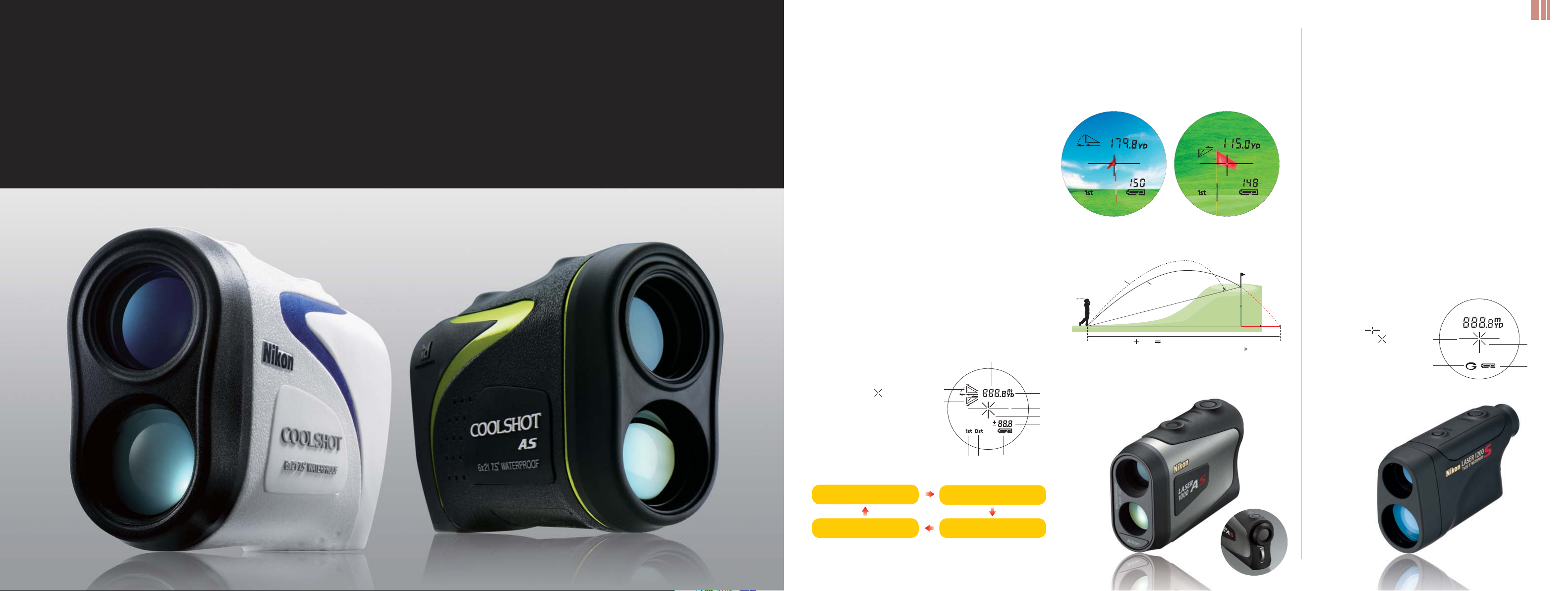

COOLSHOT AS/COOLSHOT

/ pp 42 - 43

ACULON p 43

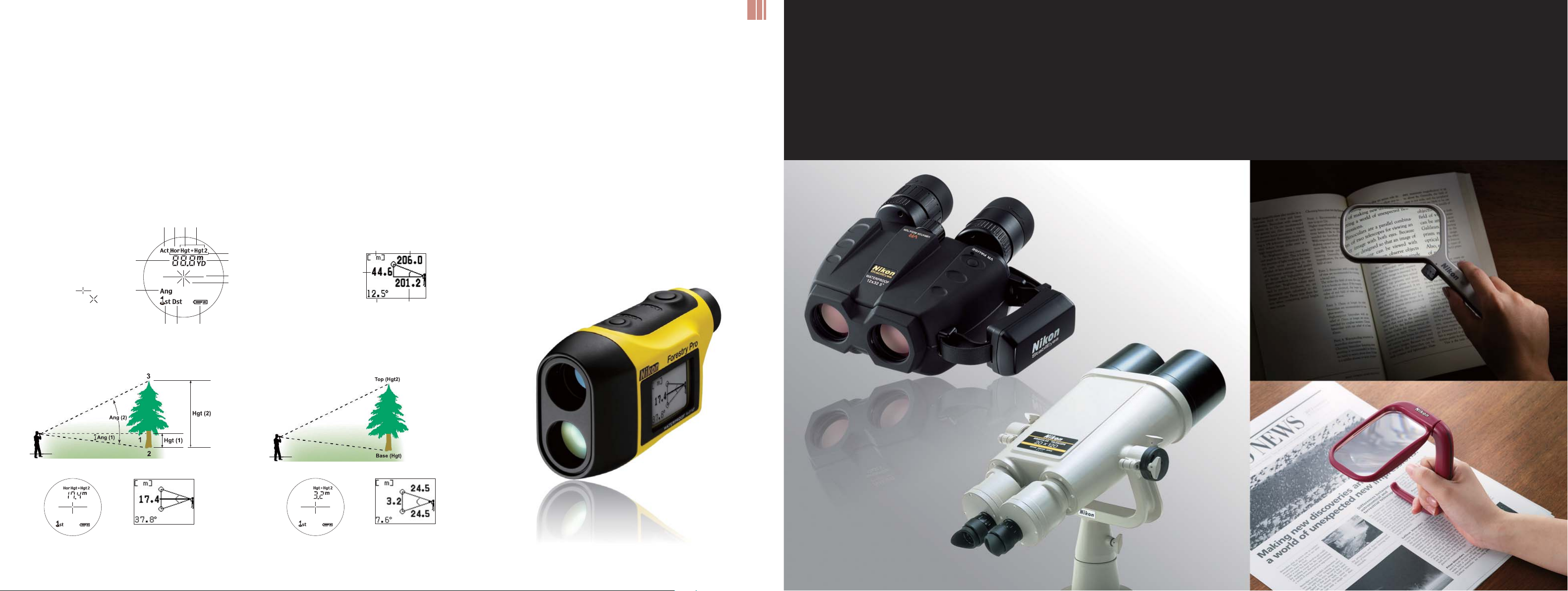

Forestry Pro p 44

Exceptional Optics for Specialised Needs pp 45 - 49

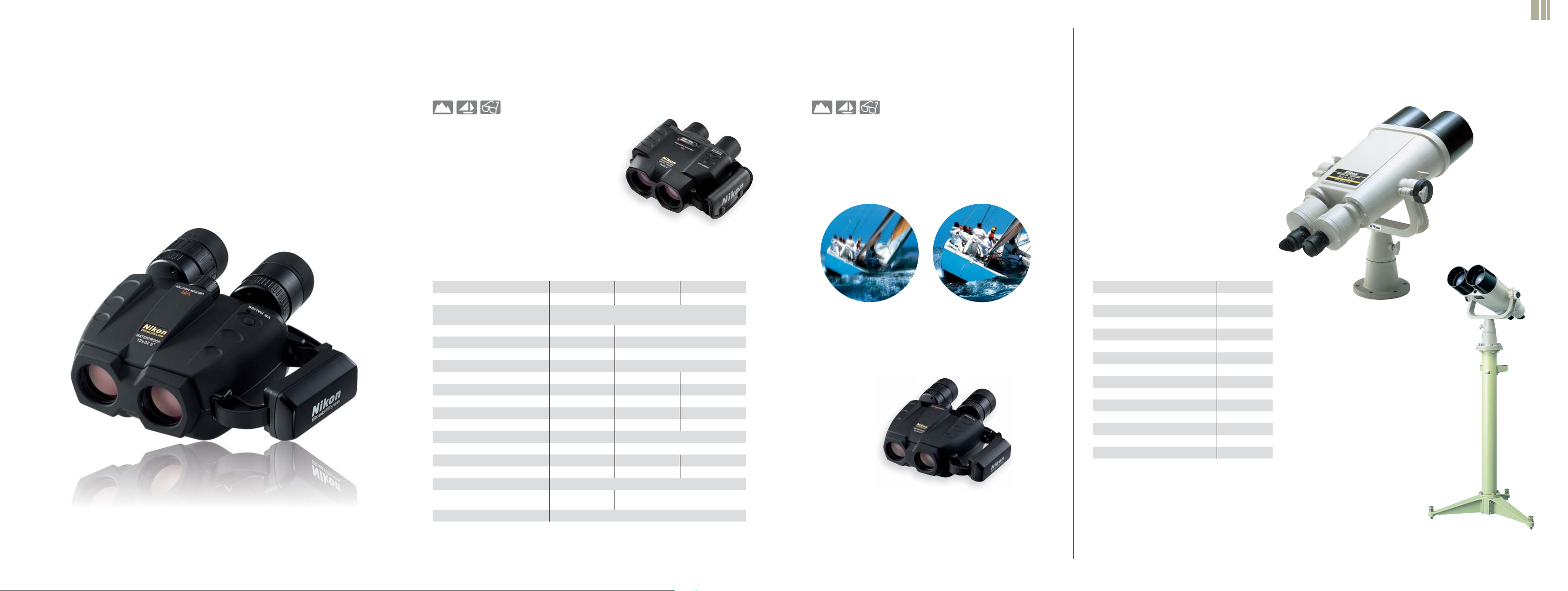

StabilEyes pp 46 - 47

Binocular Telescope p 47

pp 40 - 41

Up-close and real

Nikon binoculars have established a benchmark for extraordinary value in Sport Optics.
Building on Nikon´s eminence as the global leader in precision optics, we provide binoculars for diverse applications,
making it easy to select fine, brilliant optics that are ideal for your own particular needs.

Fieldscopes pp 27 - 37

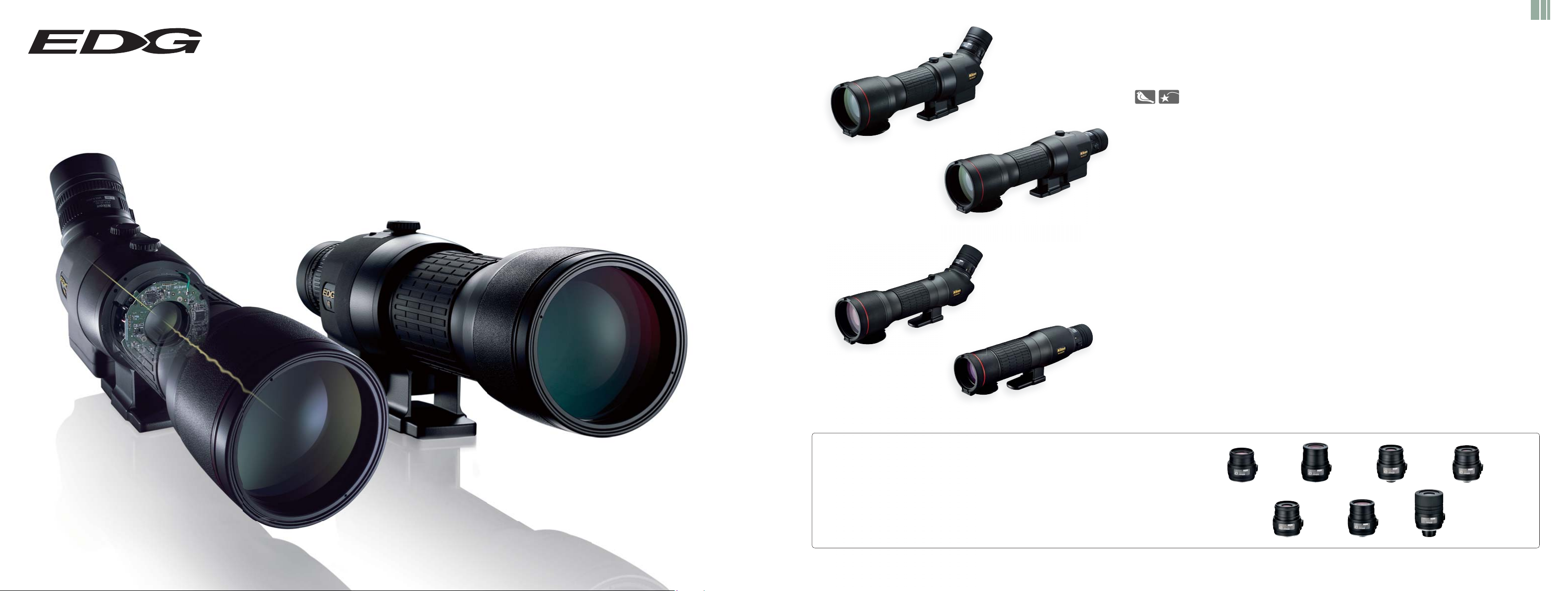

EDG pp 28 - 29

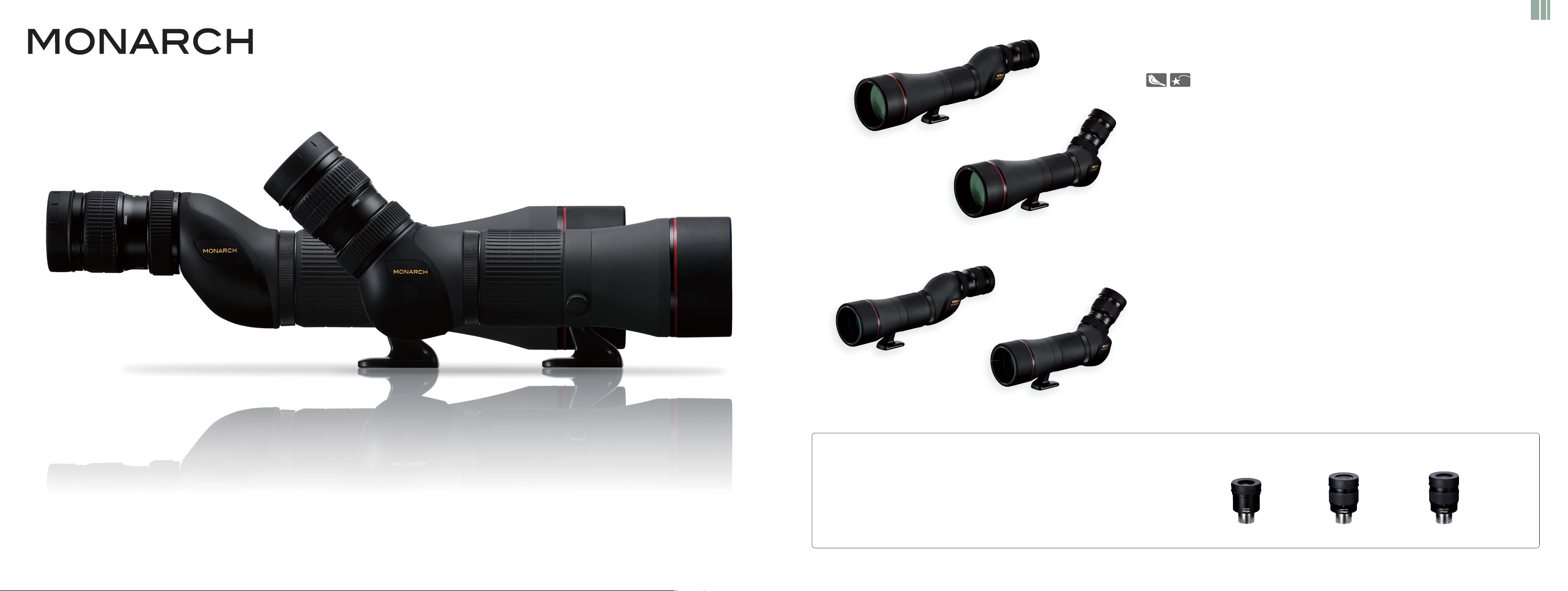

MONARCH pp 30 - 33

PROSTAFF pp 34 - 35

ED50/ED50 A p 35

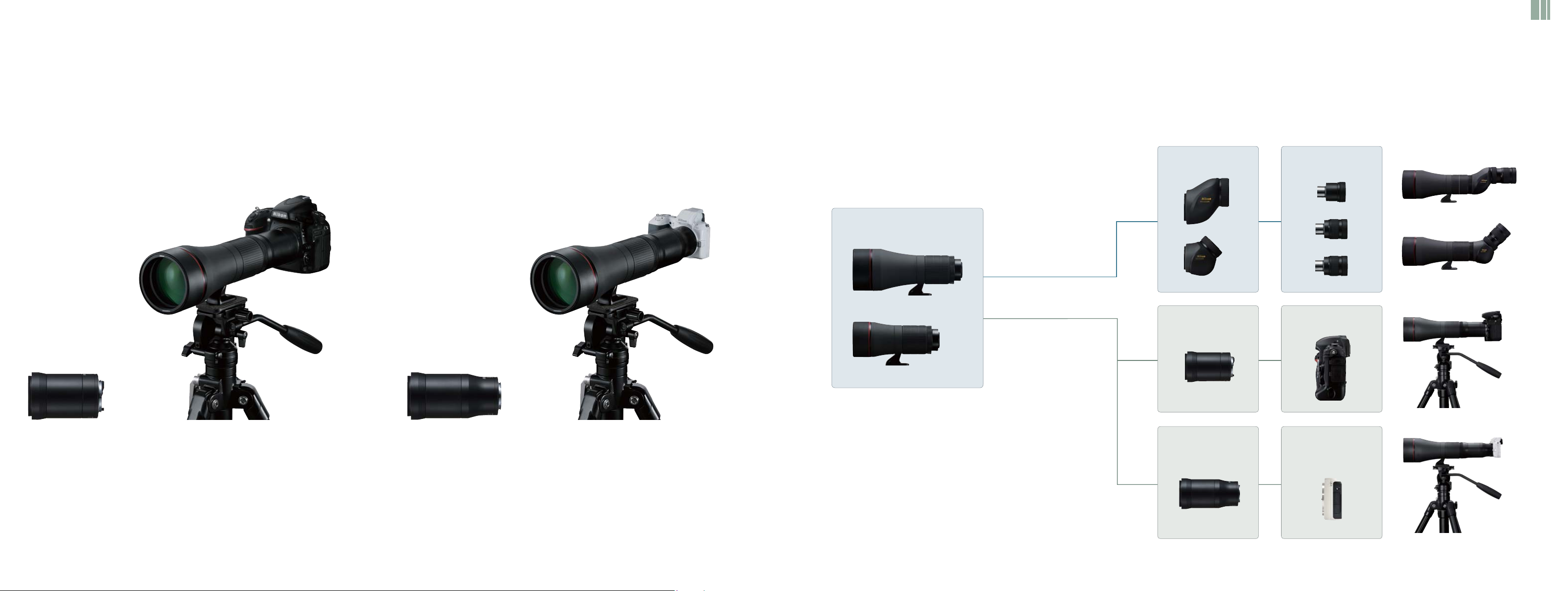

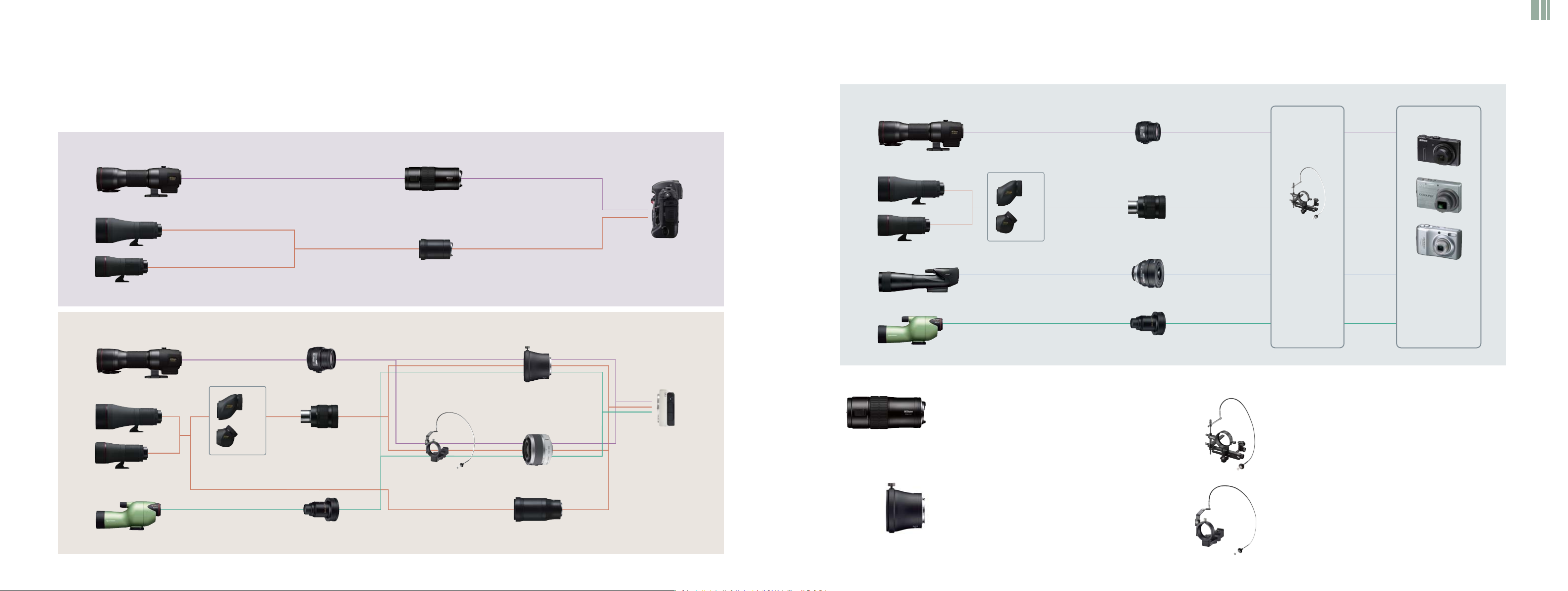

Nikon Digiscoping System pp 36 - 37

Loupes p 48

Fieldmicroscopes p 49

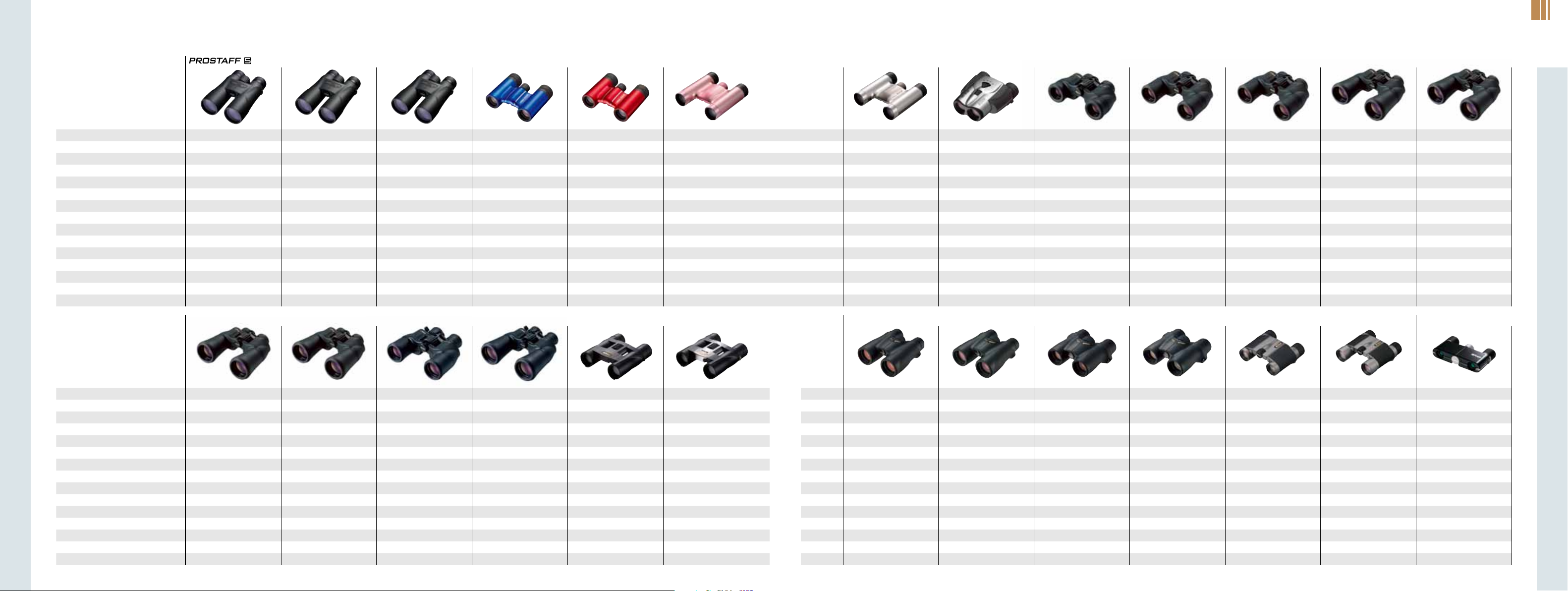

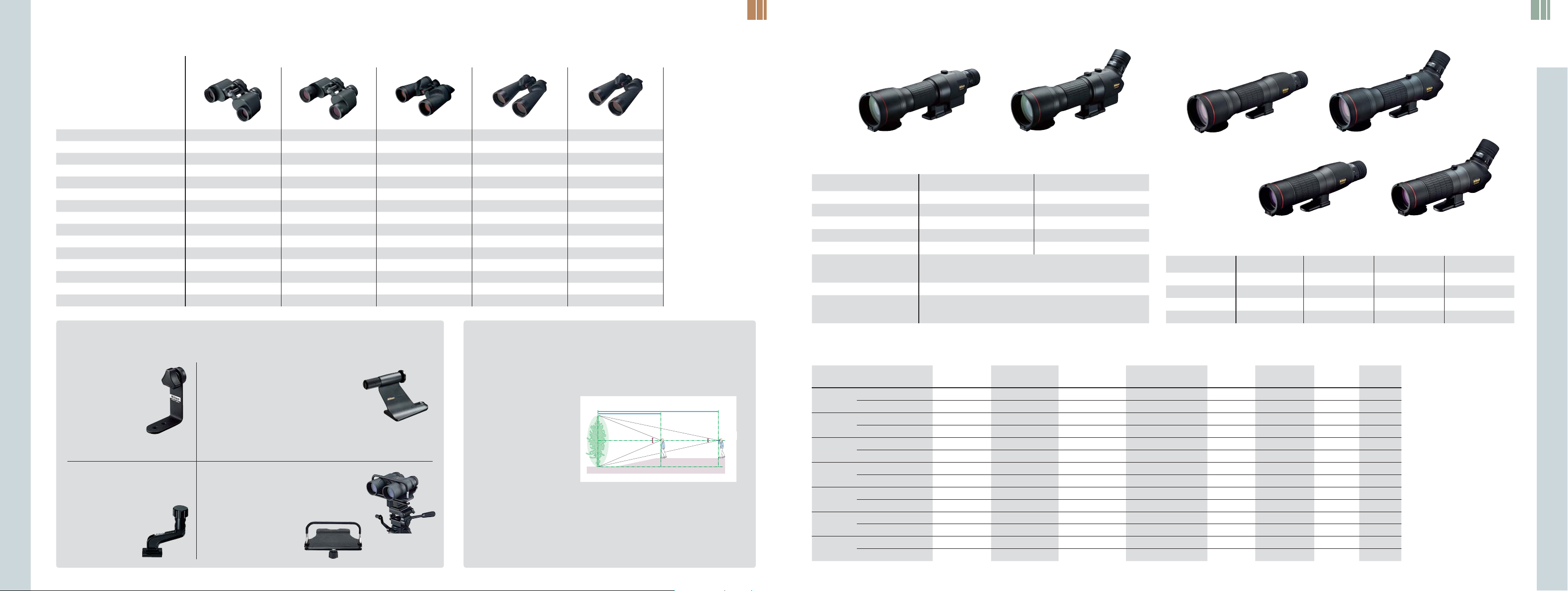

Technical Dat a pp 50 - 63

8

Binoculars

Experience the extraordinary

The EDG brand was born of Nikon’s commitment to provide a
premium lineup of the finest instruments in the field of sport
optics. In combination with Nikon’s many leading-edge
technologies, including both optical and mechanical, these
exceptional products are able to deliver a spectacular field of
view, and performance that goes beyond the nature and
outdoor enthusiast’s wildest dreams.

EDG 8x32/10x32
EDG 7x42/8x42/10x42

• Nikon’s legendary ED (Extra-low Dispersion) glass lenses

Nikon’s legendary ED (Extra-low Dispersion) glass lenses ef fectively compensate for
chromatic aberrations to provide images of superior contrast and outstanding
resolution.

• Field-flattener lens system

Nikon’s field-flattener lens system technology minimises curvature of field —
aberrations that occur when focusing on the centre of the field of view causing the
periphery to go out of focus and vice versa — and delivers sharper, clearer images
all the way to the lens periphery.

• Dielectric high-reflective multilayer prism coating

Dielectric high-reflective multilayer coating is applied to a roof prism unit that does
not feature total internal reflection. This boosts light reflectivity of more than 99%
(designed value) for the full visible range, giving you clearer whites and a sharper,
brighter, more natural vision across the entire field of view.

Roof prism unit

Dielectric high-reflective multilayer-coated mirror

Optical path

Phase correction coating

Reflectance characteristics of prism

coatings on mirror surface

100

95

90
85

80

75

Reflectance (%)

70

65
60

400 450 500 550 600 650 700

Wavelength (nm)

Dielectric high-reflective multilayer prism coating
Enhanced aluminium prism coating
Aluminium prism coating

(For reference example only)

• Phase correction coating

Phase shif t of light is caused by phase differences arising from total light reflection
on a roof (Dach) sur face. Phase-correction coating is applied to the sur face to
minimise loss of resolution, ensuring high-contrast images.

• Dual focus knob with dioptre
adjustment

Larger focus knob for easy operation.
Pull out to adjust dioptre (left), push in
to focus (right).

• Turn-and-slide rubber eyecups facilitate easy positioning of eyes
at the correct eyepoint

For non-eyeglass wearers, use the eyecups in the ex tended position. For eyeglass
wearers, use them fully retracted. Eyecups can be adjusted to any of four click stops,
offering fine adjustment that meets your needs.

• Long eye relief design for a clear field of view, even for eyeglass
wearers

• Horn-shaped detachable eyecups

Ergonomically designed horn-shaped eyecups block
peripheral light to give you a clearer field of view.

• Comfortable, ergonomically designed strap

Designed for comfort, even during long days of use.
The strap length is easily adjusted without having to
remove it from your neck.

• Short bridge style for easy grip

• Durable design

Sturdy, light weight die-cast magnesium alloy body.

• Waterproof (up to 5m/16.4 ft. for 10 minutes)

Waterproof/fogproof construction features a nitrogen-filled body with O-ring seals.

• Brighter images, even at twilight

Advanced multilayer coating is applied to all lenses and prisms to increase light
transmission and to reduce flare and ghosting for super-bright, razor-sharp images,
even at dawn and dusk.

• Eco-glass optics, environmentally safe materials

EDG 10x42

10

All lenses and prisms are free of lead and arsenic.

EDG 8x42

* For specifications, see p 50.

11

Binoculars

A royal invitation to the
magnificence of nature

Decades of design experience and expertise have made Nikon a
leading force in nature watching and enjoyment. Advanced
technology, evidenced by an amazingly bright and sharp field of
view, gives lovers of the outdoors the chance to observe nature
in all its spectacular glory and treasure each vivid and captivating
moment. This unique heritage has led to the widely acclaimed
reliable performance of MONARCH binoculars.

MONARCH 7 8x30

8x30/10x30/8x42/10x42

Exquisite optical performance in a compact body
delivering a wide field of view

• Sophisticatedly compact, exterior design

• Extra-low dispersion (ED) glass for chromatic aberration
compensation and clearer viewing

• Wide apparent field of view

• Dielectric high-reflective multilayer prism coating ensures superior
transmittance uniformity across the visible range resulting in brighter
images and more natural colours

• All lenses and prisms are multilayer-coated for bright images

• Scratch-resistant coating is applied to the outside surfaces of
objective and eyepiece lenses (8x42, 10x42 only)

• Phase-correction-coated roof prisms for high resolution

• Long eye relief design ensures a clear field of view even for eyeglass
wearers

• Eco-glass optics that are free of lead and arsenic are used for all
lenses and prisms

• Waterproof (up to 1m/3.3 ft. for 10 minutes) and fog-free with O-ring
seals and nitrogen gas

• Turn-and-slide rubber eyecups with multi-click facilitate easy
positioning of eyes at the correct eyepoint

• Rubber armouring for shock resistance and a firm, comfortable grip

• Lightweight body uses fibreglass-reinforced polycarbonate resin

• Soft-to-the-touch neck strap

• Flip-down objective lens cap

8x42/10x42/12x42/8x56/16x56/20x56

Exceptional image quality realised with ED glass and
dielectric high-reflective multilayer prism coating

• Extra-low dispersion (ED) glass for chromatic aberration
compensation and clearer viewing

• Dielectric high-reflective multilayer prism coating ensures superior
transmittance uniformity across the visible range resulting in brighter
images and more natural colours

• All lenses and prisms are multilayer-coated for bright images

• Phase-correction-coated roof prisms for high resolution

Long eye relief design ensures a clear field of view, even for eyeglass

•
wearers

• Eco-glass optics that are free of lead and arsenic are used for all
lenses and prisms

• Waterproof (up to 1m/3.3 ft. for 10 minutes) and fog-free with
nitrogen gas

• Turn-and-slide rubber eyecups with multi-click facilitate easy
positioning of eyes at the correct eyepoint

• Rubber armouring for shock resistance and a firm, comfortable grip

• Lightweight body uses fibreglass-reinforced polycarbonate resin

• Soft-to-the-touch neck strap

• Flip-down objective lens cap

• Tripod adaptor is a supplied accessory for 16x56 and 20x56 models

MONARCH 7 8x30

MONARCH 7 8x42 MONARCH 5 10x42 MONARCH 5 16x56

* For specifications, see pp 50-51.

1312

The world on your terms

Discovery is a way of life for you. You prefer to enter and
explore new worlds with optical equipment sporting the
latest breakthroughs in both value and performance. This
approach enables you to better appreciate what you discover.
Welcome to the wonderful world of PROSTAFF. Expect solid,
honest-to-goodness performance you can rely on.

8x42/10x42

High-quality optical performance in a stylish body

• All lenses and prisms are multilayer-coated for bright images

• Phase-correction-coated roof prisms for higher resolution

• High-reflection mirror-coating prisms for a bright image

Long eye relief design ensures a clear field of view, even for eyeglass wearers

•

• Turn-and-slide rubber eyecups with multi-click facilitate easy positioning of eyes at the correct

eyepoint

• Waterproof (up to 1m/3.3 ft. for 10 minutes) and fog-free with nitrogen gas

• Rubber armouring for shock resistance and a firm, comfortable grip

• Eco-glass optics that are free of lead and arsenic are used for all lenses and prisms

Binoculars

8x42/10x42/10x50/12x50

Sleekly designed, performance-packed model

• Multilayer-coated lenses for bright images

• Long eye relief design ensures a clear field of view, even for eyeglass wearers

• Turn-and-slide rubber eyecups with multi-click facilitate easy positioning of eyes at the correct
eyepoint

• Waterproof (up to 1m/3.3 ft. for 10 minutes) and fog-free with nitrogen gas

• Lightweight body uses fibreglass-reinforced polycarbonate resin

• Eco-glass optics that are free of lead and arsenic are used for all lenses and prisms

PROSTAFF 5 10x50

PROSTAFF 7 10x42

PROSTAFF 5 10x42

* For specifications, see pp 51-52.

1514

Taking it all in, in your own unique style

For you, just as important as observing the world is looking at it in
your own way. That means through binoculars designed for the way
you live. You know there is a wonderful world out there full of colours
and you want to witness it in the style you are accustomed to.
ACULON binoculars are for you — with a sporty design in a variety
of styles and colours that suit your mood and the occasion. If you
prefer sport optics that complement your personality, ACULON is the
way to go.

ACULON T01 8x21 <Orange>

ACULON T01 8x21 <Blue>

Binoculars

ACULON T 01 10x 21 <Red>

ACULON T01 8x21/10x21

Expand your world with this stylish compact

• Compact and lightweight for portability — weighing a mere 195g

• Multilayer-coated lenses for bright images

• Larger focusing ring for smooth operation

• Turn-and-slide rubber eyecups facilitate easy positioning of eyes at
the correct eyepoint

• Single-hinged, slim and stylish design

• Available in five body colours: 8x21 in orange, blue and white/10x21
in black and red

16 17

ACULON T 01 8 x21 <W hite> ACULON T 01 10x 21 <Black >

* For specifications, see p 52.

Binoculars

ACULON T51 8x 24/10x 24

Sophisticated elegance for wherever you go

• Slim, compact and light weight body

• Elegant, sophisticated exterior design with metallic, smooth-to­the-touch finish

• Multilayer-coated lenses for bright images

• Close focusing distance: 2.5m

• Eco-glass optics are free of lead and arsenic

• Four alluring colour variations: 8x24 in black, silver, pink and red/
10x24 in black and silver

ACULON T 51 10x24 <Black>

ACULON T51 8x24 <Pink>

ACULON T 51 10x24 <Silver >

ACULON T 51 8x24 <Red >

ACULON A211 7x35/8x42/10x42/7x50/10x50/12x50/16x50/8-18x42/10-22x50

ACULON A211 10-22x50

Durability and a large objective lens for the great outdoors

• Aspherical eyepiece lens eliminates image distortion even at the lens periphery
(except zoom models)

• Multilayer-coated lenses for bright images

• Turn-and-slide rubber eyecups facilitate easy positioning of eyes at the correct eyepoint
(except zoom models)

• Rubber armour for shock-resistance and a firm, comfortable grip

• Smooth zooming with finger-tip zoom control (zoom models only)

• Can be fixed to a tripod using optional tripod adaptor (see p 56)
(Tripod adaptor TRA-2 is a supplied accessory
for the ACULON A211 16x50 and 10-22x50)

ACULON A211 8x42

ACULON T11 8-24x25

Sleek and compact binoculars with 3x zoom capability
in three colours

• Compact and lightweight

• All lenses and prisms are multilayer-coated for bright images

• Unique zoom lever designed for extra-smooth 8-24x zooming

• Turn-and-slide rubber eyecups facilitate easy positioning of eyes
at the correct eyepoint

• Designed for comfortable fit and easy handling

• Available in three body colours (black/silver/red)

ACULON T 11 8-2 4x 25 < Black > ACULON T 11 8-2 4x 25 < Sil ver > ACULON T 11 8-2 4x 25 < Red>

ACULON A30 8x25/10x25

Strong performance in a compact body for added user confidence

• Compact and lightweight

• Multilayer-coated lenses for bright images

Long eye relief design ensures a clear field of view, even for eyeglass wearers (8x25)

•

• Firm, comfortable, rubber-coated grip

• Fold-up design; easy to carry around

• Eco-glass optics that are free of lead and arsenic are used for all lenses and prisms

• Available in two body colours: black and silver

ACULON A 30 8x25 <Black >

1918

ACULON A 30 10x25 <Silver>

* For specifications, see pp 52-53 .

High Grade

Binoculars

When only superior performance will do

Among Nikon´s broad lineup of widely acclaimed binoculars, the six HG L
series models are designed for exceptional performance and comfort.
Exacting lens and prism construction ensures sharper, brighter images to
intensify your viewing experience. Other aspects, such as the finely tuned
mechanics and optical design, work together to reveal subtle details you´d
have otherwise missed.

For bright, high-contrast images

• Nikon’s original multilayer coating

Minimises flare and ghosts, for very high transmission across a wide range of
wavelengths. The result: excellent contrast and colour reproduction.

• Phase correction coating

Corrects phase shifts caused when light reflects off the roof (Dach) prism.
Provides a high-contrast image by eliminating the reduction of resolution.

• High-reflection silver coating

Much greater reflectivity and much less light loss from the prism, compared with
ordinary aluminium coating, for brighter images.

For sharp, undistor ted images

• Field-flattener lens

Employed for eyepiece lens. Provides images that are sharp and clear all the way
to the lens periphery.

• Distortion correction

Nikon’s outstanding optical design provides high-level distortion correction
enabling sharp, undistorted images even at the viewing area periphery.

8x4 2HG L DCF

8x32 HG L DC F

8x42HG L DCF/10x42HG L DCF

Supreme optical performance

• Lightweight (8x: 795g, 10x: 790g)

• Sturdy, lightweight die-cast magnesium alloy body

• Close focusing distance: 3m

• Dioptre adjustment ring locking system prevents unintentional
rotation

• Excellent performance at temperatures as low as –20°C

• Rubber armouring for shock resistance and a firm, comfortable grip

• Ergonomic design for greater ease of holding

• Eyepiece lens caps are connected for easy use

8x32HG L DCF/10x32HG L DCF

Advanced optical performance in a smaller size

• Finely balanced compensation of aberrations

• Close focusing distance: 2.5m

• Dioptre adjustment ring locking system prevents unintentional rotation

• Excellent per formance at temperatures as low as –20°C

• Rubber armouring for shock resistance and a firm, comfortable grip

• Ergonomic design for greater ease of holding

• Eyepiece lens caps are connected for easy use

Easy to use

• Long eye relief design

Sophisticated design technology achieves a combination of long eye relief and
small size.

• Soft-touch silicon rubber eyecup

• Turn-and-slide rubber eyecups with multi-click*
facilitate easy positioning of eyes at the correct
eyepoint

• Large focusing ring makes for easier operation

• Every model is waterproof up to 2m/6.6 ft. (3m/9.8 ft.
for 8x20HG L DCF/10x25HG L DCF) for 5 minutes and
fog-free, with O-ring seals and nitrogen gas

• Made with environment-friendly materials
Non-PVC (poly vinyl chloride) materials are used for
the body, eyepiece lens cap, objective lens caps, case
and wide strap; Eco-glass optics free of lead and
arsenic are used for all lenses and prisms

• Can be fixed to a tripod using optional tripod adaptor*
(see p 56)

*Except 8x20HG L DCF/10x25HG L DCF.

Light transmission rates

Generally speaking, the higher the light transmission
rate of a lens, the brighter and clearer your image will
be, with less blur and ghosts. Each of Nikon’s high­grade binocular models features a high light
transmission rate thanks to our multilayer-coated lenses
and prisms.

100

8x20HG L DCF/10x25HG L DCF

%T

90

80

70

60

50

40

30

20

10

420

500

600 700 nm

A Nikon conventional product
Source: Nikon (actual value)

10x 25HG L DCF8x 20 HG L DC F

2120

Exceptional, compact performance

• Sturdy, lightweight die-cast magnesium alloy body

• Foldable design is convenient for carrying

• Close focusing distance: 2.4m (8x) and 3.2m (10x)

• Dioptre adjustment ring is located in the centre of the body, which
improves operability

• Excellent performance at temperatures as low as –30°C

* For specifications, see p 53.

Binoculars

pocket

Elegant Compact

Up-close at concerts, the theatre and
museums

Their compact size and stylish, sophisticated design mean that these
models will perfectly complement those formal occasions when you
need to look your best, whether at the theatre or concert performances.
The short close-focusing distance makes these binoculars a natural for
use in museums, too.

4x10DCF

Effortless performance in a sleek design

• Ultra-compact and lightweight (65g only)

• Close focusing distance: 1.2m

• All lenses and prisms are multilayer-coated for
bright images

• Easy operation (Dioptre adjustment not required)

• Stylish design

• Available in three colours: black, silver and red

6x15M CF/7x15M CF Black

Timeless performance and design

• Stylish metal body

• Ultra-compact and lightweight

• Close focusing distance: 2m

• Multilayer-coated lenses for bright images

4x10 DCF <Black>

4x10 DCF <Red >

6x15M CF

Compact

Strong performance in sleek designs

When you´re on the go, convenience is everything. That´s what makes
Nikon´s compact lineup so appealing — small enough to take anywhere,
they´re ideal for your next holiday, or at a concert or sporting event.

Spor ts tar E X 8x25DC F <Charcoal grey >

Sportstar EX 8x25DCF/10x25DCF

Power to pull in the details, small enough for your pocket

• Waterproof and fog-free with nitrogen gas

• Turn-and-slide rubber eyecups facilitate easy positioning
of eyes at the correct eyepoint

• Close focusing distance: 2.5m (8x), 3.5m (10x)

• Multilayer-coated lenses for bright images

• Compact and lightweight

• Fold-up design; easy to carry around

• Available in two body colours (silver/charcoal grey)

TRAVELITE EX 8x25CF/9x25CF/10x25CF/12x25CF

Lightweight compact for more versatile use

• Waterproof (up to 2m/6.6 f t. for 5 minutes) and fog-free
with nitrogen gas

• Aspherical eyepiece lens eliminates image distor tion

• Long eye relief design ensures a clear field of view, even for
eyeglass wearers

• Close focusing distance: 2.8m

• Multilayer-coated lenses for bright images

• Turn-and-slide rubber eyecups facilitate easy positioning of
eyes at the correct eyepoint

• Eco-glass optics are free of lead and arsenic

Spor ts tar E X 8x25DC F <Silver>

TRAVELITE EX 8x25CF

4x10DCF <Silver>

5x15 HG Monocular/7x15 HG Monocular

Perfect for viewing masterpieces in sharp detail

• Prism features high-reflection silver coating for brighter images

• Phase-correction-coated prisms for high resolution

• Multilayer-coated lenses for bright images

• Long eye relief design ensures a clear field of view, even for
eyeglass wearers (5x)

• Close focusing distance: 0.6m (5x), 0.8m (7x)

7x15 HG Monocular

* For specifications, see pp 53-5 4.

TRAVELITE VI 8x25CF/10x25CF/12x25CF

All-round use, smooth operation

• Redesigned body enhances ergonomics

• Aspherical lenses minimise distortion and provide sharp
images up to the periphery

• Multilayer-coated lenses for bright images

• Special rubber armour for shock-resistance and a firm,
comfortable grip

• Carbon fibre in the body material improves durability

• Compact and lightweight

• Click-type dioptre adjustment ring prevents unintentional rotation

• Larger focusing knob for smooth operation

• Eco-glass optics are free of lead and arsenic

2322

TRAVELITE VI 8x25CF

* For specifications, see pp 54-5 5.

6)

(

)

s

) (

Binoculars

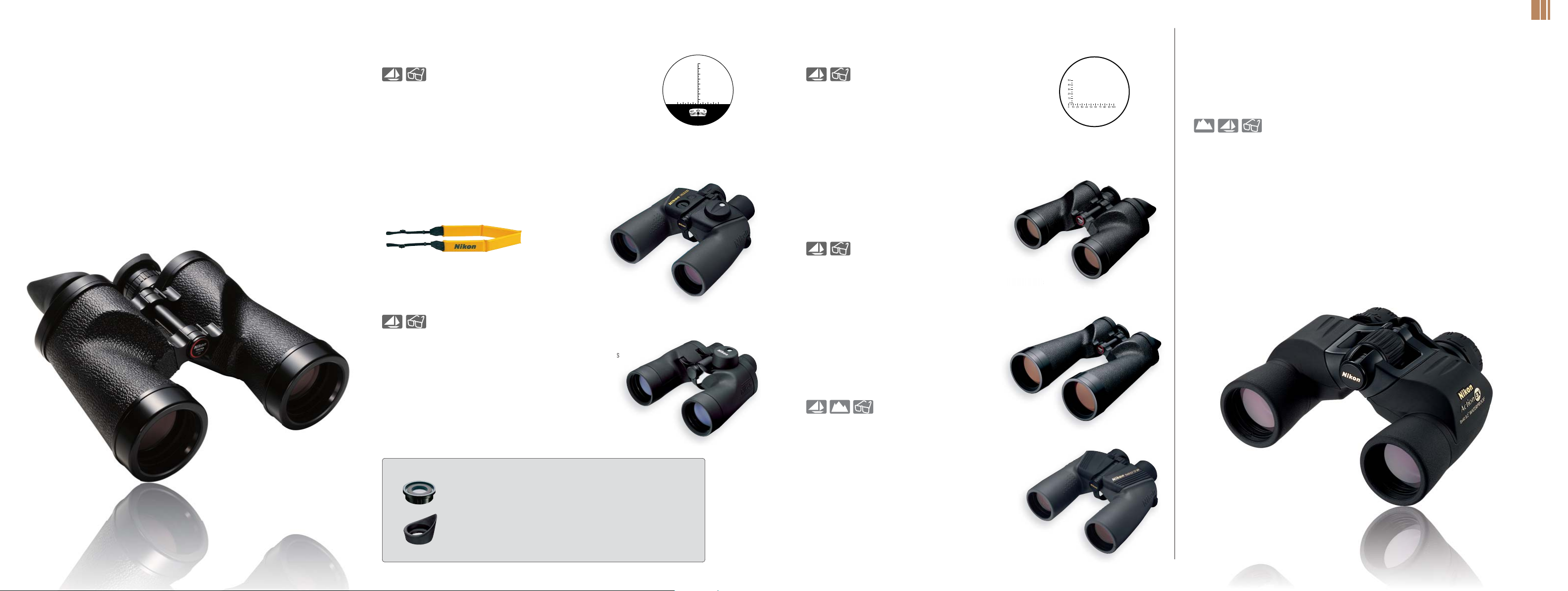

Marine Standard

7x50CF WP/7x50CF WP Compass

Easy focus on water or land

Nikon professional for smoother sailing

For top performance in a marine environment, Nikon binoculars are the
way to go. All of the models in our Marine lineup deliver crisp, brilliant
images. They're filled with nitrogen gas and sealed with O-rings to
minimise the effect of temperature changes, making them ideal for
rugged nautical applications. And select models even feature a built-in
compass to keep you on course. Waterproof, weather-resistant binoculars

• Central focusing system; waterproof (up to 1m/3.3 ft. for 5 minutes)
and fog-free with O-ring seals and nitrogen gas

• Built-in compass with illuminator and scale (7x50CF WP Compass)

• Long eye relief design ensures a clear field of view, even for eyeglass
wearers

• Multilayer-coated lenses for bright images

• Rubber armouring for shock resistance and a firm, comfortable grip

• Floating strap provided

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

Compass and distance scale

(for 7x50CF WP Compass)

You can measure dimensions or distances
if you k now one of the values.

you can count on.

Floating strap for 7x5 0CF WP/ 7x50 CF W P Compass

7x50CF WP Compass

7x50IF HP WP Tropical

7x50IF WP/7x50IF WP Compass

7x50IF WP Compass

7x50IF HP WP Tropical (Model with built-in scale available)

Trusted standard for fisheries and professional marine
navigation

• Waterproof (up to 5m/16.4 ft. for 5 minutes) and fog-free with nitrogen gas

• Horizontal and vertical scales for measuring dimensions or distances (scale type)

• Long eye relief design ensures a clear field of view, even for eyeglass
wearers

• Large objective diameter for bright image

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

• Polarising filter and horn-shaped rubber eyecup are available (options)

7x50IF HP WP Tropical

options

Distance scale

You can measure
dimensions or distances if
you know one o f the values .

10x70IF HP WP

Extra magnification for maritime professionals

• Waterproof (up to 2m/6.6 ft. for 5 minutes) and fog-free with nitrogen gas

• Large 70mm objective diameter meets demand for exceptionally bright, high magnification

• Long eye relief design ensures a clear field of view, even for eyeglass wearers

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

• Polarising filter and horn-shaped rubber eyecup are available (options)

nitrogen ga

56

options)

Action EX 7x35CF/8x40CF/7x50CF/10x50CF/12x50CF/16x50CF

A broader field of view in the most challenging conditions

• Waterproof (up to 1m/3.3 f t. for 5 minutes) and fog-free with nitrogen gas

• Long eye relief design ensures a clear field of view, even for eyeglass wearers

• Turn-and-slide rubber eyecups with multi-click

• Multilayer-coated lenses and large objective diameter for optimal image clarity

• Rubber armouring for shock resistance and a firm, comfortable grip

• Eco-glass optics are free of lead and arsenic

• Aspherical eyepiece lens eliminates image distortion (7x50CF, 12x50CF only)

• Wide strap

• Can be fixed to a tripod using optional tripod adaptor (16x50CF includes tripod adaptor) (see p 56)

Specially designed for maritime professionals

• Waterproof (up to 2m/6.6 ft. for 5 minutes) and fog-free with nitrogen gas

• All lenses and prisms are multilayer-coated for bright images

• Rubber armouring for shock resistance and a firm, comfortable grip

• Long eye relief design ensures a clear field of view, even for eyeglass
wearers

• Built-in compass and scale to ascertain subject direction, and

distance or size (7x50IF WP Compass)

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

Optional accessories

Polarising filter (option)

This filt ers out light reflections from water or glass.

Horn-shaped rubber eyecup (option)

Keeps light out of the eyepiece for easy viewing. Comfort able rubber cups are soft on your
face, particularly good for use on bright days at sea and in other extreme c onditions.

Usable models

• 7x50IF HP WP Tropical • 18x70IF WP WF • 7x5 0IF SP WP

• 10x70IF SP WP • 10x 70 IF HP W P

10x50CF WP

Waterproof durability, even in harsh conditions

• Waterproof (up to 1m/3.3 f t. for 5 minutes) and fog-free with nitrogen gas

• Multilayer-coated large 50mm objective lens for bright images

• Long eye relief design ensures a clear field of view, even for eyeglass
wearers

• Rubber armouring for shock resistance and a firm, comfortable grip

• Wide strap

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

10x70IF HP WP

10x5 0CF WP

2524

Action EX 8x40CF

* For specifications, see pp 54-5 5.

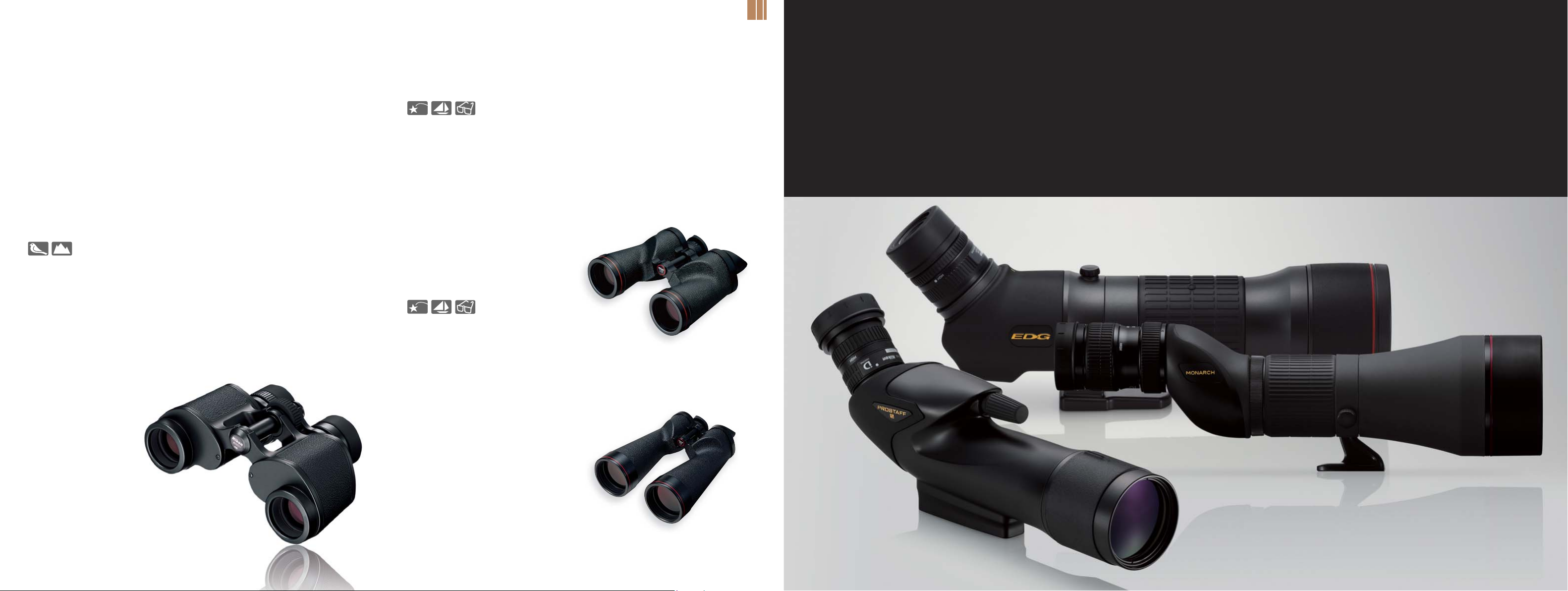

The Standard for Advanced Nature Observation

Studying nature at its finest

7x50IF SP WP/10x70IF SP WP

Binoculars

Fieldscopes

High-performance binoculars widely acknowledged as the standard for
specialised activities such as birdwatching and nature observation, providing
optical clarity and sharpness. And in models designed for stargazing, you´ll enjoy
sharp, edge-to-edge resolution that exceeds your expectations.

8x30E II/10x35E

The birdwatching standard, offering pristine panoramic
views and easy locating of subjects

• Optics employ Eco-glass containing no arsenic or lead

• Wide apparent field of view (63.2° for 8x30E

• Close focusing distance: 3m (8x), 5m (10x)

• Lightweight, die-cast magnesium-alloy body

• All lenses and prisms are multilayer-coated for bright images

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

II

II, 62.9° for 10x35E II )

Edge-to-edge sharpness for seafarers, stargazing

• Superior optical design for aberration-free observation, built especially for astronomical use

• Multilayer-coated lenses for bright images

• Waterproof up to 5m/16.4 ft. (2m/6.6 ft. for 10x70IF SP WP) for 5 minutes and fog-free with
O-ring seals and nitrogen gas

• Long eye relief design ensures a clear field of view, even for eyeglass wearers

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

• Polarising filter and horn-shaped rubber eyecup are available (options, see p 24)

7x50IF SP WP

18x70IF WP WF

Extra magnification for seafarers, stargazing

• Wide 64.3° apparent angular field of view

• All lenses are multilayer-coated for bright images

• Waterproof (up to 2m/6.6 ft. for 5 minutes) and fog-free with O-ring seals and nitrogen gas

• Long eye relief design ensures a clear field of view, even for eyeglass wearers

• Can be fixed to a tripod using optional tripod adaptor (see p 56)

• Polarising filter and horn-shaped rubber eyecup are available (options, see p 24)

A whole wide world of discovery

Nikon offers a broad selection of the finest Fieldscopes and interchangeable eyepieces, all delivering peerless magnification through
brilliant optics while featuring rugged construction. What’s more, by attaching Nikon digital cameras to our Fieldscopes, you can capture
and enjoy great close-up photos without having to carry along heavy telephoto lenses.

*For details, please see pp 36-37.

8x30E

II

18x70IF WP W F

* For specifications, see p56.

2726

Nikon EDG Fieldscopes deliver a spectacular field of view

Fieldscopes

In the pursuit of innovation, Nikon’s cutting-edge technology has enabled the incorporation of a lens-shift type VR (Vibration
Reduction) system into fieldscopes for the first time in the world* — EDG VR Fieldscopes. Sophisticated optical technologies
complement superb mechanical functions in EDG Fieldscopes, all were created to attain clear-cut superiority for both
observation and digiscoping applications. Following a comprehensive series of CAE (Computer Aided Engineering) simulations
and data analyses, our EDG design engineers built numerous prototypes. These efforts realised a tough, finely balanced
structure; a large-diameter objective lens that delivers brighter images; a large focusing ring for smooth operation even
during digiscoping; and a tripod mount that features finely tuned weight balance adjustments. The result is exquisite, clear
viewing to the very edge of your field of view.

*As of O ctob er, 2 011.

EDG Fieldscope 85-A VR

EDG Fieldscope 65-A

EDG Fieldscope 85 VR

EDG Fieldscope 65

EDG Fieldscope 85 VR/85-A VR
EDG Fieldscope 85/85-A/65/65-A

Experience comfortable viewing with Nikon´s premium EDG brand Fieldscopes

(EDG VR Fieldscopes only)

• The world´s first Fieldscopes featuring Nikon´s lens-shift t ype VR (Vibration Reduction) system (as of October, 2011)

1

• Reduces vibrations to approx. 1/8*
faster in digiscoping

• Easy VR operation; after turning the VR lock knob, pressing the VR button once activates the function

• VR function turns off automatically after approx. 30 minutes of turning VR on (Auto power off function)

• Readily available AA-size batteries are used

(Common features)

• Extra-low dispersion (ED) glass for chromatic aberration compensation and brighter, clearer viewing

• Dielectric high-reflective multilayer prism coating on roof prism unit for the brightest view (straight models only)

• Phase-correction-coated roof prism for high resolution

• Advanced multilayer coating is applied to all lenses and prisms for the brightest images

• Waterproof (up to 2m/6.6 ft. for 10 minutes)*
battery holder joint are water-resistant*

• Stylish design

• Three tripod mount screw holes provided for flexible mounting; optimum balance achieved through CAE (Computer
Aided Engineering)

• Seven eyepieces exclusively for EDG Fieldscopes are optionally available

• Built-in sliding hood blocks harmful light and protects objective lens

*1 Based on Nikon Fieldscope measuring standard (used with tr ipod).
*2 NOT designed for underwater us age.
*3 Water resistance: As tested by water equivalent to 1mm per minu te, falling from a height of more than 200mm for a duration of 10 minutes (in

normal use with an eyepiece attached to the main body correctly).

during observation, providing the equivalent of a shutter speed approx. 2 stops*1

2

and fog-free with nitrogen gas (the body/eyepiece joint and the body/

3

)

EDG Fieldscope 85-A VR

28

EDG Fieldscope 85 VR

Eyepieces for EDG Fieldscopes

• Seven kinds of eyepieces for optimum optical performance

• Bayonet mount with lock for easy attachment and release

• Fully multilayer-coated

• Waterproof up to 2m for 10 min., and fog-free — thanks to
O-rings and nitrogen gas (body-and-eyepiece joint is water­resistant)

• Turn-and-slide eyecup with three click stops: one for obser ving
with the naked eye, one for obser ving with eyeglasses, and the
other for digiscoping (except FEP-30W, FEP-25 LER and FEP-20 -60)

• FEP-30W of fers a choice of eyecup: soft rubber eyecup for

observation and digiscoping eyecup for connection with digital

cameras using optional digiscoping accessories

• FEP-25 LER has ultra-long 32.3mm eye relief

• FEP-20-60 featuring long eye relief of 18.4-16.5mm employs a
moulded glass aspherical lens to minimise image distortion

• Compact Digital Camera COOLPIX series and Advanced Camera
with Interchangeable Lenses Nikon 1 series can be attached
using optional digiscoping accessories (except FEP-20-60)

* For mor e information abou t digiscoping a cces sories or com patib le came ras,
see www.nikon.com/sportoptics/

29

FEP-20W
(16x/ 20x wide)

FEP-30W
(24x/30 x wide)

FEP-75W
(60x /75x wide)

29

FEP-25 LER
(20x/ 25x)

FEP-38W
(30x/ 38x wide)

FEP-50W
(40x/50x wide)

FEP-20-60
(16-48x/20-60x)

* For specifications, see p 57.

MONARCH Fieldscope 82

MONARCH Fieldscope 82-A

Fieldscopes

MONARCH Fieldscope 82/82-A/60/60-A

Innovative Hybrid Body System enables your combination of optical system

• Hybrid Body System realises an optimised optical system for both observing and digiscoping;
employs a unit structure that permits the prism unit to be easily attached/detached from the objective lens unit;

enables your desired combination of Fieldscope diameter, prism and eyepiece for observation, as well as realising
prime focus digiscoping via attachment

• One focus ring for quick and fine-focusing performance: Dual Trans Focus System

• Advanced apochromat optical system uses ED (Extra-low Dispersion) glass, realising a contrast-rich, clearer field of
view

• Field-flattener lens system employed for consistent sharpness across the entire field of view

• Multilayer coating is applied to all lens and prism surfaces, ensuring superior brightness and colour fidelity

• Highly reliable sleeve mechanism enables connection of an objective lens unit and prism unit to minimise optical axis
deviation

• Employing a prism featuring total reflection minimises light loss and provides a bright, clear field of view

• Fully rubber-armoured exterior body fits comfortably in your hand; easy-to-operate focus ring

• Labyrinth structure prevents water entering and each unit is filled with nitrogen gas for waterproof performance

• Objective lens unit/Prism unit: Waterproof (up to 1m for 10 min.) *

Unit joint: Waterproof (water equivalent to 5mm per minute for a duration of 30 minutes) *

Eyepiece: Not waterproof. Waterproof when attached to the Fieldscope body.

*1 This pr oduc t will suf fer no damage t o the op tical s yste m if subm erge d or drop ped in water to a m aximum dept h of 1 metre for up to 10 minutes. NOT designed

for underwater usage.

*2 This pr oduct will suf fer no damage t o the op tical s yste m in falling w ater equivale nt to 5mm rainf all per minu te for a durati on of 30 minutes. NOT designed for

underwater usage.

1

and fog-free with nitrogen gas

*2

2

MONARCH Fieldscope 60

MONARCH Fieldscope 60-A

Eyepieces for MONARCH Fieldscopes

• Advanced optical system provides a wide field of view and comfor table eye relief

• Refined optical design corrects chromatic aberrations ef fectively and delivers a uniformly sharp image throughout the field of view

• CircuLock system is employed so that an eyepiece can be easily and smoothly attached/detached, with the eyepiece mounting firmly
secured

• Multilayer coating is applied to surfaces of all lens elements

• Connecting joint is sealed with waterproof packing to ensure waterproof performance when attached to a Fieldscope

3130

NEP-38W
(30x/ 38x)

NEP-20-60
(16-48x/20-60x)

NEP-30-6 0W
(24-48 x/30-60x)

* For specifications, see p 58.

MONARCH Fieldscope Hybrid Body System

Fieldscopes

Achieving prime focus shooting

Connecting a MONARCH Fieldscope Objective Lens Unit and Nikon digital SLR camera or Nikon 1 Advanced Camera with Interchangeable Lenses via
dedicated attachment, prime focus shooting is realised. Because light from the lens enters directly into the image sensor, not routing through a prism or an
eyepiece, this maximises lens resolving power. Super-telephoto shooting with extremely high definition that clarifies fine subject details is enabled.

Combination example:
MONARCH Fieldscope Objective Lens Unit 82 +
FSA-L 3 + Nikon Digital SL R Camera

Combination example:
MONARCH Fieldscope Objective Lens Unit 82 +
DSA-N2 + Nikon 1

MONARCH Fieldscopes employ a unit structure that permits the prism unit to be easily attached/detached from the objective lens unit. This is
called the Hybrid Body System, and gives you the freedom to select your desired combination of Fieldscope diameter, prism and eyepiece for
observation, as well as realising prime focus digiscoping via attachment.

MONARCH Fieldscope

Objective Lens Units

82mm

60mm

MONARCH Fieldscope

Prism Units

Straight

Angled

Prime focus shooting

Digiscoping
Attachment

MONARCH Fieldscope

Eyepieces

NEP-38W

NEP-20-60

NEP-30-60W

Digital SLR Cameras

Digiscoping Attachment FSA-L3

F-mount attachment optimally designed for shooting using a digital SLR camera

• Digiscoping attachment connects with the F-mount of a Nikon digital SLR camera, realising prime focus shooting

• Enables super-telephoto shooting at either 500mm focal length with a MONARCH Fieldscope Objective Lens Unit
82, or 400mm with a MONARCH Fieldscope Objective Lens Unit 60*

* W hen used wit h a Nikon DX-f orma t digita l SLR cam era, the pict ure angle is equivalent t o approx. 1.5x focal length o f 35mm f ormat

• Optical compatibility with Nikon FX format realises full-size sensor shooting without vignet ting

• Optical design achieves aberration compensation ef fectively, while all lens surfaces are applied with multilayer
coating

• Using the Electronic Rangefinder, highly accurate focusing is attained even when focusing manually

* W hen attac hed to a Nikon digit al SLR camera that em ploys an f/8-compa tible AF senso r

• Available exposure modes: A (Aperture-priorit y) auto and M (Manual)

Available exposure metering: Centre-weighted metering

Digiscoping Attachment DSA-N2

Designed exclusively for Nikon 1 to enable super-telephoto shooting

• Digiscoping attachment enables use of an Advanced Camera with Interchangeable Lenses Nikon 1 series,
realising prime focus shooting

• Enables super-telephoto shooting at either 1,350mm* focal length with a MONARCH Fieldscope Objective Lens
Unit 82, or 1,080mm* with a MONARCH Fieldscope Objective Lens Unit 60

*CX format

• Attaching a lightweight Nikon 1 body, high-definition, super-telephoto shooting is easily per formed

• Optical design achieves aberration compensation ef fectively, while all lens surfaces are applied with multilayer
coating

• Available exposure modes: A (Aperture-priorit y auto) and M (Manual)

Available exposure metering: Centre-weighted metering

32

Digiscoping
Attachment

33

FSA-L3

Advanced Camera with

Interchangeable Lenses

Nikon 1 series

DSA-N2

* For specifications, see pp 58-59.

ED50/ED50 A

op

Fieldscopes

Fieldscope 82/82-A/60/60-A

Brighter viewing in a sleek design

• Compact, lightweight and smooth ergonomic design

• Large objective lens for a brighter field of view

• All lenses and prisms are multilayer-coated for bright images

• Chromatic aberration at the peripheries of the viewfield is minimised

• Waterproof (up to 1m/3.3 ft. for 10 minutes) and fog-free with nitrogen gas (Eyepieces are water­resistant when attached to the Fieldscope body)

• Bayonet-type eyepiece mount with locking system enables quicker, more secure eyepiece connections

• Three eyepieces exclusively for PROSTAFF 5 Fieldscopes are optionally available: compatible with
digital camera bracket FSB-series

• Built-in sliding hood

PROSTAFF 5 Fieldscope 82

PROSTAFF 5 Fieldscope 82-A

Fieldscope

Compact design and reliable performance

• Compact, lightweight and sleek design

• All lenses and prisms are multilayer-coated for bright images

• 16-48x zoom eyepiece integrated

• Long eye relief (19mm at 16x)

• Rubber armouring

• Waterproof (up to 1m/3.3 ft. for 10 minutes) and fog-free with nitrogen gas

• Comes with a compact tripod and a carrying case

PROSTAFF 3 Fieldscope

PROSTAF F 3 Fieldsc

Fieldscope ED50/ED50 A

Nikon´s smallest high-end scope features brilliant optics

• Compact and lightweight with 50mm-diameter ED (Extra-low Dispersion) objective
lens to minimise chromatic aberration

• Available in straight or angled design

• Multilayer-coated lenses for bright images

• Waterproof (up to 1m/3.3 f t. for 5 minutes) and fog-free with nitrogen gas

• Choose from two colours — charcoal grey and pearlscent green

• Compatible with MC eyepieces and Wide DS eyepieces (options)

• 55mm filter (P=0.75) can be attached to objective lens

Fieldscope ED5 0 A (Charcoal grey) Fieldscope ED50 (Pearlescent green) Hand-holding case for Fieldscope ED50 series (option)

Eyepieces for PROSTAFF 5 Fieldscopes

• Fully multilayer-coated

• Long eye relief design for viewing comfor t with eyeglasses

• Usable for both observation and digiscoping

• Bayonet mount with lock for easy attachment and release

• Water-resistant when at tached to Fieldscope body

PROSTAFF 5 Fieldscope 60

SEP-25

(20x/ 25x)

SEP-38W
(30x/ 38x)

SEP-20-60

(16-48x/20-60x)

PROSTAFF 3 Fieldscope with supplied tripod

PROSTAFF 5 Fieldscope 60-A

34 35

and carrying case

Eyepieces for Fieldscopes

13-30x/20-45x/25-56x

MC zoom eyepiece

These eyepieces can be used w ith EDG F ieldscopes via FS Eyepiece Mount Adaptor EM A-1.

13-40x/20-60x/25-75x

MC II zoom eyepiece

16x/24x/30x

Wide DS eyepiece

27x/40x/50x

Wide DS eyepiece

40x/60x/75x

Wide DS eyepiece

* For specifications, see pp 60-61.

Nikon Digiscoping System

This convenient system makes it possible to record images viewed through a Fieldscope. Connecting a Fieldscope using an attachment or bracket for a Nikon digital SLR camera, an
Advanced Camera with Interchangeable Lenses Nikon 1 series or a Nikon COOLPIX series camera, makes it easy for the user to capture super-telephoto images. Now, thanks to the
unrivalled combination of Nikon cameras and Nikon scopes, you’ll achieve striking images in a way that no other system can offer.

Fieldscopes

with Nikon COOLPIX Digital Cameras

with Digital SLR Cameras

EDG Fieldscopes

82mm

60mm

MONARCH Fieldscope Objective Lens Units

Fieldscope Digital SLR CameraAttachment FSA-L2

Digiscoping Attachment FSA-L3

with Advanced Camera with Interchangeable Lenses Nikon 1 Series

EDG Fieldscopes

82mm

60mm

MONARCH Fieldscope
Objective Lens Units

Fieldscope ED50/ED50A

-ÌÀ>}Ì

}i`

MONARCH Fieldscope

Prism Units

EDG Fieldscope Eyepieces

FEP series (except FEP-20-60)

MONARCH Fieldscope
Eyepieces NEP series*

Digiscoping Bracket DSB-N1

Wide DS Fieldscope Eyepieces

Digiscoping Adapter DSA-N1*

1 NIKKOR Lenses

Digiscoping Attachment DSA-N2

Digital SLR Cameras

Advanced
Camera with
Interchangeable
Lenses Nikon 1
Series

EDG Fieldscopes

82mm

60mm

MONARCH Fieldscope
Objective Lens Units

PROSTAFF 5 Fieldscopes

Fieldscope ED50/ED50A

Fieldscope Digital SLR Camera Attachment FSA-L2

(exclusively for EDG Fieldscope)

• 3.5x zoom for super telephoto shooting. When attached to EDG Fieldscope 85
VR/85 -A VR/85/85 -A, the focal length ranges from 500 to 1,750mm* and when
attached to EDG Fieldscope 65/65-A, the focal length ranges from 400 to 1,40 0mm*.

*FX format

• Available exposure modes: Aper ture-Priority Auto and Metered Manual

Available exposure metering: Centre-weighted metering

• Multilayer coating is applied to all lens elements for brighter optics

Digiscoping Adapter DSA-N1

(exclusively for Nikon 1 series)

• Attaches to a Nikon Fieldscope easily, since optical axis adjustment is not required

• Allows use of the camera´s A: Aperture-priorit y auto and M: Manual exposure modes

• Easy-to-carry compact size

-ÌÀ>}Ì

}i`

MONARCH Fieldscope

Prism Units

EDG Fieldscope Eyepieces

FEP series

(except FEP-20-60)

MONARCH Fieldscope Eyepieces

NEP series

PROSTAFF Fieldscope Eyepieces

SEP series

Wide DS Fieldscope Eyepieces

FSB-UC

COOLPIX Digital
Camera Brackets
FSB series

UÊ6}i ÌÌ }Ê>ÞÊV VÕÀÊiÛi ÊÜÌÊV «> ÌLiÊ `iÃ]Ê`i «i` }ÊÊÌiÊà ÕLiV ÌÊ>`ÊÌ iÀÊÃÌ}ÊV `Ìð
UÊÀÊÀiÊvÀ>ÌÊ>`Ê`iÌ>ÃÊvÊV«>ÌLiÊ`iÃ]ÊÃiiÊÜÜÜ°°VÉëÀÌ«ÌVÃ

COOLPIX
Digital
Cameras

ÃiÊ`iÃÊ>ÀiÊÌÊV«>ÌLi®

Digital Camera Bracket FSB-UC

(universal type for COOLPIX series)

• The new design allows the replacement of batteries and recording media while the
camera is attached to a Fieldscope, or Fieldmicroscope (this is not possible with
some COOLPIX models)

• Includes a light shielding rubber sheet that minimises harmful, incoming rays and
glare

• Includes cable release (approx. 50cm) to prevent camera shake during shooting

Digiscoping Bracket DSB-N1

(exclusively for Nikon 1 series)

• Includes a cable release (approx. 50cm) to prevent camera shake when shooting; the
cable release socket is attached to the bracket

• Includes a light-shielding rubber sheet to prevent external light from entering

IÌÌ>V}Ê *Ó äÈäÊÌÊÌ iÊ- £ÊÃÊ ÌÊÀiV i`i`ÊLi V>Õà iÊvÊÛ} iÌÌ}°

36

UÊ6}i ÌÌ }Ê>ÞÊV VÕÀÊiÛi ÊÜÌÊV «> ÌLiÊ `iÃ]Ê`i «i` }ÊÊÌiÊà ÕLiV ÌÊ>`ÊÌ iÀÊÃÌ}ÊV `Ìð
UÊÀÊÀ iÊvÀ>ÌÊ>`Ê`i Ì>ÃÊvÊV «> ÌLiÊ`iÃ]ÊÃiiÊÜÜ Ü°°VÉë ÀÌ«ÌVÃ

37

Laser Rangefinders

Laser Rangefinders

The measure of excellence

Acclaimed throughout the world for superior optical technologies and leading-edge design, Nikon takes pride in delivering innovative products of the very highest quality.
Nikon's Laser Rangefinder lineup features a variety of models to choose from, each instrument perfectly suited to its particular purpose.

Laser 1000A S

Features a long measurement range, golf mode and
inclinometer, for a variety of purposes

• Measurement range: 10-915m/11-1,000 yds.

• Active Brightness Control Viewfinder for easy, clear viewing: Orange
LED is automatically turned on when it is used in darker situations and
brightness of the LED is adjusted according to the surroundings

• Easy operation enables measurement of actual distance, horizontal
distance, height and slope adjusted distance (horizontal distance ±
height)

• Target Priority Switch System for measuring overlapping subjects:

First Target Priority mode displays the distance of the closest subject

— useful when measuring the distance to a subject in front of an
overlapping background.

Distant Target Priority mode displays that of the farthest subject —

useful in wooded areas.

• High-quality 6x monocular with multilayer coating for bright, clear
images

• High light transmittance for a brighter field of view

• Large ocular for easy viewing (18mm)

• Wide field of view (7.5 degrees)

• Long eye relief design affords eyeglass wearers easy viewing

• Dioptre adjustment function

• Single or continuous measurement (up to 5 seconds)

• Compact, lightweight design enables easy, single-hand operation

• Waterproof (up to 1m/3.3 ft. for 10 minutes), but not for underwater
usage; the battery chamber is water-resistant

• Wide temperature tolerance: -10°C to +50°C

Internal display

1. Dis tance

2. Unit of measure (m/yd.)

3. Target mark ( )

4. Laser irradiation ( )

5. Height
(Actual distance at Golf mode setting)

6. Battery condition

7. Distant Target Priority mode

8. First Target Priority mode

9. Decline

10. Incline

Display mode cycle

Actual distance and

height mode

10

9

1

7

height mode

6

8

Horizontal distance and

Golf mode

Provides the “Horizontal distance ± Height” speedily enabling you to confidently
determine how to approach the course. Once your sense of distance is enhanced, you
can more easily achieve t he correct shot.

Incline (for uphill) Decline (for downhill)

The upper figur e shows the “slope adjusted distance” and the lower figure is the
“actual dis tance”. Both are displayed simultaneousl y in the internal display.

Trajectory of a shot taken
without considering the
height of the target

Actual distance (137m/150 yds.)

Horizontal distance

2

3
4
5

Laser 100 0A S

Trajectory of the slope adjusted
shot that Laser 1000A S
defines

Horizontal distance

Slope adjusted distance (Approx.) (164.4m/179.8 yds.)

Height

Height

Upward incline

Laser 1200S

Achieves long-distance measurement up to 1,100m (1,200 yds.)

• M eas ure men t range: 10 -1,100m /11-1,200 y ds.

• Target Priority Switch System for measuring overlapping subjects:
First Target Priority mode displays the distance of the closest

subject — useful when measuring the distance to a subject in front
of an overlapping background.

Distant Target Priority mode displays that of the farthest subject —

useful in wooded areas.

• High-quality 7x monocular with multilayer coating for bright, clear
images

• Long eye relief design affords eyeglass wearers easy viewing

• Dioptre adjustment function

• Single or continuous measurement (up to 20 seconds)

• Easy one-push measurement after the power is turned on

• Compact, lightweight design enables easy, single-hand operation

• LCD with backlight

• Waterproof (up to 2m/6.6 ft. for 5 minutes), but not for under water
usage; the battery chamber is water-resistant

• Wide temperature tolerance: -10

Internal display

1. Dist ance

2. Unit of measure (m/yd.)

3. Target mark ( )

4. Laser irradiation ( )

5. First Target Priority mode

6. Battery condition

Laser 120 0S

°C to +50°C

1

3

5

2

4

6

3638

Actual distance mode

Golf mode (Slope adjusted distance

and actual distance mode)

* For specifications, see p 62.

39

Laser Rangefinders

COOLSHOT AS

ID Technology displays slope adjusted distance to improve your golf
score

• Measurement range: 4.5-550m/5-600 yds.

• Easy operation enables measurement of actual distance, horizontal
distances, height and slope adjusted distance (horizontal distance ± height)

• Golf mode displays the slope adjusted distance (Horizontal distance ±
Height) which is a guide for how far you should hit the ball and useful when
golfing on an uphill/downhill course — ID (incline/decline) Technology

• Target Priority Switch System for measuring overlapping subjects:

First Target Priority mode displays the distance of the closest subject —

useful when golfing for measuring the distance to a flagstick on a green
with woods in the background.

Distant Target Priorit y mode displays that of the far thest subject — useful

in wooded areas.

• Compact, lightweight and ergonomic design enables easy, single-hand
operation

• High-quality 6x monocular with multilayer coating for bright, clear images

• High light transmittance for a brighter field of view

• Large ocular for easy viewing (18mm)

• Wide field of view (7.5 degrees)

• Long eye relief design affords eyeglass wearers easy viewing

• Dioptre adjustment function

• Single or continuous measurement (up to 8 seconds)

• LED illumination for easy viewing of the display in dark conditions

• Waterproof (up to 1m for 10 minutes), but not for underwater usage; the
battery chamber is water-resistant

• Wide temperature tolerance: -10°C to +50°C

Internal display

1. Dis tance

2. Unit of measure (m/yd.)

3. Target mark ( )

4. Laser irradiation ( )

5. Height
(Actual distance at Golf mode setting)

6. Battery condition

7. Distant Target Priority mode

8. First Target Priority mode

9. Decline

10. Incline

Display mode cycle

Actual distance and

height mode

Actual distance mode

10

9

Golf mode (Slope adjusted distance

and actual distance mode)

1

7

height mode

6

8

Horizontal distance and

2

3
4
5

COOLSHOT AS

Golf mode

Provides the “Horizontal distance ± Height” speedily enabling you to confidently
deter mine how to approach the course. Once your sense of dis tanc e is enhanced, you
can more easily achieve t he correct shot.

Incline (for uphill) Decline (for downhill)

The upper figur e shows the “slope adjusted distance” and the lower figure is the
“actual dis tance”. Both are displayed simultaneousl y in the internal display.

Trajectory of a shot taken
without considering the
height of the target

Actual distance (137m/150 yds.)

Horizontal distance

Trajectory of the slope adjusted
shot that COOLSHOT AS
defines

Horizontal distance

Slope adjusted distance (Approx.) (164.4m/179.8 yds.)

Height

Height

Upward incline

COOLSHOT AS

COOLSHOT

Enjoy golfing with one-push continuous measurement and First Target Priority mode

• Measurement range: 10-550m/11-600 yds.

• First Target Priority mode is employed.
When measuring overlapping subjects, the distance of the closest subject is displayed —

useful when golfing for measuring the distance to a flagstick on a green with woods in the
background.

• A single press of the POWER button provides 8-second continuous measurement, which
enables measurement even with slight hand movement

• Compact, lightweight and ergonomic design

• Distance measurement display step is 0.5m/yd.

• High-quality 6x monocular with multilayer coating for bright, clear images

• High light transmittance for a brighter field of view

• Large ocular for easy viewing (18mm)

• Wide field of view (7.5 degrees)

• Long eye relief design affords eyeglass wearers easy viewing

• Dioptre adjustment function

• LED illumination for easy viewing of the display in dark conditions

• Waterproof (up to 1m/3.3 ft. for 10 minutes), but not for underwater usage; the battery
chamber is water-resistant

• Wide temperature tolerance: -10°C to +50°C

Internal display

1. Distance

2. Unit of measure (m/yd.)

3. Target mark ( )

4. Laser irradiation ( )

5. Battery condition

1

3

2

4

5

COOLSHOT

40

41

* For specifications, see p 62.

Laser Rangefinders

Ideal for wooded areas — ID Technology displays horizontal distance and actual
distance

• Measurement range: 4.5-550m /5-600 yds.

• Horizontal Distance display mode and Actual Distance display mode can be easily switched —
ID (incline/decline) Technology

• Target Priority Switch System for measuring overlapping subjects:

First Target Priority mode displays the distance of the closest subject — useful when measuring

the distance to a subject in front of an overlapping background.

Distant Target Priority mode displays that of the farthest subject — useful in wooded areas.

• Compact, lightweight and ergonomic design

• Distance measurement display step is 0.1m/yd.

• High-quality 6x monocular with multilayer coating for bright, clear images

• High light transmittance for a brighter field of view

• Large ocular for easy viewing (18mm)

• Wide field of view (7.5 degrees)

• Long eye relief design affords eyeglass wearers easy viewing

• Dioptre adjustment function

• Single or continuous measurement (up to 8 seconds)

• LED illumination for easy viewing of the display in dark conditions

• Waterproof (up to 1m/3.3 ft. for 10 minutes), but not for underwater usage; the battery chamber
is water-resistant

• Wide temperature tolerance: -10°C to +50°C

Internal display

1. Distance

2. Unit of measure (m/yd.)

3. Target mark ( )

4. Laser irradiation ( )

5. Battery condition

6. Horizontal Distance display mode

7. First Targe t Priori ty mode

8. Distant Target Pr iorit y mode

1

3

6

2

4

5

Compact laser rangefinder with Distant Target Priority mode

• Measurement range: 5-500m/6-550 yds.

• Distant Target Priorit y mode is employed.
When measuring overlapping subjects, the distance of the farthest subject is displayed —

useful in wooded areas.

• Compact, lightweight (approx. 125g) and ergonomic design

• Distance measurement display step is 1m/yd.

• High-quality 6x monocular with multilayer coating for bright, clear images

• Dioptre adjustment function

• Single or continuous measurement (up to 20 seconds)

• Automatic power shut-off (after approx. 8 sec. unoperated)

• Wide temperature tolerance: -10°C to +50°C

PROSTAFF 7

Equipped with Distant Target Priority mode for actual
distance measurement

• Measurement range: 10-550m/11-600 yds.

• Distant Target Priority mode is employed.
When measuring overlapping subjects, the distance of the farthest

subject is displayed — useful in wooded areas.

• Compact, lightweight and ergonomic design

• Distance measurement display step is 0.1m/yd.

• High-quality 6x monocular with multilayer coating for bright, clear
images

• High light transmittance for a brighter field of view

• Large ocular for easy viewing (18mm)

• Wide field of view (7.5 degrees)

• Long eye relief design affords eyeglass wearers easy viewing

• Dioptre adjustment function

• Single or continuous measurement (up to 8 seconds)

• LED illumination for easy viewing of the display in dark conditions

• Waterproof (up to 1m/3.3 ft. for 10 minutes), but not for
underwater usage; the battery chamber is water-resistant

• Wide temperature tolerance: -10°C to +50°C

Internal display

1. Distance

2. Unit of measure (m/yd.)

3. Target mark ( )

4. Laser irradiation ( )

5. Battery condition

42

1

3

2

4

5

Internal display

1. Distance

2. Unit of measure (m/yd.)

3. Target mark ( )

4. Laser irradiation ( )

5. Battery condition

1

3

2

4

5

Display mode cycle

Horizontal distance mode

8

7

Actual distance mode

PROSTAFF 5

42

43

ACULON

* For specifications, see p 63.

Forestry Pro

Laser Rangefinders

Ideal for basic forestry and land surveys — display in metres, yards or feet

• Measurement range: 10-500 m/11-550 yds./33-999 ft.

• In addition to actual distance, horizontal distance, height, angle and vertical separation (difference in height between two targets) measurement functions,
three-point measurement (height between two points) is available

• The results are displayed on both internal and external LCD panels. The external panel displays all results simultaneously.

• Target Priorit y Switch System for measuring overlapping subjects:

First Target Priority mode displays the distance of the closest subject — useful when measuring the distance to a subject in front of an overlapping background.
Distant Target Priority mode displays that of the farthest subject — useful in wooded areas.

• High-quality 6x monocular with multilayer coating produces bright, clear images

• Long eye relief design affords eyeglass wearers easy viewing

• Dioptre adjustment function

• Single or continuous measurement (up to 20 seconds)

• Waterproof (up to 1 meter for 10 minutes) but not for underwater usage; the battery chamber is water resistant

• Wide temperature tolerance: -10°C to +50°C

Internal display

1. Actual Distance

2. Horizontal Distance

3. Height

4. Height between two points

5. Three-point measurement

6. Unit of measure (m/yd.)
(No unit displayed for ft .)

7. Target mark ( )

8. Laser irradiation ( )

9. Battery condition

10. Distant Targe t Priority mode

11. First Targe t Priority mode

12. Angle

13. Distance

Measurement example (Three-point measurement: height between
two points)

13

12

4213

External display

5

1. Measurement unit (m/yd./ft.)

6

2. Height

3. Actual Distance

7

4. Horizontal Distance

8

5. Angle (°)

9

1011

Measurement example (2-point height measurement)

1

2

5

3

4

Exceptional Optics for Specialised Needs

Dedicated applications demand the expert attention that only Nikon delivers

Forestry Pro

Internal display External display

When t hree- point m easur ement is achiev ed, the height b etw een points 2 and 3 i s
display ed on the inter nal LCD with Hor H gt+Hgt2 (soli d), and Hg t(2) and A ng(2) ar e
show n on the ex ternal LCD. Points 2 an d 3 can be rever sed.

Internal display External display

When t he meas ureme nt is suc cessful, you see the h eight f rom th e base t o the to p
displayed on t he inte rnal LCD w ith Hgt + Hgt 2 (solid). For more infor matio n, refer to
the ex tern al LCD. “Base” and “to p” can be s witc hed.

44

* For specifications, see p 63.

45

Exceptional Optics for Specialised Needs

StabilEyes

All StabilEyes models offer

• Reduced vibration for superior performance and steady view

• Fully multilayer-coated lenses for optimal brightness

• Phase-correction-coated prisms for high resolution

• Waterproof and fog-free with O-ring seals and nitrogen gas

• Ergonomic styling for comfortable grip, easy access to controls

StabilEyes 12x32

14x40

• Two vibration reduction modes:
LAND mode for when footing is secure, to

compensate for vibration from hand-shake and
binocular movement when user follows a moving
subject while studying nature or watching sports.

ON BOARD mode for when footing is unstable due

to strong vibration — for example, from an engine
or strong wind

• Floating strap provided

Model name 14x40 12x32 16x32

Magnification (x) 14 12 16

Vibration reduction system

Vibration compensation range (°)

Objective diameter (mm) 40 32

Eye relief (mm) 13 15

Dioptre adjustment (dpt.)

Field of view (real) (°) 4 5 3.8

Field of view (apparent) (°) 52.1 55.3 55.9

Field of view at 1,000m (m) 70 87 66

Exit pupil (mm) 2.9 2.7 2.0

Relative brightness 8.4 7.3 4.0

Interpupillary distance adjustment (mm) 60-70 56-72

Close focusing distance (m) 5 3.5

Dimensions (L x W x D) (mm) 186 x 148 x 88 178 x 142 x 81 181 x 142 x 81

Weight (without batteries) (g) 1,340 1,130 1,120

Operating temperature range (°C) –10 to +50

Battery

Battery life Approx. 6 hours*

*Continuous operation with AA-type alkaline batteries at normal temperature (20°C).

Note: Apparent field of view is c alculated bas ed on the ISO14132-1:2002 standard. For details, see p 56.

DC 6V (four A A-type

Optical compensation by erecting prisms with

±

5

±

2

alkaline batteries)

StabilEyes 14x40

tabilEyes 14x40

gimballed frame

±

3

±

3

DC 3V (two AA-type alkaline batteries)

12x32/16x32

• Nikon’s exclusive VR PAUSE button maintains a comfortable
view while panning, tilting or following fast-moving objects

• Long eye relief design allows use with eyeglasses

• Turn-and-slide rubber eyecups

• Soft-to-the-touch neck strap included

Without vibration

reduction

StabilEyes 16x32

With vibration

reduction

Binocular Telescope

20x120

• Large 120mm objective diameter and Nikon’s original

• Sharp image realised by aberration compensation

• Waterproof (up to 2m/6.6 f t. for 10 minutes), filled with

• Shock and corrosion-resistant structure

• Long eye relief design ensures a clear field of view,

• Easy handling with 360° azimuth and -30° ~ +70°

• Height (with stand, binocular tubes in horizontal

• Rigid fixed-pillar stand (option) is available

Magnification (x) 20

Objective diameter (mm) 120

Angular field of view (Real) (˚) 3.0

Angular field of view (Apparent) (˚) 55.3

Field of view at 1,000m (m) 52

Exit pupil (mm) 6.0

Relative brightness 36.0

Eye relief (mm) 20.8

Close focusing distance (m) 133.0

Interpupillary distance adjustment (mm) 58-74

Weight (kg) 15.5

Leng th (mm) 680

Widt h (mm) 452

Typ e Po rro

* Binocular body only.

Note: Apparent field of view is calculat ed based on the ISO14132­1:2002 st andard. For details, see p 56.

III

Binocular Telescope

coating for a bright image even in the dark

nitrogen gas, fog-free and dust resistance

even for eyeglass wearers

tilting

position): 440mm

Model name

20x120

III

*

*

*

20x120 III with pillar stand

46 47

Exceptional Optics for Specialised Needs

Loupes

L1-8D (Round type)L1-4 D (Square type)

Reading Magnifier L1 Series

• Built-in LED illumination provides natural light across a broad area

• Lighting unit easily switched on/off. Lighting angle can also be adjusted.

• High-precision aspherical lens reduces image distortion all the way to the lens
periphery

• Hard coating on the lens surfaces to prevent scratching

• Rubber material on the handle for a comfor table, secure grip

• Can be held in either the left or right hand

• Available in two types: 4D and 8D

Model name

Effective size/diameter of lens (mm) 100 x 54 80

Refractive power (dioptres) 4 8

Reference magnification (x) 1.5 2

Lens material Acrylic (PMMA) lens

Lens form Equiconvex aspherical lens

Surface coating Hard coating

Dimensions (LxWxD) (mm) 160 x 198 x 17 230 x 91 x 17

Weight (g) (without battery) 115 114

Light source White LED x1

Power LR03 (A AA size) alkaline battery x 1

Battery life (at a temperature of 25°C)* Approx. 8 hours

* Battery life varies depending on temperature, humidit y and other conditions.

Reference magnification is when an object is clearly visible at approx. 250mm.

Reading Magnifier L1 Series

L1- 4D

(Square type)

L1- 8D

(Round type)

Reading Magnifier S1 Series

• High-precision aspherical lens reduces image distortion all
the way to the lens periphery

• Hard coating on the lens surfaces to prevent scratching

• Rubber material on the handle for a comfor table, secure grip

• Can be held in either the left or right hand

• Available in two colours: red and blue, and three types: 4D,
8D and 10D

S1-4D
(Square ty pe, Red)

S1-8D
(Round type, Blue)

Reading Magnifier U1-4D

• Minimises the burden on the hand and arm while holding
(Universal Design)

• Handle can rotate 360 degrees and its angle can be adjusted freely

• Folding the handle enables compact storage

• High-precision aspherical lens reduces image distortion all
the way to the lens periphery

• Hard coating on the lens surfaces to prevent scratching

• Can be held in either the left or right hand

U1-4D (folded)

Precision Loupe (for connoisseurs)

• Superior resolution of 63 lines/mm

• Airtight retractable lens is ideal for professional tasks

• Lens comprises three optical glass elements

Precision Loupe

48 49

Model name

Colour Red/Blue

Effective size/diameter of lens (mm) 100 x 5 4 80 60

Refractive power (dioptres) 4 8 10

Reference magnification (x) 1.5 2 2.5

Lens material Acrylic (PMMA) lens

Lens form Equiconvex aspherical lens

Surface coating Hard coating

Size (LxWxD) (mm) 160 x 198 x 17 230 x 91 x 17 190 x 71 x 15

Weight (g) 109 108 65

Reference magnification is when an object is clearly visible at approx. 250mm.

Model name Reading Magnifier U1-4D

Effective size of lens (mm) 100 x 54

Refractive power (dioptres) 4

Reference magnification (x) 1.5

Lens material Acrylic (PMMA) lens

Lens form Equiconvex aspherical lens

Surface coating Hard coating

Size (L xWxD) (mm)

Weight (g) 103

Reference magnification is when an object is clearly visible at approx. 250mm.

Model name Precision Loupe

Effective diameter (mm) 13

Focusing distance (mm) 25

Magnification (x) 10 (±1%)

Dimensions (L x W x H) (mm)* 42 x 24 x 16

Weight (g) Approx . 15

*

When the lens is retracted to its original position.

Reading Magni fier S1 Series

S1-4D

(Square type)

S1-8D

(Round type)

83 x 142 (up to 242 when

the handle is open) x 18

S1-10D

(Round type)

Fieldmicroscopes

EZ-M icro + F SB-UC + COOL PIX Digital Camera

EZ-Micro

• Enables photography with a Nikon COOLPIX digital camera

• Stereoscopic observation at 20x magnification

• Made with environmentally friendly materials

• Built-in illumination system

• Exclusive compact design for easy operation

Fieldmicroscope
Fieldmicroscope Mini

• Compact, portable body

• 20x magnification

• Stereoscopic microscope

• Built-in illumination system (Fieldmicroscope)

• Water-resistant (Fieldmicroscope Mini)

Fieldmicroscope

EZ-Micro

Fieldmicroscope Mini

Model name EZ-Micro

Magnification (x) 20 (fixed)

Optical system

Field of vision (mm) 11 (di ame t e r)

Angle of view (°) 12.6

Vertical adjustment 38mm from the base of stage

Photographic optical system Collimated light beam

Photographic magnification

Eye relief (mm) 12. 8

Plate Removal and reversible (top: flat; underside: built-in cup)

Light source Two white LEDs

Light settings Three settings: off, one lamp, two lamps

Power source

Dimensions (mm)

Weight (g) Approx. 635 (without bat ter y)

Filters M37 x 0.75mm thread filters can be at tached

Accessories (supplied) Large carrying case; jointed strap

Model name Fieldmicroscope Fieldmicroscope Mini

Magnification (x) 20 (fixed)

Optical system

Interpupillary distance adjustment
(mm)
Field of vision (mm) 11 (diameter)

Angle of view (°) 12.6

Vertical adjustment

Eye relief (mm) 11.1 12.8

Plate

Dimensions (mm)

Weight (g) Approx. 610 Approx. 395

Accessories (supplied) Soft case; head unit cover; strap Soft case; strap

Upright, unreversed image; eyepiece dioptre adjustable

for both eyes; 51 to 72mm interpupillary distance adjustment

Varies according to the attached digital camera model

Approx. 20x (at 35mm-equivalent wide angle set ting) to

approx. 57x (at 100mm-equivalent telephoto set ting)

(In use) 184-238(H) x94(D) x100 (W)

(Folded close) 144(H)

[Example: at A4-size printing]

One AA-size battery; approx. 10-hour bat ter y life

50mm from the

base of stage

(alkaline bat ter y at 20°C)

(In use) 162-202 (H) x 145 (D) x 106 (W)

(Folded close) 138 (H) with lighting fitted

Upright, unreversed image, eyepiece dioptre

adjustable for right eye

56-72 51-72

42mm from the

base of stage

Removal and reversible

(top: flat; underside: built-in cup)

(In use) 156-202(H) x89(D) x90(W)

(Folded close) 124(H)

Specifications

Binoculars

Note: Apparent field of view is calculat ed based on the ISO14132-1:2002 standard. For details, see p 56.

Technical Data

Model name 10x30 8x42 10x42 8x42 10x42 12x42

Magnification (x) 10 8 10 8 10 12

Objective diameter (mm) 30 42 42 42 42 42

Angular field of view (Real/degree) 6.7 8.0 6.7 6.3 5.5 5.0

Angular field of view (Apparent /degree) 60.7 58.4 60.7 47.5 51.3 55.3

Field of view at 1,00 0m (m) 117 140 117 110 96 87

Exit pupil (mm) 3.0 5.3 4.2 5.3 4.2 3.5

Relative brightness 9.0 28.1 17.6 28.1 17.6 12.3

Eye relief (mm) 15.8 17.1 16.5 19.5 18.4 15.1

Close focusing distance (m) 2.0 2.5 2.5 2.5 2.5 2.5

Interpupillar y distance adjustment (mm) 56-72 56-72 56-72 56-72 56-72 56-72

Weight (g) 440 650 660 590 600 600

Length (mm) 119 142 142 145 145 145

Widt h (mm) 123 130 130 129 129 129

Type Roof Roof Roof Roof Roof Roof

Model name 8x32 10x32 7x42 8x42 10x42 8x30

Magnification (x) 8 10 7 8 10 8

Objective diameter (mm) 32 32 42 42 42 30

Angular field of view (Real/degree) 7.8 6.5 8.0 7.7 6.5 8.3

Angular field of view (Apparent /degree) 57. 2 59.2 52.2 56.6 59.2 60.3

Field of view at 1,00 0m (m) 136 114 140 135 114 145

Exit pupil (mm) 4.0 3.2 6.0 5.3 4.2 3.8

Relative brightness 16.0 10. 2 36.0 28.1 17.6 14.4

Eye relief (mm) 18.5 17.3 22.1 19.3 18.0 15.1

Close focusing distance (m) 2.5 2.5 3.0 3.0 3.0 2.0

Interpupillar y distance adjustment (mm) 54-76 5 4-76 55 -76 55-76 5 5-76 56-72

Weight (g) 655 650 785 785 790 435

Length (mm) 138 138 149 14 8 151 119

Widt h (mm) 139 139 141 141 141 123

Type Roof Roof Roof Roof Roof Roof

50

Specifications

Model name 8x56 16x56 20x56 8x42 10x42 8x42

Magnification (x) 8 16 20 8 10 8

Objective diameter (mm) 56 56 56 42 42 42

Angular field of view (Real/degree) 6.2 4.1 3.3 6.3 6.0 6.3

Angular field of view (Apparent /degree) 46.9 59.6 59.9 47.5 55.3 47.5

Field of view at 1,00 0m (m) 108 72 58 110 105 110

Exit pupil (mm) 7.0 3.5 2.8 5.3 4.2 5.3

Relative brightness 49.0 12.3 7.8 28.1 17.6 28.1

Eye relief (mm) 20.5 16.4 16.4 19.3 15.4 17.5

Close focusing distance (m) 7.0 5.0 5.0 4.0 4.0 5.0

Interpupillar y distance adjustment (mm) 60-72 60-72 60-72 56-72 56-72 56-72

Weight (g) 1,140 1,230 1,235 665 665 630

Length (mm) 199 199 199 175 172 165

Widt h (mm) 146 146 146 129 129 130

Type Roof Roof Roof Roof Roof Roof

51

Note: Apparent field of view is calculat ed based on the ISO14132-1:2002 standard. For details, see p 56.

Binoculars

Specifications

ACULON T01

Model name 10x42 10x50 12x50 8x21

Magnification (x) 10 10 12 8 10 8 10 8-24 7 8 10 7 10

Objective diameter (mm) 42 50 50 21 21 24 24 25 35 42 42 50 50

Angular field of view (Real/degree) 5.6 5.6 4.7 6.3 5.0 6.2 5.3 4.6 9.3 8.0 6.0 6.4 6.5

Angular field of view (Apparent /degree) 52.1 52.1 52.4 47.5 47.2 46.9 49.7 35.6 59.3 58.4 55.3 42.7 59.2

Field of view at 1,00 0m (m) 98 98 82 110 87 108 93 80 163 140 105 112 114

Exit pupil (mm) 4.2 5.0 4.2 2.6 2.1 3.0 2.4 3.1 5.0 5.3 4.2 7.1 5.0

Relative brightness 17.6 25.0 17.6 6.8 4.4 9.0 5.8 9.6 25.0 28.1 17.6 50.4 25.0

Eye relief (mm) 15.2 19.6 15.5 10.3 8.3 12.2 10.6 13.0 11.8 12.0 11.6 17.6 11.8

Close focusing distance (m) 5.0 5.0 5.0 3.0 3.0 2.5 2.5 4.0 5.0 5.0 5.0 8.0 7.0

Interpupillar y distance adjustment (mm) 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72

Weight (g) 630 815 790 195 195 200 200 305 685 755 760 905 900

Length (mm) 163 187 183 87 87 103 102 123 118 145 145 180 179

Widt h (mm) 130 140 140 104 104 105 105 109 185 185 185 197 197

Type Roof Roof Roof Roof Roof Roof Roof Roof Porro Porro Porro Porro Porro

<Orange/Blue/ White>

10x21

<Black /Red>

ACULON A30

ACULON T51

8x24

<Black/Silver/Pink/Red>

10x24

<Black /Silver>

High Grade

ACULON T 11

8-24x25

<Black /Silver/Red> (set at 8 x)

ACULON A 211

7x35 8x42 10x42 7x50 10x50

Elegant Compact

Specifications

Model name 12x50 16x50 8-18x42 (set at 8x) 10-22x50 (set at 10x) 8x25

Magnification (x) 12 16 8-18 10-22 8 10 8 10 8 10 8 10 4

Objective diameter (mm) 50 50 42 50 25 25 42 42 32 32 20 25 10

Angular field of view (Real/degree) 5.2 4.2 4.6 3.8 6.0 5.0 7.0 6.0 7.8 6.5 6.8 5.4 10. 0

Angular field of view (Apparent /degree) 57.2 60.8 35.6 36.7 45.5 47.2 5 2.1 55.3 5 7.2 59.2 50.8 50.5 38.6

Field of view at 1,00 0m (m) 91 73 80 66 105 87 122 105 136 114 119 94 175

Exit pupil (mm) 4.2 3.1 5.3 5.0 3.1 2.5 5.3 4.2 4.0 3.2 2.5 2.5 2.5

Relative brightness 17.6 9.6 28.1 25.0 9.6 6.3 2 8.1 17.6 16.0 10.2 6.3 6.3 6.3

Eye relief (mm) 11.5 12.6 10.3 8.6 15.0 13.0 20.0 18.5 17. 0 16.0 15.0 15 .0 13.7

Close focusing distance (m) 8.0 9.0 13.0 15.0 3.0 3.0 3.0 3.0 2.5 2.5 2.4 3.2 1.2

Interpupillar y distance adjustment (mm) 56-72 56-72 56-72 56-72 56-72 56-72 56-72 5 6-72 56-72 56-72 56 -72 56-72 57-72

Weight (g) 910 925 825 960 275 275 795 790 695 695 270 300 65

Length (mm) 179 179 163 197 125 122 157 157 12 9 129 96 112 52

Widt h (mm) 197 197 185 197 115 (72)* 115 (72)* 139 139 138 138 109 (6 5*) 10 9 (67*) 93

Type Porro Porro Porro Porro Roof Roof Roof Roof Roof Roof Roof Roof Roof

* Folded

52

<Black /Silver>

10x25

<Black /Silver >

8x4 2HG L DCF 10 x4 2HG L DCF 8x3 2HG L DCF 10x32HG L DCF 8x 20HG L DCF 10x 25HG L DCF 4x10DCF

53

<Black/Silver/Red>

* Folded

Note: Apparent field of view is c alculated bas ed on the ISO14132-1:2002 standard. For details, see p 56.

Binoculars

Specifications

Elegant Compact

Model name 6x15M CF 7x15M CF Black 5x15 HG Monocular 7x15 HG Monocular

Model name 6x15M CF 7x15M CF Black 5x15 HG Monocular 7x15 HG Monocular

Magnification (x) 6757810 891012

Magnification (x) 6757810 891012

Objective diameter (mm) 15 15 15 15 25 25 25 25 25 25 25 25 25

Objective diameter (mm) 15 15 15 15 25 25 25 25 25 25 25 25 25

Angular field of view (Real/degree) 8.0 7.0 9.0 6.6 8.2 6.5 6.3 5.6 5.0 4.2 5.6 5.0 4.2

Angular field of view (Real/degree) 8.0 7.0 9.0 6.6 8.2 6.5 6.3 5.6 5.0 4.2 5.6 5.0 4.2

An gul ar f i eld of v iew (Ap par ent /de g ree) 4 5.5 46 .4 43.0 4 4.0 5 9 .7 59. 2 47. 5 47.5 4 7. 2 47.5 42.7 47.2 47.5

An gul ar f i eld of v iew (Ap par ent /de g ree) 4 5.5 46 .4 43.0 4 4.0 5 9 .7 59. 2 47. 5 47.5 4 7. 2 47.5 42.7 47.2 47.5

Field of vi ew at 1,0 00m (m) 140 122 157 115 143 114 110 9 8 87 73 98 87 73

Field of vi ew at 1,0 00m (m) 140 122 157 115 143 114 110 9 8 87 73 98 87 73

Exit pupil (mm) 2.5 2.1 3.0 2.1 3.1 2.5 3.1 2.8 2.5 2.1 3.1 2.5 2.1

Exit pupil (mm) 2.5 2.1 3.0 2.1 3.1 2.5 3.1 2.8 2.5 2.1 3.1 2.5 2.1

Relative brightness 6.3 4.4 9.0 4.4 9.6 6.3 9.6 7.8 6.3 4.4 9.6 6.3 4.4

Relative brightness 6.3 4.4 9.0 4.4 9.6 6.3 9.6 7.8 6.3 4.4 9.6 6.3 4.4

Eye relief (mm) 10.1 10.0 15.8 12. 0 10.0 10.0 15 .5 15.8 15.9 15.9 1 4. 0 11 .1 11 .1

Eye relief (mm) 10.1 10.0 15.8 12. 0 10.0 10.0 15 .5 15.8 15.9 15.9 1 4. 0 11 .1 11 .1

Close focusing distance (m) 2.0 2.0 0.6 0.8 2.5 3.5 2.8 2.8 2.8 2.8 3.0 3.0 4.0

Close focusing distance (m) 2.0 2.0 0.6 0.8 2.5 3.5 2.8 2.8 2.8 2.8 3.0 3.0 4.0

Interpupillary distance adjustment (mm) 56-72 56-72 — — 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72

Interpupillary distance adjustment (mm) 56-72 56-72 — — 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72

Weight (g) 130 135 75 75 300 300 355 360 365 365 265 270 275

Weight (g) 130 135 75 75 300 300 355 360 365 365 265 270 275

Length (mm) 48 47 71 71 103 103 100 101 102 10 3 115 110 110

Length (mm) 48 47 71 71 103 103 100 101 102 10 3 115 110 110

Wi dth (mm) 108 10 8 30 30 114 ( 6 7*) 114 (6 7*) 116 116 116 11 6 11 8 118 118

Wi dth (mm) 108 10 8 30 30 114 ( 6 7*) 114 (6 7*) 116 116 116 11 6 11 8 118 118

Type Porro Porro Roof Roof Roof Roof Porro Porro Porro Porro Porro Porro Porro

Type Porro Porro Roof Roof Roof Roof Porro Porro Porro Porro Porro Porro Porro

*Folded

Marine

Compact

Spor ts tar EX 8 x25DCF

Spor ts tar EX 8 x25DCF

<Silver/Charcoal grey>

<Silver/Charcoal grey>

Sportstar EX 10x25DCF

Sportstar EX 10x25DCF

<Silver/Charcoal grey>

<Silver/Charcoal grey>

TRAVELITE EX 8x25CF TRAVELITE EX 9x25CF TRAVELITE EX 10x25CF TRAVELITE EX 12x25CF TRAVELITE

TRAVELITE EX 8x25CF TRAVELITE EX 9x25CF TRAVELITE EX 10x25CF TRAVELITE EX 12x25CF TRAVELITE

Standard

VI

VI

8x25CF TRAVELITE

8x25CF TRAVELITE

81012

81012

VI

VI

10x25CF TRAVELITE

10x25CF TRAVELITE

VI

VI

12x 25 CF

12x 25 CF

Specifications

Model name 7x50CF WP 7x50CF WP Compass 7x50IF WP 7x50IF WP Compass 7x50IF HP WP Tropical 10x70IF HP WP 10x50CF WP Action EX 7x35CF Action EX 8x40CF Action EX 7x50CF Action EX 10x50CF Action EX 12x50CF Action EX 16x50CF

Model name 7x50CF WP 7x50CF WP Compass 7x50IF WP 7x50IF WP Compass 7x50IF HP WP Tropical 10x70IF HP WP 10x50CF WP Action EX 7x35CF Action EX 8x40CF Action EX 7x50CF Action EX 10x50CF Action EX 12x50CF Action EX 16x50CF

Magnification (x) 7777710 10787101216

Magnification (x) 7777710 10787101216

Objective diameter (mm) 50 50 50 50 50 70 50 35 40 50 50 50 50

Objective diameter (mm) 50 50 50 50 50 70 50 35 40 50 50 50 50

Angular field of view (Real/degree) 7.2 7.2 7.5 7.0 7.3 5.1 6.2 9.3 8.2 6.4 6.5 5.5 3.5

Angular field of view (Real/degree) 7.2 7.2 7.5 7.0 7.3 5.1 6.2 9.3 8.2 6.4 6.5 5.5 3.5

Angular field of view (Apparent/degree) 47.5 47.5 49.3 46.4 48.1 48.0 56.9 59.3 59.7 42.7 59.2 59.9 52.1

Angular field of view (Apparent/degree) 47.5 47.5 49.3 46.4 48.1 48.0 56.9 59.3 59.7 42.7 59.2 59.9 52.1

Field of view at 1,000m (m) 126 126 131 122 128 89 108 163 143 112 114 96 61

Field of view at 1,000m (m) 126 126 131 122 128 89 108 163 143 112 114 96 61

Exi t pu pil (m m) 7.1 7.1 7.1 7.1 7.1 7. 0 5.0 5 . 0 5 .0 7.1 5.0 4.2 3.1

Exi t pu pil (m m) 7.1 7.1 7.1 7.1 7.1 7. 0 5.0 5 . 0 5 .0 7.1 5.0 4.2 3.1

Relative brightness 50.4 50.4 50.4 50.4 50.4 49.0 25.0 25.0 25.0 50.4 25.0 17.6 9.6

Relative brightness 50.4 50.4 50.4 50.4 50.4 49.0 25.0 25.0 25.0 50.4 25.0 17.6 9.6

Eye relief (m m) 2 2.7 22.7 18 .0 18. 0 15 .0 15. 0 17.4 17.3 17.2 17.1 17.2 16.1 17.8

Eye relief (m m) 2 2.7 22.7 18 .0 18. 0 15 .0 15. 0 17.4 17.3 17.2 17.1 17.2 16.1 17.8

Close focusing distance (m) 10.0 10.0 25.0 25.0 24.5 50.0 17.0 5.0 5.0 7.0 7.0 7.0 7.0

Close focusing distance (m) 10.0 10.0 25.0 25.0 24.5 50.0 17.0 5.0 5.0 7.0 7.0 7.0 7.0

Interpupillary distance adjustment (mm) 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72

Interpupillary distance adjustment (mm) 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72 56-72

Wei gh t (g) 1,100 1,120 1,170 1, 210 1, 360 1,9 85 1,0 65 8 00 85 5 1,00 0 1,0 20 1,04 5 1, 040

Wei gh t (g) 1,100 1,120 1,170 1, 210 1, 360 1,9 85 1,0 65 8 00 85 5 1,00 0 1,0 20 1,04 5 1, 040

Leng th (m m) 193 193 178 178 217 30 4 195 120 13 8 179 178 178 177

Leng th (m m) 193 193 178 178 217 30 4 195 120 13 8 179 178 178 177

Width (mm) 202 202 203 203 210 234 207 184 187 196 196 196 196

Width (mm) 202 202 203 203 210 234 207 184 187 196 196 196 196

Type Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro

Type Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro Porro

54

55

Specifications

Binoculars

Note: Apparent field of view is c alculated bas ed on the ISO14132-1:2002 standard. For details, see p 56.

The Standard for Advanced Nature Observation

II

Model name

8x30E

Magnification (x) 81071018

Objective diameter (mm) 30 35 5 0 70 70

Angular field of view (Real/degree) 8.8 7.0 7.3 5.1 4.0

Angular field of view (Apparent/degree) 63.2 62.9 48.1 48.0 64.3

Field of view at 1,00 0m (m) 154 122 128 89 70

Exit pupil (mm) 3.8 3.5 7.1 7.0 3.9

Relative brightness 14.4 12.3 50.4 49.0 15.2

Eye relief (mm) 13.8 13.8 16.2 16.3 15.4

Close focusing distance (m) 3.0 5.0 12.4 25.0 81.0

Interpupillary distance adjustment (mm) 56-72 56-72 56-72 56-72 56-72

Weight (g) 575 625 1,485 2,100 2,050

Length (mm) 101 126 217 304 293

Widt h (mm) 181 183 210 234 234

Type Porro Porro Porro Porro Porro

Binocular Accessories

Tripod/monopod adaptors

TRA-2 Usable models

• ACULON A 211

• Action series

• Action zoom series

• Action EX series

• 7x50 CF W P/ 7x50 CF W P
Compass

• 7x50 IF WP/7x5 0IF WP
Compass

• 10x 50 CF WP

Usable models

• 7x50IF HP WP Tropical

• 8x32SE CF/10x42SE CF/12x50SE CF

• 18x70IF WP W F

• 7x50IF SP WP/10x70IF SP WP

• 10x70IF HP WP

• 8x30 E II/10 x3 5E II

TRA-3 Usable models

• EDG 8 x3 2/10 x3 2/7x42 /8x4 2/10x42

• MONARCH 7 8x3 0/ 10x3 0/ 8x42 /10 x42

• MONARCH 5 8x42 /10x4 2/12 x42/ 8x56 /16x5 6/20x56

• MONARCH ser ies

• PROSTA FF 7 8 x42/ 10x42

• Action series

• Action zoom series

• Action EX series

• 7x5 0CF WP/ 7x50CF W P Compass

• 7x5 0IF WP/ 7x50 IF WP Compass

• 10x 50 CF WP

Adaptor H (for roof prism binoculars)Usable models

• EDG 8 x3 2/10 x3 2/7x42 /8x4 2/10x42

• MONARCH 7 8x3 0/ 10x3 0/ 8x42 /10 x42

• MONARCH 5 8x42 /10x4 2/12 x42

• MONARCH ser ies

• PROSTA FF 7 8 x42/ 10x42

• PROSTA FF 5 8 x42/ 10x42

• 8x4 2HG L DCF

• 10x42H G L DCF

• 8x32 HG L DC F

• 10x 32HG L DCF

10x35E

II

Hard (H) type

7x50IF SP WP 10x70IF SP WP 18x70IF WP WF

Values for Apparent Field of View

With the conventional method used previously, the apparent field of view was calculated by
mult iplying t he real field of view by the binocular magnif ication. Af ter revision, Nikon’s
figures are now based on the ISO 14132 -1:200 2 standard, and obtained by t he follow ing
formula:

tan ω’ =

Γ x tan ω

Apparent f ield of view: 2ω’
Real field of view : 2ω
Magnification: Γ

For example, the apparent field of
view of 8x binoculars with an 8.8°
real field of view is as follows:

1

-

2ω’ = 2 x tan
= 2 x tan
= 63 .2 °

Referring to the ISO 14132 -2:200 2 standard that was established at the same time as the
abovementioned ISO 14132-1:2002, binoculars that provide an apparent field of view over 60˚
are considered wide-viewfield binoculars.

56

(Γ x tan ω)

1

-

(8 x tan 4 .4°)

125m

2ω’ = 63.2°

1,000m

2ω = 8.8°

Γ=8

EDG Fieldsc ope 85 VR EDG Field scope 8 5-A VR

EDG VR Fieldscopes

Model name EDG Fieldscope 85 VR EDG Fieldscope 85-A VR

Objec tive diameter (mm) 85 85

Close focusing distance (m) 5.0 5.0

Leng th (mm)

Height x width (mm)

Weight (g)

Vibration Reduction effects at (25˚C)

Power so urce A A alkaline batt ery x4, AA lithium bat tery x4 or AA Ni-MH (nickel metal hydride) battery x4

Battery life (at 25˚C)

*1 Body o nly. *2 Based on Nik on Fieldscop e measuring s tandard (us ed with trip od). *3 Batt ery life vari es depending o n condition s, temperat ure and vibra tion.

1

*

1

*

1

*

2

*

3

*

Approx. 17 hours (AA alkaline bat ter y), approx. 31 hours (AA lithium ba ttery),

379 398

141 x 104 141 x 104

2,400 (without batteries) 2,400 (without batteries)

Observation: Degree of vibration is reduced to approx. 1/8

Digiscoping: Equivalent of a shut ter speed approx. 2 s tops f aster

approx. 15 hours [A A Ni-MH (nickel metal hydride) battery]

Eyepieces for EDG Fieldscopes

Model name

FEP-20W

FEP-30W

FEP-38W

FEP-50W

FEP-75W

FEP-25 LER

FEP-20-60

*1 With det achable tur n-and -slide ey ecup *2 Apparent f ield of view is calculat ed bas ed on th e ISO14132-1:2002 st andar d. For details, se e p 56.

With EDG 65 series

With EDG 85 series

With EDG 65 series

With EDG 85 series

With EDG 65 series

With EDG 85 series

With EDG 65 series

With EDG 85 series

With EDG 65 series

With EDG 85 series

With EDG 65 series

With EDG 85 series

With EDG 65 series

With EDG 85 series

Magnification

(x)

16 4 .1 60.0 72 4.1 16.8 20.1 240

20 3.3 60.0 58 4.3 18.5 20.1 240

24 3.0 64.3 52 2.7 7.3 25.4 390

30 2.4 64.3 42 2.8 7.8 25.4 390

30 2.4 64.3 42 2.2 4.8 17.9 230

38 1.9 64.3 33 2.2 4.8 17.9 230

40 1.8 64.3 31 1.6 2.6 17.8 230

50 1.4 64.3 24 1.7 2.9 17.8 230

60 1.2 64.3 21 1.1 1. 2 17 230

75 1.0 64.3 17 1.1 1.2 17 230

20 3.0 55.3 52 3.3 10.9 32.3 320

25 2.4 55.3 42 3.4 11.6 32.3 320

16-48 2.8-1.4 42- 60 49 -24 4.1-1.4 16.8-2. 0 18.4-16.5 330

20-60 2.2-1.1 42-60 38-19 4.3-1.4 18.5-2.0 18.4-16.5 330

Angular field of view

(Real/degree)

Angular field of view

(Apparent/degree)

Field of view at 1,000m (m)

2

*

Fieldscopes

EDG Fieldsc ope 85 -AEDG Fieldscope 85

EDG Fieldsc ope 65

EDG Fieldscopes

Model name EDG F ieldscope 85 EDG Fieldscope 85 -A EDG Fieldscope 65 EDG Fieldscope 65 -A

Objec tive diameter (mm) 85 8 5 65 65

Leng th (mm)* 379 398 313 332

Height x width (mm)* 127 x 102 131 x 102 120 x 88 131 x 88

Weight (g)* 2,030 2,030 1,56 0 1,620

*Body only.

(approx.)

Exit pupil

(mm)

57

Relative brightness Eye relief

(mm)

Weight

(g)

1

*

1

*

EDG Fieldsc ope 65 -A

Specifications

Fieldscopes

Specifications

MONARCH Fieldscopes

Model name MONARCH Fieldscope 82 MONA RCH Fieldscope 82-A MONA RCH Fieldscope 60 MONARCH Fieldscope 60-A

Objective diameter (mm) 82 82 60 60

Close focusing distance (m) 5.0 5.0 3.2 3.2

Leng th (mm)

Height x Width (mm)

Weight (g)

*1 With out caps. *2 When hood is fully extended.

MONARCH Fieldscope Objective Lens Units

Objective diameter (mm) 82 60

Leng th (mm)

Height (mm)

Widt h (mm)

Weight (g)

*1 With out caps. *2 When hood is fully extended.

1

*

1

*

1

*

2

*

332 (365

)329 (362

2

*

)280 (312

122 x 100 116 x 102 122 x 84 116 x 96

1,6 70 1,70 0 1, 325 1,3 55

Model name Objective Lens Unit 82 Objective Lens Unit 60

1

*

1

*

1

*

1

*

2

*

260 (293

)

115 1 05

100 84

1,3 20 9 75

208 (240

2

*

)

2

*

)277 (310

*

MONARCH Fieldscope Prism Units

Model name Straight Prism Uni t Angled Prism Unit

Leng th (mm)

Height (mm)

Widt h (mm) 84 91

Weight (g)

* With out caps.

*

*

*

95 91

94 96

350 380

Eyepieces for MONARCH Fieldscopes

Model name

With 60/60-AWith 82/82-AWith 60/60-AWith 82/82-AWith 60/60-AWith 82/82-A

Magnification (x) 30 38 16-48 20-60 24-48 30-60

Angular fi eld of view (Real/degree) (˚) 2.5 2.0 2.6

Angular fi eld of view (Apparent/degree) (˚)

1

*

Field of view at 1,000m (m) 44 35 46

Exit pupil (mm) 2.0 2. 2 3.8

Relative brightness 4.0 4.8 14.4

Eye relief (mm) 18.5 16.1

Leng th (mm)

Outer diameter (mm)

Weight (g)

2

*

2

*

2

*

NEP-38W NEP-20-60 NEP-30-60W

3

*

66.4 40.5

3

*

3

*

3

*

3

*

3

*

2.1

37

4.1

16.8

3

*

3

*

3

*

3

*

2.5

2.5

6.3

3

*

3

*

44

3

*

3

*

55.3

15.2

3

*

3

*

76 88 90

55 55 55

250 310 320

2

2.0

2.7

7.3

Digiscoping Attachment FSA-L3

With MONARCH F ieldscope

Objectivie Lens Unit 82

With MONARCH F ieldscope

Objectivie Lens Unit 60

Focal length (mm) 500 (DX format: 750) 400 (DX format: 60 0)

Aperture f/6.0 f/6.6

Mount Sleeve

Camera mount Nikon F mount

Exposure mode (camera setting) A (Apeture-Priority Auto) / M (Manual)

Exposure metering (camera setting) Centre-weighted metering

)

Digiscoping Attachment DSA-N2

Length x diameter (mm) 106 x 69

Weight (g) 255

• Camera's autofocusing mode cannot be used. Focus manually using the focusing ring o f the MONARCH Fieldscope Objective Lens Unit.

• Camera's exposure meter activates even in Manual exposure mode.

• When used with a Nikon DX-format digital SLR camera, the picture angle is equivalent to approx. 1.5x focal leng th of 35mm format.

• The camera display and image data show the constant f-number (13) and focal length (8 00mm),

• Because the optical system characteristics differ from t hose of ordinary interchangeable lenses, the exposure level may var y depending on the camera
model; use exposure compensation if necessary.

With MONARCH F ieldscope

Objectivie Lens Unit 82

With MONARCH F ieldscope

Objectivie Lens Unit 60

Focal length (mm) 500 (CX format: 1,350) 40 0 (CX format: 1,08 0)

Aperture f/6.0 f/6.6

Mount Sleeve

Camera mount Nikon 1 mount

Exposure mode (camera setting) A (Apeture-Priority Auto) / M (Manual)

Specifications

Specifications

Exposure metering (camera setting) Centre-weighted metering

Length x diameter (mm) 121 x 69

Weight (g) 300

• Camera's autofocusing mode cannot be used. Focus manually using the focusing ring o f the MONARCH Fieldscope Objective Lens Unit.

• Camera's exposure meter activates even in Manual exposure mode.

• When used with an Advanced Camera with Interchangeable Lenses Nikon 1 series model, the picture angle is equivalent to approx. 2.7x focal
length of 35mm format.

• The camera display and image data show the const ant f-number (6.3) and fo cal length (540mm).

• Because the optical system characteristics differ from t hose of ordinary interchangeable lenses, the exposure level may var y depending on the
camera model; use exposure compensation if necessary.

3

*

3

*

35

3

*

3

*

*1 Calculated b ased on the ISO14132-1:2002 s tandard.
For det ail, see p 56.
*2 Without caps and e yecup.
*3 At lowest magnification.

Note: B ecause value s show n on the se char ts were
design ed valu es rounded up/down, c alculation of f igure s
may not m atch exact ly.

58

59

Fieldscopes

Specifications

Fieldscopes

Model name

Objective diameter (mm) 82 82 60 60 60 50 50

Leng th (mm)

Widt h (mm)

Weight (g)

*1 Body only (except PROSTAFF 3 Fieldscope). *2 For detailed specifi cations, see p 61.

1

*

1

*

1

*

PROSTAFF 5 Fieldscope 82

377 392 290 305 313 209 207

95 95 85 85 74 71 71

950 960 740 750 620 455 470

PROSTA FF 5 Fieldscope

82-A

PROSTAFF 5 Fieldscope 60

PROSTA FF 5 Fieldscope

60-A

PROSTAFF 3 Fieldscope

2

*

Fieldscope ED50 Fieldscope ED50 A

Eyepieces for PROSTAFF 5 Fieldscopes

Model name Magnification (x)

Angular field of view

(Real/degree)

Angular field of view

(Apparent/degree)

Field of view at 1,000m

*

(approx.)

SEP-25

With 60/60-A 20 2.8 51.3 48 3.0 9.0 17.6 135

With 82/82-A 25 2.2 51.3 38 3.3 10.9 17.6 135

SEP-38W

With 60/60-A 30 2.3 62.1 40 2.0 4.0 19.0 185

With 82/82-A 38 1.8 62.1 31 2.2 4.8 19.0 185

SEP-20-60

With 60/60-A 16-48 2.6 (a t 16x) 39.9 (at 16x) 45 (at 16x) 3.8 (at 16x) 14.4 (at 16x) 16.9 (at 16x) 225

With 82/82-A 20-60 2.1 (at 20x) 39.9 (at 20x) 36 (at 20x) 4.1 (at 20x) 16.8 (at 20x) 16.9 (at 20x) 225

* Appar ent field of view is calcul ated b ased o n the ISO14132-1:2002 s tandard. For details, see p 56 .

(m)

Exit pupil (mm) Relative brightness Eye relief (mm)

Weight

PROSTAFF 3 Fieldscopes

Model name Magnification (x)

Angular field of view

(Real/degree)

PROSTAFF 3 16-48 2.3 (at 16x) 35.6 (at 16x) 40 (at 16x) 3.8 (at 16x) 14.4 (at 16x) 19.0 (at 16x)

* Appar ent field of view is calcul ated b ased o n the ISO14132-1:2002 s tandard. For details, see p 56 .

Angular field of view

(Apparent/degree)

Field of view at 1,000m

*

(m)

(approx.)

Exit pupil (mm) Relative brightness Eye relief (mm)

Eyepieces for Fieldscope ED50/ED50 A

Model name Magnification (x)

13-3 0x /2 0-45x/25-56x MC zoom

13-40x/20-60x/25-75x MC II zoom

With ED50/ED50 A

1

*

2

*1*

13-30 3.0 (at 13x) 38.5 (at 13x) 52 (at 13x) 3.8 (at 13x) 14.4 (at 13x) 12.9 (at 13x) 100

13-40 3.0 (at 13x) 38.5 (at 13x) 52 (at 13x) 3.8 (at 13x) 14.4 (at 13x) 14.1 (at 13x) 150

Angular field of view

(Real/degree)

(g)

2

16x/24x/30x Wide DS

With ED50/ED50 A

27x/40x/50x Wide DS

With ED50/ED50 A

40x/60x/75x Wide DS

With ED50/ED50 A

*1 These eyepieces are not to be used for Fieldscope I series. *2 Turn-and-slide rubber eyecup. *3 Apparen t field of view is calculat ed based on th e ISO14132-1:2002 standar d. For de tails, se e p 56.

Note: All eyepieces can be used for Fieldscope II series, ED78 series,

*1*

*1*

*1*

16 4.5 64.3 79 3.1 9.6 18.7 170

2

27 2.7 64.3 47 1.9 3.6 17.8 180

2

40 1. 8 64 .3 31 1.3 1.7 17.0 190

series, ED

III

series and ED82 series.

III

Angular field of view

(Apparent/degree)

Field of view at 1,000m

3

*

(m) (appr ox.)

Exit pupil (mm) Relative brightness Eye relief (mm) Weight (g)

Specifications

Specifications

60

61

Specifications

Model name Laser 1000 A S L aser 12 00S COOL SHO T AS C OOL SHOT PROS TAFF 7 PROS TAF F 5 AC ULON Forest ry Pro

Measurement range 10-915m/11-1,000 yds. 10-1,100m/11-1,200 yds. 4.5-550m/5-600 yds. 10-550m/11-600 yds. 4.5-550m/5-600 yds. 10-550m/11-600 yds. 5-500 m/6-550 yds.

Actual Distance (upper 4-digit):

Distance display (Increment)

every 0.5m/yd. (shorter than 1,000m/yds.)

every 1m/yd. (1,000m/yds. and over)

Actual Distance (lower 3-digit):

every 1m/yd. (shorter than 1,000m/yds.)

Horizontal Distance (upper 4-digit):

every 0.2m/yd. (shorter than 1,000m/yds.)

every 1m/yd. (1,000m/yds. and over)

Height (lower 3-digit):

every 0.2m/yd. (shorter than ±100m/yds.)

every 1m/yd. (±100-999m/yds.)

Slope adjusted distance (Horizontal distance

±Height) (upper 4-digit):

every 0.2m/yd. (shorter than 1,000m/yds.)

every 1m/yd. (1,000m/yds. and over)

Every 0.5m/yd. (shorter than 1,000m/yds.)

Ever y 1m/yd. (1,00 0m/yds. and o ver)

Actual distance (upper 4-digit):

every 0.5m/yd.

Actual distance (lower 3-digit):

every 1m/yd.

Horizont al distance (upper 4-digit):

every 0.2m/yd.

Height (lower 3-digit):

every 0.2m/yd. (shorter than ±100m/yds.)

ever y 1m/yd. (±100m/yds. and over)

Slope adjusted distance (Horizontal distance

±Height) (upper 4-digit):

every 0.2m/yd.

Ever y 0.5m/yd. Every 0.1m/yd. Every 0.1m/yd. Every 1 m/yd.

Laser Rangefinders

Distance:10-500m/11-550 yds./33-999 ft.(*999 ft.:

304.5m/333 yds.) Angle: ±89°

[Internal Display]

Act (Ac tual Distance):

ever y 0.5m/yd., 1 ft. (shor ter than 100m/yds./ft.)

every 1m/yd./ft. (100m/yds./ft. and over)

Hor (Horizontal Dist ance) and Hgt (Height):

ever y 0.2m/yd., 0.5 f t. (shorter than 100m/yds./f t.)

every 1m/yd./ft. (100m/yds./ft. and over)

Ang (Angle):

every 0.1° (less than 10°)

every 1° (10° and over)

*Down ward angle from the horizontal line: with

display "-"

[External Display]

Act (Ac tual Distance): ever y 0.5m/yd., 1 f t.

Hor (Horizontal Dist ance) and Hgt (Height): every

0.2m/yd., 0.5 f t.

Ang (Angle): every 0.1°

Specifications

Magnification (x)

Effective objective diameter (mm)

Finder

Dimensions (LxHxW) (mm) 118 x 73 x 41 145 x 82 x 47 113 x 70 x 39 111 x 70 x 40 113 x 70 x 39 111 x 70 x 40 91 x 73 x 37 130 x 69 x 45

Weight (excluding battery) (g) 19 5 2 80 175 165 175 16 5 125 210

Power source

Safety Class 1M Laser Product (EN/IEC60825-1:2007)

EMC FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI class B FCC Part15 SubPartB class B, EU:EMC directive, AS/NZS, VCCI class B

Environment RoHS, WEEE RoHS, WEEE

The spe cifica tions of these produ cts may not be achieve d depen ding on the t arget ob ject’s sh ape, sur face texture and nat ure, and/or weather conditions.

Actual field of view (˚) 7. 5 5. 0 7.5 7.5 7.5 7.5 6 .0 6 .0

Exit pupil (mm) 3.5 3.6 3.5 3.5 3.5 3.5 3.3 3.5

Eye relief (mm) 18.3 18.6 18.3 18.3 18.3 18.3 16.7 18.2

6766 6666

21 25 21 21 21 21 20 21

CR2 lithium battery x 1 (DC 3V)

Auto power shutof f function e quipped (after about 8 sec.)

62

Class 1M Laser Product (EN/IEC60825-1:2007)

Class I Laser Product (FDA/21 CFR Part 1040.10:1985)

CR2 lithium battery x 1 (DC 3V)

Auto power shutof f function e quipped (after about 8 sec.)

Class 1M Laser Product (EN/IEC60825-1:2007)

Class I Laser Product (FDA/21 CFR Part 1040.10:1985)

The spe cifica tions of these produ cts may not be achieve d depen ding on the t arget ob ject’s sh ape, sur face texture and nat ure, and/or weather conditions.

63

CR2 lithium battery x 1 (DC3V)

Auto power shutoff function equipped (after 30 sec.)

Class 1M Laser product (EN/IEC60825-1:2007)

Nikon is constantly developing new ways to prevent environmental pollution and ensure a healthier ecosystem. Back in 1998, we introduced the Nikon Basic Policy for Green
Procurement, a diverse range of activities designed to reduce the environmental impact of our products. Under this policy, we employ materials, parts, and packaging items
produced with special concern for the environment.
In our Environmental Action Plan for Fiscal 2005, we established the goal of completely eliminating seven harmful substances — hexavalent chrome, lead, cadmium, mercury,
PBB, PBDE and polyvinyl chloride — from all Nikon consumer products by September 2005.
Nikon is also in full compliance with the EU's July 2006 RoHS (Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment) directive, as well
as other, newer EU regulations.
We are constantly reducing waste by implementing environmental policies that extend the life of our products and simplify repairs, while minimising energy consumption
through more effi cient use of power.
At Nikon, we're wholly committed to developing innovative and exciting eco-friendly products for our precious world.

Specifications and equipment are subject to change without any notice or obligation on the part of the manufacturer.
The colour of products in this brochure may differ from the actual products due to the colour of the printing ink used.
August 2013
©2013 NIKON VISION CO., LTD.

Printed with vegetable ink.

WARNING

Never look at the sun directly through optical equipment.
It may cause damage to or loss of eyesight.

Nikon Futaba Bldg., 3-25, Futaba 1-chome, Shinagawa-ku,
Tokyo 142-0043, Japan
Tel: [phone] Fax: [phone]

www.nikon.com/sportoptics

Printed in Japan

En

Code No. 3CE-BQYH-6(1308-15) K
