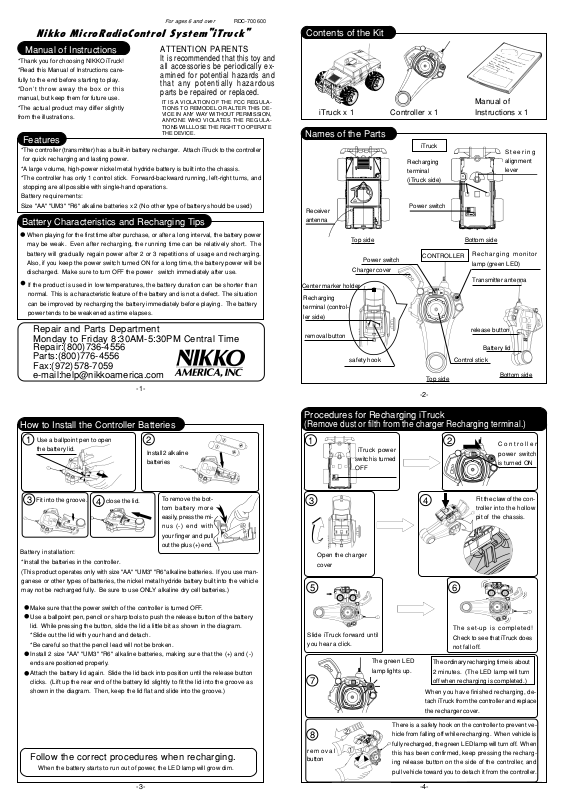

Nikko Co TP7570H, TP7570, RP7450H User Manual

For ages 6 and over

RDC-700600

Nikko MicroRadioControl System”iTruck”

Contents of the Kit

Manual of Instructions

*Thank you for choosing NIKKO iTruck!
*Read this Manual of Instructions care­fully to the end before starting to play.
*Don’t throw away the box or this
manual, but keep them for future use.
*The actual product may differ slightly
from the illustrations.

ATTENTION PARENTS
It is recommended that this toy and
all accessories be periodically ex­amined for potential hazards and
that any potentially hazardous
parts be repaired or replaced.

IT IS A VIOLATION OF THE FCC REGULA­TIONS TO REMODEL OR ALTER THIS DE­VICE IN ANY WAY WITHOUT PERMISSION,
ANYONE WHO VIOLATES THE REGULA­TIONS WILL LOSE THE RIGHT TO OPERATE
THE DEVICE.

Features

*The controller (transmitter) has a built-in battery recharger. Attach iTruck to the controller

for quick recharging and lasting power.
*A large volume, high-power nickel metal hydride battery is built into the chassis.
*The controller has only 1 control stick. Forward-backward running, left-right turns, and

stopping are all possible with single-hand operations.

Battery requirements:

Size "AA" "UM3" "R6" alkaline batteries x 2 (No other type of battery should be used)

Battery Characteristics and Recharging Tips

When playing for the first time after purchase, or after a long interval, the battery power
may be weak. Even after recharging, the running time can be relatively short. The
battery will gradually regain power after 2 or 3 repetitions of usage and recharging.
Also, if you keep the power switch turned ON for a long time, the battery power will be
discharged. Make sure to turn OFF the power switch immediately after use.

If the product is used in low temperatures, the battery duration can be shorter than
normal. This is a characteristic feature of the battery and is not a defect. The situation
can be improved by recharging the battery immediately before playing. The battery
power tends to be weakened as time elapses.

Repair and Parts Department
Monday to Friday 8:30AM-5:30PM Central Time

Repair:[phone]
Parts:[phone]
Fax:[phone]
e-mail:[e-mail]

-1-

iTruck x 1 Controller x 1

Names of the Parts

Receiver
antenna

Top side

Power switch

Charger cover

Center marker holder

Recharging
terminal (control­ler side)

removal button

safety hook

iTruck

Recharging
terminal
(iTruck side)

Power switch

CONTROLLER

Top side

-2-

Manual of
Instructions x 1

Steering
alignment
lever

Bottom side

Recharging monitor
lamp (green LED)

Transmitter antenna

release button

Battery lid

Control stick

Bottom side

How to Install the Controller Batteries

Use a ballpoint pen to open

1 2

the battery lid.

Fit into the groove.

3

Battery installation:

*Install the batteries in the controller.
(This product operates only with size "AA" "UM3" "R6"alkaline batteries. If you use man­ganese or other types of batteries, the nickel metal hydride battery built into the vehicle
may not be recharged fully. Be sure to use ONLY alkaline dry cell batteries.)

Make sure that the power switch of the controller is turned OFF.
Use a ballpoint pen, pencil or sharp tools to push the release button of the battery
lid. While pressing the button, slide the lid a little bit as shown in the diagram.
*Slide out the lid with your hand and detach.
*Be careful so that the pencil lead will not be broken.
Install 2 size "AA" "UM3" "R6" alkaline batteries, making sure that the (+) and (-)
ends are positioned properly.
Attach the battery lid again. Slide the lid back into position until the release button
clicks. (Lift up the rear end of the battery lid slightly to fit the lid into the groove as
shown in the diagram. Then, keep the lid flat and slide into the groove.)

close the lid.

4

Install 2 alkaline
batteries

To remove the bot­tom battery more
easily, press the mi­nus (-) end with
your finger and pull
out the plus (+) end.

Procedures for Recharging iTruck
(Remove dust or filth from the charger Recharging terminal.)

1 2

iTruck power
switch is turned
OFF

3 4

Open the charger
cover

Controller
power switch
is turned ON

Fit the claw of the con­troller into the hollow
pit of the chassis.

5 6

Slide iTruck forward until
you hear a click.

The green LED
lamp lights up.

7

When you have finished recharging, de­tach iTruck from the controller and replace
the recharger cover.

The set-up is completed!
Check to see that iTruck does
not fall off.

The ordinary recharging time is about
2 minutes. (The LED lamp will turn
off when recharging is completed.)

Follow the correct procedures when recharging.

When the battery starts to run out of power, the LED lamp will grow dim.

-3- -4-

8

removal
button

There is a safety hook on the controller to prevent ve­hicle from falling off while recharging. When vehicle is
fully recharged, the green LED lamp will turn off. When
this has been confirmed, keep pressing the recharg­ing release button on the side of the controller, and
pull vehicle toward you to detach it from the controller.

How to Operate

Turn the power switch ON.

First, turn ON the controller power switch, and then turn ON the iTruck power
switch.
Tilt the controller stick in the direction you wish to move iTruck, and it will start
moving.
If either the antenna on iTruck or the controller is bent, the radio waves will not
reach a long distance. Straighten them before playing. When you finish playing,
be sure to remove the batteries from the controller.

Controller operations and iTruck movements.

Steering Alignment

If iTruck does not move straight forward or straight
backward, try adjusting the steering alignment le­ver on the bottom side of iTruck. If the vehicle
tends to go to the right, move the alignment lever

Steering alignment lever

toward L. If the vehicle tends to go to the left,
move the lever toward R.

Extended Operating Time (follow-up recharging)

Recharge the battery once. Without using the
battery, recharge a second time. This ”follow-up
recharging” will lengthen the playing time.
Moreover, if you recharge the battery 3 times in a
row before use, the playing time will be extended
even more.
However, be careful NOT to recharge the battery
more than 3 times in a row.
Also, note that the battery duration differs depend­ing on how you play.

* Operation Techniques *

For smooth cornering, move the stick
slightly forward or reverse and then slide it
to the left or right.
This will enable
smooth left/right
turns. If you mas­ter this basic tech­nique, you will be
able to make a let­ter ”8” slalom, etc.
This cornering technique will enable the
user to operate iTruck on the table or in
other small places.

Features of the Controller

This controller enables single-hand
operation for all movements.
Therefore, you can do something
else while operating iTruck.

The position of the stick and

the direction of the vehicle.

Please note the following points when storing the product:

If you keep the product on some furniture, floor, etc., compounding agents from the tires
can cause color change and other damage to the surface on which the product is placed.
To prevent this, observe the following:
* When storing the product, don’t place it directly on furniture or the floor. Protect the

surface of the furniture, floor, etc. by placing a thick mat under the product.

Maintenance and Care

If the becomes dirty, use a slightly dampened cloth to wipe off the dirt and filth. Then use
a dry cloth to wipe of the moisture. You can also use a small brush to remove filth from
intricate parts.
To remove dust particles, tie a small bit of cloth to the tip of a toothpick, tweezers, etc. and
wipe off.

CAUTION!: BE SURE TO READ THE FOLLOWING PRECAUTIONS:

*DO NOT use chemicals. The body of the vehicle can melt and cause machine troubles.
*If you keep the vehicle in a place where the temperature is extremely hot or cold, or
where it is extremely humid (such as in a car or under direct sunlight), the vehicle can
be damaged and lead to machine troubles.
*Be sure to remove the batteries from the controller when storing the product away.
Keep this Manual of Instructions carefully for future use.

-5-

If there is anything wrong with the vehicle movements, check the following:

What’s
wrong?

The vehicle
doesn’t
move or it
malfunc­tions.

1 The power switch on vehicle is in

the OFF position.

2 The vehicle is too far away from

the controller.

3 The (+) and (-) poles of the batter-

ies of the controller are positioned
in the wrong direction.

4 The metal tab touching the con-

troller battery is rusted.

5 The metal recharging terminals

of the controller or boat may be
rusted.

6 Either the controller batteries or

vehicle battery lack power.

7 There is another radio control ve-

hicle using the same band being
operated nearby.

8 The antenna of the controller or

vehicle is bent.

Cause

Check and see

1 Turn ON the power switch on ve-

hicle .

2 Shorten the distance between the

controller and vehicle .

3 Install the batteries in the right di-

rection.

4 Use sandpaper to remove the rust.

5 Use sandpaper to remove the rust.

6 Either change the controller batter-

ies with new ones or recharge ve­hicle as necessary.

7 Play at a different time or in a dif-

ferent place.

8 Straighten the antenna.

CAUTION!

iTruck is operated by use of radio waves. If you operate iTruck where it can be affected
by other radio waves, the vehicle may not respond correctly to your operations, or start
to move even though you are not operating it. In such cases, the vehicle is not broken.
Operate your vehicle in a different place or at a different time.
*The kit contains very small parts . They can be dangerous if swallowed by mistake, so

keep them away from reach of children under 3 years old.
*Use ONLY size-"AA" "UM3" "R6" alkaline batteries for the vehicle. DO NOT use Ni-Cd

or other rechargeable batteries or manganese batteries.
*Be careful not to let your fingers, hair or clothes get caught in the tire. (DO NOT turn

the power switch ON while the vehicle is still in your hands.)
<If the alkaline batteries are used improperly, they may become heated, explode, ignite,

leak, etc. Observe the following points and the warnings in the manual of instruc-

tions.>

-7- -8-

-6-

*Make sure that the + and - poles of the batteries are positioned properly.
*Avoid mixed use of old and new batteries, or mixed use of different types of batteries.
*When you finish playing, be sure to turn the power switch OFF and remove all the batteries.
*DO NOT let the batteries get wet and cause short-circuits. DO NOT take the batteries

apart, heat them, or throw them into a fire.

*The Manual of Instructions will be necessary if you forget the operation methods or the

caution points, so DO NOT throw it away. Keep it with you.

English/Français

THE RBRCTMSeal on the nickel cadmium battery
pack

participating in an industry program to collect and
recycle these batteries at the end of their useful life.
The RBRC program provides a convenient alternative

or municipal waste stream,which is illegal in some areas.
Nikko America's payments to RBRC makes it easy for you to drop
off the spent battery pack at local retailers who sell replacement
nickel-cadmium batteries.
You may also contact your local recycling center for information on
where to return the spent battery pack.RBRC is a trademark of the
Rechargeable Battery Recycling Corporation.

THE FCC WANTS YOU KNOW
This device complies with part 15 of the FCC Rules, Operation is sub­ject to the following two conditions:
(1)This device may not cause harmful interference.
(2)This device must accept any interference received,including interfer­ence that may cause undesired operation.
Your R/C vehicle might cause TV or radio interference even when it is
operating properly.
To determine whether your R/C vehicle is causing the interference, turn
off your R/C vehicle.
If the interference goes away,your R/C vehicle is causing the interfer­ence. Try to eliminate the interference by:

Moving your R/C vehicle away from the receiver.




Contacting your local store for help.

If you cannot eliminate the interference, the FCC requires that you
stop using your R/C vehicle.

to disposing nickel-cadmium batteries into the trash

indicates that NikkoAmerica is voluntarily

P_No.R700600NC030530
