1/10 SCALE
Household
outlet
Ni-Cd battery pack
OR
Charger
Household
outlet
Charger
Ni-Cd battery pack
Owner's Manual
PRINTED IN CHINA
Repair and Parts Department
Mo nday to Friday 8:30 AM -5:30PM
Central Time
Repair :(800)736-4556
Parts :(800)776-4556
Fax :(972)578-7059
e-mail :help@nikkoamerica.com
© NIKKO
CAUTION: ELECTRIC TOY
NOT RECOMMENDED FOR CHILDREN
UNDER 8 YEARS OF AGE. AS WITH
ALL ELE CTR IC P ROD UCT S, P RE
CAUTIONS SHOULD BE OBSERVED
DUR ING HAN DLI NG A ND U SE T O
PREVENT ELECTRIC SHOCK.
INPUT: 120VAC, 60HZ,
OUTPUT: 12VDC, 200mA
-
* Recharge the Battery
Before
You Start to Operate
* Read this Manual carefully to the end before beginning to play.
* WARNING! Use under the direct supervision of an adult.
* Keep the Display Box and Manual for future reference.
* Use Ni-Cd battery pack(9.6V) and charger for this model.
* Actual product may vary from illustration of this manual.
FEATURES
• 3 channel Full Function
--- Forward,Reverse, Left/Right turn and Stop
• 3 Band Sector Switch
• 2 Speed in Forward
2 Speed by Transmitter Operation
• Front & Rear Suspension
• Rear Wheel Different Gear
• Head Light
• Spinner Wheel
RECHARGING
* The newly purchased Ni-Cd pack is not
charged. Recharge before operate.
1. Join the connector of the charger to the
connector of the Ni-Cd battery pack (9.6 V).
2. Plug the charger into an electrical outlet.
3. Recharge for about 4-5 hours.
4. When the recharging is over, plug out the
charger from the electrical outlet and
detach the connectors.
ATTENTION PARENTS
I
t is recommended that this toy and all
accessories be periodically examined
for potential hazards and that any po
tential hazardous parts be repaired or
replaced.
BATTERY REQUIREMENTS
(Not included)
Vehicle: 1 x Ni-Cd or
NI-MH rechargeable
battery pack(9.6V)
Transmitter:1 x 9V(006P)battery
-
1
CAUTION:
* Do not charge Battery Pack immediately after use. Wait until it is cooled before charging.
* Avoid short circuits. Short circuits will cause overheating, burning of the cords and other
damages to the Battery Pack and Charger.
* The Ni-Cd Battery Charger should be used for charging one Battery Pack. Do not use the
charger for charging other types of batteries and battery packs.
* Do not use the Charger as a direct current outlet for other electrical appliances or machines.
* Make sure that the Battery Pack and Charger are kept out of the hands of infants and small
children while charging.
* Do not charge near fires, where the temperature is extremely high, or where it is wet or damp.
* The charger will become slightly heated while charging. Allow sufficient free space around
the Charger.
* If the power of the battery pack is weak in spite of proper charging. The batteries may be worn
out from repeated use. Replace it with a new Ni-Cd battery pack.
* Dispose of use Ni-Cd battery packs correctly.
* Disconnect the supply before making or breaking connections to the battery.
* WARNING AGAINST RECHARGING NON-RECHARGEABLE BATTERIES.
* Please use this battery charger only for the charger of the rechargeable battery pack.
* The Ni-Cd battery pack should be recharged under the supervision of an adult.
PREPARATION FOR STARTING OPERATION
1. HOW TO ATTACH ANTENNA TUBE
Antenna wire
Antenna tube
holder
Antenna Tube
Pass the antenna wire through the antenna tube, then insert the tube into the
antenna tube holder.
If the antenna tube cannot be successfully
inserted into the antenna tube holder, try
holding the root of the antenna wire with
fingers of one hand and extending the
wire with fingers of the other hand.
* Note: Be careful not to pull antenna wire
too strong.
Spinner Wheels
2. HOW TO INSTALL TRANSMITTER ANTENNA
Place the transmitter antenna into the antenna
hold e r to s crew i t in
clockwise.
Don’t install the antenna extended.
It’s dangerous.
If the antenna is not screwed in securely,
the vehicle may move erratically. Screw the
antenna securely.
2
3. HOW TO INSTALL THE BATTERY
Transmitter
One 9 volt (006P) battery
To remove the battery lid, press the point
marked “OPEN” and pull the lid down
ward.
Vehicle
Use a coin to turn the battery stopper to
1
the "OPEN" position.
Let the battery compa rtment lid slide
2
forward a little with a pressure on to the
latch.
When installing a Ni-Cd battery pack,
make sure that the power switch of the vehicle is OFF.
Install battery making sure that (+) and (-) poles
-
* Dispose the used battery separately from other trash.
are positioned properly.
Battery stopper
Battery compartment lid
Ni-Cd Battery pack (9.6 V)
Join the connectors of the vehicle and
3
the Ni-Cd battery pack.
Battery compartment
Fit the Ni-Cd battery pack into the
4 5
battery compartment of your vehicle
and push in all the way.
3
Press down the battery compartment lid
when Use a coin to turn the battery
stopper.
When you connect the connectors make certain the vehicle switch is in
the "OFF" position.
Set connectors properly. ( The connectors are designed to be
connected in only one way so that the positive (+) and the negative (-)
terminals are connected accurately. )
Disconnect the connectors immediately after a run.
When you disconnect the connectors, don't pull by the cords.
Avoid short circuits because it is very dangerous.
Remove all the batteries both from the vehicle and the transmitter after
a run.

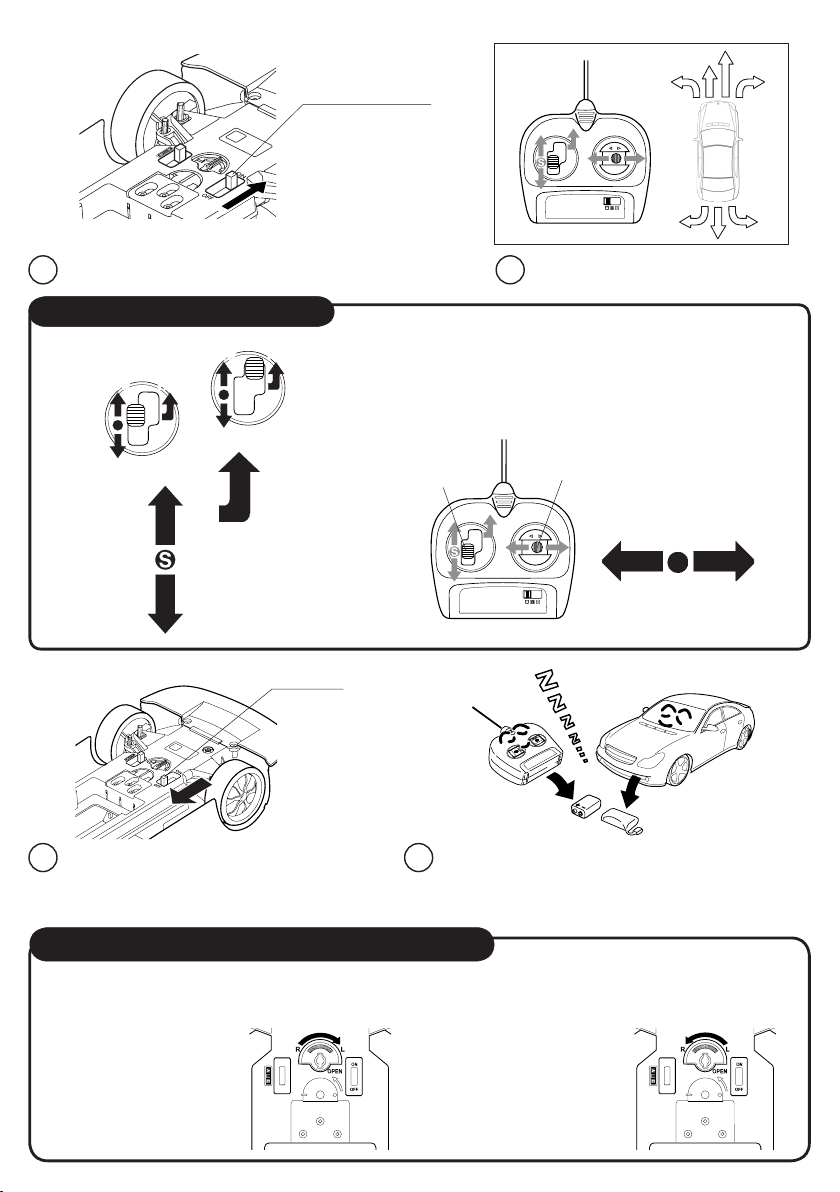

HOW TO PLAY
Vehicle's Connector
Battery's Connector
Band selector switch on transmitter.
Ensure that band selector switch on transmitter and vehicle are set to the same letter
1
Band selector switch on vehicle chassis.
- A, B or C.
Race 6 cars at once!
3 channels for each frequency, 27MHz, 49MHz, allows up to 6 cars to race at once.
27MHz 49MHz
Extend the transmitter antenna.
2
* You can control the vehicle at a longer distance
by holding the transmitter higher with the an
tenna straight up.
3
Turn on the transmitter by operating the
control stick.
4
power switch
Turn ON the power switch of the vehicle.
4
FORWARD RUNNING
Low High
Low High
HIGH SPEED
LOW SPEED
FORWARD
STOP
(NEUTRAL)
REVERSE
Power switch
Start operation.
5
You can enjoy the excitement of 2 stages of speed from
LOW to HIGH speed forward running by operating the
speed control stick.
Forward/Reverse
control stick
Steering control stick
LEFT/STRAIGHT/RIGHT
To prevent damage from battery leakage,
Turn OFF the vehicle after playing.
76
remove all the batteries from transmitter
and vehicle after playing.
TO ADJUST STEERING ALIGNMENT
Adjust the steering alignment when the vehicle does not run straight forward.
Tur n t h e stee r i n g
a l i g nm e n t l e v e r
towa r d s “L” i f t he
vehicle runs towards
right.
Tur n t h e s t e ering
a l i g n m e n t l e v e r
towa r ds “R ” if t h e
vehicle runs towards
left.
5
Drift driving technique
Drift is a driving technique to make a
car slips and swings in a corner.
How to play
Replace the rear wheels or four wheels with drift tires.
Drift tires are installed on the rear
wheels only
Recommended place to play
Slippery road
(P-tiles, wooden floor, concrete)
Note:
Drift might not happen depending on road
conditions.
Drift tires are installed on the front
and rear wheels
Image of drift
At the
fastest speed
6
How to install drift tires
<Names of parts>
Pay attention to the forward
direction when you install the
pattern tires.
FORWARD
Wheel
Drift tire
1
Spinner wheel
Slots for the
wheel wrench
Turn the wheel wrench counterclockwise
3
until it "clicks".
Front tire
Wheel cap
Wheel
wrench
Rear tire
Holding the tire not to move, insert the
2
wheel wrench and turn, and remove the
wheel cap. Do the same when reinstalling
the wheel cap.
Push the wheel wrench counterclockwise
4
a little harder and pull the wheeel cap to
remove.
Pull out the original tire and install the drift
5
tire. After that, put back the wheel cap.
Push the wheel cap into the inner part
until the nail of the wheel cap and the
cut of the wheel are brought together.
* Push a little harder counterclockwise
as illustrated, because it would be
difficult to pull it out straight.
Turn the wheel wrench clockwise until it
6
"clicks." This completes the work.
7
OPERATING SAFETY RULES
Select a SAFE place to operate your vehicle. Do not drive in the street. Avoid driving on SAND or through
puddles of WATER. These hazards can impair performance. Check the surface ahead of you and watch for
obstacles.
The radio receiver in your vehicle and transmitter are sensitive instruments. Do not leave Vehicle or Transmit
ter near sources of HEAT or under DIRECT SUNLIGHT for long periods of time.
Avoid leaving Vehicle or Transmitter OUTSIDE OVERNIGHT. NIGHT DAMPNESS IS HARMFUL TO INTE
RIOR MECHANISM.
Cleaning and maintenance:
This toy vehicle needs periodic maintenance and cleaning.
Warning to the parents:
The charger for the Ni-Cd battery pack needs periodic inspection to see that the lead wires, plugs,
outer case, and other parts are not damaged in any way. If any of the parts are damaged, do not use
the charger until it is completely repaired.
Caution:
Keep out of reach of small children under 36 months old as there is danger of getting hurt.
CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE
*
MANUFACTURER FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY
TO OPERATE THE EQUIPMENT.
RADIO INTERFERENCE:
caused by high tension wires, high voltage transformers, certain types of building, concreate walls or narrow
places where RADIO SIGNALS sent from your transmitter MAY BE SCATTERED thus making it DIFFICULT
for your vehicle to receive a GOOD RADIO SIGNAL. If you encounter this type of behavior or loss of control,
CHANGE TO A DIFFERENT LOCATION.
You will encounter INTERFERENCE if ANOTHER radio controlled vehicle or CB radio is operating in the vicin
ity on your SAME FREQUENCY.
Sometimes erratic behavior or loss of control of vehicle is the result of interference
DO NOT operate your vehicle on thick-piled carpets. It can be dangerous since the carpet
fiber may twine round a shaft and cause a motor overheated.
-
-
-
THE RBRCTMSeal on the nickel cadmium battery pack
indicates that NikkoAmerica is voluntarily participating in an industry program
to collect and recycle these batteries at the end of their useful life. The RBRC
program provides a convenient alternative to disposing nickel-cadmium batteries
into the trash or municipal waste stream, which is illegal in some areas.
Nikko America's payments to RBRC makes it easy for you to drop off the spent
battery pack at local retailers who sell replacement nickel-cadmium batteries.
You may also contact your local recycling center for information on where to return
the spent battery pack.
RBRC is a trademark of the Rechargeable Battery Recycling Corporation.
THE FCC WANTS YOU KNOW
This device complies with part 15 of the FCC Rules, Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Your R/C car might cause TV or radio interference even when it is operating properly.
To determine whether your R/C car is causing the interference, turn off your R/C car.
If the interference goes away, your R/C car is causing the interference.
Try to eliminate the interference by:
*
Moving your R/C car away from the receiver.
*
Contacting your local store for help.
If you cannot eliminate the interference, the FCC requires that you stop using your R/C car.
