1. Slide ON/OFF on bottom of chassis to ON.
2. Use the transmitter’s control levers to steer
your vehicle, as shown at left.
3. Slide ON/OFF on the vehicle to OFF when you
nish driving.
Wheel Alignment
If your vehicle does not drive in a straight
line when you release the right stick,
adjust WHEEL ALIGNMENT on bottom of
chassis. Push to L if the vehicle is pulling
to the right or to R if the vehicle is pulling
to the left.
driving your vehicle
Please read this user’s guide before
installing, setting up and using your new product
www.radioshack.com
Actual product may vary from the images found in this document.
60-4456

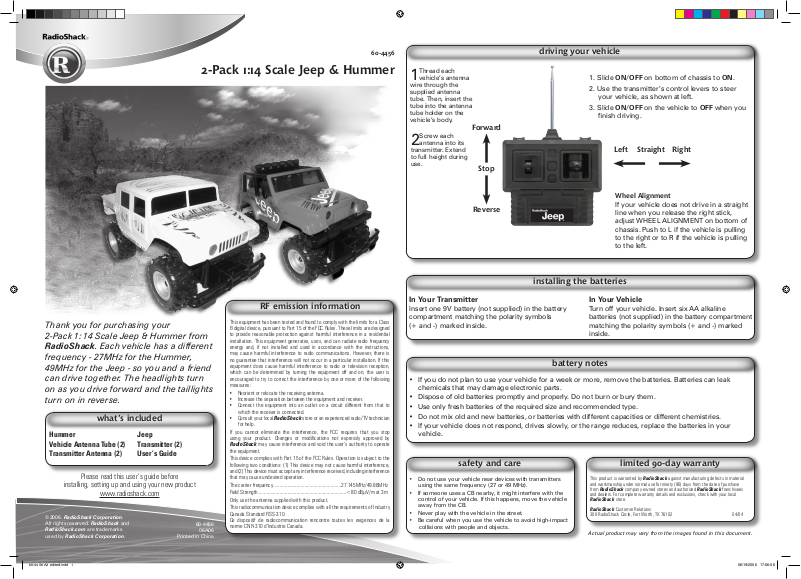

2-Pack 1:14 Scale Jeep & Hummer
©2006. RadioShack Corporation.
All rights reserved. RadioShack and
RadioShack.com are trademarks
used by RadioShack Corporation.
60-4456
06A06
Printed in China
Hummer Jeep
Vehicle Antenna Tube (2) Transmitter (2)
Transmitter Antenna (2) User’s Guide
Thank you for purchasing your
2-Pack 1:14 Scale Jeep & Hummer from
RadioShack. Each vehicle has a different
frequency - 27MHz for the Hummer,
49MHz for the Jeep - so you and a friend
can drive together. The headlights turn
on as you drive forward and the taillights
turn on in reverse.
what’s included
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult your local RadioShack store or an experienced radio/TV technician
for help.
If you cannot eliminate the interference, the FCC requires that you stop
using your product. Changes or modications not expressly approved by
RadioShack may cause interference and void the user’s authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) This device must accept any interference received, including interference
that may cause undesired operation.
The carrier frequency ....................................................27.145MHz/49.86MHz
Field Strength ...................................................................<80 dBµV/m at 3m
Only use the antenna supplied with this product.
This radiocommunication device complies with all the requirements of Industry
Canada Standard RSS-310.
Ce dispositif de radiocommunication rencontre toutes les exigences de la
norme CNR-310 d’Industrie Canada.
This product is warranted by RadioShack against manufacturing defects in material
and workmanship under normal use for ninety (90) days from the date of purchase
from RadioShack company-owned stores and authorized RadioShack franchisees
and dealers. For complete warranty details and exclusions, check with your local
RadioShack store.
RadioShack Customer Relations
300 RadioShack Circle, Fort Worth, TX 76102 04/04
RF emission information
limited 90-day warranty
• Do not use your vehicle near devices with transmitters
using the same frequency (27 or 49 MHz).
• If someone uses a CB nearby, it might interfere with the
control of your vehicle. If this happens, move the vehicle
away from the CB.
• Never play with the vehicle in the street.
• Be careful when you use the vehicle to avoid high-impact
collisions with people and objects.
safety and care
In Your Transmitter
Insert one 9V battery (not supplied) in the battery
compartment matching the polarity symbols
(+ and -) marked inside.
In Your Vehicle
Turn off your vehicle. Insert six AA alkaline
batteries (not supplied) in the battery compartment
matching the polarity symbols (+ and -) marked
inside.
• If you do not plan to use your vehicle for a week or more, remove the batteries. Batteries can leak
chemicals that may damage electronic parts.
• Dispose of old batteries promptly and properly. Do not burn or bury them.
• Use only fresh batteries of the required size and recommended type.
• Do not mix old and new batteries, or batteries with different capacities or different chemistries.
• If your vehicle does not respond, drives slowly, or the range reduces, replace the batteries in your
vehicle.
battery notes
installing the batteries
2
Screw each
antenna into its
transmitter. Extend
to full height during
use.
Left Straight Right
Forward
Stop
Reverse
1
Thread each
vehicle’s antenna
wire through the
supplied antenna
tube. Then, insert the
tube into the antenna
tube holder on the
vehicle’s body.
60-4456 A3 edited.indd 1 06/19/2006 17:06:06
