User Manual
4.3” Touch Screen Digital TV
Order Code : A59KB
2
Table of Contents
Precaution........................................................................................... 3
I. Getting Started............................................................................... 4
I.1.Supplied Accessories ....................................................................... 4
I.2.Parts and Controls........................................................................... 4
II. Start by Menu ................................................................................ 6
III. Quick Guide for First-time User ......................................................... 7
III.1. General Start............................................................................. 7
III.2. DVB-T TV Watching..................................................................... 7
III.3. TV Recording ............................................................................. 9
III.4. DVB-T Radio Listening................................................................10
III.5. Music Listening .........................................................................12
III.6. Recorded TV Watching ...............................................................14
III.7. Recording Schedule ...................................................................15
IV. Technical Settings ..........................................................................19
IV.1. System Settings........................................................................19

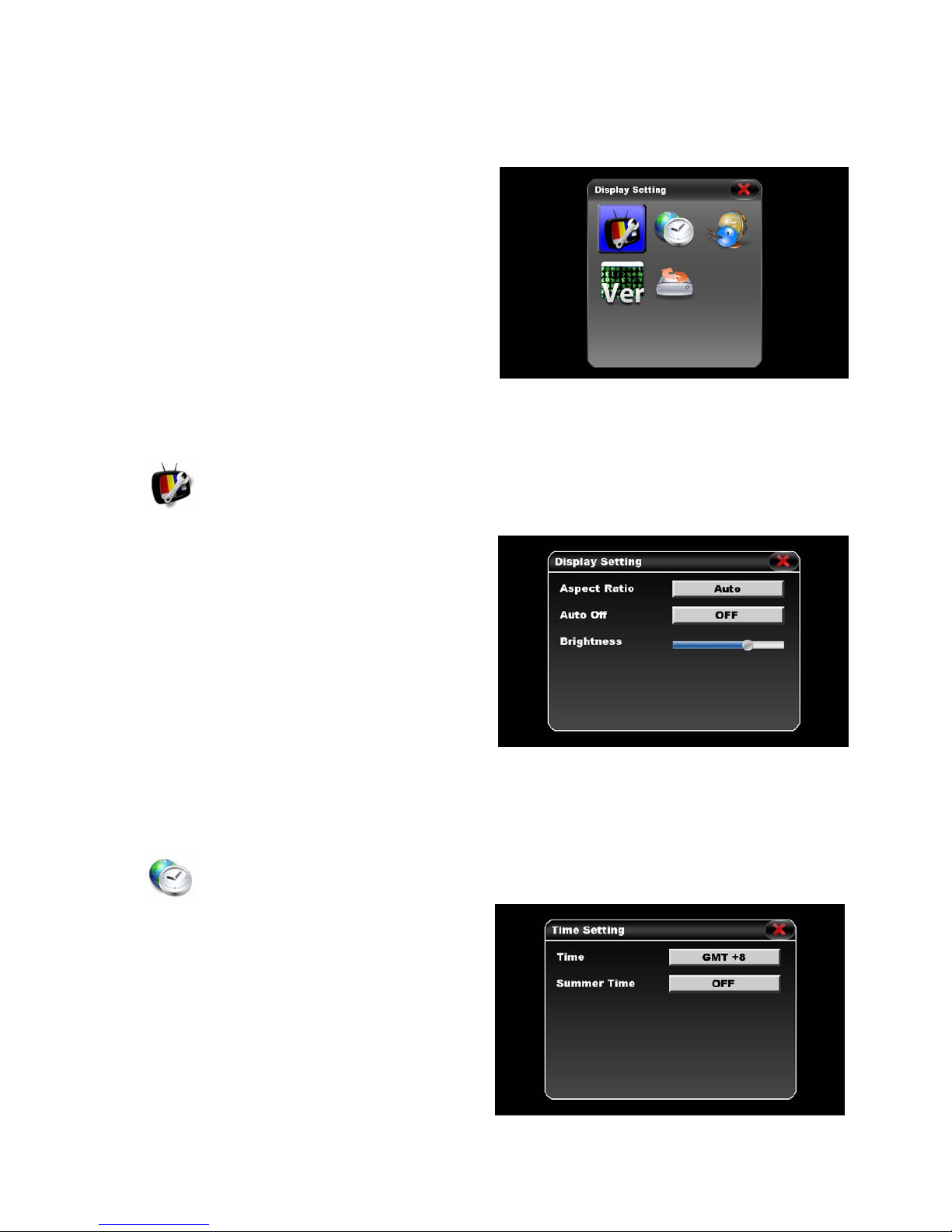

IV.1.1. Display Setting .........................................................................19
IV.1.2. Time Setting.............................................................................19
IV.1.3. Region & Language....................................................................20
IV.1.4. Software Version and Upgrade ....................................................20

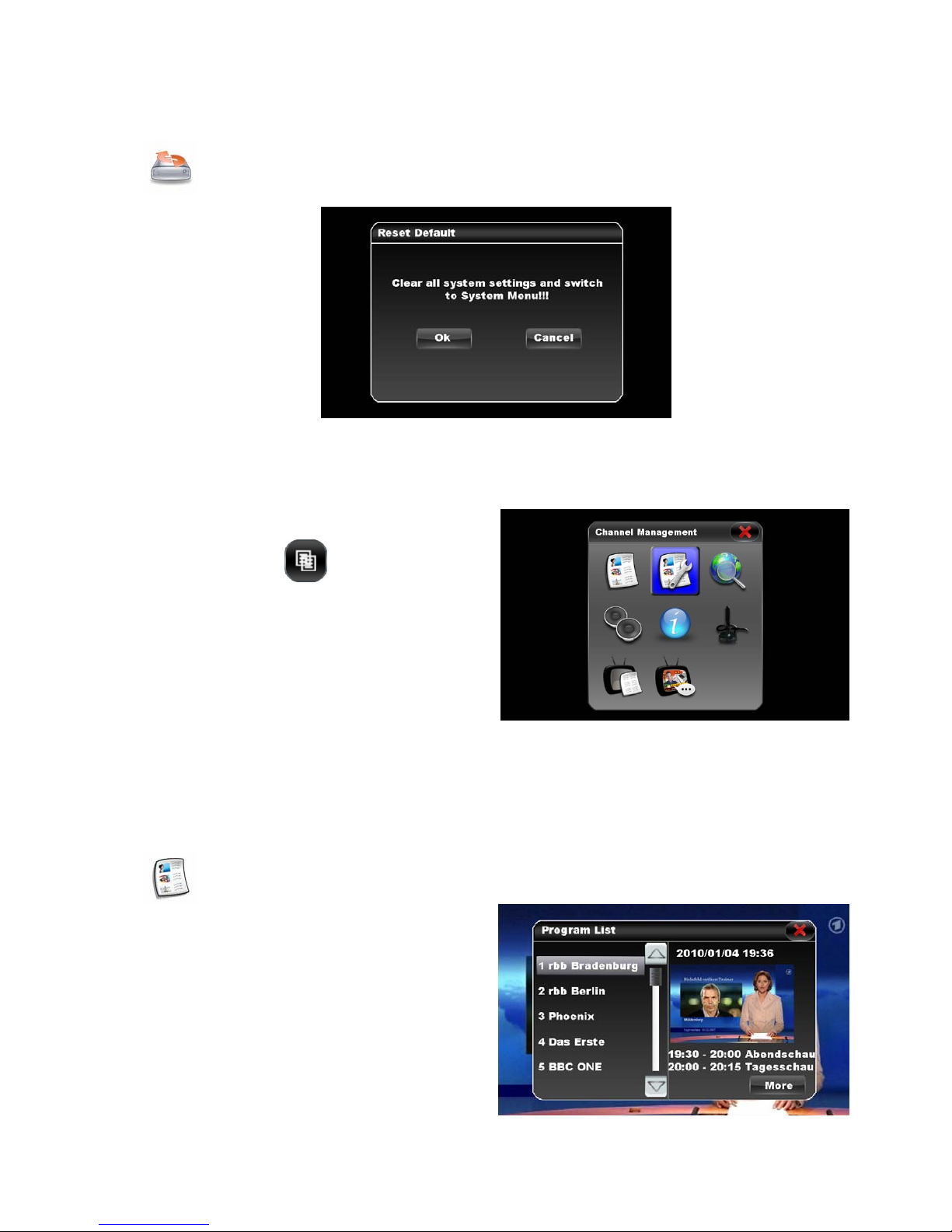

IV.1.5. Reset Default............................................................................21
IV.2. DVB-T TV/Radio Menu ................................................................21
IV.2.1. Program List.............................................................................21

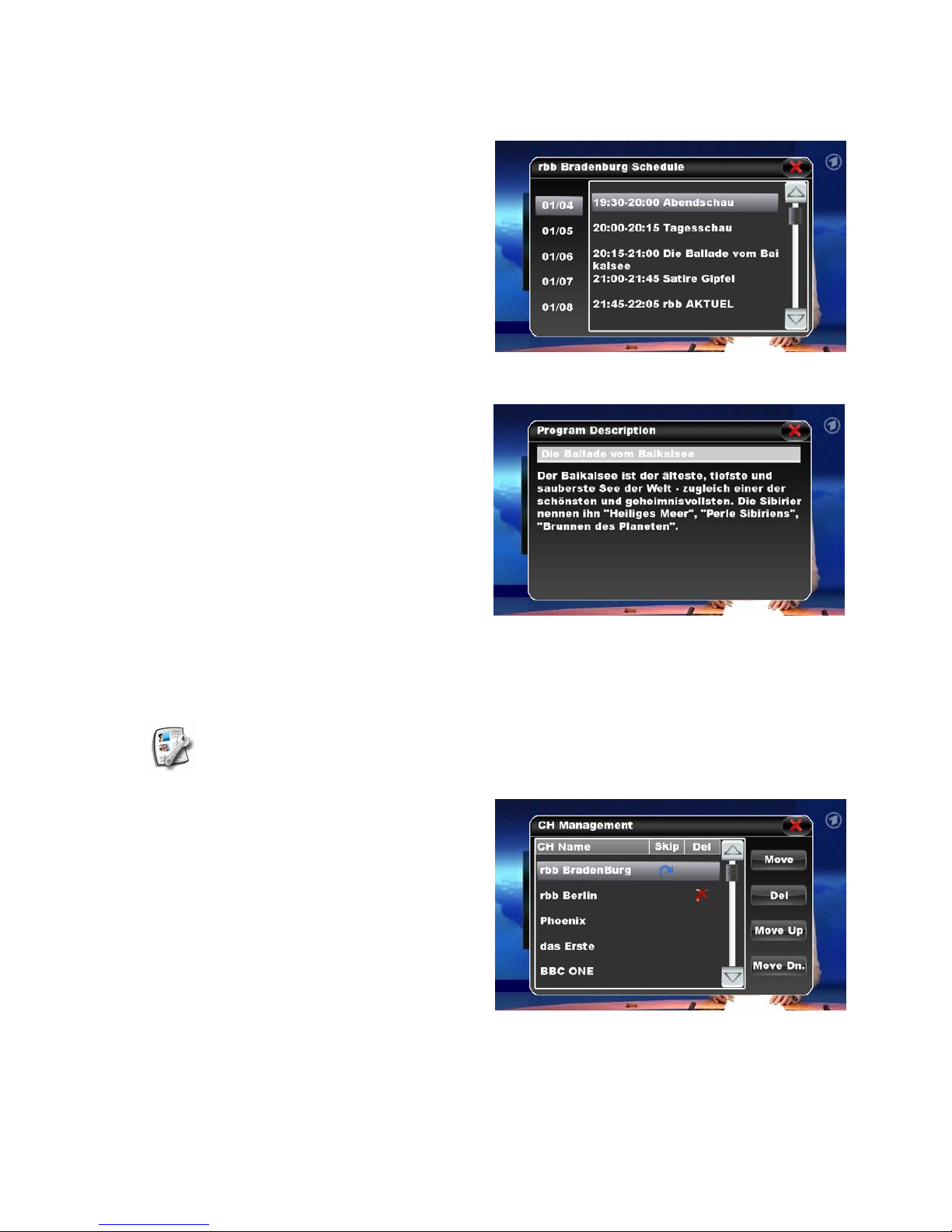

IV.2.2. Channel Management ................................................................22

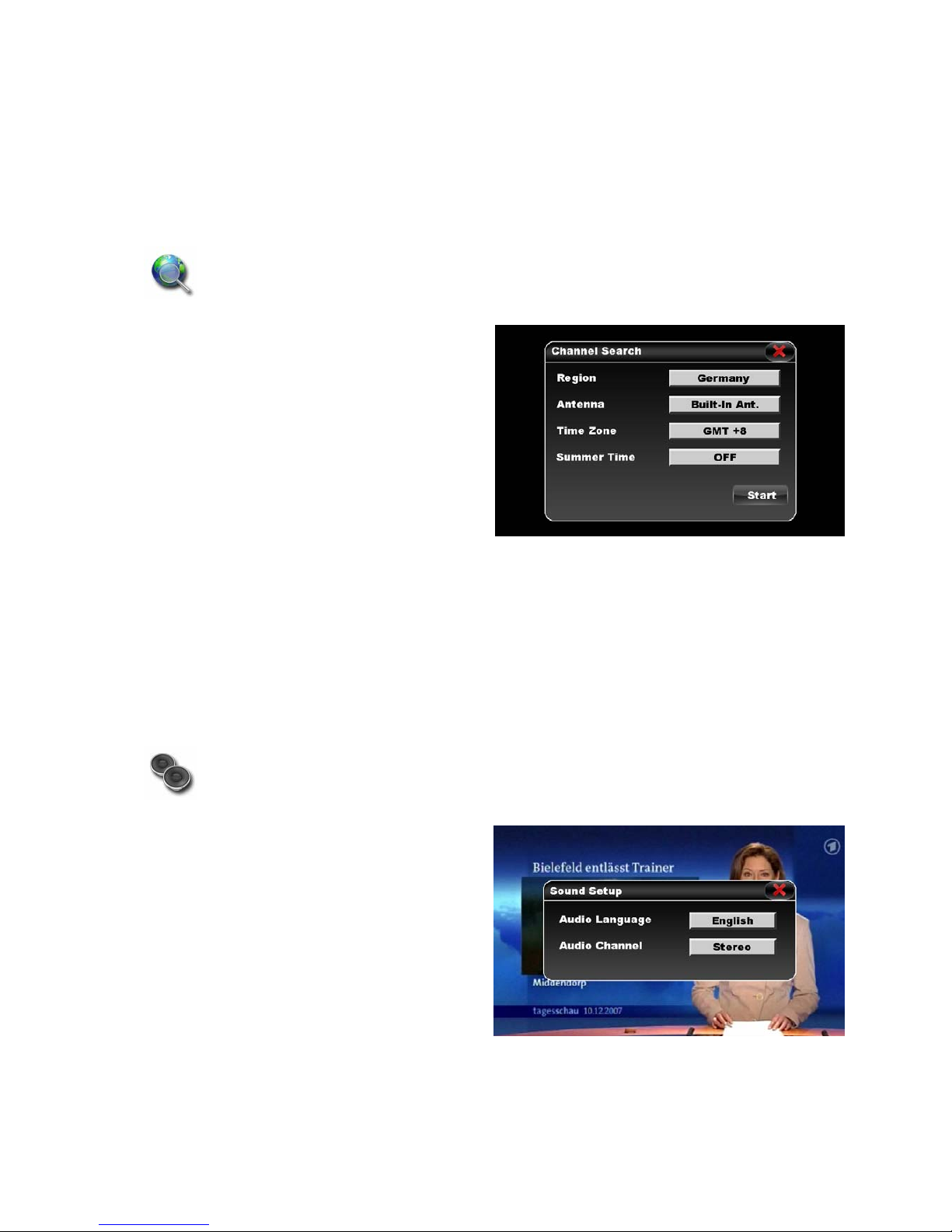

IV.2.3. Channel Search.........................................................................23
IV.2.4. Audio Settings ..........................................................................23

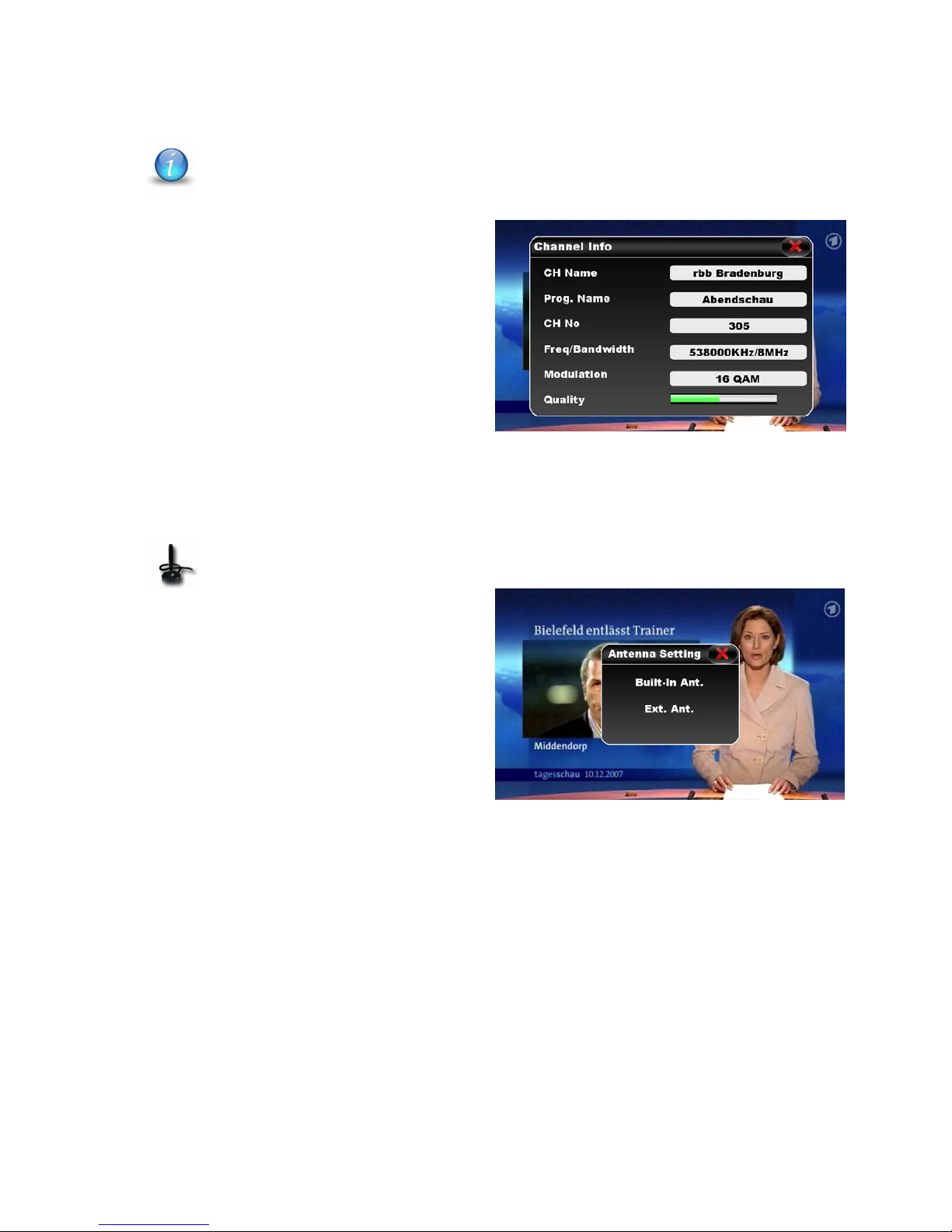

IV.2.5. Channel Information ..................................................................24
IV.2.6. Antenna Selection .....................................................................24

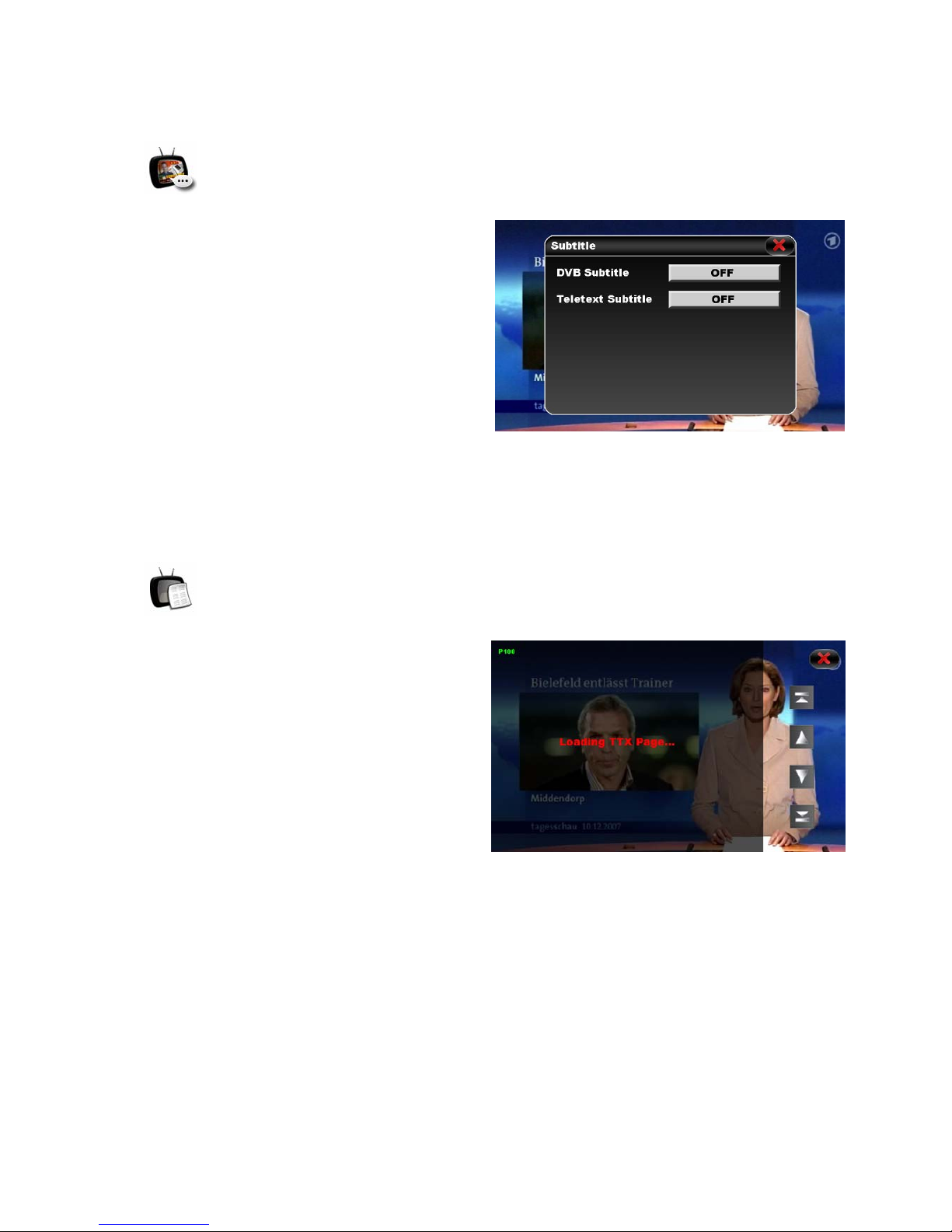

IV.2.7. Subtitle....................................................................................25
IV.2.8. Teletext ...................................................................................25
V. Trouble Shooting Q&A.....................................................................26
VI. Specification .................................................................................27
3
Precaution
On Safety
z Do not use wet hands to pull out the plug. It may cause electrical shock.
z If the player does not work, please pull out the plug for safety. Contact us for further
technical support.
z Before moving the player, please make sure the power adapter is disconnected from the
wall outlet.
z Should any solid object or liquid fall into the cabinet, unplug the player and have it
checked by qualified personnel before operating it any further.
z If you are not going to use the player for a long while, be sure to disconnect the player
from the wall outlet. To disconnect the power adapter, grasp the plug itself; never pull
the cord.
On Placement
z Please keep a sufficient distance between the player and a radio set. A sufficient
distance is also needed between the player and any other devices with electromagnetic
field.
z Do not place the player in a location near heat sources, or in places subject to direct
sunlight, excessive dust, or mechanical shock.
z Do not place the player in a location exposed to cool air. Condensation may occur and
cause the player work incorrectly.
On Operation
z The player may not work because of improper operation. The limited warranty does not
cover consequent losses that rise from improper usage.
z
The player will not work correctly when affected by exterior elements such as
static electricity. In such cases, pull out the power adapter and plug it back to
the outlet again.
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or
general waste. It should be handed over to the applicable collection point for the
recycling of electrical and electronics equipment, or returned to the supplier for disposal.
Internal/Supplied Batteries
This symbol on the battery indicates that the battery is to be collected separately. This
battery is designed for separate collection at an appropriate collection point.
4
Getting Started
I.1. Supplied Accessories
Please check the following accessories are included in the package:
○ Power Adapter x 1
○ Portable Antenna x 1
○ Pouch x 1
○ IEC to MCX Adaptor

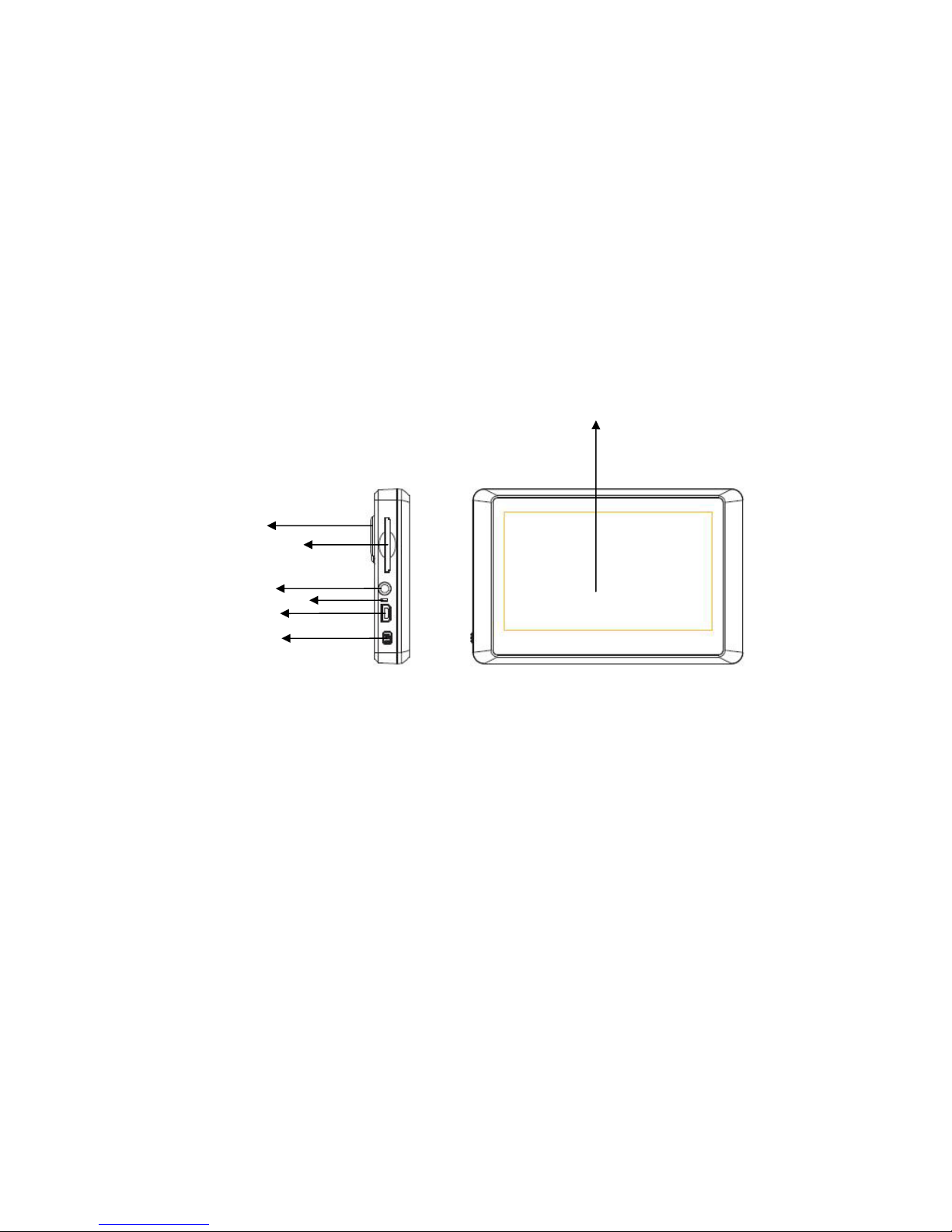

I.2. Parts and Controls
Front Side
[1] LCD Panel
[2] Speaker
[3] SD Card slot
[4] Earphone
[5] Power Indicator
[6] DC Power In
[7] Power Switch
Note:
1. Power Indicator:
Device power on : Charging Æ Purple ; Charge Done Æ Blue
Device power off : Charging Æ Red ; Charge Done Æ Off
1
2
3
4
5
6
7
5

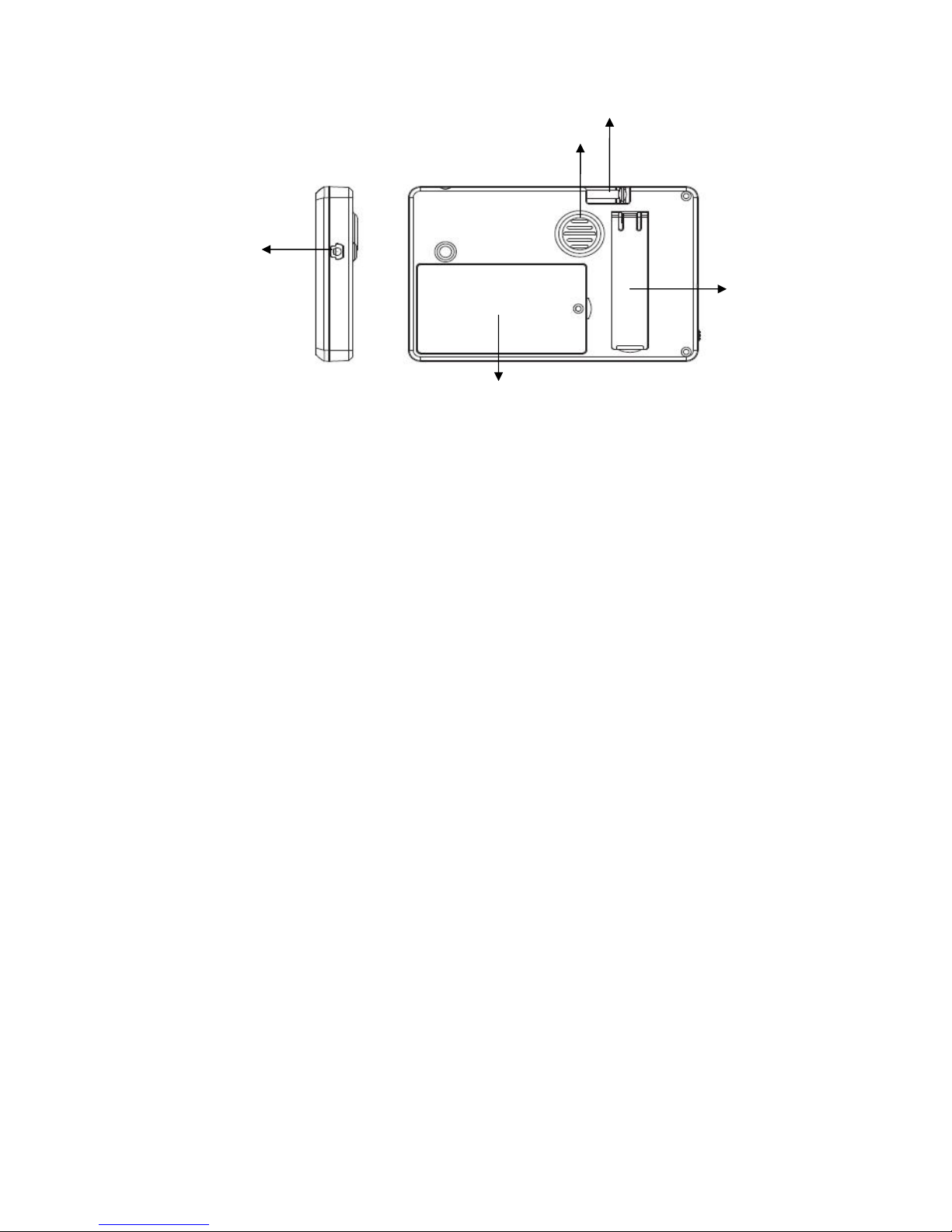

Rear Side
[1] Built-in Antenna
[2] Speaker
[3] Back Holder
[4] Battery
[5] Portable Antenna Connector
1
2
3
4
5
6

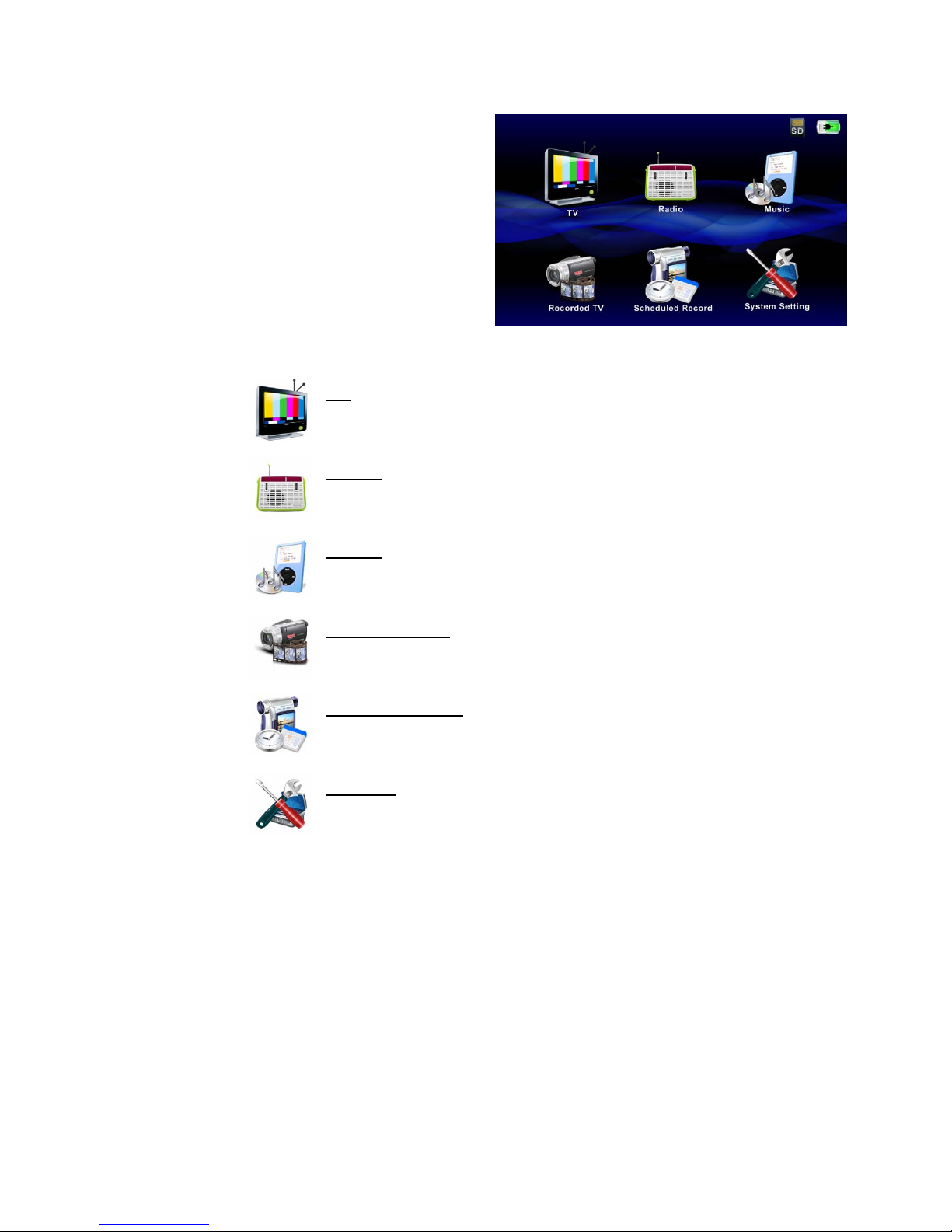

II. Start by Menu
This is the home menu screen. You can
highlight the DVB-T TV mode, the
DVB-T Radio, the Recorded TV
Playback mode, the Music Playback
mode, the Schedule Recording mode
and the System Settings.
TV
To enter DVB-T TV mode
Radio
To enter DVB-T Radio mode
Music
To enter audio playback mode
Recorded TV
To enter recorded TV playback mode
Schedule Rec.
To edit recording schedule
Setting
To configure the system setting
7
III. Quick Guide for First-time User
III.1. General Start
Step 1: Charging the device:
1. Connect the power adapter to the DC power-in jack.
2. The charging indicator will be turned on as RED light.
3. After the battery is full, the charging indicator will be changed to BLUE
light. (It takes around 4 hours to recharge an empty battery into full
state)
4. You can now unplug the power adapter from the device.
Step 2: Power on the unit
(Power switch is on the bottom left side of the unit)
Step 3: Enter the available mode (DVB-T TV, DVB-T Radio, Music, Recorded TV,
Schedule Recording) by pressing the icons.
III.2. DVB-T TV Watching
Step 1: Entering DVB-T TV
1. On Home page, press icon by pressing your finger directly on
the icon.
Step 2: Channel scanning

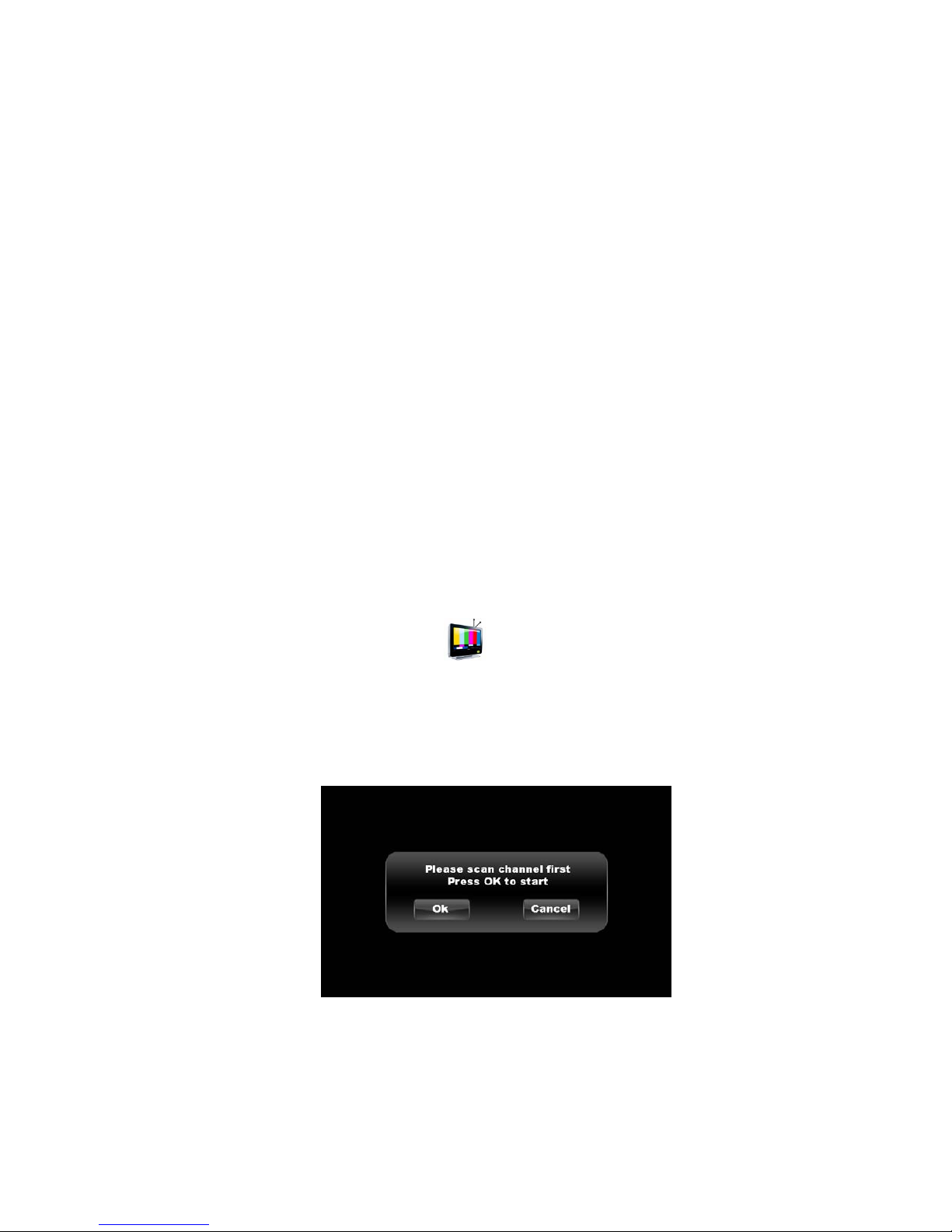

1. Upon the first time usage, a “Setup Wizard” will appear as bellow:
2. Press [OK] to start “Channel Search”.
3. Select your located region and the correct antenna option.
4. Press the [Start] button to start the searching.
8

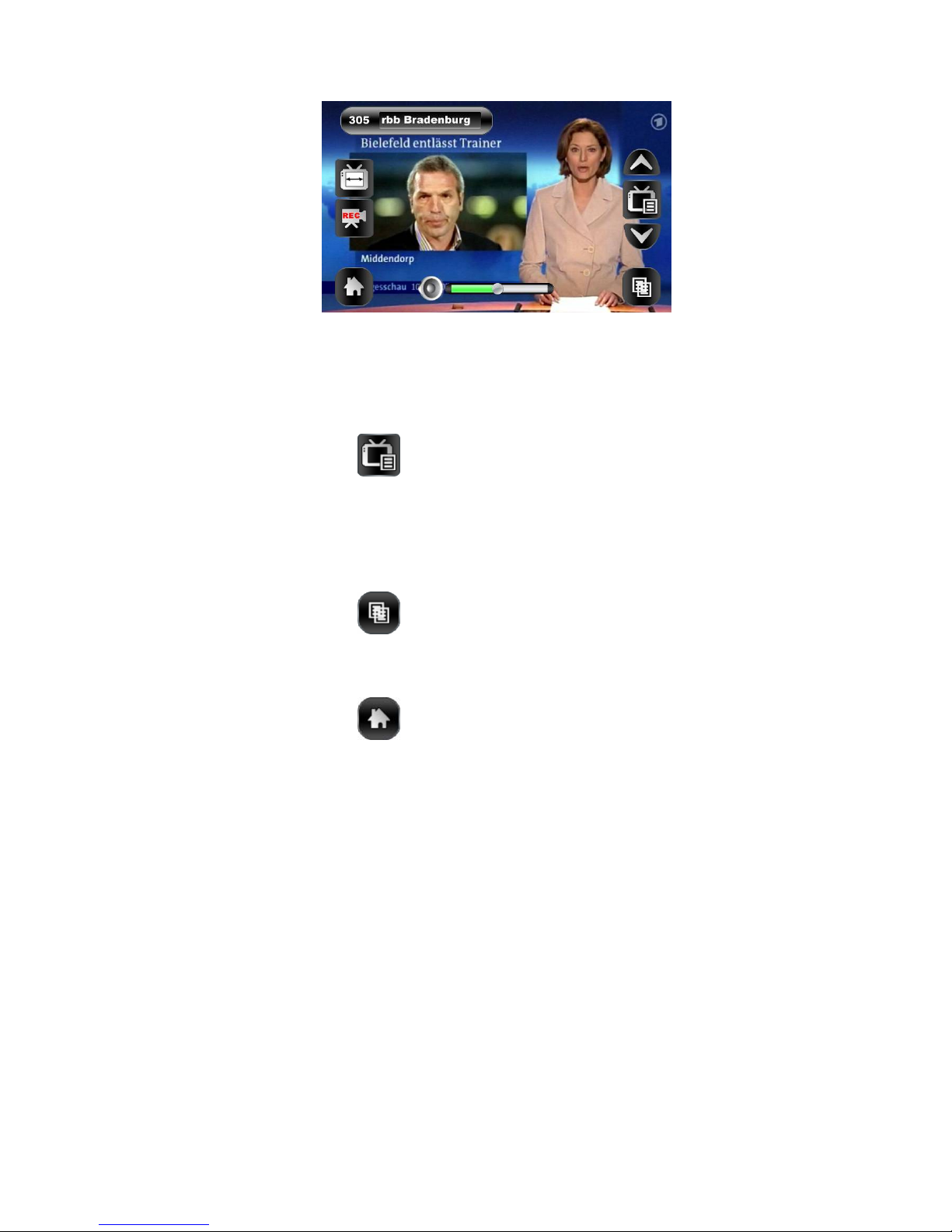

Step 3: Now you can sit back and enjoy your mobile TV.
Note: after few seconds, the OSD will disappear automatically. To show it again,
touch the screen anywhere.
Step 4: Quick channel switch
1. Press on the button to activate channel list.
2. Press on the desired channel to switch channel.
3. Press [X] to exit.
Step 5: Activate DVB-T TV Menu
1. Press on the button to activate DVB-T menu.
Step 6: Return to Home Page
1. Press on the button to return to Home page.
9
III.3. TV Recording
ETV 430 support DVB-T TV recording during DVB-T watching. The section below
will explain you how to quickly record your favorite TV program into a SD Card.
Step 1: Insert a SD card to the card-slot

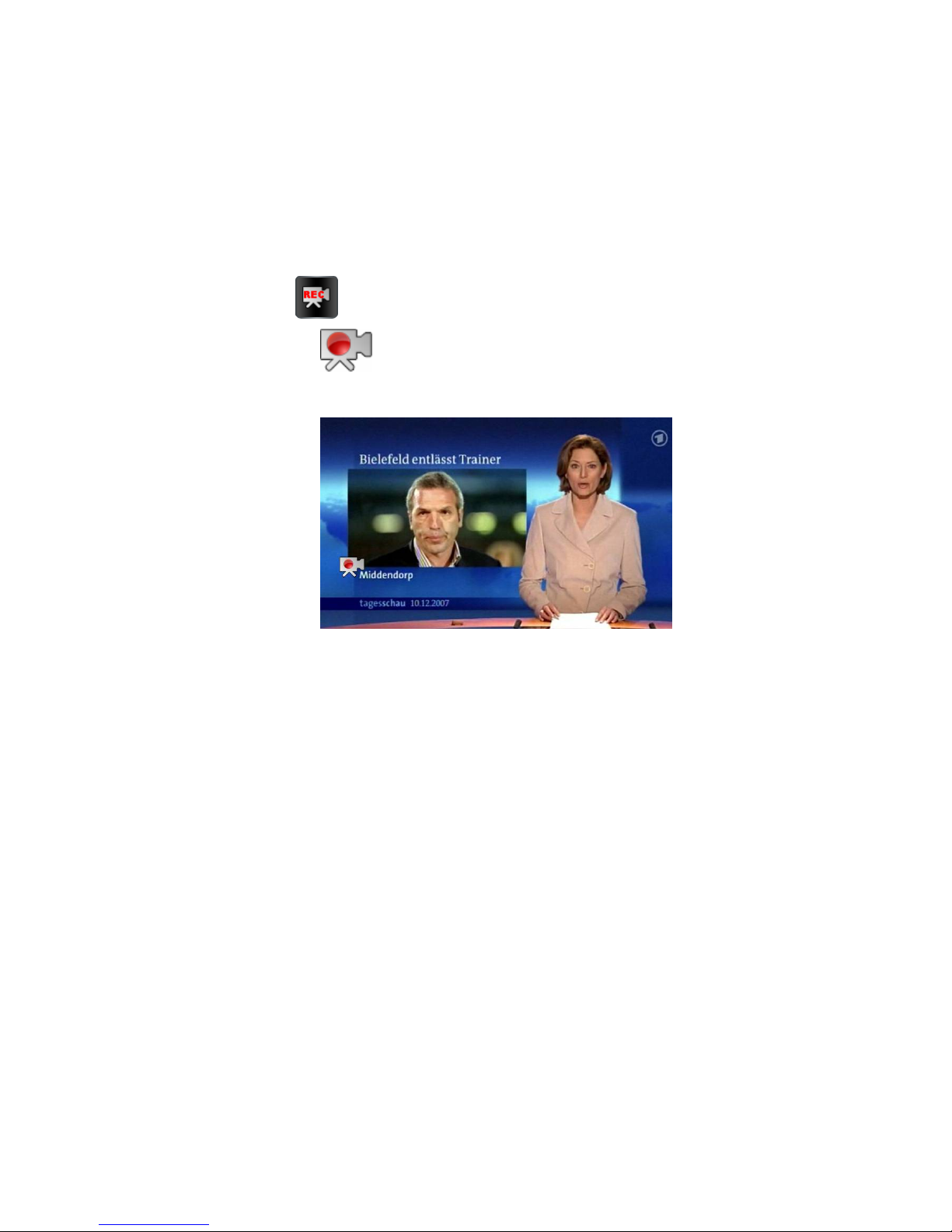

Step 2: Start recording
1. Press icon anytime to start recording TV programs while in TV
mode. A icon will appear on the left side of the screen as shown
below:
Step 3: Stop recording
1. Press [REC] again to stop recording. The recorded TV program file
(with .ts extension name) will be stored to the root folder of the SD
card.
Step 4: Watch recorded TV program
The recorded TV program can be played in recorded-TV playback mode.
Please refer to section III.6 Recorded TV for complete reference.
Note:
1. Due to the maximum file size limitation of FAT/FAT32 file system, the
recorded file will be split into a new file when its size is over 1 GB.
2. 1 GB storage space can record approximately 45 minutes programs.
3. Generally all SD card can be used as recorded file storage. However, there
are cases when the SD Card can’t store recorded programs. It’s strongly
suggested to format SD Card before use it as recorded file storage.
10

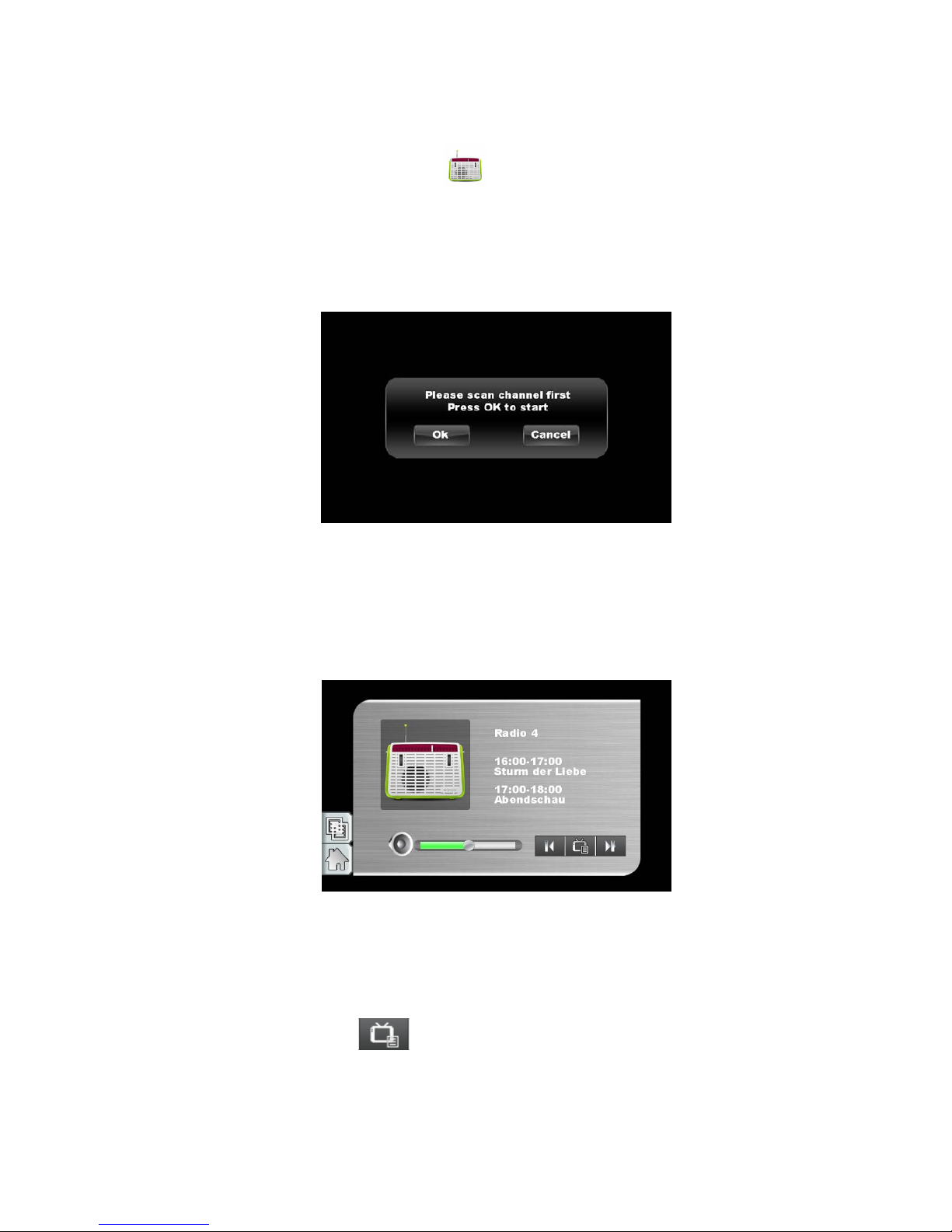

III.4. DVB-T Radio Listening
Step 1: Entering DVB-T Radio
1. On Home page, press icon by pressing your finger directly on
the icon.
Step 2: Channel scanning
1. Upon the first time usage, a “Setup Wizard” will appear as bellow:
2. Press [OK] to start “Channel Search”.
3. Select your located region and the correct antenna option.
4. Press the [Start] button to start the searching.
Step 3: Now you can sit back and enjoy your mobile Radio.
Note: after few seconds, panel will be turned off automatically. To turn on the
panel, touch the screen anywhere.
Step 4: Quick channel switch
1. Press on the
button to activate channel list.
2. Press on the desired channel to switch channel.
3. Press [X] to exit.
11
Step 5: Press button or button to switch between available
channels.
Step 6: Activate DVB-T TV Menu
1. Press on the
button to activate DVB-T menu.
Step 7: Return to Home Page
1. Press on the button to return to Home page.
12

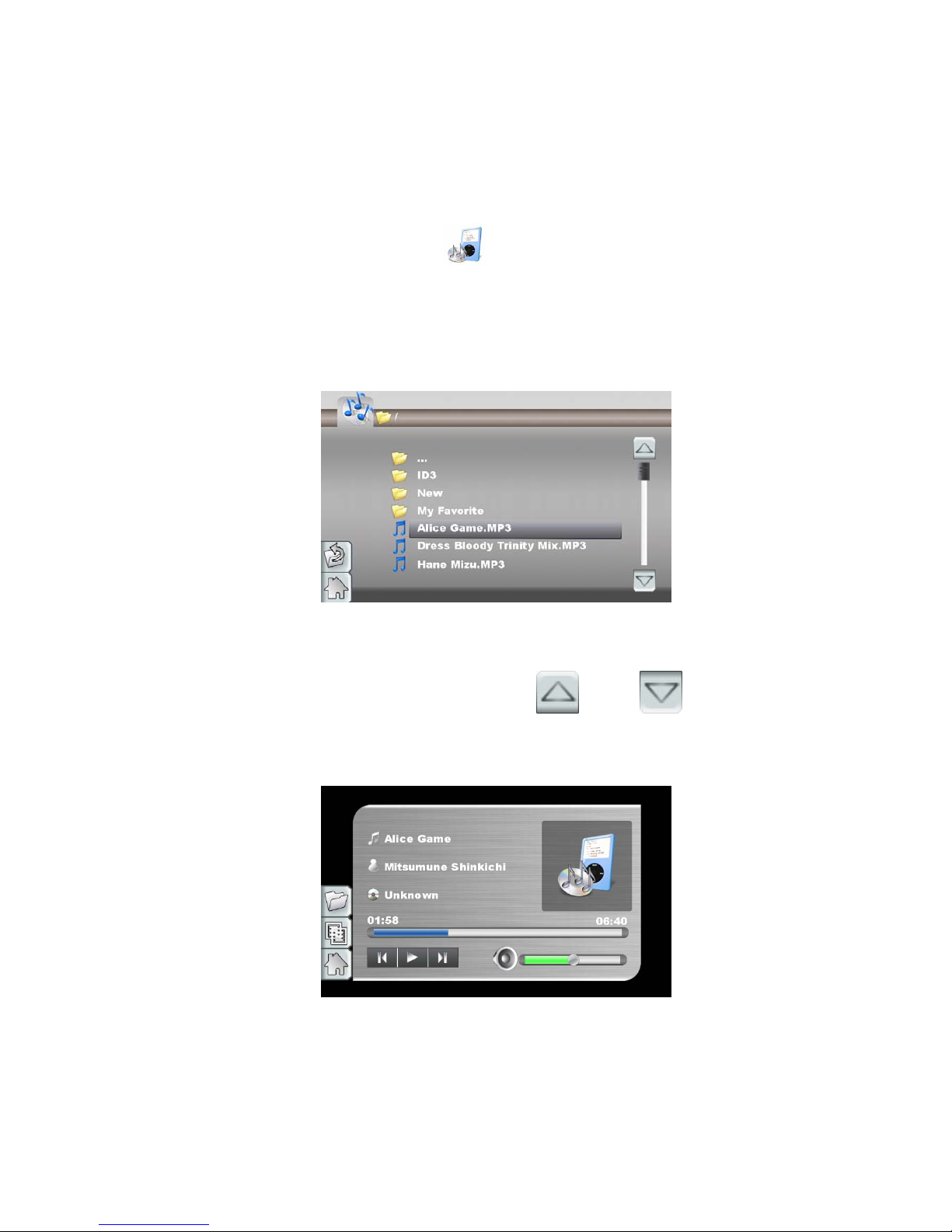

III.5. Music Listening
ETV-430 allows you to play mp3 format audio file. The section below will explain
you how to quickly play a music file stored on SD Card.
Step 1: Entering Music Listening
1. On Home page, press icon by pressing your finger directly on
the icon.
Step 2: Selecting the desired file
1. Upon entering Music, a file browser screen will appears as below:
NOTE: users can only choose MP3 music files under this mode.
2. Browse the file browser using the icon/ icon or by utilizing
the scroll bar.
3. Press on the desired file twice to start playing it.
NOTE: after few seconds, panel will be turned off automatically. To turn on the
panel, touch the screen anywhere.
13

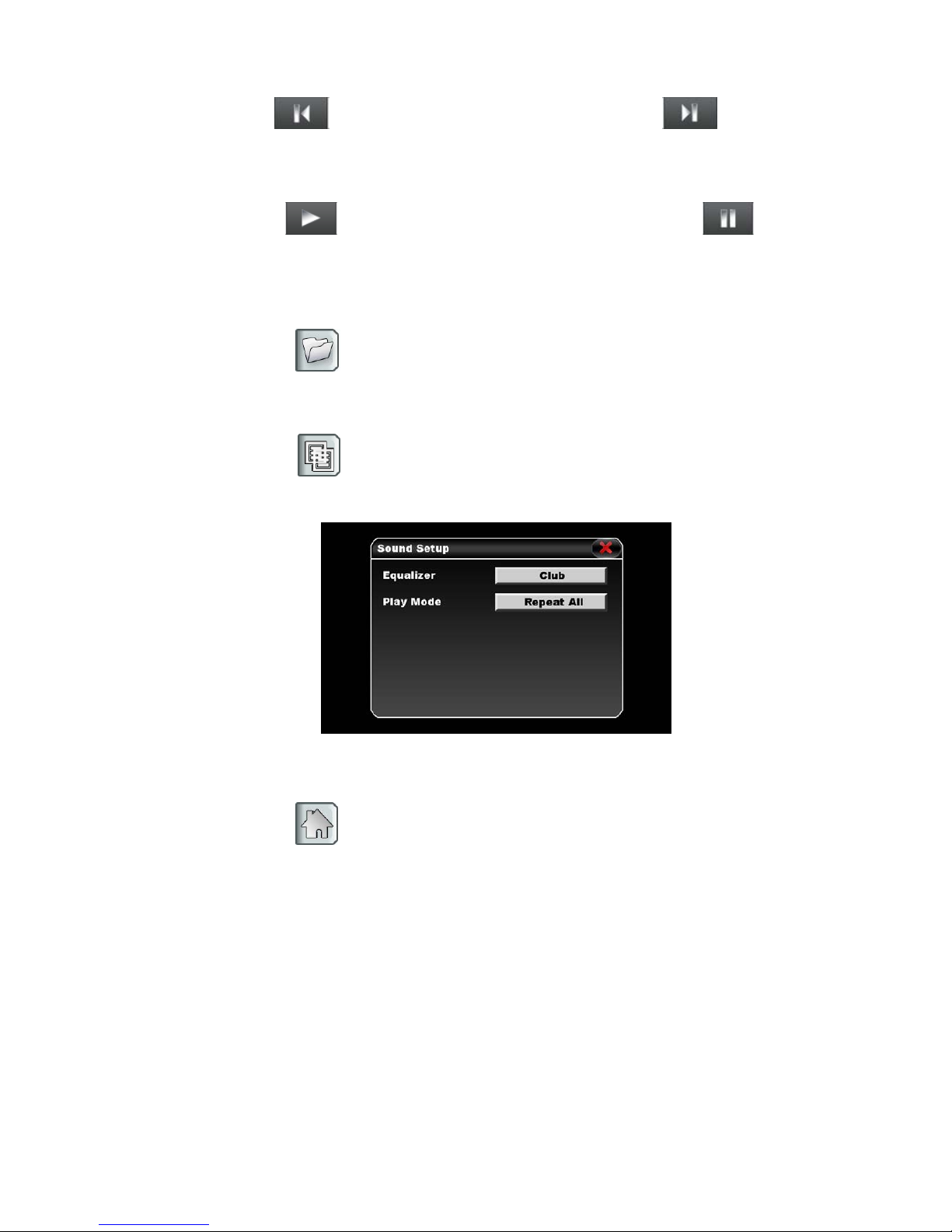

Step 3: Press
button to play previous music file or button to play
next music file.
Step 4: Press
button to pause music playing. Press button to
continue playing.
Step 5: Return to music file browser
1. Press icon to return to music file browser.
Step 6: Activate Music Menu
1. Press icon to activate Music menu. In this menu, you can
manipulate the equalizer setting and play mode.
Step 7: Return to Home Page
1. Press icon to return to Home page.
14

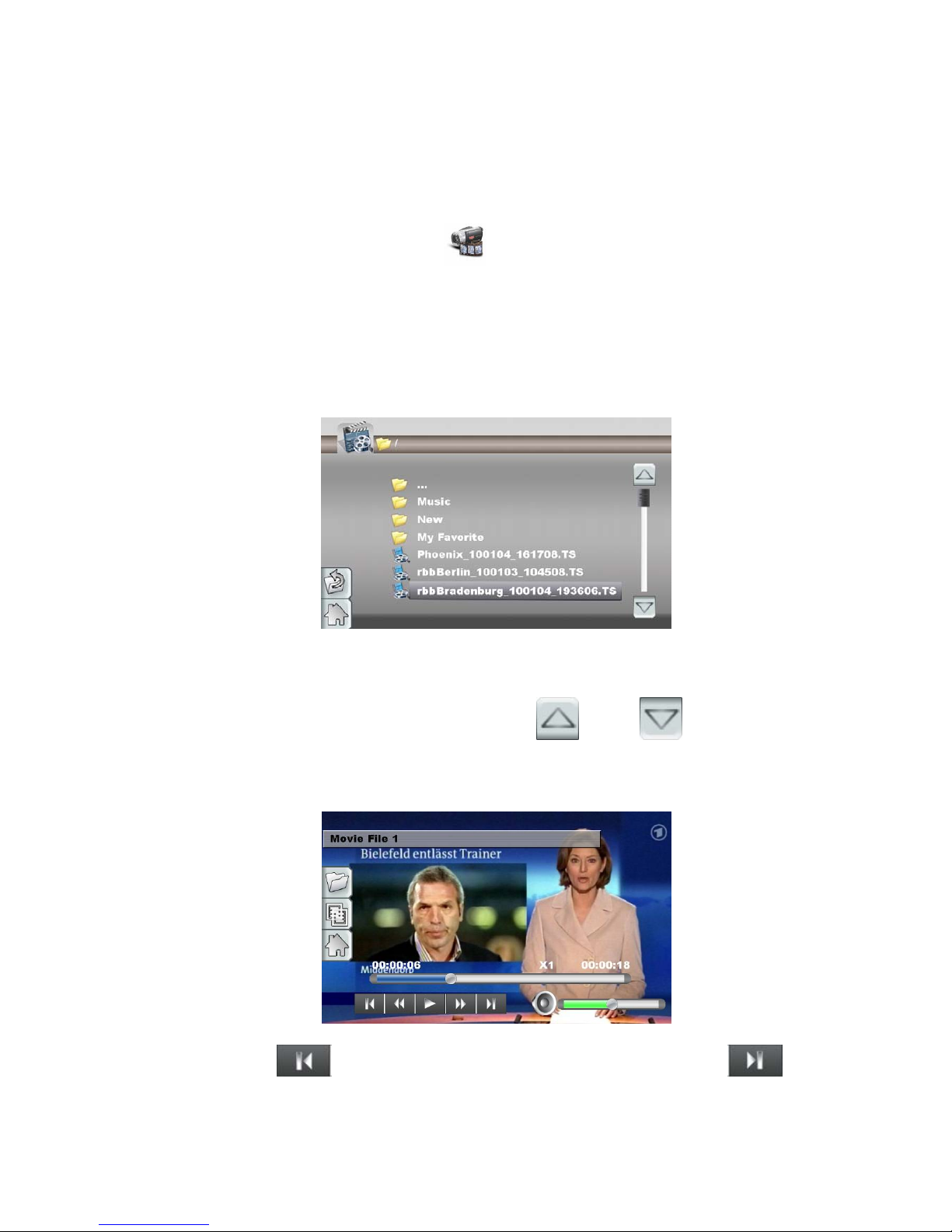

III.6. Recorded TV Watching
ETV-430 allows you to record the TV program to a SD card while watching the TV.
The section below will explain you how to quickly play recorded program files.
Step 1: Entering Recorded TV
1. On Home page, press icon by pressing your finger directly on
the icon.
Step 2: Selecting the desired file
1. Upon entering Recorded TV, a file browser screen will appears as
below:
NOTE: users can only choose TS recorded-TV file under this mode.
2. Browse the file browser using the icon/ icon or by utilizing
the scroll bar.
3. Press on the desired file twice to start playing it.
Step 3: Press
button to play previous recorded-TV file or button
to play next recorded-TV file.
15

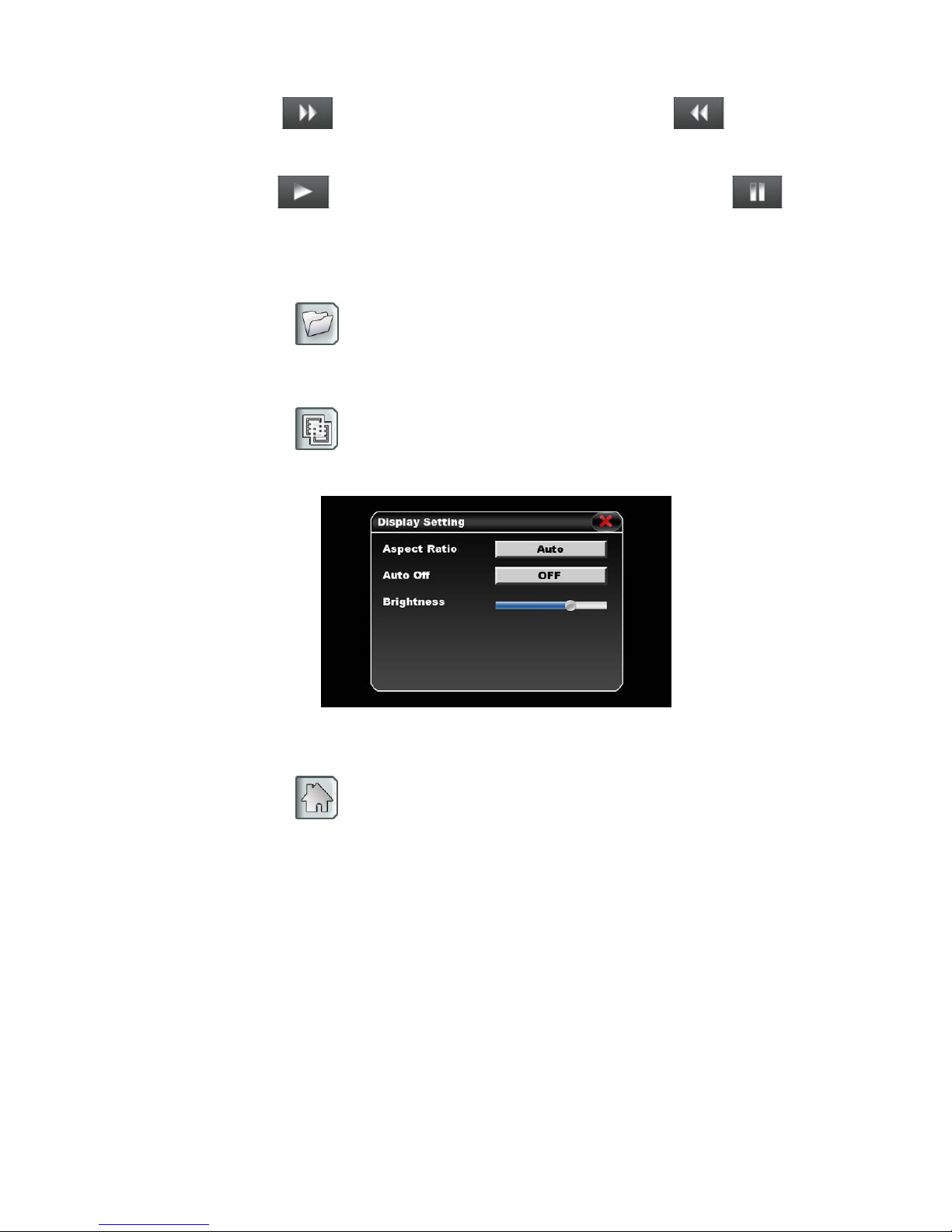

Step 4: Press
button to do fast forwarding. Press button to do
fast-rewarding.
Step 5: Press
button to pause recorded-TV playing. Press button
to continue playing.
Step 6: Return to recorded-TV file browser
1. Press icon to return to recorded-TV file browser.
Step 6: Activate recorded-TV Menu
1. Press icon to activate recorded-TV menu. In this menu, you can
manipulate the aspect ratio, auto off, and brightness.
Step 7: Return to Home Page
1. Press icon to return to Home page.

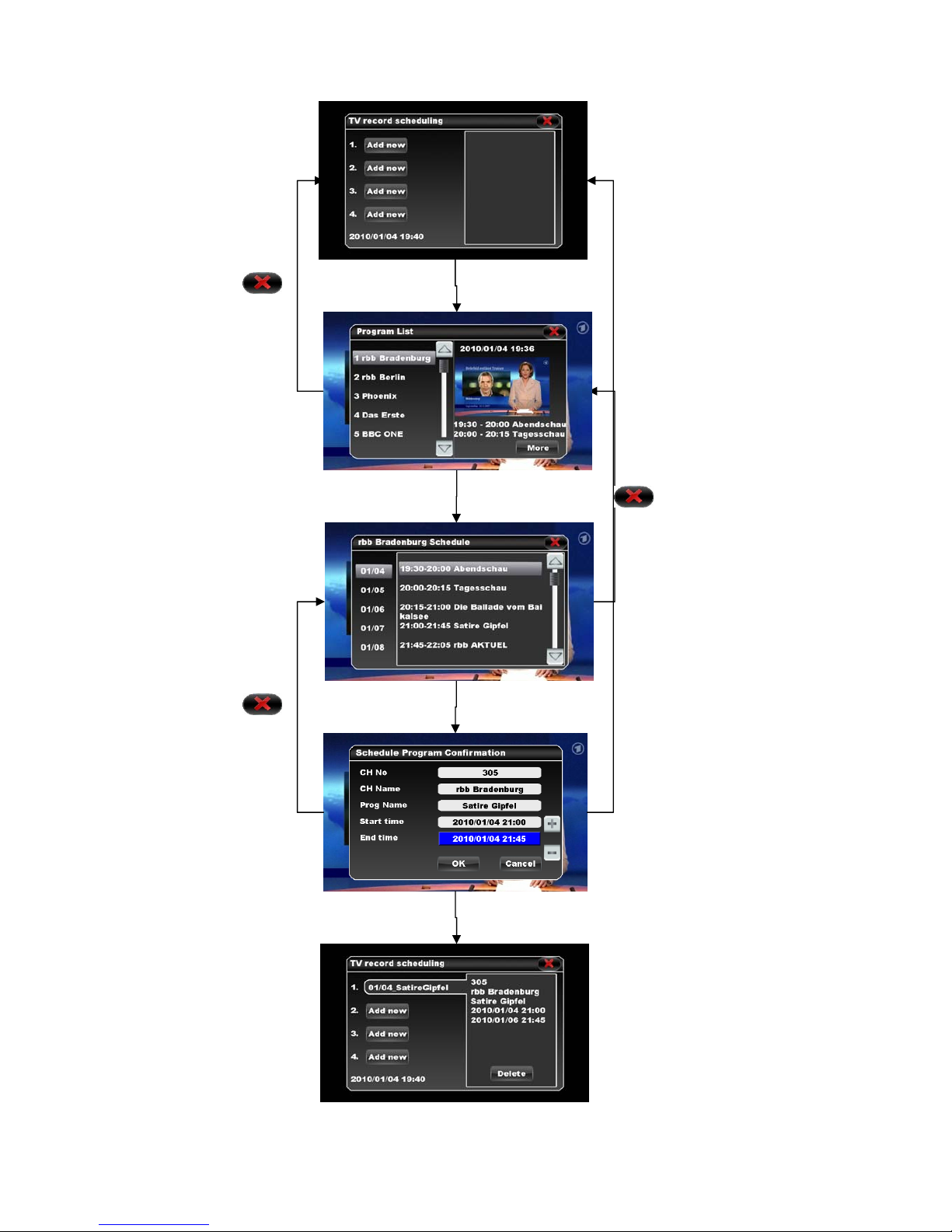

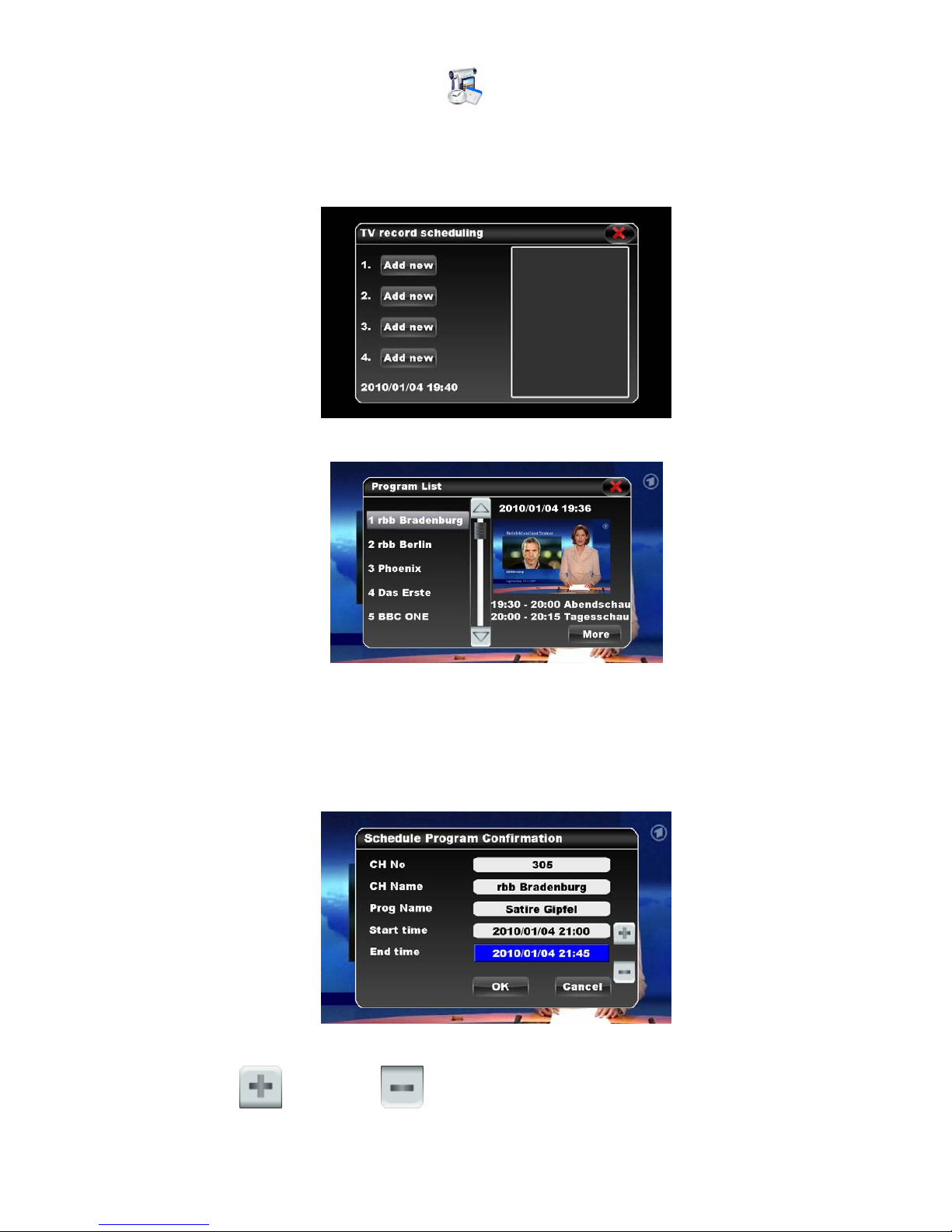

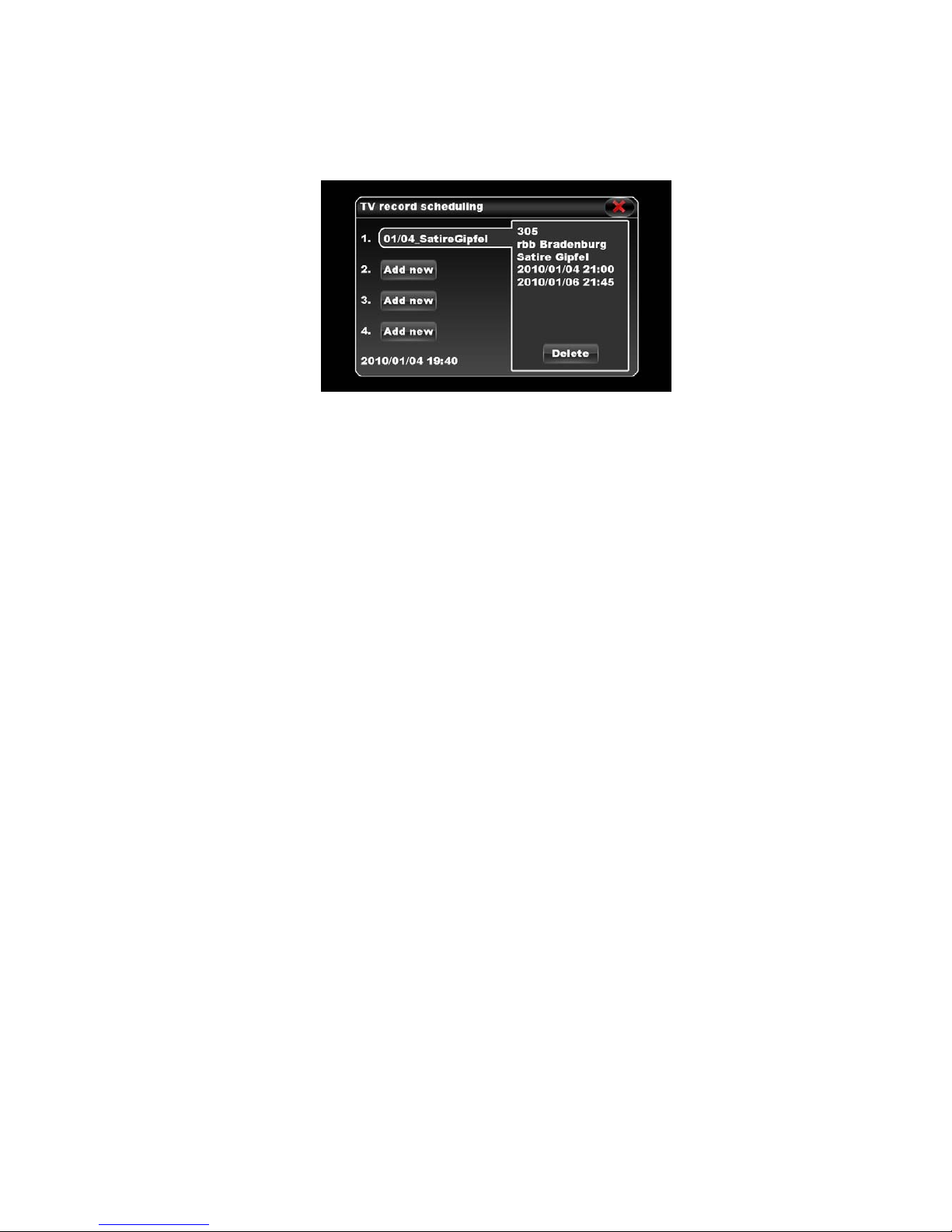

III.7. Recording Schedule
In addition to recording function, ETV-430 also allows you to create a recording
schedule. After a scheduled is created, ETV-430 will automatically start recording
as scheduled. The section below will explain you how to quickly create and
modified recording schedule.
Step 1: Entering Schedule Rec.
16
1. On Home page, press icon by pressing your finger directly on
the icon.
Step 2: Creating new schedule
1. Press on [Add new] button to create new schedule.
2. Choose preferred channel by touching the channel name.
3. Press on [More] button to show the detail schedule of the preferred
channel.
4. Choose any desired date by touching the available date.
5. Press the desired program to be recorded.
6. On the appeared confirmation screen, edit the end time by pressing
button or button.
17
NOTE: the diagram below shows the flow of recording schedule.
[Add new]
[More]
[OK]
[Cancel]
18
Step 3: Delete existing schedule.
1. On the information window, press the [Delete] button to delete the
corresponding schedule.
Step 4: Return to Home Page
1. Press [X] icon to return to Home page.
NOTE:
1. Please ensure SD Card had already been plugged into SD Card slot before
the scheduled time.
2. System will record as scheduled only in “Schedule Record”. mode. Leaving
“Schedule Record” will abort the recording progress/scheduled record.
3. Pressing [STOP] button when recording is in progress will stop the
recording action.
4. Due to the maximum memory size limitation, user can save maximum 4
scheduled recording.
5. Due to the maximum file size limitation of FAT/FAT32 file system, the
recorded file will be split into a new file when its size is over 1 GB.
6. 1 GB storage space can record approximately 45 minutes programs.
7. Generally all SD card can be used as recorded file storage. However, there
are cases when the SD Card can’t store recorded programs. It’s strongly
suggested to format SD Card before use it as recorded file storage.
19
IV. Technical Settings
IV.1. System Settings
This is the system settings menu
screen. Users can adjust the display
setting, time setting, region/language
setting, proceed to a software upgrade,
reset system setting.
IV.1.1. Display Setting
To set up the aspect ratio, adjust brightness and to switch on/off
the auto backlight function.
1. Choose desired aspect ratio
setting by pressing the buttoned
current aspect ratio setting.
2. Choose desired auto off setting
by pressing the buttoned current
auto off setting.
3. Press [X] button to exit “Display
Setting”.
IV.1.2. Time Setting
To setup the time zone and enable/disable the summer time.
1. Choose desired time zone by
pressing the buttoned current
time zone setting.
2. To enable/disable summer time,
press on the highlighted current
setting.
3. Press [X] button to exit “Time
Setting”.
20
IV.1.3. Region & Language
To set up the OSD language and DVB-T regional settings.
1. Choose desired language setting
by pressing the buttoned current
language setting.
2. Choose desired DVB-T regional
setting by pressing the buttoned
current country setting.
3. Press [X] button to exit
“Region/Language”.
IV.1.4. Software Version and Upgrade
To check the software information or upgrade the installed
software.
1. Insert the SD card containing
the software upgrade file into
the card slot.
2. After entering the Version/
Upgrade menu, press
button to start the upgrade.
3. Press [X] to exit.
21
IV.1.5. Reset Default
Select the item to reset all system settings to default values at
manufacture time.
IV.2. DVB-T TV/Radio Menu
After entering the DVB-T TV or Radio
service, press button to make
the menu appear. Here you can have
access to the program list, the channel
management, the automatic channel
search, the audio settings, the channel
info, the antenna selection, the subtitle
function, and the teletext function.
IV.2.1. Program List
To display channel information, preview the program, and to
access the Electronic Program Guide (EPG)
a. Program List
1. Select any channel on the list
to jump into the channel by
touching the channel name.
2. Press on [More] button to
show the detail schedule of
the highlighted channel.
22
3. Press [X] button to exit.
b. Program Schedule
1. Choose any desired date by
touching the available date.
2. Press the desired program
name to see the brief
information.
3. Press [X] to return to
“Program List” page.
c. Program Description
1. Press [X] button to return to
“Program Schedule” page.
IV.2.2. Channel Management
To rearrange and to edit the TV channel listing using skip, move,
and delete functions.
1. Select channel to be managed
by directly pressing on the
channel name.
2. Press [Skip] button to skip the
highlighted channel.
NOTE: this function
“temporarily” removes the
channel from the program list.
Users can restore the channel by deactivating the function.
3. Press [Del] button to delete the highlighted channel.
NOTE: this function will “permanently” delete the channel from current
program list. Users restore the channels only by performing auto search.
23
4. Press [Move Up] to move the channel up in the sequence.
5. Press [Move Dn.] to move the channel down in the sequence.
6. Press [X] button to exit.
IV.2.3. Channel Search
To search the available channels automatically.
1. Adjust the country setting by
pressing the buttoned current
country setting.
2. Adjust the antenna setting by
pressing the buttoned current
antenna setting.
3. Adjust the time zone by press ing
the buttoned current time zone.
4. Disable/enable summer time by pressing the buttoned current summer
time status.
5. Press [Start] button to start searching.
6. Press [X] button to exit.
IV.2.4. Audio Settings
To select master or secondary language when service available.
1. Adjust the audio language by
pressing the buttoned current
audio language setting.
2. Adjust the audio channel by
pressing the buttoned current
audio channel setting.
3. Press [X] to exit.
24
IV.2.5. Channel Information
To display the channel broadcasting parameters and signal
information.
1. Press [X] button to exit.
IV.2.6. Antenna Selection
To choose to receive DVB-T broadcasting either via built-in
antenna or external antenna.
1. Press on the desired antenna
setting twice to change the
setting.
2. Press [X] button to exit.
25
IV.2.7. Subtitle
To activate or deactivate the subtitle function.
1. Adjust DVB Subtitle by pressing
the buttoned current DVB
subtitle setting.
2. Adjust teletext subtitle by
pressing the buttoned current
Teletext Subtitle setting.
NOTE: at one time only one
setting can be activated either it
DVB Subtitle or Teletext Subtitle.
3. Press [X] to exit.
IV.2.8. Teletext
To start the teletext function.
1. Press [Prev. P] to go to previous
page.
2. Press [Next. P] to go to next
page.
3. Press [Prev. M] to go to previous
magazine.
4. Press [Next. M] to go to next
magazine.
5. Press [X] to exit.
26
V. Trouble Shooting Q&A
Most of the troubleshooting issues can be easily solved. The common cases and
their respective solutions are listed in the table below. If the problem persists,
please contact the after sales service.
Problem Possible Reason Solution
The battery is totally
discharged.
Connect the unit to an external power
source to charge the battery.
The power adapter is not
plugged properly.
Check whether the connector of the power
adapter is completely plugged into the
power jack of the device.
The device is not powered on. Slide [POWER SWITCH] to “ON” position.
No video, no audio.
The program table is empty.
Perform “Auto Search” to discover the
available channels.
The number of available
channels is limited due to the
local broadcasting system.
The available channels can
vary depending on the area.
Perform “Auto Search” or “Manual Search”
to rescan all the channels.
The signal quality of some TV
channels is too low.
Use the external antenna to increase the
reception sensitivity. For indoor use, place
the antenna close to a window and place it
on high point.
In DVB-T mode, the
number of DVB-T
channels is not as
much as we
expected.
Some TV channels are not
available.
Only the locally free broadcasted channels
can be viewed. They can differ depending
on the area.
Some TV channels signal
quality is too low.
Use the external antenna to increase the
reception sensitivity. For indoor use, place
the antenna close to a window and place it
on high point.
Wrong antenna is used.
Use only the external antenna provided
with this unit.
In DVB-T mode, all of
the channels show
“no signal or random
mosaic tiles appear
on the display.”
No DVB-T service is provided
in the area.
Check your country DVB-T coverage map. It
is not possible to watch digital TV/listen to
digital radio in non-covered areas.
The audio volume is too low. Slide the volume bar to raise the volume.
The audio is muted.
Press
icon to disable the mute
function.
The earphones are not
connected properly.
Check if the earphone plug is clean and well
inserted.
There is no sound
output.
The device is located close to
strong magnetic field.
Move the device to another location and use
it again.
27
VI. Specification
Antenna
Built-in rod Antenna (UHF and VHF band reception)
Antenna Type
Support external antenna input (MCX type)
Display
Panel Type / Resolution 4.3” Color TFT-LCD / 480RGB(W) x 272(H) pixels
Brightness / Contrast 300 nits / 550:1
Display Ratio 16:9
View Angle
140
o
(Horizontal) / 125o (Vertical)
Touch Screen
Supported
System
Transmission Standard DVB-T Standard (EN 300 744) Compliance
Media Format Supported
Audio File Format: *.mp3
Recorded-TV File Format: *.TS
TV Recording
Supported
I/O Interface
Speaker 1 Built-in Speaker Max (8Ω / 0.5W)
Earphone 1 Stereo Earphone Output (3.5mm)
Memory Card Slot
SD Card
Power
Power Input DC +5V / 1A
Battery
Built-in 3.7V / 1300mA rechargeable polymer lithium
battery
DVB-T TV/Radio operation: typical 3.5 hours
Recorded-TV playback: typical 5 hours.
Operating Time
Music playback: typical 11 hours
Dimension
L x W x H 120 x 80 x 15 (mm)
Weight 169 g (including battery)
Loading...
