Page 1

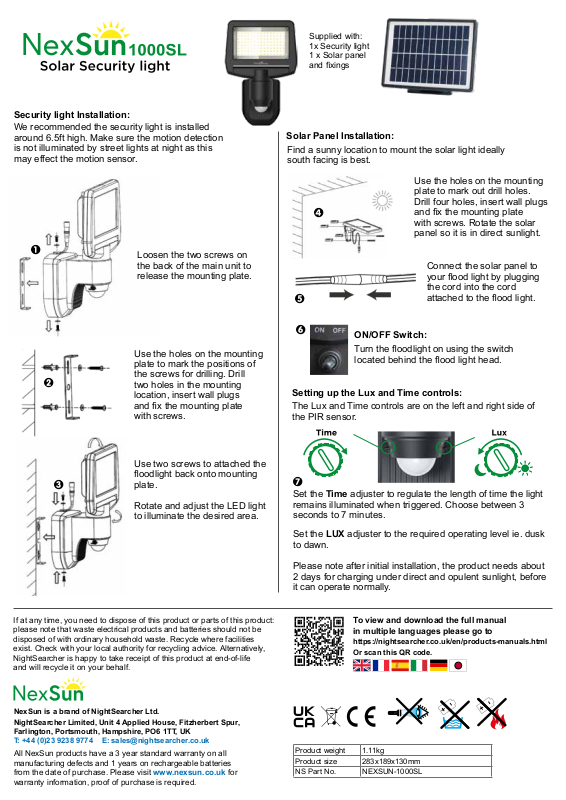

Security light Installation:
We recommended the security light is installed
around 6.5ft high. Make sure the motion detection
is not illuminated by street lights at night as this
may effect the motion sensor.
Supplied with:
1x Security light
1 x Solar panel
and xings
Solar Panel Installation:
Find a sunny location to mount the solar light ideally
south facing is best.
Use the holes on the mounting
plate to mark out drill holes.
Drill four holes, insert wall plugs
4
and x the mounting plate
with screws. Rotate the solar
panel so it is in direct sunlight.
1
2
3
Loosen the two screws on
the back of the main unit to
release the mounting plate.
Use the holes on the mounting
plate to mark the positions of
the screws for drilling. Drill
two holes in the mounting
location, insert wall plugs
and x the mounting plate
with screws.
Use two screws to attached the
oodlight back onto mounting
plate.
Rotate and adjust the LED light
to illuminate the desired area.
Connect the solar panel to
your ood light by plugging
the cord into the cord
5
6
ON/OFF Switch:
attached to the ood light.
Turn the oodlight on using the switch
located behind the ood light head.
Setting up the Lux and Time controls:
The Lux and Time controls are on the left and right side of
the PIR sensor.
7
Set the Time adjuster to regulate the length of time the light
remains illuminated when triggered. Choose between 3
seconds to 7 minutes.
If at any time, you need to dispose of this product or parts of this product:
please note that waste electrical products and batteries should not be
disposed of with ordinary household waste. Recycle where facilities
exist. Check with your local authority for recycling advice. Alternatively,
NightSearcher is happy to take receipt of this product at end-of-life
and will recycle it on your behalf.
NexSun is a brand of NightSearcher Ltd.
NightSearcher Limited, Unit 4 Applied House, Fitzherbert Spur,
Farlington, Portsmouth, Hampshire, PO6 1TT, UK
T: +44 (0)23 9238 9774
All NexSun products have a 3 year standard warranty on all
manufacturing defects and 1 years on rechargeable batteries
from the date of purchase. Please visit www.nexsun.co.uk for
warranty information, proof of purchase is required.
Set the LUX adjuster to the required operating level ie. dusk
to dawn.
Please note after initial installation, the product needs about
2 days for charging under direct and opulent sunlight, before
it can operate normally.
To view and download the full manual
in multiple languages please go to
https://nightsearcher.co.uk/en/products-manuals.html
Or scan this QR code.
Product weight 1.11kg
Product size 283x189x130mm
NS Part No. NEXSUN-1000SL
