Page 1
NightSearcher products have been carefully tested and inspected before
shipment and are guaranteed to be free from defective materials and
workmanship for a period of 12 months from the date of purchase, provided that
the enclosed instructions have been followed.
Should you experience problems with your NightSearcher product, please return
the item, complete with any chargers, to your place of purchase or contact
NightSearcher Ltd direct.
Address and contact details ;
NightSearcher Limited
Unit 4 Applied House
Fitzherbert Spur
Farlington
PORTSMOUTH
Hampshire
PO6 1TT
UK
T: +44 (0)23 9238 9774 | E: [email protected]
If upon inspecti on it is found that the fau lt occurri ng is due to defe ctive material s
or workmanship, repairs will be carried out free of charge. This guarantee does
not apply to normal wear and tear, nor does it cover any damage c aused by
misuse, careless / un safe handling, alterations, accidents, or r epairs attempted or
made by any personnel without prior approval from NightSearcher Ltd.
Batteries are consumable items and are not covered by this guarantee. Your
guarantee is not effective unless you can produce a dated receipt of purchase.
Please note that this guarantee does not affect your statutory rights.
If at any time, you need to dispose of this product or parts of this
product: Please note that waste electrical products, bulbs and batteries
should not be disposed of with household waste. Recycle where
facilities exist. Check with your local authority for recycling advice
.

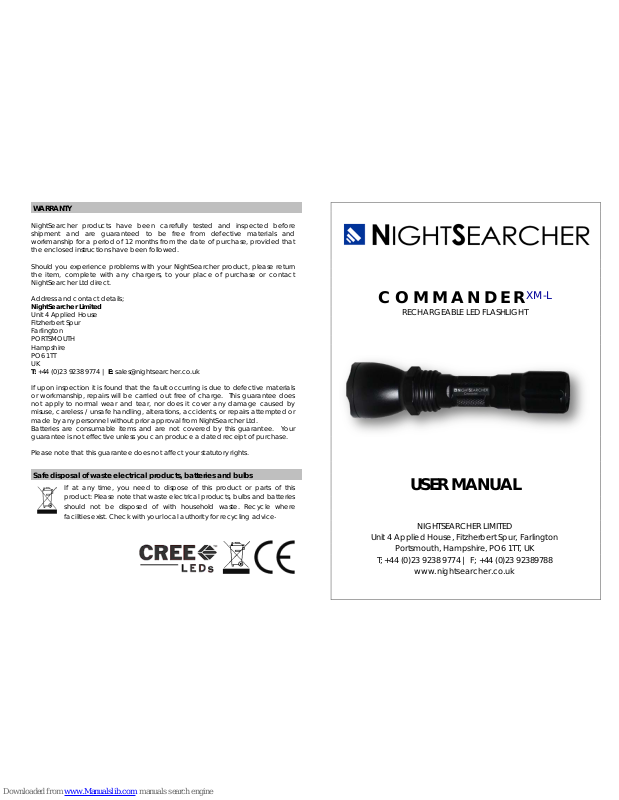

C O M M A N D E R
XM-L
RECHARGEABLE LED FLASHLIGHT
USER MANUAL
NIGHTSEARCHER LIMITED
Unit 4 Applied House, Fitzh erbert Spur, Farlington
Portsmouth, Hampshire, PO6 1TT, UK
T; +44 (0)23 9238 9774 | F; +44 (0)23 92389788
www.nightsearcher.co.uk
WARRANTY
Safe disposal of waste electrical products, batteries and bulbs
Page 2
Before using your NightSearcher product, please r ead this user manual. It contains important
safety information and operating inst r uctions. Following this advice will help ensure that your
product operates to its maximum potential.
Light Output
1000 lumens
Light Source
Cree XLAMP
XM-L
LED
Running Time
1.6h (100%) - 120h
Charge Time
4h per battery
Battery
18650 Li-ion rechargeable
Product Size (mm)
L150 x Dia.40
Product Weight (kg)
0.2
NS Part No
NSCOMMANDER
Supplied with
Flashlight, wrist strap, x2 batteri es, charger, mains and
vehicle adaptor
The Cree® XLAMP XM-L LEDs can last 50,000hrs+ and seldom needs to be replaced. If ther e i s
any malfunction of LED, please contac t Night se ar c h er L im ited or an authorised distributor.
INSTALLING THE BATTERY
Unscrew the tail c ap.
Insert the batte ry pa ck into th e barrel , with the p ositive (+ ) end of battery tow ards the
flashlight head.
Fasten the tail cap tightly. Press the tail cap push button to test.
NOTE: Always insert the battery into the charger according to the positive (+) and negative
(-) mark as reve r s e polarity may damage the charger and the battery.
BATTERY CHARGING
Ensure the flashlight is switched OFF an d remove the battery.
Connect the charger to AC power supply; the LED indicator (located on the charging
tray) will turn RED.
Insert 1 or both batterie s into the charging tray, ensuring the polari ty is correct (see
specification for charge times per battery).
When the battery/batteries are fully charged, the LED indicator will turn GREEN.
This charger has a built-in protection system, long time charging will not cause battery
overload.
These batteries can be charged at any time without causing “memory affect” or
damage to the batte ry. However, less than 9 hours continuous charging is suggested
for safety.
The Commander s XM-L LED is extremely powerful and can generate heat when used for
prolonged pe riods on F ULL pow er. We recom mend tha t for gene ral use , the Comma nder is
used on MEDIUM power, switching to HIGH power for short periods [5–10minutes] when
required.
The ON/OFF switch is located in the tail of the flashlight;
Press the ON/OFF switch and the flashlight will turn ON (100%)
Press the switch halfway in order to operate the 6 different modes;
o HIGH, MEDIUM, LOW, FLASHING, STROBE and SOS.
NOTE: In any mode, press the ON/OFF switch fully to switch the flashlight OFF.
Use a small brush or blow dry air to clean any dust inside the reflector.
Use lens cleaner and cotton swab, to remove any fingerprints on the lens.
To prevent the O-ring from drying to ensure for threads operating smoothly, please
apply petroleum jelly to these surfaces two or three times a year.
The non-anodised metal groove between the tail cap and the barrel must be cleaned
periodically to ensure a good electrical contact.
The O-ring p revents wa ter from getting into the flashlight.
Do not use the flashlight f or diving; it is not sui table for the hig h pressure unde rwater
environment.
If water gets i nsid e the flash lig ht, remov e the batte ry imme diatel y and place in a well
ventilated area.
The instructions hereunder list the safety measures for operating your flashlight, battery and
chargers:
BATTERY
Do not expose the battery to excessive heat, to do so may cause an explosion.
Do not u se metal objects to short circuit the positive and negative end of the battery .
Do not dispose of the battery in the domestic waste, please use the correct method of
disposal.
Do not solder directly on to the battery.
Do not let the battery become wet or immerse the battery in water.
If there is evidence of leakage from the battery do not touch the battery with bare
hands. If your skin or your clothes come into contact with any leaked substance from
the battery, clean with water immediately.
Should any leaked substance from the battery come into contact with your eyes, do
not rub your eyes. Rinse with clean water immediately and seek medical assistan ce.
Keep th e battery away from childr en.
The operating temperature range of the flashlight’s battery is listed below :
- Charging: 0°C to 45°C / Discharging: -20°C to 6 0°C
GENERAL
Do not use any chargers other than those provided. Failure to do so could cause fire,
electrical shock or personal injury
Never use a damaged charger or charger with damaged lead. Should the charger or
its lead become damaged, replace the charger immediately.
Do not shine the flashlight directly into people’s eyes, as it may damage their eyesight.
If the charger is not in use, please disconnect it from the AC power supply. Do not
leave the battery on charge for more than one week as this will shorten the battery
life. Battery leakage may occur if the battery is over charged.
Do not pull the lead of the charge r when disconnec ti ng it from the AC Power su pply.
Do not use an extension lead. Connect the charger directly into an electrical socket.
Always make s ure the fl ashlight syste m is dis connected fr om any power sources and
turned off when performing any routine cleaning or maintenance. Do not try to repair
the unit or charger yourself.
In case of any problems or questions please contact Nightsearcher Limited or an
authorised distributor.
FLASHLIGHT MAINTENANCE
SAFETY PRECAUTIONS
ON / OFF AND MODE OPERATION
BATTERY INFORMATION
LED IMFORMATION
SPECIFICATION
