MODEL 7300D-WH
SHOWN
SCAN this QR Code To Learn
More About How To Use
The IC2 Chair.

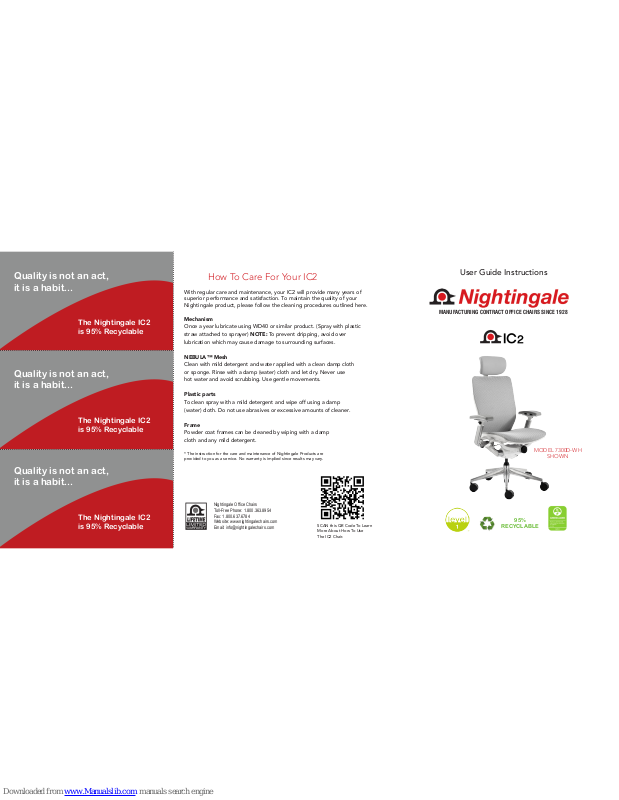

How To Care For Your IC2
With regular care and maintenance, your IC2 will provide many years of
superior performance and satisfaction. To maintain the quality of your
Nightingale product, please follow the cleaning procedures outlined here.
Mechanism
Once a year lubricate using WD40 or similar product. (Spray with plastic
straw attached to sprayer) NOTE: To prevent dripping, avoid over
lubrication which may cause damage to surrounding surfaces.
NEBULA™ Mesh
Clean with mild detergent and water applied with a clean damp cloth
or sponge. Rinse with a damp (water) cloth and let dry. Never use
hot water and avoid scrubbing. Use gentle movements.
Plastic parts
To clean spray with a mild detergent and wipe off using a damp
(water) cloth. Do not use abrasives or excessive amounts of cleaner.
Frame
Powder coat frames can be cleaned by wiping with a damp
cloth and any mild detergent.
* The instruction for the care and maintenance of Nightingale Products are
provided to you as a service. No warranty is implied since results may vary.
MANUFACTURING CONTRACT OFFICE CHAIRS SINCE 1928
User Guide Instructions
Nightingale Ofce Chairs
Toll-Free Phone: 1.800.363.8954
Fax: 1.800.637.6784
Website: www.nightingalechairs.com
Email: [email protected]
95%
RECYCLABLE
Quality is not an act,
it is a habit...
The Nightingale IC2
is 95% Recyclable
Quality is not an act,
it is a habit...
The Nightingale IC2
is 95% Recyclable
Quality is not an act,
it is a habit...
The Nightingale IC2
is 95% Recyclable
Page 2
Congratulations On Purchasing
Nightingale’s Chair
Please read and understand this user INSTRUCTION
guide BEFORE operating this ofce chair.
D. Tension Knob
Turn clockwise to increase
tension. Turn counter-clockwise
to decrease tension.
I1. Headrest Height Adjustment
Pull headrest with both hands to
raise the height, push down to
lower the headrest height.
I2. Headrest Angle Adjustment
Push headrest to desired angle of
comfort and release.
A. Pneumatic Height Adjustment
To lower seat height, pull lever up
while seated. To raise seat height,
pull lever up with no weight on
the seat.
B. Seat Slider
Pull lever up simultaneously
on both sides of seat and move
seat to desired position.
Release the levers to lock.
Seat locks in 5 positions.
E. Arm Height Adjustment
To raise or lower arm height,
pull trigger up and move to
desired position. Release the
trigger to lock into position.
H1. Horizontal Lumbar
Adjustment
Turn knob clockwise to increase
lumbar support to the desired
comfort. Turn knob counterclockwise to decrease the
lumbar support.
H2. Lumbar Height Adjustment
Pull lumbar pad up or push down
to set lumbar support to desired
position.
G1. Arm Pivot Adjustment
(Front button on side of pad)
Push button in to pivot, arm
pad release button to lock arm
pad into position.
G2. Arm Pad Front to Back
Adjustment
(Back button on side of pad)
Push button in to move to
desired position, release button
to lock into position.
C. Innite Position Tilt Lock
To allow free movement, pull
lever up and release. To lock
chair in position, pull lever up
and release.
F. Horizontal Arm Adjustment
Turn knob under arm left clockwise to loosen arm, pull arm out
to desired position and re-tighten
knob tightly to lock into
position by turning right counterclockwise.
UP
TURN
IN
UP
UP
UP
UP
G2
G1
H1
H2
I1
I2
PIVOT
D
A
B
How To Use and Adjust My IC2
PASS IT ON!
Our customers often tell us
their friends stop and ask about
their IC2. If this happens to you,
please give your friend this card so
they can learn more about our chairs.
Nightingalechairs.com
1.800.363.8954
[email protected]
PASS IT ON!
Our customers often tell us
their friends stop and ask about
their IC2. If this happens to you,
please give your friend this card so
they can learn more about our chairs.
Nightingalechairs.com
1.800.363.8954
[email protected]
PASS IT ON!
Our customers often tell us
their friends stop and ask about
their IC2. If this happens to you,
please give your friend this card so
they can learn more about our chairs.
Nightingalechairs.com
1.800.363.8954
[email protected]
E
C
F
H
I
G1
G2
MODEL 7300
MODEL 7300D-WH
