L A U R E L C A N O P Y B E D
Assembly
Instructions
270807
Parts in Box 1A
1A
Headboard
Panel
x 1
Hardware in this Box
1D
Footboard
Panel
x 1
Parts in Box 1B
1B
Canopy Rail (Shorter)
x 2
Canopy Rail (Longer)
x 2
Parts in Box 1C
1C
Headboard
Canopy Post
- Left Hand x 1
Footboard
Canopy Post
- Left Hand x 1
Headboard
Headboard
Canopy Post
Canopy Post
- Right Hand x 2
- Right Hand x 1
Footboard
Canopy Post
- Right Hand x 1
110mm Bolts
(JCBC) x 8
130mm Bolts
(JCBB) x 8
Page 1 of 4
60mm Bolts
(JCBC) x 4
Wood Buttons
(Small) x 8
Wood Dowels
x12
Wood Buttons
(Big) x 8
Long Allen Key
x 1
22mm
Barrel Nuts x 8
L A U R E L C A N O P Y B E D
Attach the Canopy Post to the Head and Footboard Panel.
2A
Using 110mm Bolts (JCBC) &
Barrel Nuts, attach the Canopy Post
to the Head and Footboard Panel.
Barrel Nut
Headboard Canopy Post
- Right Hand
110mm Bolt
Assembly
Instructions
0807
Canopy Post
110mm
Bolt
Headboard Canopy Post
- Left Hand
Wood
Dowels
110mm
Bolts
Barrel Nut
Post
Canopy
Barrel Nut
Wood Dowel
110mm Bolt
Barrel Nut
Wood
Dowels
Barrel Nut
Headboard Panel
110mm Bolts
Wood
Dowels
Wood
Dowel
Barrel Nut
Wood
Dowel
Footboard Canopy Post
- Left Hand
Barrel Nut
Barrel
Nut
Footboard Panel
Wood
Dowels
110mm Bolts
Wood
Dowel
Footboard Canopy Post
- Right Hand
Please Note:
Use 2 People!
Page 2 of 4
L A U R E L C A N O P Y B E D

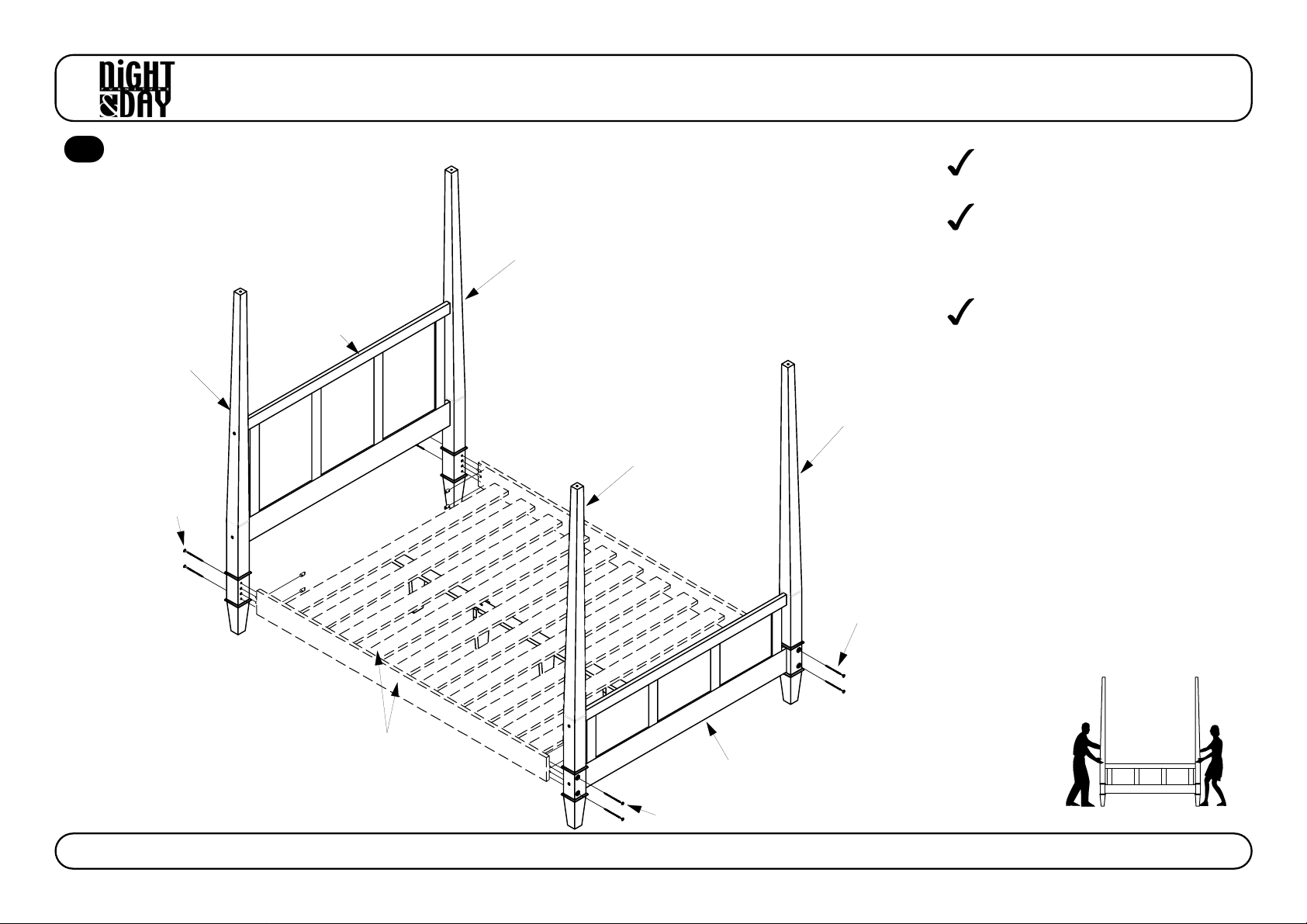

Attach the Head and Footboard to the Rails & Slats.
3A
Note: Refer to Assembly Instructions
packed with the Rails, for this step.
Footboard
Canopy Post
- Right Hand
Assembly
Instructions
0807
The Rails and Slats are packed in
separate Boxes with ThumNuts™.
Leave the Bolts a bit loose, so it is
easier to align the slats. Only after
everything is put together should
you tighten all the Bolts.
Footboard
Canopy Post
- Left Hand
130mm Bolts
Headboard
Panel
Stretcher and Slats
from the Rails box
Footboard
Canopy Post
- Left Hand
Footboard Panel
Footboard
Canopy Post
- Right Hand
130mm Bolts
Note about Wood Buttons: Only fit
the Wood Buttons when the the
complete bed (including the slats)
is assembled, and all the Bolts have
been tightened.
Please Note:
Page 3 of 4
130mm Bolts
Use 2 People!
L A U R E L C A N O P Y B E D

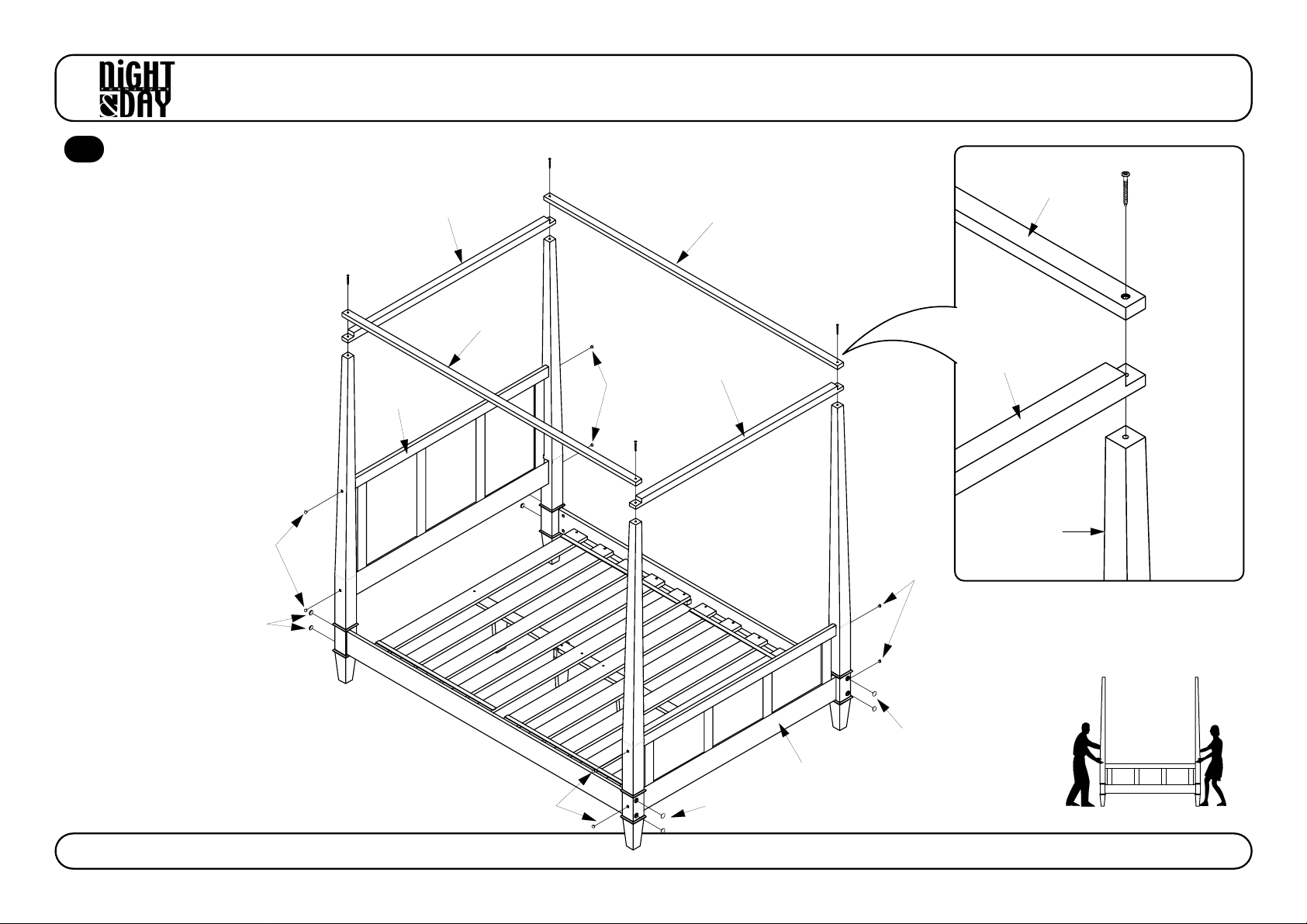

Fit the Canopy Rails onto the Canopy Posts.
4A
Fit the Canopy Rails to the Bed
Posts using 60mm Bolts. Nuts
are already fixed inside the
Canopy Post.
Only fit the Wood Buttons
when the the complete
bed (including the slats)
is assembled, and all
the Bolts have been
tightened.
60mm Bolt
Headboard
Panel
Canopy Rails
(Shorter)
Canopy Rails
(Longer)
60mm Bolt
Wood
Buttons
(Small)
60mm Bolt
Canopy Rails
(Longer)
Canopy Rails
(Shorter)
60mm Bolt
Canopy Rail
(Longer)
Canopy Rail
(Shorter)
Assembly
Instructions
270807
60mm Bolt
Page 4 of 4
Wood Buttons
(Small)
Wood Buttons
(Large)
Wood Button
(Small)
Footboard Panel
Wood Buttons
(Large)
Wood
Buttons
(Small)
Wood Buttons
(Large)
Canopy Post
Please Note:
Use 2 People!
