Page 1 of 7
N&D 0209
A s s e m b l y I n s t r u c t i o n s
TM
Ginger Full Loft Bunk Bed
SIZE OF MATTRESS AND FOUNDATION:
Use only mattress, which is 53" - 54" width and 74"-75" long on upper bunk (full size.)
Ensure that the thickness of the mattress does not exceed 6" and that the mattress surface is at
least 5" (127mm) below upper edge of guardrails.
Certified:
This bunk bed conforms to all applicable consumer product safety standards
16 CFR PARTS 1213, 1500, 1513 and ASTM F-1427
Replacement Parts:
Replacement parts, including additional guardrails may be obtained from any
Night & Day Furniture Dealer.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
SAFETY WARNING
!
Follow the information on the warnings appearing on the upper bunk end structure and on
the carton. Do not remove warning label from bed.
Always use the recommended size mattress or mattress support, or both, to help prevent
the likelihood of entrapment or falls.
Surface of mattress must be at least 5 in. (127 mm) below the upper edge of guardrails.
Do not allow children under 6 years of age to use the upper bunk.
Periodically check and ensure that the guardrail, ladder, and other components are in their
proper position, free from damage, and that all connectors are tight.
Do not allow horseplay on or under the bed and prohibit jumping on the bed.
Always use the ladder for entering and leaving the upper bunk.
Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
Use of a night light may provide added safety precaution for a child using the upper bunk.
Always use guardrails on both long sides of the upper bunk. If the bunk bed will be placed
next to the wall, the guardrail that runs the full length of the bed should be placed against
the wall to prevent entrapment between the bed and wall.
The use of water or sleep flotation mattresses is prohibited.
STRANGULATION HAZARD–Never attach or hang items to any part of the bunk bed
that are not designed for use with the bed; for example, but not limited to, hooks, belts
and jump ropes.
Keep these instructions for future reference.
Page 2 of 7
A s s e m b l y I n s t r u c t i o n s
Page 2 of 7
Parts in Box 1 Parts in Box 3
Hardware in this Box.
1B
100mm Bolts
x 21
40mm Threaded
Wood Bolts x 16
Long Allen Key
x 1
30mm Wood
Screws x 16
16mm Wood
Screws x 2
Barrel Nuts
x 45
30mm Bolts
x 2
80mm Bolts
x 24
Wood Dowels
x 47
Note:
Tools required for assembly:
•Allen Key (provided)
•Philips Screwdriver (not provided)
16mm Bolts
x 4
Center Rail Brackets
x 2
Upper End Frame x 2
Lower End Frame
(Left Hand)
x 1
Note:
Extra Holes!
Lower End Frame
(Right Hand)
x 1
1A
Parts in Box 2
Post L1
Left rear
Post R1
Right rear
Post L2
Left front
Post R2
Right front
Set of Slats x 1
Ginger Full Loft Bunk Bed
Ladder x 1
Front Guard Rail x 1
Rear Guard Rail x 1
Front Stretcher
(with extra holes)
x 1
Stretcher x 1
Long Frame x 1
Note: Extra Holes!
Center Rail x 1
Parts in Box 4
N&D 0209
Page 3 of 7
A s s e m b l y I n s t r u c t i o n s
Be sure the holes are free of wood chips
and saw dust.
Bolt and Barrel Nut Assembly.
Do not force the Bolt as you may strip the
thread. Be sure the thread is properly started.
100mm
Bolts
100mm
Bolts
100mm
Bolts
Barrel Nuts
Barrel Nuts
Barrel Nuts
Barrel Nuts
Long Frame
Stretcher--
*IMPORTANT NOTE:
Do not use the stretcher which
has extra holes. This is for the front
to attach the Front Gruard Rail.
Rear Guard Rail
Post L1
Post R1
100mm
Bolts
Assemble the Rear parts: Rear Guard Rail, Stretcher, Long Frame to Posts L1 & R1.
2A
Identify the Posts L1 & R1, as shown below and
lay them out on the floor. A carpeted floor is best
so as to not damage the wooden parts.
Tap wooden dowels into the dowel holes on
the ends of the Rear Guard Rail, Stretcher
and Long Frame. Use 100mm Bolts
and Barrel Nuts to join
them together.
Wooden
Dowels
Ginger Full Loft Bunk Bed
N&D 0209
Assemble the Left and Right side frames.
Page 4 of 7
A s s e m b l y I n s t r u c t i o n s
80mm
Bolts
80mm
Bolts
Barrel Nuts
Barrel Nuts
Upper End
Frame
Lower End Frame
- Left Hand
Post L2
Barrel Nut
Barrel Nut
Center Rail
Bracket
3A
Identify the Posts L2 & R2, as shown below and
lay them out on the floor, with the end frames.
Tap wooden dowels into the dowel holes
and bolt the center rails brackets to the
end frames.
Wooden Dowels
Wooden
Dowels
Ginger Full Loft Bunk Bed
Post R2
Lower End Frame
- Right Hand
Barrel Nuts
80mm
Bolts
80mm
Bolts
Barrel Nuts
Upper End
Frame
Barrel Nut
Barrel
Nut
*Note: Extra Holes!
Center Rail
Bracket
N&D 0209
Use 80mm Bolts and Barrel Nuts
to join them together.
16mm Bolts
Wooden
Dowel
Attach the assembled left hand
side to the assembled rear posts
using 80mm Bolts and Barrel Nuts.
Then attach the Right hand side.
Page 5 of 7
A s s e m b l y I n s t r u c t i o n s
End Frame
- Left Hand
End Frame
- Right Hand
80mm
Bolts
80mm Bolt
Barrel Nuts
Barrel Nuts
80mm
Bolts
80mm
Bolt
80mm
Bolts
Post L2
Post R2
Post L1
Post R1
Note: The Extra Holes
should be on the
inside
here!
Center Rail
Bracket
Use 2 People!
Please Note:
Join the end frames to the Rear posts.
4A
Ginger Full Loft Bunk Bed
N&D 0209
Tap Wooden Dowels into the end of the Front Guard Rail.
Use the 100mm Bolt and Barrel Nut fix it in place.
The Front Guard Rail attaches to the Front
Stretcher using the 30mm Bolts.
Attach the front stretcher.
Use 100mm Bolts and Barrel Nuts to fit the Front
Stretcher between the front posts.
Page 6 of 7
A s s e m b l y I n s t r u c t i o n s
100mm
Bolts
100mm
Bolts
Barrel
Nuts
Barrel
Nuts
Front Stretcher
- With Extra Holes
100mm Bolt
Barrel
Nut
Front Guard
Rail
Front Stretcher
Wooden
dowels
5A
Attach the Front Guard Rail and the Center Rail.
5B
Wooden
Dowels
30mm
Bolts
Ginger Full Loft Bunk Bed
N&D 0209
Lay the Center Rail on to
the Brackets.
Page 7 of 7
A s s e m b l y I n s t r u c t i o n s
6B
40mm Threaded
Wood Bolts
30mm Wood
Screws
30mm Wood
Screws
40mm Threaded
Wood Bolts

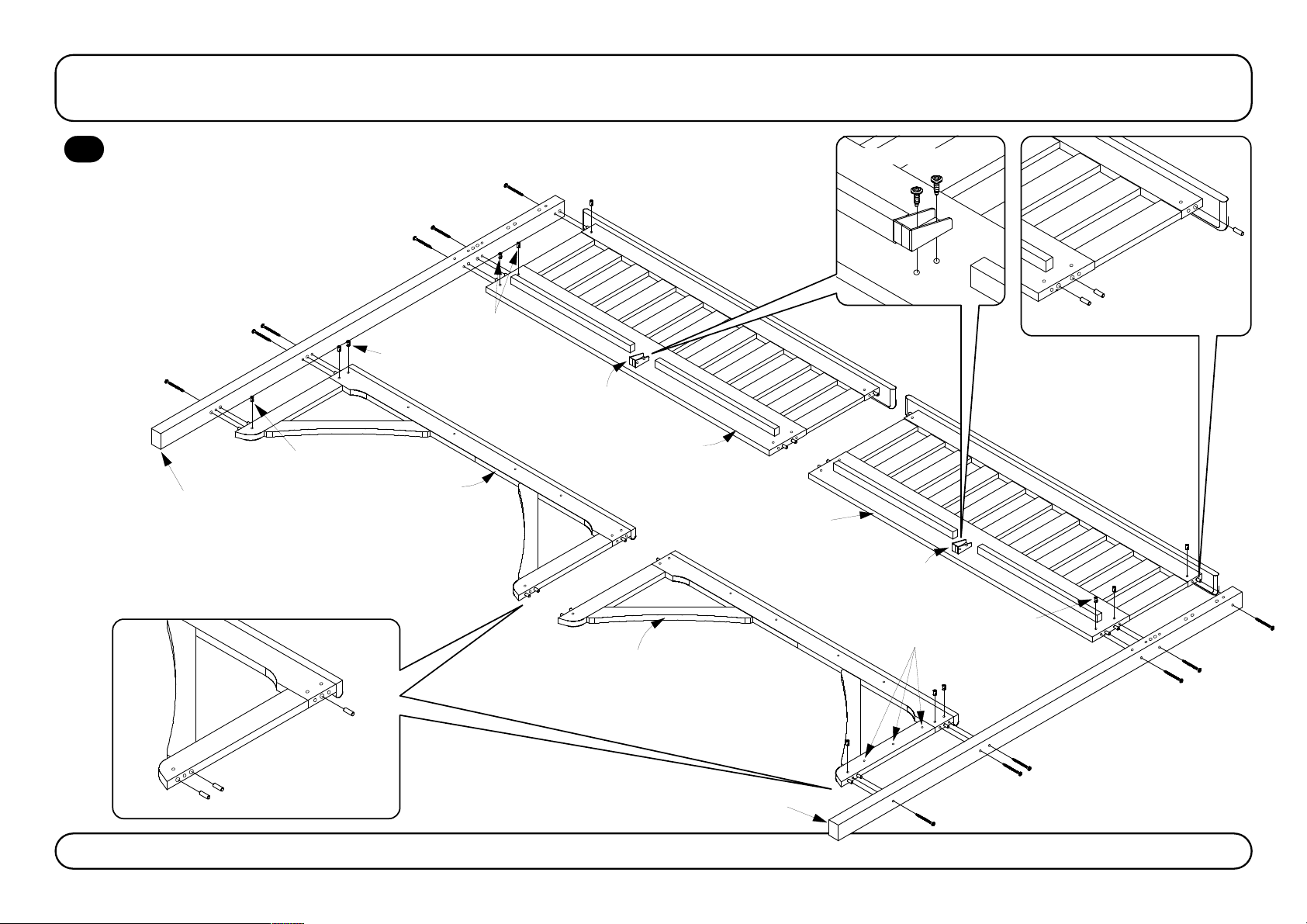

Bolt the Slats to the Stretchers.
Lay the Slats inside the Stretchers as shown below, and Bolt in place with
the 40mm Threaded Wood Bolts (total 16 Bolts) and 30mm Wood Screws
(total 16 Screws).
6A
16mm Wood
Screws
Ladder
6B
Attach the Ladder to the Front Stretcher.
Finally, hook on the Ladder onto the Front Stretcher. Use
the 16mm Wood Screws to fix the Ladder in place.
Please take note of the
warnings shown on page
one of these instructions,
printed on the carton box
and on stickers on the
Bunk bed.
Ginger Full Loft Bunk Bed
N&D 0209
