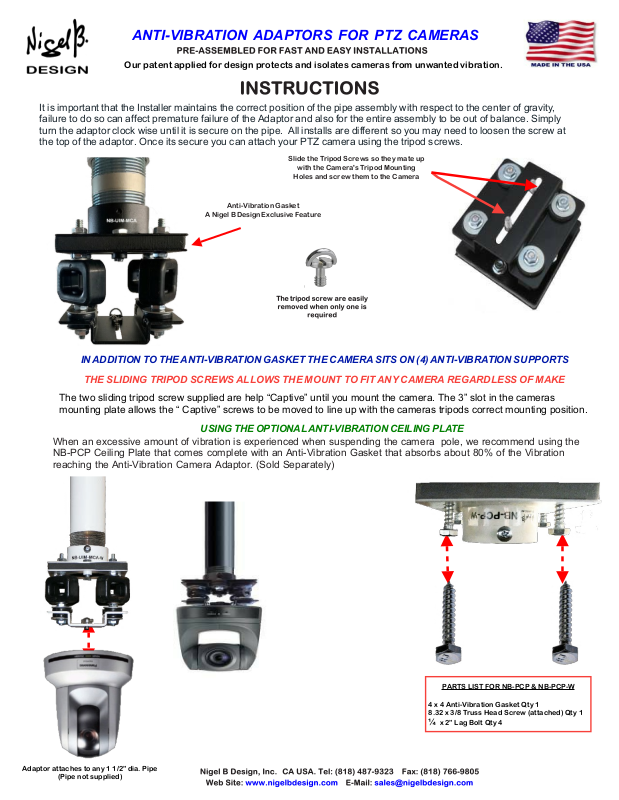

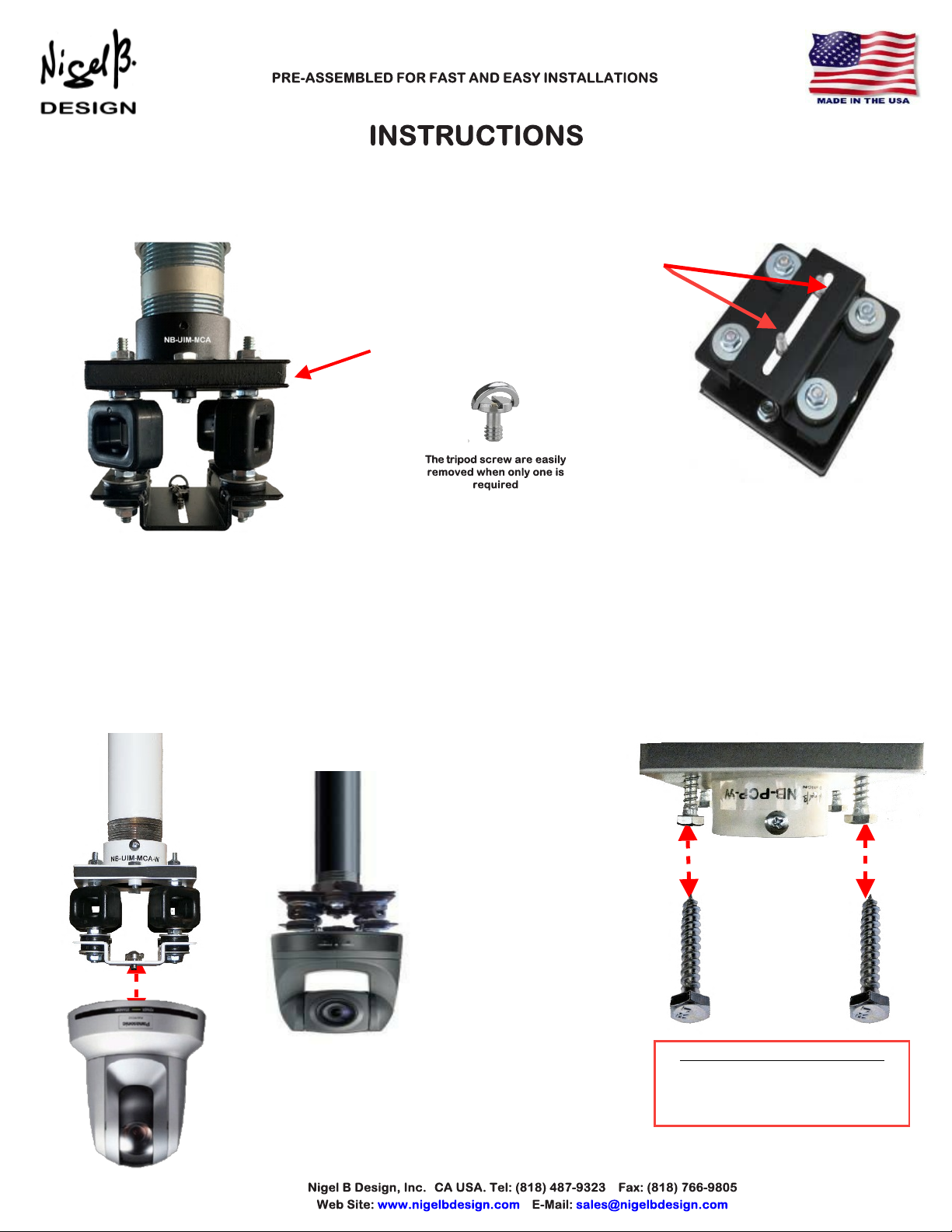

ANTI-VIBRATION ADAPTORS FOR PTZ CAMERAS
Our patent applied for design protects and isolates cameras from unwanted vibration.
It is important that the Installer maintains the correct position of the pipe assembly with respect to the center of gravity,
failure to do so can affect premature failure of the Adaptor and also for the entire assembly to be out of balance. Simply
turn the adaptor clock wise until it is secure on the pipe. All installs are different so you may need to loosen the screw at
the top of the adaptor. Once its secure you can attach your PTZ camera using the tripod screws.
Slide the Tripod Screws so they mate up
with the Camera's Tripod Mounting
Holes and screw them to the Camera
Anti-Vibration Gasket
A Nigel B Design Exclusive Feature
IN ADDITION TO THE ANTI-VIBRATION GASKET THE CAMERA SITS ON (4) ANTI-VIBRATION SUPPORTS
THE SLIDING TRIPOD SCREWS ALLOWS THE MOUNT TO FIT ANY CAMERA REGARDLESS OF MAKE
The two sliding tripod screw supplied are help “Captive” until you mount the camera. The 3” slot in the cameras
mounting plate allows the “ Captive” screws to be moved to line up with the cameras tripods correct mounting position.
USING THE OPTIONAL ANTI-VIBRATION CEILING PLATE
When an excessive amount of vibration is experienced when suspending the camera pole, we recommend using the
NB-PCP Ceiling Plate that comes complete with an Anti-Vibration Gasket that absorbs about 80% of the Vibration
reaching the Anti-Vibration Camera Adaptor. (Sold Separately)
Adaptor attaches to any 1 1/2” dia. Pipe
(Pipe not supplied)
PARTS LIST FOR NB-PCP & NB-PCP-W
4 x 4 Anti-Vibration Gasket Qty 1
8.32 x 3/8 Truss Head Screw (attached) Qty 1
¼ x 2” Lag Bolt Qty 4
