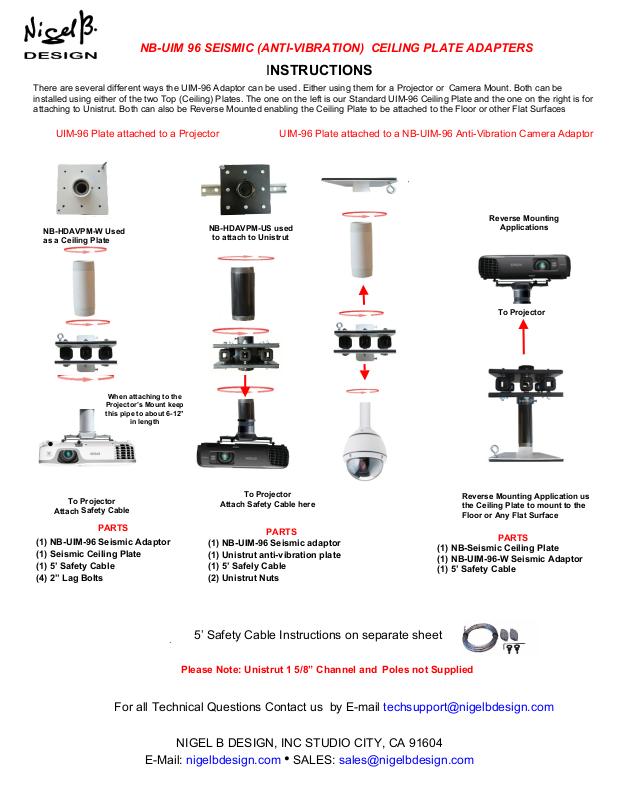

NB-UIM 96 SEISMIC (ANTI-VIBRATION) CEILING PLATE ADAPTERS
INSTRUCTIONS
There are several different ways the UIM-96 Adaptor can be used. Either using them for a Projector or Camera Mount. Both can be
installed using either of the two Top (Ceiling) Plates. The one on the left is our Standard UIM-96 Ceiling Plate and the one on the right is for
attaching to Unistrut. Both can also be Reverse Mounted enabling the Ceiling Plate to be attached to the Floor or other Flat Surfaces

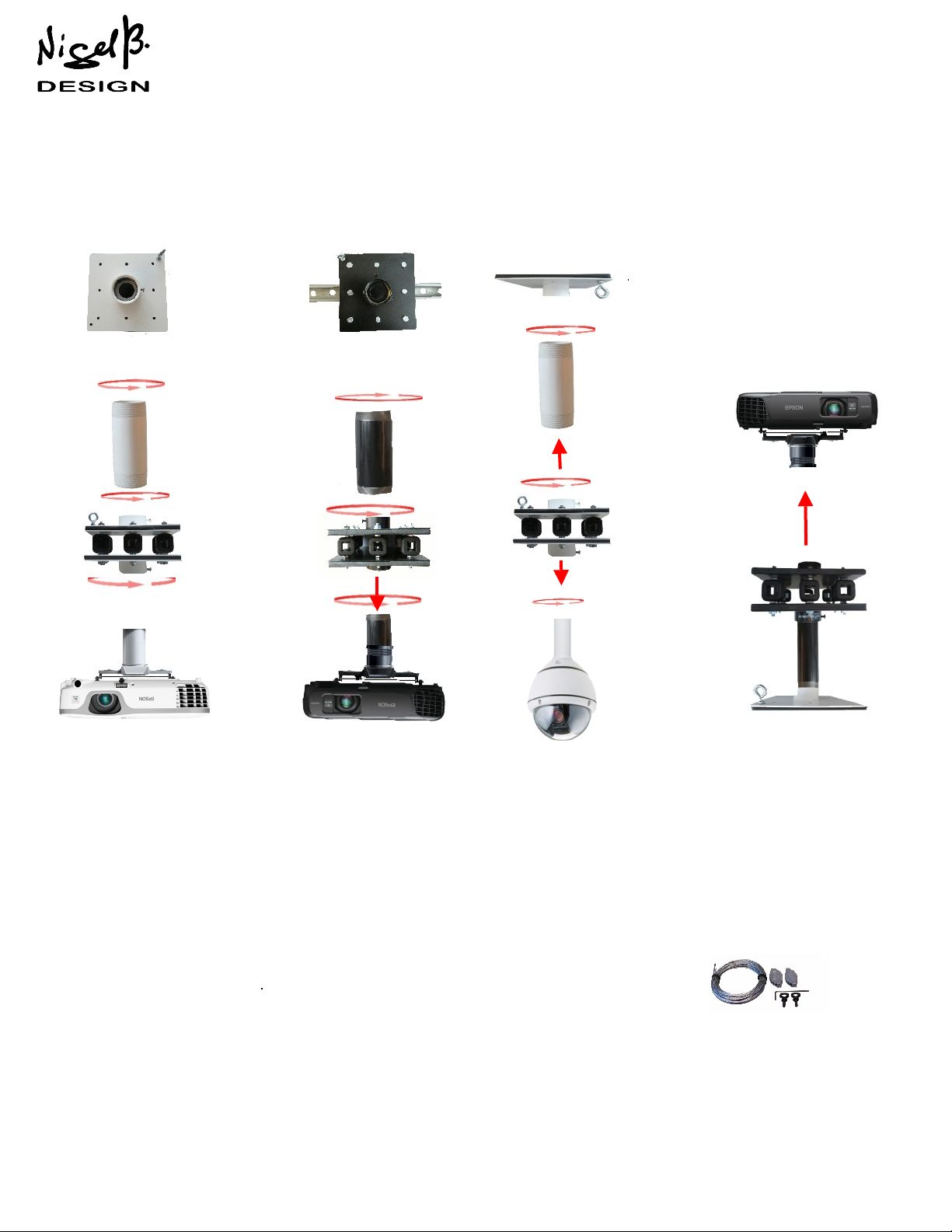

UIM-96 Plate attached to a Projector UIM-96 Plate attached to a NB-UIM-96 Anti-Vibration Camera Adaptor
Reverse Mounting
NB-HDAVPM-W Used
as a Ceiling Plate
NB-HDAVPM-US used
to attach to Unistrut
Applications
To Projector
When attaching to the
Projector’s Mount keep
this pipe to about 6-12”
in length
To Projector
Attach Safety Cable
PARTS
(1) NB-UIM-96 Seismic Adaptor
(1) Seismic Ceiling Plate
(1) 5’ Safety Cable
(4) 2” Lag Bolts
To Projector
Attach Safety Cable here
PARTS
(1) NB-UIM-96 Seismic adaptor
(1) Unistrut anti-vibration plate
(1) 5’ Safely Cable
(2) Unistrut Nuts
Reverse Mounting Application us
the Ceiling Plate to mount to the
Floor or Any Flat Surface
(1) NB-Seismic Ceiling Plate
(1) NB-UIM-96-W Seismic Adaptor
(1) 5’ Safety Cable
5’ Safety Cable Instructions on separate sheet
Please Note: Unistrut 1 5/8” Channel and Poles not Supplied
PARTS
For all Technical Questions Contact us by E-mail [email protected]
