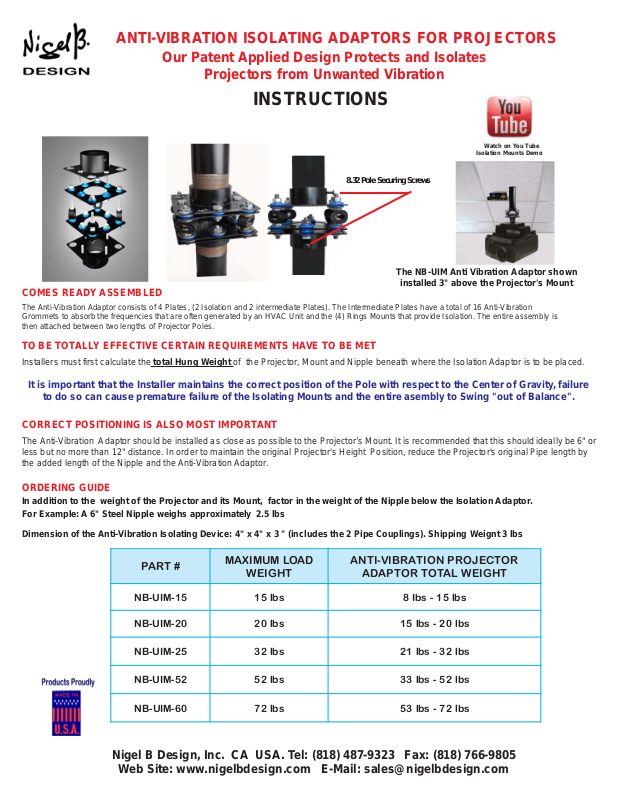

ANTI-VIBRATION ISOLATING ADAPTORS FOR PROJECTORS
Our Patent Applied Design Protects and Isolates
Projectors from Unwanted Vibration
INSTRUCTIONS
Watch on You Tube
Isolation Mounts Demo
8.32 Pole Securing Screws

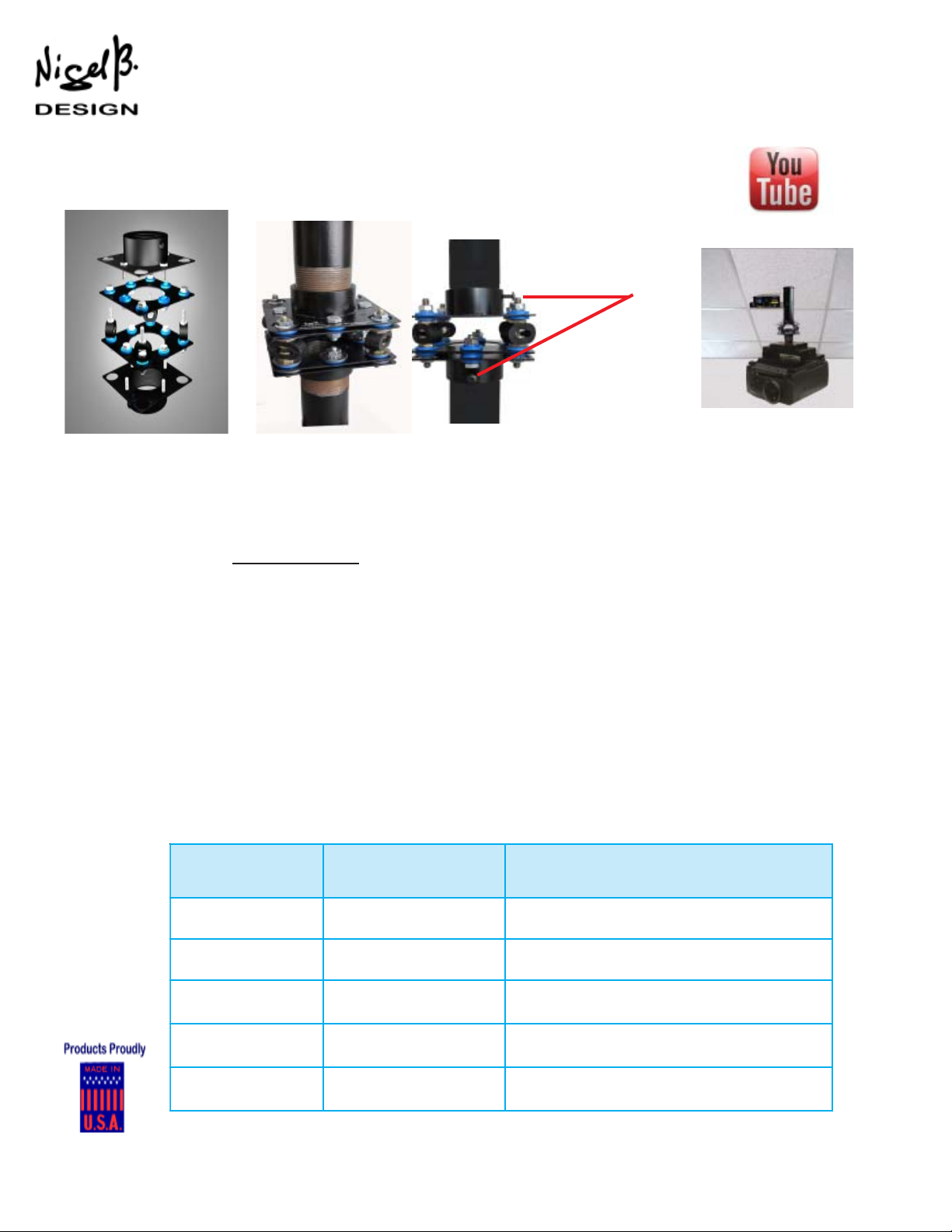

The NB-UIM Anti Vibration Adaptor shown
installed 3" above the Projector's Mount
COMES READY ASSEMBLED
The Anti-Vibration Adaptor consists of 4 Plates, (2 Isolation and 2 intermediate Plates). The Intermediate Plates have a total of 16 Anti-Vibration
Grommets to absorb the frequencies that are often generated by an HVAC Unit and the (4) Rings Mounts that provide Isolation. The entire assembly is
then attached between two lengths of Projector Poles.
TO BE TOTALLY EFFECTIVE CERTAIN REQUIREMENTS HAVE TO BE MET
Installers must first calculate the
total Hung Weight of the Projector, Mount and Nipple beneath where the Isolation Adaptor is to be placed.
It is important that the Installer maintains the correct position of the Pole with respect to the Center of Gravity, failure
to do so can cause premature failure of the Isolating Mounts and the entire asembly to Swing "out of Balance".
CORRECT POSITIONING IS ALSO MOST IMPORTANT
The Anti-Vibration Adaptor should be installed as close as possible to the Projector’s Mount. It is recommended that this should ideally be 6" or
less but no more than 12" distance. In order to maintain the original Projector's Height Position, reduce the Projector's original Pipe length by
the added length of the Nipple and the Anti-Vibration Adaptor.
ORDERING GUIDE
In addition to the weight of the Projector and its Mount, factor in the weight of the Nipple below the Isolation Adaptor.
For Example: A 6" Steel Nipple weighs approximately 2.5 lbs
Dimension of the Anti-Vibration Isolating Device: 4" x 4" x 3 " (includes the 2 Pipe Couplings). Shipping Weignt 3 lbs
#TRAP
51-MIU-BNsbl51sbl51-sbI8
02-MIU-BNsbl02sbl02-sbl51
DAOLMUMIXAM
THGIEW
ROTCEJORPNOITARBIV-ITNA
THGIEWLATOTROTPADA
52-MIU-BNsbl23sbl23-sbl12
25-MIU-BNsbl25sbl25-sbl33
06-MIU-BNsb
l27sbl27-sbl35
Nigel B Design, Inc. CA USA. Tel: (818) 487-9323 Fax: (818) 766-9805
Web Site: www.nigelbdesign.com E-Mail: [email protected]
