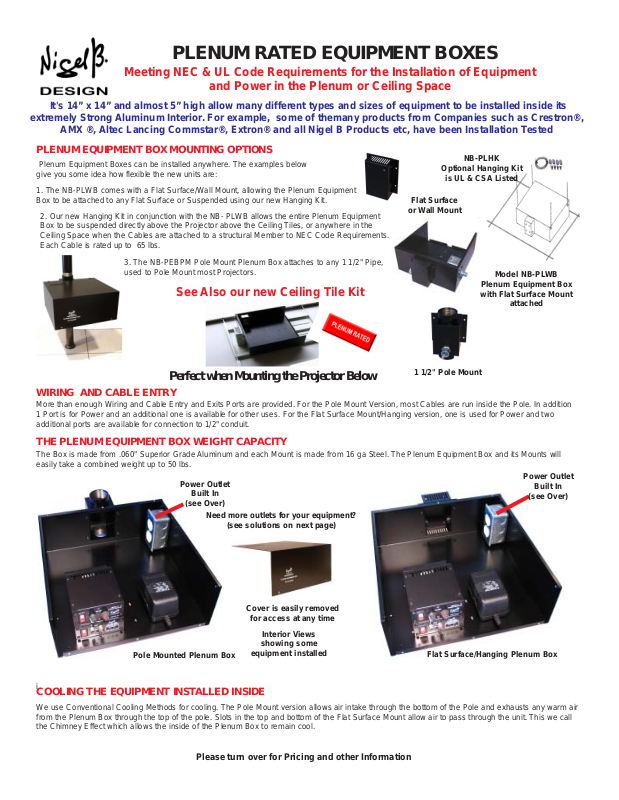

PLENUM RATED EQUIPMENT BOXES
Meeting NEC & UL Code Requirements for the Installation of Equipment
and Power in the Plenum or Ceiling Space
It's 14” x 14” and almost 5” high allow many different types and sizes of equipment to be installed inside its
extremely Strong Aluminum Interior. For example, some of themany products from Companies such as Crestron®,
AMX ®, Altec Lancing Commstar®, Extron® and all Nigel B Products etc, have been Installation Tested

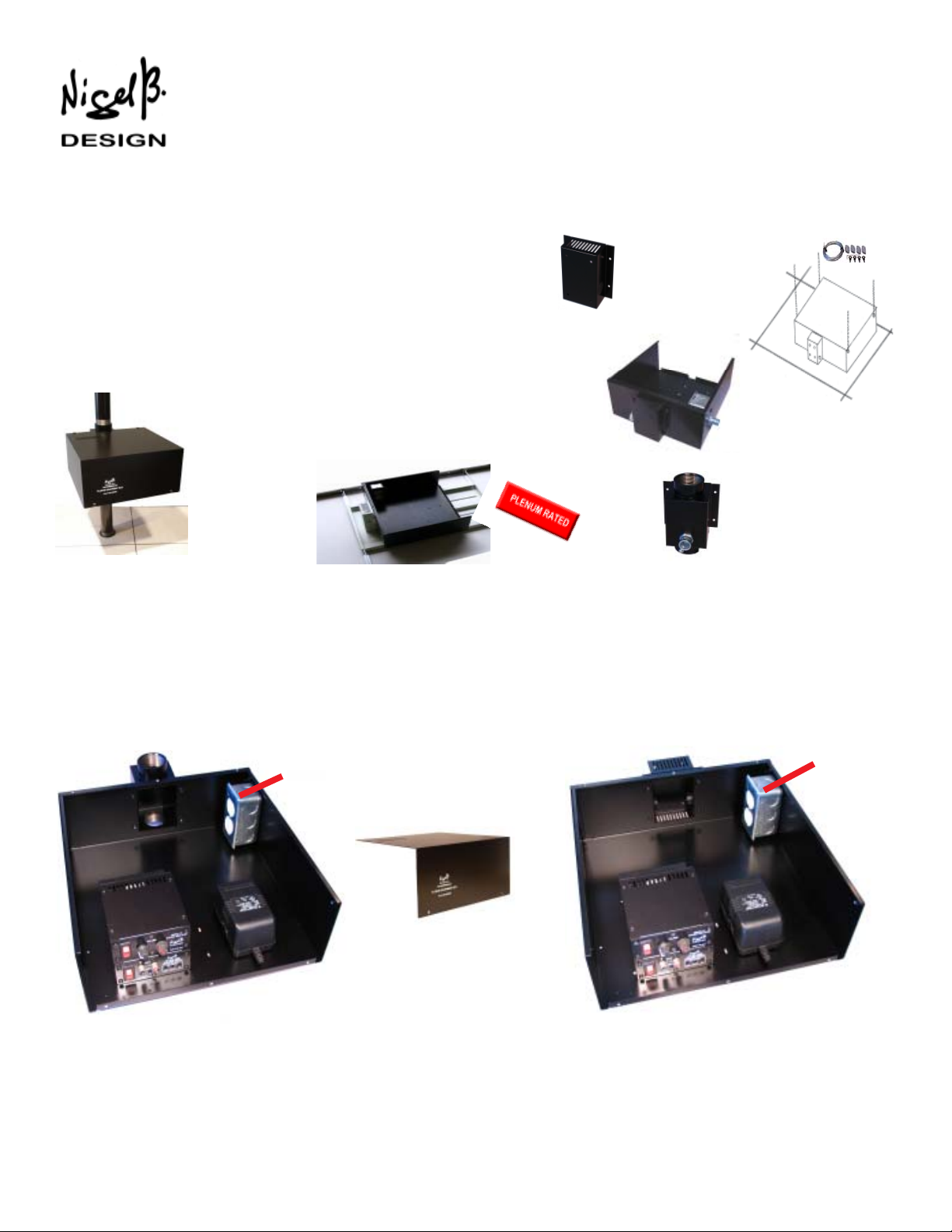

PLENUM EQUIPMENT BOX MOUNTING OPTIONS
Plenum Equipment Boxes can be installed anywhere. The examples below
give you some idea how flexible the new units are:
1. The NB-PLWB comes with a Flat Surface/Wall Mount, allowing the Plenum Equipment
Box to be attached to any Flat Surface or Suspended using our new Hanging Kit.
2. Our new Hanging Kit in conjunction with the NB- PLWB allows the entire Plenum Equipment
Box to be suspended directly above the Projector above the Ceiling Tiles, or anywhere in the
Ceiling Space when the Cables are attached to a structural Member to NEC Code Requirements.
Each Cable is rated up to 65 lbs.
3. The NB-PEBPM Pole Mount Plenum Box attaches to any 1 1/2" Pipe,
used to Pole Mount most Projectors.
See Also our new Ceiling Tile Kit
Perfect when Mounting the Projector Below
Flat Surface
or Wall Mount
1 1/2" Pole Mount
NB-PLHK
Optional Hanging Kit
is UL & CSA Listed
Model NB-PLWB
Plenum Equipment Box
with Flat Surface Mount
attached
WIRING AND CABLE ENTRY
More than enough Wiring and Cable Entry and Exits Ports are provided. For the Pole Mount Version, most Cables are run inside the Pole. In addition
1 Port is for Power and an additional one is available for other uses. For the Flat Surface Mount/Hanging version, one is used for Power and two
additional ports are available for connection to 1/2" conduit.
THE PLENUM EQUIPMENT BOX WEIGHT CAPACITY
The Box is made from .060" Superior Grade Aluminum and each Mount is made from 16 ga Steel. The Plenum Equipment Box and its Mounts will
easily take a combined weight up to 50 lbs.
Power Outlet
Built In
(see Over)
Need more outlets for your equipment?
(see solutions on next page)
Power Outlet
Built In
(see Over)
Cover is easily removed
for access at any time
Interior Views
showing some
Pole Mounted Plenum Box
i
COOLING THE EQUIPMENT INSTALLED INSIDE
We use Conventional Cooling Methods for cooling. The Pole Mount version allows air intake through the bottom of the Pole and exhausts any warm air
from the Plenum Box through the top of the pole. Slots in the top and bottom of the Flat Surface Mount allow air to pass through the unit. This we call
the Chimney Effect which allows the inside of the Plenum Box to remain cool.
equipment installed
Flat Surface/Hanging Plenum Box
Please turn over for Pricing and other Information
Page 2

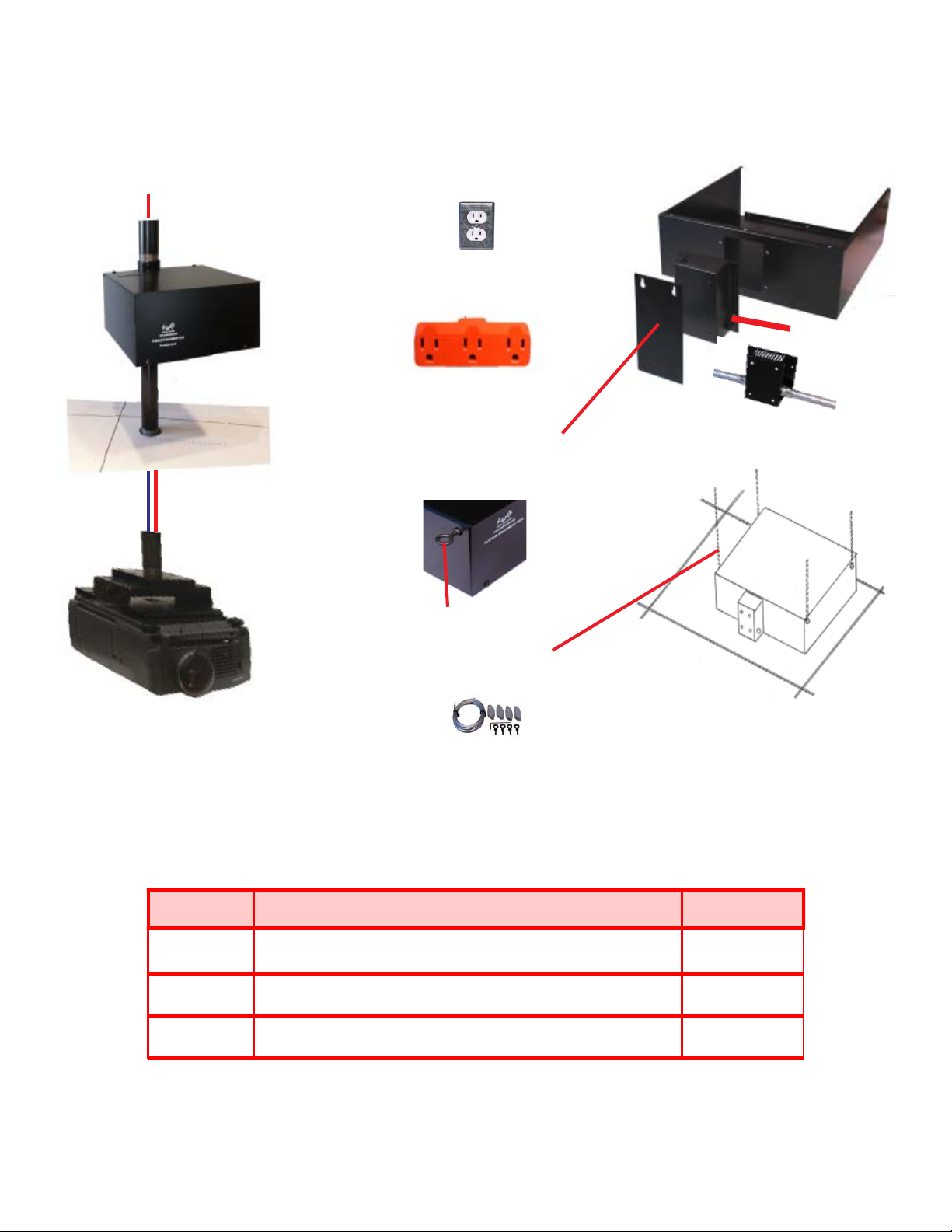

In order to meet NEC and State Code regulations, it is important to understand the main parts of the Code that regulate how equipment and wiring can
be installed in a Plenum or Ceiling Space.
NEC ARTICLE 400-8 and 400-8(5)......page 219 of the code states: That Flexible Cords and Cables are not permitted to be run through Walls,
Structural ceilings, Suspended Ceilings, or Dropped Ceilings. In addition the revision to 400-8 specifically prohibits these cords being used without
being properly enclosed. Regulations also prohibits the Installation of open Power Outlets in these spaces.
Our Plenum Box encloses all Wiring and Cables including
To Ceiling Speakers
the Power Recepticle meeting all NEC Code Requirements
The Supplied Power Outlet is
installed Inside all Plenum Boxes
to meet NEC Code Requirements
Need more outlets for your equipment?
Simply add one or two 3 Outlet Taps
or a Power Strip to the receptacle inside
Using the supplied Flat Plate allows
the Plenum Box to be fixed to any Flat Surface
Port Plus fitted
both Sides
By removing the supplied Port Plugs,
standard 1/2" Conduct can be used
to provide Cable Entry & Exit Points
Power Supply
to Projector
Pole Mount Installation
Line In to Amplifier
Eye Bolts are attached to each
corner of the Plenum Box
The Hanging Kit is UL & CSA Listed and is
rated with a safe working load of 100 lbs
Hanging Plenum Box Installation
CONTROLLING NIGEL B AMPLIFIERS
Our Standard Amplifiers are usually controlled using the Projector's Remote, our Plus Series Amplifiers have an RS 232 Port, enabling them to be
controlled by an AMX® or Crestron® or similar Touch Screen
IF YOU NEED TO INSTALL THE PLENUM EQUIPMENT BOX BELOW THE CEILING TILES
Because the Pole Mounted Plenum Box uses standard 1 1/2" Pipe fittings, the equipment box can be attached to the Projector's Pole
SPECIFICATIONS
Interior Dimensions: 14" x 14" x 4.75 High. Weight: 5 lbs
Part # Description List Price
NB-PEBPM
14" x 14" Plenum Equipment Box
wit h P ole Mo unt
$ 299.95
NB-PLWB 14" x 14" Plenum Equipment Box with Flat Surface Mounting Box $ 299.95
NB-PLHK Hanging Kit with all Hardware for Flat Surface Mounting Box $ 79.95
Please see Ceiling Tile Kit Leaflet when using a Projector with the Plenum Equipment Box
Nigel B Design, Inc. California, USA. Tel: (818) 487-9323 Fax: (818) 766-9805
Web Site: www.nigelbdesign.com. E-Mail: [email protected]
