General Information
The manufacturer accepts no liability for any consequences resulting from inappropriate, negligent or
incorrect installation or adjustment of the optional parameters of the equipment or from mismatching the
starter with the motor.
The contents of this guide are believed to be correct at the time of printing. In the interests of commitment
to a policy of continuous development and improvement, the manufacturer reserves the right to change
the specification of the product or its performance, or the content of the guide without notice.
All rights reserved. No parts of this guide may be reproduced or transmitted in any form or by any means,
electrical or mechanical including, photocopying, recording or by an information storage or retrieval
system, without permission in writing from the publisher.
Software Version
This product is supplied with the latest version of user-interface and machine control software. If this
product is to be used in a new or existing system with other starters, there may be some differences
between their software and the software in this product. These differences may cause the product to
function differently. This may also apply to starters returned from the Nidec Service Centre.
If there is any doubt, please contact Nidec or your local Distributor.
Environmental Statement
Nidec is committed to minimising the impacts of its manufacturing operations. To this end, we operate an
Environmental Management System (EMS) which is certified to the International Standard ISO 14001.
When the products eventually reach the end of their useful life, they can very easily be dismantled into
their major component parts for efficient recycling. Many parts snap together and can be separated
without the use of tools, while other parts are secured with conventional screws.
Product packaging is of good quality and can be re-used. Large products are packed in wooden crates,
while smaller products come in strong cardboard cartons which themselves have a high recycled fibre
content. If not re-used, these containers can be recycled. Polythene, used on the protective film and bags
from wrapping product, can be recycled in the same way.
When preparing to recycle or dispose of any product or packaging, please observe local legislation and
best practice.
REACH Legislation
EC Regulation 1907/2006 on the Registration, Evaluation, Authorisation and restriction of Chemicals
(REACH) requires the supplier of an article to inform the recipient if it contains more than a specified
proportion of any substance which is considered by the European Chemicals Agency (ECHA) to be a
Substance of Very High Concern (SVHC) and is therefore listed by them as a candidate for compulsory
authorisation.
For current information on how this requirement applies in relation to specific Nidec products, please
approach your usual contact in the first instance.
For the latest manuals and software, please visit our website.
Contents
1 Safety Information .............................................................................................................................4
1.1
Electrical safety - general warning ......................................................................................................4
1.2 System Design and Safety of Personnel .............................................................................................4
1.3 Environmental limits ............................................................................................................................4
1.4 Compliance with regulations ...............................................................................................................4
1.5 Motor ...................................................................................................................................................4
1.6 Adjusting parameters...........................................................................................................................4
1.7 Electrical Installation ............................................................................................................................5
2 Rating Data .........................................................................................................................................6
2.1
Model Code .........................................................................................................................................6
2.2 Current Ratings ...................................................................................................................................6
3 Mechanical Installation .....................................................................................................................7
3.1
Dimensions and Weights .....................................................................................................................7
3.2 Physical Installation .............................................................................................................................8
4 Electrical Installation ........................................................................................................................9
4.1
Terminal layout ....................................................................................................................................9
4.2 Schematic Diagrams ........................................................................................................................ 12
5 Programmable Parameters ............................................................................................................ 13
5.1
Adjustments ...................................................................................................................................... 13
6 Diagnostics ..................................................................................................................................... 16
6.1
LEDs ................................................................................................................................................. 16
6.2 Trip Codes ........................................................................................................................................ 16
6.3 Reset ................................................................................................................................................ 16
6.4 Protections ........................................................................................................................................ 17
7 Technical Data ................................................................................................................................ 18
8 Options ............................................................................................................................................ 20
Digistart D2: User Guide 3
Issue: F
1 Safety Information
WARNING
Indicates a hazard that may cause personal injury or death.
CAUTION
Indicates a hazard that may damage the equipment or installation.
NOTE
Provides helpful information.
1.1 Electrical safety - general warning
The voltages used in the starter can cause severe electrical shock and/or burns, and could be lethal.
Extreme care is necessary at all times when working with or adjacent to the starter.
Specific warnings are given at the relevant places in this guide.
1.2 System Design and Safety of Personnel
The starter is intended as a component for professional incorporation into complete equipment or a
system. If installed incorrectly, the starter may present a safety hazard.
The starter uses high voltages and currents, carries stored electrical energy, and is used to control
equipment which can cause injury.
Close attention is required to the electrical installation and the system design to avoid hazards either in
normal operation or in the event of equipment malfunction. System design, installation, commissioning
and maintenance must be carried out by personnel who have the necessary training and experience.
They must read this safety information and this guide carefully.
None of the starter functions must be used to ensure safety of personnel, ie they must not be
used for safety-related functions.
Careful consideration must be given to the functions of the starter which might result in a hazard, either
through their intended behaviour or through incorrect operation due to a fault. In any application where a
malfunction of the starter or its control system could lead to or allow damage, loss or injury, a risk analysis
must be carried out, and where necessary, further measures taken to reduce the risk.
The system designer is responsible for ensuring that the complete system is safe and designed correctly
according to the relevant safety standards.
1.3 Environmental limits
Instructions regarding transport, storage, installation and use of the starter must be complied with,
including the specified environmental limits. Starters must not be subjected to excessive physical force.
1.4 Compliance with regulations
The installer is responsible for complying with all relevant regulations, such as national wiring regulations,
accident prevention regulations and electromagnetic compatibility (EMC) regulations. Particular attention
must be given to the cross-sectional areas of conductors, the selection of fuses or other protection, and
protective ground connections.
Within the European Union, all machinery in which this product is used must comply with the following
directives:
2006/42/EC: Safety of machinery.
2014/30/EU: Electromagnetic Compatibility.
1.5 Motor
Ensure the motor is installed in accordance with the manufacturer’s recommendations. Ensure the motor
shaft is not exposed.
1.6 Adjusting parameters
Some parameters have a profound effect on the operation of the starter. They must not be altered without
careful consideration of the impact on the controlled system. Measures must be taken to prevent
unwanted changes due to error or tampering.
4 Digistart D2: User Guide
Issue: F
1.7 Electrical Installation
1.7.1 Electrical shock risk
The voltages present in the following locations can cause severe electric shock and may be lethal:
• AC supply cables and connections
• Output cables and connections
• Many internal parts of the starter, and external option units
The AC supply must be disconnected from the starter using an approved isolation device before any
cover is removed from the starter or before any servicing work is performed.
1.7.2 Power-up procedure
WARNING
Always apply control voltage before (or with) mains voltage.
After transportation, mechanical shock or rough handling there is a possibility that the bypass contactor
may have latched into the on state. To prevent the possibility of the motor starting immediately, on first
commissioning or operation after transportation, always ensure that the control supply is applied before
the power, so that the contactor state is initialised.
1.7.3 STOP function
The STOP function does not remove dangerous voltages from the starter, the motor or any external
option units.
1.7.4 Equipment supplied by plug and socket
The control supply terminals of the starter are connected to the internal capacitors through rectifier diodes
which are not intended to give safety isolation. If the plug terminals can be touched when the plug is
disconnected from the socket, a means of automatically isolating the plug from the starter must be used
(e.g. a latching relay).
1.7.5 Short circuit
The Digistart D2 is not short circuit proof. After severe overload or short circuit, the operation of the
Digistart D2 should be fully tested by an authorised service agent.
Digistart D2: User Guide 5
Issue: F
D2- 1 4 – 0 8 5
–
Control voltage
C1 = 110~240 VAC or 380-440 VAC
C2 = 24 VAC/VDC
Current rating @400 VAC
≤ 060 A: AC53b 4-6-354
≥ 085 A: AC53b 4-6-594
Mains voltage
14 = 200~440 VAC
16 = 200~575 VAC
AC53b 4-6:354
< 1000 metres
AC53b 4-20:340
< 1000 metres
40 °C
50 °C
40 °C
50 °C
D2-018
18 A
17 A
17 A
15 A
D2-034
34 A
32 A
30 A
28 A
D2-042
42 A
40 A
36 A
33 A
D2-048
48 A
44 A
40 A
36 A
D2-060
60 A
55 A
49 A
45 A
AC53b 4-6:594
< 1000 metres
AC53b 4-20 580
< 1000 metres
40 °C
50 °C
40 °C
50 °C
D2-075
75 A
68 A
65 A
59 A
D2-085
85 A
78 A
73 A
67 A
D2-100
100 A
100 A
96 A
87 A
D2-140
140 A
133 A
120 A
110 A
D2-170
170 A
157 A
142 A
130 A
D2-200
200 A
186 A
165 A
152 A
2 Rating Data
2.1 Model Code
2.2 Current Ratings
Contact your local supplier for ratings under operating conditions not covered by these ratings charts.
6 Digistart D2: User Guide
Issue: F
Width
Height
Depth
(inch)
(inch)
(inch)
(inch)
Weight
(lb)
Model
A B C D E F G H
D2-018
D2-034
98
82
201
188
165
55
90.5
23
2.2
D2-042
(3.85)
(3.22)
(7.91)
(7.40)
(6.49)
(2.16)
(3.6)
(0.9)
(4.85)
D2-048
D2-060
D2-075
D2-085
145
124
215
196
193
-
110.5
37
4.0
D2-100
(5.70)
(4.88)
(8.46)
(7.71)
(7.59)
(4.4)
(1.5)
(8.81)
D2-140
D2-170
200
160
240
216
214
-
114.5
51
6.5
D2-200
(7.87)
(6.30)
(9.44)
(8.50)
(8.43)
(4.5)
(2.0)
(14.33)
A
3 Mechanical Installation
WARNING
Models D2-140 to D2-200 are intended to be mounted in an enclosure which prevents access
except by trained and authorised personnel, and which prevents the ingress of contamination.
The complete range is designed for use in an environment classified as Pollution Degree 3 in
accordance with IEC60664-1. This means conductive pollution or dry, non-conductive pollution
which becomes conductive due to condensation is acceptable.
It is the installer's responsibility to ensure that any enclosure which allows access to models
D2-140 to D2-200 while the product is energized, provides protection against contact and
ingress requirements of IP20.
Models D2-140 to D2-200 can be installed with optional finger guards, in which case they do not

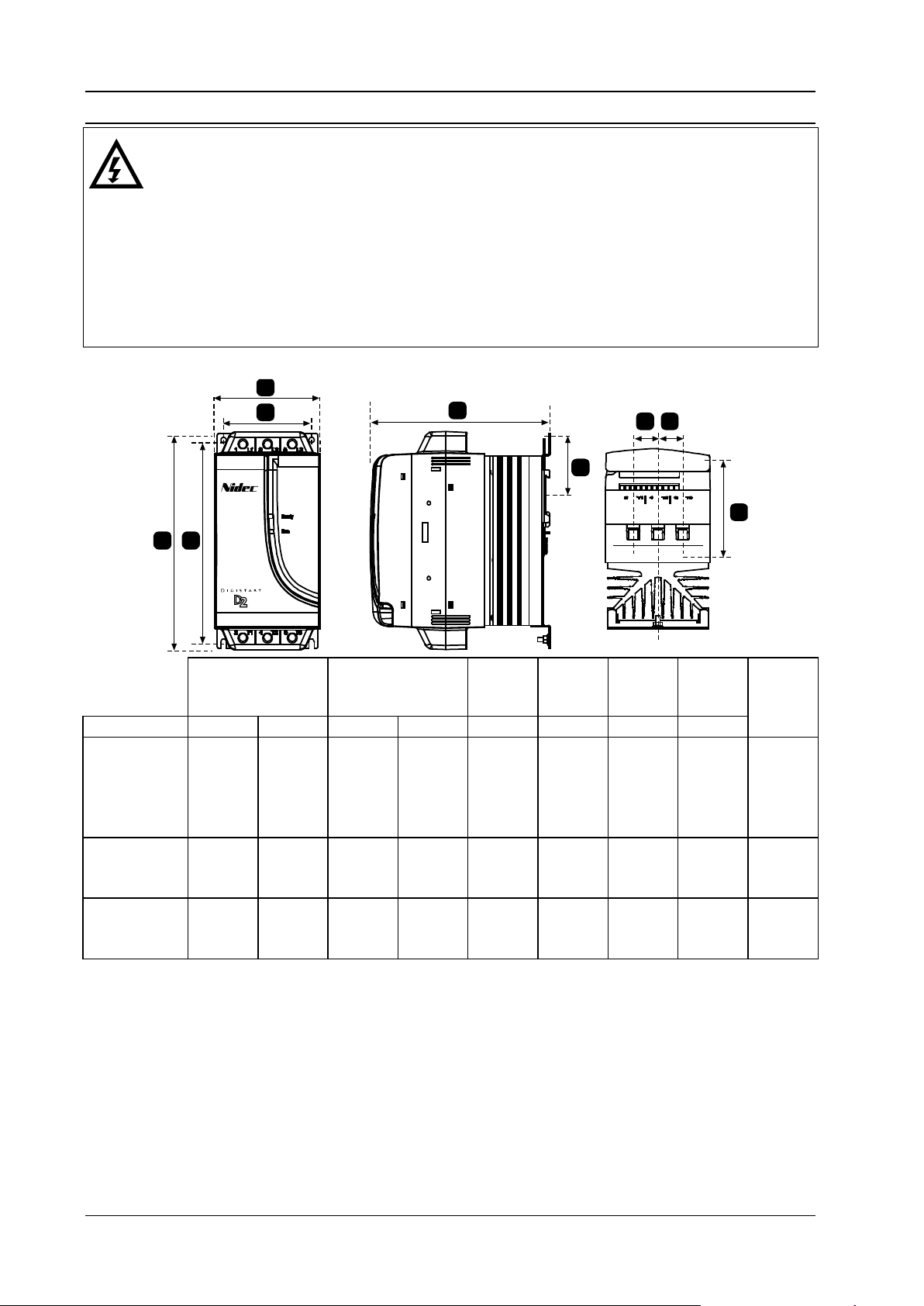

3.1 Dimensions and Weights
need to be mounted in an enclosure.
C D
B
mm (inch)
mm (inch)
E
F
H H
G
08543.B
mm
mm
mm
mm
kg
Digistart D2: User Guide 7
Issue: F

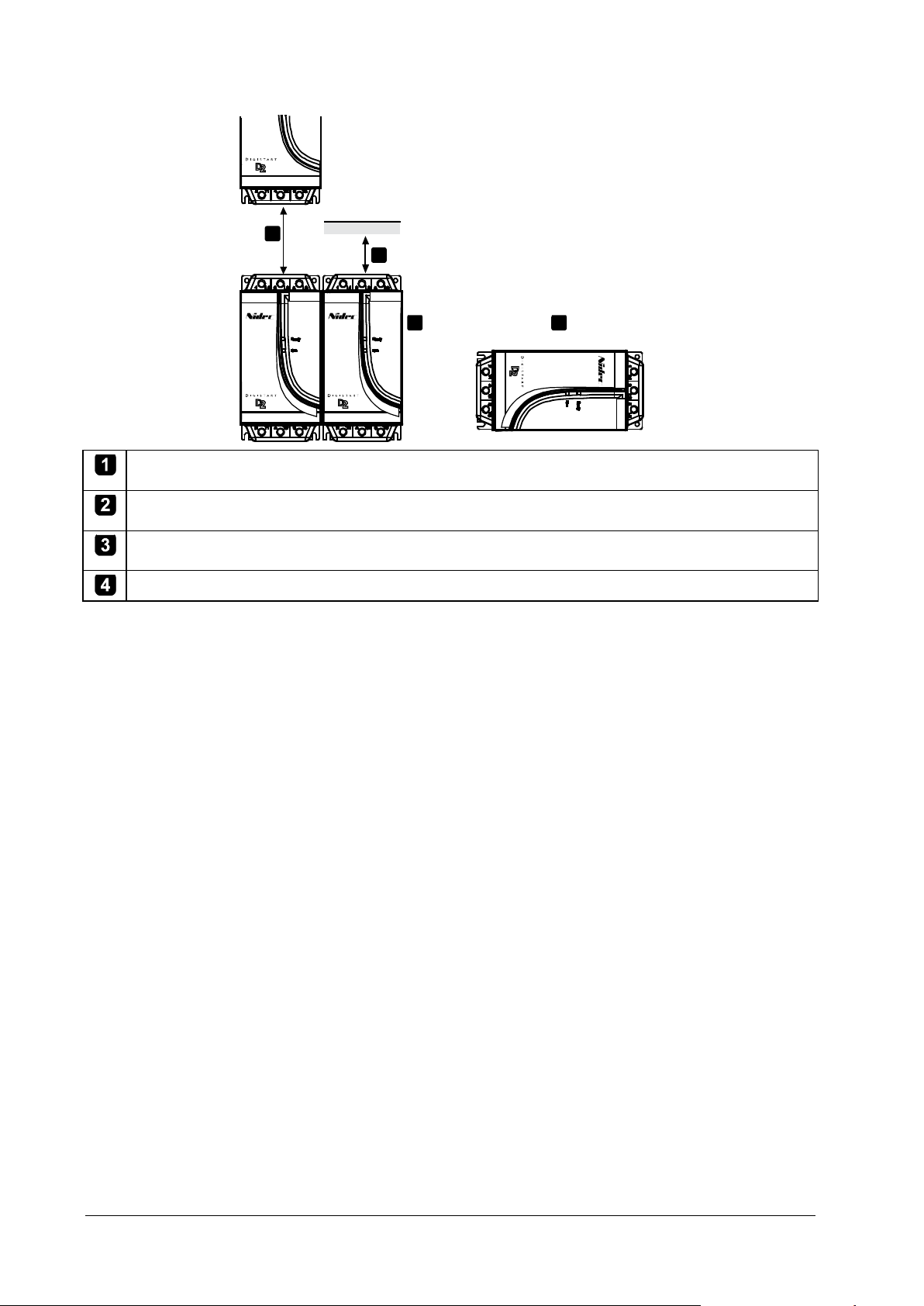

D2-018 ~ D2-100: Allow 100 mm (3.9 inch) between soft starters.
D2-140 ~ D2-200: Allow 200 mm (7.9 inch) between soft starters.
D2-018 ~ D2-100: Allow 50 mm (2.0 inch) between the soft starter and solid surfaces.
D2-140 ~ D2-200: Allow 200 mm (7.9 inch) between the soft starter and solid surfaces.
Soft starters may be mounted side by side with no clearance (that is, if mounted without
communications modules).
The soft starter may be mounted on its side. Derate the soft starter's rated current by 15%.
1
3 4
2
08544.B
3.2 Physical Installation
8 Digistart D2: User Guide
Issue: F
1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3
CSL, CSR, CSH, DI1,
DI2, TH1, TH2, COM2,
mm2 (AWG)
018 - 060
075 - 100
140 - 200
018 - 200
10427.A
10428.A
10428.A
26
(1.02)
11
(0.43)
Ø 8.5
(0.33)
10429.A
mm (inch)
10428.A
Torx (T20)
2.2 ft-lb
Torx (T20)
2.9 ft-lb
n/a
n/a 7 mm
2.2 ft-lb
7 mm
2.9 ft-lb
n/a
3.5 mm
4.4 in-lb max
Model
Terminal size
Maximum Torque
D2-018 to D2-060
4 mm
2 Nm
D2-075 to D2-200
6 mm
3 Nm
4 Electrical Installation
WARNING
Always apply control voltage before (or with) mains voltage.
All Digistart D2 starters include an internal bypass relay that bypasses the soft starter SCRs during run.
This allows the Digistart D2 to be installed in a non-ventilated enclosure without an external bypass
contactor.
4.1 Terminal layout
For specifications and detailed technical data, see Technical Data on page 18.
CAUTION

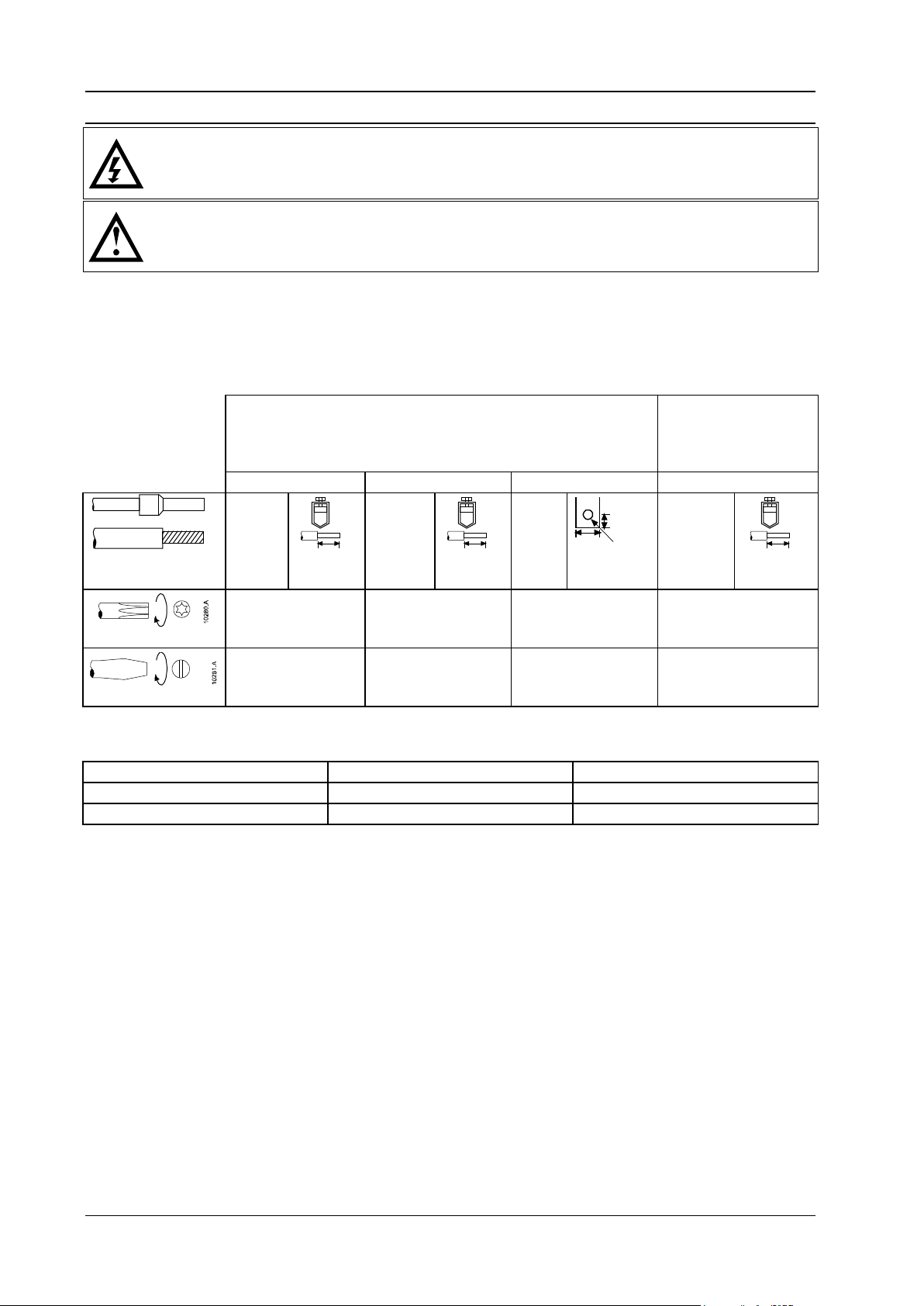

Always follow the specified tightening torque for all power and ground terminal connections.
mm2 (AWG)
RLO2, COM1, RLO1
10 - 35
(8 - 2)
14 mm
(0.55 inch)
3 Nm
3 Nm
25 - 50
(4 - 1/10)
4 Nm
4 Nm
n/a
14 mm
(0.55 inch)
4.1.1 Ground terminal
All Digistart D2 soft starters have one ground terminal at the bottom of the starter.
0.14 - 1.5
(26 - 16)
0.5 Nm max
6 mm
(0.24 inch)
Digistart D2: User Guide 9
Issue: F

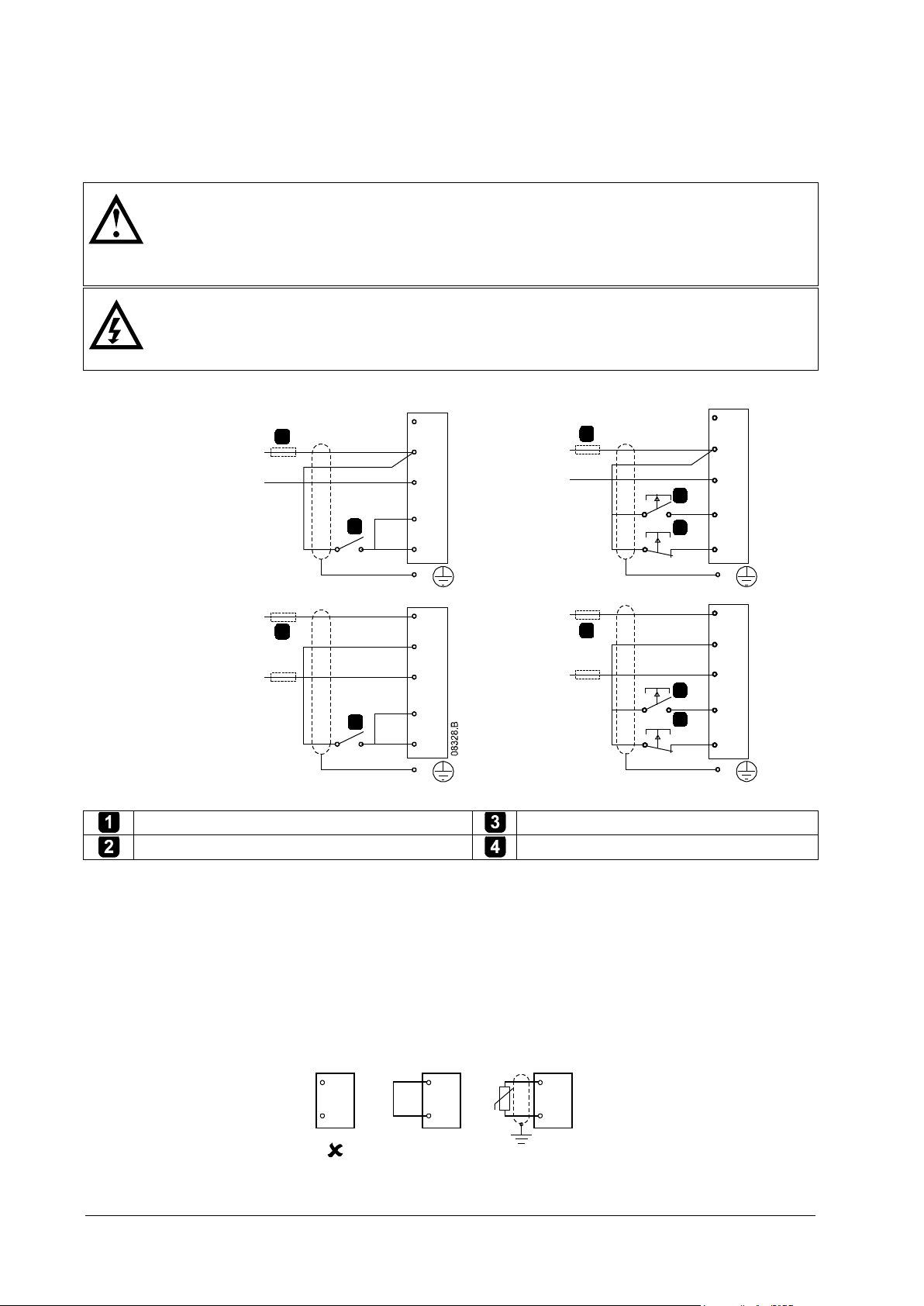

24 VAC/VDC: CSL, CSR
Two-wire control
Three-wire control
CSH
CSL
CSR
DI1
DI2
E
CSH
CSL
CSR
DI1
DI2
1
4
4
1
E
CSH
CSL
CSR
DI1
DI2
CSH
CSL
CSR
DI1
DI2
08329.B
3
2
3
2
4
4
E
E
Start/Stop. To reset a trip, open then close DI2.
Stop. To reset a trip, open then close DI2.
Start.
Fuse (optional).
TH1
TH2
TH1
TH2
TH1
TH2
08330.A
OK OK
4.1.2 Control Voltages
Digistart D2 soft starters can be supplied in either of two control voltage configurations:
D2-xxx-C1 .... 110-240 VAC (+ 10% / - 15%) or 380-440 VAC (+ 10% / - 15%)
D2-xxx-C2 .... 24 VAC/VDC (± 20%)
CAUTION
Always connect control voltage to the correct terminals:
• 110~240 VAC: CSL, CSR
• 380-440 VAC: CSR, CSH
110~240 VAC
24 VAC/VDC
•
WARNING
The installer must ensure that the external control circuits are insulated from human contact by
at least one layer of insulation (supplementary insulation) rated for use at the AC supply
voltage.
&
380-440 VAC
For sizing of the control fuse, see Technical Data on page 18.
The maximum cable run is determined by the type of cable used, provided the maximum resistance of
this cable does not exceed 100 Ohms. The cables must be twisted in pairs and shielded. The shield must
be grounded at one end only, that is, at the soft starter end. To avoid any EMC disturbance from the
motor power cables, the thermistor cable must be separated from the motor power cables by a minimum
parallel distance of 300 mm.
4.1.3 Motor Thermistor
Motor thermistors can be connected directly to the Digistart D2 terminals TH1, TH2. If motor thermistors
are not used, there must be a link between TH1, TH2 (the Digistart D2 is supplied with a link fitted).
10 Digistart D2: User Guide
Issue: F
SCR I
s)
Ferraz/Mersen Fuse
(North American Style)
Bussmann Fuse
(170M)
Bussmann Fuse
(BS88)
6.6URD30xxxA0063
(A070URD30xxx0063)
6.6URD30xxxA0125
(A070URD30xxx0125)
6.6URD30xxxA0160
(A070URD30xxx0160)
6.6URD30xxxA0160
(A070URD30xxx0160)
6.6URD30xxxA0160
(A070URD30xxx0160)
6.6URD30xxxA0250
(A070URD30xxx0250)
6.6URD30xxxA0315
(A070URD30xxx0315)
6.6URD30xxxA0315
(A070URD30xxx0315)
6.6URD31xxxA0450
(A070URD31xxx0450)
6.6URD31xxxA0450
(A070URD31xxx0450)
6.6URD31xxxA0450
(A070URD31xxx0450)
4.1.4 Outputs
Main Contactor Output
The Main Contactor output (terminals COM2, RLO2) closes as soon as the soft starter receives a start
command and remains closed while the soft starter is controlling the motor (until the motor starts a coast
to stop, or until the end of a soft stop). The Main Contactor output will also open if the soft starter trips.
The Main Contactor output can be used to directly control a main contactor coil.
Programmable Output
The programmable output relay (terminals COM1, RLO1) can be used to signal either trip or run status.
This relay is normally open.
Trip:
The relay closes when the Digistart D2 trips. The relay can be used to operate the shunt-trip mechanism
of an upstream circuit breaker (in order to isolate the motor branch circuit), or to signal the trip to an
automation system or externally. The relay will open when the trip is reset.
Run:
The relay operates when the soft start is complete, the bypass relays are closed and full voltage is being
applied to the motor. The relay can be used to operate a contactor for power factor correction capacitors,
or to signal soft starter run status to an automation system.
4.1.5 Semiconductor Fuses
Semiconductor fuses can be used with Digistart D2 soft starters to reduce the potential for damage to
SCRs from transient overload currents and for Type 2 coordination. Digistart D2 soft starters have been
tested to achieve Type 2 coordination with semiconductor fuses. Suitable Bussmann and Ferraz/Mersen
semiconductor fuses are detailed below.
Model
2
t (A
D2-018 1150
D2-034 8000
D2-042 10500
D2-048 15000
D2-060 18000
D2-075 51200
D2-085 80000
D2-100 97000
D2-140 168000
D2-170 245000
2
European/IEC Style
Square Body
British Style
170M-1314 63 FE
170M-1317 160 FEE
170M-1318 160 FEE
170M-1318 180 FM
170M-1319 180 FM
170M-1321 250 FM
170M-1321 250 FM
170M-1321 250 FM
170M-1322 500 FMM
170M-3022 500 FMM
D2-200 320000
Digistart D2: User Guide 11
Issue: F
170M-3022 500 FMM
xxx = Blade Type. Contact Ferraz/Mersen for options.
6/T3
4/T2
2/T1
5/L3
3/L2
1/L1
COM2
RLO2
M
K1
K1
08332.B
M
Motor (three phase)
K1
Main contactor
COM2, RLO2
Main contactor output
COM1, RLO1
Programmable output (set to Trip)

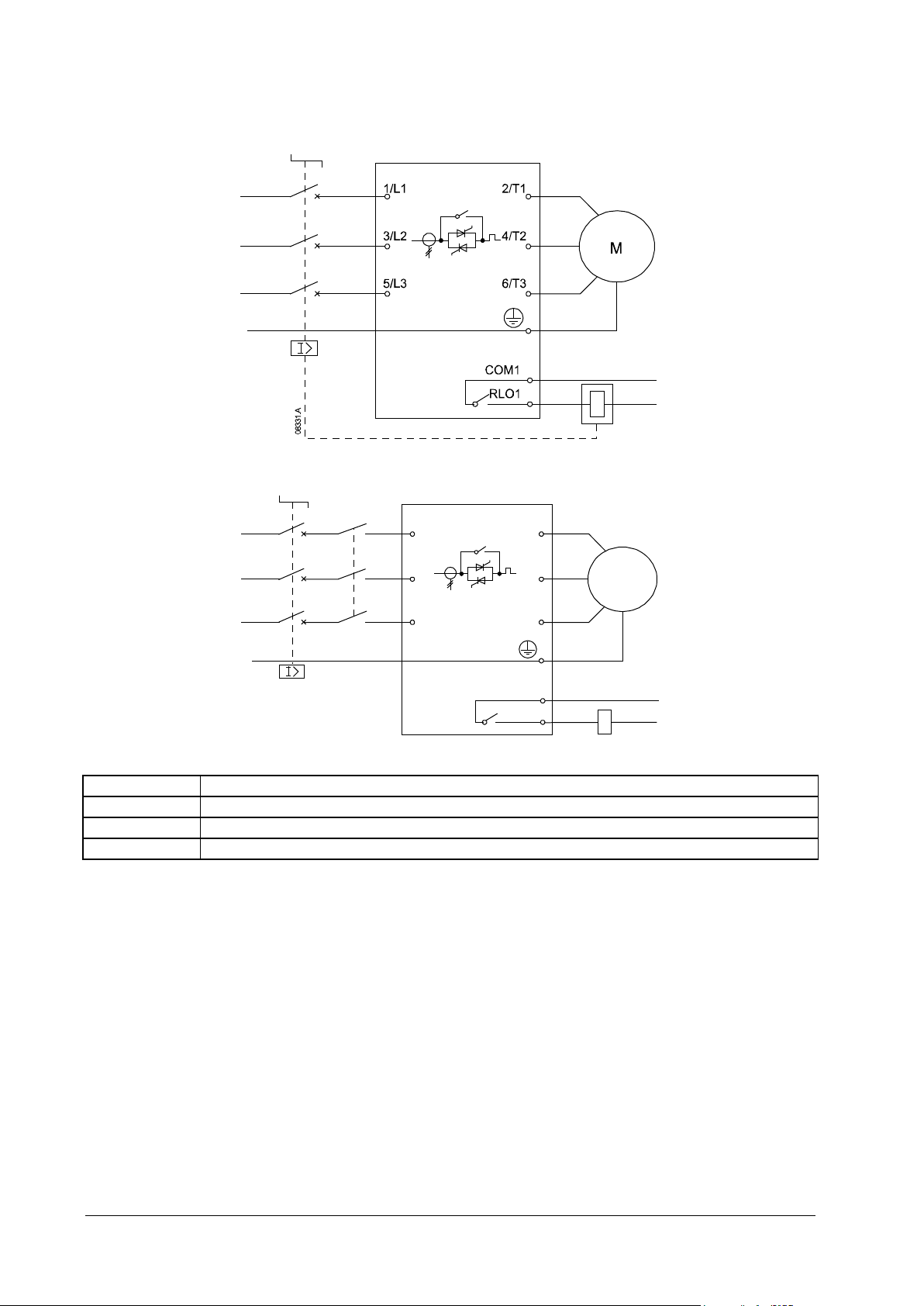

4.2 Schematic Diagrams
Soft starter installed with a system protection circuit breaker complete with a shunt trip device
Soft starter installed with a system protection circuit breaker and main contactor
12 Digistart D2: User Guide
Issue: F
3
5
0
%
90%
80%70%
60%
4
0
0
%
3
0
0
%
50%
100%
16s
8
s
1
2
s
1
0
s
N
o
S
o
f
t
S
t
o
p
450%250%
6s
4s
2s
14s
20
s
1
6
8
1
2
1
0
O
F
F
6
4
2
1
4
20
1
6
8 12
1
0
O
F
F
TR
IP
R
U
N
A
N
Y
ANY
F
WD
FW
D
6
4
2
5
s
2
s
1
5
s
5s
OFF
1
5
s
5
s
2
s
2
s
1
5
s
1
4
20
142
4
4.
C
1
2
3
7
8
6
5
4

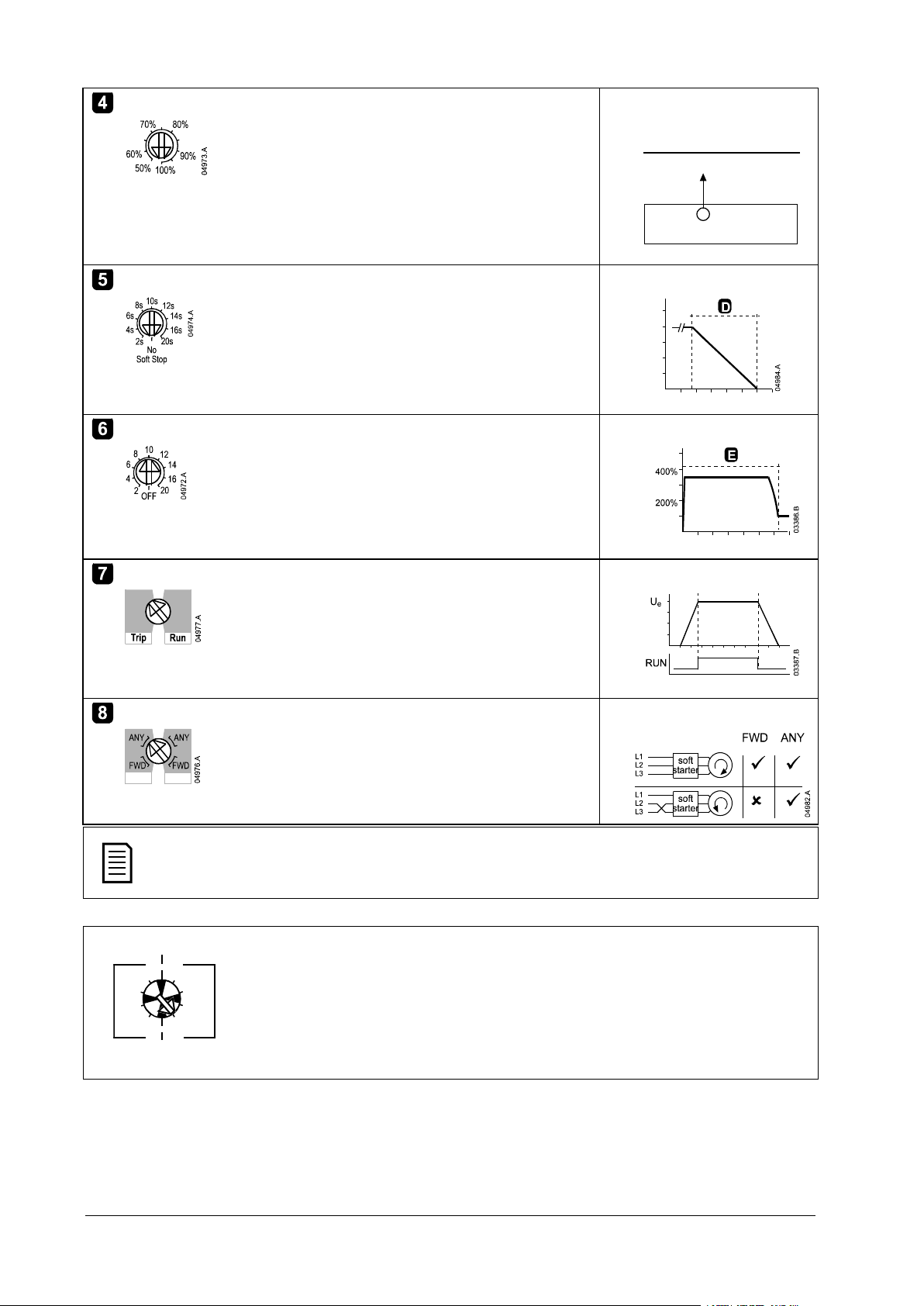

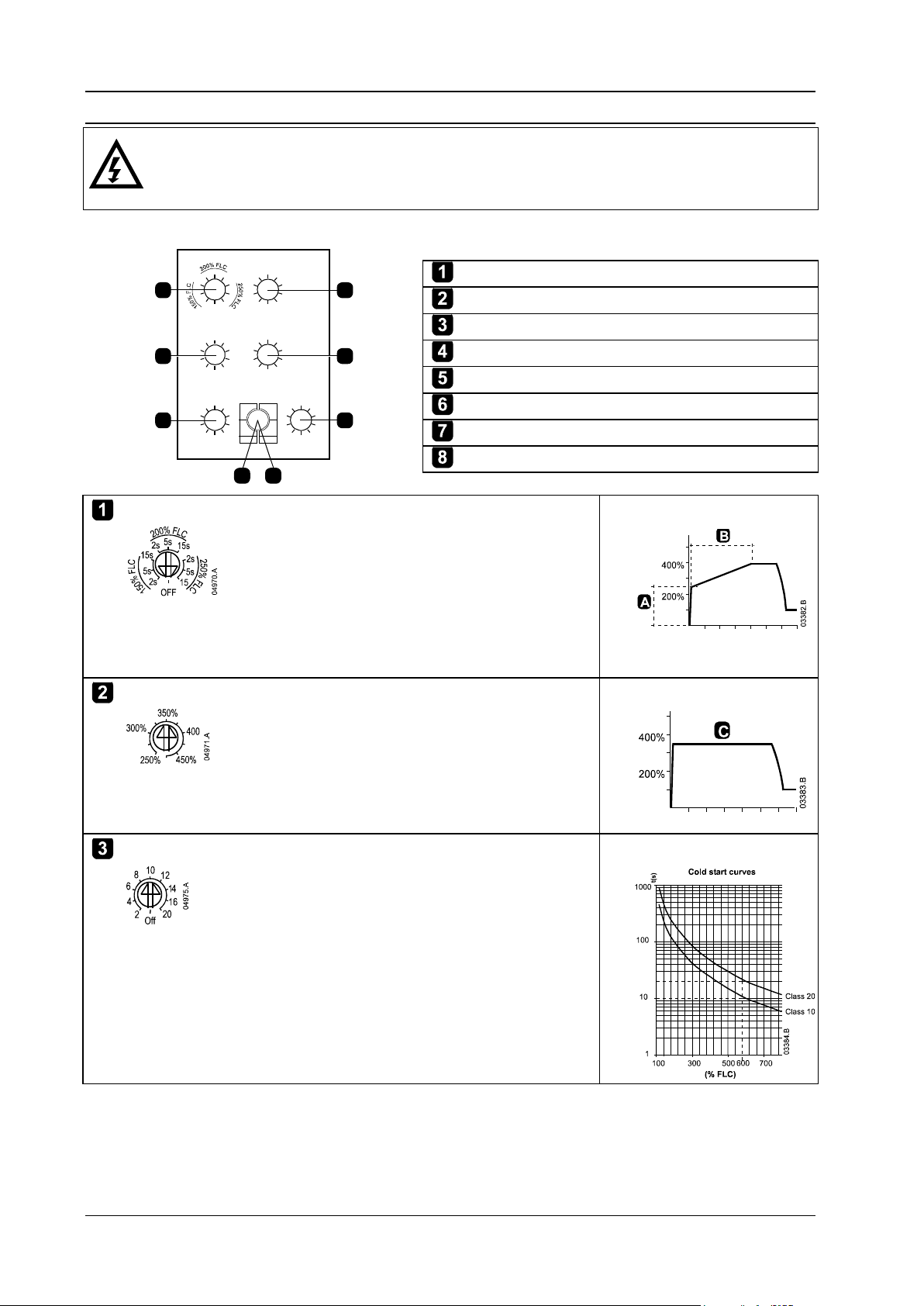

Current Ramp
Current Limit
Motor Trip Class
Motor FLC
Soft Stop Time
Excess Start Time
Auxiliary Relay Function
Phase Sequence Protection
Current Ramp
Select the initial start current (A) and ramp time (B).
will take to reach full speed.
Current Limit
Select the current limit (C).
Time
Motor Trip Class
Select the trip class for motor overload protection.
5 Programmable Parameters
WARNING
The motor data parameters are critical to the correct operation of the soft starter's thermal
model, and to the motor overload protection. Always set switches 3 and 4 to suit the motor's
5.1 Adjustments
characteristics.
Current ramp starting extends the time soft starter
takes to reach the current limit and is suitable for
generator set supplies, loads requiring an extended
start time or applications with extreme load variation
between starts.
The ramp time does not control the time the motor
Current
Time
The current limit is the maximum level of current the
soft starter will deliver to the motor during the soft
start.
Current
The trip class reflects the maximum time (in
seconds) that the motor can run at locked rotor
current. The Motor Trip Class setting assumes a
locked rotor current of 600%.
Setting the motor trip class to "Off" disables motor
overload protection.
Digistart D2: User Guide 13
Issue: F
Motor FLC
Configure the soft starter to match the motor's full
08239.A
INPUTRATING: 200-440VAC,50/60Hz, 3PH
OUTPUT FLC: xxA AC53b4-6:354,30 kW@ 400V
AUXILIARYCONTACTS: 5A@ 250VAC/360VA, 5A @30VDCResistive
WITHSTANDCURRENT: 5000ARMS, 600VAC max.
POWERCONTACTS: #10- #2AWG, 6 - 35 mm2(3-5Nm, 2.2-3.7lb-ft)
AUXILIARYCONTACTS: 20- 16 AWG,0.75- 1.5 mm2(0.5 Nm,4.5 lb-in)
Motor FLC
Soft starter FLC
Soft Stop Time
Select the soft stop ramp time (D).
Time
Excess Start Time
Configure the soft starter's excess start time
(E).
Auxiliary Relay Function
Select the function of the soft starter's
Time
Phase Sequence Protection
Configure the soft starter's phase sequence
only and a setting of "Any" defeats the protection.
COM1, RLO1
Trip
Run
Any
Any
FWD
FWD
Phase sequence
08859.A
Relay action: After a start command, the relay will operate when the soft start is
connections, then reset the starter.
load current (FLC).
Configure according to the motor's nameplate
current. Divide the motor's FLC by the soft starter's
maximum current rating (on the soft starter's
nameplate label).
Soft stop extends the time soft starter takes to
reduce voltage to zero.
The ramp time does not control the time the motor
will take to stop completely.
Voltage
protection.
Select a time slightly longer than the motor requires
for a normal healthy start. The soft starter will trip if
the start does not complete within the selected time
Current
Time
programmable output (terminals COM1, RLO1).
When set to "Run", the relay will operate when the
soft start is complete. When set to "Trip", the relay
will operate when the soft starter trips.
protection.
Select the allowable phase sequences. A setting of
"Fwd" allows forward sequence (positive rotation)
NOTE
Auxiliary relay function and phase sequence are configured using a shared switch. Set the
auxiliary relay function as required, then set phase sequence protection.
• Digistart D2 auxiliary relay and phase sequence protection examples
complete.
The relay state will match the status of the Run LED. The relay will open if the
starter trips.
Phase sequence protection: The soft starter will allow forward sequence only
(positive rotation). If the soft starter detects negative sequence, the starter will
trip and the Ready LED will flash 7 times. Remove power, reverse the phase
14 Digistart D2: User Guide
Issue: F
COM1, RLO1
Trip
Run
Any
Any
FWD
FWD
Phase sequence
08860.A
Relay action: The relay will close when a trip occurs. Reset the trip and resume
operation.
Phase sequence protection: The soft starter will allow any phase sequence.
Digistart D2: User Guide 15
Issue: F
08554.B

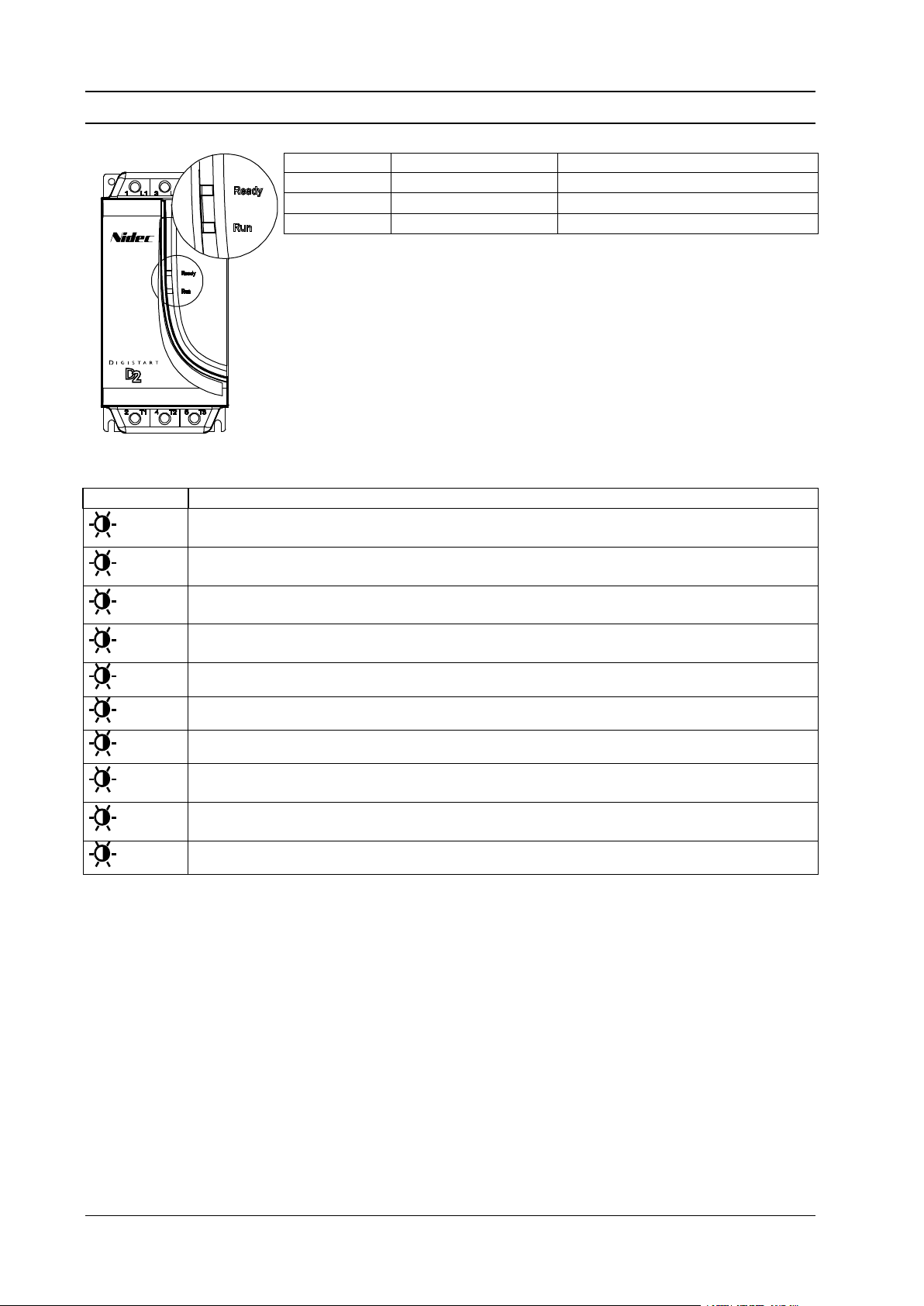

LED Status
Ready
Run
Off
No control power
Motor not running
On
Ready
Motor running at full speed
Flash
Starter tripped
Motor starting or stopping
Ready LED
Description
Power Circuit: Check mains supply (L1, L2, L3), motor circuit (T1, T2, T3), soft starter
SCRs and bypass relays.
Excess Start Time: Check load, increase Current Limit or adjust Excess Start Time
setting.
Motor Overload: Allow motor to cool, reset soft starter and restart.
The soft starter cannot be reset until the motor has cooled.
Motor Thermistor: Check motor ventilation and thermistor connection TH1, TH2. Allow
motor to cool.
x 5
Current imbalance: Check for mains supply or line current imbalance (L1, L2, L3).
x 6
Supply Frequency: Check mains voltage is available and supply frequency is in range.
x 7
Phase sequence: Check for correct phase sequence.
Network Communication Failure (between module and network): Check network
connections, settings and configuration.
Starter Communication Failure (between starter and module): Remove and refit accessory
module.
x 10
Bypass Overload: Starter rating may be too low for the application.
6 Diagnostics
6.1 LEDs
6.2 Trip Codes
The Ready LED will flash a different number of times to indicate the cause of the trip.
x 1
x 2
x 3
x 4
x 8
x 9
6.3 Reset
Trips can be cleared by pressing the Reset button on the soft starter, sending a Reset command from the
serial communications network, or by switching the control inputs.
To clear a trip via the control inputs, the soft starter requires a closed to open transition on the stop input (DI2).
• In three-wire control, use the external stop button to momentarily open the stop input (open
CSL-DI2).
• In two-wire control, if the soft starter tripped with a start signal present, remove the start signal
The Reset button is located on the front of the unit, above the adjustment switches.
The soft starter will trip again immediately if the cause of the trip still exists.
(open CSL to DI1, DI2).
• In two wire control, if the Digistart D2 tripped with no start signal present (eg Digistart D2 motor
thermistor trip), apply then remove the start signal (close then reopen CSL to DI1, DI2).
16 Digistart D2: User Guide
Issue: F
6.4 Protections
The Digistart D2 includes the following types of protection for the motor and starter:
6.4.1 Excess Start Time Protection
The Digistart D2 will trip on excess start time if the motor does not successfully start within the time
selected in the Excess Start Time setting. This may indicate that the load has stalled.
If the soft starter frequently trips on excess start time:
• check that the Current Limit setting is high enough for the application
• check that the Excess Start Time setting is long enough for the application
• check that the load has not stalled or increased since the soft starter was installed
6.4.2 Motor Overload Protection
The Digistart D2 will trip on motor overload if it calculates that the motor has been running above its
operating range for longer than the time selected in the Motor Trip Class setting. Motor Trip Class should
be set to match the motor's locked rotor time. If this information is not available from the motor datasheet,
use the default setting (Motor Trip Class = 10). Using a higher setting can damage the motor.
NOTE
Motor overload protection does not protect the soft starter, and does not protect the motor from
short circuit.
6.4.3 Current Imbalance Protection
The Digistart D2 will trip on current imbalance if the highest and lowest currents on the three phases vary
by an average of 30% for more than 3 seconds. Current imbalance protection is not adjustable, and is
only active when the average motor current is 50% or more of the programmed motor FLC.
If the soft starter frequently trips on current imbalance:
6.4.4 Supply Frequency Protection
The soft starter will trip on supply frequency if the frequency rises above 72 Hz or falls below 40 Hz for
more than five seconds while the soft starter is running. These trip points are not adjustable.
In pre-start, starting and stopping modes the high and low frequency limits both apply with no time delay.
A supply frequency trip will also occur if:
6.4.5 Bypass Overload Protection
Bypass overload protection protects the soft starter from severe operating overloads while running. The
protection is not adjustable and has two components:
If the trip occurs frequently, this indicates that the soft starter has not been selected correctly for the
application.
• check that there is no imbalance on the mains voltage (on the input side of the soft starter)
• insulation test the motor
• move all input cables over one position (move L1 cable to L2, move L2 cable to L3, move L3
cable to L1) to rule out a cabling fault
• all three input phases are lost while the soft starter is running
• all three input phases fall below 120 VAC at start or while the soft starter is running
• the line contactor opens while running
• The soft starter will trip if it detects overcurrent at 600% of the programmed motor full load
current.
• The soft starter models the temperature of the internal bypass relays and will trip if the
temperature exceeds the safe operating level.
Digistart D2: User Guide 17
Issue: F
7 Technical Data
• Mains Supply
Mains voltage (L1, L2, L3)
D2-14-xxx ............................................................................. 3 x 200 VAC ~ 440 VAC (+ 10% / - 15%)
D2-16-xxx ............................................................................. 3 x 200 VAC ~ 575 VAC (+ 10% / - 15%)
Mains frequency (at start) .................................................................................................... 45 Hz to 66 Hz
Rated insulation voltage ................................................................................................................ 600 VAC
Form designation ................................................................ Bypassed semiconductor motor starter form 1
• Control voltage (CSH, CSL, CSR)
D2-1x-xxx-C1 ............................................................................................... 110-240 VAC (+ 10% / - 15%)
or 380-440 VAC (+ 10% / - 15%)
D2-1x-xxx-C2 ............................................................................................ 24 VAC /VDC (+ 10% / - 15%)
Recommended fuse .......................................................... 1 A continuous (10 A max, 0.01 second surge)
Current consumption (during run) ................................................................................................ < 100 mA
Current consumption (inrush) .............................................................................................................. 10 A
• Inputs
Start (terminal DI1) .............................................................................. Normally open, 150 kΩ @ 300 VAC
Stop (terminal DI2) ........................................................................... Normally closed, 150 kΩ @ 300 VAC
Motor thermistor ...................................................................................................................... Trip > 3.6 kΩ
• Outputs
Main contactor relay (terminals COM2, RLO2) ..................................................................... Normally open
6 A, 30 VDC / 6 A, 250 VAC resistive
Programmable relay (terminals COM1, RLO1) ..................................................................... Normally open
....................................................................................................... 6 A, 30 VDC / 6 A, 250 VAC resistive
• Environmental
Degree of Protection D2-018 to D2-100 .............................................................................................. IP20
Degree of Protection D2-140 to D2-200 .............................................................................................. IP00
Operating temperature .................................................................................................... - 10 °C to + 60 °C
Storage temperature ..................................................... -25 °C~+ 60 °C (to +70 °C for less than 24 hours)
Humidity ........................................................................................................... 5%~95% Relative Humidity
Pollution degree ............................................................................................................. Pollution Degree 3
Vibration ....................................................................................................... IEC 60068 Test Fc Sinusoidal
4 Hz to 13.2 Hz: ± 1 mm displacement
....................................................................................................................... 13.2 Hz to 200 Hz: ± 0.7 g
• EMC Emission
Equipment class (EMC) .................................................................................................................. Class B
Conducted radio frequency emission ............................................. 0.15 MHz to 0.5 MHz: < 56-46 dB (µV)
0.5 MHz to 5 MHz: < 46 dB (µV)
5 MHz to 30 MHz: < 50 dB (µV)
Radiated radio frequency emission ................................................... 30 MHz to 230 MHz: < 30 dB (µV/m)
.................................................................................................. 230 MHz to 1000 MHz: < 37 dB (µV/m)
• EMC Immunity
Electrostatic discharge ............................................................. 4 kV contact discharge, 8 kV air discharge
Radio frequency electromagnetic field .............................................. 0.15 MHz to 1000 MHz: 140 dB (µV)
Rated impulse withstand voltage (Fast transients 5/50 ns) ................ 2 kV line to ground, 1 kV line to line
Voltage dip and short time interruption ................................................... 100 ms (at 40% nominal voltage)
Harmonics and distortion ........................................................... IEC61000-2-4 (Class 3), EN/IEC61800-3
• Short Circuit
Rated short-circuit current D2-018 to D2-048 .................................................................................... 5 kA
Rated short-circuit current D2-060 to D2-200 .................................................................................. 10 kA
1
These short circuit ratings are with fuses used as given in the table under Semiconductor Fuses on
page 11.
1
1
18 Digistart D2: User Guide
Issue: F
• Heat Dissipation
During Start ....................................................................................................................... 3 watts / ampere
During Run .......................................................................................................................... 10 watts typical
• Approvals
UL / C-UL ......................................................................................................................................... UL 508
CE ......................................................................................................................................... EN 60947-4-2
RoHS ........................................................................................... Compliant with EU Directive 2011/65/EU
Digistart D2: User Guide 19
Issue: F

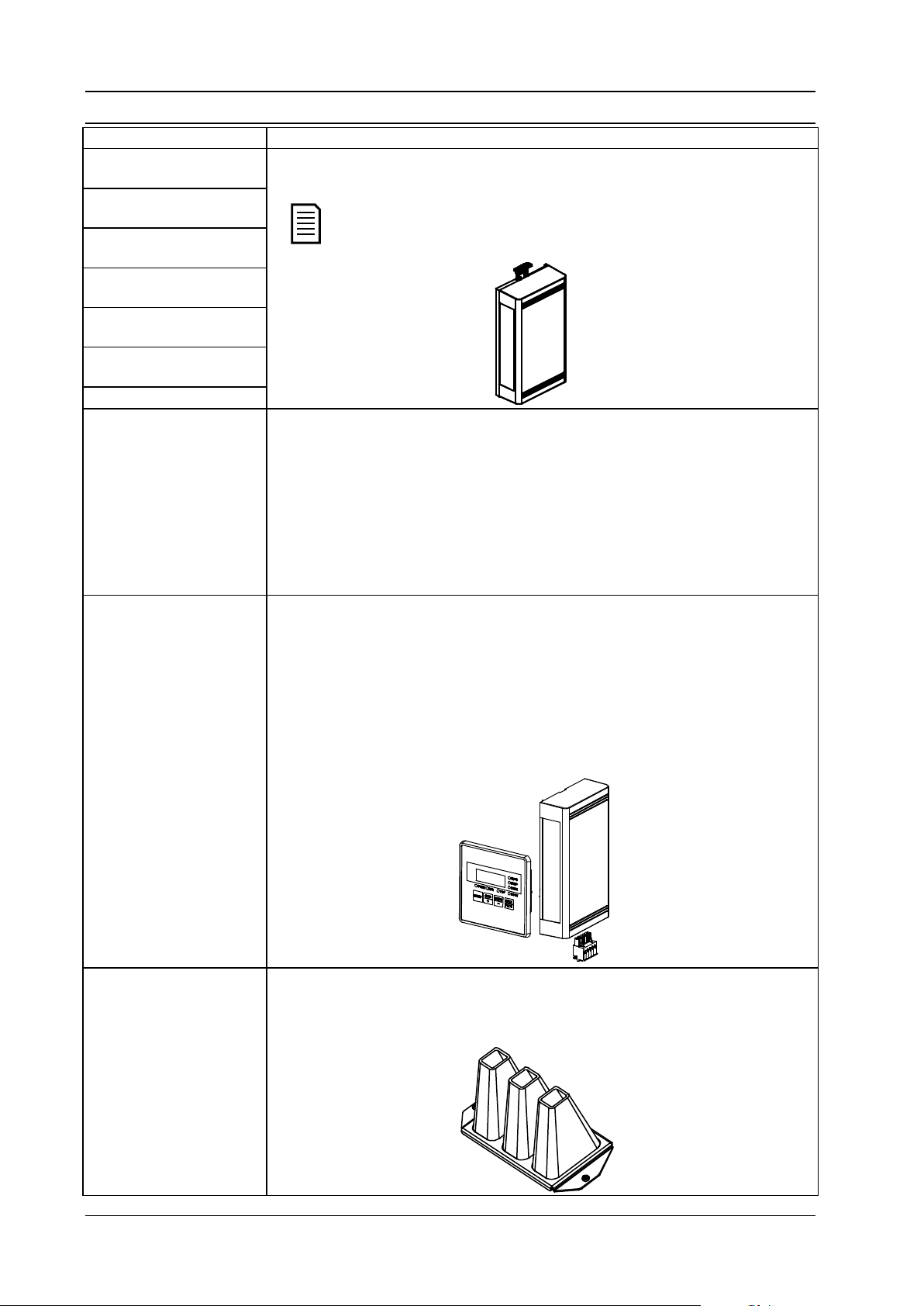

Option name
Function
Digistart - DeviceNet
Interface
Fieldbus communications modules.
08317.B
Digistart - Ethernet IP
Interface
Digistart - Modbus
Interface
Digistart - Modbus TCP
Interface
Digistart - Profibus
Interface
Digistart - Profinet
Interface
Digistart - USB Interface
Digistart-Soft
USB Module, Modbus Module or a Remote Operator.
Digistart D2 - Remote
The Remote Keypad and Interface Kit comprises a Remote Keypad Interface
08318.A
Digistart D2 - Finger
Finger guards may be specified for personnel safety. Finger guards fit over the
08318.A
8 Options
NOTE
Ethernet communication modules are not suitable for use with
Digistart D2 starters using 380/440 VAC control voltage.
The PC software is a fully functional program for controlling, monitoring and
programming soft starters. It provides the following functionality:
Operation of soft starter networks containing up to 254 individual soft starters
• Operational control (Start, Stop, Reset, Quick Stop)
• Starter status monitoring (Ready, Starting, Running, Stopping,
Tripped)
• Performance monitoring (motor current, motor temperature)
To use Digistart-Soft with the Digistart D2, the soft starter must be fitted with a
Keypad
module and the Remote Keypad display and keypad.
The Remote Keypad can control and monitor the soft starter's performance.
Functionality includes:
• Operational control (Start, Stop, Reset, Quick Stop)
• Starter status monitoring (Ready, Starting, Running, Stopping, Tripped)
• Performance monitoring (motor current, motor temperature)
• Trip code display
• 4-20 mA analog output (motor current)
Guard Kit
soft starter terminals to prevent accidental contact with live terminals. Finger
guards provide IP20 protection when used with cable of diameter 22 mm or
greater.
20 Digistart D2: User Guide
Issue: F
Digistart D2: User Guide 21
Issue: F
Loading...
