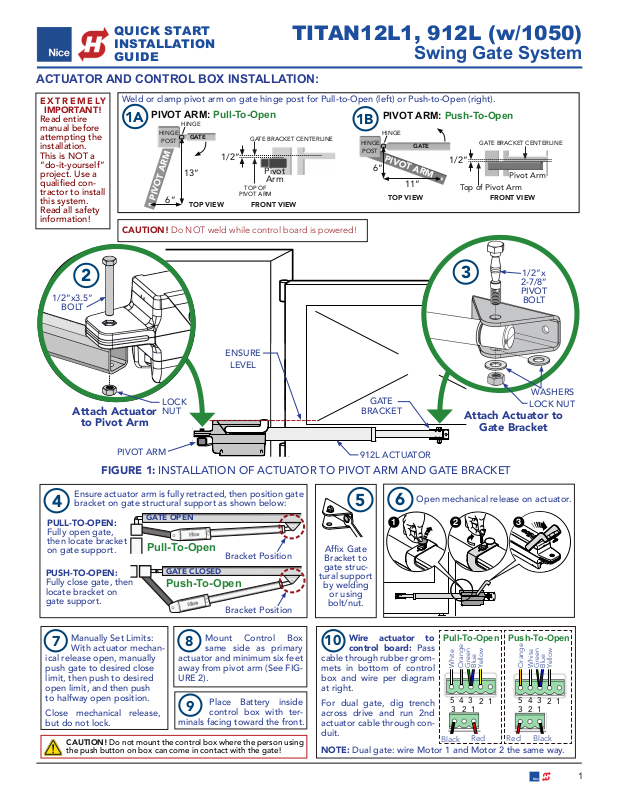

TITAN12L1, 912L (w/1050)
Swing Gate System
QUICK START
INSTALLATION
GUIDE
GATE
ACTUATOR AND CONTROL BOX INSTALLATION:
EXTREMELY
IMPORTANT!
Read entire
manual before
attempting the
installation.
This is NOT a
“do-it-yourself”
project. Use a
qualied contractor to install
this system.
Read all safety
information!
Weld or clamp pivot arm on gate hinge post for Pull-to-Open (left) or Push-to-Open (right).
PIVOT ARM: Pull-To-Open
1A
HINGE
POST
PIVOT ARM
6”
CAUTION! Do NOT weld while control board is powered!
HINGE
GATE
1/2”
13”
TOP VIEW
GATE BRACKET CENTERLINE
Pivot
Arm
TOP OF
PIVOT ARM
FRONT VIEW
PIVOT ARM: Push-To-Open
1B
HINGE
HINGE
POST
6”
GATE
PIVOT ARM
11”
TOP VIEW
GATE BRACKET CENTERLINE
1/2”
Top of Pivot Arm
FRONT VIEW
Pivot Arm
2
1/2”x3.5”
BOLT
ENSURE
LEVEL
LOCK
Attach Actuator
to Pivot Arm
PIVOT ARM
FIGURE 1: INSTALLATION OF ACTUATOR TO PIVOT ARM AND GATE BRACKET
Ensure actuator arm is fully retracted, then position gate
bracket on gate structural support as shown below:
4
PULL-TO-OPEN:
Fully open gate,
then locate bracket
on gate support.
PUSH-TO-OPEN:
Fully close gate, then
locate bracket on
gate support.
NUT
GATE OPEN
Pull-To-Open
GATE CLOSED
Push-To-Open
Bracket Position
Bracket Position
BRACKET
912L ACTUATOR
5
Afx Gate
Bracket to
gate struc-
tural support
by welding
or using
bolt/nut.
GATE
3
1/2”x
2-7/8”
PIVOT
BOLT
Attach Actuator to
Gate Bracket
Open mechanical release on actuator.
6
2 31
WASHERS
LOCK NUT
Manually Set Limits:
7 8
With actuator mechanical release open, manually
push gate to desired close
limit, then push to desired
open limit, and then push
to halfway open position.
Close mechanical release,
but do not lock.
CAUTION! Do not mount the control box where the person using
the push button on box can come in contact with the gate!
Mount Control Box
same side as primary
actuator and minimum six feet
away from pivot arm (See FIGURE 2).
Place Battery inside
9
control box with ter-
minals facing toward the front.
Wire actuator to
10
control board: Pass
cable through rubber grommets in bottom of control
box and wire per diagram
at right.
For dual gate, dig trench
across drive and run 2nd
actuator cable through conduit.
NOTE: Dual gate: wire Motor 1 and Motor 2 the same way.
Orange
White
Green
Blue
5 54 43 3
3
Red
Black
Push-To-OpenPull-To-Open
Orange
White
Yellow
2 2
1 1
Red Black
Green
22
11
3
Blue
Yellow
1
TITAN12L1, 912L (w/1050)
Swing Gate System
QUICK START
INSTALLATION
GUIDE
13
15
8
9
13
CAUTION!
AC POWER
Actuator Cable
BlueBUS Wiring
Loop Wiring
Solar Panel Wiring
AC Power Wiring
FIGURE 2: TYPICAL TITAN GATE SYSTEM (PULL-TO-OPEN, DUAL-GATE SHOWN)
Determine BlueBUS
11
photo eye locations:
Install, and connect to con-
trol board, 100 feet max.
See 1050 diagram below.
Attach warning
12
signs to gate.
POWER INPUTS
+
FORCE
SPEED
12VDC
Battery
Solar
Panel
RESET
Display
Audio
Alarm
FIGURE 4: ENTERING LEARN MODE (1050 BOARD)
FUNCTIONS
Button
FUNCTION
1. Learn
12-32VDC Power
Supply (Optional)
FIGURE 3: 1050
Control Board
Safety
Shadow
Safety Device Conn.
LEARN
OK
Swing
LEARN
Slide
PRESS
Entrap
16
6 foot min.
from pivot
install
11 11
10
Conduit for BlueBUS
and actuator cable
7
Open
Limit
To power 1050 board,
13 16
connect battery, optional power supply, and/or solar
panels to board. See 1050 dia-
gram below. Run AC power to
AC-DC power supply, but do
NOT connect AC power directly to control board!
DO NOT USE
MOTOR 1 Inputs
MOTOR 2 Inputs
MOTOR 2 Limit
LED (Red/Green)
MOTOR 1 Limit
LED (Red/Green)
OPEN
STOP
CLOSE
UP
OK
DOWN
BlueBUS Connector
OXI/A Plugin
Radio Receiver
Exit
Edge
OK OK
UP
DISPLAY
FUNCTIONS
DELAY
Light
Heavy
Average
Use UP/DOWN
buttons to
select
“Average”
FIGURE 3:
1050 CON-
TROL BOARD
BLINKING =
Learn Mode
Enter
12
3
4
7
Close
Limit
Safety
15
Loop
Perform limit learn
14
procedure (below).
Connect audio alarm,
15
then connect other
accessories, such as safety
loops, strobes, photo eyes,
or other safety devices. See
FIGURE 3 below.
GATE LIMIT LEARN PROCEDURE:
1. Test Gate Conditions: Remove pivot bolt(s) and move gate
to open/close positions. Check for free travel without binding, then reconnect actuator(s) to gate.
2. Connect power: See INSTRUCTION 13, above.
3. Enter Learn Mode: See FIGURE 4. NOTE: With “ENTER”
ashing, “OPEN” and “CLOSE” buttons must be held
down to operate. Complete Step 4 for each actuator/gate
individually (disconnect actuator NOT being adjusted). Reconnect both actuators prior to Step 5.
4. Adjust Limit Location: a) Hold down “OPEN” button until
desired open position reached. If motion is opposite than
desired, switch RED and BLACK wires at motor input. b)
Adjust open limit until Limit LED glows GREEN. If illuminated RED, switch ORANGE & WHITEWHITE wires at terminal
block. c) Hold down “CLOSE” button until desired close
position. d) Adjust close limit until Motor Limit LED illuminates RED. e) Hold down “OPEN” until gate at middle of
travel. If dual gate, connect both actuator cables to board.
5. Commence Limit Learn: In Learn Mode (with “ENTER” still
ashing) press “OK” and the following events will occur:
a) Partial open. b) Slow travel in close direction. c) Slow
travel in open direction. d) Full speed in close direction.
Basic limit programming is complete. See the manual for additional programming.
5
BlueBUS
Photo Eye
6
2
1
7
Open
Limit
Program receiver and
transmitters: a) Press/
hold OXI/A RX button until
green LED lights solid, then
release. b) Within 10 seconds,
press/hold any key on Nice TX
until green LED blinks 3 times.
c) Wait 15 sec. then press TX
buttons to verify operation.
OXI/A RX
Button
Green LED
2
