Nice BM4024, BM4000 Instruction Manual

EN - Warning for models BM4024 and BM4000: the paragraphs “Product

application limits”, “Electrical Connections” and “Product Technical Specifica­tions”, reported in this addendum, replace those of the “BIG METRO”
instruction manual.

IT - Avvertenza per i modelli BM4024 e BM4000: i paragrafi “Limiti d’im-

piego del prodotto”, “Collegamenti elettrici” e “Caratteristiche tecniche del
prodotto”, riportati nel presente addendum, sostituiscono quelli del manuale
istruzioni “BIG METRO”.

FR - Avertissement pour les modèles BM4024 et BM4000 : les para-

graphes « Limites d’utilisations du produit », « Branchements électriques » et
« Caractéristiques techniques du produit », rapportées dans le présent
addendum, remplacent ceux du manuel d’instructions « BIG METRO ».

ES - Advertencia para los modelos BM4024 y BM4000: los apartados

“Límites de empleo del producto”, “Conexiones eléctricas” y “Características

técnicas del producto”, indicados en el presente anexo, sustituyen a los que
se encuentran en el manual de instrucciones de “BIG METRO”.

DE - Hinweis für die Modelle BM4024 und BM4000: Die Kapitel „Nut-

zungsgrenzen des Produktes“, „Elektrische Anschüsse“ und „Technische
Eigenschaften des Produktes“ in diesem Anhang ersetzen die entsprechen­den Kapitel in der Bedienungsanleitung „BIG METRO“.

PL - Ostrzeżenie dla modeli BM4024 i BM4000: rozdziały „Ograniczenia

w zastosowaniu urządzenia”, „Połączenia elektryczne” oraz „Parametry tech­niczne urządzenia” przedstawione w niniejszym dodatku zastępują odpowied­nie rozdziały znajdujące się w instrukcji „BIG METRO”.

NL - Alleen voor de modellen BM4024 en BM4000: de paragrafen

“Gebruikslimieten van het product”, “Elektrische aansluitingen” en “Techni­sche gegevens van het product” van deze bijlage vervangen de correspon­derende paragrafen in de “BIG ME TRO”-gebruikershandleiding.

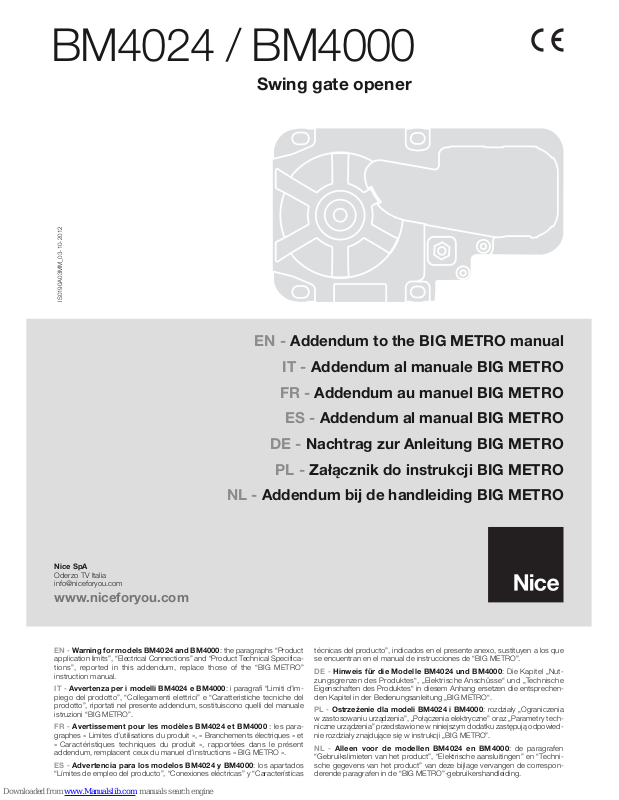

BM4024 / BM4000

Swing gate opener

EN - Addendum to the BIG METRO manual

IT - Addendum al manuale BIG METRO

FR - Addendum au manuel BIG METRO

ES - Addendum al manual BIG METRO

DE - Nachtrag zur Anleitung BIG METRO

PL - Załącznik do instrukcji BIG METRO

NL - Addendum bij de handleiding BIG METRO

IS0190A03MM_03-10-2012

www.niceforyou.com

Nice SpA

Oderzo TV Italia
[e-mail]

PL 3.3 - Ograniczenia związane z

użyciem produktu

Przed zamontowaniem produktu należy sprawdzić, czy
wymiary i ciężar skrzydła bramki znajdują się w zakresie
granic wskazanych na wykresie 1; należy oszacować
również warunki klimatyczne (np. silny wiatr) w miejscu
montażu: które mogą znacznie ograniczyć wartości
wskazane na wykresie.

NL 3.3 - Gebruikslimieten van het pro-

duct

Alvorens het product te installeren, moet gecontroleerd
worden of de vleugel van het hek de afmetingen en het
gewicht heeft die zich binnen de limieten van grafiek
1 bevinden. Beoordeel ook de klimaatsomstandighe­den (bijvoorbeeld sterke wind) in de plaats van installa­tie: deze kunnen de waarden in de grafiek aanzienlijk
verlagen.

EN 5 - Electrical Connections

For BM4000, connect the cables as follows:

n Black = “open” phase
n Brown = “close” phase
n Grey = Common
n Yellow/Green =

IT 5 - Collegamenti elettrici

Per il BM4000, collegare i cavi nel modo seguente:

n Nero = Fase “apre”
n Marrone = Fase “chiude”
n Grigio = Comune
n Giallo/Verde =

FR 5 - Branchements électriques

Pour le modèle BM4000, brancher les câbles
comme suit :

n Noir = phase « ouverture »

BM4024 BM4000

n Type Electro-mechanical dear motors for gates and doors with hinged panels
n Power input 24 V

230 V

n Peak absorption 5 A 1,5 A
n Maximum absorption 1,5 A 1 A
n Peak Power 120 W 340 W
n Maximum power 36 W 180 W
n Capacitor incorporated – 7μF
n Protection rating IP 67
n Run from 0° to 110° or 360°
n Idle speed 1 rpm (1,25 rpm*) 0,85 rpm
n Speed at nominal torque 0,85 rpm 0,65 rpm
n Maximum torque 300 Nm 500 Nm
n Nominal torque 75 Nm 125 Nm
n Functioning temperature from -20°C to +50°C
n Cycles/hour at the nominal torque 60 20
n Dimensions 375 mm x 225 mm x h 110 mm
n Weight 12,5 Kg 14,3 Kg

*

Value refers to a power supply voltage of 30V.

RECOMMENDATIONS: • All technical features stated make reference at a room temperature of 20°C (± 5°C). • Nice S.p.a. reserves the right to modify the product at any time it
deems necessary, however maintaining the same functionality and destination of use.

EN - PRODUCT TECHNICAL FEATURES

100

10 2345

200

300

400

500

600

700

900

800

EN 3.3 - Limits of use for the product

Before installing the product, check that the gate panel
has dimensions and weight that lie within the limits giv­en in graph 1; also evaluate the climatic conditions
(e.g. strong wind) present in the place of installation:
they can greatly reduce the values given in the graph.

IT 3.3 - Limiti d’impiego del prodotto

Prima di eseguire l’installazione del prodotto, verificare
che l’anta del cancello abbia dimensioni e peso rien­tranti nei limiti riportati nel grafico 1; valutare anche le
condizioni climatiche (es. vento forte) presenti nel luogo
d’installazione: queste possono ridurre notevolmente i
valori riportati nel grafico.

FR 3.3 - Limites d’utilisation du produit

Avant d’installer le produit, vérifier que le vantail du por­tail présente des dimensions et un poids compris dans
les limites reprises au graphique 1; évaluer aussi les
conditions climatiques (ex. vent fort) existantes dans le
lieu d’installation: elles peuvent réduire considérable­ment les valeurs reprises sur le graphique.

ES 3.3 - Límites de uso del producto

Antes de instalar el producto, controle que las dimen­siones y el peso de la hoja de la cancela estén dentro
de los límites que se muestran en el gráfico 1; evalúe
también las condiciones climáticas (ej. viento fuerte)
presentes en el lugar de la instalación: ya que pueden
reducir considerablemente los valores mostrados en el
gráfico.

DE 3.3 - Einsatzgrenzen des Produkts

Vor der Installation des Produkts ist zu prüfen, ob
Abmessungen und Gewicht des Torflügels innerhalb
der in Diagramm 1; angegebenen Grenzen liegen; zu
berücksichtigen sind auch die klimatischen Bedingun­gen (z. B. starker Wind), die am Installationsort vorherr­schen und die im Diagramm angegebenen Werte deut­lich verringern können.

EN - Panel max weight (Kg)

IT - Peso massimo dell’anta (Kg)

FR - Poids max du vantail (Kg)

ES - Peso máx. de la hoja (Kg)

DE - Max. Flügelgewichtl (Kg)

PL - Max ciężar skrzydła (Kg)

NL - Max gewicht vleugel (Kg)

• EN - GRAPH 1 • IT - GRAFICO 1 • FR - GRAPHIQUE 1

• ES - GRÁFICO 1 • DE - DIAGRAMM 1 • PL - WYKRES
1 • NL - GRAFIEK 1

EN - Panel max length (m)

IT - Lunghezza massima dell’anta (m)

FR - Longueur max du vantail (m)

ES - Longitud máx. de la hoja (m)

DE - Max. Flügellänge (m)

PL - Max długość skrzydła (m)

NL - Max lengte vleugel (m)

n Marron = phase « fermeture »
n Gris = commun
n Jaune/Vert =

ES 5 - Conexiones eléctricas

Para el BM4000 conecte los cables de la siguiente
manera:

n Negro = Fase “abrir”
n Marrón = Fase “cerrar”
n Gris = Común
n Amarillo/Verde =

DE 5 - Elektrische Anschüsse

Für BM4000, die Kabel wie folgt anschließen:

n Schwarz = Phase “öffnet”
n Braun = Phase “schließt”
n Grau = Gemeinsam
n Gelb/Grün =

PL 5 - Połączenia elektryczne

Dla BM4000, podłącz przewody w następujący
sposób:

n Czarny = Faza “otwiera”
n Brązowy = Faza “zamyka”
n Szary = Wspólny
n Żółto/zielony =

NL 5 - Elektrische aansluitingen

Sluit voor de BM4000 de kabels als volgt aan:

n Zwart = Fase “open”
n Bruin = Fase “sluit”
n Grijs = Gemeenschappelijk
n Groengeel =

BM4024 BM4000

n Tipologia Motoriduttore elettromeccanico per cancelli o portoni ad ante battenti
n Alimentazione 24 V 230 V
n Assorbimento di picco 5 A 1,5 A
n Assorbimento massimo 1,5 A 1 A
n Potenza di picco 120 W 340 W
n Potenza massima 36 W 180 W
n Condensatore incorporato – 7μF
n Grado di protezione IP 67
n Corsa da 0° a 110° oppure 360°
n Velocità a vuoto 1 rpm (1,25 rpm*) 0,85 rpm
n Velocità alla coppia nominale 0,85 rpm 0,65 rpm
n Coppia massima 300 Nm 500 Nm
n Coppia nominale 75 Nm 125 Nm
n Temperatura di funzionamento da -20 °C a +50 °C
n Cicli/ora alla coppia nominale 60 20
n Dimensioni 375 mm x 225 mm x h 110 mm
n Peso 12,5 Kg 14,3 Kg

*

Valore riferito a una tensione di alimentazione di 30V.

AVVERTENZE: • Tutte le caratteristiche tecniche riportate, sono riferite ad una temperatura ambientale di 20°C (± 5°C). • Nice S.p.a. si riserva il diritto di apportare modifiche al
prodotto in qualsiasi momento lo riterrà necessario, mantenendone comunque la stessa funzionalità e destinazione d’uso.

BM4024 BM4000

n Type Motoréducteur électromécanique pour portails ou portes battantes à vantaux
n Alimentation 24 V 230 V
n Absorption de pic 5 A 1,5 A
n Absorption maximale 1,5 A 1 A
n Puissance de pic 120 W 340 W
n Puissance maximale 36 W 180 W
n Condensateur incorporé – 7μF
n Degré de protection IP 67
n Course de 0° à 110° ou de 360°
n Vitesse à vide 1 rpm (1,25 rpm*) 0,85 rpm
n Vitesse au couple nominal 0,85 rpm 0,65 rpm
n Couple maximum 300 Nm 500 Nm
n Couple nominal 75 Nm 125 Nm
n Température de fonctionnement de -20 °C à +50 °C
n Cycles/heure au couple nominal 60 20
n Dimensions 375 mm x 225 mm x h 110 mm
n Poids 12,5 Kg 14,3 Kg

*

Valeur référence à une alimentation de 30V.

MISES EN GARDE : • Toutes les caractéristiques techniques reprises se réfèrent à une température ambiante de 20°C (± 5°C). • Nice S.p.a. se réserve le droit d’apporter des modifi­cations au produit à chaque fois qu’elle le jugera nécessaire, tout en conservant cependant ses fonctions et sa destination d’usage.

FR - CARACTÉRISTIQUES TECHNIQUES DU PRODUIT

IT - CARATTERISTICHE TECNICHE DEL PRODOTTO

BM4024 BM4000

n Tipo Motorreductor electromecánico para cancelas o portales de hojas batientes
n Alimentación 24 V 230 V
n Consumo de pico 5 A 1,5 A
n Consumo máximo 1,5 A 1 A
n Potencia de pico 120 W 340 W
n Potencia máxima 36 W 180 W
n Condensador incorporado – 7μF
n Grado de protección IP 67
n Movimiento desde 0 hasta 110° o 360°
n Velocidad en vacío 1 rpm (1,25 rpm*) 0,85 rpm
n Velocidad en par nominal 0,85 rpm 0,65 rpm
n Par máximo 300 Nm 500 Nm
n Par nominal 75 Nm 125 Nm
n Temperatura de funcionamiento de -20 °C a +50 °C
n Ciclos/hora en par nominal 60 20
n Dimensiones 375 mm x 225 mm x h 110 mm
n Peso 12,5 Kg 14,3 Kg

*

Valor referido a una tensión de alimentación de 30 V.

ADVERTENCIAS: • Todas las características técnicas indicadas se refieren a una temperatura ambiental de 20 °C (± 5 °C). • Nice S.p.a. se reserva el derecho a modificar el producto
cuando lo considere necesario, conservando sin embargo la misma funcionalidad y destino de uso.

ES - CARACTERÍSTICAS TÉCNICAS DEL PRODUCTO

NL - TECHNISCHE KENMERKEN VAN HET PRODUCT

WAARSCHUWINGEN: • Voor alle technische kenmerken die vermeld worden, wordt uitgegaan van een omgevingstemperatuur van 20°C (± 5°C). • Nice S.p.a. behoudt zich het recht

voor om op ieder gewenst moment dat zij noodzakelijk acht wijzigingen op het product aan te brengen waarbij de werking en de gebruiksbestemming hoe dan ook gehandhaafd blijven.

BM4024 BM4000

n Typologie Elektromechanische reductiemotor voor hekken of poorten met scharnierende hekvleugels
n Voeding 24 V 230 V
n Piekabsorptie 5 A 1,5 A
n Maximumabsorptie 1,5 A 1 A
n Piekvermogen 120 W 340 W
n Maximumvermogen 36 W 180 W
n Ingebouwde condensator – 7μF
n Beschermklasse IP 67
n Bewegingstraject van 0° tot 110° of 360°
n Snelheid bij nullast 1 rpm (1,25 rpm*) 0,85 rpm
n Snelheid bij het nominale koppel 0,85 rpm 0,65 rpm
n Maximumkoppel 300 Nm 500 Nm
n Nominaal koppel 75 Nm 125 Nm
n Werktemperatuur van -20 °C tot +50 °C
n Cycli/uur bij nominaal koppel 60 20
n Afmetingen 375 mm x 225 mm x h 110 mm
n Gewicht 12,5 Kg 14,3 Kg

*

Waarde voor een voedingsspanning van 30V.

BM4024 BM4000

n Typologia Siłownik elektromechaniczny do bramek lub bram skrzydłowych
n Zasilanie 24 V 230 V
n Pobór szczytowy 5 A 1,5 A
n Pobór maksymalny 1,5 A 1 A
n Moc szczytowa 120 W 340 W
n Moc maksymalna 36 W 180 W
n Kondensator wbudowany – 7μF
n Stopień ochrony IP 67
n Bieg od 0° do 110° lub 360°
n Prędkość na biegu jałowym 1 rpm (1,25 rpm*) 0,85 rpm
n Prędkość z momentem znamionowym 0,85 rpm 0,65 rpm
n Moment maksymalny 300 Nm 500 Nm
n Moment znamionowy 75 Nm 125 Nm
n Temperatura funkcjonowania od -20 °C do +50 °C
n Cykle/godzinę z momentem znam. 60 20
n Wymiary 375 mm x 225 mm x h 110 mm
n Ciężar 12,5 Kg 14,3 Kg

*

Wartość dotyczy napięcia zasilania 30 V.

UWAGI: • Wszystkie podane cechy techniczne, odnoszą się do temperatury otoczenia 20°C (± 5°C). • Nice S.p.a. zastrzega sobie prawo wprowadzenia zmian w produkcie w jakim­kolwiek momencie, gdy uzna to za konieczne, zachowując jednocześnie jego funkcjonalność i przeznaczenie..

PL - CECHY TECHNICZNE PRODUKTU

BM4024 BM4000

n Geräteart Elektromagnetischer Getriebemotor-Antrieb für Tore mit Torflügeln
n Stromversorgung 24 V 230 V
n Spitzenstromaufnahme 5 A 1,5 A
n Höchststromaufnahme 1,5 A 1 A
n Spitzenleistung 120 W 340 W
n Höchstleistung 36 W 180 W
n Eingebauter Kondensator – 7μF
n Schutzklasse IP 67
n Weg 0° bis 90°110° oder 360°
n Leerlaufdrehzahl 1 U/min (1,25 U/min*) 0,85 U/min
n Drehzahl bei Nenndrehmoment 0,85 U/min 0,65 U/min
n Maximales Drehmoment 300 Nm 500 Nm
n Nenndrehmoment 75 Nm 125 Nm
n Betriebstemperatur -20 °C bis +50 °C
n Zyklen pro Std. bei Nenndrehmoment 60 20
n Abmessungen 375 mm x 225 mm x h 110 mm
n Gewicht 12,5 Kg 14,3 Kg

*

Wert bezieht sich auf eine Versorgungsspannung von 30V.

HINWEISE: • Alle angegebenen technischen Daten beziehen sich auf eine Umgebungstemperatur von 20°C (± 5°C). • Nice S.p.a. behält sich das Recht vor, jederzeit am Produkt Ände­rungen vorzunehmen, wenn dies für erforderlich gehalten wird, dabei aber dessen Funktionen und bestimmungsgemäßer Gebrauch gleich bleiben.

DE - TECHNISCHE DATEN DES PRODUKTS

EN - Instructions and warnings for installation and use

IT - Istruzioni ed avvertenze per l’installazione e l’uso

FR - Instructions et avertissements pour l’installation et l’utilisation

ES - Instrucciones y advertencias para la instalación y el uso

DE - Installierungs-und Gebrauchsanleitungen und Hinweise

PL - Instrukcje i ostrzeżenia do instalacji i użytkowania

NL - Aanwijzingen en aanbevelingen voor installatie en gebruik

BIG METRO

Swing gate opener

EN

English – 1

ENGLISH

Recommendations regarding safety

• ATTENTION! – This manual contains important instructions and recom­mendations regarding the safety of persons. Incorrect installation can

cause serious injury. Read the manual completely before starting work. If in
doubt, suspend the installation and request clarifications from the Nice After­sales Assistance.

• ATTENTION! – Important instructions: keep this manual for any future
maintenance interventions and product disposal.

• ATTENTION! – In compliance with the most recent European Legisla­tion, the realisation of an automatic door or gate must respect the Stan

­dards envisioned by the 2006/42/CE Directive (ex 98/37/CE) (Machinery
Directive) and in particular, the EN 12445; EN 12453; EN 12635 and EN
13241-1 Standards, which allow to declare conformity of the automa­tion. Considering this, all product installation, connection, inspection
and maintenance operations must only be performed by a qualified and
skilled technician!

Recommendations for installation

• Before starting installation, check whether this product is suitable to auto­mate your gate or door (see chapter 3 and the “Product technical features”).
If it is not suitable, DO NOT proceed with installation.

• All installation and maintenance operations must take place with the
automation disconnected from the electric power input. If the power
input disconnection device is not visible from the place where the automation
is positioned, before starting work, affix a sign onto the disconnection device
that states "ATTENTION! MAINTENANCE IN PROGRESS”.

• Handle the automation with care during installation, preventing crushing, blows,
falls or contact with liquids of any nature. Do not place the product near to heat
sources or expose it to naked flames. All of these actions can damage it and be
cause of malfunctioning or dangerous situations. If this occurs, suspend installa­tion immediately and contact the Nice After-sales Assistance.

• Do not modify any product parts. Unauthorised operations can only cause
malfunctioning. The manufacturer declines liability for damage deriving from
arbitrary modifications to the product.

• If the gate or door to be automated has a pedestrian door the plant must be
set up with a control system that prevents functioning of the motor when the
pedestrian door is open.

• The product packaging material must be disposed of in compliance with
local legislation.

GENERAL SAFETY WARNINGS
AND PRECAUTIONS

1

This product is destined to be used to automate gates or doors with hinged
panels.

ATTENTION! – Any use different to that described and in environmental
conditions different to those stated in this manual must be considered
improper and prohibited!

The product is an electro-mechanical gear motor, with a 24 Vdc motor. The gear
motor is powered by the external control unit, to which it must be connected.

If the electric energy is interrupted (black-out), the gate panels can be moved
by releasing the gear motor using the relevant wrench; to perform the manual
manoeuvre, see chapter 8.

The product is available in the version

- BM5024 with encoder, suitable for MC824H control units.

Do not use gear motors with incompatible control units.

DESCRIPTION OF THE PRODUCT
AND DESTINATION OF USE

2

3.1 - Preliminary checks on installation

Before performing installation, check the integrity of the product components,
the adequacy of the model chosen and the suitability of the environment des­tined for installation.

IMPORTANT – The gear motor cannot automate a manual gate that
does not have an efficient and safe mechanical structure. Moreover, it
cannot solve defects caused by incorrect installation or bad mainte­nance of the gate itself.

3.2 - Suitability of the gate to automate and the surrounding
environment

• Check that the gate mechanical structure is suitable to be automated and

complies with the Standards in force on the territory (if necessary, refer to the
data given on the gate label).

• Moving the gate panel manually in Opening and in Closure, check that the

movement takes place with the same and constant friction in all points of the
run (there must not be moments of greater effort).

• Check that the gate panel stays in equilibrium, i.e. that is does not move if

taken manually into any position and left.

• Check that the space around the gear motor allows to manually release the

gate panels easily and safely.

• Envision end run retainers on the ground both for opening and closure of

the gate.

• Check that the gear motor fixing area is compatible with the clearance of the

latter (fig. 1).

3.3 - Limits of use for the product

Before installing the product, check that the gate panel has dimensions and
weight that lie within the limits given in graph 1; also evaluate the climatic con­ditions (e.g. strong wind) present in the place of installation. They can greatly
reduce the values given in the graph.

INSTALLATION

3

3.4 - Set-up for installation

Fig. 2 shows an example of automated plant realised with Nice components.
These components are positioned according to the typical and usual layout.
With reference to fig. 2, establish the approximate position where each com­ponent envisioned in the plant will be installed and the most appropriate con­nection layout.

GRAPH 1

100

12345

200

300

400

500

600

700

900

800

PANEL MAX WEIGHT (Kg)

PANEL MAX LENGTH (m)

1

30 60

48

8

200

325400

EN

2 – English

3.5 - Mounting: Overall Dimensions and Positioning of
Foundation Box

1 Dig a generously sized foundation pit to house the foundation box (fig. 3):

prepare a drain pipeline for draining off water and avoid the build-up of
water.

2 If the gate is equipped with its own mechanical stops (fig. 2) skip directly to

point 3. Otherwise secure the opening limiter accessory to the box (see
paragraph 4).

3 Place the box inside the foundation hole; the stud must be aligned with the

axis of the hinge (fig. 3).

3

1- Hinge 2- Pin 3- Concrete

1

2

3

4

5

4

Release lever
2 Connecting lever
3 Ball

4 Control bracket
5Pin

2

1 Photocell post 5 Aerial 9 Vertical electric lock
2 Pair of opening stops 6 Flashing light 10 Key-operated selector switch or
3 230V line 7 Photocell digital keypad
4 Control panel (electrical panel) 8 Box with BIG METRO actuator 11 Connector block (not supplied)

4 Provide a duct for the electrical cables and a drainage pipe.
5 Bury the foundation box in concrete, making sure it is set level.
6 Mount the control bracket on the box’s stud along with the ball (fig. 4).
7 Set the gate leaf on the release lever and weld them securely.
8 Grease using a suitable grease nozzle.

EN

English – 3

POSITION OF LIMIT SWITCHES

4

3.6 - Installation of BIG METRO Gearmotor

1 Remove the nuts and washers shown in the figure on the right (fig. 5).
2 Place the gearmotor inside the foundation box making sure it faces the cor-

rect direction.

3 Secure the gearmotor with the previously removed washers and nuts.
4 Connect the gearmotor to the gate by means of the connecting lever (2)

(fig. 4).

5

Closing limit switch (supplied with the

motor) mount as shown in the figure

Opening limit switch (supplied with the
motor) mount as shown in the figure

EN

4 – English

DISPOSAL OF THE PRODUCT

This product is an integral part of the automation system,
and should therefore be disposed of together with it.

As for the installation operations, even at the end of this pro­duct’s life span, the dismantling operations must be carried out
by qualified experts.

This product is made up of various types of materials: some can be recycled
while others need to be disposed of. Find out about the recycling or disposal
systems envisaged by your local regulations for this product category.

Important! – Parts of the product could contain pollutants or hazardous sub­stances which, if released into the environment, could cause harmful effects to
the environment itself as well as to human health.

As indicated by the symbol opposite, throwing away this product as domestic

PLA10 Vertical electric lock 12 Vac

ACCESSORIES ON REQUEST

8

PLA11 Horizontal electric lock 12 Vac

BMA1 360° opening device

MEA2 Key-operated release mechanism

MEA2 Key-operated release mechanism

Recommendations:

- The gear motor is supplied with an electric power input cable measuring 2 m.

Therefore, if a greater distance must be covered to perform the electric con­nections, a diversion box must be used (not supplied). IMPORTANT! – It is

prohibited to join the electric cable inside the foundation case.

- Make the electric connections with the mains power input disconnected.

To connect the power input cable to the control unit, see the manual regarding
the latter and the following indications:

Blu wire = 24 V motor power input
Brown wire = 24 V motor power input
Black wire = Encoder
Grey wire = Encoder
Yellow/Green wire = Earth

ELECTRIC CONNECTIONS

5

Testing of the entire system must be conducted by experienced and qualified
personnel, who must establish what tests are necessary depending on the risks
involved. To test BIG METRO proceed as follows:

• close the gate;

• disconnect the power supply to the control unit;

• release the gearmotor from the gate leaf as shown in paragraph “Manual

release device (Key and Lever-Operated Release)” in Chapter “Instructions
and Warnings for Users of the BIG METRO Gearmotor”;

• open the gate manually all the way;

• make sure the gate opens and closes smoothly without any points of friction;

• make sure that the gate, when stopped in any position and released, does

not display a tendency to start moving again;

• make sure that the safety systems and mechanical stops are in good working

order;

• make sure that the screw connections are properly tightened;

• clean the inside of the box and make sure that the drain operates properly;

• when all the checks have been completed, re-connect the gearmotor and

power the control unit;

• BIG METRO is not equipped with any torque adjustment device, therefore this

operation is performed by the control unit;

• measure the impact force as provided by the EN12453 and EN12445 stan-

dards.

INSPECTION AND COMMISSIONING

6

BIG METRO does not require any special maintenance; however, routine
checks conducted every six months at least will ensure the long life of the gear­motor as well as the correct and safe operation of the system.

Maintenance consists simply in repeating the testing procedure.

PRODUCT MAINTENANCE

7

waste is strictly forbidden. So dispose of it as differentiated waste, in accordan­ce with your local regulations, or return the product to the retailer when you pur­chase a new equivalent product.

Important! – the local applicable regulations may envisage heavy sanctions in
the event of illegal disposal of this product.

MANUALLY RELEASING THE GEARMOTOR

9

EN

English – 5

MEA2 Type KEY-Operated Release (fig. 6)

A Pull down the lock cover as shown in the figure.
B Insert the key and rotate it 90° clockwise.
C Move the gate manually (fig. 8).

The system will revert to automatic operation upon the first electrical
manoeuvre.

MEA3 Type Lever-Operated Release (fig. 7)

A Pull down the lock cover as shown in the figure.
B Insert the key and rotate it 90° clockwise.
C Move the gate manually (fig. 8).

The system will revert to automatic operation upon the first electrical
manoeuvre.

!

!

RECOMMENDATIONS: • All technical features stated make reference at a room temperature of 20°C (± 5°C). • Nice S.p.a. reserves the right to modify the pro­duct at any time it deems necessary, however maintaining the same functionality and destination of use.

■ Type Electro-mechanical dear motors for gates and doors with hinged panels

■ Power input 24 V

■ Peak absorption 7 A

■ Maximum absorption 2 A

■ Potenza di picco 170 W

■ Maximum power 50 W

■ Protection rating IP 67

■ Run from 0° to 110° or 360°

■ Idle speed 0,8 rpm

■ Speed at nominal torque 0,65 rpm

■ Maximum torque 400 Nm

■ Nominal torque 100 Nm

■ Functioning temperature from -20 °C to +50 °C

■ Cycles/hour at the nominal torque 45

■ Duration Estimated between about 100.000 e 250,000 manoeuvre cycles, according to the conditions given in Table 1

■ Dimensions 230 mm x 206 mm x h 88 mm

■ Weight 15 Kg (gear motor with foundation space)

PRODUCT TECHNICAL FEATURES

Perform the manual operation in the event of a power failure or system malfunction.

6

8

7

EN

6 – English

CE DECLARATION OF CONFORMITY

and declaration of incorporation of “quasi machinery”

Declaration in accordance with the Directives: 2004/108/EC (EMC); 2006/42/EC (MD) appendix II, part B

Note - The contents of this declaration correspond to declarations in the official document deposited at the registered offices of Nice S.p.a. and in particular to the last revision
available before printing this manual. The text herein has been re-edited for editorial purposes.
A copy of the original declaration can be requested from Nice S.p.a. (TV) I

Number: 389/BM.. Revision: 0 Language: EN
Manufacturer’s Name: NICE s.p.a.

Adress: Via Pezza Alta 13, Z.I. Rustignè, 31046 Oderzo (TV) Italy
Person authorised to draw up
technical documentation: Mr. Oscar Marchetto
Type: “Big Metro” electromechanical gearmotor
Models: BM5024
Accessories:

The undersigned, Luigi Paro, in the role of Managing Director, declares under his sole responsibility, that the product specified above conforms to the pro­visions of the following directives:

• DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of 15 December 2004 regarding the approximation of member state legi­slation related to electromagnetic compatibility, repealing directive 89/336/EEC, according to the following harmonized standards:
EN 61000-6-2:2005, EN 61000-6-3:2007

Directive 2006/42/EC THE EUROPEAN PARLIAMENT AND COUNCIL of 17 May 2006 regarding machinery and which amends directive 95/16/EC (recasting)

• It is hereby declared that the pertinent technical documentation has been compiled in compliance with appendix VII B of directive 2006/42/EC and that
the following essential requirements have been observed: 1.1- 1.1.2- 1.1.3- 1.2.1-1.2.6- 1.5.1-1.5.2- 1.5.5- 1.5.6- 1.5.7- 1.5.8- 1.5.10- 1.5.11

• The manufacturer undertakes to transmit to the national authorities, in response to a motivated request, all information regarding the “quasi-machine",
while maintaining full rights to the related intellectual property.

• Should the “quasi machine” be put into service in a European country with an official language other than that used in this declaration, the importer is obli­ged to arrange for the relative translation to accompany this declaration.

• The “quasi-machine” must not be used until the final machine in which it is incorporated is in turn declared as compliant, if applicable, with the provisions
of directive 2006/42/EC.

The product also complies with the following standards:
EN 60335-1:2002 + A1:2004 + A11:2004 + A12:2006 + A2:2006 + A13:2008, EN 60335-2-103:2003

The product also complies, within the constraints of applicable parts, with the following standards:
EN 13241-1:2003, EN 12445:2002, EN 12453:2002, EN 12978:2003

Oderzo, 1 April 2011 Luigi Paro (Managing Director)

Example of the duration calculation of an Big Metro gear motor (refer to
Table 1 and Graph 2):

- panel length: 3 m and panel weight: 500 Kg = fatigue index: 30%

- Installation in windy areas = fatigue index: 15%

- does not have other elements of fatigue
Total fatigue index

= 45%

Estimated duration

= 110.000 manoeuvre cycles

Product duration

The duration and average economic life of the product. The value of duration is
strongly affected by the fatigue index of the manoeuvres performed by the
automation: i.e. the sum of all factors that contribute to wear of the product
(see Table 1).

To establish the probable duration of your automation, proceed as follows:

01. Calculate the fatigue index

by adding the percentage values of the items

present in Table 1;

02. In Graph 2 of the value just found, trace a vertical line that crosses the
curve; from this point trace a horizontal line until the “manoeuvre cycles” line is
crossed. The value determined is the estimated duration

of your product.

The estimation of duration is made on the basis of the design calculations and
the test results performed on prototypes. In fact, as it is an estimate, it does not
represent any guarantee regarding the effective duration of the product.

50.000

100.000

150.000

200.000

250.000

GRAPH 2

manoeuvre cycles

fatigue index %

Environmental temperature exceeding 40°C or 15 %
below 0°C or humidity exceeding 80%

Blind panel 20 %
Installation in windy area 15 %

Weight of the panel

Fatigue index

< 150 Kg 0 % 10 % 20 % 30 %
150 - 350 Kg 10 % 20 % 30 % 40 %
350 - 550 Kg 20 % 30 % 40 % 50 %
550 - 750 Kg 30 % 40 % 50 % -
750 - 900 Kg 40 % 50 % - -

Length ≤ 2m 2 - 3m 3 - 4m 4 - 5m
of the panel

TABLE 1

2009_067_MG_08-04-2011

www.niceforyou.com

Nice SpA

Oderzo TV Italia
[e-mail]

Mindy

Instructions and warnings for the fitter

Istruzioni ed avvertenze per l’installatore

Instructions et recommandations pour l’installateur

Anweisungen und Hinweise für den Installateur

Instrucciones y advertencias para el instalador

Instrukcje i uwagi dla instalatora

Aanwijzingen en aanbevelingen voor de installateur

Control unit

A60

2

Index: page

1 Warnings 3

2 Product description 4

2.1 Operating limits 5

2.2 Typical system 5

2.3 List of cables 5

3 Installation 6

3.1 Preliminary checks 6

3.2 Fixing the control unit 6

3.3 Electrical connections 7

3.4 Description of electrical connections 7

3.5 Notes about connections 8

3.6 Checking the connections 9

4 Adjustments 10

4.1 Operating modes 11

5 Programming 11

5.1 Programmable functions 11

5.2 Description of functions 12

6 Testing 13

6.1 Commissioning 13

7 Maintenance and Disposal 14

7.1 Maintenance 14

7.2 Disposal 14

8 Accessories 14

9 Technical characteristics 14

Mindy

A60

3

GB

This manual contains important information regarding safety. Before
starting installation of the components, it is important that you read
all the information contained herein. Store this manual safely for
future use.
Due to the dangers which may arise during both the installation and
use, installation must be carried out in full observance of the laws,
provisions and rules currently in force to ensure maximum safety.
This chapter provides details of general warnings. Other more spe­cific warnings are detailed in Chapters “3.1 Preliminary Checks” and
“6 Testing and Commissioning”.

According to the most recent European legislation, the
automation of doors or gates is governed by the provisions
listed in Directive 98/37/CE (Machine Directive) and, more
specifically the standards: EN 13241-1 (harmonised stan­dard); EN 12445; EN 12453 and EN 12635, which enables
the declaration of machine conformity to the machine
directive.

Visit “www.niceforyou.com” for further information and guidelines for
risk analysis and how to draw up the Technical Documentation.
This manual has been especially written for use by qualified fitters.
Except for the enclosed specification “Instructions and Warnings for
Users” to be removed by the installer, none of the information pro­vided in this manual can be considered as being of interest to the
end users!

• Any use or operation not explicitly provided for in these instructions

is not permitted. Improper use may cause damage and personal
injury.

• A risk analysis must be carried out before starting installation,

including a the list of essential safety requisites provided for in
Enclosure I of the Machine Directive, indicating the relative solu­tions employed. N.B. Risk analysis is one of the documents includ­ed in the “Technical Documentation” for this automation.

• Check whether additional devices are needed to complete the

automation based on the specific application requirements and
dangers present. The following risks must be considered: impact,
crushing, shearing, dragging, etc. as well as other general dan­gers.

• Do not modify any components unless such action is specified in

this manual. Operations of this type are likely to lead to malfunc­tions. NICE disclaims any liability for damage resulting from modi­fied products.

• During installation and use, ensure that solid objects or liquids do

not penetrate the control unit or other open devices. If necessary,
contact the NICE customer service department; use in these con­ditions can be dangerous.

• The automation system must not be used until it has been com-

missioned as described in chapter 6 “Testing and commissioning”.

• The packaging materials must be disposed of in compliance with

local regulations.

• If a fault occurs that cannot be solved using the information pro-

vided in this manual, contact the NICE customer service depart­ment.

• In the event that any automatic switches are tripped or fuses

blown, attempt to identify and eliminate the relative fault.

• Disconnect all the power supply circuits before accessing the ter-

minals inside the cover. If the disconnection device is not identifi­able, affix the following sign: “WARNING: MAINTENANCE WORK
IN PROGRESS”.

Special warnings concerning the suitable use of this product in rela­tion to the 98/37CE “Machine Directive” (ex 89/392/CEE):

• This product is issued on the market as a “machine component”
and is therefore manufactured to be integrated in a machine or
assembled with other machines in order to create “a machine”, in
accordance with the directive 98/37/EC, exclusively in combina­tion with other components and in the manner described in the
present instructions manual. As specified in the directive 98/37CE
the use of this product is not admitted until the manufacturer of the
machine on which this product is mounted has identified and
declared it as conforming to the directive 98/37/CE.

Special warnings concerning suitable use of this product in relation
to the 73/23/EEC “Low Voltage” Directive and subsequent amend­ments 93/68/CEE

• This product complies with the provisions envisaged by the “Low
Voltage” Directive if used in the configurations foreseen in this
instruction manual and in combination with the articles present in
the Nice S.p.a. product catalogue. If the product is not used in the
specified configurations or is used with other products that have
not been foreseen, the requirements may not be guaranteed; use
of the product is prohibited in these conditions until compliance
with the requirements foreseen by the directive has been verified
by installers.

Special warnings concerning suitable use of this product in relation
to the 89/336/EEC “Electromagnetic Compatibility” Directive and
subsequent amendments 92/31/EEC and 93/68/EEC:

• This product has undergone tests regarding electromagnetic com­patibility in the most critical of use conditions, in the configurations
foreseen in this instruction manual and in combination with articles
present in the Nice S.p.A. product catalogue. Electromagnetic
compatibility may not be guaranteed if used in configurations or
with other products that have not been foreseen; use of the prod­uct is prohibited in these conditions until compliance with the
requirements foreseen by the directive has been verified by
installers.

!

1) Warnings

4

This control unit for the automation of gates and doors enables control of two gearmotors with single-phase alternating current.
The unit features a series of Dip-switches (mini switches) that enable the selection of the various functions, as well as trimmers used for mak­ing adjustments.
The status of the inputs is signalled by LED’s located next to the inputs. An additional LED located near the microprocessor indicates whether
the internal logic is operating properly.
To facilitate part identification, Fig.1 below shows the most significant components.

1 Transformer
2 Low voltage fuse (500 mA F)
3 Force adjustment trimmer (F)
4 Pause Time adjustment trimmer (TP)
5 Opening Time Delay adjustment trimmer (TRA)
6 Motor 1 Working Time adjustment trimmer (TL1)
7 Motor 2 Working Time adjustment trimmer (TL2)
8 Closing Time Delay adjustment trimmer (TRC)
9 Manoeuvre balance trimmer (BAL)
10 Terminal board for aerial
11 Led OK
12 Radio slot connector
13 Step-by-step button
14 Function selection Dip-Switch
15 Microprocessor

16 Electric lock relay
17 Common motor relay
18 Courtesy light relay
19 Open / Close movement direction relay
20 Phototest relayt
21 Motor 2 Triac
22 Motor 1 Triac
23 Rapid fuse (5A 230Vac) or (6.3A 120Vac) power
24 Input / output control terminal board
25 Motor outputs terminal board
26 Flashing / C.tsy light output terminal board
27 Power supply terminal board
28 Motors ON LED
29 Jumper for selection of deceleration mode (M-RAL)

2) Product description

1

5

GB

2.1) Operating limits

Chapter 9 “Technical Characteristics” provides the only data needed to determine whether the products are suitable for the intended appli­cation.

2.2) Typical system

1. Control Unit A60

2. Flashing light with incorporated aerial

3. Key-operated selector switch

4. Motors

5. Couple of photoelectric cells PHOTO

6. Couple of photoelectric cells PHOTO 1

7. Sensitive edge

8. Radio transmitter

2

2.3) List of cables

The typical system shown in figure 2 also states the cables required for connection of the various devices, the specifications of which are
provided in table 1.

The cables used must be suitable for the type of installation; for example, an H03VV-F type cable is recommended

for indoor applications, while H07RN-F is suitable for outdoor applications.

!

Note 1: power supply cable longer than 30m may be used provided it has a larger gauge, e.g. 3x2,5mm2, and that a safety earthing sys-

tem is provided near the automation unit.

Connection Tipo cavo Maximum admissible length
A: Electrical power line N°1 cable 3x1,5mm

2

30m (note 1)

B: Flashing light with aerial N°1 cable 2x0,5mm

2

20m

N°1 shielded cable type RG58 20m (less than 5m recommended )

C: Electric lock N°1 cable 2x1mm

2

20m

D: Photocells N°1 cable 2x0,25mm

2

(Tx) 30m

N°1 cable 4x0,25mm2(Rx) 30m

E: Key-operated selector switch N°1 cable 4x0,25mm

2

30m

F: Connection to the motors. N°1 cable 4x1,5mm

2

3m

G: Connection to sensitive edge N°1 cable 2x0,25mm

2

30m

Table 1: List of cables

6

3.2) Fixing the control unit

Insert the two screws in the upper holes provided, sliding them on the guide as in fig. 3a and partly screwing them in. Turn the control unit
through 180° and perform the same operation with the other 2 screws. Fix the control unit on to the wall.

Fix the cover on the desiderd part (with opening on the right or left), press firmly on the arrows.

To remove the cover, press with a screwdriver on the join and push upwards at the same time.

The installation must be carried out by qualified personnel in compliance with current legislation, standards and reg-

ulations, and the directions provided in this manual.

!

3) Installation

3.1) Preliminary checks

Before proceeding with the installation:

• Check that all the materials are in excellent condition, suitable for
use and compliant with current standards.

• Ensure that the structure of the gate is suitable for automation.

• Ensure that the mounting positions of the various devices are pro­tected from impact and that the mounting surfaces are sufficiently
sturdy.

• Install cable or pipe leads only at the bottom of the unit; for no rea­son whatsoever must the side and top walls be perforated. The
cables must only enter the unit from the bottom!

• Insert suitable mechanical stops, anchored to the ground, both for
opening and closing manoeuvres.

• Components must never be immersed in water or other liquids.
Keep away from heat sources and open flames; in acid, saline or
potentially explosive atmosphere; this could damage A60 and
cause malfunctions or hazardous situations.

• If there is an access door in the leaf, or within the range of move­ment of the gate, make sure that it does not obstruct normal trav­el. Mount a suitable interlock system if necessary.

• Only connect the control unit to a power supply line equipped with
a safety grounding system.

• The power supply line must be protected by suitable magne­tothermal and differential switches.

• A disconnection device must be inserted in the power supply line
from the electrical mains (the distance between the contacts must
be at least 3.5mm with an overvoltage category of III) or equivalent
system, for example an outlet and relative plug. If the disconnec­tion device for the power supply is not mounted near the automa­tion, it must have a locking system to prevent unintentional, unau­thorised connection.

3a 3b 3c 3d

7

GB

4

3.3) Electrical connections

To safeguard the operator and avoid damaging the components, make sure that the control unit is switched off while

you are wiring or plugging in the various cards.

• Power the control unit using a 3 x 1.5 mm

2

cable; should the distance between the unit and the earth connection exceed 30m, install an

earth plate near the unit.

• Use wires with a minimum cross-section of 0.25 mm

2

to connect extra-low voltage safety circuits.

• Use shielded wires if the length exceeds 30m and only connect the earth braid to the control unit side.

• Do not make connections to cables in buried boxes even if they are completely watertight.

• If the inputs of the Normally Closed (NC) contacts are not used, they should be jumped with the “24V common” terminal except for the
photocell inputs if the phototest function is enabled. For further information please see the paragraph 3.5 “Notes about connections“ in the
part “ Phototest “.

• If there is more than one (NC) contact on the same input, they must be connected in SERIES.

• If the inputs of the Normally Open (NA) contacts are not used they should be left free.

• If there is more than one (NA) contact on the same input, they must be connected in PARALLEL.

• The contacts must be mechanical and potential-free; no stage connections are allowed, such as those defined as "PNP", "NPN", "Open
Collector", etc.

Carry out the necessary connections, following the diagram in Fig. 4 and the following description of the connections.
Remember that there are specific standards that must be complied with both as regards the safety of the electrical systems and as regards
automatic gates.

!

3.4) Description of electrical connections

The following table provides a brief description of the possible control unit output connections.

Terminals Function Description
1-2-3 : Power supply = Mains power line
4-5 : Flashing light = Output for connecting flashing light to mains voltage (Max. 40W)
6-7 : Courtesy light = Clean contact output for courtesy light connection (Max. 5A)
8-9-10 : Motor1 = Motor 1 control output,
11-12-13 : Motor2 = Motor 2 control output
15-16 : Electric lock = 12 Vdc output for electric lock activation, max. power 25W
17-18 : 24 Vac = Power supply to 24Vac services ( Max. 200 mA)
19 : Phototest = Phototest output - “TX” power supply to photocells - (Max. 75 mA)
20 : Common = Common for all inputs
21 : AC light = 24 Vac output for open gate indicator light (Max. 2W)
22 : Stop = Input with “Stop” function (Stop and short reverse run)
23 : Photo = Input for safety devices
24 : Photo1 = Input for additional safety device
25 : Step by step (PP) = Input for cyclic movement (“Open” – “Stop” – “Close” – “Stop”)
26 : Open = Input for opening function
27 : Close = Input for closing function

Aerial = Input for the radio receiver aerial

Close

Motor 2 Close

Motor 2 Common

Motor 2 Open

Motor 1 Close

Motor 1 Common

Motor 1 Open

Open

Step by step



Stop

AC light

Common

Phototest

24 Vac ~

200mA

Electric lock

12Vdc Max 25W

Courtesy light

Power supply

Flashing light

Max 40W

8

3.5) Notes about connections

For the most part, connections are easy; a lot of them are direct connections to a single user point or contact but some are a little more
complex:
All the single-phase asynchronous motors need a capacitor for them to work properly; some gearmotors have this capacitor already con­nected inside while others have to have the capacitor connected externally. In this case, the capacitor must be connected between the
motor’s OPEN and CLOSE phases. To be more practical the capacitor should be connected directly inside the unit.

The “Phototest” function improves the reliability of the safety devices
and puts the control unit and safety photocells in “category 2”
according to EN 954-1 standard (ed. 12/1996).
Each time a manoeuvre is begun, the related safety devices are
checked and the manoeuvre is started only if everything is in order.
Should the test be unsuccessful (the photocell is blinded by the sun,
cables have short circuited, etc.) the failure is identified and the
manoeuvre is not carried out.

To enable the Phototest function:

• Set Dip Switch 10 to ON

• Connect the safety devices as shown in fig. 5 (when using the
PHOTO output alone), or as shown in fig. 5a (when using PHO­TO1 as well).
The photocell transmitters are not powered directly from the ser­vice output, but through the dedicated PHOTOTEST output. The
maximum current available at the PHOTOTEST output is 75mA (3
pairs of photocells).

• Power the receivers directly from the service output of the control
unit (terminals 17-18).

The photocells are tested as follows: when a movement is required,
all the receivers involved in the movement are checked to make sure
they give their consent, then power to the transmitters is discon­nected; next all the receivers are checked to make sure they signal
the fact by withholding their consent; the transmitters are then
powered and the consent of all the receivers is verified once more.
Only if this sequence is successfully carried out will the manoeuvre
be performed.
It is always a good idea to activate the synchronisation function by
cutting the jumpers on the transmitters. This is the only way to make
sure that two pairs of photocells will not interfere with each other.
Read the instructions for “SYNCHRONISED” operation in the photo­cell manual.

If an input subjected to PHOTOTEST is not being used (see PHO­TO1) but you still require the phototest function, connect the unused
input with the PHOTOTEST output (terminals 19-24) using a jumper;
see fig. 5a.

If at a later time the Phototest function is no longer required, set Dip­Switch 10 to the OFF position.

5

5a

9

GB

3.6) Checking the connections

The following operations entail working on live circuits;
most of these run on extra-low safety voltage so they are
not dangerous; however, some are mains voltage circuits,
which means they are HIGHLY DANGEROUS! Pay the
utmost attention to what you are doing and NEVER WORK
ALONE!

• Power the control unit and check that voltage between terminals

17-18 is approx. 24Vac.

• Check that the “OK” LED flashes rapidly for a few moments and

then that it flashes at a regular frequency.

• Now check that the LED’s related to the N.C. (Normally Closed)

contacts are on (all safety devices active) and that the LED’s relat­ed to the N.O. (Normally Open) inputs are off (no command); if this
is not the case, check the connections and efficiency of the vari­ous devices. The STOP input switches off both FCA and FCC.

• Release the leaves, take them to the halfway point and then stop

them; this way the leaves will be free to move in either the open­ing or closing direction.

• Now make sure that movement occurs in the right direction, i.e.,

see whether the movement set on the unit corresponds to that of
the leaves. This check is of paramount importance, if the direction
is wrong, in some cases (in the “Semiautomatic” mode, for
instance) the “Automatic” system might appear to be working
properly; in fact, the OPEN cycle is similar to the CLOSE cycle but
with one basic difference: the safety devices are ignored in the
closing manoeuvre, which is normally the most dangerous, and
they will trigger in the opening manoeuvre, causing the gate to
close against an obstacle with disastrous results!

• To see whether the direction of rotation is correct, give a short

impulse to the Open input and make sure that the automatic sys­tem moves in the opening direction; if this movement is incorrect,
proceed as follows:
– Turn the power off
– Invert the power conductors of the wrong motor/s. (In the case

of M1, invert the connection of terminals 8-10; for M2, invert the
connection of terminals 11 – 13).

– Once this has been done, check whether the direction of rota-

tion is correct by repeating the last operation.

The “OK” LED located in the centre of the board next to the micro­processor has the task of signalling the status of the internal logic:
regular flashing at 1 second intervals indicates that the internal
microprocessor is active and waiting for commands. When the
microprocessor recognises a variation in the status of an input
(whether it is a command or a function Dip-Switch input) it generates
a rapid double flash even if the variation does not have any immedi­ate effects. Extremely rapid flashing for 3 seconds means that the
control unit has just been powered or is carrying out internal testing.
Lastly, irregular flashing means that the test has been unsuccessful
and that a fault has occurred.

!

10

Adjustments can be made through trimmers that modify the follow­ing parameters:

• WORKING TIME (TL1 TL2):

These adjust the maximum duration of the opening or closing
manoeuvre of motor 1 (TL1) and motor 2 (TL2).

The adjustments made to the trimmers (TL1 TL2) take effect the first
time a closed gate performs an opening manoeuvre (working time of
the 2 leaves finished). Therefore always adjust the trimmers when the
gate is closed.
If gearmotors with electric limit switches or limit stops are used,
adjust these switches or stops to maximise the opening or closing
range of a leaf.
To adjust the working times TL, select the “Semiautomatic” operat­ing mode by setting Dip-Switch 1 to ON, then adjust the TL trimmers
to halfway along the travel distance. When these adjustments have
been made, execute an opening and closing cycle; if necessary also
adjust the TL trimmers so that there is enough time to execute the
entire manoeuvre and still leave a margin of 2 or 3 seconds before
the electric limit switches (on the motors with limit switches) or the
limit stops cut-in.
In order to check when the working time for the two motors termi­nates, check whether the Motors ON LEDs, located on the control
unit, have switched off. (The LEDs will switch off when the Working
Time for the respective motor is up).
If the TL trimmers are at maximum and there still is not enough time
to perform the entire manoeuvre, cut the TLM1 jumper to increase
the working time of motor 1 and cut the TLM2 jumper to increase the
working time of motor 2. These jumpers are located alongside the
corresponding trimmers.
If you wish to use the DECELERATION function (Dip-Switch 8 On),
adjust the working time trimmers so that the motors begin the decel­eration stage approximately 50 - 70cm before the opening or clos­ing limit stops are reached.

• OPENING TIME DELAY (TRA) AND CLOSING TIME DELAY

(TRC):

If the gate has two leaves that might jam if they start moving simul­taneously, or that might overlap when closing, you need to adjust the
Opening Time Delay trimmer (TRA) or the Closing Time Delay (TRC)
trimmer to overcome these problems.
The TRA trimmer must be adjusted to ensure that the leaf moved by
the second motor is out of the range of the leaf moved by the first
motor when the latter starts moving.
The TRC trimmer must be adjusted to ensure that, during the closing
operation, the leaf moved by the second motor reaches the end of its
travel after the first motor has completed its closing manoeuvre.

• PAUSE TIME (TP):

In “Automatic” mode, this adjusts the time span between the end of
the opening manoeuvre and the beginning of the closing manoeuvre.

• FORCE (F):

Take great care when adjusting the FORCE (F) trimmer, as this may
affect the level of safety of the automatic system. Trial by error is
required to adjust this parameter, measuring the force applied to the
leaf and comparing it with regulatory values.

• BALANCING manoeuvre times (BAL):

The BALANCE trimmer on this control unit enables a differentiation
between the work time between leaf opening and closing manoeu­vres.
This is useful when the motor has different speeds in the two direc­tions, such as in the case of hydraulic motors or when the gate leafs
are offset in opening and closing, causing different force levels and
thus requiring different travel times within the same space.
Therefore if the gate is offset in closing, the opening manoeuvre may
terminate before reaching the mechanical stops, in which case
rotate the BAL trimmer clockwise (Op) to increase the opening time
until the deceleration starts at the set point (50 cm before the
mechanical stop) and the manoeuvre lasts for a further 3-5 seconds
after the leafs have reached the mechanical stops.
On the other hand, if the gate is offset in opening, balance by rotat­ing the BAL trimmer anti-clockwise (Cl) to extend the closing
manoeuvre time.
If the trimmer is positioned exactly at the centre, the opening and
closing manoeuvres will have the same work time.

4) Adjustments

11

GB

The unit comprises a set of microswitches used to operate various
functions so as to render the system more suitable to user needs
and safer in the different ways of usage. All functions are activated
by placing the dip-switch in the “ON” position while they will not be
activated if the corresponding dip-switches are “OFF”; some func­tions do not have an immediate effect and only have sense in certain
conditions like.

ATTENTION: some of the programmable functions are
linked to safety aspects, very carefully evaluate the
effects of a function and see which function gives the
greatest possible level of safety.

When servicing a system, before you modify a programmable func­tion, ascertain the reason why, during installation, certain choices
were made and then verify if, with the new programming, safety will
be impaired.

!

5) Programming

4.1) Operating modes

In the manual operating mode, the OPEN input enables an opening
movement, while the CLOSE input enables a closing movement. The
STEP-BY-STEP input enables an alternating opening and closing
movement. Movement stops as soon as the input command stops.
During an opening or closing manoeuvre, movement will stop also
when the command input or the signal from the safety devices is dis­abled. During both opening and closing manoeuvres, the activation
of the STOP command will cause the movement to stop immediate­ly. When a movement is stopped, stop the input command before
giving a command to start a new movement.
When one of the automatic modes (“Semiautomatic”, “Automatic” or
“Automatic + Close Always”) is operational, a command impulse to the
OPEN input causes an opening manoeuvre. A command impulse to
the STEP-BY-STEP input begins an alternating closing and opening
manoeuvre. A second impulse to the STEP-BY-STEP input or to the
same input the started the movement will cause it to stop.

Both in the opening and closing phases, the activation of the STOP
command will cause an immediate stopping of movement and a
short reverse run. If a continuous signal rather than an impulse is
maintained in a command input, a “prevalence” condition will be
generated causing the other command inputs to be disabled (this

is useful if you need to connect a clock or a Night/Day
selector switch).

If an automatic operating mode has been chosen, the opening
manoeuvre will be followed by a pause and then a closing manoeu­vre. If PHOTO triggers during the pause, the timer will be reset with
a new pause time; if, on the other hand, STOP is activated during the
pause, the closing function will be cancelled and the system will
switch to the STOP mode.
PHOTO will have no effect if it is triggered during the opening
manoeuvre, however if PHOTO is triggered during the closing
manoeuvre, the movement will reverse, pause, and then start to
close again.

5.1) Programmable functions

With the FUNCTIONS dip-switch you can select the various functioning modes and add the functions required according to this table:

Switch 1-2 Off Off = “Manual” movement, i.e. hand operated

On-Off = “Semiautomatic” movement
Off-On = “Automatic” movement, i.e. automatic closing

On-On = “Automatic + always close” movement
Switch 3 On = Condominium operation < not available in manual mode >
Switch 4 On = Pre-flashing
Switch 5 On = Close 5” after Photo < in automatic mode > or Close after Photo < in semiautomatic mode >
Switch 6 On = “Photo1” safety also during opening manoeuvres
Switch 7 On = Ramming
Switch 8 On = Deceleration
Switch 9 On = Maintain pressure
Switch 10 On = Phototest
Switch 11 On = Courtesy Light in impulse mode
Switch 12 On = Close becomes Open for Pedestrians

Note 1: Some functions are only available in certain conditions; these are explained by the notes between the characters “<...>”.

12

5.2) Description of functions

Here is a brief description of the functions that can be added by set­ting the corresponding Dip-Switch to “ON”.

Switch 1-2: Off Off = “Manual” movement (hand operated)

On-Off = “Semiautomatic” movement
Off-On = “Automatic” movement (automatic closing)
On-On = “Automatic + Always Close” movement

In the “Manual” operating mode, the gate will only move as long as
the control button is held down.
In “Semiautomatic”mode, a command impulse will perform the
whole movement until the Working Time limit expires or the limit stop
is reached. In the “Automatic” operating mode, an opening manoeu­vre is followed by a pause, after which the gate closes automatical­ly. The “Always Close” function comes into play following a power
failure, automatically activating a closing manoeuvre preceded by 5
seconds of pre-flashing.

Switch 3: On = Condominium operation (not available in Manual
mode)
In the Condominium operating mode, once an opening manoeuvre
has started it cannot be interrupted by other command impulses,
such as STEP-BY-STEP or OPEN, until the gate has finished open­ing. During a closing manoeuvre, a new command impulse will stop
the gate and reverse the direction of movement in order to open the
gate.

Switch 4: On = Pre-flashing
A command impulse activates the flashing light, followed by move­ment 5 seconds later (2 seconds later in manual mode).

Switch 5: On = Close 5” after Photo < in automatic mode > or
Close after Photo < in semiautomatic mode >
This function, in Automatic mode, allows the gate to be kept open
only for the time required for transit; when the PHOTO stage is over,
the manoeuvre stops. After 5 seconds a closing manoeuvre will
automatically begin. If PHOTO triggers in the “Semiautomatic” mode
during a closing manoeuvre, the “Automatic” closing manoeuvre is
activated with a set pause time.

Switch 6: On = Safety (Photo1) also during the opening manoeuvre
The “Photo1” safety device is normally active only during the closing
manoeuvre; if Dip-Switch 6 is turned "On", the safety device will
cause the movement to stop also during the opening manoeuvre.
In the Semiautomatic or Automatic modes, the opening manoeuvre
will start again immediately after the photocell has been disengaged.

Switch 7: On = Ramming
When reversible actuators are used, so that the gate does not
remain closed thanks to the thrust of the motors alone, it is neces­sary to install an electric lock (see actuators’ operating instructions).
The electric lock may apply a natural thrust to the gate, causing the
leaves to open slightly; at times this thrust is so powerful as to cause
the locking mechanism to jam.
With the ramming function on, a brief closing cycle is activated
before an opening manoeuvre is started. This, however, will not gen­erate any actual movement since the leaves will already be posi­tioned against the closing limit stop.
This way, when the electric lock is activated it will be free from the
effects of unwanted forces and will readily click open.

Switch 8: On = Deceleration
Deceleration consists in a 30% reduction of the nominal speed, to
reduce the impact force in the gate opening and closing zones.
The deceleration function slows down the automation speed and
reduces motor torque by 70%.
In automations requiring a high torque, this torque reduction could

cause shutdown of the motors.
For this reason, this function is disabled on heavyweight gates and
those subject to high friction.
Once the deceleration function is enabled, the Work Time (WT) trim­mer must be adjusted as the deceleration start depends on the set
Work Time. Therefore set the Work Time so that deceleration starts
at approx. 50 cm before the mechanical stops to ensure that the
manoeuvre lasts a further 3-5 seconds after reaching the mechani­cal stop.
A jumper ( M-RAL ) is fitted on the control unit to enable selection of
the two DECELERATION modes; one with 70% torque reduction
and one with 60% torque reduction to use on heavier gates.

70% torque reduction

60% torque reduction

Note that during deceleration, the motor noise levels increase slightly.
Before adjusting deceleration settings, read paragraph “4 Adjust­ments” with special reference to the operation of the Balance trim­mer (BAL).

Switch 9: On = Maintain pressure
With hydraulic actuators, the thrust required to keep the gate closed
is generated by a hydraulic circuit which is constantly under pres­sure.
However, time and wear tend to reduce the seal of the hydraulic cir­cuit. Consequently, after a few hours of operation the internal pres­sure may drop, causing the leaves to open slightly.
If the “Maintain Pressure” function is enabled, every 4 hours that the
gate remains closed a brief closing manoeuvre is activated in order
to restore the hydraulic circuit pressure.

Switch 10: On = Phototest
This function checks photocell efficiency at the beginning of each
manoeuvre. See the PHOTOTEST chapter.

Switch 11: On = Courtesy light in impulse mode
In this mode, the clean contact of the courtesy light output will
remain closed for 1 sec. at the starting of each opening or closing
manoeuvre, thus enabling a command impulse to be sent to an
external timer.

Switch 12: On = CLOSE becomes OPEN for Pedestrians
In this mode, the CLOSE input loses it basic function and becomes
a Pedestrian Step-by-Step input that allows the gate leaf controlled
by motor 2 to be opened for pedestrian access.
The Pedestrian opening cycle can only be activated when the gate
is closed, while if the gate is moving or open the impulse has no
effect on the input.

13

GB

After the above checks and adjustments have been made, the sys­tem can be tested.

The automation system must be tested by qualified and
experienced personnel who must establish what tests to
perform based on the risks involved.

Testing is the most important part of the whole automation process.
Each single component, e.g. motor, emergency stop, photocells,
etc., may require a specific test phase; please follow the procedures
described in the operating instructions for each component.

To test the control unit, perform the following operations:

1. Function selection:

• Set Dip Switch 1 to ON (Semi-automatic operation) and the
remaining ones to OFF

2. Press the Open button and check that:

• the flashing light is activated

• the opening manoeuvre starts

• the movement stops when the opening limit stop is reached.

3. Press the Close button and check that:

• the flashing light is activated

• the closing manoeuvre starts

• the movement stops when the closing limit stop is reached.

4. Start an opening manoeuvre and make sure that during the
manoeuvre the triggering of a device:

• connected to the “Stop” input causes an immediate stop and a

short reverse run

• connected to the “Photo” input has no effect.

5. Start a closing manoeuvre and make sure that during the
manoeuvre the triggering of a device:

• connected to the “Stop” input causes an immediate stop and a

short reverse run

• connected to the “Photo” input causes the stop and subse­quent reversal of the manoeuvre

• connected to the “Photo1” input causes the stop and subse­quent reversal of the manoeuvre.

6. On the connected inputs, make sure that each activation of the
input generates a step in the following sequence:

• Step-by-step input: Sequence = Open – Stop – Close – Stop

• Open input: Sequence = Open – Stop – Open – Stopp

• Close input: Sequence = Close – Stop – Close – Stop

7. If the “Phototest” function is used, check the efficiency of the test:

• Interrupt the “Photo” photocell, then start a manoeuvre and

check that it is not performed

• Interrupt the “Photo1” photocell, then start a manoeuvre and

check that it is not performed

• Short the “Photo” photocell contact, then start a manoeuvre

and check that it is not performed

• Short the “Photo1” photocell contact, then start a manoeuvre

and check that it is not performed

8. Perform the tests for measuring the Impact Forces as required by
EN 12445.

If after the completion of the testing process additional functions are
activated which could affect the safety of the system, specific test­ing of these functions must be performed.

!

6) Testing

6.1) Commissioning

Commissioning can take place only after all the testing phases of the
control unit and the other devices have been completed successfully.
It is not permissible to execute partial commissioning or to enable
use of the system in makeshift conditions.

1. Prepare and store for at least 10 years the technical documenta­tion for the automation, which must include at least the following:
assembly drawing of the automation, wiring diagram, analysis of
hazards and solutions adopted, manufacturer's declaration of
conformity of all the devices installed (for A60 use the annexed
CE declaration of conformity); copy of the instruction manual and
maintenance schedule of the automation.

2. Affix a dataplate on the gate providing at least the following
data:type of automation, name and address of manufacturer
(person responsible for the “commissioning”), serial number, year
of manufacture and “CE” marking.

3. Post a permanent label or sign near the gate detailing the opera­tions for the release and manual manoeuvre.

4. Prepare the declaration of conformity of the automation system
and deliver it to the owner.

5. Prepare the “Instructions and warnings for the use of the automa­tion system” and deliver it to the owner.

6. Prepare the maintenance schedule of the automation system and
deliver it to the owner (this must provide all directions regarding
the maintenance of the single automation devices).

7. Before commissioning the automation system inform the owner in
writing regarding residual risks and hazards (e.g. in the “Instruc­tions and warnings for the use of the automation system”).

14

7.1) Maintenance

The automation must undergo maintenance work on a regular basis,
in order to guarantee prolonged lifetime.

The maintenance operations must be performed in strict
compliance with the safety directions provided in this
manual and according to the applicable legislation and
standards.

If other devices are present, follow the directions provided in the cor­responding maintenance schedule differents from A60.

1. Is requires scheduled maintenance work every 6 months or

10.000 manoeuvres (max.) after previous maintenance.

2. Disconnect all power supplies.

3. Check for any deterioration of the components which form the

automation, paying particular attention to erosion or oxidation of
the structural parts. Replace any parts which are below the
required standard.

4. Connect the electric power sources up again, and carry out the
testing and checks stated in Paragraph “6 Testing”.

This charter provides information about how to draw up a maintenance schedule, and the disposal of A60.

!

7) Maintenance and Disposal

7.2) Disposal

As in the case of installation, at the end of the product lifetime, dis­posal procedures must be carried out by qualified personnel.
This product comprises various types of materials, some of which
can be recycled while others must be disposed of. Check informa­tion on the recycling and disposal procedures according to local leg­islation for this product category.

Some parts of the product may contain pollutant or
hazardous substances; if disposed of into the environment
these may constitute a serious risk of damage to the envi­ronment and public health.

As indicated by the symbol in figure nev­er dispose of this product in domestic
waste. Apply “classified waste collection”
procedures for disposal in accordance
with local regulations or return the prod­uct to the retailer when purchasing a new
model.

Local regulations may envisage serious fines in the event of illegal
disposal of this product.

!

RADIO card

The control unit features a connector for plugging in an SM radio
card , which activates the inputs and allows the control unit to be
remote-controlled through a transmitter.

output 1 STEP-BY-STEP
output 2 Open for pedestrians
output 3 Open
output 4 Close

8) Accessories

With the aim of improving products, Nice S.p.a reserves the right to modify technical characteristics at any time without notice, while main­taining the same functionalities and intended use.
All technical characteristics stated refer to an ambient temperature of 20°C (±5°C).

9) Technical characteristics

Model type: A60 A60/V1

Power 230 Vac ± 10%, 50 - 60 Hz 120 Vac ± 10%, 50 - 60 Hz
Maximum actuators power 300 W [1,3 A] 300 W [2,5 A]
Maximum flashing light power 100W
Maximum frequency of operating cycles unlimited
Maximum time of continuous operation unlimited
Maximun current accessories (24 Vac) 200 mA
Maximun current phototest output 75 mA
Gate open indicator max. power SCA (24Vac) 2 W
Maximun electric lock power 12 Vac 15 VA
Working time from 2,5 to 40 sec. (from 40 to 80 sec. with TLM)
Pause time from 5 to 80 sec.
TRA opening delay time 0 or from 2.5 to 12 sec.
TRC closing delay time 0 or from 2.5 to 12 sec.
BALANCING manoeuvre times from 0 to 8 sec.
Force adjustment from 0 to 100 %
Operating temperature -20 ÷ 50 °C
Size 280 x 220 x 110 mm
Weight 1,9 Kg
Protection level IP 55 (container undamaged)

15

GB

Congratulations for having chosen a Nice product for your

automation system! Nice S.p.A. produces components for the
automation of gates, doors, rolling gates, roller shutters and
awnings: gearmotors, control units, radio controls, flashing
lights, photocells and miscellaneous accessories. Nice uses only
the finest materials and first-class workmanship. It focuses on
the development of innovative solutions designed to simplify the
use of its equipment, dedicating meticulous care to the study of
its technical, aesthetic and ergonomic characteristics: From the
wide range of Nice products, your installation technician will cer­tainly have selected the one best suited to your specific require­ments. However, Nice is not the producer of your automation
system, which is rather the result of a combination of operations
carried out by your installation technician, namely analysis, eval­uation, selection of materials and system implementation. Each
automation system is unique. Your installation technician is the
only person who possesses the experience and professionalism
needed to set up a system capable of satisfying your require­ments, a system that is safe, reliable, long lasting and built in
accordance with the regulations in force. An automation system
is not only very convenient; it also improves the level of security
in your home. Moreover, it will last for years with very little main­tenance. Even though the automation system you posses meets
the safety requirements of the legislation in force, this does not
exclude the existence of a “residual risk”, i.e. the possibility that
dangers may arise, usually as a result of improper or unreason­able use. We have prepared the following list of do's and don'ts
to help you avoid any mishaps:

•Before using your automation system for the first time,

ask the installer to explain the origin of residual risks; take a few
minutes and read the users instructions manual given you
by the installer. Retain the manual for future use and deliver
it to any subsequent owner of the automation system.

•Your automation system is a machine that will faith-

fully execute your commands; unreasonable or improper
use may generate dangers: do not operate the system if there
are people, animals or objects within its range of operation.

•Children: automation systems are designed to guarantee high

levels of safety and security. They are equipped with detection
devices that prevent movement if people or objects are in the
way, guaranteeing safe and reliable activation. However, chil­dren should not be allowed to play in the vicinity of automated
systems; to prevent any accidental activations, keep all remote
controls away from children: they are not toys!

•Photocells do not constitute actual safety devices,

but safety aids. They are designed using highly reliable tech­nology, but in extreme conditions may be subject to malfunc­tions or potential faults, and in certain cases these faults are not
immediately evident.

For this reason, it is good practice to observe the following:

- Transit is admitted only if the gate or door is completely open

with the leafs stationary

- Transit while the gate or door is closing is STRICTLY PRO-

HIBITED!

Periodically check correct operation of the photocells and per­form the scheduled maintenance at least every six months.

•Malfunctions: If you notice that your automation is not func-

tioning properly, disconnect the power supply to the system

and operate the manual release device. Do not attempt to
make any repairs; call the installation technician and in the
meantime, operate the system like a non-automatic door after
releasing the gearmotor as described below.

•Maintenance: Like any machine, your automation needs reg­ular periodic maintenance to ensure its long life and total safe­ty. Arrange a periodic maintenance schedule with your installa­tion technician. Nice recommends that maintenance checks be
carried out every six months for normal domestic use, but this
interval may very depending on the intensity of use. Only qual­ified personnel are authorised to carry out checks, maintenance
operations and repairs.

•Do not modify the system or its programming and adjustment
parameters in any way, even if you feel capable of doing it: your
installation technician is responsible for the system.

•The final test, the periodic maintenance operations and any
repairs must be documented by the person who has performed
them, these documents must remain under the custody of the
owner of the system.

The only recommended maintenance operations that the user can
perform periodically concern the cleaning of the photocell glasses
and the removal o leaves and debris that may impede the
automation. To prevent anyone from activating the gate release
the automation system. Use a slightly damp cloth to clean.

•Disposal: At the end of its useful life, the automation must be
dismantled by qualified personnel, and the materials must be
recycled or disposed of in compliance with the legislation local­ly in force.

•In the event of malfunctions or power failures. While
you are waiting for the technician to come or for the power to
be restored if your system is not equipped with buffer batteries,
you can operate the system like any non-automatic gate. In
order to do this you need to manually release the gearmotor
(this operation is the only one that the user of the automation is
authorized to perform): This operation has been carefully
designed by Nice to make it extremely easy, without any need
for tools or physical exertion.

•Replacing the Remote Control Battery: if your radio con­trol, after a period of time, seems not to work as well, or not to
work at all, it may simply be that the battery is exhausted
(depending on the type of use, it may last from several months
up to one year and more). In this case you will see that the light
confirming the transmission is weak, or does not come on, or
comes on only briefly. Before calling the installation technician
try exchanging the battery with one from another operating
transmitter: if the problem is caused by a low battery, just
replace it with another of the same type. The batteries contain
polluting substances: do not dispose of them together with oth­er waste but use the methods established by local regulations.

Are you satisfied? If you wish to install another automation
system in your home, call your old installation technician and use
Nice products. You will get the services of a specialist and the
most advanced products available on the market, superior per­formances and maximum system compatibility. Thank you for
reading these instructions. We feel confident that you will be well
satisfied with your new system: for any present or future require­ments, please contact your reliable installation technician.

Instructions and Warnings for users of A60 control unit

IST125.4858 Rev.02 del 25-07-2007

Nice Romania

Cluj Napoca
Tel/Fax [phone]
[e-mail]

Nice Deutschland

Gelnhausen-Hailer
Tel. [phone]
Fax [phone]
[e-mail]

Nice China

Shanghai
Tel. [phone]

+86.21.575.701.45
Fax [phone]
[e-mail]

Nice USA Inc.

Jacksonville, FI.
Tel. [phone]
Fax [phone]
[e-mail]

www.niceforyou.com

Headquarter

Nice SpA

Oderzo TV Italia
Tel. [phone]
Fax [phone]
[e-mail]

Nice in Italy

Nice Padova

Sarmeola di Rubano PD Italia
Tel. [phone]
Fax [phone]
[e-mail]

Nice Roma

Roma Italia
Tel. [phone]
Fax [phone]
[e-mail]

Nice worldwide

Nice France

Buchelay
Tel. [phone]
Fax [phone]
[e-mail]

Nice Rhône-Alpes

Decines Charpieu France
Tel. [phone]
Fax [phone]
[e-mail]

Nice France Sud

Aubagne France
Tel. [phone]
Fax [phone]
[e-mail]

Nice Belgium

Leuven (Heverlee)
Tel. [phone]
Fax [phone]
[e-mail]

Nice España Madrid

Tel. [phone]
Fax [phone]
[e-mail]

Nice España Barcelona

Tel. [phone]
Fax [phone]
[e-mail]

Nice Polska

Pruszków
Tel. [phone]
Fax [phone]
[e-mail]

Nice UK

Chesterfield
Tel. [phone]
Fax [phone]
[e-mail]

Nice Turkey

Istanbul
[e-mail]

MOF-MOFO

photocells

Introduction

The MOON series photocell is a safety
device that can be used with automatic gate
and door openers to detect the presence of
obstacles between the transmitter (TX) and
the receiver (RX).

The effective opening angle of the photocell may be
reduced to ±5° as required by the IEC 61496-2
standard. This angle is guaranteed for TX-RX
distances greater than 1m.

Nice reserves the right to make any modifications to the
products as it sees fit.

Introduzione

La fotocellula della serie MOON, è un
dispositivo di sicurezza utilizzabile in impianti
di cancelli e porte automatiche per rilevare la
presenza di ostacoli sull’asse ottico fra
trasmettitore (TX) e ricevitore (RX).

La fotocellula è predisposta per la riduzione a ±5°
dell’effettivo angolo di apertura come richiesto dalla
norma IEC 61496-2. La riduzione dell’angolo è
garantita per distanze TX-RX superiori a 1m.

Nice si riserva di apportare modifiche migliorative ai
prodotti.

Introduccion

La fotocélula de la serie MOON es un
dispositivo de seguridad que se puede
utilizar en instalaciones de cancelas y
puertas automáticas, para detectar la
presencia de obstáculos en el eje óptico
entre el transmisor (TX) y el receptor (RX).

La fotocélula está preajustada para la reducción a ±5°
del ángulo efectivo de apertura, según los requisitos de
la norma IEC 61496-2. La reducción del ángulo está
garantizada para distancias TX-RX por encima de 1m.

Nice se reserva el derecho de realizar en sus productos
las modificaciones que considerará oportunas.

Introduction

La photocellule de la série MOON est un
dispositif de sécurité utilisable dans des
installations avec portes et portails
automatisés pour détecter la présence
d’obstacles sur l’axe optique entre émetteur
(TX) et récepteur (RX).

La photocellule est prévue pour la réduction à ±5° de
l’angle d’ouverture effectif conformément à la norme
IEC 61496-2. La réduction de l’angle est garantie
pour des distances TX-RX supérieures à 1m.

Nice se réserve le droit d’apporter à tout instant les
modifications qu’elle judgera utiles.

Einleitung

Die Photozelle der Serie MOON ist eine
Sicherheitsvorrichtung, die in Anlagen mit
automatischen Toren und Türen verwendet
werden kann, um Hindernisse auf der
optischen Achse zwischen Sender (TX) und
Empfänger wahrzunehmen (RX).

Wie von der Norm IEC 61496-2 gefordert, ist die
Photozelle für die Reduzierung des effektiven
Öffnungswinkels auf ±5° vorbereitet. Die Reduzierung
des Winkels wird für Abstände zwischen TX und RX
gewährleistet, die größer als 1 m sind.

Druckfehler vorbehalten, technische Änderungen der
Produkte im Zuge der Weiterentwicklung vorbehalten.

Przedmowa

Fotokomórka z serii MOON jest urządzeniem
zabezpieczającym do zastosowania w
bramach i drzwiach automatycznych w celu
odczytania obecność przeszkód w zasięgu
promienia optycznego pomiędzy nadajnikiem
(TX) i odbiornikiem (RX).

Fotokomórka przystosowana jest do redukcji o +/-5˚
efektywnego kąta otwarcia, tak jak jest to wymagane w
normie IEC 61496-2. Redukcja kąta zagwarantowana
jest dla odległości TX-RX powyźej 1m.

Nice rezerwuje sobie prawo wprowadzenia jakiejkolwick
zmiany w produktach, którą uzna za konieczną.

GB F E

I D PL

moon

SYNC.

TX RX

LS

100-A

12V

12V

+10m

099-A
LS

1 2

NC
COM
NO

NC
COM
NO

TXRX

TXRX

A
B

BA

AB

ABAB

BA BA

12345 12

12345 12

3

4

4a

4b

NC
COM
NO

TXRX

12345 12

+

+- +-

-

3b

3a

1a

1b

24 Vac

24 Vcc

6

5

5a

5b

5c

5d

7

L

A

B

RX RX

Technical features

Type

Safety device for automatic doors and gates

Technology used

Direct TX-RX obstruction with an impulse-modulated
infrared beam

Max. range

15m (30m with jumper + “10m.” with cut jumper)
Range can be reduced by 50% in bad weather
conditions: fog, rain, dust, etc.
Range can be reduced by 30% when using the cone
for reducing the actual opening angle

Power input

without jumper 24 Vac/Vdc limits 18-35 Vdc, 15-28 Vac
with jumper 12 Vac/Vdc limits 10-18 Vdc , 9-15 Vac

Max. power consumption

25 mA RX, 30mA Tx = 55 mA per pair

Operating temperature

from -20 to +60 °C according to EN 600068-2-1 / EN
600068-2-2 standards

Level of protection

IP55 according to EN 60529 standard

Output relay contact

Max. 500mA and 48V direct or alternating current

Lifetime of contact

> 600,000 AC11 or DC11 operations according
to NFP 25-363 standard

Response time

< 30 ms according to IEC 61496-2 and NFP 25-363
standards

RX detection angle

8° ± 25% with reducing cone, according to IEC
61496-2 standard approx. 20° without reducing cone

Angle of TX beam

20° ± 25%

Detection capacity

Opaque objects with a size of ≥ 50 mm and maximum
speed of 1.6 m/s.

Warnings Please read the instructions

carefully before installing the product, improper

use or an error in connection could jeopardise the

safety or correct operation of the device.

•This photocell may only be used to detect direct
interruptions between TX and RX; it may not be
reflected.

•Fix the photocell on a hard, vibration-free surface.

•In order to obtain an “ESPE type 2” safety device, the
photocell must be connected to central units fitted
with “fototest”, or at least 2 devices must be used for
the area to protect.

•Use conductors that are large enough to cope with

the required current and make sure the overload cut-out
located up-line from the safety devices is suitable sized.

•Make sure that the power input corresponds to the
values shown in the TECHNICAL FEATURES.

Servicing The photocells do not require any special

servicing, but routine maintenance must be carried out
at least every six months in order to check the state of
the device (presence of humidity, oxidation, etc.), clean
the outer casing and the lenses and test as shown in
the above paragraph.
These photocells have been designed to work in
normal conditions for at least 10 years; from then on,

maintenance work should be carried out more
frequently.

Disposal This product is made from various kinds

of material, some of which can be recycled.
Make sure you recycle or dispose of the product in
compliance with current laws and bye-laws.

Caractéristiques techniques

Typologie

dispositif de sécurité pour portes et portails
automatisés

Technologie adoptée

Interpolation directe TX-RX avec rayon infrarouge
modulé à impulsions

Portée maximum

15 m (30 m avec shunt +”10m.” coupé)
La portée peut se réduire de 50% en présence de
phénomènes atmosphériques: brouillard, pluie,
poussières, etc.
La portée peut se réduire de 30% quand on insère le
cône pour la réduction de l’angle d’ouverture.

Alimentation

sans shunt 24 Vac/Vcc limites 18-35 Vcc, 15-28 Vac
avec shunt 12 Vac/Vcc limites 10-18 Vcc, 9-15 Vac

Absorption maximale

25 mA RX, 30 mA TX = 55 mA par paire

Température de fonct.

de –20 à +60 °C selon les normes EN 600068-2-1 /
EN 600068-2-2

Indice de protection

IP55 selon la norme EN 60529

Contact relais de sortie

Max. 500 mA et 48V courant continu ou alternatif

Durée contacts

> à 600.000 interventions AC11 ou DC11 selon
la norme NFP 25-363

Temps de réponse

< à 30 ms selon les normes IEC 61496-2 et NFP 25-363

Angle de détection RX

8° ± 25% avec cône de réduction, selon la norme
IEC 61496-2 20° environ sans cône de réduction

Angle rayon émis TX

20° ± 25%

Capacité de détection

Objets opaques avec dimensions ≥ 50 mm et vitesse
maximum de 1,6 m/s.

Recommandations

Il est opportun de lire

attentivement les instructions avant d’effectuer

l’installation, l’utilisation impropre ou une erreur de
connexion pourraient compromettre la sécurité ou le
fonctionnement correct du dispositif de sécurité.

•La photocellule doit fonctionner exclusivement par
interpolation directe TX-RX, son emploi par réflexion est
interdit.

•La photocellule doit être fixée de manière permanente
sur une surface rigide et exempte de vibrations.

•Pour obtenir un dispositif de sécurité “ESPE type 2” la
photocellule doit être connectée à des centrales avec test
de la photocellule ou bien, il faut utiliser 2 dispositifs de la
zone à protéger.

•Pour les connexions électriques, utiliser des
conducteurs en mesure de supporter les courants requis
et dimensionner correctement le dispositif de protection
contre les surcharges situé en amont des dispositifs de
sécurité.

•S’assurer que l’alimentation correspond aux valeurs
indiquées dans le tableau CARACTÉRISTIQUES
TECHNIQUES.

Maintenance

Les photocellules ne nécessitent pas
de précautions particulières mais il faut effectuer une
maintenance programmée au moins tous les 6 mois au
cours de laquelle on doit vérifier leur état (présence
d’humidité, oxydes, etc.), effectuer le nettoyage du boîtier

et des lentilles et refaire l’essai du dispositif comme le
décrit le paragraphe précédent.
Les photocellules ont été étudiées pour fonctionner dans
les conditions normales pendant au moins 10 ans, il est
donc bon d’intensifier la fréquence de la maintenance
une fois cette période écoulée.

Mise au rebut

Ce produit est constitué de matériaux
divers, certains d’entre eux peuvent être recyclés.
Informez-vous sur les systèmes de recyclage ou de mise
au rebut du produit et respectez les normes locales en
vigueur.

Caratteristiche tecniche

Tipologia

dispositivo di sicurezza per cancelli e porte
automatiche

Tecnologia adottata

Interpolazione diretta TX-RX con raggio infrarosso
modulato ad impulsi

Portata massima

15m (30m con ponticello + “10m.” tagliato)
La portata si può ridurre del 50% in presenza di
fenomeni atmosferici: nebbia, pioggia, polvere ecc.
La portata si può ridurre del 30% quando viene inserito
il cono di riduzione dell’angolo di apertura.

Alimentazione

senza ponticello 24 Vac/Vcc limiti 18-35 Vcc,15-28Vac
con ponticello 12 Vac/Vcc limiti 10-18 Vcc , 9-15 Vac

Assorbimento massimo

25 mA RX, 30mA TX = 55 mA per coppia

Temperatura di funzionamento

da –20 a +60 °C secondo norme EN 600068-2-1
EN 600068-2-2

Grado di protezione

IP55 secondo norma EN 60529

Contatto relè di uscita:

Max 500mA e 48V corrente continua o alternata

Durata contatti

> a 600.000 interventi AC11 o DC11 secondo norma
NFP 25-363

Tempo di risposta

< a 30ms secondo norme IEC 61496-2 ed NFP 25-363

Angolo di rilevazione RX

8° ± 25% con cono di riduzione, secondo norma
IEC 61496-2, 20° circa senza cono di riduzione

Angolo raggio emesso TX

20° ± 25%

Capacità di rilevamento

Oggetti opachi con dimensioni ≥ 50 mm con velocità
massima di 1,6 m/s.

Avvertenze È opportuno leggere

attentamente le istruzioni prima di eseguire

l’installazione: l’uso improprio o un errore di
collegamento potrebbe pregiudicare la sicurezza o il
corretto funzionamento del dispositivo.

•La fotocellula deve funzionare esclusivamente per
interpolazione diretta TX-RX; è vietato l’uso per
riflessione.

•La fotocellula va fissata in modo permanente su una
superficie rigida e senza vibrazioni.

•Per ottenere un dispositivo di sicurezza “ESPE tipo 2”
la fotocellula deve essere collegata a centrali dotate di
fototest, oppure si devono utilizzare almeno

2 dispositivi per zona da proteggere.

•Utilizzare per i collegamenti elettrici conduttori in
grado di sopportare le correnti richieste e
dimensionare adeguatamente il dispositivo di
protezione contro le sovracorrenti posto a monte dei
dispositivi di sicurezza.

•Accertarsi che l’alimentazione corrisponda ai valori
riportati nella tabella CARATTERISTICHE TECNICHE.

Manutenzione Le fotocellule non necessitano di

accorgimenti particolari, ma è necessaria una
manutenzione programmata almeno ogni 6 mesi nella
quale venga verificato lo stato delle stesse (presenza di
umidità, ossidi, ecc.), venga quindi eseguita la pulizia

dell’involucro esterno e delle lenti, e rieseguito
il collaudo come descritto al paragrafo precedente.
Le fotocellule sono state studiate per funzionare in
condizioni normali almeno 10 anni, è quindi opportuno
intensificare la frequenza di manutenzione trascorso
questo periodo.

Smaltimento Questo prodotto è costituito da

varie tipologie di materiali , alcuni possono essere
riciclati.
Informatevi sui sistemi di riciclaggio o smaltimento del
prodotto attenendosi alle norme di legge vigenti
a livello locale.

GB

F

I

Indicator L

Always off
Slow flashing
Rapid flashing
Always on

Meaning

Signal OK No obstacle
Signal weak No obstacle
Signal incorrect No obstacle
No signal Obstacle present

Output status

Active
Active
Active
Alarm

Action

All OK
Improve alignment
Check alignment cleanliness and environment
Remove obstacle

Installation The TX transmitter of the

photocell emits a beam at an angle of about 20°.

If two devices are near to one another, the beam may
interfere with the other receiver (figure 1a) and not
provide a sufficient level of safety.
In order to solve this problem and if alternating current
is available, the synchronisation system that allows the
two pairs of photocells to work alternately may be used.
This system requires the synchronism jumper “SINC”
to be cut on the two TX’s (fig. 2) and the 1

st

pair of
photocells (TX and RX) to be powered with their
phases inverted compared with the 2

nd

pair. (fig. 3).
Before proceeding with installation, check the
following points:

-If the photocells are powered with 12V, place a tin
jumper between the two “12V” points both on TX and
RX (see fig. 2).

-If the distance between TX and RX is greater than 10
metres, cut the jumper between the “+10m” points of
RX (see fig. 2).

-If the effective opening angle is required to be

reduced to ±5°, fit the reducer cone as shown in fig.
5a, 5b, 5c, 5d.

-Given that the direction of the “MOF” fixed photocell
cannot be adjusted, when using this version make
sure that the surfaces to which TX and RX are fixed
allow them to be perfectly aligned.
Fix the photocells as shown in figure 4a or 4b.
Make the relative electrical connections as shown in
the control panel manuals and in fig. 3.

Adjusting direction The direction of the

“MOFO” mobile photocell can be adjusted to achieve
a perfect alignment even when the fixing position is not
perfect. Adjustment must be particularly precise when
the cone for reducing the effective opening angle to
±5° is used.
Proceed as shown in figure 6 to adjust the direction.
Loosen screw “A”, gently move the mobile element B
and then tighten screw “A”.
If the reducing cone is not used on the transmitter and
receiver, adjustment can be made less precisely.
If the reducing cone is used on the receiver,

adjustment must be extremely precise, follow the
indicator “L”: the slower it flashes, the better the
alignment is. Alignment is perfect when “L” stays off
but is acceptable when “L” flashes slowly; it is
incorrect when “L” flashes quickly. Afterwards, check
the result using the following table .

Testing The whole installation on which the safety

device is installed must be tested by trained and
qualified personnel who must carry out the relative
tests according to the elements of risk present. The
device must be tested using the following procedure:

-Disconnect the photocell from the power supply and
check the ALARM state

-Power the receiver and check the ALARM state

-Then power the transmitter as well and check the
ALARM state

-Use a 5 cm diameter and 20 cm long cylinder to
interrupt the beam, first near the TX’s, then near the
RX’s and lastly in the centre and check that the safety
device cuts in and modifies the state of the outputs
from ACTIVE to ALARM and vice-versa. (figure 7)

Installation L’émetteur TX de la photocellule

émet un rayon ayant un angle d’environ 20°.
Dans le cas de deux dispositifs proches l’un de

l’autre, le rayon pourrait interférer sur l’autre ré­cepteur (figure 1a) en compromettant ainsi la sécurité.
Pour remédier à ce problème, si l’alimentation au
courant alternatif est disponible, il est possible
d’utiliser le système de synchronisme qui permet de
faire fonctionner alternativement les deux paires de
photocellules.
Ce système prévoit que le shunt de synchronisme
“SINC” soit coupé sur les deux TX (voir figure 2) et que
la 1

re

paire de photocellules (TX et RX) soit alimentée
avec les phases inversées par rapport à la 2epaire. (fig. 3).
Avant de procéder dans l’installation, il est bon de
vérifier les points suivants:

- Si les photocellules sont alimentées à 12V il faut
effectuer un shunt à l’étain entre les deux points “12V”
aussi bien sur TX que sur RX (fig. 2).

- Si la distance entre TX et RX est supérieure à 10 m,
éliminer le shunt entre les points “+10m.” du RX (fig. 2).

- S’il faut réduire l’angle d’ouverture effectif à ±5°, insérer
le cône de réduction comme sur la fig. 5a, 5b, 5c, 5d.

- Quand on utilise la photocellule MOF, le réglage de
l’orientation n’étant pas disponible, il faut contrôler que
la surface de fixation permet d’effectuer correctement
le centrage TX-RX
Fixer les photocellules comme l’indique la figure 4a -4b.
Effectuer les connexions électriques suivant la fonction
désirée, conformément aux indications figurant dans le
manuel des coffrets de commande et celles de la fig. 3

Réglage de l’orientation La photocellule

MOFO dispose du réglage de l’orientation qui permet
d’obtenir un alignement parfait même quand la fixation
n’est pas optimale. L’orientation doit être
particulièrement précise quand on insère le cône pour
la réduction de l’angle d’ouverture effectif à ±5°.
Pour régler l’orientation, procéder comme l’indique la
figure 6. Desserrer légèrement la vis “A” faire osciller
lentement la partie mobile B, puis serrer la vis “A”. Sur
l’émetteur et sur le récepteur sans cône de réduction,
le réglage peut être effectué de manière
approximative. Sur le récepteur avec cône de
réduction, le réglage doit être très précis, suivre le
signal donné par l’indicateur “L”: plus le clignotement
est lent et plus le centrage est précis.

Le centrage idéal s’obtient quand “L” reste éteint, il est
toutefois acceptable quand “L” clignote lentement; il
est par contre à risque quand “L” clignote rapidement.
À la fin de l’opération, vérifier le résultat à l’aide du
tableau ci-après .

Essai L’essai de l’installation dans laquelle est

monté le dispositif de sécurité doit être effectué par du
personnel expérimenté et qualifié qui devra se charger
des essais requis en fonction du risque présent.
L’essai du dispositif proprement dit devra être effectué
à l’aide de la procédure suivante:

- Couper l’alimentation des photocellules et vérifier
l’état d’ALARME

- Alimenter seulement le récepteur et vérifier l’état
d’ALARME

- Alimenter aussi l’émetteur et vérifier l’état d’ACTIF

- Passer avec un cylindre de 5 cm de diamètre et de
20 cm de longueur sur l’axe optique d’abord près des
TX puis près des RX et enfin au centre du passage et
vérifier que dans tous les cas, le dispositif intervient en
modifiant l’état des sorties d’ACTIF à ALARME et vice
versa. (figure 7)

GB

F

Installazione Il trasmettitore TX della

fotocellula emette un raggio con un angolo di
circa 20°. Nel caso di due dispositivi vicini, il

raggio potrebbe interferire sull’altro ricevitore
(fig.1a) non garantendo un’adeguata sicurezza.
Per ovviare a questo problema, se disponibile
l’alimentazione in corrente alternata, è possibile
utilizzare il sistema di sincronismo che permette di far
funzionare alternativamente le due copie di fotocellule.
Questo sistema prevede che venga tagliato il
ponticello di sincronismo “SINC” sui due TX ( vedi
figura 2) e che la 1

a

coppia di fotocellule (TX e RX) sia

alimenta con le fasi invertite rispetto alla 2

a

coppia.
(vedi fig 3).
Prima di procedere con l’installazione è opportuno
verificare i seguenti punti:

-Se si alimentano le fotocellule con una tensione di
12V è necessario effettuare un ponticello di stagno tra
i due punti “12V” sia su TX che su RX (vedi fig.2).

-Nel caso la distanza tra TX ed RX sia superiore a 10
metri tagliare il ponticello tra i punti “+10m.”del RX
(vedi fig.2).

-Se richiesta la riduzione dell’effettivo angolo di aper-

tura a ±5° inserire sul ricevitore il cono di riduzione
come in fig. 5a, 5b, 5c, 5d

-Quando si utilizza la fotocellula fissa MOF non
essendo disponibile la regolazione dell’orientamento
occorre accertarsi che la superfici di fissaggio
permettano una corretta centratura TX-RX
Effettuare il fissaggio delle fotocellule come indicato in
fig. 4a o 4b.
Eseguire i collegamenti elettrici in base alla funzione
richiesta, secondo quanto riportato nei manuali dei
quadri di comando e seguendo le indicazioni in fig.3.

Regolazione dell’orientamento

Nella fotocellula orientabile MOFO è disponibile la
regolazione dell’orientamento che consente di ottenere
un perfetto allineamento anche quando il fissaggio non è
ottimale. L’orientamento deve essere particolarmente
preciso quando viene inserito il cono per la riduzione
dell’effettivo angolo di apertura a ±5°.
Per regolare l’orientamento procedere come indicato in
figura 6. Allentare leggermente la vite “A” far oscillare
lentamente la parte mobile B, infine richiudere la vite “A”.
Nel trasmettitore, e nel ricevitore senza cono di riduzione,
la regolazione può essere fatta in modo approssimativo.
Nel ricevitore con cono di riduzione la regolazione deve

essere molto precisa, seguire la segnalazione
dell’indicatore “L”: minore è la velocità del lampeggio e
migliore è la centratura. La centratura ottimale si ha
quando “L” rimane spento, comunque accettabile
quando “L” lampeggia lentamente, a rischio invece
quando “L” lampeggia velocemente. Al termine verificare
il risultato tramite la seguente tabella .

Collaudo Il collaudo dell’intero impianto in cui è

inserito il dispositivo di sicurezza dovrà essere
eseguito da personale esperto e qualificato che dovrà
farsi carico delle prove richieste in funzione del rischio
presente.
Il collaudo del singolo dispositivo dovrà essere
eseguito con questa semplice procedura:

-Togliere l’alimentazione alle fotocellule e verificare lo
stato di ALLARME

-Alimentare il solo ricevitore, verificare lo stato di ALLARME

-Alimentare anche il trasmettitore e verificare lo stato di
ATTIVO

- Passare con un cilindro di diametro 5 cm e lunghezza
20 cm sull’asse ottico prima vicino ai TX, poi vicino agli
RX e infine al centro del varco e verificare che in tutti i
casi il dispositivo intervenga modificando lo stato delle
uscite da ATTIVO ad ALLARME e viceversa. (vedi fig.7)

I

Y

Indicatore L

Sempre spento
Lampeggio lento
Lampeggio veloce
Sempre acceso

Significato

Segnale OK = Nessun ostacolo
Segnale scarso = Nessun ostacolo
Segnale pessimo = Nessun ostacolo
Segnale zero = Presente ostacolo

Stato uscita

Attivo
Attivo
Attivo
Allarme

Azione

Tutto Ok
Migliorare centratura
Verificare centratura, stato pulizia e ambiente
Rimuovere ostacolo

Y

Indicateur L

Toujours éteint
Clignotement lent
Clignotement rapide
Toujours allumé

Signification

Signal OK Aucun obstacle
Signal insuffisant Aucun obstacle
Mauvais signal Aucun obstacle
Signal zéro Présence d’obstacle

État sortie

Actif
Actif
Actif
Alarme

Action

OK
Améliorer le centrage
Vérifier le centrage la propreté et l’environnement
Éliminer l’obstacle

Y

Y

Y

Y

(secondo Direttiva 98/37/EC, Allegato II, parte C) (according to 98/37/EC Directive, Enclosure II, part C)

Numero / Number: 113/MOF Data / Date: 07/2000 Revisione / Revision: Ø

Il sottoscritto Lauro Buoro, Amministratore Delegato, dichiara che il prodotto

The undersigned Lauro Buoro, General Manager of the following producer, declares that the product

Nome produttore / Producer name: NICE S.p.A.
Indirizzo / Address: Via Pezza Alta 13, 31046 Z.I. Rustignè – ODERZO - ITALY
Tipo / Type: Fotocellula serie “MOON” / Photocells series “MOON”
Modello / Model: MOF, MOFO
Accessori / Accessories: Nessun accessorio / No accessory
Risulta conforme a quanto previsto dalle seguenti direttive comunitarie / Appears to be in conformity with the following community (EEC) regulations

Riferimento n° Titolo

Reference n° Title
98/37/EC (EX 89/392/CEE) DIRETTIVA MACCHINE / Machinary Directive
89/336/CEE DIRETTIVA COMPATIBILITA’ ELETTROMAGNETICA (EMC) / EMC Electromagnetic Compatibility Directive
73/23/CEE - 93/68/CEE DIRETTIVA BASSA TENSIONE e successiva modifica / Low Voltage Directive

e che sono state applicate le specifiche tecniche di prodotto sotto-indicate.

and that the product technical specifications referenced overleaf have been applied.

Inoltre dichiara che non è consentita la messa in servizio del prodotto suindicato finché la macchina, in cui il prodotto stesso è
incorporato, non sia identificata e dichiarata conforme alla direttiva 89/392/CEE

He declares, moreover, that it is not allowed to use the above mentioned product until the machine, in which this product is incorporated, has been identified
and declared in conformity with the regulation 89/392/CEE.

Riferimento relativo alle norme e specifiche tecniche, o parti di esse, utilizzate per la presente dichiarazione di conformità:

Reference about to the regulations of the technical specifications, or parts of them, applied for this declaration of conformity:

Norme armonizzate / Harmonized standards

Riferimento n° Edizione Titolo Livello di valutazione Classe

Reference n° Issue Title Estimate level Class
EN61000-4-3 11/1997 SUSCETTIBILITA’ RADIATA / Radiated susceptibility 10V/m A
ENV50204 SUSC. RADIATA MODULAZIONI A IMPULSI 10V/m A
EN61000-4-6 11/1997 SUSCETTIBILITA’ CONDOTTA / Radiated and Conducted Susceptibility 10V A
EN61000-4-4 09/1996 IMMUNITA’ AI BURST / Fast Transient 2000V B
EN61000-4-2 09/1996 IMM. ALLE SCARICHE ELETTR. (EDS) / Electrostatic Discharge 6KV, 8KV B
EN61000-4-11 09/1996 IMM. AI BUCHI DI TENSIONE / Power Fail B - C
EN61000-4-8 06/1997 IMMUNITA’ AL CAMPO MAGNETICO A FREQUENZA DI RETE B

Power – frequency Magnetic fields
EN61000-4-5 06/1997 IMMUNITA’ AI SURGE / Surge Immunity 2 KV B
EN61496-1 10/1998 SICUREZZA DEL MACCHINARIO-APPARECCHI ELETTROSENSIBILI

DI PROTEZIONE – PARTE 1: PRESCRIZIONI GENERALI E PROVE

Safety of machinary - Electro-sensitive protective

equipment - Part 1: General requirementes and tests
IEC61496-2 11-1997 SAFETY OF MACHINARY - ELECTRO-SENSITIVE

EQUIPMENT - PART 2: PARTICOLAR REQUIREMENTS

FOR EQUIPMENT USING ACTIVE OPTO - ELECTRONIC

PROTECTIVE DEVICES (AOPDs)

Altre norme e/o specifiche tecniche di prodotto / Other standards and/or product technical specifications

Riferimento n° Edizione Titolo Livello di valutazione

Reference n° Issue Title Estimate level
UNI 8612 06/1989 CANCELLI E PORTONI AUTOMATICI.

CRITERI COSTRUTTIVI E DISPOSITIVI DI PROTEZIONE

Motorized gates and main doors - Protection devices against accidents
EN 954-1 12/1998 PARTI DEI SISTEMI DI COMANDO LEGATE ALLA SICUREZZA 1

Safety - related parts of control systems
NFP25-363 08/1994 PORTES ET PORTAILS COMPLETS

COMPOSANTS DE SECURITE’ - METHODES D’ESSAIS

Shutters for open bays and gates - Outfitted doors

and gates - Safety components - Test methods
prEN12978 10/1998 DISPOSITIVI DI SICUREZZA REQUISITI E METODI DI PROVA

Safety devices - Requirement and test methods

P. S . : Il prodotto montato con le nostre centrali dotate della funzione “fototest”, permette di ottenere un livello di sicurezza di categoria 2.
The product allows to have an safety level 2, if is installed to control unit with fototest

Il prodotto suindicato si intende parte integrante di una delle configurazioni di installazione tipiche, come riportato nei nostri cataloghi generali

The above mentioned product is meant integral part of one of the installation configuration as shown on our general catalogues

Oderzo, lì 17 Luglio 2000 (Amministratore Delegato / General Manager)

Lauro Buoro

Dichiarazione CE di conformità / EC declaration of conformity

ISTFM 4854 REV. 01

Nice SpA, Oderzo TV Italia
Via Pezza Alta, 13 Z. I. Rustignè
Tel. [phone]
Fax [phone]

E-mail [e-mail]
Web site http://www.niceforyou.com

Nice France, Buchelay
Tel. [phone]
Fax [phone]

Nice Polska, Pruszków
Tel. [phone]
Fax [phone]

Headquarters

Nice SpA

Oderzo TV Italia
Ph. +39.0422.85.38.38
Fax [phone]
[e-mail]

Nice in Italy

Nice Padova

Sarmeola di Rubano PD Italia
Ph. +39.049.89.78.93.2
Fax [phone]
[e-mail]

Nice Roma

Roma RM Italia
Ph. +39.06.72.67.17.61
Fax [phone]
[e-mail]

Nice Worldwide

Nice France

Buchelay France
Ph. +33.(0)1.30.33.95.95
Fax [phone]
[e-mail]

Nice France Sud

Aubagne France
Ph. +33.(0)4.42.62.42.52
Fax. [phone]
[e-mail]

Nice France Rhône Alpes

Decines Charpieu France
Ph. +33.(0)4.78.26.56.53
Fax [phone]
[e-mail]

Nice Belgium

Leuven (Heverlee) Belgium
Ph. +32.(0)16.38.69.00
Fax [phone]
[e-mail]

Nice Deutschland

Gelnhausen Deutschland
Ph. +49.(0)6051.91.520
Fax [phone]
[e-mail]

Nice España Madrid

Mostoles Madrid España
Ph. +34.(0)9.16.16.33.00
Fax [phone]
[e-mail]

Nice España Barcelona

Sant Quirze del Valles
Barcelona España
Ph. +34.(0)9.37.84.77.75
Fax [phone]
[e-mail]

Nice Polska

Pruszków Polska
Ph. +48.(022).759.40.00
Fax [phone]
[e-mail]

Nice Portugal

Mem Martins Portugal
Ph. +351.21.922.82.10
Fax [phone]
[e-mail]

Nice Romania

Cluj Napoca Romania
Ph./Fax [phone]
[e-mail]

Nice Turkey

Kadikoy Istanbul Turkey
Ph. +90.216.456.34.97
Fax [phone]
[e-mail]

Nice UK

Sutton in Ashfield
United Kingdom
Ph. +44.16.23.55.00.86
Fax [phone]
[e-mail]

Nice Australia

Wetherill Park Australia
Ph. +61.(0)2.96.04.25.70
Fax [phone]
[e-mail]

Nice China

Shanghai P. R. China
Ph. +86.21.575.701.46/45
Fax [phone]
[e-mail]

Nice USA

Jacksonville Florida USA
Ph. +1.904.786.7133
Fax [phone]
[e-mail]

Instructions for the fitter

Istruzioni per l’installatore

Instructions pour l’installateur

Instrucciones para el instalador

Anweisungen für den installateur

Instrukcje dla instalatora

Aanwijzingen bestemd voor de

installateur

PRODUCT DESCRIPTION AND INTEND­ED USE

This transmitter belongs to the “NiceOne”
range of products manufactured by Nice. The
transmitters in this range are designed for the
control of automatic door openers, gate open­ers and similar devices: any other use is

improper and prohibited!

Models with 1, 2, 4 and 9 keys are available
(fig. A), as well as the following optional ac -
cessories: keyring cord (fig. D); pocket clasp
(fig. E); wall-mounting support (fig. F).

The “NiceOpera” system

The NiceOnerange of transmitters belongs to
the “NiceOpera” system. This system has
been designed by Nice for the purpose of
optimizing and facilitating the programming,
operation and maintenance of the devices
normally utilized in automation systems. The
system comprises several devices capable of
exchanging data and information via radio,
using a new coding system called “O-Code”,
or through physical connection.
The main devices featured in the NiceOpera
system are:

– NiceOne transmitters;
– NiceOne receivers;
– O-Box programming units;
– O-View portable programmer;
– gearmotors with “Bus T4”.

IMPORTANT– in order to go into all the
functions of the NiceOpera system and the
operating interdependence which links all
the devices of the system, look up the gen­eral manual “NiceOpera System Book”,
available also in the internet site
www.niceforyou.com

THE PRODUCT’S FUNCTIONS

• The transmitter adopts a transmission tech­nology called “O-Code”, featuring a variable
code (rolling-code) which significantly im pro ­ves the commands’ transmission speed.

• The transmitter incorporates a “Memory”, a
“Proximity Receiver” and an “Enable Code”
which, together, allow you to carry out, by ra ­dio control, operations and programming typi­cal of the NiceOpera system.

TESTING THE TRANSMITTER

Before memorizing the transmitter in the
automation system’s Receiver, check its prop­er operation by pressing any key and observ­ing whether the Led lights up (fig. A). If it does
not, refer to the section entitled “Replacing the
Battery” in this manual.

MEMORIZING THE TRANSMITTER

In order to use all the new functions of the
transmitter, it must be associated with the
Receivers with the “O-Code” coding system
(to identify these models, refer to the Nice
products catalogue).

Note – the transmitter is also compatible with
all the Receivers that use the “FloR” coding
system (to identify these models, refer to the
Nice products catalogue); in this case, how-

ever, the typical functions of the NiceOpera
System cannot be used.

To memorize the transmitter in a NiceOne
Receiver, you can choose one of the following
operating procedures:

a– Memorization in “Mode I”
b– Memorization in “Mode II”
c– Memorization in “Extended Mode II”
d– Memorization through the “Certificate

Number”

e– Memorization through the “Enable Co -

de” received from a previously me mo -

rized transmitter.

The operating procedures for these memo­rization methods are provided in the instruc­tion manual of the Receiver or Control Unit
with which the transmitter is to be used.

These manuals are also available on the inter­net site: www.niceforyou.com.In these man­uals, the transmitter keys are identified by
numbers. To match these numberswith the
correct NiceOne transmitter keys, see fig. A.

a– Memorization “Mode I”
This procedure allows you to memorize all the
transmitter keys, at once, in the receiver. The

keys are automatically

associated to each
control managed by the Control Unit accord­ing to a factory-set sequence.

For the model “ON9” - “ON9FM” transmit­ter only

If the memorization of this transmitter is per­formed according to the “Mode I” operating

ENGLISH

procedure, during the operation the transmit­ter keypad should be regarded as separated
into three independent sections (s1, s2, s3 in
fig. A), each section having its own identity
code. Therefore, each section will require a
distinct memorization procedure (as if there
were three separate transmitters).

b– Memorization “Mode II”

This procedure enables the memorization of a
single transmitter key in the receiver. In this

case, the user will select from among the
commands managed by the Control Unit (4
max) the one he wishes to associate to the
key that is being memorized. Note – the pro-

cedure must be repeated for each single key
that must be memorized.

c– “Extended Mode II” memorization

This procedure is designed specifically for the
devices belonging to the NiceOpera system,
with “O-Code” coding system. It is identical to
the “Mode II” procedure above, except that it
also offers the possibility of selecting the de ­sired command (to be associated to the key
that is being memorized) from a wide range of
commands (up to 15 different commands)
managed by the Control Unit.
Therefore, the feasibility of this procedure de ­pends on the capacity of the Control Unit to
manage the 15 commands, such as the Con­trol Units that are compatible with the Nice­Opera system.

d – Memorization using the “CERTIFI­CATE number”

[with O-Box programming unit]

This procedure is designed specifically for the
devices belonging to the NiceOpera system,
with “O-Code” coding system. Each Receiver
in this system is associated to a designated
number, called “CERTIFICATE”, that identifies
and certifies it. The use of this “certificate” has
the advantage of simplifying the transmitter
memorization procedure in the Receiver, since
the installer is no longer obliged to operate
within the reception range of the Receiver.
Indeed, the procedure allows you, with the
help of the “O-Box” programming unit, to pro­gram the transmitter for memorization even
from a remote location, away from the installa­tion site (at the installer’s own premises, for
instance – fig. H).

e – Memorization using the “ENABLE
Code” [between two transmitters]

This procedure is designed specifically for the
devices belonging to the NiceOpera system,
with “O-Code” coding system. The NiceOne
transmitters have a secret code

called “ENA -

BLE CODE”. This “Enable”, once it has been
transferred from an old

transmitter (previously

memorized) to a new

NiceOne transmitter (fig.

G) enables the latter to be recognized and
automatically memorized by a Re ceiver.
The procedure used to transfer the “Enable
Code” of an OLD transmitter to a NEW trans­mitter is as follows:

01. Hold two transmitters together so they
are touching, a “NEW” one to be memo-
rized and an “OLD”, previously memori ­zed, one.

02. Press any(note 1) key on the NEW trans-
mitter and hold it down until the Led of
the OLD transmitter lights up. Then re ­lease the key (the Led of the OLD trans-

mitter will start blinking).

03. Next, press any(note 1) key on the OLD
transmitter and hold it down until the Led
of the NEW transmitter lights up. Then
release the key (the Led will go off, indi-

cating the end of the procedure and the
successful transfer of the “Enable Code”
in the NEW transmitter).

note 1 – If model “ON9” - “ON9FM” is used,
consider the keyboard divided into 3 sections
(i.e. 3 transmitters - fig. A). Then press any
key in the sector to be memorised.

The first 20 times that the transmitter is used,
it will transmit this “Enable Code” to the Re ­ceiver along with the command. Once it has
recognized the “Enable” signal, the Re ceiver
will automatically memorize the identity code
of the transmitter that has transmitted it.

ERROR SIGNALS VIA LEDS

4 flashes = transfer of “Enable code” dis­abled.
6 flashes= transfer of “Enable code” disabled
between different transmitters.
10 flashes = communication error between
devices.
15 flashes = memorisation failed due to time
limit exceeded.

REPLACING THE BATTERY

When the battery runs down the range of the
transmitter is significantly reduced. When
pressing any key you will find that the Led
takes a while to light up (= battery almost
exhausted) and that the brightness of the Led
is dimmed (= battery completely exhausted).
In these cases, in order to restore the normal
operation of the transmitter, you need to re ­place the exhausted battery with a new one of
the same type, observing the polarity shown
in fig. C.

Battery disposal

Warning! – Exhausted batteries contain pol­luting substances; therefore they may not be
disposed of together with unsorted household
waste. They must be disposed of separately
according to the regulations locally in force.

PRODUCT DISPOSAL

This product constitutes an integral part of
the automation system it controls, there­fore it must be disposed of along with it.

As for the installation, the disposal operations
at the end of the product’s effective life must
be performed by qualified personnel. This
product is made up of different types of mate­rial, some of which can be recycled while oth­ers must be scrapped. Seek information on
the recycling and disposal methods envisaged
by the local regulations in your area for this
product category.
Warning! – Some parts of the product may
contain polluting or hazardous substances
that, if incorrectly disposed of, could have a
damaging effect on the environ­ment or on the health of individu­als. As the symbol on the left
indicates, this product may not
be disposed of with the usual
household waste.
It must be disposed of separately in compli­ance with the regulations locally in force, or
returned to the seller when purchasing a new,
equivalent product. Warning! – Heavy fines
may be imposed by local laws for the illegal dis­posal of this product.

TECHNICAL CHARACTERISTICS
OF THE PRODUCT

Power supply: 3Vdc, CR2032 type lithium
battery  Estimated battery life: 2 years,
with 10 transmissions a day  Frequency:

433.92 MHz (± 100 kHz) / 868.46 MHz (± 35
kHz)  Estimated radiated power: ap prox.
1 mW E.R.P. Radio coding: rol ling code,
72 bit, O-Code (Flo-R compatible) Operat-

ing temperature: - 20°C; + 55°C  Esti­mated ran ge: 200 m (outside); 35 m (inside

buildings) (*)  Protection class: IP 40 (for
household use or in protected environments)

 Dimensions: L. 44 x D. 55 x H. 10 mm
 Weight: 11g

Notes: • The frequencies 433.92 MHz and 868.46
MHz are not compatible • (*) The range of the

transmitters and the reception capacity of the
Receivers are greatly affected by the presence of
other devices (such as alarms, radio headsets, etc..)
operating in your area at the same frequency. In
these cases, Nice cannot offer any warranty regard­ing the actual range of its devices. • All the technical
characteristics specified above refer to an ambient
temperature of 20°C (± 5°C). • Nice S.p.a. reserves
the right to make modifications to the product at any
time without prior notice, while maintaining the same
functionality and intended use.

CE DECLARATION OF CONFORMITY

Note –This Declaration of Conformity contains the
individual declarations of conformity for the speci­fied products; it was updated on the issue date of
this manual and the text herein has been drawn up
for editorial purposes.A copy of the original decla­ration for each product can be requested from Nice
S.p.a.(TV) I.

Nice S.p.a. - via Pezza Alta, 13, Z.I. Rustignè,
31046 Oderzo (TV) Italy, declares that all the
products in the Nice One range (ON1;
ON1FM; ON2; ON2FM; ON4; ON4FM; ON9;
ON9FM) meet the essential requirements of
the R&TTE Directive 1999/5/EC, for the in ­tended use of the devices. The products are in
Class 1.

Lauro Buoro

(Managing Director)

s1 s2 s3

Led Led

Led Led

(1)

(1)

(1)

(1)

(2)

(3)

(2)

(4)

(1) (1)

(2) (2) (2)

(3) (3) (3)

DESCRIPTION DU PRODUIT ET APPLI­CATION

Cet émetteur fait partie de la série « Nice ­One » de Nice. Les émetteurs de cette série

sont destinés à la commande d’automatismes
pour l’ouverture de portes, portails et autres
dispositifs du même type : toute autre utili-

sation est impropre et donc interdite !

La gamme comprend des modèles à 1, 2, 4 et
9 touches (fig. A) ainsi que les accessoires
suivants en option : cordon pour porte-clés
(fig. D) ; clip d’accrochage (fig. E) ; support
pour fixation au mur (fig. F).

Le système « NiceOpera »

Les émetteurs de la série NiceOne font partie
du système « NiceOpera». Ce système a été
conçu par Nice afin d’optimiser et de faciliter
les phases de programmation, d’utilisation et
de maintenance des dispositifs généralement
utilisés sur les installations d’automatisation.
Le système est constitué de différents dispo­sitifs capables d’échanger des données et
des informations par radio en utilisant un nou­veau système de codage appelé « O-Code »
ou à travers la connexion physique.
Les principaux dispositifs qui composent le
système NiceOpera sont les suivants :

– émetteurs NiceOne ;
– récepteurs NiceOne ;
– unité de programmation O-Box ;
– programmateur portable O-View ;
– opérateurs avec « Bus T4 ».

IMPORTANT– Afin d’approfondir en détail
tous les fonctions du système NiceOpera et
l'interdépendance opérative qui lie des diffé­rents dispositifs du système, veuillez consul­ter les instructions générales « NiceOpera
System Book », disponibles aussi dans le
site Internet www.niceforyou.com

LES FONCTIONS DU PRODUIT

• L’émetteur utilise une technologie de trans­mission appelée « O-Code », à code variable
(rolling code), qui améliore sensiblement la
vitesse de transmission de la commande.

• L’émetteur contient une « mémoire », un
« ré cepteur de proximité » et un « code d’acti­vation » qui, ensemble, permettent d’effectuer
par radio les opérations et les programma­tions typiques du système NiceOpera.

VÉRIFICATION DE L’ÉMETTEUR

Avant de mémoriser l’émetteur dans le récep­teur de l’automatisme, vérifier qu’il fonctionne
correctement en pressant l’une des touches
et en observant si la LED s’allume au même
moment (fig. A). Si elle ne s’allume pas, lire le
paragraphe « Remplacement de la pile » dans
ce guide.

MÉMORISATION DE L’ÉMETTEUR

Pour pouvoir se servir de toutes les fonctions
de l’émetteur, il faut l’associer aux récepteurs
avec codage « O-Code » (pour identifier ces
modèles, consulter le catalogue des produits
de Nice).

Note – L’émetteur est également compatible
avec tous les récepteurs qui utilisent le co ­dage « FloR » (pour identifier ces modèles,
consulter le catalogue des produits de Nice) ;

toutefois, dans ce cas, il ne sera pas possi­ble d’utiliser les fonctions typiques du sys­tème NiceOpera.

Pour mémoriser l’émetteur dans un récepteur
NiceOne, il est possible de choisir parmi les
procédures opérationnelles suivantes :

a – Mémorisation en « Mode I »
b – Mémorisation en « Modo II »
c – Mémorisation en « Modo II étendu »
d – Mémorisation au moyen du « Numéro

de certificat »

e – Mémorisation au moyen d’une « Code

d’activation » reçu d’un émetteur déjà

mémorisé

Les procédures opérationnelles de ces moda­lités de mémorisation sont fournies dans le
guide d’utilisation du récepteur ou de la lo ­gique de commande avec lequel on veut faire
fonctionner l’émetteur.

Les guides mentionnés sont également dis­ponibles sur le site Internet :
www.niceforyou.com.Dans ces guides, les
touches des émetteurs sont identifiées par
des chiffres. Pour connaître la correspon­dance entre ces chiffres et les touches des
émetteurs NiceOne, se reporter à la fig. A.

a – Mémorisation en « Mode I »

Cette procédure permet de mémoriser dans
le récepteur, en une seule fois, toutes les
touches de l’émetteur. Les touches sont
automatiquement

associées à chaque com-

mande gérée par la logique de commande,

selon un ordre préétabli en usine.

Uniquement pour l’émetteur mod. « ON9 »

- « ON9FM »

Si la mémorisation de cet émetteur est effec­tuée avec la procédure opérationnelle « Mode
I », il faut considérer que le clavier de l’émetteur,
durant l’exécution de la procédure, est divisé en
3 secteurs autonomes (s1, s2, s3 sur la fig. A),
chacun avec un code d’identification qui lui est
propre.Chaque secteur nécessitera donc une
procédure de mémorisation spécifique (comme
s’il s’agissait de 3 émetteurs distincts).

b – Mémorisation en « Modo II »

Cette procédure permet de mémoriser dans le
récepteur une seule touche de l’émetteur.
Dans ce cas, c’est l’utilisateur qui choisit
parmi les commandes gérées par la logique
de commande (4 au maximum), quelle com­mande il souhaite associer à la touche qu’il
est en train de mémoriser.Note – La procé-

dure doit être répétée pour chacune des
touches que l’on veut mémoriser.

c – Mémorisation en « Modo II étendu »

Cette procédure est spécifique aux dispositifs
qui font partie du système NiceOpera à
codage « O-Code». Elle est identique à la pro­cédure précédent « Mode II » mais offre en
plus la possibilité de choisir la commande vou­lue (à associer à la touche que l’on est en train
de mémoriser) dans une liste plus longue de
commandes – jusqu’à 15 commandes diffé­rentes – gérées par la logique de commande.
La faisabilité de la procédure dépend donc de
la capacité de la logique de commande à gérer
les 15 commandes, comme les logiques de
commande compatibles avec NiceOpera.

d –Mémorisation au moyen du « Nu mé ­ro de CERTIFICAT »

[avec l’unité de programmation O-Box]

Cette procédure est spécifique aux dispositifs
qui font partie du système NiceOpera à co dage
« O-Code ». Dans ce système, cha que récep­teur possède un numéro particulier, qui l’identi­fie et le certifie, appelé « CERTIFICAT». L’utili­sation de ce « certificat » présente l’avantage
de simplifier la procédure de mémorisation de
l’émetteur dans le récepteur car elle ne con ­traint plus l’installateur à travailler dans le rayon
de réception du récepteur.Il est en effet possi­ble, grâce à l’unité de programmation « O­Box », de préparer l’émetteur à la mémorisation
même loin du lieu de l’installation (par exemple,
dans le bureau de l’installateur- fig. H).

e – Mémorisation au moyen du « code
d’ACTIVATION » [entre deux émetteurs]

Cette procédure est spécifique aux dispositifs
qui font partie du système NiceOpera à co dage
« O-Code ». Les émetteurs NiceOne pos sè ­dent un code secret

dans leur mé moire, appelé

« CODE D’ACTIVATION». Cette « activation »,
une fois qu’elle a été correctement transférée
d’un ancien

émetteur (déjà mémorisé) vers un

nouvel

émetteur NiceOne (fig. G), permet à ce

dernier d’être reconnu et donc automatique­ment mémorisé par un récepteur.
La procédure de transfert du « code d’activa

-

tion

» d’un ANCIEN émetteur dans un NOU-

VEL émetteur est la suivante :

01. Tenir près l’un de l’autre (joints) deux émet-

teurs, un « NOUVEAU » (à mémoriser) et
un « ANCIEN» (déjà mémorisé).

02.Sur le NOUVEL émetteur, presser n’im-

porte(note 1) quelle touches touches
jusqu’à ce que la LED de l’ANCIEN
émet teur s’allume.Ensuite, relâcher la
touche (la LED de l’ANCIEN émetteur
commence à clignoter).

03. Sur l’ANCIEN émetteur, presser n’im-

porte(note 1) quelle touches jusqu’à ce
que la LED du NOUVEL émetteur s’al­lume. Relâcher alors la touche (la LED

s’éteint, ce qui indique que la procédure
est terminée et que le « code d’activation »
est transféré dans le NOUVEL émetteur).

note 1 – Si l’on utilise le modèle « ON9 » ­« ON9FM », considérer que le clavier est divisé
en trois secteurs (c’est-à-dire 3 émetteurs ­fig. A). Presser ensuite l’une des touches
dans le secteur à mémoriser.

Les 20 premières fois où le NOUVEL émetteur
sera utilisé, il transmettra au récepteur ce « code
d’activation » en même temps que la com man ­de. Le récepteur, après avoir reconnu
l’« activation », mémorisera automatiquement le
code d’identification de l’émetteur qui l’a trans­mise.

SIGNALISATION DES ERREURS AU MO ­YEN DES LED

4 clignotements= transfert du « code d’acti­vation» désactivé.
6 clignotements= transfert du « code d’activa­tion» désactivé entre des émetteurs différents.

10 clignotements= erreur de communication
entre les dispositifs.
15 clignotements = la mémorisation n’a pas
abouti car le temps limite a été dépassé

REMPLACEMENT DE LA PILE

Quand la pile est usagée, la portée de l’émet­teur diminue sensiblement. Quand on presse
une touche, on note en particulier que la LED
s’allume en retard (= pile presque déchargée)
ou que l’intensité de l’ampoule de la LED fai­blit (= pile totalement déchargée).
Dans ce cas, pour rétablir le fonctionnement
normal de l’émetteur, changer la pile usagée
en utilisant une pile du même type et en res­pectant la polarité indiquée sur la fig. C.

Mise au rebut de la pile

Attention ! – La pile usagée contient des
substances polluantes et ne doit donc pas
être jetée avec les ordures ménagères.Il faut
la mettre au rebut en adoptant les méthodes
de collecte sélective prévues par les normes
en vigueur dans le pays d‘utilisation.

MISE AU REBUT DU PRODUIT

Ce produit fait partie intégrante de l’auto­matisme qu’il commande et doit donc être
mis au rebut avec cette dernière.

Comme pour les opérations d’installation, à la
fin de la durée de vie de ce produit, les opéra­tions de démantèlement doivent être effec­tuées par du personnel qualifié.Ce produit est
constitué de différents types de matériaux
dont certains peuvent être recyclés et d’autres
devront être mis au rebut.Informez-vous sur
les systèmes de recyclage ou de mise au rebut
prévus par les règlements, en vigueur dans
votre pays, pour cette catégorie de produit.
Attention ! – certains composants du produit
peuvent contenir des substances polluantes ou
dangereuses qui pourraient avoir des effets nui­sibles sur l’environnement et sur la santé des
personnes s’ils étaient jetés dans la nature.
Comme l’indique le symbole ci­contre, il est interdit de jeter ce
produit avec les ordures ména­gères. Par con séquent, utiliser la
méthode de la « collecte sélective
» pour la mise au rebut des com­posants con formément aux prescriptions des
normes en vigueur dans le pays d’utilisation
ou restituer le produit au vendeur lors de
l’achat d’un nouveau produit équivalent.
Attention !– les règlements locaux en vigueur
peuvent appliquer de lourdes sanctions en
cas d’élimination illicite de ce produit.

CARACTÉRISTIQUES TECHNIQUES DU
PRODUIT

 Alimentation: pile au lithium de 3 Vcc type
CR2032  Durée de la pile : 2 ans environ,
avec 10 transmissions par jour  Fréquence:

433.92 MHz (± 100 kHz) / 868.46 MHz (± 35
kHz). Puissance rayonnée : environ 1 mW
P.A.R.  Codage radio: code variable, 72
bits, O-Code (compatible avec Flo-R)  Tem-
pérature de fonctionnement : - 20 °C ; +
55 °C  Portée: 200 m environ ; 35 m (à l’in­térieur) (*)  Indice de protection: IP 40 (uti­lisation à l’intérieur ou dans des milieux proté­gés)  Dimensions : L 44 x P 55 x H 10 mm
 Poids: 11 g.

Notes :• Les fréquences 433.92 MHz et 868.46
MHz ne sont pas compatibles entre elles.• (*) La

portée des émetteurs et la capacité de réception des
récepteurs est fortement influencée par d‘autres dis­positifs (par exemple : alarmes, radio à écouteurs,
etc.) qui fonctionnent dans votre zone à la même fré­quence.Dans ces cas, Nice ne peut offrir aucune
garantie quant à la portée réelle de ses dispositifs.•
Toutes les caractéristiques techniques indiquées se
réfèrent à une température ambiante de 20 °C (±
5 °C).• Nice S.p.A. se réserve le droit d’apporter des
modifications au produit chaque fois qu’elle le jugera
nécessaire à condition toutefois de garantir les
mêmes fonctions et la même application.

DÉCLARATION CE DE CONFORMITÉ

Note– La présente Déclaration de conformité réu­nit le contenu des diverses déclarations de confor­mité de chaque produit cité ; elle est mise à jour à
la date d’édition du présent manuel et a été rééla­borée pour des raisons d’édition. Une copie de la
déclaration originale pour chaque produit peut être
demandée à Nice S.p.a. (TV) I.

Nice S.p.A.- via Pezza Alta, 13, Z.I. Rustignè,
31046 Oderzo (TV), Italie, déclare que tous les
produits de la ligne Nice One (ON1; ON1FM;
ON2; ON2FM; ON4; ON4FM; ON9; ON9FM)
sont conformes aux exigences essentielles
requises par la directive R&TTE 1999/5/CE
pour l’usage auquel les appareils sont desti­nés.Les produits sont en classe 1.

Lauro Buoro

(administrateur délégué)

DESCRIPCIÓN DEL PRODUCTO Y USO
PREVISTO

El presente transmisor forma parte de la serie
“NiceOne” de Nice. Los transmisores de esta
serie están destinados para accionar automa­tizaciones para abrir y cerrar puertas, cance­las y similares: ¡cualquier otro uso es consi-

derado inadecuado y está prohibido!

Hay disponibles modelos con 1, 2, 4 y 9 boto­nes (fig. A), más los siguientes accesorios
opcionales: cordón para llavero (fig. D); clip
para bolsillo (fig. E); soporte para fijación a la
pared (fig. F).

El sistema “NiceOpera”

Los transmisores de la serie NiceOne forman
parte del sistema “NiceOpera”. Este sistema
ha sido diseñado por Nice para optimizar y
facilitar la programación, el uso y el manteni­miento de los dispositivos utilizados normal­mente en las instalaciones de automatización.
El sistema está formado de varios dispositivos
que intercambian entre sí los datos y las infor­maciones vía radio, utilizando un nuevo siste­ma de codificación llamado “O-Code”, o por
medio de la conexión física.
Los dispositivos principales que forman el sis­tema NiceOpera son:

– transmisores NiceOne;
– receptores NiceOne;
– unidad de programaciónO-Box;
– programador portátil O-View;
– motorreductores con “Bus T4”.

IMPORTANTE – para profundizar todas
las funciones del sistema NiceOpera y la
interdependencia operativa que conecta
los diferentes dispositivos del sistema,
consulte el manual general “NiceOpera Sy ­stem Book”, disponible también en la pá ­gina web www.niceforyou.com

LAS FUNCIONALIDADES DEL PRODU ­CTO

• El transmisor adopta una tecnología de
transmisión denominada “O-Code” con códi­go variable (rolling-code), que mejora aún más
la velocidad de transmisión del mando.

• El transmisor contiene en su interior una
“Memoria”, un “Receptor de proximidad” y un
“Código de habilitación” que, en su conjunto,
permiten efectuar, por radio, operaciones y pro­gramaciones típicas del sistema NiceOpera.

CONTROL DEL TRANSMISOR

Antes de memorizar el transmisor en el Re ­ceptor de la automatización, controle que
éste funcione correctamente pulsando cual­quier botón y observando, simultáneamente,
el encendido del Led (fig. A). Si éste no se
enciende, lea el párrafo “Sustitución de la ba ­tería” en este manual.

MEMORIZACIÓN DEL TRANSMISOR

Para aprovechar todas las funciones del
transmisor hay que combinarlo con los Re ­ceptores con codificación “O-Code” (para
identificar estos modelos, consulte el catálogo
de productos de Nice spa).

Nota– el transmisor es compatible con todos
los Receptores que adoptan la codificación
“FloR” (para identificar estos modelos, con-
sulte el catálogo de productos de Nice); en

este caso no se podrán utilizar las funcio­nalidades típicas del Sistema NiceOpera.

Para memorizar el transmisor en un Receptor
NiceOne es posible elegir entre los siguientes
procedimientos operativos:

a – Memorización en “Modo I”
b – Memorización en “Modo II”
c – Memorización en “Modo II amplio”
d – Memorización mediante el “Número

de Certificado”

e – Memorización mediante el “Código de

Habilitación” recibida por un tran smi -

sor ya memorizado

Los procedimientos operativos de estas mo ­dalidades de memorización están indicados
en el manual de instrucciones del Receptor o
de la Central con los que se desea hacer fun­cionar el transmisor.

Dichos manuales también se pueden descargar
desde la página web: www.niceforyou.com.
En estos manuales los botones de los transmi­sores están identificados con números. Por
consiguiente, para saber la correspondencia
entre estos números y los botones de los
transmisores NiceOne, vea la fig. A.

a– Memorización en “Modo I”

Este procedimiento permite memorizar en el
receptor, en una sola operación, todos los
botones del transmisor. Los botones se com­binan automáticamente

a cada mando con-

trolado desde la Central, según un orden pre-

determinado en fábrica.

Sólo para el transmisor mod.
“ON9” - “ON9FM”

Si este transmisor se memoriza con el proce­dimiento operativo “Modo I”, durante su eje­cución habrá que considerar la botonera del
transmisor como subdividida en 3 sectores
autónomos (s1, s2, s3 en la fig. A), cada uno
con un código de identidad propio. Por consi­guiente, para cada sector habrá que efectuar
un procedimiento de memorización (como si
fueran 3 transmisores separados).

b– Memorización en “Modo II”

Este procedimiento permite memorizar en el
receptor un solo botón del transmisor. En este
caso, el usuario deberá elegir, entre los man­dos controlados desde la Central (máximo 4),
cuál de estos desea combinar al botón que
está memorizando. Nota – el procedimiento

debe repetirse en cada botón que se desea
memorizar.

c– Memorización en “Modo II amplio”

Este procedimiento es específico para los dis­positivos que forman parte del sistema Nice­Opera, con codificación “O-Code”. Es igual al
“Modo II”, pero ofrece la posibilidad de elegir
el mando deseado (a combinar al botón que
se está memorizando) en una lista amplia de
mandos – hasta 15 mandos diferentes, – con­trolados desde la Central.
El procedimiento es factible si la Central tiene
la capacidad suficiente para controlar los 15
mandos, tales como las Centrales compati­bles con NiceOpera.

d –Memorización mediante el “Número
de CERTIFICADO”

[con la unidad de programación O-Box]

Este procedimiento es específico para los dis­positivos que forman parte del sistema NiceO­pera con codificación “O-Code”. En este sis­tema cada Receptor tiene un número espe ­cífico, llamado “CERTIFICADO”, que lo identi­fica y lo certifica. Este “certificado” tiene la
ventaja de simplificar el procedimiento de me ­morización del transmisor en el Receptor, por­que no es obligatorio que el instalador trabaje
dentro del radio de recepción del Receptor. En
efecto, el procedimiento permite, con la ayuda
de la unidad de programación “O-Box”, pre­parar el transmisor para la memorización,
incluso lejos del sitio de instalación (por ejem­plo, en la oficina del instalador – fig. H).

e – Memorización mediante el “Código
de HABILITACIÓN”

[entre dos transmisores]

Este procedimiento es específico para los dis­positivos que forman parte del sistema NiceO­pera con codificación “O-Code”. Los transmi-
sores NiceOne tienen un código secreto

, lla-

mado “CÓDIGO DE HABILITACIÓN”. Dicha
“habilitación”, transferida desde un transmisor
viejo

(ya memorizado) en un nuevo transmisor

NiceOne (fig. G), permite que este último sea
reconocido y, posteriormente, memorizado
automáticamente por un Receptor.
El procedimiento para transferir el “código de
habilitación” de un transmisor VIEJO a uno
NUEVO es el siguiente:

01. Mantenga dos transmisores cercanos en -
tre sí (¡pegados!), uno “NUEVO” (a me ­morizar) y uno “VIEJO” (ya memorizado).

02. Mantenga pulsado cualquier(nota 1) botón
del NUEVO transmisor hasta que se
encienda el Led del VIEJO transmisor.
Posteriormente, suelte el botón (el Led del

VIEJO transmisor comenzará a destellar).

03. Mantenga pulsado cualquier(nota 1) bo tón
del VIEJOtransmisor hasta que se encien­da el Led del NUEVO transmisor. Poste­riormente, suelte el botón (el Led se apa-

gará indicando que el procedimiento se ha
concluido y que el “código de habilitación”
se ha transferido al NUEVO tran smisor).

nota 1 – Si se utiliza el modelo “ON9” - “ON9
FM, habrá que considerar la botonera subdivi­dida en 3 sectores (es decir 3 transmisores ­fig. A). Posteriormente, pulse cualquier botón
dentro del sector que se debe memorizar.

Cuando utilice 20 veces por primera vez el
NUEVO transmisor, éste transmitirá al Recep­tor dicho “código de habilitación” junto con el
mando. Después de haber reconocido la “ha ­bilitación”, el Receptor memorizará automáti­camente el código de identidad del transmisor
que la ha transmitido.

SEÑALIZACIÓN DE ERRORES
MEDIANTE EL LED

4 destellos = transmisión del “Código de ha ­bilitación”deshabilitada.
6 destellos = transmisión del “Código de ha ­bilitación” deshabilitada entre transmisores
diferentes.

10 destellos = error de comunicación entre
los dispositivos.
15 destellos = no memorizado por haberse
superado el tiempo límite.

SUSTITUCIÓN DE LA BATERÍA

Cuando la batería esté agotada el alcance del
transmisor será mucho más corto. En particu­lar, pulsando un botón se notará que el Led se
enciende con retardo (= batería casi agotada),
o que la intensidad de la luz del Led es débil (=
batería completamente agotada).
En dichos casos, para restablecer el funciona­miento normal del transmisor, sustituya la
batería agotada con una del mismo tipo, res­petando la polaridad indicada en la fig. C.

Eliminación de la batería

¡Atención!– La batería agotada contiene sus­tancias contaminantes y, por dicho motivo, no
debe arrojarse en los residuos normales. Hay
que eliminarla utilizando los métodos de reco­gida selectiva previstos por las normativas
vigentes locales.

ELIMINACIÓN DEL PRODUCTO

Este producto forma parte integrante de la
automatización que acciona y, por consi­guiente, debe eliminarse junto con ésta.

Al igual que para las operaciones de instalación,
también al final de la vida útil de este producto
las operaciones de desguace deben ser efec­tuadas por personal experto. Este producto está
formado de varios tipos de materiales: algunos
pueden reciclarse y otros deben eliminarse.
Infórmese sobre los sistemas de reciclaje o de
eliminación previstos por las normativas vigentes
locales para esta categoría de producto.
¡Atención!– algunas piezas del producto pue­den contener sustancias contaminantes o peli­grosas que, si se las abandona en el medio
ambiente, podrían provocar efectos perjudicia­les para el mismo medio ambiente y para la
salud humana.
Tal como indicado por el símbolo de aquí al
lado, está prohibido arrojar este producto a
los residuos urbanos. Realice la
“recogida selectiva” para la elimi­nación, según los métodos pre­vistos por las normativas vigen­tes locales, o bien entregue el
producto al vendedor cuando
compre un nuevo producto equivalente.
¡Atención!– las normas locales pueden prever
sanciones importantes en el caso de elimina­ción abusiva de este producto.

CARACTERÍSTICAS TÉCNICAS DEL
PRODUCTO

 Alimentación: batería de litio de 3 Vdc tipo
CR2032  Duración de la batería: estimada
en 2 años con 10 transmisiones por día
 Frecuencia: 433.92 MHz (± 100 kHz) /

868.46 MHz (± 35 kHz) Potencia radiada:
estimada en alrededor de 1 mW E.R.P.
 Codificación radio: rolling code, 72 bit, O-
Code (compatible Flo-R)  Temperatura de
funcionamiento: - 20°C; + 55°C  Alcance:
estimada en 200 m (al aire libre); 35 m (en el
interior de edificios) (*)  Grado de protec-
ción: IP 40 (uso en interiores o en ambientes
protegidos)  Dimensiones: L 44 x P 55 x H
10 mm  Peso: 11 g

Notas: • Las frecuencias 433.92 MHz y 868.46
MHz no son compatibles entre sí• (*) El alcance

de los transmisores y la ca pacidad de recepción de
los Receptores dependen de otros dispositivos (por
ejemplo: alarmas, ra dioauriculares, etc..) que fun­cionen en la zona con la misma frecuencia. En estos
casos, Nice no puede ofrecer ninguna garantía
sobre el alcance efectivo de sus dispositivos. • To ­das las características técnicas indicadas se refieren
a una temperatura de 20°C (± 5°C). • Nice S.p.a se
reserva el derecho de modificar los productos en
cualquier momento en que lo considere necesario,
manteniendo las mismas funcionalidades y el mis­mo uso previsto.

DECLARACIÓN DE CONFORMIDAD CE

Nota – La presente Declaración de Conformidad
agrupa el contenido de cada declaración de con­formidad de cada uno de los productos citados;
está actualizada a la fecha de edición de este ma ­nual y ha sido readaptada por motivos de impre­sión. Una copia de la declaración original de cada
producto puede ser solicitada a Nice S.p.a. (TV) I.

Nice S.p.a. - Via Pezza Alta 13, Z.I. Rustignè,
31046 Oderzo (TV) Italia, declara que todos los
productos de la línea Nice One(ON1; ON1FM;
ON2; ON2FM; ON4; ON4FM; ON9; ON9FM)
respetan los requisitos esen ciales de la Directi­va 1999/5/CE “Equipos Radioeléctricos y Equi­pos Terminales de Telecomunicación” para el
uso al que están destinados los equipos. Los
productos son fabricados en Clase 1.

Lauro Buoro

(Administrador delegado)

FRANÇAIS ESPAÑOL

Codice: IST227R01.4851 - Rev. 00 del 18-04-2008

NiceOne

Transmitter

1a

1b

1c

CR 2032

1

CR 2032

3

2

CR 2032

2

1

CR 2032

CR 2032

1

CR 2032

2

A

B

C

D

E

F

G

H

Europe: 0682

ON1

ON1FM

ON2

ON2FM

ON4

ON4FM

ON9

ON9FM

www.niceforyou.com

NiceOne

Europe: 0682

Installation and use instructions

and warnings

Istruzioni ed avvertenze per

l’installazione e l’uso

Instructions et avertissements pour

l’installation et l’utilisation

Anweisungen und Hinweise für die

Installation und die Bedienung

Instrucciones y advertencias para

la instalación y el uso

Instrukcje i ostrzeżenia związane z

instalowaniem i użytkowaniem

Aanwijzingen en aanbevelingen

voor installering en gebruik

Receiver

OXI family
OX2 family

2

EN

EN – Models with “SM” type connection
IT – Modelli con connessione a innesto “SM”
FR – Modèles avec connecteur embrochable «SM»
ES – Modelos con conexión con conector “SM”
DE – Modelle mit Steckverbindung “SM”
PL – Modele z połączeniem za pomocą złącza

typu “SM”

NL – Modellen met steekconnector “SM”

EN – Models with universal type connection
IT – Modelli con connessione universale
FR – Modèles avec connecteur universel
ES – Modelos con conexión universal
DE – Modelle mit Universalverbindung
PL – Modele z połączeniem uniwersalnym
NL – Modellen met universele aansluiting

3

EN

ENGLISH

Mod. Frequency Function Connection

OXI 433.92 MHz Receiver Connector type
OXIFM 868.46 MHz Receiver Connector type
OXIT 433.92 MHz Receiver-transmitter Connector type
OXITFM 868.46 MHz Receiver-transmitter Connector type
OX2 433.92 MHz Receiver with 6-core cable
OX2FM 868.46 MHz Receiver with 6-core cable
OX2T 433.92 MHz Receiver-transmitter with 6-core cable
OX2TFM 868.46 MHz Receiver-transmitter with 6-core cable

1 – PRODUCT DESCRIPTION AND

INTENDED USE

This receiver is part of the series “NiceOne” produced by Nice
spa. The receivers in this series are destined for use on the
control units fitted on systems for the automation of gates,
garage doors and road barriers. Any use other than as

specified herein is to be considered improper and is
strictly prohibited! The manufacturer denies all liability for
damage deriving from improper use of the product and
use other than as specified in this manual.

Various models are available, with the specifications as stated
in the table below.

1.1 – The “NiceOpera” system

The receivers in the series NiceOne are part of the “Nice­Opera” system. This system has been designed to simplify

the programming phases, use and maintenance of the de ­vices normally used in automation systems. The system com-

prises various software and hardware devices capable of
intercommunicating via radio, by means of the “O-Code”
encoding system or a “physical” connection via cable.
The main devices that make up the NiceOpera system are:

– NiceOne transmitters;
– NiceOne receivers;
– O-box programming unit;
– Control units and gearmotors with “T4 Bus”;
– O-View programmer for devices with “T4 Bus”.

IMPORTANT – For further details on all functions of the
NiceOpera system and interdependency of the various
devices in the system, refer to the general manual “Nice­Opera System Book”, also available on the Internet site
www.niceforyou.com.

Notes to table:
– The frequencies 433.92
MHz and 868.46 MHz are
not compatible.

– The letter “T” in the model
name indicates a receiver with
built-in transmitter.

4

EN

2 – FUNCTIONAL PRODUCT

SPECIFICATIONS

• For all models

– The receiver manages “O-Code” radio encoding with vari-

able code (rolling-code), which enables use of all the new
functions in the NiceOpera system.
The receiver is compatible also with “FloR”, “TTS”, “Smilo”
and “Flo” encoding systems. However, in this case some of

the exclusive NiceOpera system functions described in
this manual cannot be used.

– The receiver has a capacity of 1024 spaces in which to

memorise transmitters. If the transmitter is memorised in
“Mode I”, all the relative keys

will occupy 1 memory alloca-

tion; otherwise if memorised in “Mode II”, each memorised
key will occupy 1 memory allocation (for memorisation pro-
cedures, see below in this manual).

– Each receiver has its own identification number

called a

“Certificate”.
This number enables access to a series of operations, such
as: Memorisation of new transmitters without the need for
direct intervention on the receiver and use of the O-View
unit, by means of the “T4 Bus” connection.
The sealed coupon in the product pack contains the sheet
with the certificate number of this receiver. Caution! – this

coupon must be kept in a safe place as it enables access to
data stored in the receiver, unless further protection meas­ures are adopted, such as the use of a security password.

• For models with “SM” type connection

– These models can be used exclusively with the control units

fitted with an “SM” type connection (fig. 1). Note – to identify

compatible control units, refer to the Nice product catalogue.

– These models automatically recognise the characteristics of

the control unit to which they are connected and the receiv­er self-installs as follows.

• If the control unit manages the “T4 Bus

”, the receiver

provides up to 15 different commands.

• If the control unit does not manage the “T4 Bus

”, the

receiver provides up to 4 different command channels.

Caution! – In both cases the number and variety of the
commands available depend on the type and model of con­trol unit used. The “Table of commands” of each control unit
is provided in the instruction manual of the relative control
unit.

• For models with universal type connection

– These models operate with 2 voltage-free contact relays

and therefore can be used with any type of control unit.

• For models with “T” in the model name

– These models are equipped with a “Repeater” function (see

below in this manual) which enables an increase in the trans-

mission range of the transmitters. They also enable “wireless”
communication with the O-Box programming unit.

5

EN

IT

1

2

3 – PRODUCT INSTALLATION

• For models with “SM” type connection

These models are connected to the control unit by inserting
the connector in the relative control unit connector (fig. 1).

Caution! – Before connecting or removing the receiver,
disconnect the control unit from the power supply.

The aerial supplied must also be installed, connecting it to the
specific terminals on the control unit.

• For models with universal type connection

––– Power supply selection –––

These models are connected to the control unit by means of a
6-core cable. Before connecting the cable, select the type of
power supply required, leaving or removing the electric jumper
as necessary (fig. 2-a) as follows:

– Jumper NOT inserted

= 24 V ac/dc

(voltage limits: 18 ÷ 28 V)

– Jumper INSERTED

= 12 V ac/dc

(voltage limits: 10 ÷ 18 V)

a

6

EN

––– Electrical connections –––

Connect the 6 wires of the receiver cable to the relative termi­nals of the control unit as follows (fig. 3):

•Redand Black = POWER SUPPLY

(red = Positive, black = Negative. In AC this is not impor­tant).

• White and White = RELAY 1 OUTPUT

(voltage-free contact of a normally open relay).

• Purple and Purple = RELAY 2 OUTPUT

(voltage-free contact of a normally open relay).

–– How to obtain “

NC” type contacts ––

The outputs are controlled by 2 relays with NO (normally open)
type contact. To change to NC (normally closed) type contact,
proceed as follows:

01. Disconnect the receiver from the power supply.

02. Open the box of the receiver by first raising the smaller

section of the cover (fig. 4-a) and then the larger section
with the key (fig. 4-b).

03. Carefully remove the board and turn it over: the side with

the soldered elements must be facing the user.

04. On the side with the soldered elements, proceed as fol-

lows (fig. 5):

– Cut the traced section at point “X”
– Join the contacts with a drop of tin at points “Y”.

Note – these modifications may be applied to one or
both relays as required.

3

Red
Black
White
White
Purple
Purple

a

7

EN

4

a

b

5

8

EN

• For all models:

Installation of an external aerial

If the aerial supplied is in an unfavourable position and the
radio signal is weak, an external aerial may be installed to
improve reception (mod. ABF or ABFKIT). The new aerial must
be positioned as high as possible and above any metal or
reinforced concrete structures present in the area.

– Connection to the Control Unit

: Use a coaxial cable with

an impedance of 50 ohm (for example, a RG58 cable with
low loss). Caution! – To reduce signal dispersion use a

cable that is as short as possible (not exceeding 10 m).

– Connection to the receiver

(only for models with univer-

sal type connection): Open the receiver by first raising the

smaller section of the cover (fig. 4-a) and disconnect the
aerial supplied; then connect the cable of the new aerial to
terminal 1 and 2 as follows (fig. 3-a): Terminal 1 = sheath;
Terminal 2 = core.

6

Programming warnings

The settings described in this chapter (except for proce­dure 6) require use of the key and led on the receiver (fig.

6). To indicate the state of activity in progress, the led
emits a set number of flashes with a specific duration and
colour (green, red or orange). For the meaning of these
signals, refer to Table A at the end of the manual.

PROGRAMMING THE

MAIN FUNCTIONS

Led Key

Led Key

9

EN

4 – CAUTION! – READ THIS SECTION

BEFORE MEMORISING THE
TRANSMITTER

The receiver can only memorise transmitters belonging to one
of the following 3 encoding families

:

– family with “O-Code”, “FloR” and “TTS” encoding;
– family with “Flo” encoding;
– family with “Smilo” encoding.

Note – Each code enables use exclusively

of the standard

associated functions on the receiver.

Caution! – The encoding family

of the first transmitter
memorised on the receiver also defines the relative
encoding family for the subsequent transmitters to be
memorised.

To change the encoding family

set on the receiver, perform

procedure 10 – Total receiver memory deletion.

To check on the receiver whether transmitters and the associ­ated encoding family

are already memorised, proceed as fol-

lows:

01. Disconnect the receiver from the power supply.

02. Re-connect the power to the receiver and count the

number of green flashes emitted by the receiver led.

03. Check the number of flashes emitted with the data in the

table below:
– 1 flash = Flo encoding

– 2 flashes = O-Code / FloR / TTS encoding
– 3 flashes = Smilo encoding
– 5 flashes = no transmitter entered

Caution! – Before memorising a transmitter, carefully
read all memorisation procedures described below to
select the one most suited to your specific application.

5 – TRANSMITTER MEMORISATION

PROCEDURE: “Mode I” AND “Mode II”

Each control unit has a set number of commands that can be
activated according to the type of receiver: The models with
“SM” connector provide 4 or 15 commands while models
with the universal connection provide 2 outputs.
In general the commands can be associated with the trans­mitter keys in two ways:

• “

Mode I”. This mode enables memorisation on the receiver

of all transmitter keys

or a group of the latter at once (on trans-
mitters with more than one identity code such as model ON9).
The keys are automatically

associated with the pre-set com­mands of the control unit or the receiver outputs, on models
with universal connectotion.

• “

Mode II”. This mode enables memorisation on the receiv-

er of a single transmitter key

. The user has a free choice of
which command, among those available on the control unit
(maximum 4) or which output of the receiver to be associated
with the selected key.

– “Extended Mode II”

(only for models with “SM” connector).
This mode can only be used with control units using the con­nection system “T4 Bus”. The “Extended Mode II” is the same
as “Mode II” with the additional option to choose the required
command from those available in the “Table of commands”
(maximum 15), as provided in the manual of the control unit
connected to the receiver.

10

EN

5.1 – Memorisation in “MODE I”

Warning – This procedure simultaneously memorises all
keys of the transmitter or a group of the latter (on trans­mitters with more than one identity code).

01. Press and hold the key on the receiver until the green led

on the receiver illuminates. Then release the key.

02. (within 10 seconds) On the transmitter to be memorised,
press and hold any key until the led on the receiver emits
the first of 3 green flashes to confirm memorisation.

Note – After the three flashes, a 10-second interval is avail­able to memorise another transmitter as required.

5.2 – Memorisation in “MODE II”

(valid also for “Extended Mode II”)

WARNINGS:

– The “Extended Mode II” procedure can only be used

with receivers with “SM” type connectors.

– This procedure enables memorisation of a single trans

-

mitter key

.

01. In the control unit manual, look up the “Table of com-
mands”, select the command to assign to the transmitter

key and note the number corresponding to the command.

02. (on the receiver) Press the key the same number of times
as the previously noted number – the Led on the receiv-

er emits the same number of flashes repeated at regular
intervals.

03. (on the transmitter within 10 seconds) Press and hold the
selected key for memorisation until the led on the receiv­er emits the first of 3 flashes (= memorisation confirmed).

Note – After the three flashes, a 10-second interval is avail­able to memorise the same command on other keys on the
same transmitter or a new transmitter as required.

6 – MEMORISING A TRANSMITTER USING

THE “ENABLE CODE

” OF ANOTHER

TRANSMITTER

[already memorised]

This procedure can only be used if two transmitters with
“O-Code” encoding are used.
The NiceOne transmitters have a secret code

stored in the

memory, known as the “ENABLE CODE”. Thanks to this
code, operation of NEW transmitter can be enabled by simply
transferring the “enable code” of an OLD transmitter (previ­ously memorised on the receiver) onto its memory (fig. 8).

Note – For this procedure, refer to the transmitter manual.

Subsequently, when the NEW transmitter is used, it will trans­mit its own identity code to the receiver as well as the relative
“enable code” (the first twenty times only). The receiver, after
recognising the “enable code” of an OLD transmitter (previ­ously memorised on the receiver) automatically memorises the
identity code of the NEW transmitter sent to it.

8

11

EN

• Preventing accidental use of this memorisation procedure

To prevent memorisation on the receiver of other transmitters
not compatible with the system but with the “enable code” of
a transmitter already memorised on the receiver, this proce­dure can be “locked” (or unlocked) by programming the func­tion in paragraph 10.
As an alternative to locking memorisation of the entire receiver,
transfer of the “enable code” can be disabled exclusively for
some or all OLD transmitters already memorised. This opera­tion can be performed using the O-Box programming unit.

7 – MEMORISATION OF A TRANSMITTER

USING THE PROCEDURE IN THE
VICINITY OF THE RECEIVER

[with a transmitter already memorised]

A NEW transmitter can be memorised in the receiver memory
without acting directly on the key of the receiver, but by simply
working within its reception range. To use this procedure, an
OLD transmitter, previously memorised (in “Mode I” or in
“Mode II”) and operative, is required. The procedure enables
the NEW transmitter to receive the settings of the OLD version.

WARNINGS:

• Use only one

of the two procedures described below,

according to requirements.

• The procedure must be performed within the reception
range of the receiver (maximum 10-20 m from receiver).

• Repeat the same procedure for each transmitter to be
memorised.

Standard Procedure

(valid for all Nice receivers)

01. On the NEW transmitter, press and hold the key…. for at

least 5 seconds (see note 1) and then release.

02. On the OLD transmitter, press key…. three times (see

note 1) and then release.

03. On the NEW transmitter, press the same key pressed in

point 01 once and then release.

Alternative Procedure

(valid for this receiver only)

01. On the NEW transmitter, press and hold the key…. for at

least 3 seconds (see note 1) and then release.

02. On the OLD transmitter, press and hold the key…. for at

least 3 seconds see note 1) and then release.

12

EN

03. On the NEW transmitter, press the same key pressed in

point 01 for at least 3 seconds and then release.

04. On the OLD transmitter, press the same key pressed in
point 02 for at least 3 seconds and then release.

Note 1:

If the OLD transmitter is memorised in “Mode I” the NEW
transmitter will also be memorised in “Mode I”. In this case,
during the procedure press any key

on either the OLD or NEW

transmitter.
If the OLD transmitter is memorised in “Mode II” the NEW
transmitter will also be memorised in “Mode II”. In this case,
during the procedure press the required command key

on the

OLD transmitter and the associated key to be memorised

for
this command on the NEW transmitter. This procedure must
also be repeated for each key of the NEW transmitter to be
memorised.

• Preventing accidental use of this memorisation procedure

To prevent the continuous reception of a signal transmitted at
random by a transmitter not part of the system from acciden­tally activating the memorisation procedure, this procedure
can be “locked” (or unlocked) by programming the function in
paragraph 10.

8 – TOTAL RECEIVER MEMORY DELETION

All transmitters memorised can be deleted from the receiver
memory, or all data present

in the latter can be deleted as

follows:

01. Press and hold the receiver key and check the following
changes in Led status:

– (after approx. 4 seconds) the green led illuminates;
– (after approx. 4 seconds) the green led turns off;
– (after approx. 4 seconds) the green led starts flashing.

02. At this point release the key

exactly......

• on the 3rd flash, to delete all transmitters

, or,

• on the 5th flash, to delete the entire memory

of the
receiver, including configurations and encoding families of
the transmitters.

Alternatively this function can be performed using the O-Box
or O-View programming unit.

9 – DELETING A SINGLE TRANSMITTER

FROM THE RECEIVER MEMORY

A single transmitter (in your possession) memorised can be
deleted from the receiver memory as follows:

01. Press and hold the receiver key.

02. After approx. 4 seconds the green led illuminates (keep

the key pressed).

03. On the transmitter to be deleted from the memory, press

and hold any key (see note 1) until the led on the receiver
emits 5 green flashes (= deletion confirmed).

13

EN

Note 1:

If the transmitter is memorised in “Mode I” any key can be
pressed.
If the transmitter is memorised in “Mode II” the entire proce­dure must be repeated for each memorised key to be deleted.

Alternatively this function can be performed using the O-Box
or O-View programming unit.

10 – ENABLING (or disabling)

THE RECEIVER FOR TRANSMITTER
MEMORISATION

This function enables the user to prevent memorisation of new
transmitters when the procedures “in the vicinity”(factory

setting is ON) or with “enable code” (factory setting is ON)
are used as described in this manual. To enable or disable this

function, proceed as follows:

01. Disconnect the receiver from the power supply and wait 5
seconds.

02. Reconnect the power and switch on by pressing the
receiver key until the relative led has completed the sig­nals indicating the type of code stored in the memory
(see paragraph 5) and the procedure is activated, indicat­ed by 2 short orange flashes. Then release the key.

03. (within 5 seconds) Press the receiver key repeatedly to
select one of the following functions (Warning! – on each

press of the key the Led changes colour to indicate the
currently selected function):

• Led OFF = No lock enabled

• Led RED = Memorisation “in the vicinity” locked

• Led GREEN = Memorisation with “enable code” locked

• Led ORANGE = Both memorisation modes locked (“in

the vicinity” and with “enable code”).

04. (within 5 seconds) Press any key of a transmitter already
memorised on the receiver to save the selected function.

Alternatively the lock (or unlock) function can be applied using
the O-Box or O-View programming unit.

14

EN

11 – MEMORISATION OF A TRANSMITTER

USING THE RECEIVER
“CERTIFICATE NUMBER

”

[with O-Box] – This procedure can only be used if a trans-

mitter is used with “O-Code” encoding and when in posses­sion of the receiver “Certificate Number”.
The “CERTIFICATE” is a personal number (factory set) identi-
fying the single receiver to distinguish it from all others.
Use of this “certificate” simplifies the procedure required to
memorise the transmitter in the receiver, as it no longer oblig­es the installer to work within the receiver operating range. In
fact the new procedure enables transmitter memorisation
from any distance, even far from the installation site (for exam­ple from the installer’s office – fig. 9).

WARNING – The settings described in this chapter
require use of the O-Box or O-View programming unit.
For operation of these devices, refer to the relative
instruction manuals, also available on the internet site:
www.niceforyou.com.

• The models with “SM” connector

are connected to the
O-Box unit by inserting the receiver in the relative con­nector.

• The models with universal connector

are connected to
the O-Box unit by means of a special cable (fig. 7-a)
which must be connected to the connector on the receiv­er (see fig. 7-b).

OTHER FUNCTIONS

7

9

15

EN

Initially, the procedure consists in the installer entering, with
the aid of the programming unit “O-Box”, the required func­tions and the relative receiver “certificate” in the memory of
the transmitter. The transmitter, ready to use

, is then sent to
the client.
Subsequently, when the transmitter is used, it will transmit the
command along with the “certificate” to the receiver (the first
twenty times only). The receiver, after recognising the “certifi­cate” as its own, automatically memorises the identity code of
the transmitter that sent the certificate.

12 – REMOTE REPLACEMENT OF A

TRANSMITTER USING “PRIORITY”
MODE

[with O-Box] – The identity code of a transmitter in the

NiceOne series is accompanied by a number

(from 0 to 3),
which enables the user to specify the transmitter’s priority
level on a receiver with respect to any other transmitters with
the same code.
This “priority” serves to replace, and thus disable, use of a
transmitter that has been lost or stolen, without the need to
return to the client’s system.
Use of priority mode requires knowledge of the code of the
lost transmitter and enables maintenance of the same code
and functions of the previous transmitter.
Therefore the lost transmitter can be disabled by simply

updating the priority level

of the new transmitter with the

next highest value.
On first use of the transmitter, the receiver memorises the new
priority level received and ignores any command sent by the
lost or stolen transmitter if subsequently used.

This function can be enabled (or disabled) on the receiver (fac-
tory setting ON) and, when active, the receiver does not
update the priority level sent by the transmitter.

13 – ENABLING (or disabling)

RECEPTION OF NON-ORIGINAL
“IDENTITY CODES”

[with O-Box / O-View] – The identity codes of transmitters

with “FloR” and “O-Code” encoding can be modified as
required, using the “O-Box” or “O-View” programming unit.
The receiver can normally recognise whether a code is original
(factory set) or modified.
When this function is enabled or disabled (factory setting ON)
the receiver has the option to accept (or not) the command of
a transmitter with a modified identity code.

14 – LOCKING (or unlocking)

THE MOBILE SECTION (Rolling code)
OF THE IDENTITY CODE

[with O-Box / O-View] – This function enables the user to

lock (or unlock) management on the receiver of the variable
section (rolling code) of an identity code sent by a transmitter.
When the lock function is active (factory setting OFF), the
receiver treats a “rolling code” as if it were a “fixed” code,
ignoring the variable section.

16

EN

17 – ENABLING (or disabling)

COMMAND DELIVERY ON THE
“T4 BUS” NETWORK

[with O- View] – On systems in which connection is via the

“T4 Bus”, if more than one receiver is installed, and there is the
need for control at a distance greater than that normally cov­ered by the transmitter and receiver, this function can be
enabled (on at least 2 receivers) to increase the receiver
reception range.
This enables the receiver that receives a command “via radio”
to re-transmit the command via the Bus cable

to the final
receiver (in which the sending transmitter identity code is
memorised), so that this can execute the command.
To enable or disable the option to receiver and/or send radio
codes on the “T4 Bus” in a receiver (factory setting OFF), the
receivers concerned must be duly programmed, using the O­View programming unit.

18 – CREATING THE “FAMILY GROUPS”

OF TRANSMITTERS

[with O-Box] – Each code memorised on the receiver can

be associated with one or more “family groups”, from the 4
available.
The formation of groups and their activation or deactivation (fac-
tory setting OFF) is managed by means of the O-Box program­ming unit while use of the groups, for example in a set time­band, is managed by means of the O-View programming unit.

15 – ENABLING (or disabling)

THE “REPEATER” FUNCTION

(Function available only on models OXIT, OXITFM, OX2T,
OX2TFM, in combination with transmitters using O-Code
encoding).

[with O-Box] – If an automation is to be controlled at a dis­tance greater than that normally covered by the transmitter
and receiver, a second receiver may be used (up to a maxi­mum of five) serving to re-transmit, via radio

, the command to
the final receiver (in which the sending transmitter identity
code is memorised), so that this can execute the command.
To enable or disable this function (factory setting OFF) pro-
gramming must be performed both on the additional receivers
and transmitters.

16 – MANAGING RELEASE OF THE

TRANSMITTER KEYS

(Function available only on transmitters using O-Code
encoding)

[with O-Box / O-View] – Normally, after sending a com­mand, on release of the key the manoeuvre is not stopped
immediately but proceeds for a very short pre-set interval.
If necessary, the manoeuvre can be interrupted at the exact
time of key release (required for example during minimal
adjustments) by enabling this function (factory setting OFF).

17

EN

19 – PROTECTION OF PROGRAMMED

FUNCTION SETTINGS

[with O-Box / O-View] – This function enables the user to

protect all programmed functions on the receiver, also dis­abling functionality of the key and relative led. The function is
enabled by entering a password on the receiver, i.e. a maxi­mum of 10 digits, as set by the installer.
When the function is enabled, before programming and main­tenance of the receiver, the special password must be entered
on the programming unit to unlock the receiver.

DISPOSAL OF THE PRODUCT

This product constitutes an integral part of the automa­tion system, therefore it must be disposed of along with it.

As in installation, also at the end of product lifetime, the disas­sembly and scrapping operations must be performed by qual­ified personnel.
This product is made up of different types of material, some of
which can be recycled while others must be disposed of. Seek
information on the recycling and disposal systems envisaged
by the local regulations in your area for this product category.

Caution! – some parts of the product may contain pollutant or
hazardous substances which, if disposed of into the environ­ment, may cause serious damage to the environment or phys­ical health.

As indicated by the symbol on the left,
disposal of this product in domestic
waste is strictly prohibited. Separate the
waste into categories for disposal,
according to the methods envisaged by
current legislation in your area, or return
the product to the retailer when purchas­ing a new version.

Caution! – Local legislation may envisage serious fines in the
event of abusive disposal of this product.

18

EN

OXI OXIT OXIFM OXITFM

• Decoding “O-Code” / “FloR” / “TTS”; or “Flo”; or “Smilo”

• Maximum absorption 30 mA

• Reception frequency 433.92 MHz 868.46 MHz

• Transmission frequency ––– 433.92 MHz ––– 868.46 MHz

• Sensitivity Above 0.5 µV Above 0.8 µV

• Operating temperature –20° C ÷ +55° C

• Outputs 4 (on “SM” connector)

• Dimensions and weight L. 50; H. 45; P. 19 mm; weight 20

• Radiated power ––– approx. 1 mW E.R.P. ––– approx. 1 mW E.R.P.

• Input impedance 52 ohm

OX2 OX2T OX2FM OX2TFM

• Decoding “O-Code” / “FloR” / “TTS”; or “Flo”; or “Smilo”

•

Power supply

Without electric jumper = 24 V standard. Limits from 18 to 28 V direct or alternating

With electric jumper = 12 V standard. Limits from 10 to 18 V direct or alternating

• Absorption on standby 10 mA at 24 Vac

• Absorption with 2 relays activ 80 mA at 24 Vac.

• Reception frequency 433.92 MHz 868.46 MHz

• Transmission frequency ––– 433.92 MHz ––– 868.46 MHz

• Sensitivity Above 0.5 µV Above 0.8 µV

• N° relays 2

• Relay contact Normally open max 0,5 A and 50 V

• Operating temperature –20° C ÷ +55° C

• Protection rating IP 30

• Dimensions and weight 58 x 86; H. 22 mm; weight 55 g

• Radiated power ––– approx. 1 mW E.R.P. ––– approx. 1 mW E.R.P.

PRODUCT TECHNICAL SPECIFICATIONS

19

EN

As well as the functions and settings described in this
manual, the receiver offers many other features to
enhance performance, safety and ease of use.
All these settings require use of the O-Box (or in some
cases O-View) programming unit.
For further information on the settings available, refer to
the general system manual “NiceOpera System Book”, or
the O-Box/ O-View programming unit manual.

• Notes on Product Technical specifications

– The range of the transmitters and reception capacity of the

receivers is strongly influenced by other devices (for exam­ple: alarms, radio headphones etc.) operating in the zone at
the same frequency. In these cases, Nice cannot guarantee
the effective capacity of its devices.

– All technical specifications stated in this section refer to an

ambient temperature of 20°C (± 5°C).

– Nice reserves the right to apply modifications to the product

at any time when deemed necessary, while maintaining the
same functionalities and intended use.

GENERAL NOTES

20

EN

Table A

SIGNALS EMITTED BY THE

RECEIVER LED

–– Long flashes / GREEN ––

On start-up:

1 5 = Code in use: “Flo”
2 5 = Code in use: “O-Code”/“FloR”
3 5 = Code in use: “Smilo”
5 5 = No remote control memorised

During operation:

1 5 = Indicates that the code received is not stored in the

memory

1 5 = During programming, indicates that the code is

already stored in the memory

3 5 = Saving code in memory
5 5 = Memory deleted
6 5 = During programming, indicates that the code is not

authorised for memorisation

8 5 = Memory full
––––––––––––––––––––––––––––––––––––––––––––––––––

–– Short flashes / GREEN ––

1 5 = “Certificate” not valid for memorisation
2 5 = Code cannot be memorised as is transmitting

“certificate”

3 5 = During programming, indicates that the code has

been re-synchronised

4 5 = Output in “Mode II” not managed on control unit
5 5 = During deletion procedure, indicates that the code

has been deleted

5 5 = “Certificate” with higher priority that the admissible

value

6 5 = Code synchronisation failure
6 5 = Code cannot be memorised due to “incorrect key”

––––––––––––––––––––––––––––––––––––––––––––––––––

–– Long flashes / RED ––

1 5 = Non-original code block
2 5 = Code with lower priority than the authorised value

––––––––––––––––––––––––––––––––––––––––––––––––––

–– Short flashes / RED ––

1 5 = “In vicinity” programming mode block
1 5 = Memorisation by means of “certificate” block
2 5 = Memory block (PIN entry)

––––––––––––––––––––––––––––––––––––––––––––––––––

–– Long flashes / ORANGE ––

1 5 = Indicates that the code is in the memory but

outside the group currently enabled

––––––––––––––––––––––––––––––––––––––––––––––––––

–– Short flashes / ORANGE ––

2 5 = Indicates activation of block programming

(on start-up)

21

EN

EC DECLARATION OF CONFORMITY

Note –This Declaration of Conformity contains the individual declarations of conformity for the specified products; it was updated on the issue
date of this manual and the text herein has been drawn up for editorial purposes. A copy of the original declaration for each product can be
requested from Nice S.p.a. (TV) I.

The undersigned, Lauro Buoro, in the role of Managing Director, declares under his sole responsibility, that the product:

Manufacturer’s name : Nice S.p.a.
Address: Via Pezza Alta 13, Z.I. Rustignè, 31046 Oderzo (TV) Italy
Type: Receiver and receiver-transmitter for remote control of automations for doors, gates, shutters,

awnings, rolling shutters and similar applications.

Models: OXI, OXIT, OXIFM, OXITFM
Accessories:

conform with the requirements of the EC directive:

• 1999/5/EC; DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of 9 March 1999 regarding
radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

According to the following harmonised standards
Health protection: EN 50371:2002;
Electrical safety: EN 60950-1:2006;
Electromagnetic compatibility : EN 301 489-1V1.6.1:2006; EN 301 489-3V1.4.1:2002
Radio range: EN 300220-2V2.1.2:2007

Lauro Buoro

(Managing director)

22

EN

EC DECLARATION OF CONFORMITY

Note –This Declaration of Conformity contains the individual declarations of conformity for the specified products; it was updated on the issue
date of this manual and the text herein has been drawn up for editorial purposes. A copy of the original declaration for each product can be
requested from Nice S.p.a. (TV) I.

The undersigned, Lauro Buoro, in the role of Managing Director, declares under his sole responsibility, that the product:

Manufacturer’s name : Nice S.p.a.
Address: Via Pezza Alta 13, Z.I. Rustignè, 31046 Oderzo (TV) Italy
Type: Receiver and receiver-transmitter for remote control of automations for doors, gates, shutters,

awnings, rolling shutters and similar applications.

Models: OX2, OX2T, OX2FM, OX2TFM
Accessories:

conform with the requirements of the EC directive:

• 1999/5/EC; DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND COUNCIL of 9 March 1999 regarding
radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity

According to the following harmonised standards
Health protection: EN 50371:2002;
Electrical safety: EN 60950-1:2006;
Electromagnetic compatibility : EN 301 489-1V1.6.1:2006; EN 301 489-3V1.4.1:2002
Radio range: EN 300220-2V2.1.2:2007

Lauro Buoro

(Managing director)

Nice Turkey

Kadikoy Istanbul Turkey
Ph. +90.216.456.34.97
Fax [phone]
[e-mail]

Nice UK

Sutton in Ashfield
United Kingdom
Ph. +44.16.23.55.80.86
Fax [phone]
[e-mail]

Nice Australia

Wetherill Park Australia
Ph. +61.(0)2.96.04.25.70
Fax [phone]
[e-mail]

Nice China

Shanghai P. R. China
Ph. +86.21.575.701.46/45
Fax [phone]
[e-mail]

Nice USA

Jacksonville Florida USA
Ph. +1.904.786.7133
Fax [phone]
[e-mail]

www.niceforyou.com

Headquarters

Nice SpA

Oderzo TV Italia
Ph. +39.0422.85.38.38
Fax [phone]
[e-mail]

Nice in Italy

Nice Padova

Sarmeola di Rubano PD Italia
Ph. +39.049.89.78.93.2
Fax [phone]
[e-mail]

Nice Roma

Roma RM Italia
Ph. +39.06.72.67.17.61
Fax [phone]
[e-mail]

Nice Worldwide

Nice France

Buchelay France
Ph. +33.(0)1.30.33.95.95
Fax [phone]
[e-mail]

Nice France Sud

Aubagne France
Ph. +33.(0)4.42.62.42.52
Fax. [phone]
[e-mail]

Nice France Rhône Alpes

Decines Charpieu France
Ph. +33.(0)4.78.26.56.53
Fax [phone]
[e-mail]

Nice Belgium

Leuven (Heverlee) Belgium
Ph. +32.(0)16.38.69.00
Fax [phone]
[e-mail]

Nice Deutschland

Gelnhausen Deutschland
Ph. +49.(0)6051.91.520
Fax [phone]
[e-mail]

Nice España Madrid

Mostoles Madrid España
Ph. +34.(0)9.16.16.33.00
Fax [phone]
[e-mail]

Nice España Barcelona

Sant Quirze del Valles
Barcelona España
Ph. +34.(0)9.37.84.77.75
Fax [phone]
[e-mail]

Nice Polska

Pruszków Polska
Ph. +48.(022).759.40.00
Fax [phone]
[e-mail]

Nice Portugal

Mem Martins Portugal
Ph. +351.21.922.82.10
Fax [phone]
[e-mail]

Nice Romania

Cluj Napoca Romania
Ph./Fax [phone]
[e-mail]

Codice: IST228R01.4851 - Rev. 00 del 18 - 04 - 2008
