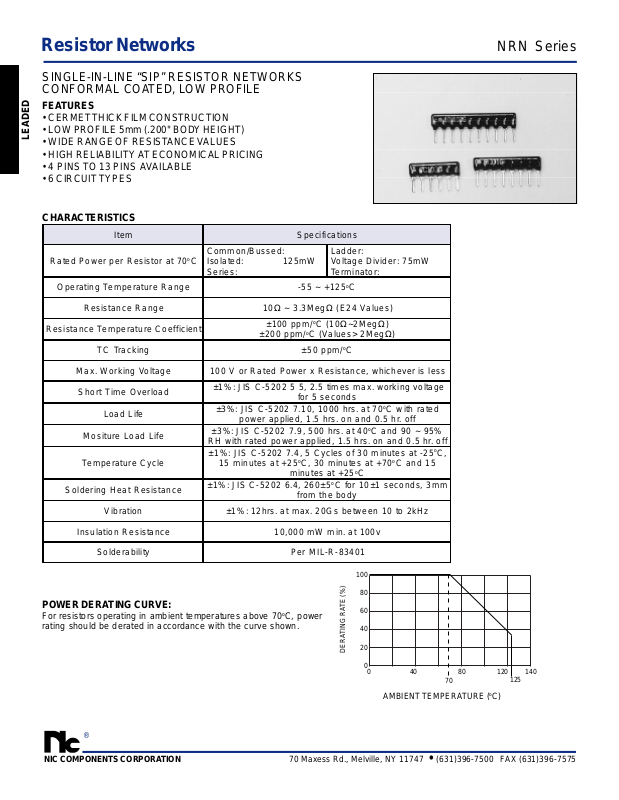

Resistor Networks
SINGLE-IN-LINE “SIP” RESISTOR NETWORKS
CONFORMAL COATED, LOW PROFILE
FEATURES
• CERMET THICK FILM CONSTR UCTION
• LOW PROFILE 5mm (.200" BODY HEIGHT)
LEADED
• WIDE RANGE OF RESIST ANCE V ALUES
• HIGH RELIABILITY A T ECONOMICAL PRICING
• 4 PINS TO 13 PINS AVAILABLE
• 6 CIRCUIT TYPES
CHARACTERISTICS
Item Specifications
Comm on/Bussed:
o
C
Rated Power per Resistor at 70
Operating Temperature Range -55 ~ +125
Resistance R ange 10Ω ~ 3.3MegΩ (E24 Values)
Resistance Temperature Coefficient
TC Tracking ±50 ppm/
Isolated: 125mW
Series:
±100 ppm/
±200 ppm/
Ladder:
Voltage Divider: 75mW
Terminator:
o
C
o
C (10Ω~2MegΩ)
o
C (Values> 2MegΩ )
o
C
NRN Series
Max. Working Voltage 100 V or Rated Power x Resistance, whichever is less
Short Time Overload
Load Life
Mositure Load Life
Temperature Cycle
±1%: JIS C -5202 5 5, 2.5 times max. working voltage
for 5 seconds
±3%: JIS C-5202 7.10, 1000 hrs. at 70
power applied, 1.5 hrs. on and 0.5 hr. off
±3%: JIS C-5202 7.9, 500 hrs. at 40
RH with rated power applied, 1.5 hrs. on and 0.5 hr. off
±1%: JIS C-5202 7.4, 5 Cycles of 30 minutes at -25
15 minutes at +25
o
C, 30 minutes at +70oC and 15
minutes at +25
Soldering H eat Resistance
±1%: JIS C-5202 6.4, 260±5
from the body
Vibration ±1%: 12hrs. at m ax. 20Gs between 10 to 2kHz
Insulation Resistance 10,000 mW min. at 100v
So lde ra bility Per M IL -R -83401
POWER DERA TING CUR VE:
For resistors operating in ambient temperatures above 70oC, power
rating should be derated in accordance with the curve shown.
o
C w ith rat ed
o
C and 90 ~ 95%
o
C
o
C for 10±1 seconds, 3mm
100
80
60
40
20
DERA TING RA TE (%)
0
0
40
AMBIENT TEMPERA TURE (oC)
o
C,
80
70
120 140
125
®
NIC COMPONENTS CORPORATION 70 Maxess Rd., Melville, NY 11747 • (631)396-7500 FAX (631)396-7575
Page 2
Resistor Networks
NRN Series
DIMENSIONS (mm)
0.50
±0.1
1
➛➛
➛
➛➛
➛➛
➛
➛➛
2
3 4
➛➛
➛
➛➛
➛➛
➛
➛➛
Max.
5 6 7
2.54
±0.1
L
➛➛
➛
➛➛
➛➛
➛
➛➛
1.2 max.
➛➛
➛
➛➛
➛➛
➛
➛➛
MAX
➛➛
➛➛
➛
5.08 max.
➛
➛➛
➛➛
➛➛
➛➛
➛
3.18 +.640
➛
➛➛
➛➛
-.000
➛➛
➛
➛➛
➛➛
➛
➛➛
➛➛
2.54 max.
➛
➛➛
0.25 ±0.1
➛➛
➛
➛➛
ST ANDARD CIRCUITS
Fig. 1: BUSSED/COMMON CIRCUIT Fig. 2: ISOLA TED/INDEPENDENT CIRCUIT Fig. 3: SERIES CIRCUIT
Fig. 4: LADDER CIRCUIT Fig. 5: VOLTAGE DIVIDER CIRCUIT Fig. 6: TERMINATION CIRCUIT
No. of PI NS L max
4 10.2
5 12.7
6 15.3
7 17.8
8 20.4
9 22.9
10 25.4
11 28.0
12 30.5
13 33.1
LEADED
R
2R R 2R R 2R R 2R R 2R R 2R
PART NUMBERING SYSTEM
NRN
Part Marking Includes:
1.) Number of PINS.
2.) Circuit Type: "1" or "C" = Common/Bussed
3.) Resistance Value (in ohms).
4.) Resistance Tolerance: "G" = ±2%
10
No. of PINS
Series
"2" or "I" = Isolated
®
104
C
Resistance in ohms first 2 digits are significant, third
is no. of zeros, “R” indicates decimal under 10 ohms
Circuit Type: C = Bussed/Common, I = Isolated
"J" = ±5%
R
R2 R R2 R R2 R R2 R R2 R R2
G
XX
T .C. Option
Tolerance Code: G = ±2%, J = ±5%
S = Series, V = Voltage Divider,
T erminator Code = See chart, Ladder Code = See chart
Ladder Code R/2R
LA 10K/20K
LB 25K/50K
LC 50K/100K
LD 100K/200K
LS Special
R1 R1 R1 R1 R1
R2 R2 R2 R2 R2
Terminator Code R1/R2
TA 160/240
TB 180/390
TC 220/270
TD 220/330
TE 330/390
TF 330/470
TG 330/680
TH 1.5K/3.3K
TI 3.0K/6.2K
TS Special
R1
R2
