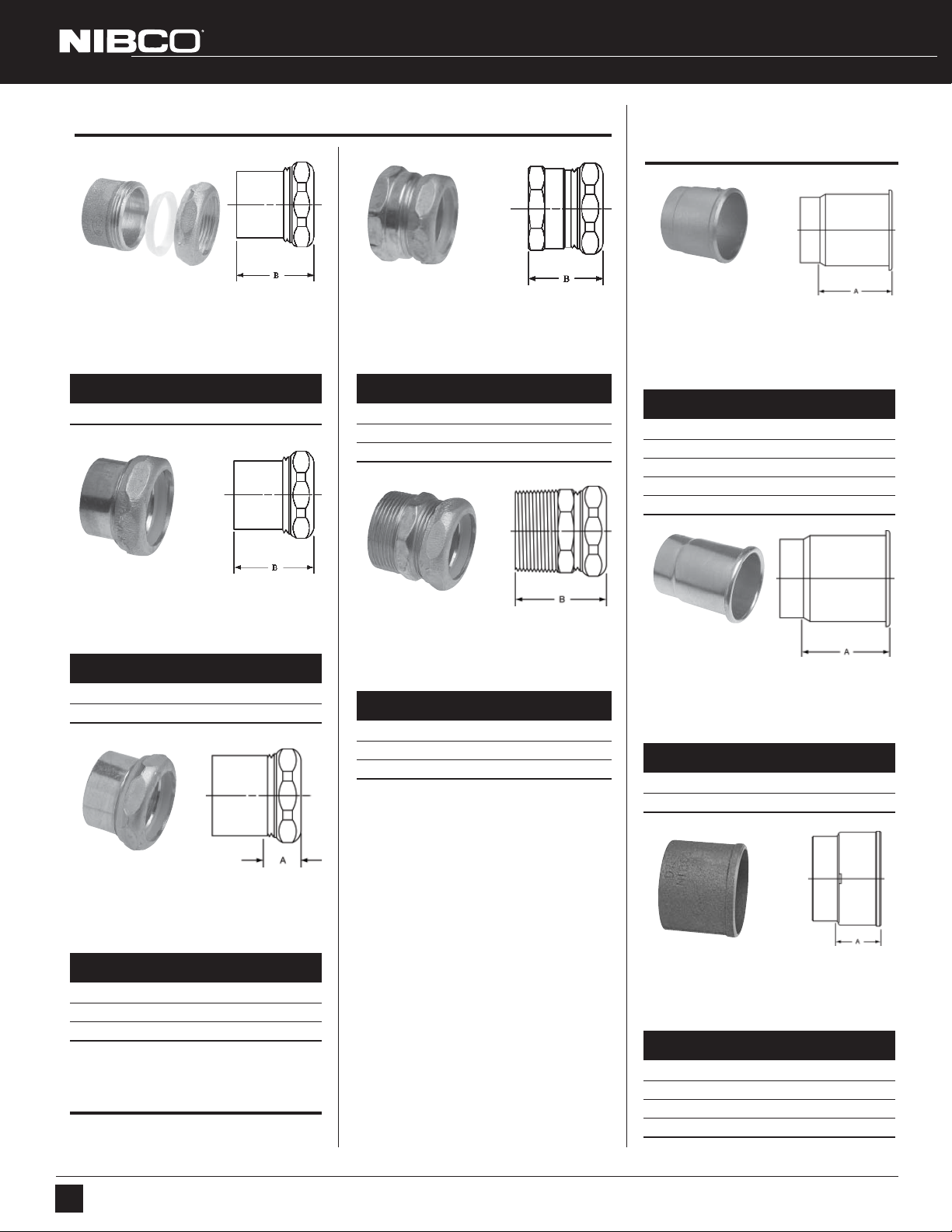

AHEAD OF THE FLOW
®
Revision 5/1/08
www.nibco.com
ADAPTERS – SLIP JOINT
801-2-7
DWV Fitting Trap Adapter
Ftg x SJ – Cast
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/4 x 1 1/4 O.D. 0.25 119/32
903-7
DWV Trap Adapter
F x SJ – Wrot
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/4 x 1 1/4 O.D. 0.32 17/16
1 1/2 x 1 1/2 O.D. 0.42 17/16
1 1/2 x 1 1/4 O.D. 0.43 119/32
ADAPTERS –
SOIL PIPE
805
DWV Soil Pipe Adapter
C x Spigot – Cast
Joins copper tube to cast iron soil pipes.
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/4 x 2 0.93 39/32
2 x 4 2.52 37/8
3 1.56 23/4
3 x 4 2.78 313/16
4 2.23 3
901-2-7
DWV Fitting Trap Adapter
Ftg x SJ – Wrot
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/2 x 1 1/2 O.D. 0.29 17/16
1 1/2 x 1 1/4 O.D. 0.24 17/16
901-7
DWV Trap Adapter
C x SJ – Wrot
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/4 x 1 1/4 O.D. 0.21
1 1/2 x 1 1/2 O.D. 0.27
1 1/2 x 1 1/4 O.D. 0.24
Consult price sheet for Made to Order items and
for minimum order quantities.
21
/32
3
/4
7
/8
904-7
DWV Trap Adapter
M x SJ – Wrot
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/4 x 1 1/4 O.D. 0.41 13/4
1 1/2 x 1 1/2 O.D. 0.51 125/32
1 1/2 x 1 1/4 O.D. 0.49 129/32
905
DWV Soil Pipe Adapter
C x Spigot – Wrot
Joins copper tube to cast iron soil pipes.
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/2 x 2 0.60 37/16
2 0.44 29/16
805-N
DWV No Hub Soil Pipe Adapter
C x No Hub – Cast
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/2 x 2 0.42 17/32
2 0.40 13/16
3 0.75 13/16
4 1.23 17/32
28
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.234.0557 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455
www.nibco.com
Page 2

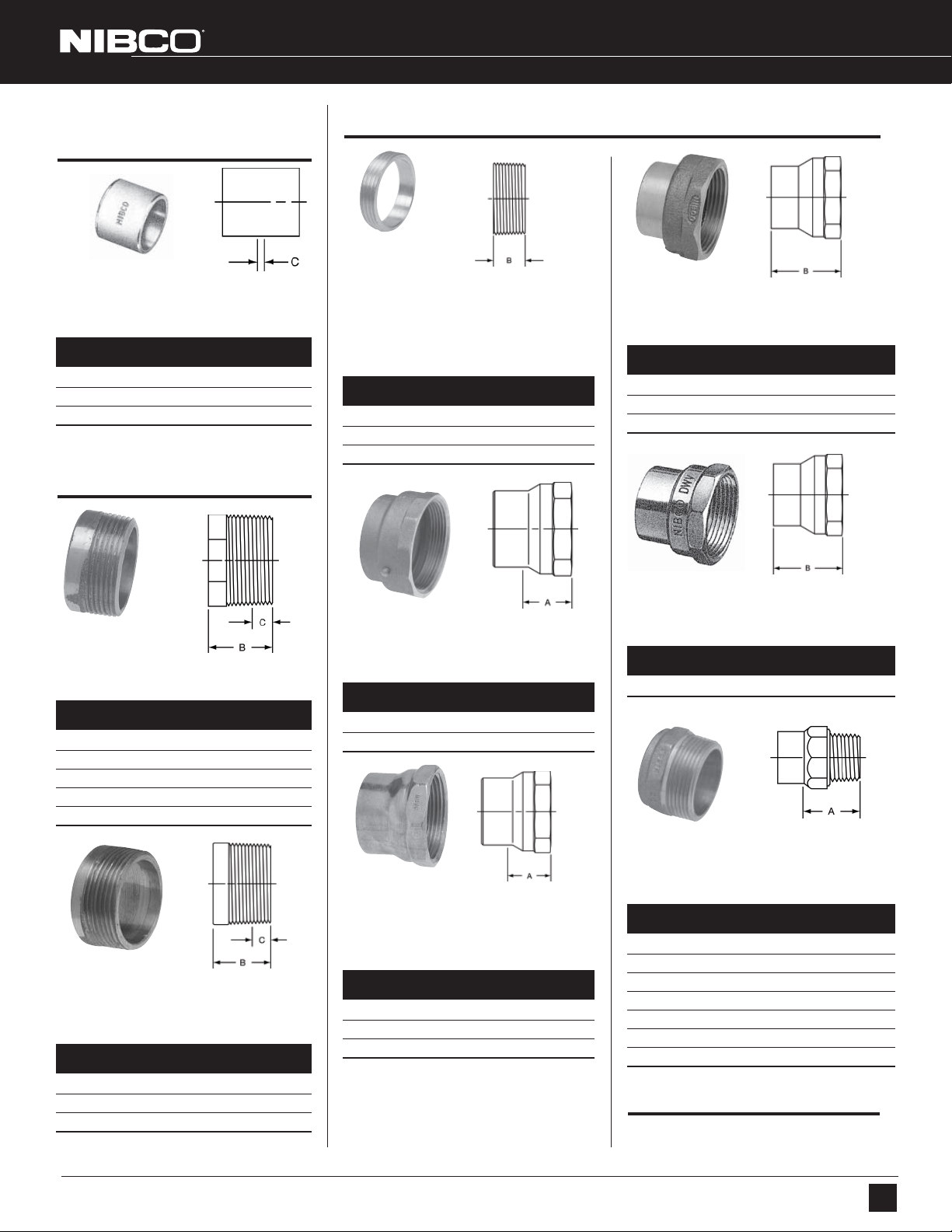

AHEAD OF THE FLOW
®
Revision 5/1/08
www.nibco.com
ADAPTERS –
SPECIAL LEAD
801-T
DWV Trap Adapter
C x O.D. Tube – Cast
APPROX. DIM. C
NOM. SIZE NET WT./LBS. INCHES
1 1/4 x 1 1/4 O.D. 0.21
1 1/2 x 1 1/2 O.D. 0.22
1 1/2 x 1 1/4 O.D. 0.20
1
/8
7
/32
9
/32
ADAPTERS –
THREADED
ADAPTERS – THREADED
802-F
DWV Threaded Piece
C x M – Cast
Makes slip joint connection when soldered to the
end of tube and slip joint nut and washer added.
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/4 0.05
1 1/2 0.05
2 0.05
3
/8
3
/8
3
/8
continued
803-2
DWV Fitting Adapter
Ftg x F – Cast
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/2 0.39 115/32
2 0.56 119/32
3 1.44 27/32
802
DWV Adapter
C x M – Cast
APPROX. DIM. B DIM. C
NOM. SIZE NET WT./LBS. INCHES INCHES
1 1/4 0.23
1 1/4 x 1 1/2 0.41 1
1 1/2 0.25 1 7/16
2 0.33 11/16
3 0.92 11/2
15
/16
7
/16
1
/2
7
/16
3
/4
802-C
DWV Flush Adapter
C x M – Cast
APPROX. DIM. B DIM. C
NOM. SIZE NET WT./LBS. INCHES INCHES
1 1/4 0.16
1 1/2 0.20
2 0.23 11/16
15
15
/16
/16
7
/16
9
/16
5
/8
803
DWV Adapter
C x F – Cast
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
3 1.45 113/32
4 2.31 117/32
903
DWV Adapter
C x F – Wrot
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/4 0.19
1 1/2 0.25
2 0.41 1
27
/32
29
/32
903-2
DWV Fitting Adapter
Ftg x F – Wrot
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/4 0.19 117/32
804
DWV Adapter
C x M – Cast
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/2 0.34 13/64
1 1/2 x 2 0.55 15/16
1 1/2 x 1 1/4 0.31
2 0.43
2 x 1 1/2 0.52
3 1.35 125/32
4 2.59 21/32
Consult price sheet for Made to Order items and
for minimum order quantities.
27
/32
7
/8
15
/16
NIBCO INC. WORLD HEADQUARTERS • 1516 MIDDLEBURY ST. • ELKHART, IN 46516-4740 • USA • PH: 1.800.234.0227
TECH SERVICES PH: 1.888.446.4226 • FAX: 1.888.234.0557 • INTERNATIONAL OFFICE PH: +1.574.295.3327 • FAX: +1.574.295.3455
www.nibco.com
29
Page 3

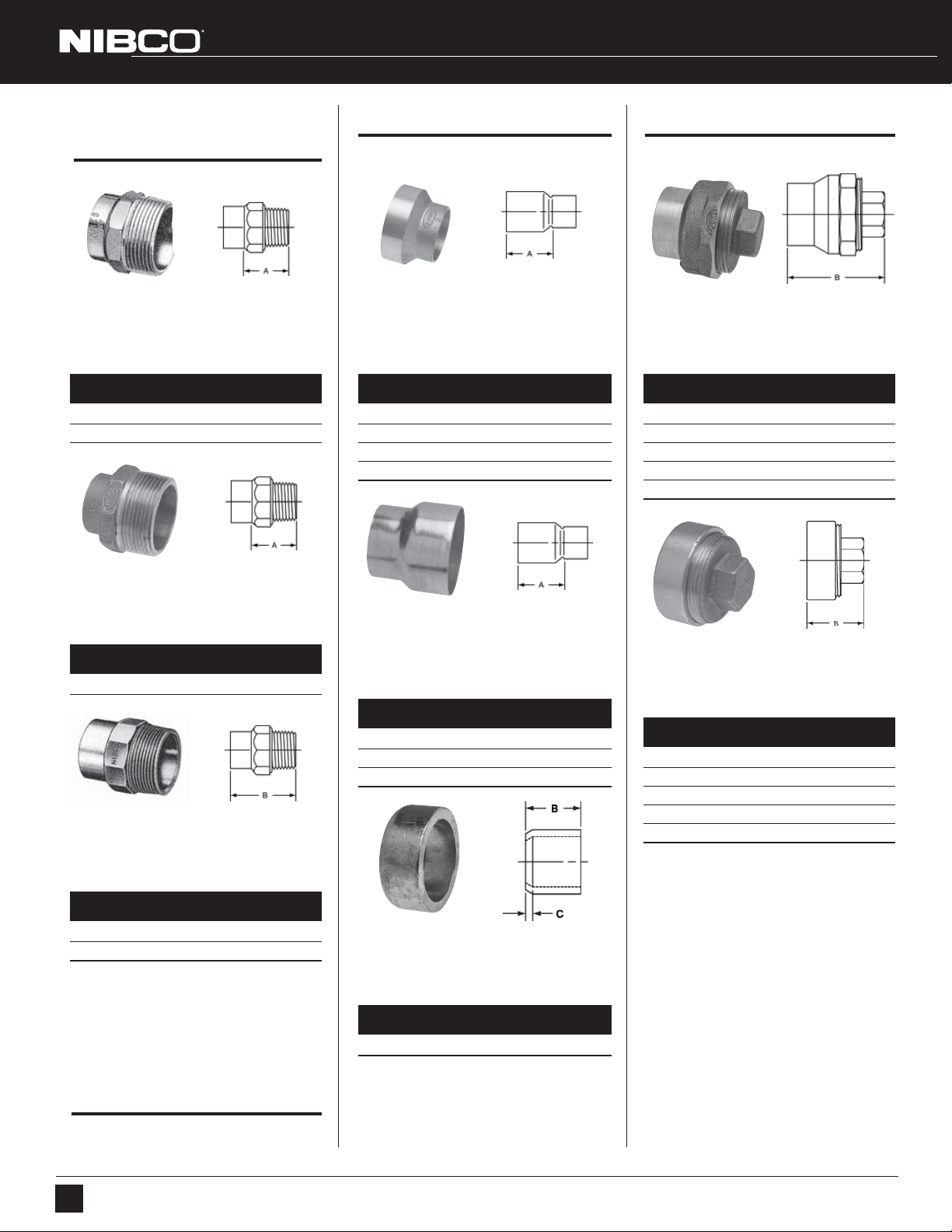

AHEAD OF THE FLOW
ADAPTERS –
THREADED
continued
®
www.nibco.com
BUSHINGS CLEANOUTS
Revision 5/1/08
904
DWV Adapter
C x M – Wrot
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/4 0.30 13/32
1 1/4 x 1 1/2 0.37 13/16
804-T
DWV Trap Adapter
O.D. Tube x M – Cast
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/4 O.D. x 1 1/2 0.44 19/32
804-2
DWV Fitting Adapter
Ftg x M – Cast
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/2 0.50 115/16
2 0.71 21/32
801-2
DWV External Bushing
Ftg x C – Cast
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
3 x 2 0.61 111/32
3 x 1 1/2 0.60 15/16
4 x 3 1.12 121/32
4 x 2 1.16 13/4
901-2
DWV External Bushing
Ftg x C – Wrot
APPROX. DIM. A
NOM. SIZE NET WT./LBS. INCHES
1 1/2 x 1 1/4 0.13 1
2 x 1 1/2 0.19 1
2 x 1 1/4 0.19 13/8
7
/32
901-2-F
DWV Fitting Flush Bushing
Ftg x C – Wrot
APPROX. DIM. B DIM. C
NOM. SIZE NET WT./LBS. INCHES INCHES
2 x 1 1/2 0.37
13
/16
1
/8
816
DWV Fitting Cleanout
Ftg x Cleanout w/Plug – Cast
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/4 0.49 25/32
1 1/2 0.60 21/4
2 0.87 23/8
3 2.37 39/32
4 3.99 35/8
816-S
DWV Flush Fitting Cleanout
Ftg x Cleanout w/Plug – Cast
APPROX. DIM. B
NOM. SIZE NET WT./LBS. INCHES
1 1/4 x 3/4 0.20 15/32
1 1/2 x 1 0.29 11/16
2 x 1 1/2 0.42 17/32
3 x 2 1/2 0.96 113/16
4 x 3 2.25 21/8
Consult price sheet for Made to Order items and
for minimum order quantities.
