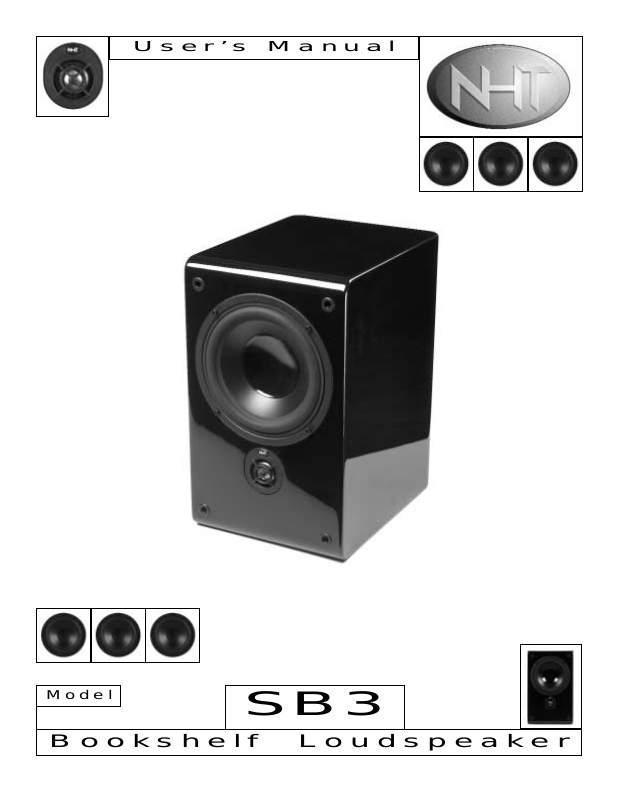

SB3
Bookshelf Loudspeaker
User’s Manual
Model
also may add "boom." Placing them farther away tends
to decrease bass output, but can give tighter imaging.
Room furnishings also play an important role. Soft
furnishings (sofas, carpets and curtains) absorb
midrange and high frequencies, potentially dulling the
sound, while hard surfaces and emptier rooms brighten it.
Experimenting with the effects of different placements in
your own listening/viewing room is the key to finding the
sound you like best.
Placement Tips
Ideally, you'll usually get the best sound when your
speakers are:
• 1.5 times as far away from you as from each other
• L and R speakers are equidistant from the listener
• both at the same height (tweeters close to ear level)
Note: the SB3 is not designed to be oriented on it’s side.
Once you've placed them, finish by moving them around
so that they're:
• Near the front edge of shelves and cabinets
• Greater than 1 foot from back walls, 2½ feet from side
walls, if on stands
• Pointing inward a bit toward your ears
Taking these steps -- all shown in Figure 1 -- will give you
the smoothest response, and put you right in the center
of the stereo image at its most well-defined point.
For five-channel music and home theater systems, use
the same basic setup -- all shown in Figure 2 -- and when
possible, set up the system so that:
• The center speaker is right above or below the TV
• The rear speakers are in an equilateral triangle with the
listening position, the speakers at least 5 feet apart
• The rear speakers are at the same height or slightly
higher than the fronts
Thank you for your purchase of the NHT SB3
Super Bookshelf loudspeaker.
Like all NHT loudspeakers, the SB3's development has
been guided by the study of human hearing, its design
rigorously tested, and its components optimized to
deliver clean, clear musical sound.
Since the quality of your speakers is one of the most
important factors in maximizing the sound you'll get from
your music and home theater system, we're sure that
you'll find your purchase of the SB3 a good investment,
and invite your comments.
If you find your experience with SB3 speakers as
satisfying as we believe you will, and wish to expand into
a larger surround system, you'll find specifications for
their sonically matched companions on the back of this
manual.
Background
The Model SB3, based on our newest generation of
bookshelf speaker technology, is a diminutive two-way
system offering a detailed level of clarity in the mid and
high frequency ranges and a broad three-dimensional
soundstage.
Its acoustic suspension design offers remarkably deep
bass response down to 39Hz, eliminating the necessity
of a subwoofer in many systems. The SB3 also features
NHT's proprietary tweeter technology, which employs a
neodymium magnet tweeter, which can be placed far
closer to the woofer, improving sonic coherence and
overall frequency response. And attached to the rear of
the tweeter is a massive heat sink, which both improves
power handling and strengthens the cabinet to minimize
resonance.
The result of these design enhancements is a compact
system that not only reproduces recorded music with
superb frequency response and remarkable accuracy,
but also offers startling realism with video soundtracks.
Please take a few minutes to read through this owner's
manual before setting up your speakers; this information
will help you get the most out of them. Also, please keep
the SB3's packaging to use in case you move or
transport them.
If you have questions at any time during setup or use,
feel free to call your NHT dealer or our Toll-Free
Customer Hotline at 1-800-NHT-9993.
Placement
The SB3's compact size of allows them to be used in
virtually any (indoor only) placement: on shelves, on
cabinets, on speaker stands, or mounted on walls (see
Placement Accessories, below).
Please remember that small changes in speaker position
can have a significant effect on sound: moving speakers
nearer to walls or corners will increase bass output, but
Fig. 1
In many situations, it won't be possible to place the rear
speakers in their ideal positions. If this is the case in
your room, try to place the rear speakers equidistant
from the center of the main seating area. If you must
place the rear speakers close to the main seating area,
position them so that they are above the ear height of the
tallest listener, and toe them in so that imaginary lines
coming from the center of each speaker cross in front of
the main seating area. You can add time delay to the
rear channels with your surround sound processor to
make the rear speakers seem farther from the seating
area than your room setup will allow.
Placement Accessories
Sometimes, current furniture and where it's placed won't
allow the speaker placement you prefer. Two quick ways
around this are to use speaker stands, or to mount them
on walls.
NHT offers a stand - the Last Stand - specifically
matched for the SB3, available through your NHT Dealer.
The SB3 has threaded inserts for wall mounting. You
may use the Omnimount Systems model ST-MP 50. To
use this bracket, you must purchase two ¼"-20 x 5/8"
pan head machine screws per loudspeaker. For more
information visit the Omnimount Systems web site at
www.omnimount.com or call them at 1-800-668-6848.
Connections
Before connecting your SB3 loudspeakers to your
system, turn off the power to your amplifier / receiver to
avoid damaging the components or the speakers.
First, please take a look at the five-way binding posts on
the back of your speakers. They'll accept raw wire,
banana plugs or spade plugs. Note that posts should be
tightened by hand, since pliers can strip or break them.
Next, choose your speaker wires. Like all wires,
speaker wires are rated by a guage number representing
how many fit in an inch-thick tube, so the numbers
getting smaller as the wire gets thicker. Thicker wires
transmit more signal easily; we recommend 16-guage for
shorter runs, and thicker for runs longer than ten feet
(your authorized NHT dealer can help with wire). Equal
lengths of wire for all speakers is ideal, but not
absolutely necessary.
Prepare the wires by stripping 1/4" to 3/8" of insulation
from the ends and, if the wire is stranded rather than
solid, tightly twisting the exposed wire strands.
Finally, connect your speakers to your amplifier or
receiver, connecting all conductors "in-phase;" that is,
the same half of the wire-pair to the positive / red
amplifier terminal and the positive /red speaker terminal.
Similarly, connect black outputs and inputs. If you have
trouble following which wire half is which, look closely,
and you'll see that your speaker wires have some sort of
marking -- lettering, ridges, or color difference -- to help.
Before powering up your amplifier or receiver, separate
different kinds of cables to minimize noise. Keep
speaker wires at the maximum practical distance from
line-level, digital, and power cables, and if they must
cross, keep them at right angles.
Operation
The NHT SB3's are compatible with virtually all quality
amplifiers, and are designed to handle a wide range of
listening levels.
Every speaker, however, has limits, and it's important to
listen for them. Speaker damage most often results not
from brief loud musical peaks, but from sustained high
volume levels in some or all frequencies. For this
reason, extreme volume settings and excessive bass,
treble or equalizer boosts are not recommended.
If you hear unusual distortion or breakup, or notice heat
coming from either your woofer or tweeter, decrease
volume immediately, neutralize any excess bass, treble
or equalizer boosts, and avoid setting any controls to
similar extremes again.
Maintenance
Your speakers require no or minimal maintenance under
normal use, as long as you avoid exposing them to direct
sunlight, high temperatures, or moisture. Clean
cabinets, when necessary, using a damp cloth or a mild,
non-abrasive cleaner; to clean grilles, remove from
speaker and use a soft brush or a vacuum on its lowest
setting. Do not attempt to clean the actual drivers.
Satisfaction
Your satisfaction with your new NHT SB3 loudspeakers
is important to us. Please note the matched products
and accessories we provide for them, and your warranty,
printed on the back of this manual. And again, if you
have any questions regarding your speakers' use, feel
free to call NHT at 1-800-NHT-9993. Enjoy your
listening and viewing!
Fig. 2
REV 6-02
Limited Warranty
Valid Only in the U.S.A.
Warranty Period
For a period of 5 years for parts and 5 years for labor (1 year parts and 90 days labor for electronics) from the date this
product is first purchased from an authorized NHT dealer, Now Hear This (NHT) warrants that if it fails to function properly due to a manufacturing defect, despite its being installed and operated according to these instructions and used
under normal conditions, it will be either replaced or repaired with new or rebuilt parts (both at NHT's option) with a unit
of comparable value without charge to you.
What's Not Covered
Altered, defaced or removed serial numbers void this warranty.
This warranty does not cover any product used in trade, business, industrial or commercial applications.
This warranty also does not cover the cabinet or appearance factors, or costs, defects or damage resulting from misuse, abuse, accident, improper maintenance, alterations or modifications not authorized in writing by NHT, or parts or
labor from any source other than an authorized NHT service location.
Damage due to power exposure in excess of the speaker's published power ratings; ie, overpowering, lightning or power
surges, are also not covered.
Your Rights
This warranty gives you specific legal rights, and you may have other rights which vary from state to state.
NHT limits this warranty to the purchase price of the product, excludes incidental or consequential damages, and limits
its obligations under any implied warranties under state laws to a period not exceeding their warranty periods. As some
states do not allow the above limitations, however, they may not apply to you.
To Obtain Service
NHT has appointed a number of authorized service companies throughout the USA who can provide warranty service
upon your presenting your sales receipt showing place and date of original owner's transaction.
To find the name and address of the nearest authorized NHT service location, call or write:
AB Tech Services, 17C Airport Drive, Hopedale, MA 01747. 1-800-225-9847
info@abtechservices.com
For your future convenience, please keep this warranty with your sales receipt, and record date and place of
purchase for further reference.
SB1 SB2 SB3 ST4 SC1
SW10
Specifications
System Type
Driver Complement
Tweeter-
Woofer-
Video Shielded Unless Noted
Response
Sensitivity
Impedance
Recommended
Amplifier Power
Weight
(each)
Dimensions
Finish
2-Way
Acoustic
Suspension
2-Way
Acoustic
Suspension
2-Way
Acoustic
Suspension
1” fluid cooled aluminum dome tweeter with neodymium magnet structure
3-Way
Acoustic
Suspension
5.25”
Polypropylene
Minimum
15 watts
Maximum
125 watts
Minimum
15 watts
Maximum
150 watts
Minimum
15 watts
Maximum
175 watts
Minimum
15 watts
Maximum
200 watts
Minimum
15 watts
Maximum
150 watts
68Hz - 22kHz
+/- 3dB
86dB / 2.83v 86dB / 2.83v 86dB / 2.83v 86dB / 2.83v 86dB / 2.83v
51Hz - 22kHz
+/- 3dB
39Hz - 22kHz
+/- 3dB
31Hz - 22kHz
+/- 3dB
78Hz - 22kHz
+/- 3dB
8 ohm nominal 8 ohm nominal 8 ohm nominal 8 ohm nominal 8 ohm nominal
6.75 x 6.25 x 10.25
8 lbs.
13 lbs. 16 lbs. 47.5 lbs. 11 lbs. 43 lbs.
8.75 x 7.5 x 11.85 10 x 8 x 13 12 x 8 x 38 6.63 x 16.54 x 5.63 14.5 x 14.5 x 14.5
White or Black
High Gloss Piano
Finish
White or Black
High Gloss Piano
Finish
Black
High Gloss Piano
Finish
Black
High Gloss Piano
Finish
Black
High Gloss Piano
Finish
Black
High Gloss Piano
Finish
6.5”
Polypropylene
6.5”
Polypropylene
(2) 4.5”
Polypropylene
10”
Polypropylene
(Not Video Shielded)
6.5” and 8”
Polypropylene
(8” Not Video Shielded)
2-Way
Acoustic
Suspension
Vented /
Powered - 150 watts
Class AB Amplifier
Length” x Width” x Height”
Super Series
Crossover
Frequency
2.6 KHz 2.7 KHz 2.4 KHz
135 Hz
2.6 KHz
2.3 KHz
All Super Series products are sonically matched for seamless integration into multichannel systems.
31Hz - 180Hz
+/- 3dB
Speaker level and line level high pass 100Hz
Continuously variable low pass: 40Hz -180Hz
Loading...
