To Our Customers
Thank you for purchasing a CNC Piranha FX/XL! Your Piranha FX/XL brings the speed and
precision of computer-controlled machinery to your shop with the top value CNC system.
This manual informs you about your CNC Piranha FX/XL system including how to operate and
how to maintain it. Please read the manual carefully. The manual also includes our warranty
and important safety information.
This manual has been written with the assumption that the owner is familiar with the basic
operation of a computer as well as the basic techniques for the safe operation of woodworking
power tools.
This manual is also written under the assumption the owner has spent time learning design
tutorials and projects on www.Vectric.com (the makers of the designing software that is
supplied with your machine) Please understand our support is designed around making sure
your machine is running correctly and the designing piece is really a personal preference and
complicated design questions should be first directed via email to support@vertic.com
Again, thank you for purchasing a CNC Piranha FX/XL. We are confident you will be pleased
with its performance and ability to carve and machine a wide variety of signs, doors, and other
projects. If you ever have any questions or comments, feel free to contact us at the address
below.
Next Wave Automation, LLC
600 w Boundary St.
Perrysburg, Ohio 43551 USA
www.NextWaveAutomation.com
For faster support service please email us at
Support Email – support@nextwaveautomation.com
Include your machine model, date of purchase, and any pertinent information you might think
would be helpful. Files, pictures etc.
Main Phone – (419) 318-4822
Sales Email – info@nextwaveautomation.com
April 2018
CNC Piranha FX/XL | 2
Serial Number and Software License Information
Record your CNC Piranha FX/XL Controller Interface and Vectric software user name and license
codes here for safe keeping. Your software may vary depending on the CNC Piranha FX/XL
model purchased.
Controller Serial Number: ____________________________________________
LCD Pendant Serial Number: ____________________________________________
VCarve User Name: ________________________________________________
VCarve License Code: ______________________________________________
April 2018
CNC Piranha FX/XL | 3
Table of Contents
To Our Customers ........................................................................................................................... 1
Serial Number and Software License Information ......................................................................... 2
Warranty ......................................................................................................................................... 3
Safety .............................................................................................................................................. 4
Emergency Stop........................................................................................................................... 4
CNC Piranha FX/XL Operations Safety Instructions .................................................................... 5
CNC Piranha FX/XL Hardware and Project Safety Instructions ................................................... 6
Overview ......................................................................................................................................... 8
General – The CNC Piranha FX/XL ............................................................................................... 8
Core Components ........................................................................................................................ 8
CNC Piranha FX/XL LCD Pendant ................................................................................................. 9
CNC Piranha FX/XL Assembly Instructions .................................................................................. 9
Registering your Piranha FX/XL ..................................................................................................... 12
Workflow Overview................................................................................................................... 14
Create the Design and Toolpath(s) ........................................................................................ 14
Operating your CNC Piranha FX/XL - Using the Pendant .......................................................... 15
Machining the Part ................................................................................................................ 15
Using the Touch Plate Accessory .............................................................................................. 18
Piranha XL Exclusive Features ................................................................................................... 20
CNC Piranha FX/XL Specifications ................................................................................................. 21
General .................................................................................................................................. 21
Rates and Accuracy ................................................................................................................ 21
Computer Requirements .............................................................................................................. 21
Installing the CNC Piranha FX/XL Post Processors in Vectric Products ......................................... 22
Warranty
Next Wave Automation warrants to the original retail purchaser of a CNC Piranha FX/XL
machine and purchased from an authorized CNC Piranha FX/XL machine distributor that the
CNC Piranha FX/XL and any Piranha FX/XL accessories purchased with the CNC Piranha FX/XL
machine will be free from defects in material and workmanship for ONE YEAR from the date of
purchase. This warranty is for parts and labor to correct the defect, and does not cover the cost
of shipping the defective item(s) to Next Wave Automation for repair.
April 2018
CNC Piranha FX/XL | 4
This warranty does not apply to defects arising from normal wear and tear, misuse, abuse,
negligence, accidents, unauthorized repair or alteration, or lack of maintenance. This warranty
is void if the CNC Piranha FX/XL machine or any portion of the CNC Piranha FX/XL machine is
modified without the prior written permission of Next Wave Automation, LLC, or if the CNC
Piranha FX/XL machine is located or has been used outside the country of residence of the
authorized CNC Piranha FX/XL machine distributor from whom the CNC Piranha FX/XL machine
was purchased.
Please contact Next Wave Automation to take advantage of this warranty. If Next Wave
Automation determines the CNC Piranha FX/XL machine or CNC Piranha FX/XL accessory is
defective in material or workmanship, and not due to normal wear and tear, misuse, abuse,
negligence, accidents, unauthorized repair or alteration, or lack of maintenance, then Next
Wave Automation will, at its expense and upon proof of purchase, send replacement parts to
the original retail purchaser necessary to cure the defect. Next Wave Automation will repair
the CNC Piranha FX/XL machine or CNC Piranha FX/XL accessory provided the necessary CNC
Piranha FX/XL machine component is returned to Next Wave Automation, shipping prepaid,
with proof of purchase and within the warranty period.
Next Wave Automation disclaims any and all other express or implied warranties, including
fitness for a particular purpose. Next Wave Automation shall not be liable for death, injuries to
persons or property, or incidental, consequential, contingent or special damages arising from
the use of the CNC Piranha FX/XL machine.
Safety
The CNC Piranha FX/XL, along with a router or other power tool, is a computer-numericallycontrolled (CNC) routing system. As such, it is a powerful system that can reduce your
woodworking risks by providing a method of cutting wood and other materials without having
to interact with the cutting tool(s) or material during the fabrication process. As with all power
tools, your care and attention are required to ensure that you use your CNC Piranha FX/XL
safely. Next Wave Automation assumes you will use your CNC Piranha FX/XL safely and follow
accepted safety precautions and practices for woodworking and machining.
Emergency Stop
There are 3 ways you can immediately stop your CNC Piranha FX/XL. CNC Piranha FX/XL users
should use a surge suppress power strip with an on/off switch.
The first is the E-STOP! button on the CNC Piranha FX/XL LCD Pendant when the unit is running.
April 2018
CNC Piranha FX/XL | 5
Pause or Stop on the Piranha FX/XL
The second is either the on/off switch on the CNC Piranha FX/XL
Power Button on Controller Interface
Hitting either will immediately stop the CNC Piranha FX/XL movement. This will also stop the
router if it is plugged into the Controller Interface. (only available on XL models)
Third is turning off the power strip; the power strip’s on/off switch serves the same purpose as
the E-Stop button on the Piranha FX/XL Controller Interface. For this reason, it is recommended
that you use power strips with an on/off switch.
Power Strip On/Off Switch
CNC Piranha FX/XL Operations Safety Instructions
1. Read and follow all safety and operating instructions before using the CNC Piranha FX/XL.
This includes reading the manual for the router that will be mounted on your CNC Piranha
FX/XL. Take the time to orient yourself to the Piranha FX/XL and the workflow steps.
April 2018
CNC Piranha FX/XL | 6
2. Take small steps early in use – this will enable you to use the Piranha FX/XL safely and
effectively. Practice each step a few times early on without running the router for example.
Again, this orientation process will help you to use the Piranha FX/XL safely and effectively.
3. Let the machine and router spindle come to a complete stop before touching parts. Ensure
that you have a positive system in place to make sure that power is not applied to the router or
the CNC Piranha FX/XL while positioning a work piece, adjusting the position of the tool,
changing a bit, or setting up clamps, hold downs, or jigs. We recommend unplugging the router
for bit changes.
4. Ensure that the material or work piece is firmly secured to the table. This includes
accounting for the attachment and hold down of any pieces that will become cutouts or cutoffs
during the machining process. Also be sure that all clamps, hold downs, and jigs are not in the
path of the cutter – and do not interfere with the movement of the gantry.
5. Always wear eye and ear protection while operating your CNC Piranha FX/XL.
6. Keep miscellaneous equipment off of the CNC Piranha FX/XL table and gantry. This includes
areas alongside the table where the gantry travels.
7. Never leave the CNC Piranha FX/XL unattended while it is running. A work piece slippage,
unexpected cutting error or other unexpected event might occur. This could result in injury as
well as damage to the CNC Piranha FX/XL.
8. Never attempt to remove chips, dust or debris from the machine while it is running with
your hands or fingers, or by placing a vacuum device into the field of operation – near the
cutter.
9. Position the LCD Pendant in a place that is easy for you to quickly reach, and out of the path
and travel direction of the tool. Chips and debris can travel a good distance, and cutters can
break during use.
10. Never attempt to manually adjust the work piece while the CNC Piranha FX/XL and router
are running. Do not attempt to manually feed a work piece ‘into’ a running cutter – this is not a
router table.
11. Keep the CNC Piranha FX/XL lubricated and clean. Clean the CNC Piranha FX/XL and area
after each use by vacuuming dust and lubricating with a Dry lube type spray.
CNC Piranha FX/XL Hardware and Project Safety Instructions
Your CNC Piranha FX/XL is comprised of a system – the CNC Piranha FX/XL, the Piranha FX/XL
Controller Interface, a computer, the software that prepares your design project and the
software that controls the Piranha FX/XL during operation.
April 2018
CNC Piranha FX/XL | 7
The Piranha FX/XL has 3 stepper motors, a Controller Interface, a LCD Pendant and/or an
optional computer connected to it. These are all precision electronic devices and are
susceptible to damage from power surges, static discharges, inappropriate power supply, and
other unexpected electrical events. It is recommended that the Controller Interface and your
computer be plugged into a surge protector to minimize the opportunity for damage to occur
as a result of a power surge. You may also want to use a dedicated electrical circuit for the CNC
Piranha FX/XL. Turning on a shopvac or other power tool on the same leg may cause a
momentary change in the power supplied to the CNC Piranha FX/XL. If you know that the
power you receive fluctuates significantly, you may also want to use a power conditioner and
battery backup device. This will ensure the longest life of your CNC Piranha FX/XL electronic
components. A minimal battery backup will enable you to gracefully stop the job in progress at
the time of the power loss, thus minimizing the possibility of damage to the CNC Piranha FX/XL,
electronics and router.
CNC Piranha FX/XL users are strongly encouraged to use a power strip with an on/off switch to
provide power to the Controller Interface and power supply. This provides a second means of
an emergency stop if needed.
The CNC Piranha FX/XL machine is not designed to work with fluids. The router is a ‘dry’ router.
Do not cut with any misting, cutter lubrication, or wet material as it may cause a fire.
Keep the LCD Pendant and the Controller Interface vents clear of dust, dirt, shavings and other
material.
Keep your CNC Piranha FX/XL away from any moisture and in a temperature range from 50o to
80o F.
With the unit turned off lightly vacuum the LCD Pendant and interface occasionally to remove
any particulate from the electronics. This will help to prevent additional heating inside the box
that could result in damage.
Do not expose the system to high humidity – this may cause condensation in the controller
interface or LCD Pendant which result in abnormal behavior.
You should not operate your CNC Piranha FX/XL machine during a thunderstorm unless you
have an appropriate surge protector in place to prevent circuits from being damaged by
excessive line voltage.
Keep static charges from discharging into the motors. If you think this may become an issue, a
grounding wire can be added to one bolt head of each of the motors.
It is also strongly recommended that you keep backup copies of all important computer data,
files and programs. These should be separate copies – stored on a different device than the
computer you are using to create the projects and run them on the CNC Piranha FX/XL.
April 2018
CNC Piranha FX/XL | 8
Overview
General – The CNC Piranha FX/XL
Bringing the speed and precision of computer-numerically-controlled machinery to your shop,
the CNC Piranha FX/XL is designed for routing all types of wood, routing or engraving plastics,
etching metal, and even etching or cutting tile. The CNC Piranha FX/XL has impressive power,
speed, accuracy and ease of use. The CNC Piranha FX/XL has a quality design and its parts have
been manufactured using CNC machines to ensure the highest accuracy. The CNC Piranha
FX/XL is constructed of steel, aluminum, and high-density polyethylene for a robust, long lasting
and high tolerance machine.
The CNC Piranha FX/XL comes with Vectric’s Desktop Vcarve software which will allow you to
bring in designs from a multitude of art or drawing programs.
Core Components
The core components of the CNC Piranha FX/XL are shown in the figure below.
CNC Piranha FX/XL Core Components
Overall
Machine
Dimensions
Work Table
Dimensions
Maximu
m Cutter
Travel
Work Table
Constructio
n
Maximum
Travel
Speed
X-axis
motor
Z-axis
motor
Gantry
Integrated
Control Box
Router
Carriage
Y-axis located
in back of base
Interlocking
T-track
Clamping base
April 2018
CNC Piranha FX/XL | 9
CNC Piranha FX/XL Specifications
CNC Piranha FX/XL LCD Pendant
The CNC Piranha FX/XL LCD Pendant stores the project’s tap file (instructions) on a flash drive
and controls the movement of the X, Y, and Z axis. The LCD Pendant is designed to be a
standalone unit so that it is no longer necessary to expose your computer to a dusty shop
environment. In the event, you wanted to run it from your computer the Controller Interface
may be connected using a USB cable plugged into a USB 2.0 capable plug. This will require you
to download and use the Piranha FX/XL Control Panel software is to communicate to the
Interface. Just like the LCD Pendant you can use this interface to jog (position) the gantry and
router, load a project (tap) file, and run the project.
CNC Piranha FX/XL Assembly Instructions
Unpack the CNC Piranha FX/XL machine and verify that all items are present.
• CNC Piranha FX/XL
CNC Piranha FX
X: 19.5” Y:
20.5”
Z: 18”
12" x 18"
X: 12"
Y: 13"
Z: 3"
T-Slotted
Extruded
Aluminum
100 ipm
CNC Piranha XL
X:19.5” Y: 30.5”
Z: 24”
12” x 30”
X:12”
Y:24”
Z: 4”
April 2018
CNC Piranha FX/XL | 10
• CNC Controller
• 15 pin LCD Pendant Cable
• Touch Screen Pendant
• Power Supply
• Power Cord
• 2 Hold Down Clamps
• Router ON/OFF Controller (Available Piranha XL Only)
Make sure when removing the CNC Piranha FX/XL from its box that you lift it from the base,
lifting it by the gantry or table can cause misalignment.
WARNING: The axis cable connectors should never be disconnected or re-connected while
there is power to the Controller Interface. Doing so can damage the stepper driver board
inside the Controller Interface.
Install Router into Router Base by loosening the hold down clamp and sliding the Router in until
the motor protrudes about 1 ½” below the clamp.
CNC Piranha FX/XL Router Mounting
Tighten all clamping bolts securely.
April 2018
CNC Piranha FX/XL | 11
Place the Controller Interface in a comfortable easy to access location and connect it to the CNC
Piranha FX/XL using the serial cable provided. The LCD Pendant gets its power from the
Controller Interface so no other power cords are needed. See image below.
CNC Piranha FX/XL Cable Connections
Applying power to the Controller Interface.
• Re-verify that all three axis drive cables are connected to their respective Controller
Interface leads. (should be labeled)
• You should arrange the drive motor cables, power cables, and USB cable in a manner
that minimizes overlap, even amongst cables of the same purpose. This will reduce any
opportunity for signal interference because of cables ‘laying on top of each other’.
• Plug the Piranha FX/XL Power Supply into a 120V AC wall outlet, power strip, or surge
protector. Once again, we recommend that a power strip with an on/off switch is used.
• You will also hear a slight bumping or clicking noise coming from each of the motors
when power is initially supplied. This noise is momentary, and will occur every time
power is applied to the Controller Interface.
The CNC Piranha FX/XL machine’s hardware is now completely setup and is ready for basic
operation testing. You must register and setup the CNC Piranha FX/XL software before you can
completely test your CNC Piranha FX/XL machine.
April 2018
CNC Piranha FX/XL | 12
Registering your Piranha FX/XL
Once you power up your CNC Piranha FX/XL, you will see a screen like the image below.
Press continue.
CNC Piranha FX/XL Welcome Screen
Next you will see your CNC Piranha FX/XL’s serial number, and firmware information. Record
this serial number into your manual on Page 2 then press OK.
CNC Piranha FX/XL Serial Number
April 2018
CNC Piranha FX/XL | 13
Please visit www.NextWaveAutomation.com to register your Piranha FX or XL. Once at the
home page, choose “Registration,” listed at the top of the page. Fill in the items that are
marked in red and then choose Save at the bottom. This will email an access code to the email
address provided in the registration form as well as display on your computer screen. (be sure
to check your spam box if you fail to see the code)
ATTN SCHOOLS: You will typically need to have administrator rights to register because of
school security restraints.
If you received a registration error message there are a couple things to try: assuming you have an
internet connection.
1.) Use a different browser and register again
2.) Use a different computer to register.
3.) Send tech support ALL the information from the form or a screen capture of the form and we can
generate a working access code for you.
If you received the success message and did not get a key code back in your email please try the
following:
1.) Check your trash and spam email folders.
2.) Register again but send to another email address
Always Visit http://help.nextwaveautomation.com/ for help with the latest issues.
April 2018
CNC Piranha FX/XL | 14
Workflow Overview
It is important to recognize that unlike other wood working and machining tools, you just don’t
walk up to the CNC Piranha FX/XL with your material, hit the power button, and start carving or
engraving your project. It is easiest to think of the workflow in two distinct components:
1. Create the design and toolpath (also called TAP file) - using VCarve.
2. Machining the part - using the Piranha FX/XL Control Panel, you will set your “Home
Location” then load the toolpath file and run the project (create your carving).
Create the Design and Toolpath(s)
VCarve is used to create the design of the part you want. It is a powerful user friendly program,
if you haven’t yet gone to www.vectric.com and watched their instructional tutorials on
designing you must do this first.
The VCarve projects are saved with the file extension ‘.crv’. This is not however the file you will
load onto the Piranha FX/XL to carve your design as VCarve does not directly control or operate
the Piranha FX/XL. This is commonly referred to as your ‘project file’ and can be opened and
edited at any time by using the VCarve software.
Once your design is ready, you will use VCarve to generate one or multiple toolpaths depending
on what you are trying to do to your project, profiles, drilling, carving etc. All require separate
toolpaths. (Complete directions on this are available at www.vectric.com) You select the design
component, the cutting tool you want to use and then generate the toolpath. A great feature is
that you can preview the outcome of that toolpath in VCarve and make changes before ever
cutting or wasting your material. Then using VCarve to save that toolpath, and selecting the
correct post processor (CNC Piranha post processor in post processor area of VCarve) it
automatically creates the g-code needed by converting into a .TAP file. Next save it onto a usb
thumb drive and directly load this into the Piranha FX/XL via the usb slot on the right side of the
pendant. The tap file contains the G-code instructions that will tell the Piranha FX/XL where to
move in X, Y, Z to make the appropriate cuts using the cutter tool selected. (G-code is the
common name for the computer numerical control (CNC) language used by the Piranha FX/XL.)
As we stated before the Piranha FX/XL can also run directly from your computer using the
Piranha Control Panel, for complete instructions on that visit the downloads tab on our
webpage www.nextwaveautomation.com. Under CNC Piranha
April 2018
CNC Piranha FX/XL | 15
Operating your CNC Piranha FX/XL - Using the Pendant
Machining the Part
The material to be machined is placed on the Piranha FX/XL work table and properly secured –
typically by using clamps. The proper cutter tool is placed in the router. Using the Piranha
FX/XL LCD Pendant Touch Screen, the tool is moved (jogged) to correspond with the starting
point of what you have designed, usually a corner or center of the work piece. Once you have it
in position you press the Zero xyz button, answer yes to reset zero and this becomes the
starting and stopping place for this project. (You can place your material anywhere on the table
and reset home in this manner)
Main Screen of CNC Piranha FX/XL
You can also move any axis by typing a measurement directly into the current location screen.
Pressing the location area will display the screen below.
Toggle any of the 3 Axis
Control Speed of
Toggle Movement
Set new Zero Home
here
Enter the desired
location using the
numeric keypad
Then press the
Move Button
April 2018
CNC Piranha FX/XL | 16
Next, plug the thumb drive containing the .tap file into the LCD Pendant using the usb port on
the right hand side of the Pendant.
The USB button will now become accessible, press it now.
Next select the appropriate tap file. (Tap files only allow 8 characters so be sure you have
unique identifying names )
April 2018
CNC Piranha FX/XL | 17
Next verify you have the correct file you are preparing to run, you can see file name, material
size, etc. If everything is correct press Next
At this point, all the steps necessary to run the toolpath have been taken. Next select the
‘Start’ button and the Piranha FX/XL will start to machine the part. You’ll notice you have
complete control to pause and resume should you need to check something (remember to turn
router off if your adjusting the work piece) The slide bar for speed override allows you to
compensate for things like denser material than what you had originally designed the program
for. And of course, the E-Stop in case you need to stop everything in a panic. (we don’t
recommend using the small x to stop the cutting as it can confuse the machine, it is only used
to back out to the previous page)
April 2018
CNC Piranha FX/XL | 18
Using the Touch Plate Accessory
The Touch Plate is an optional accessory available through Next Wave Automation or its
authorized distributors that can be used to obtain faster, more accurate setting of the z axis
zero.
Just plug it into the jack on the left side of CNC Piranha FX/XL Pendant.
Next press the App button and go to the Touch Plate Setup App.
Attach the magnet to the router bit collar and place the plate on top of the material directly
under the bit. Then Tap Press to Run and the CNC Piranha FX/XL will ask to perform a test as
below.

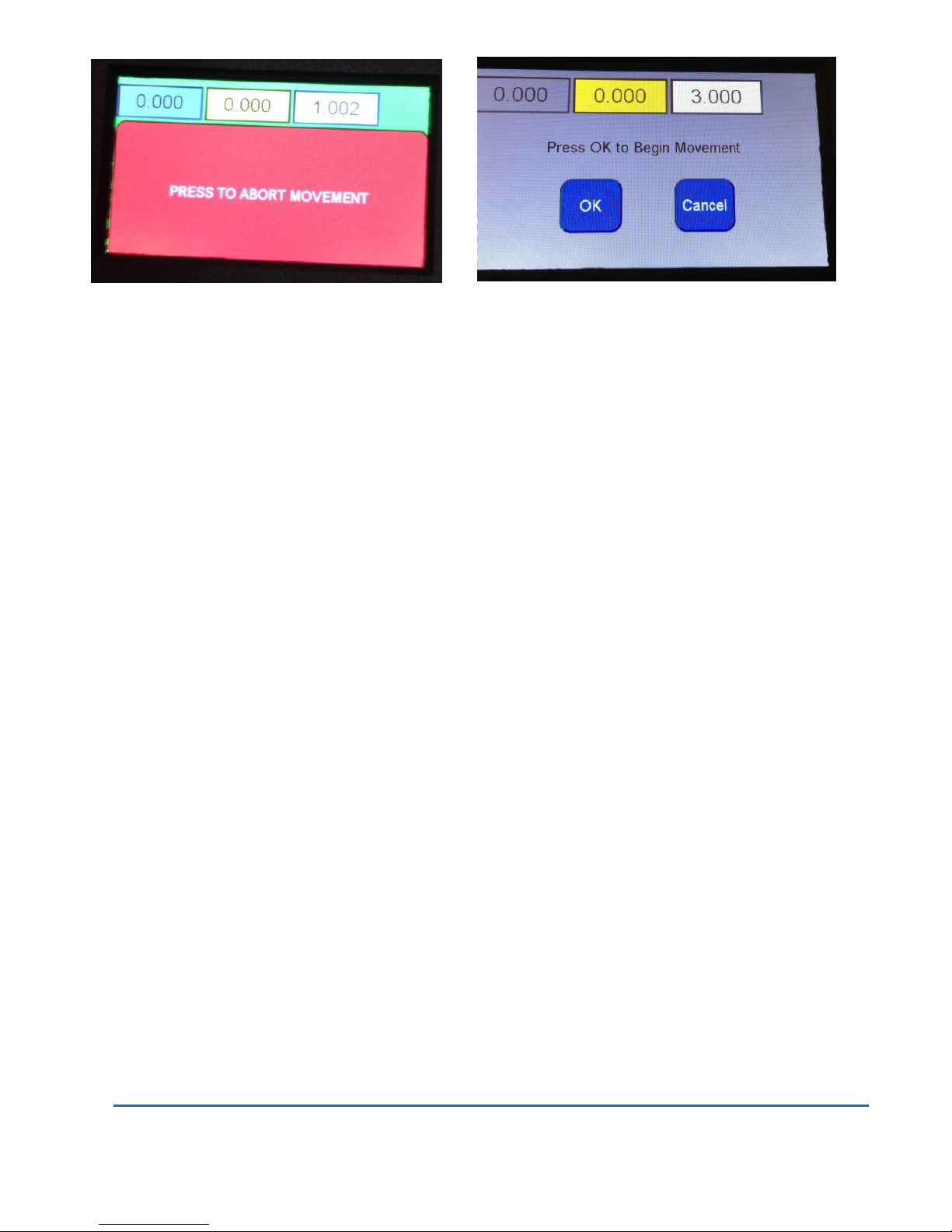

Raise the touch plate to enough to make momentary contact with the bit, the screen will turn
red and you may proceed. If the screen does not turn red, try repositioning the magnet and
repeat procedure. Once you make the proper contact press ok to begin movement.
April 2018
CNC Piranha FX/XL | 19
The CNC Piranha FX/XL will establish the zero/home position the instant the bit contacts the
touch plate. You can ABORT the process at any time by pressing the Abort Key.
Press OK to accept the results, thus giving you the exact height on your z axis.
NOTE: When working with the touch plate detection make sure you are placing the magnet in
the correct location to get the best reading. The magnet for the touch plate should be on the
bit to get the best reading but this is not always possible if you are using a solid carbide bit. If
you're placing the magnet to the collet and you're not using a high precision collet from Next
Wave made from stainless steel, you can have some inconsistencies in your readings. Most
router collets have an anodizing or oxidizing coating that will interfere with quick readings. So,
if you're doing very minute readings and need accurate numbers then we would recommend
slowing the touch plate detection speed down to 10 ipm which can be adjusted inside the touch
plate app. To adjust the speed for the touch plate go under the apps section on the LCD
Pendant(bottom button) find the touch plate app go into it then scroll down to the adjustment
selection and change it there.
.
April 2018
CNC Piranha FX/XL | 20
Piranha XL Exclusive Features
The Router Power Control Unit (RCPU) is one of the two additional plugs that attaches to the
back of the Piranha XL controller. The RPCU has a power outlet on it, specifically and only for
the router power cable. Do not use any other power cables in this outlet.
The other cable connection is for the Homing switches
Attaching cables to the back of the Piranha XL controller
Router Power
Control plug
Homing
switches
power plug
April 2018
CNC Piranha FX/XL | 21
CNC Piranha FX/XL Specifications
General
• Piranha FX Measurements
o Overall Machine Dimensions: X: 19.5” Y: 20.5” Z: 18”
o Work Table Dimensions: 12” X 18”
o Maximum Cutter Travel: X: 12” Y: 13” Z: 3”
• Piranha XL Measurements
o Overall Machine Dimensions: X: 19.5” Y: 30.5” Z:24”
o Work Table Dimensions: 12” x 30”
o Maximum Cutter Travel X:12” Y:24” Z: 4”
• Bearings: 12 precision linear bearing guides (4 on each axis) that maximize rigidity
• High power hybrid 1.8 degree stepper motors rated at 269 oz/in
• USB interface with on controller memory storage
• 24V power supply to provide full power to the stepper motors
• Precision lead screws with anti-backlash on all axis
• Work table – T-Slotted Extruded Aluminum
Rates and Accuracy
• Resolution: ~+/- 0.001 inch;
• Reproduction accuracy depends on the precision of the setup and alignment – but is in
the same range or better.
• High Speed Positioning (jogging) Rate: 120 ipm
Computer Requirements
The current minimum system requirements for running VCarve:
• 2 GHz Pentium 4
• 60 Mb Disk Space
• 2 Gb RAM
• 1024x768 graphics display
• DVD ROM drive
• USB 2.0
• Operating system: Windows 7, Windows 8, Windows 10
VCarve will run faster with a better processor and more memory than listed in the minimum
system requirements.
Other operating systems, for example iOS (Apple) and Linux, are not currently supported.
The computer used to connect to the Controller Interface must have a USB 2.0 port. The
Controller Interface will not work with a computer connected with a USB 1.0 or 1.1 port, or a
USB hub that is not powered.
April 2018
CNC Piranha FX/XL | 22
There is no requirement to run VCarve on the same computer as you use in the shop to connect
to the Piranha FX/XL Controller Interface.
Installing the CNC Piranha FX/XL Post Processors in Vectric Products
Vectric’s VCarve, Vcarve and Aspire should have the CNC Piranha FX/XL post processors
installed. However, Next Wave Automation periodically updates these, and you may want to
install the latest CNC Piranha FX/XL post processors. Additionally, older Vectric products may
not have the CNC Piranha FX/XL post processors installed so using the CNC Shark one will work
as well.
Currently, there are 2 sets of post processor files:
• One set is used with VCarve, Cut 3D, and Aspire
• One set is unique and used only with Photo VCarve
You can update the post processor used by any Vectric product by downloading the latest
version from the Downloads page and copying it to the Vectric product’s post processor folder.
The folder locations for each Vectric application are discussed below. In no case should you
attempt to download the post processor file directly from the Downloads page to the final
destination folder. You should copy the post processor file(s) to a known location – typically
somewhere in /My Documents – and then copy that file to its final destination.
FOR THE MOST RECENT MANUALS, DRIVERS, AND OTHER SOFTWARE, PLEASE VISIT THE
DOWNLOAD TAB AT
http://nextwaveautomation.com
Loading...
